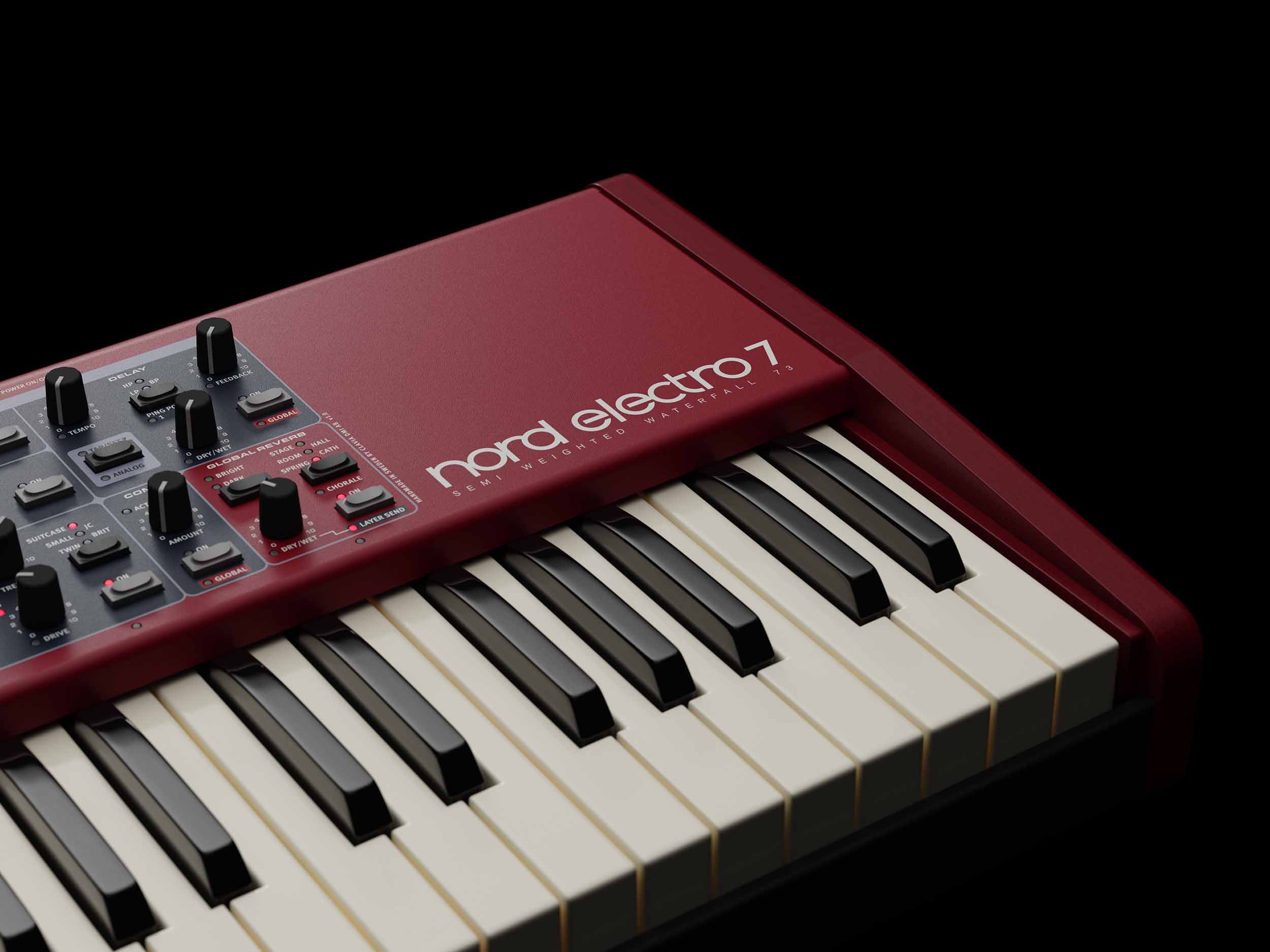

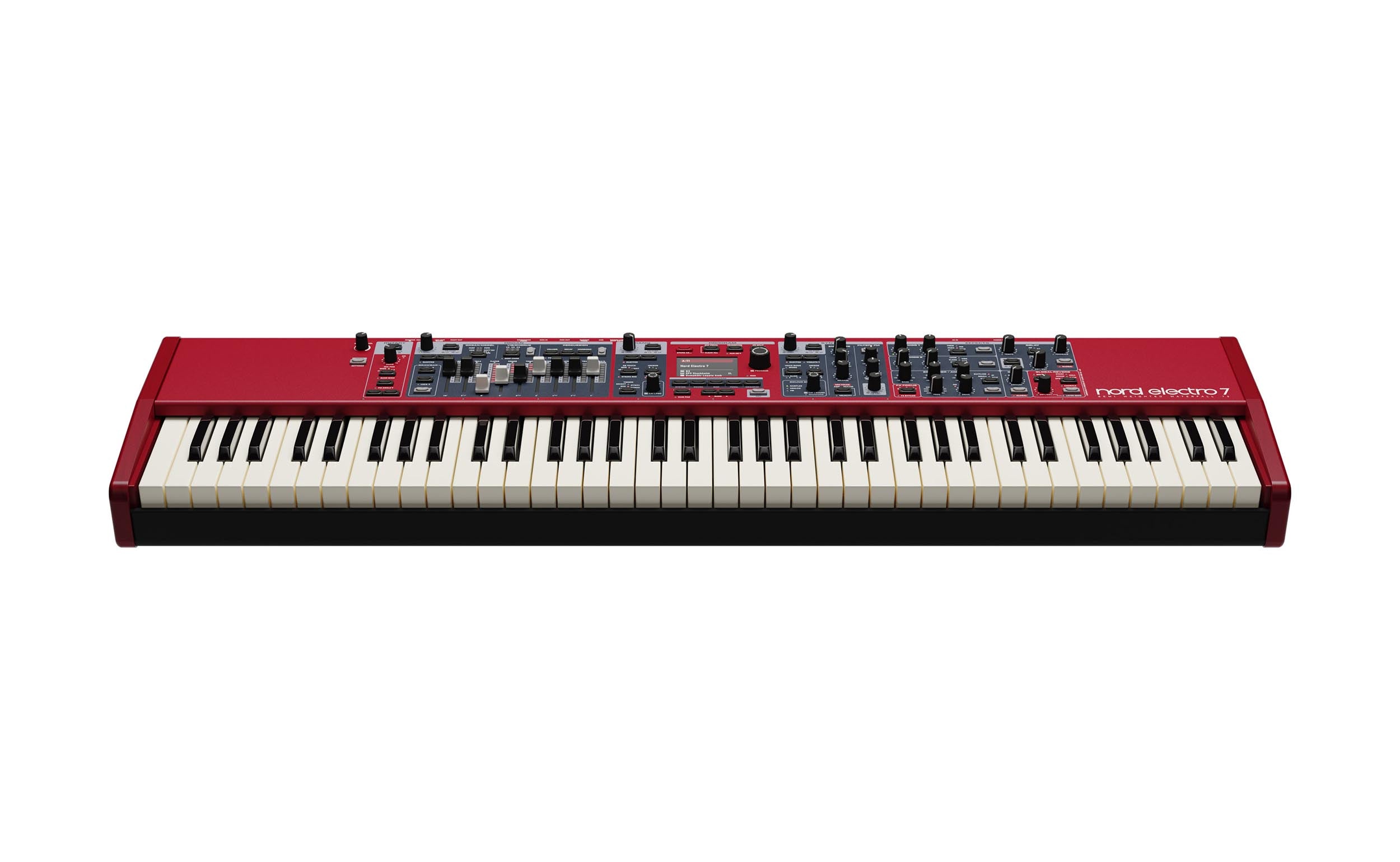

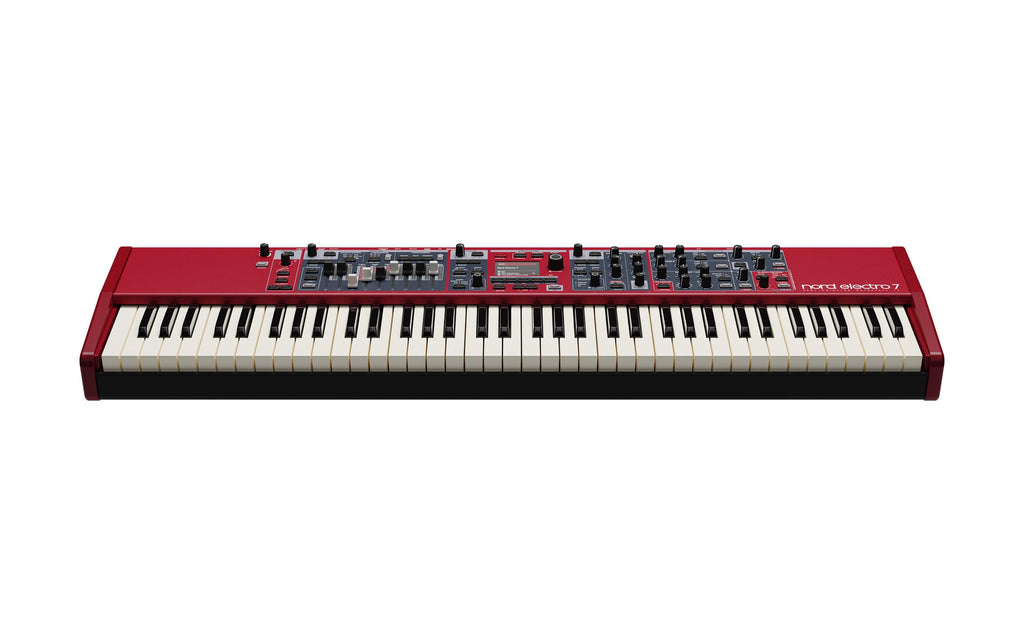

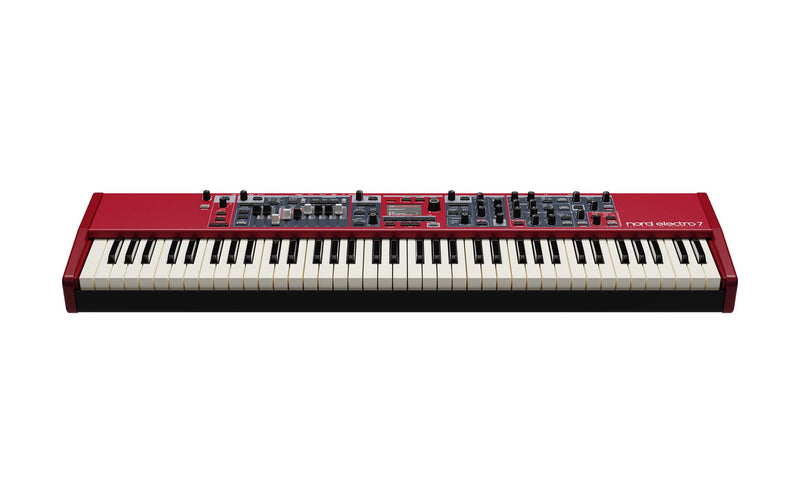

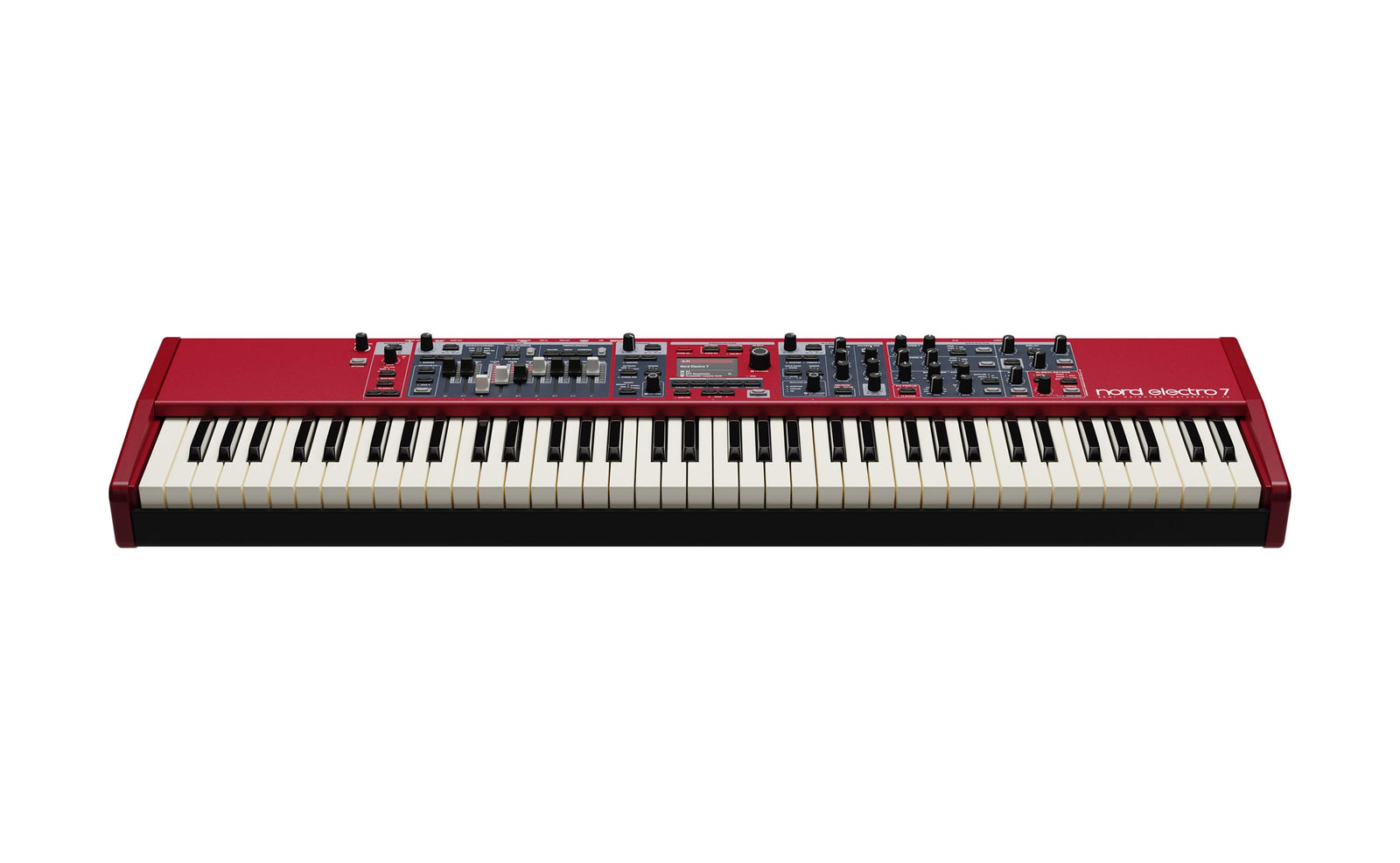

Nord Electro 7 73-Key Semi-Weighted Waterfall Keyboard with Organ, Piano and Synth Engines

The Nord Electro 7 73-Key Semi-Weighted Waterfall Keybed elevates the Electro series with a powerful new Synth Section, dedicated per-section effects and a refined panel design with a high-resolution color display. Combining our latest piano features with the Organ and Rotary Speaker from the acclaimed Nord Organ 3, the Nord Electro 7 offers exceptional versatility in a lightweight, stage-ready instrument.

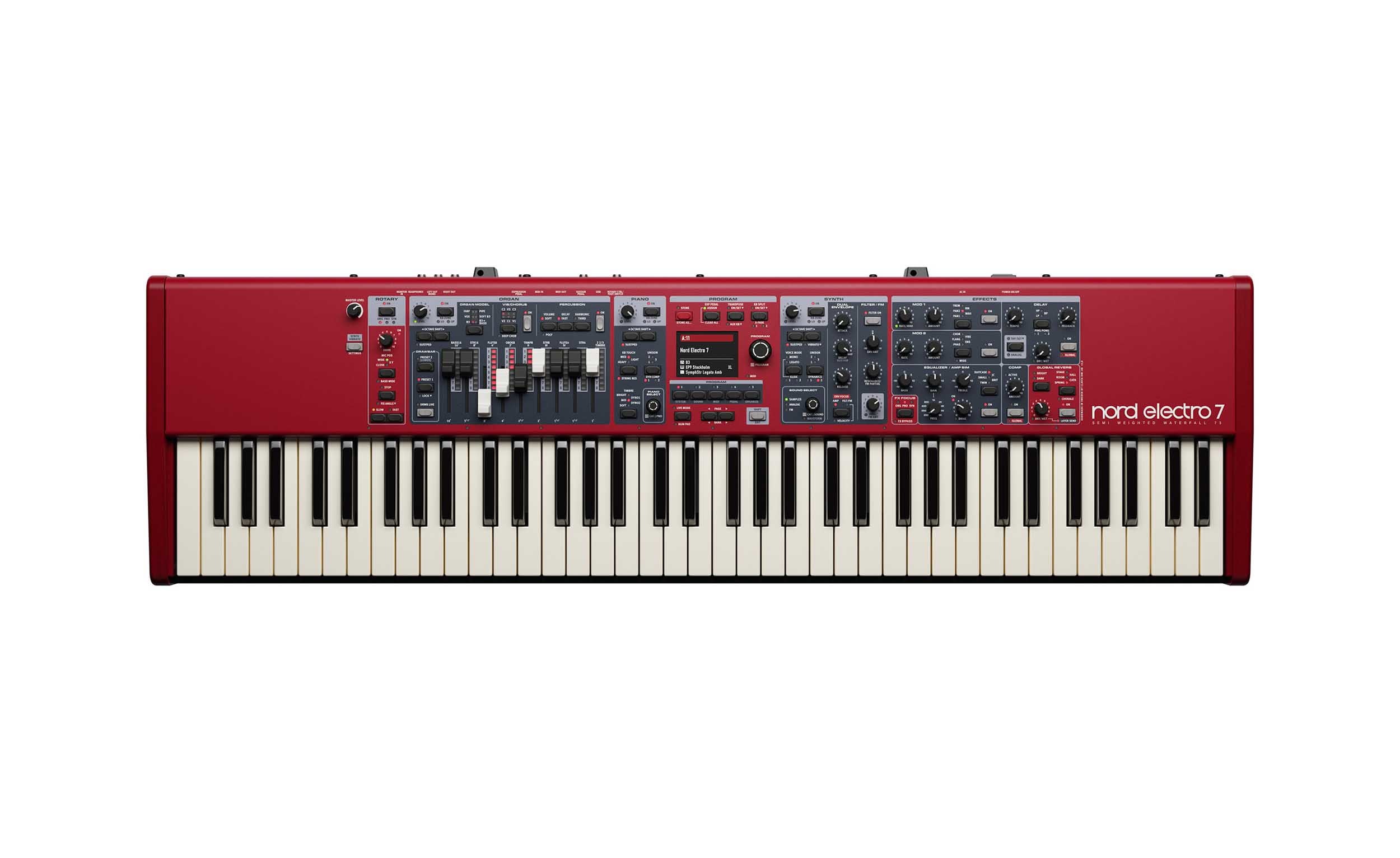

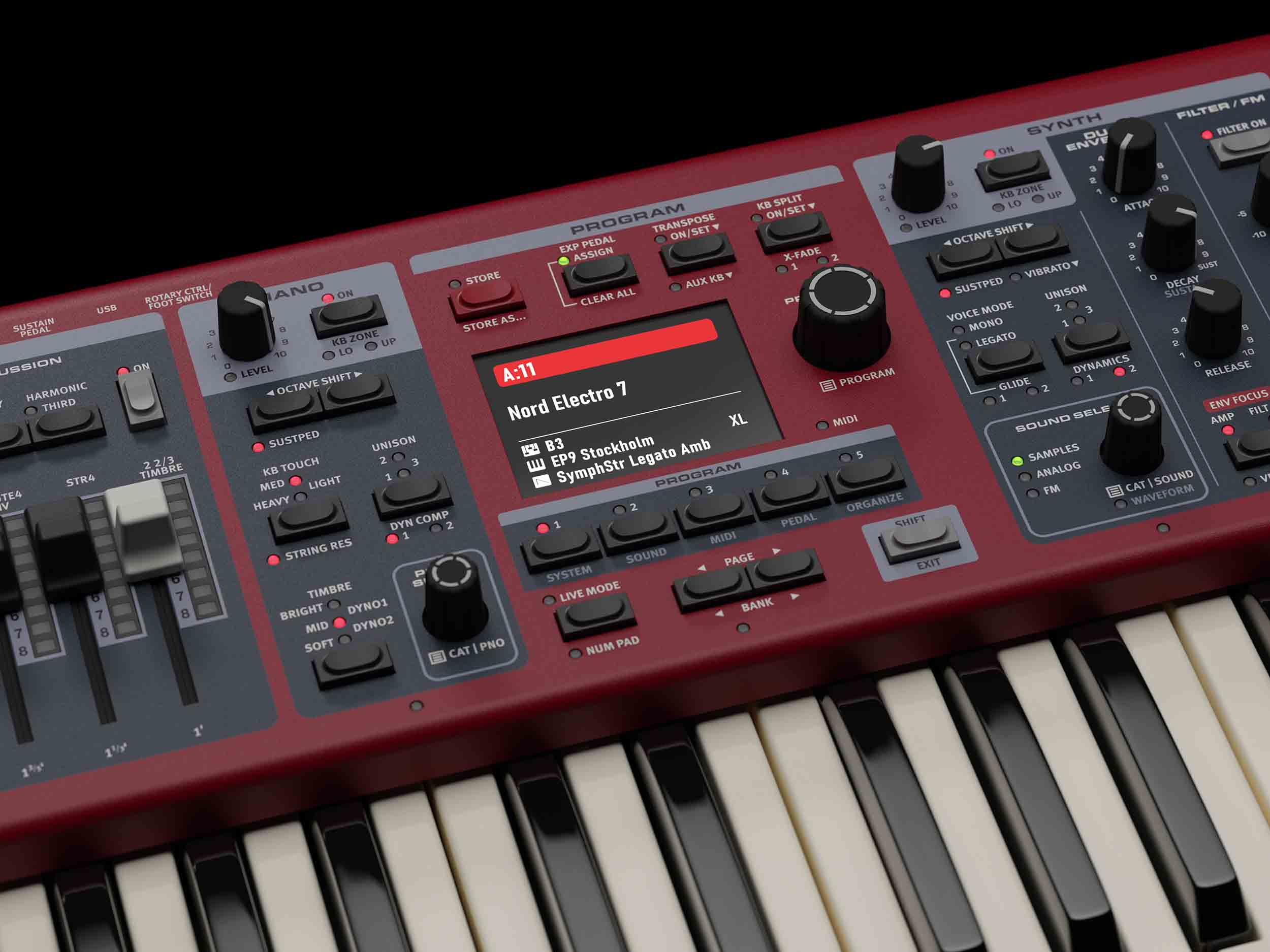

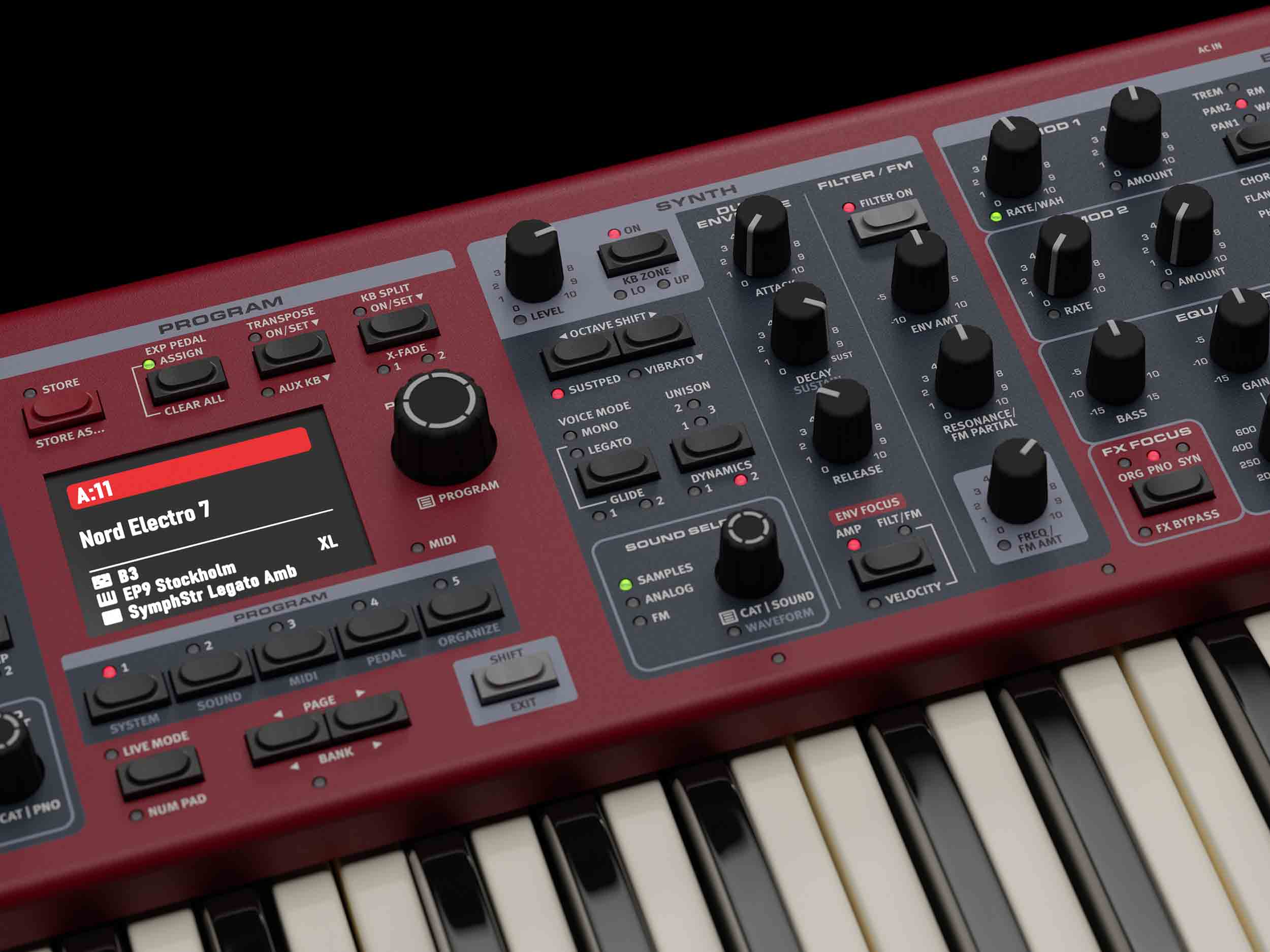

The new panel design, paired with a high-resolution color display enhances ease of use. Sound selection, settings and performance controls are easily accessible for a quick and intuitive workflow.

Pitch Stick and Modulation Wheel on 73

The Electro 7 73 model feature Pitch Stick and Modulation Wheel for additional real time control.

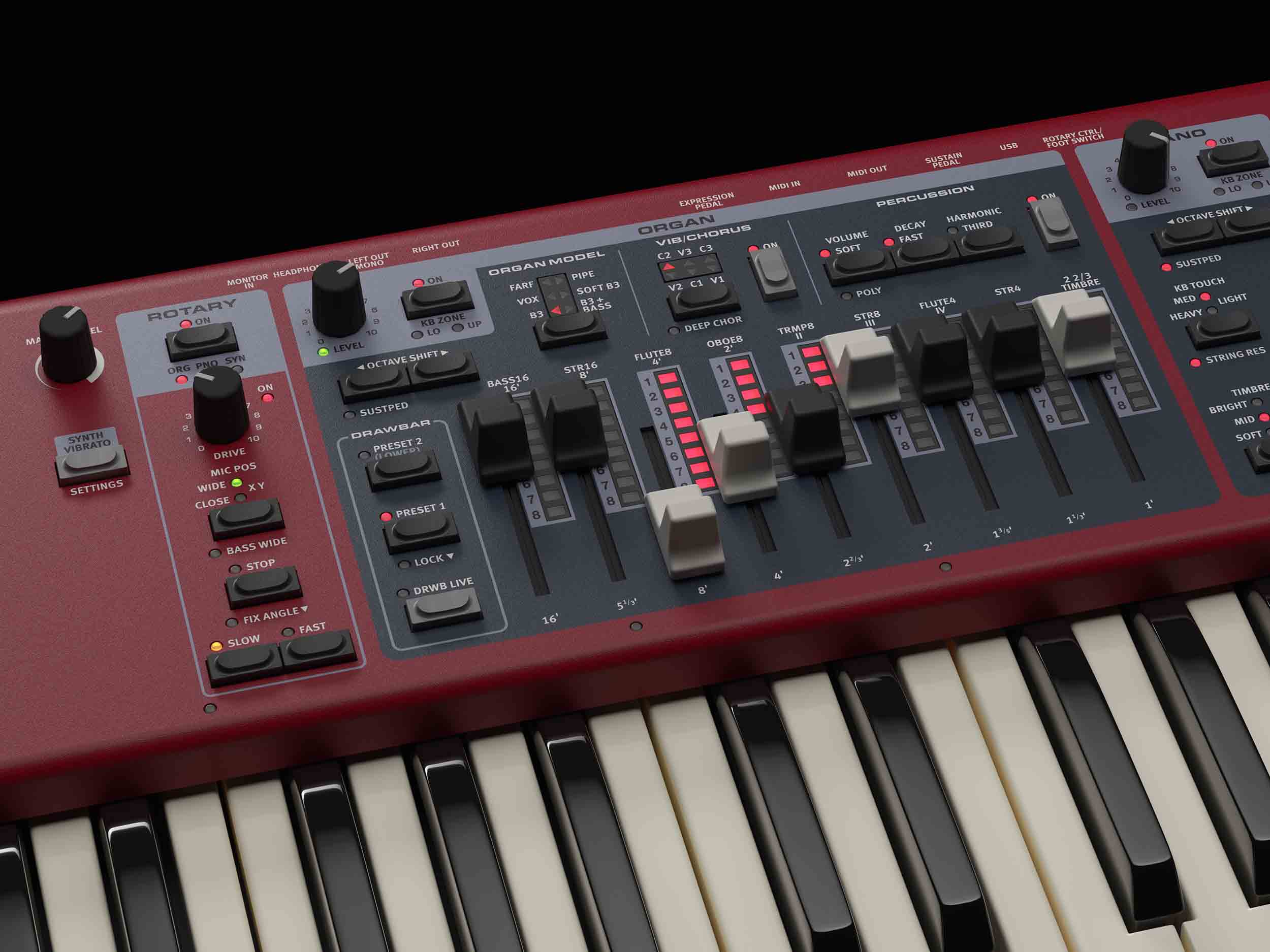

Organ Section

The Organ Section is based on the Nord Organ 3 engine and features stunning recreations of classic tonewheel, transistor, and pipe organs as well as the latest generation of our acclaimed Rotary Speaker emulation with multiple microphone perspectives.

B3

The B3 model features three different tone wheel modes ranging from the clean sound of a factory new unit to a road worn vintage character with increased tone wheel cross talk and leakage. The B3 Percussion effect includes a Poly mode, which enables polyphonic use of the Percussion even when holding chords or playing legato.

Vox

The iconic sound of the Vox organ has been refined even further for the Nord Electro 7, with revamped waveform shapes and filters as well as updates to both the key click and vibrato character.

Farfisa

The new generation Farfisa model conveys the character of the original tone generators and filters with great precision, including the complex filter interactions when combining registers.

Soft B3 and Pipe

The Soft B3 model is based on the B3 tone wheel organ, but without the key click and other artifacts, for a softer and more mellow sound. The Pipe model faithfully recreates a set of principal pipe organ ranks.

Vibrato and Chorus Scanner

The new vibrato and chorus capture the unique qualities of the original instruments, offering either the gentle character of a '50s B3 chorus scanner or the deep modulation of a '70s instrument.

Rotary Speaker Emulation

With a brand-new approach to recreating not only the classic rotary sound, but also the characteristics of both the amp and speakers, the Nord Electro 7 features the exceptional Rotary Speaker emulation from the Nord Organ 3.

Microphone Perspectives

The Nord Electro 7 offers three microphone positioning options corresponding to popular ways of reproducing the classic rotary speaker sound, both on stage and in the studio. These variations in microphone placement affect both the perceived movement as well as the tonal character of the rotary speaker, ranging from punchy and present to smooth and open.

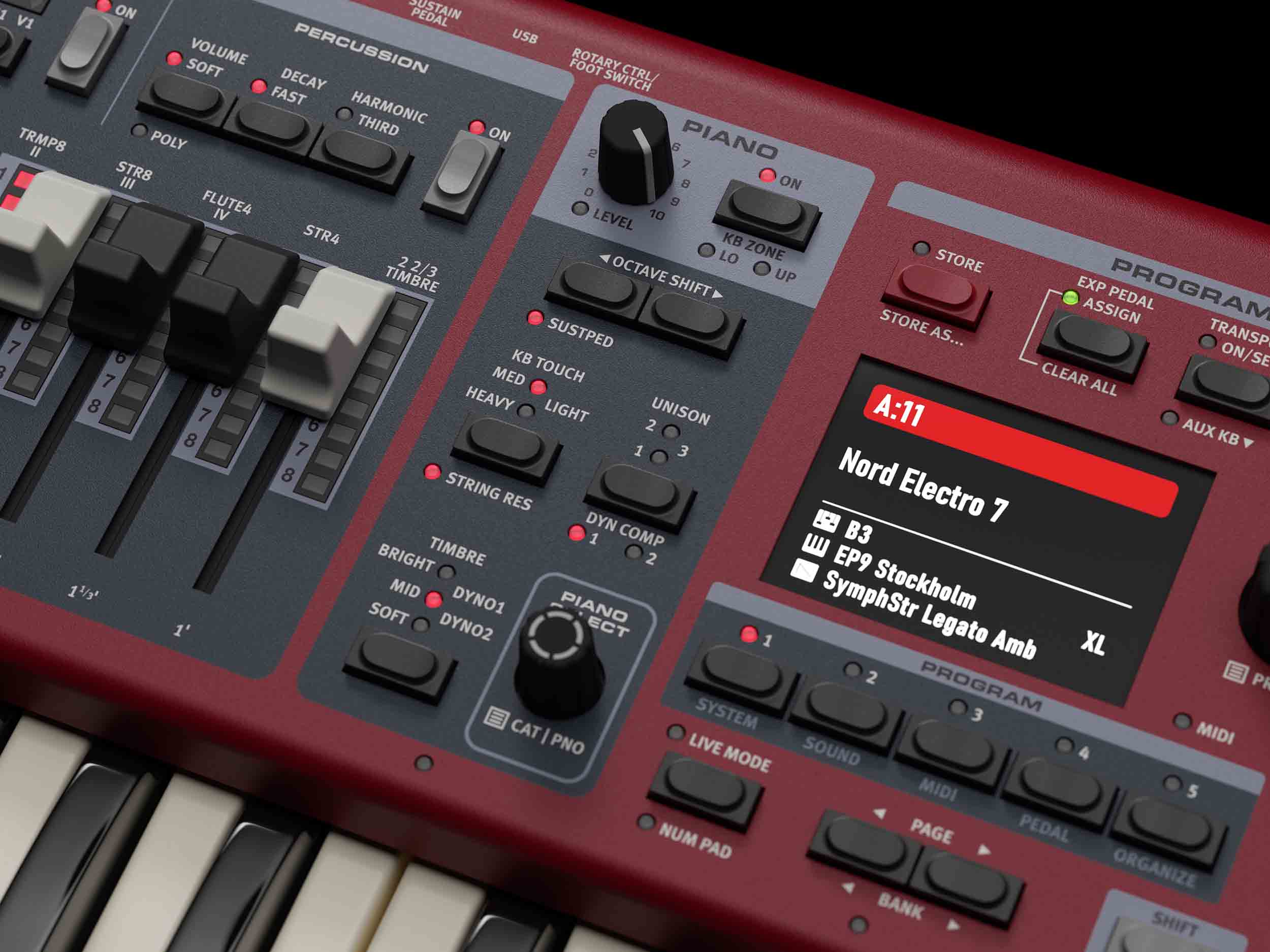

Piano Section

The Nord Electro 7 contains a large selection of Grands, Uprights and Electric Pianos from the exclusive Nord Piano Library along with new features such as Dynamic Compression, Unison and Timbre. Our state-of-the-art sampling technique captures the extraordinary nuances and real character of the source instruments.

Nord Piano Library

In addition to the factory sounds, all sounds in the Nord Piano Library can be easily transferred to your instrument using the Nord Sound Manager software.

Synth Section

A brand-new Synth Section introducing Analog Waveforms and FM synthesis alongside high-quality Samples from the Nord Sample Library. The Synth Section includes Mono, Legato and Glide modes for expressive performance control. Low-Pass Filter with resonance and dual ADR envelopes for Amp and Filter/FM Amount designed for exceptional real time control.

Nord Sample Library

The Nord Sample Library is an extensive collection of premium samples, including Spitfire Strings, Supreme Horns, Mellotron and Symphobia. Samples can be easily downloaded and transferred to your instrument using the Nord Sound Manager software.

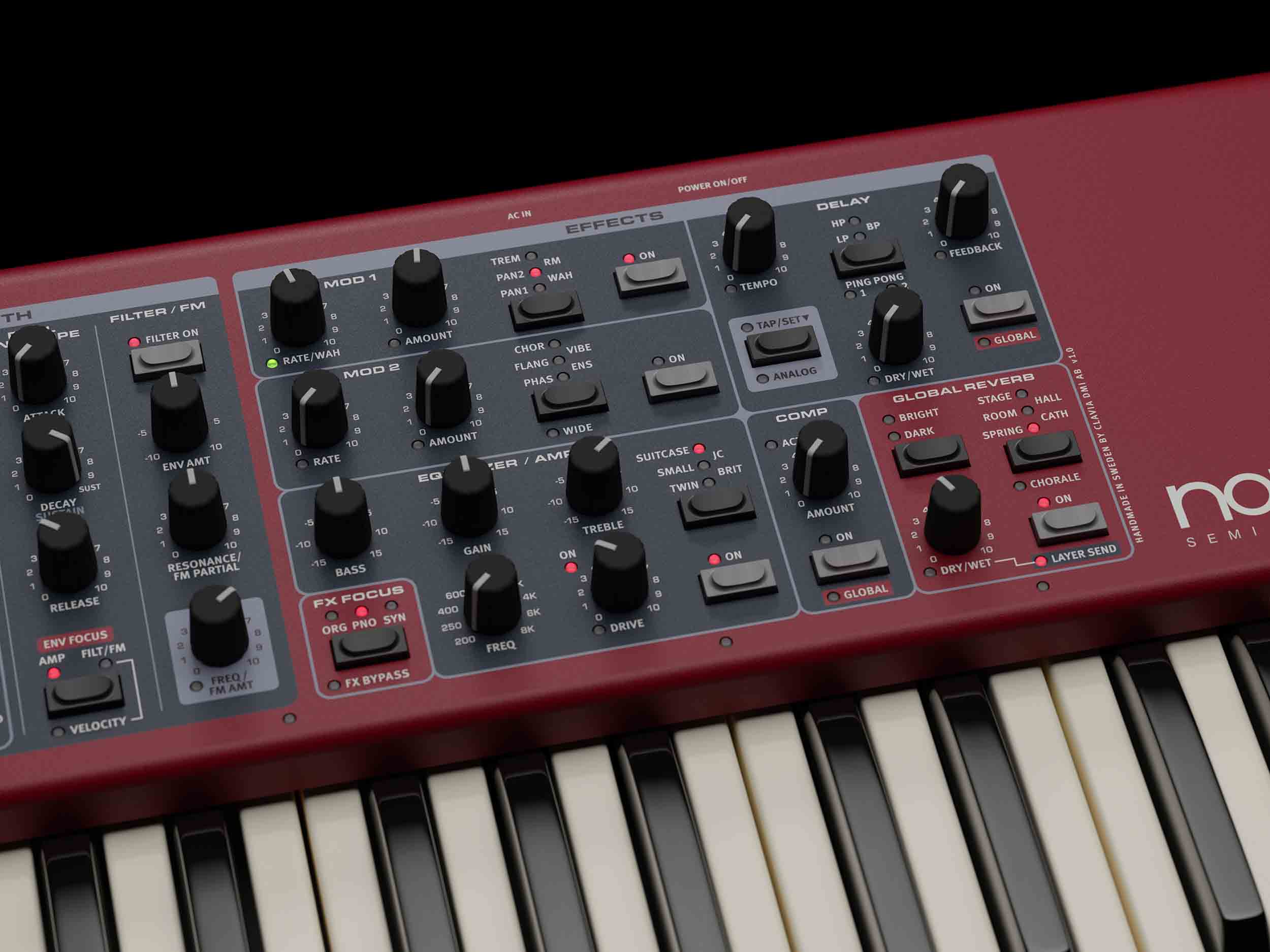

Effect Section

The Nord Electro 7 has an expanded new Effects section per Layer. The wide range of Effects includes brand new types of Reverb, Delay, Amps and Modulation effects.

Reverb, Delay and New Amplifier Models

The Nord Electro 7 comes with a new authentic Spring Reverb, Brit and Suitcase amplifier models and a Delay effect including a vintage-style Analog mode with three selectable feedback filters for creative control.

Modulation Effects

The Modulation effects include classics such as Chorus, Phaser and Flanger, each modeled after legendary hardware units, along with Ring Modulation for a variety of creative and experimental sounds and a versatile Tremolo effect.

The Nord Electro 7 series delivers a powerful combination of authentic organ, piano, and synth engines in a performance-focused instrument built for stage and studio use. Featuring seamless transitions, flexible split functionality, and an intuitive color display, it allows musicians to move effortlessly between sounds without interruption. With up to 500 program locations and a dedicated Live Mode, performers can organize and access their setups quickly and reliably.

At its core, the Electro 7 offers legendary tone through its B3-inspired organ engine, expressive piano library, and versatile synth section with analog, FM, and sample playback. Physical drawbars, real-time controls, and an extensive effects suite provide hands-on creativity, while multiple keybed options—including waterfall and hammer action—ensure a playing experience tailored to every performance style. Designed for flexibility, expression, and musical authenticity, the Nord Electro 7 is a complete performance keyboard for demanding professionals.

Product Specifications:

Sound Sections:

Organ, Piano, and Synth sound engines

Seamless transitions and split point crossfade

Organize mode for program management

Live Mode with 5 live programs

20 banks × 25 programs (500 total locations)

Keyboard:

73-key semi-weighted waterfall keybed (6 octaves, E–E)

Organ Section:

B3, B3+Bass, Soft B3, Vox, Farfisa, and Pipe models

Full polyphony with percussion, vibrato/chorus, and tonewheel control

Physical drawbars with LED indicators

Rotary speaker emulation from Nord Organ 3

Piano Section:

Grand, Upright, Electric, Digital/Layer, Clav/Harpsichord, and Mallet categories

Dynamic compression, unison, string resonance, and timbre controls

120-voice polyphony

Synth Section:

Sample playback, analog, and FM synthesis

Envelopes for amp and filter/FM

Mono, legato, glide, vibrato, and unison modes

30+ voice polyphony

Effects:

Dedicated effects per section

Modulation, delay, compressor, amp simulations, and global reverb

Expression pedal assignable to most parameters

Mod 1 Effects:

Pan (Soft/Hard), Tremolo, Wah, Ring Modulator

Mod 2 Effects:

Phaser, Flanger, Chorus, Vibe, Ensemble

Stereo Wide option

Main Data:

Color display

MIDI over USB

External keyboard (Aux KB) support

Selectable split points with LED indicators

Global transpose ±6 semitones

Global fine-tune ±50 cents

Program transpose ±6 semitones

Expression pedal assign with advanced control

Half-moon switch mount (61/73 models)

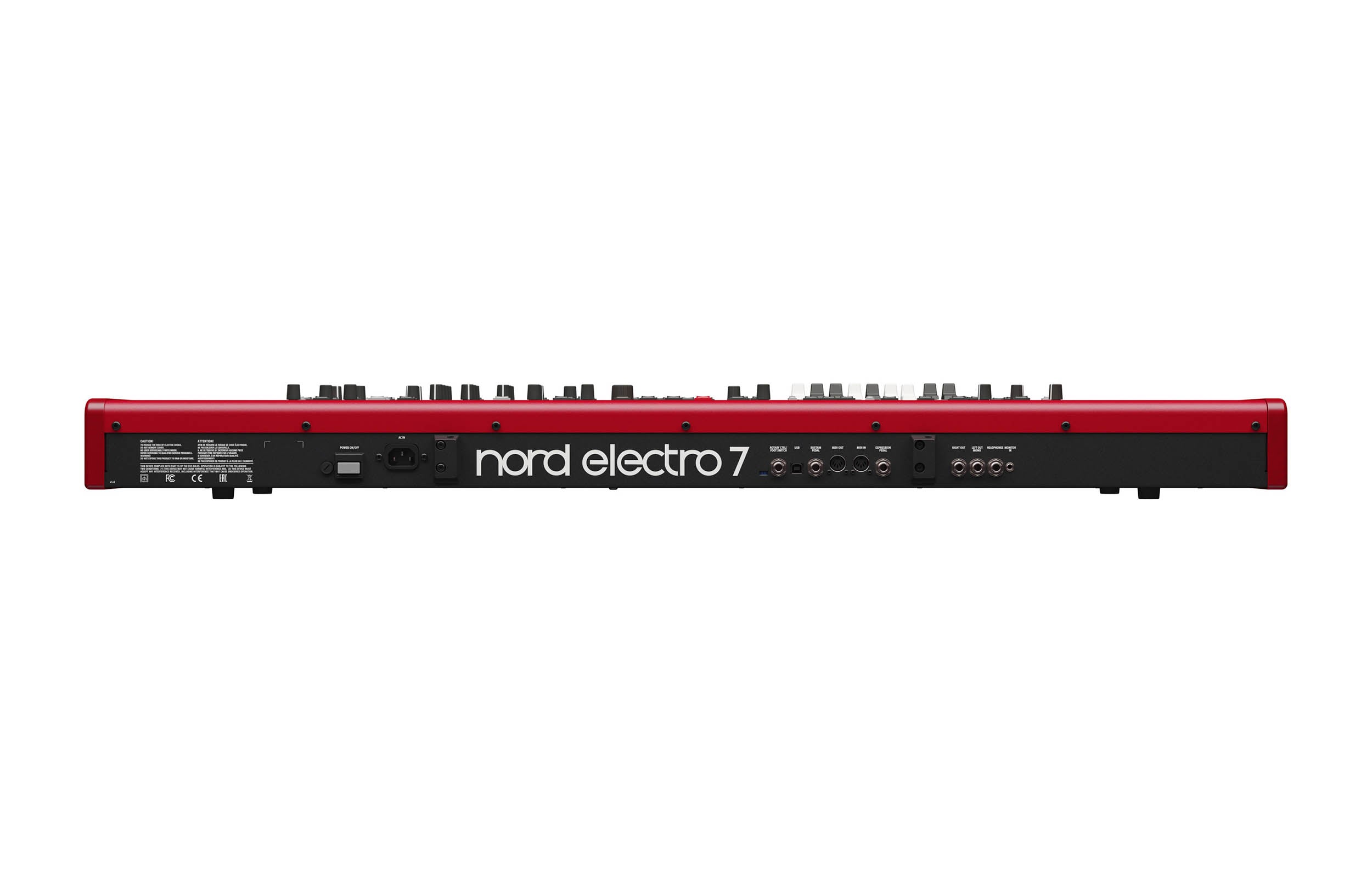

Connections:

2 × Audio Outputs (L/R): ¼" unbalanced

1 × Monitor Input: 1/8" stereo

1 × Headphone Output: ¼" stereo

1 × Expression Pedal Input: ¼" TRS

Sustain Pedal Input: ¼" (compatible with Nord Sustain Pedal 2 & Triple Pedal)

Rotary Control / Foot Switch: ¼"

MIDI In: 5-pin DIN

MIDI Out: 5-pin DIN

USB Type-B (MIDI, sound transfer, updates)

IEC C14 power connector

Included Accessories:

User Manual

Power Cord

Product Weight: 20.9 lbs (9.5 kg)

Product Dimensions: 42" × 4.1" × 11.6" (W × H × D)

Shipping Weight: 23 lbs.

Shipping Dimensions: 45" × 8" × 15" (W × H × D)
