Description

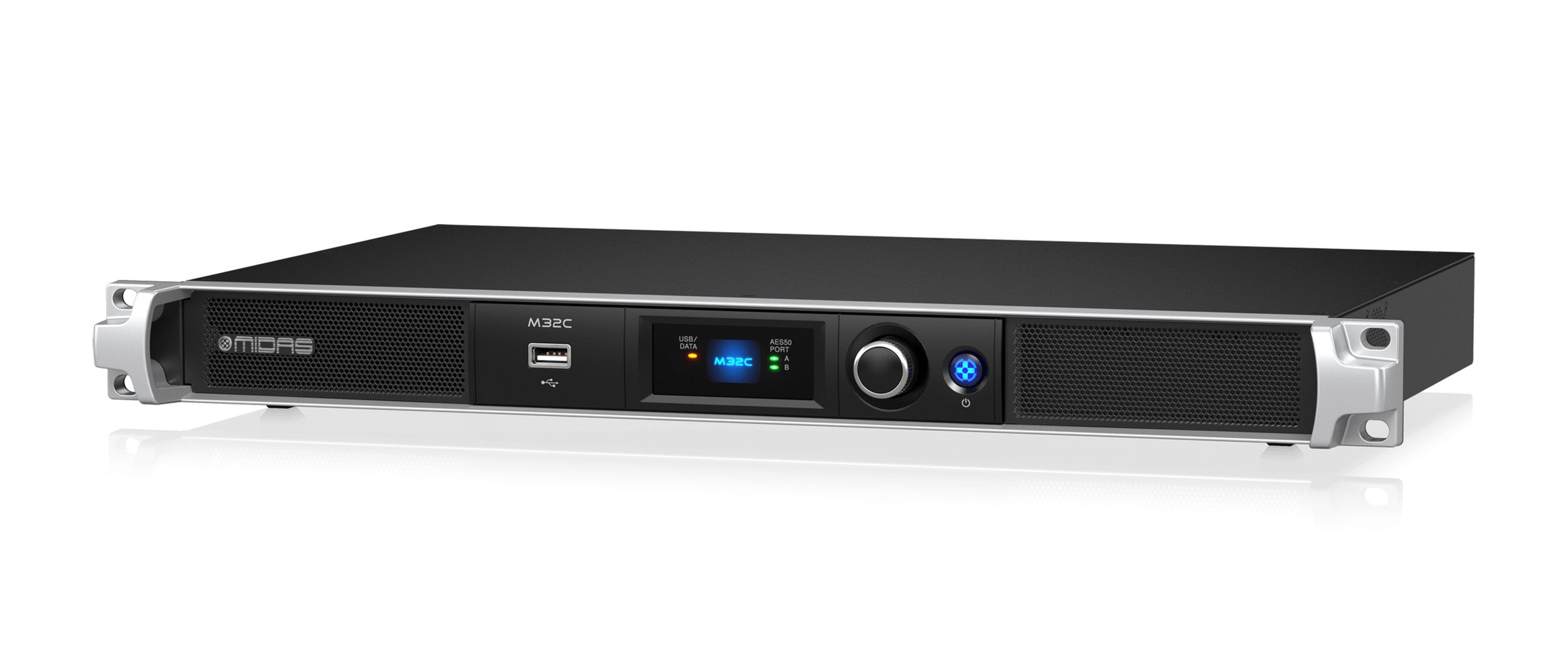

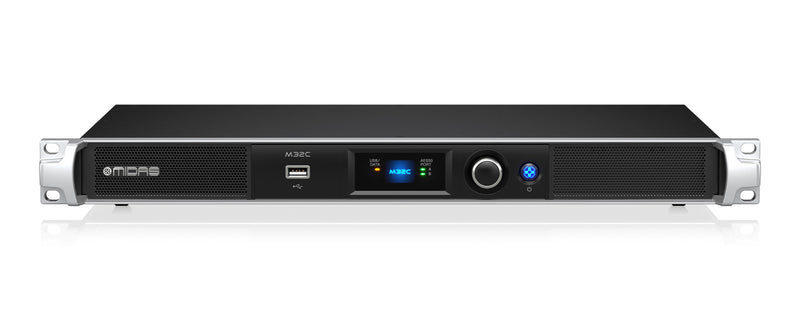

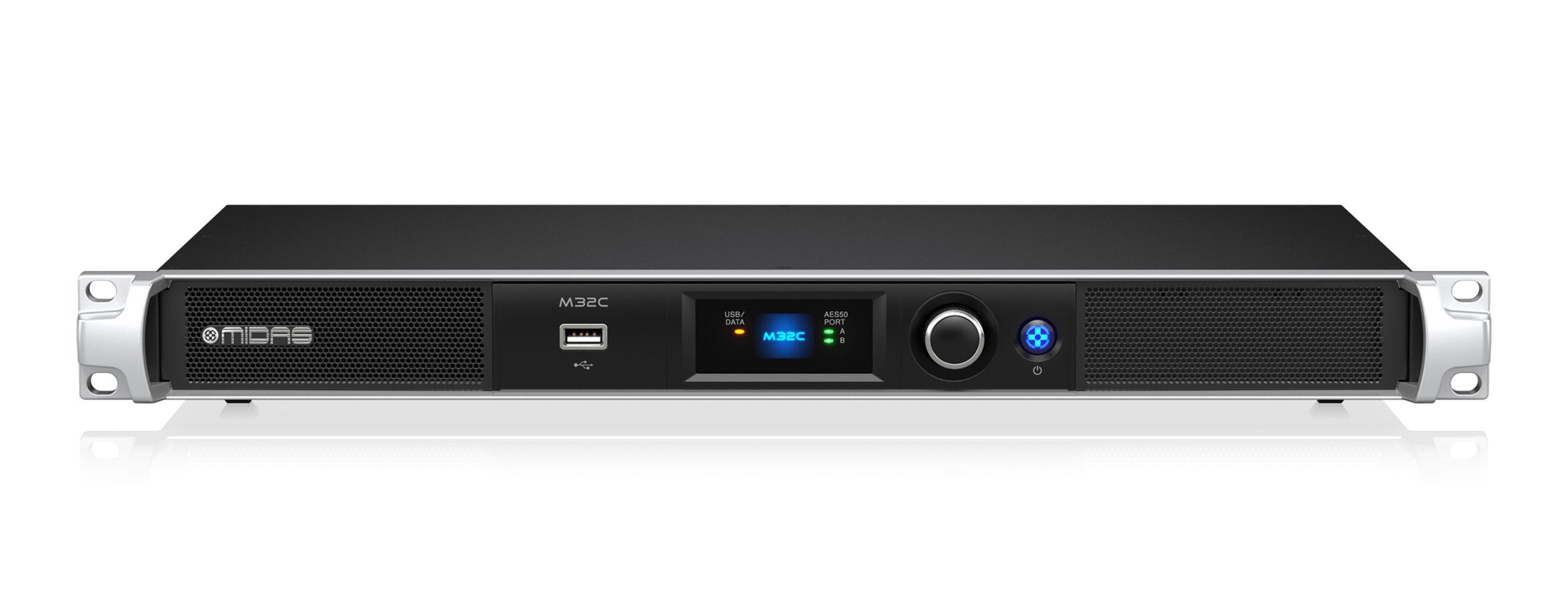

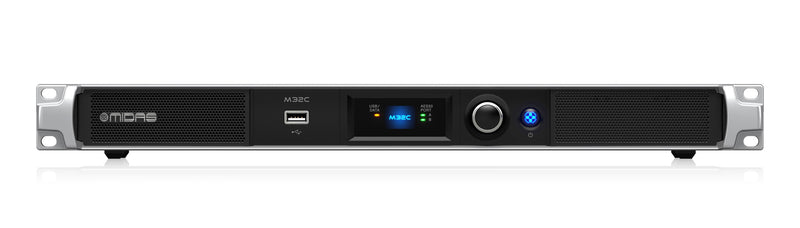

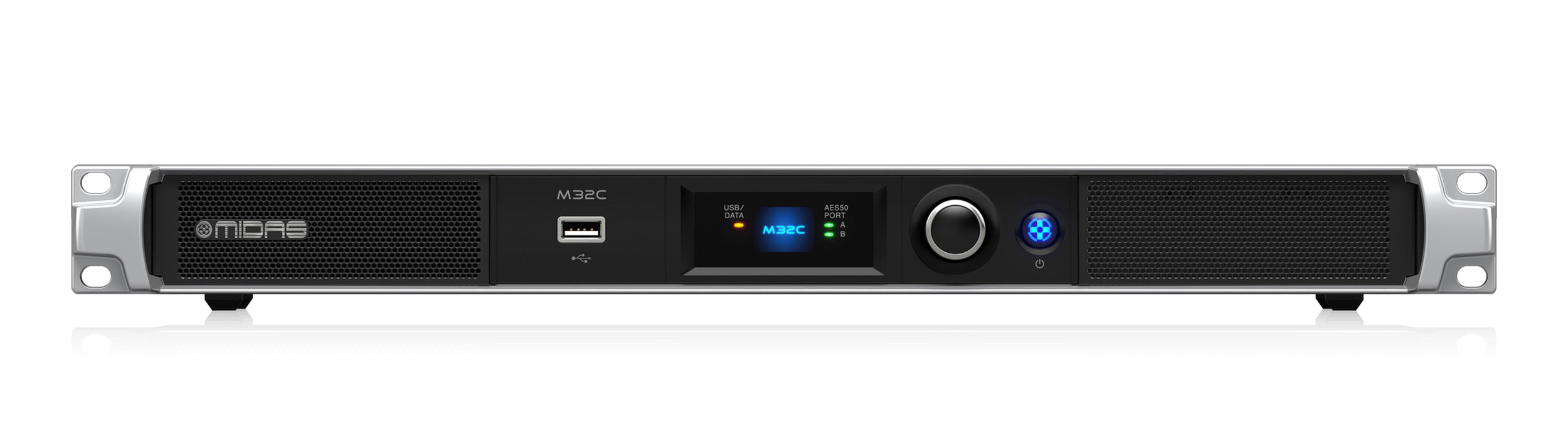

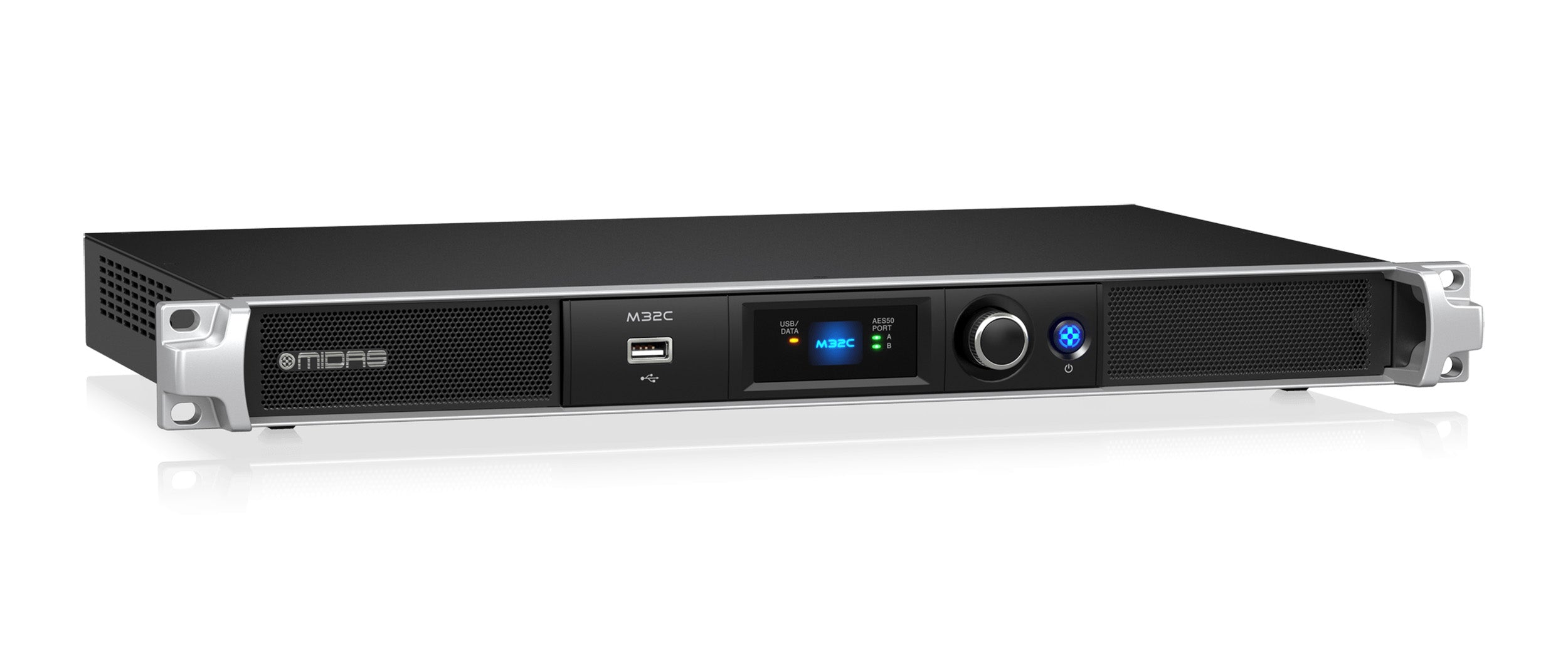

The Midas M32C Digital Rack Mixer with 40 Input Channels and 25 Mix Buses takes the brain of the flagship M32 Digital Mixing Console and packs it all into a high-performance aluminium and steel 1U form factor. Combine the M32C with our DL16 or DL32 Stage Boxes to effortlessly run sound with high I/O counts in multiple remote locations. Dual AES50 networking CAT5 connectors allow for up to 96 remote inputs and 48 output channels to be controlled from and processed by the M32C. All of this can be managed concurrently from various locations and instances via our free remote-control software applications, M32-EDIT, M32-MIX, and M32-Q.
Above all, M32C is designed to put the power of digital in your hands, without compromise. Midas’ singular focus on a matchless value proposition means M32C integrates advanced features such as integrated personal monitor mixing and true high-speed digital audio networking as standard features.
Built for Tomorrow
The M32C is a console built for today, and tomorrow – its rock-solid proprietary operating system and the 0.8 ms audio engine provide outstanding state-of-the-art audio performance for years to come.
“Acoustic Integration” - the Live Sound Revolution
Legendary 40-year old British company Turbosound, famous for producing some of the world’s best speaker systems, have teamed up with Midas to seamlessly integrate mixer and speaker systems. We call it “Acoustic Integration”.
The M32C’s ULTRANET bus allows streaming up to 16 channels of pristine digital audio to an array of Turbosound iQ speakers – all on a single CAT5 cable, along with control data to set sound presets remotely.
Furthermore, iQ Series loudspeakers feature “True Physical Modelling” of some of the most popular speakers, which can be easily remote controlled via the M32C, allowing the sound engineer to apply different speaker models in real time from the comfort of the mixing desk.
100-Band RTA for all Channel/Bus EQs
The M32C includes a 100-band Real Time Analyzer (RTA) with full Bar and Spectrograph views on the M32-EDIT control application. This high-resolution RTA displays the audio energy distribution in 100 frequency bands over time - capturing a sonogram window of a full 10 seconds.
Switch between the Large RTA view, displaying any available signal in full screen resolution, or the Combined view with the RTA view shown above each of the channel and bus EQ curves.
See the results of your filtering choices in the audio spectrum directly. Additionally, the RTA can be displayed on top of the 31-band graphic EQs in the FX rack. Monitoring and controlling frequencies has never been easier!
What are AES50 and SuperMAC?
AES50 simultaneously provides high channel counts, extremely low and deterministic latencies, accurate phase-aligned networked clock distribution, error detection, network redundancy, with simple deployment and ease of use to meet the needs of the live performance industry.
This unique combination also benefits both live and studio recording applications, as well as post-production, broadcasting and audio routing infrastructure. SuperMAC is a proprietary implementation of AES50 owned by Klark Teknik. Originally developed by Sony Pro-Audio Labs in Oxford, UK, it forms the basis of the Audio Engineering Society’s AES50 open standard for digital audio networking – High Resolution Multi-Channel Audio Interconnection (HRMAI), as published by the Audio Engineering Society, Inc.
Open box is like new condition and furthermore Open box is covered by the full manufacturer warranty.
Product Specifications:
Max I/O Capacity: 40x Input / 25x Output
Number of Analog Input Channels: No
Number of Mic Preamps: No
Number of Analog Output Channels: 2
Mix Routing: 2x Main LRC
Groups:
6x Mute Group
8x DCA Group
Presets:
100x Scene
500x Cue
100x Snippet
Display Resolution/Color: Channel Display: 128 x 64 / RGB Color
Faders & Level Adjustment: No
Gain/Trim Range:
1/4"" Mic/Talkback Input:
+50 dB
Input Polarity: Normal/Reverse
EQ: 6-Band Parametric
Graphic EQ: Yes
Built-In Effects:
8x Stereo
16x Mono
Real Time Analyzer: Yes
Audio Delay: Yes
Automatic Mic Mixing: No
Sample Rates: Up to 48 kHz
Bit Depth: AD/DA Conversion: 24-Bit
DSP: 40-Bit Floating Point
Latency: 1.1 ms (Stage box Input to Stage box Output)
Frequency Response: 20 Hz to 20 kHz 0/-1 dB (at 48 kHz)
Max Input Level:
1/4"" TRS Mic/Talkback Input:
+8 dBu
Output Level:
1/4"" TRS Monitor Output:
+21 dBu (Maximum)
I/O Impedance:
1/4"" TRS Mic/Talkback Input:
2 Kilohms
1/4"" TRS Monitor Output:
50 Ohms
Noise Floor: 1/4"" Aux Output: -83 dBu Unweighted
THD+N: Mic Input: < 0.02% at Unity Gain
Signal Generator: Yes

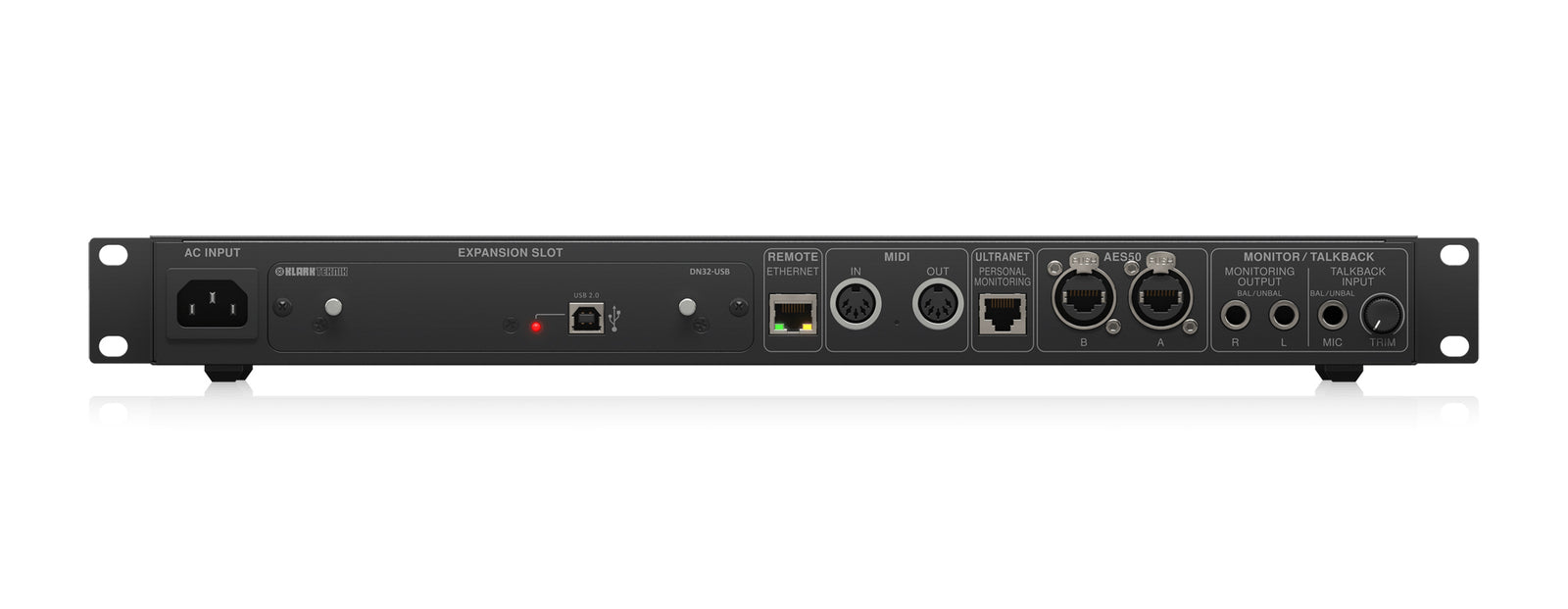

Analog Inputs: 1x 1/4" TRS Mic/Talkback Input
Analog Outputs: 2x 1/4" TRS Balanced/Unbalanced Stereo Monitor Output (1 Stereo Pair)
Digital I/O:
1x RJ45 Ethernet (Control)
1x etherCON Ultranet
2x etherCON AES50/SuperMAC
MIDI I/O:
1x MIDI 5-Pin In
1x MIDI 5-Pin Out
USB I/O:
1x USB-A (Audio Playback, External Memory)
1x USB-B (Audio Playback, Multitrack Record)
USB I/O Capacity: 32x Input / 32x Output
Expansion Ports: 1x 32 x 32 I/O Card
Wireless: No
Mobile App Compatible:
Yes: Android & iOS
App Name: M32-Mix, M32-Q
Functionality: Adjust Settings, Remote Control, Setup
External Display I/O: No
Max Multitrack Recording: 32 Tracks
Media Support: USB Drive
OS Compatibility:
Windows
macOS
Internet Connection: Yes
Input Power: 100 to 240 VAC, 50 / 60 Hz
AC Power I/O: 1x IEC Input
Power Consumption: 40 W
Rack Mountable: Yes
Operating Temperature: 41 to 104°F / 5 to 40°C
Dimensions: 19 x 2 x 11.8" / 48.3 x 5.1 x 30 cm
Weight: 7.7 lb / 3.5 kg
Shipping Weight: 9.55 lbs
Shipping Dimensions (LxWxH): 22.1 x 14.6 x 3.7"
