Description

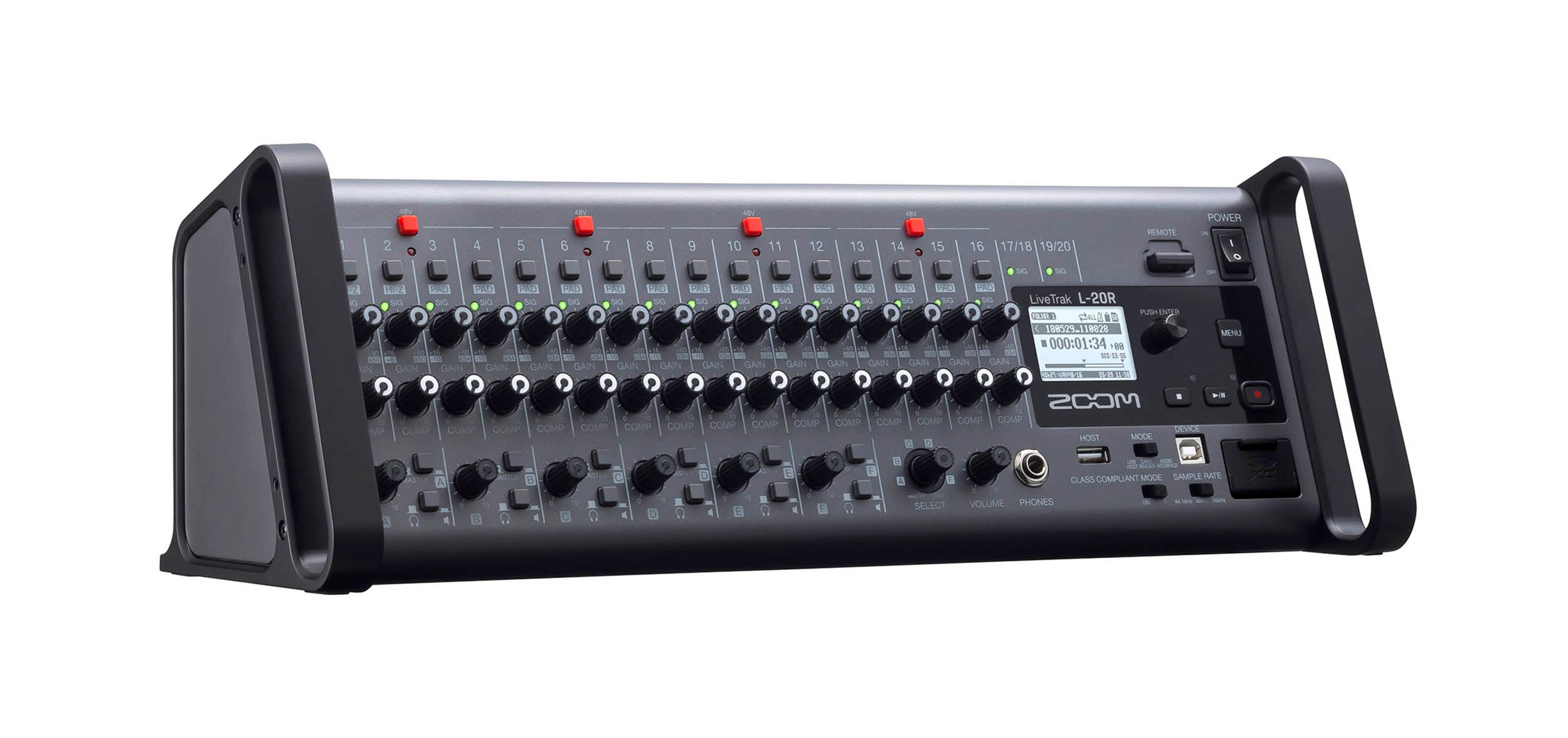

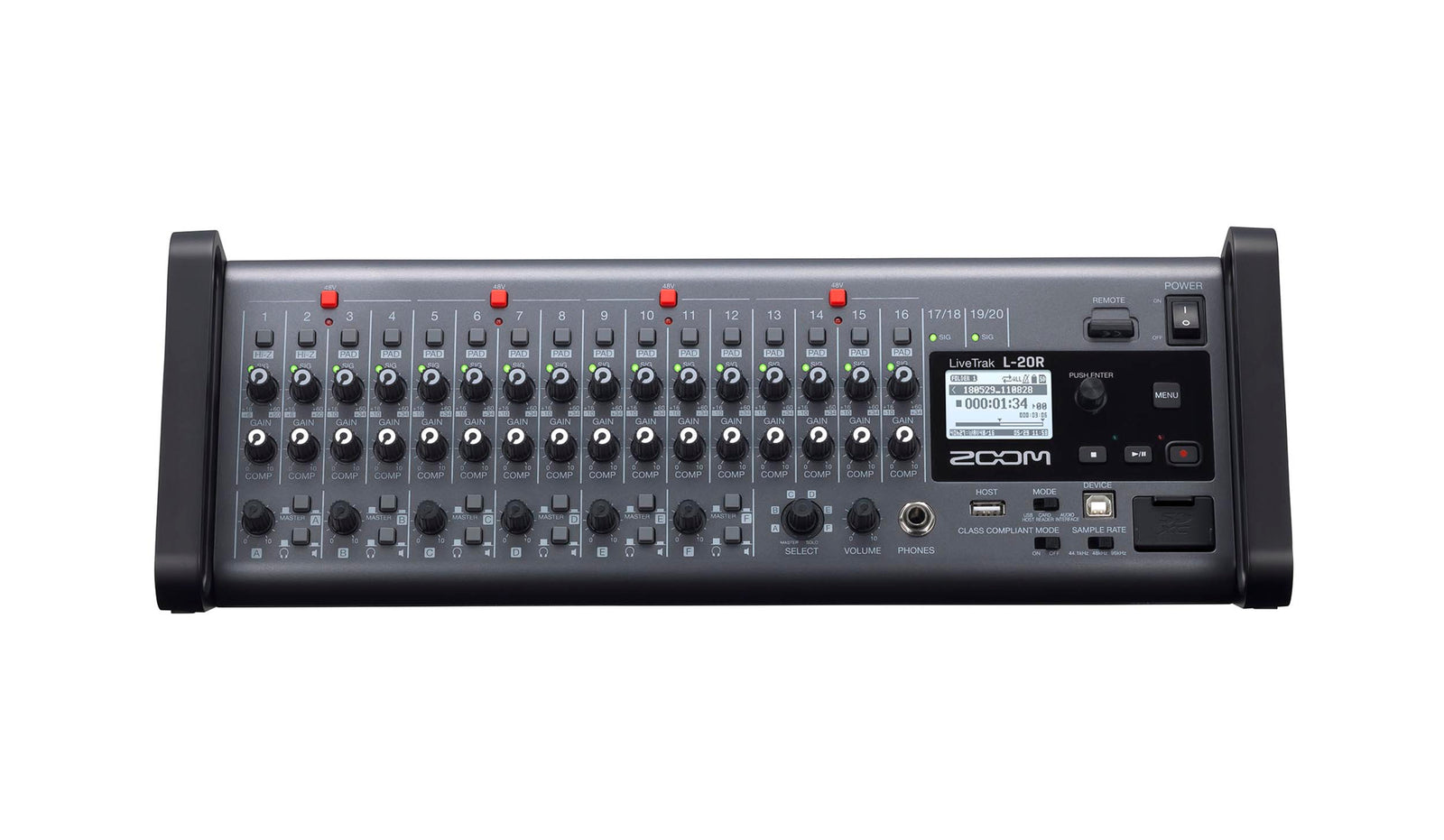

The Zoom LiveTrak L20R is a rack mountable digital mixer that allows musicians to control their live mix right from the stage with the use of an iPad. With wireless control, 20 discrete channels, 22 tracks of recording and six custom monitor mixes, the L-20R offers a complete solution for any venue.
Portable and Powerful:
Featuring 16 mono mic or line inputs and two stereo inputs, the L20R can handle the most demanding stages. The L-20R offers two EFX busses and each channel includes a 3 band EQ, pan controls and compressor.
22 Tracks of Recording:
During your live performance, record 20 channels plus a stereo mix directly to an SD card, then transfer your tracks to your DAW for your final edit.
It’s Your Monitor Make It Your Mix:
With six independent monitor outputs, the L-20R enables musicians to create their own custom mix. A dedicated output enables the FOH engineer to easily switch between monitoring the main and sub mixes.
iPad Control:
Using iPads with the L-20 Control app, the FOH engineer and 6 musicians can control their own mix, including fader levels, EQ settings, channel effects, and more from anywhere in the venue.
Scene Recall:
With the LiveTrak L-20R’s Scene Recall feature, you can instantly recall up to nine different scenes with monitor mixes, EQ settings, effects, and more.

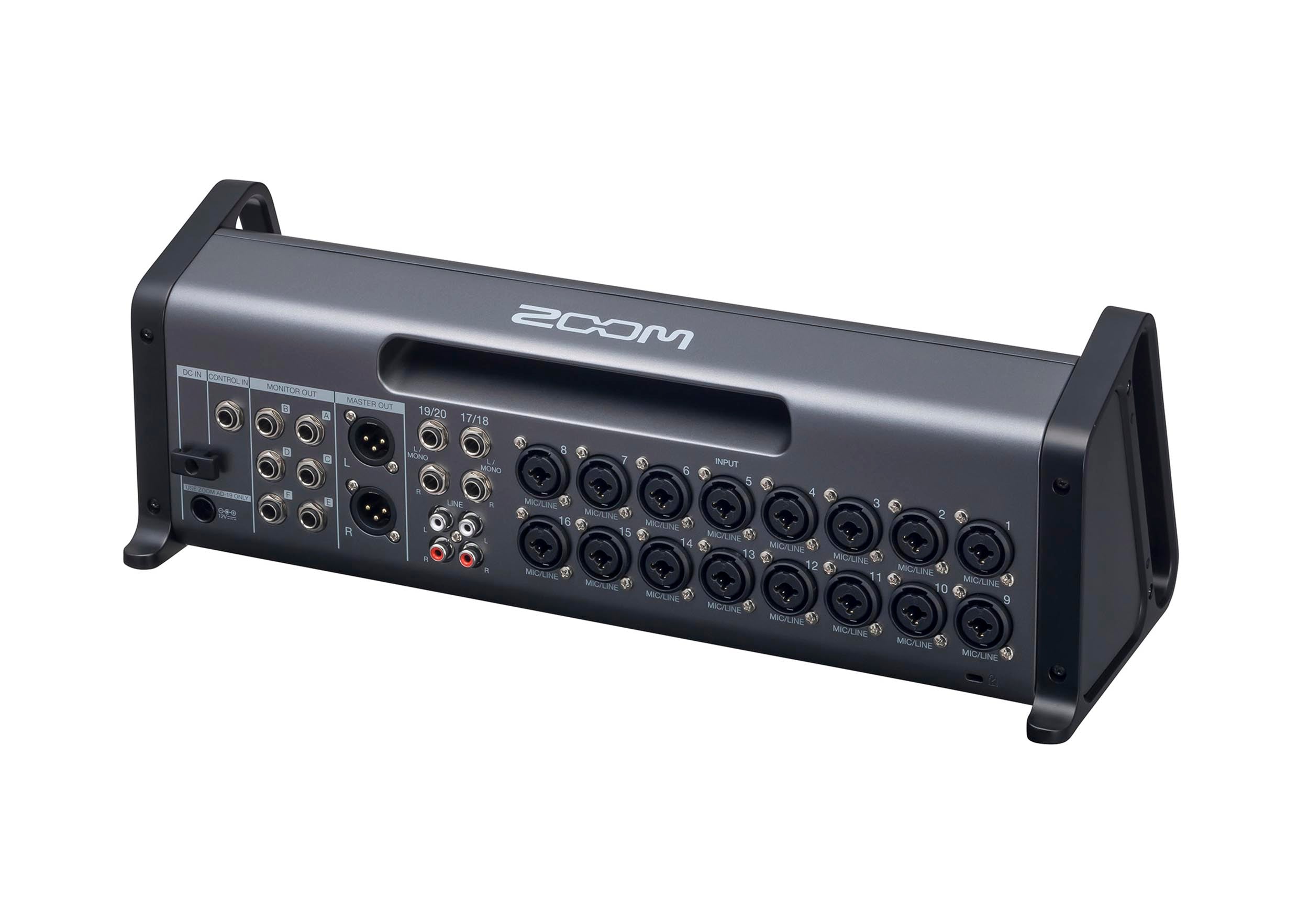

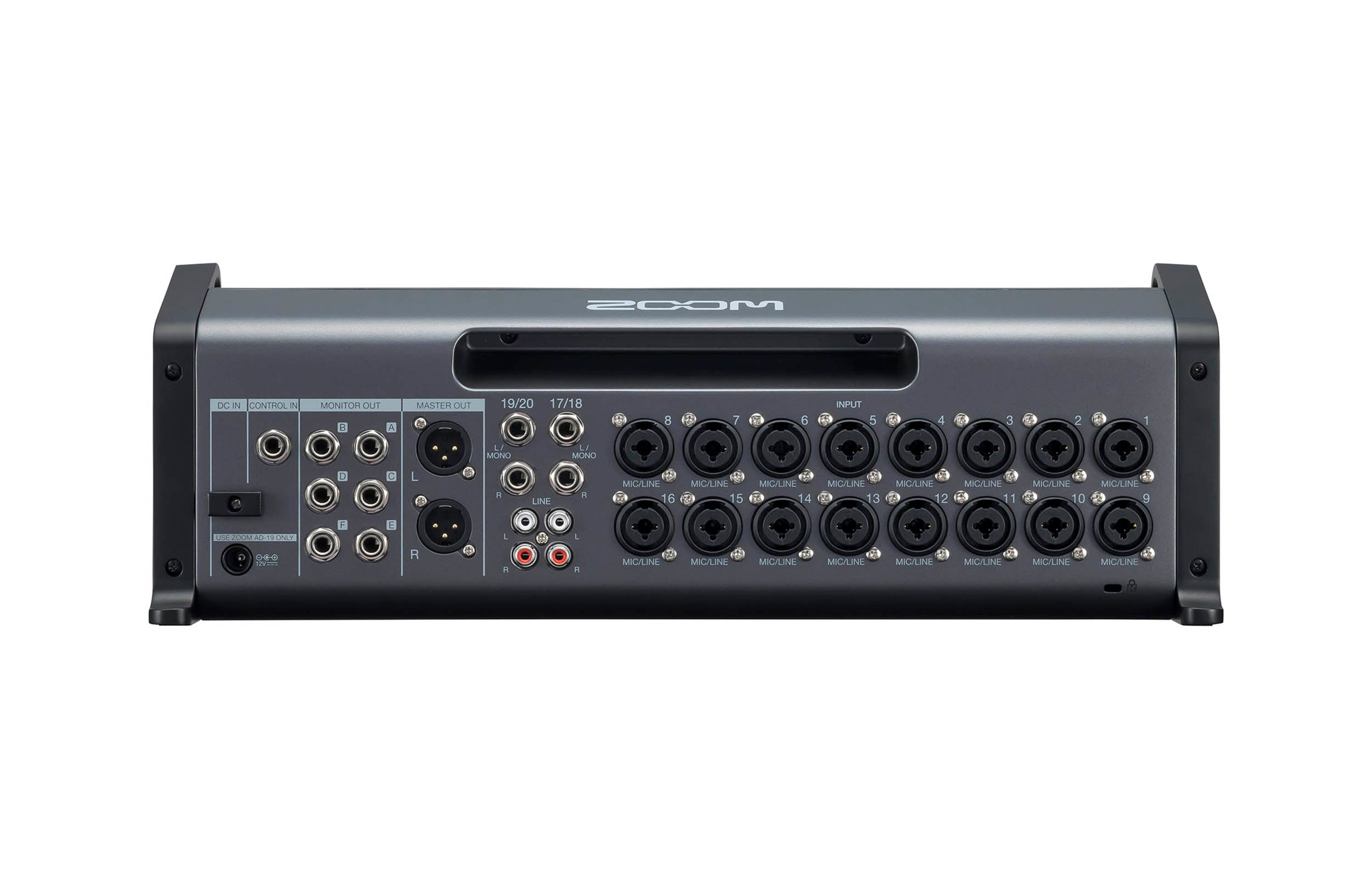

Accessible: The L-20R’s versatile design provides easy access for plugging in your cables.
A Robust Audio Interface:
The L-20R is a 22-in/4-out USB audio interface. Route inputs to any DAW, streaming software, or iOS device—even while recording to an SD card.
Open box is like new condition and furthermore Open box is covered by the full manufacturer warranty.
Product Specifications:
Inputs: Mono (MIC/LINE): 16, Stereo (LINE): 2.
Outputs: MASTER OUT: 1 MONITOR OUT: 6 PHONES: 1.
Stereo (LINE): Type: TS phone/RCA pin (unbalanced) jacks Maximum input level : +10 dBu.
MASTER OUT: Type: XLR jacks (balanced), Maximum output level:+14.5 dBu, Output impedance: 100 Ω.
LOW CUT: 40–600 Hz, 12dB/OCT.
EQ: HIGH: 10 kHz, ± 15 dB, shelving, MID: 100 Hz – 8 kHz, ± 15 dB, peaking, LOW: 100 Hz, ± 15 dB, shelving.
Display: LCD with backlight (128×64 resolution).
Power: AD-19 AC adapter (DC12V 2A).
Dimensions: 438 mm (W) × 158.2 mm (D) × 151.7 mm (H).
Weight (main unit only): 2.49 kg.
