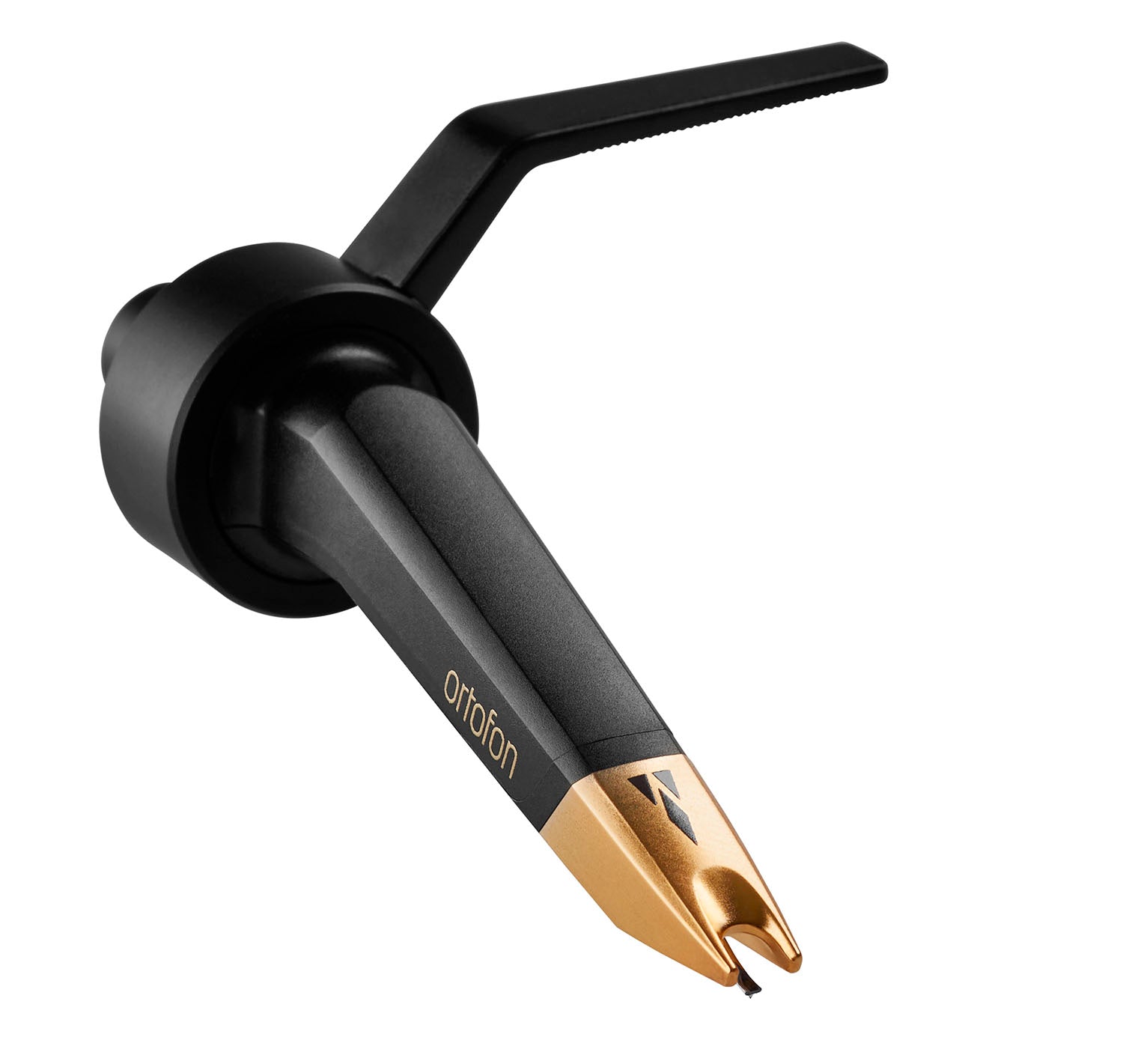

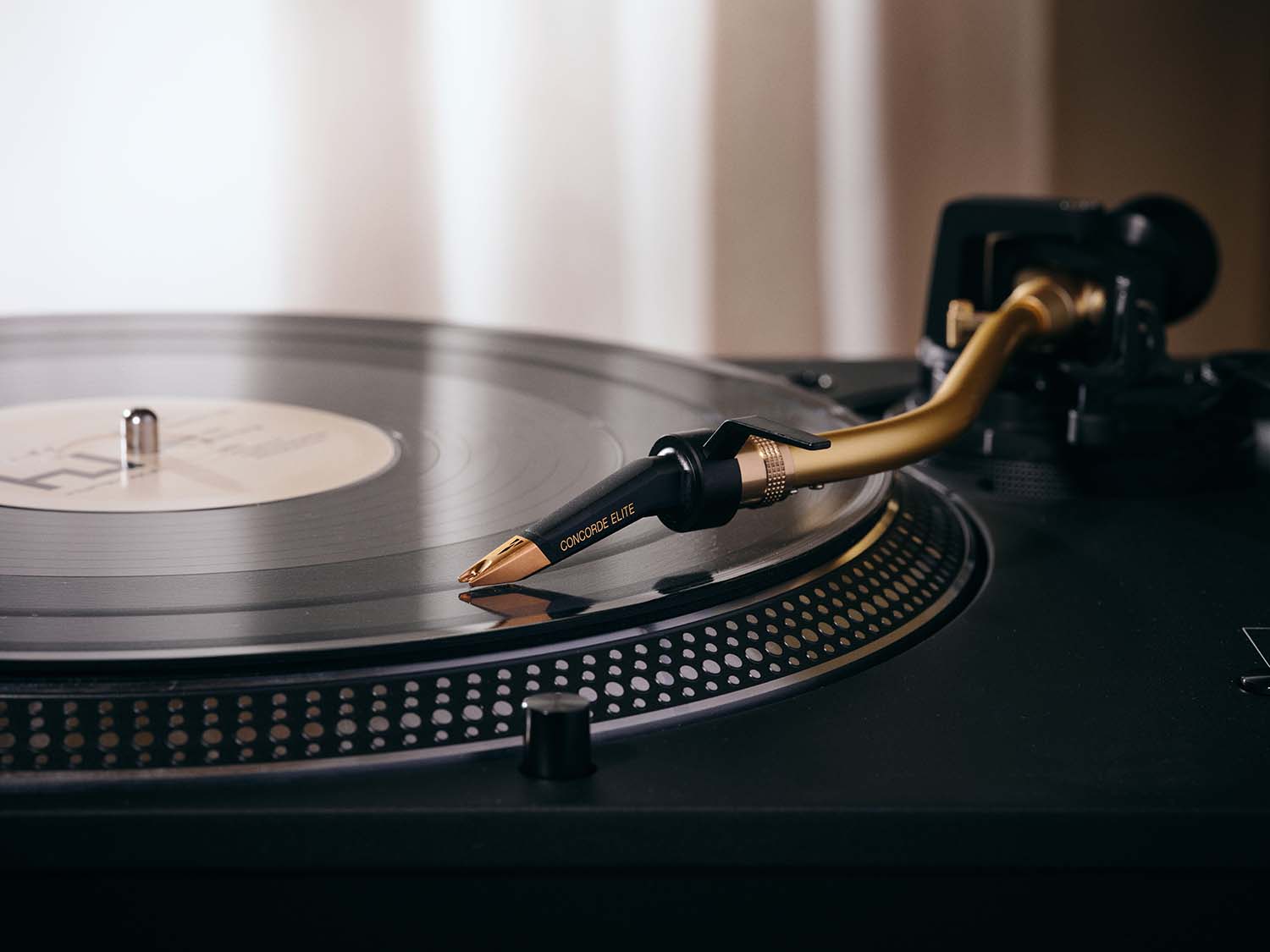

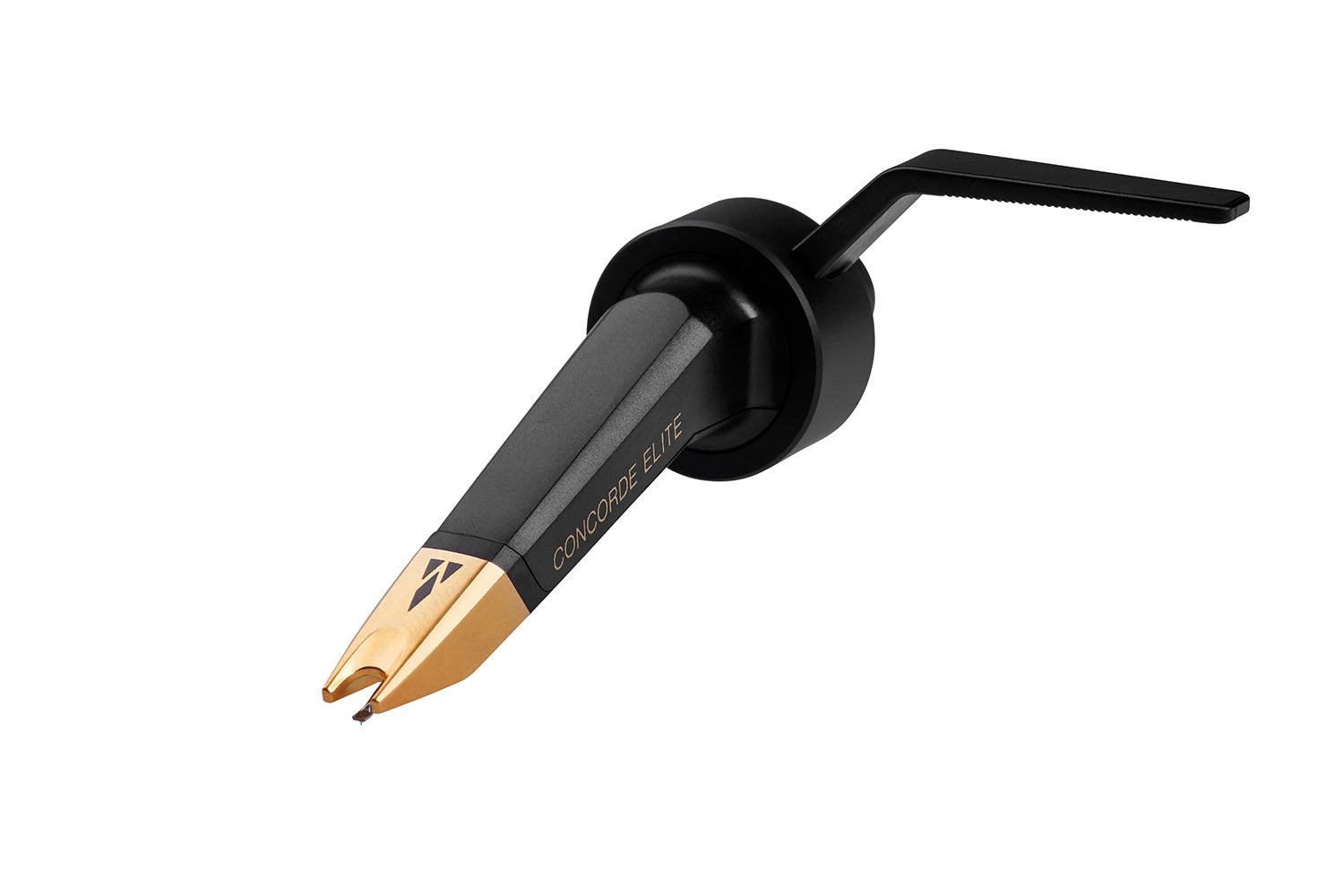

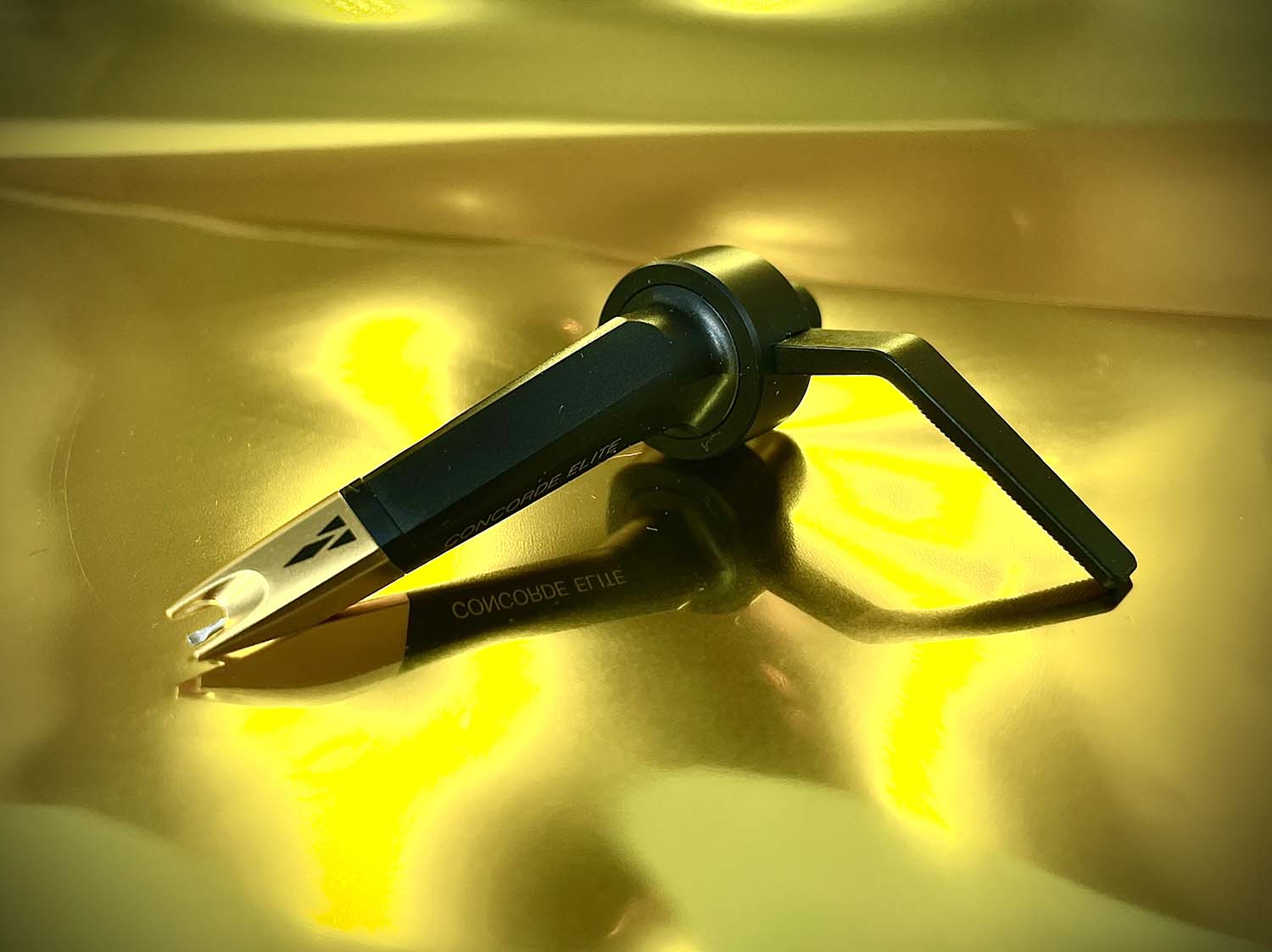

Ortofon Concorde ELITE Single Moving Magnet DJ Cartridge

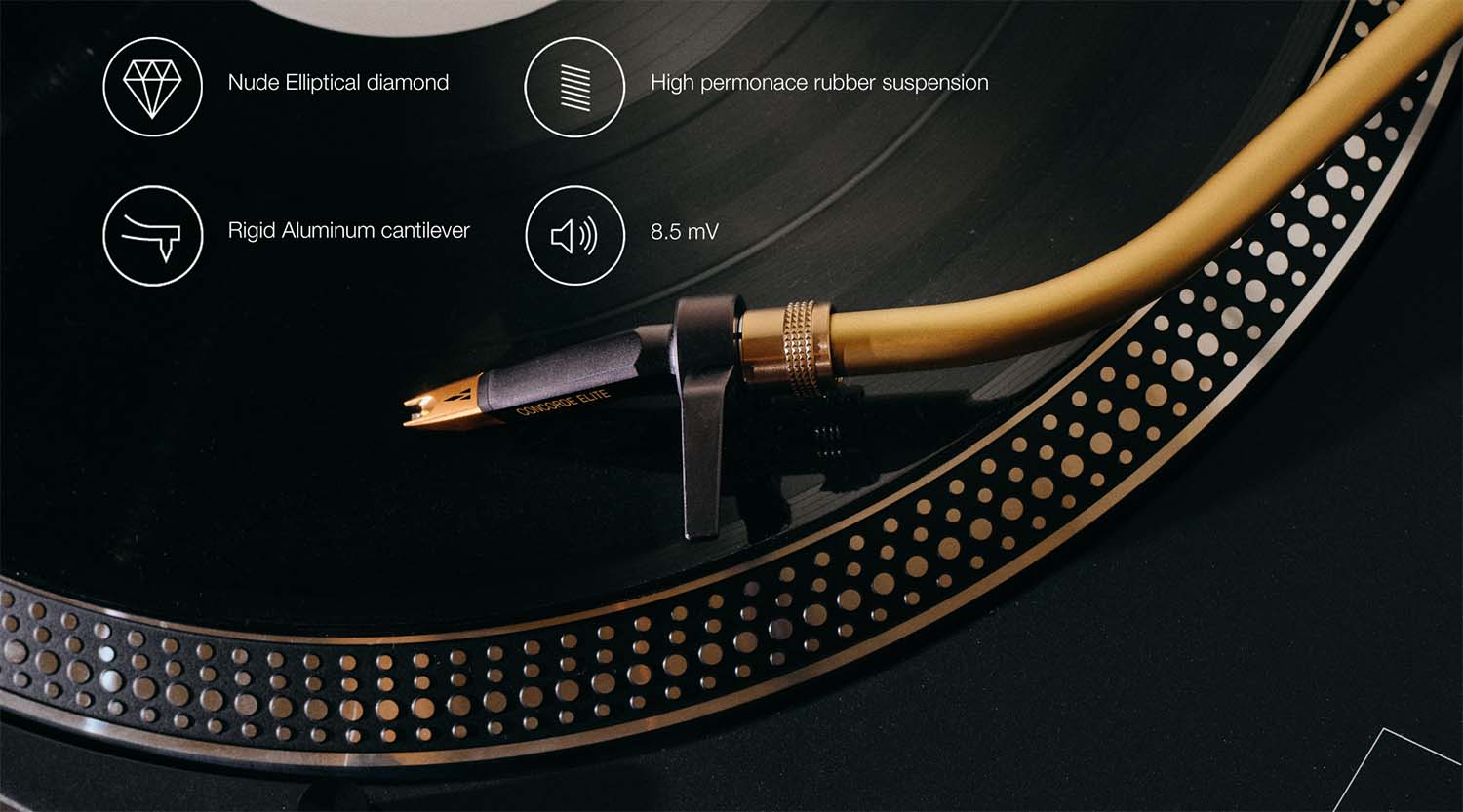

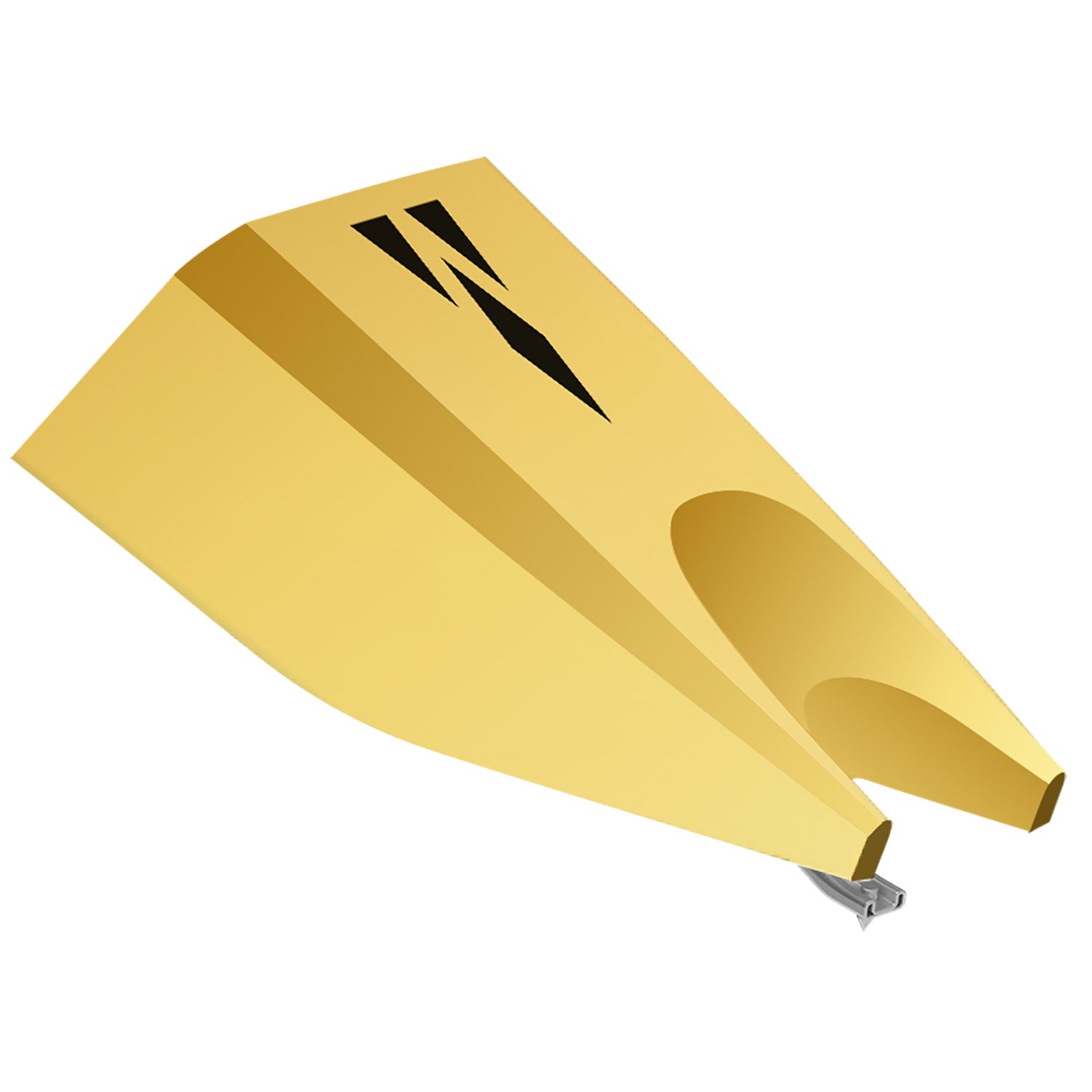

The Ortofon Concorde ELITE Single is a Moving Magnet DJ Cartridge. Created with passion, high technology, and close attention to detail, every feature of the Concorde ELITE brings you a limitless experience with the music you love. The Concorde Elite features a new, special-molded stylus body with real gold plating, which adds luxury to the famous Concorde design. Encased by the gold is a Nude Elliptical diamond mounted on a rigid Aluminum cantilever. The Nude Elliptical diamond stylus, normally used in HiFi cartridges, delivers a sound so powerful and detailed, that you will experience a remarkable level of live performance. The addition of a Nude Elliptical diamond allows a smaller moving mass, which guarantees an improved and detailed sound quality. The slim profile of the Nude Elliptical diamond makes it able to follow the groove oscillations more accurately, extract more intricate details and track even the highest frequency information.

The Cantilever and Coil System

The cantilever needs to accommodate the perfect compromise between lightweight and high strength, which requires great ingenuity in the design, as well as the choice of thterials. The properties of the Rigid 750 µm Aluminum-Magnesium cantilever, exclusively developed for the Concorde ELITE, ensure that the stylus picks up the groove vibrations with a stable and accurate trace performance and provides the ideal interface between the stylus and armature. In the armature, you’ll find a specially developed Coil System transmitting the diamond’s movements to deliver an optimized output. The unique Coil System provides the ELITE with a powerful, full-bodied sound of high quality and high output.

Rubber Suspension

To ensure superior tracking performance, a new Rubber Suspension has been developed. The new rubber compound formula has been developed uniquely for the Concorde ELITE to attain the desired characteristics for an extraordinary performance of the cartridge. The richer, fuller sound conveys the music in the most lifelike manner while paying close attention to damping of excess brightness.

Product Specifications:

Internal impedance, DC resistance: 1.2 kOhm

Internal inductance: 800 mH

Recommended load resistance: - 47 kOhm

Recommended load capacitance: - 150-400 pF

Cartridge weight excluding screws: - 18.5 g

Output voltage: 1000 Hz, 5cm/sec. - 8,5 mV

Channel balance: 1 kHz - 1 dB

Channel separation: 1 kHz - 25 dB

Channel separation: 15 kHz - 15 dB

Tracking ability: 315Hz at recommended tracking force - 100 μm

Compliance, dynamic lateral: 13 μm/mN
