Description

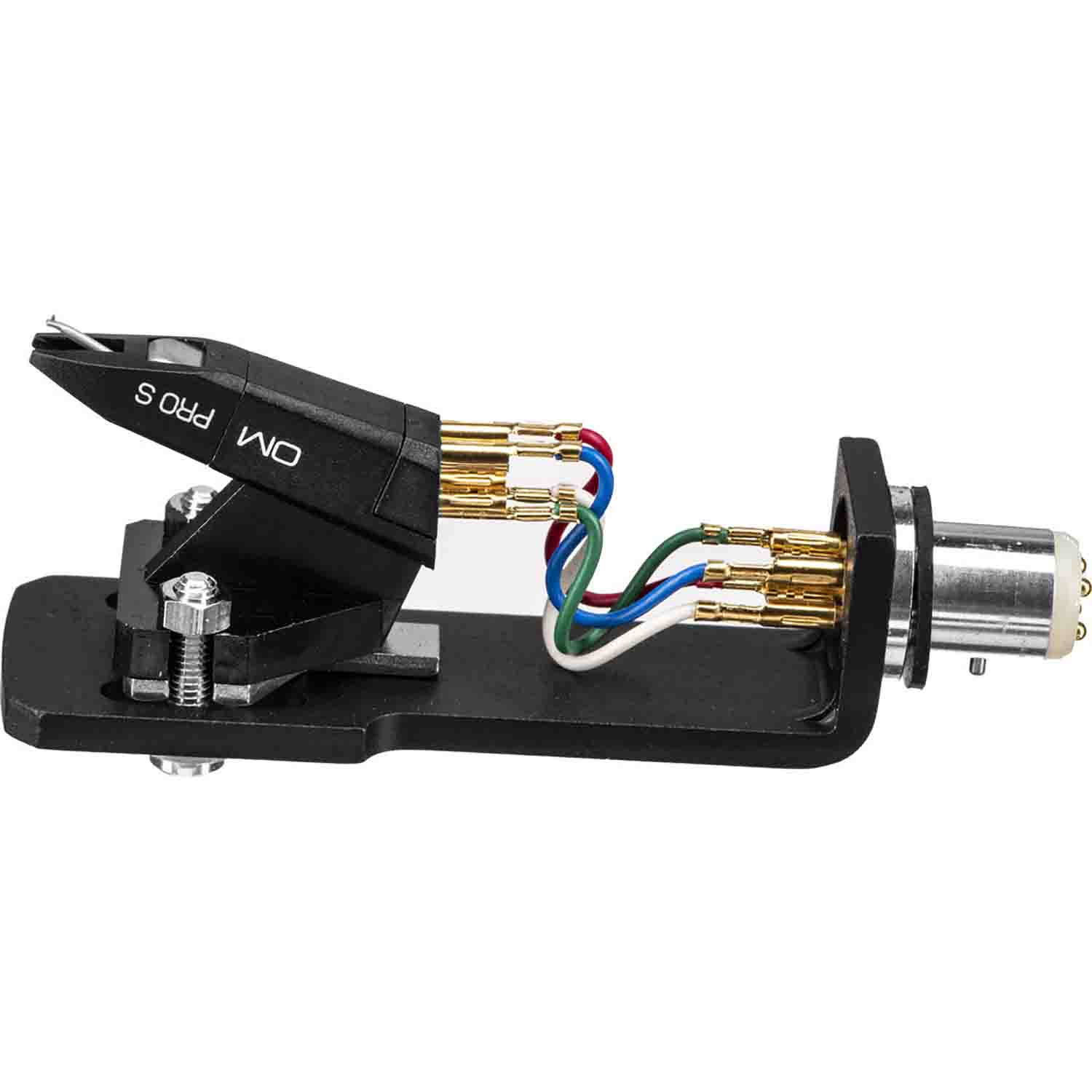

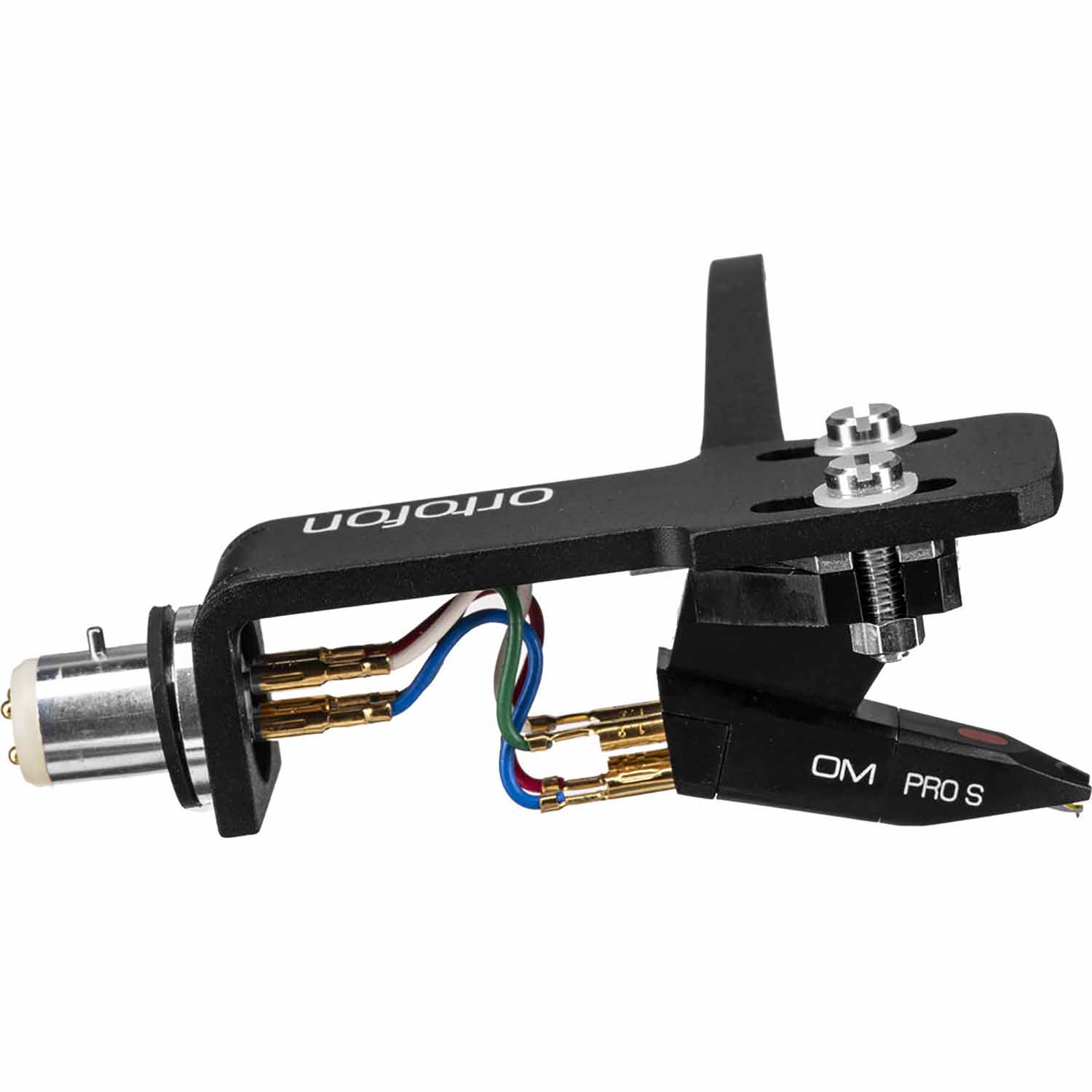

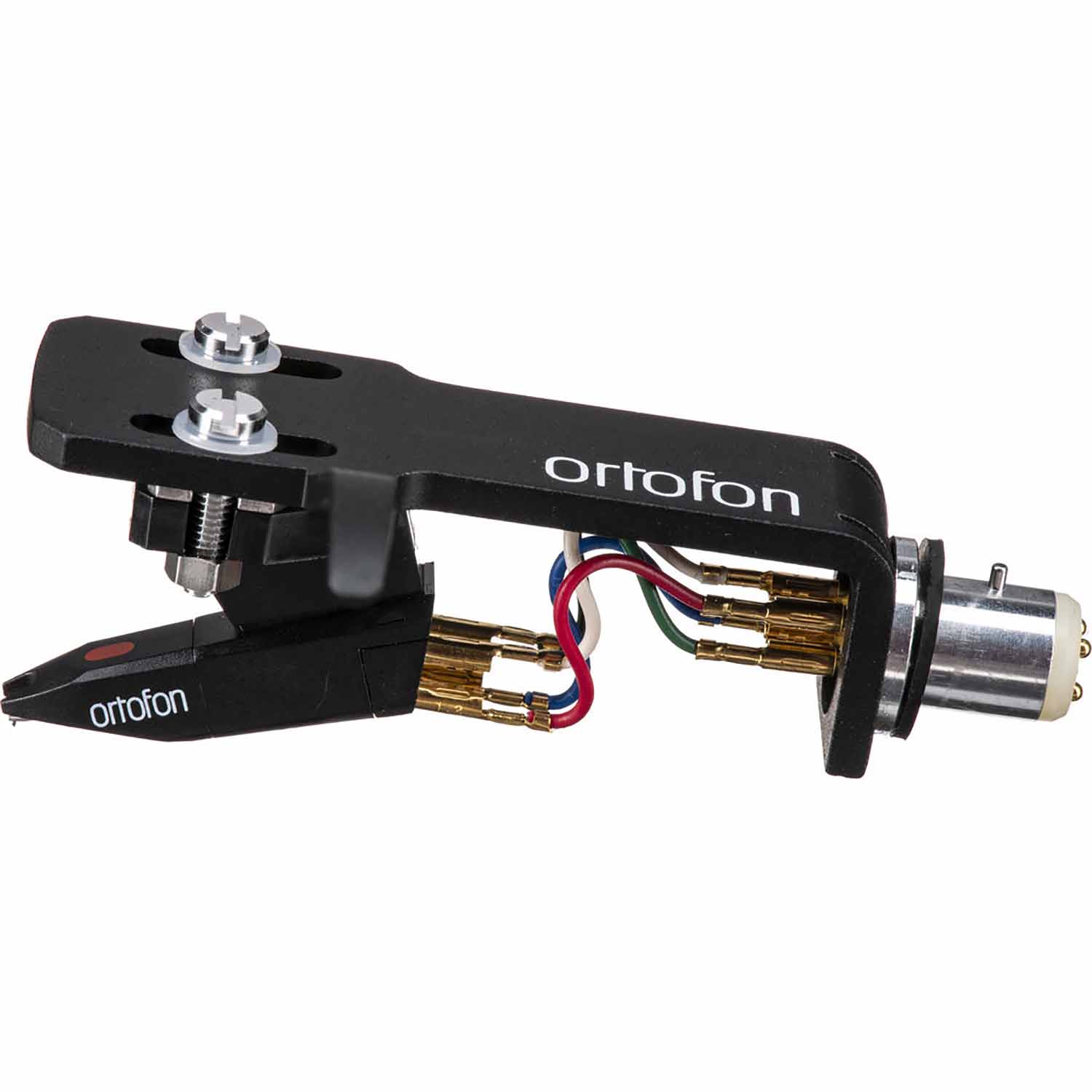

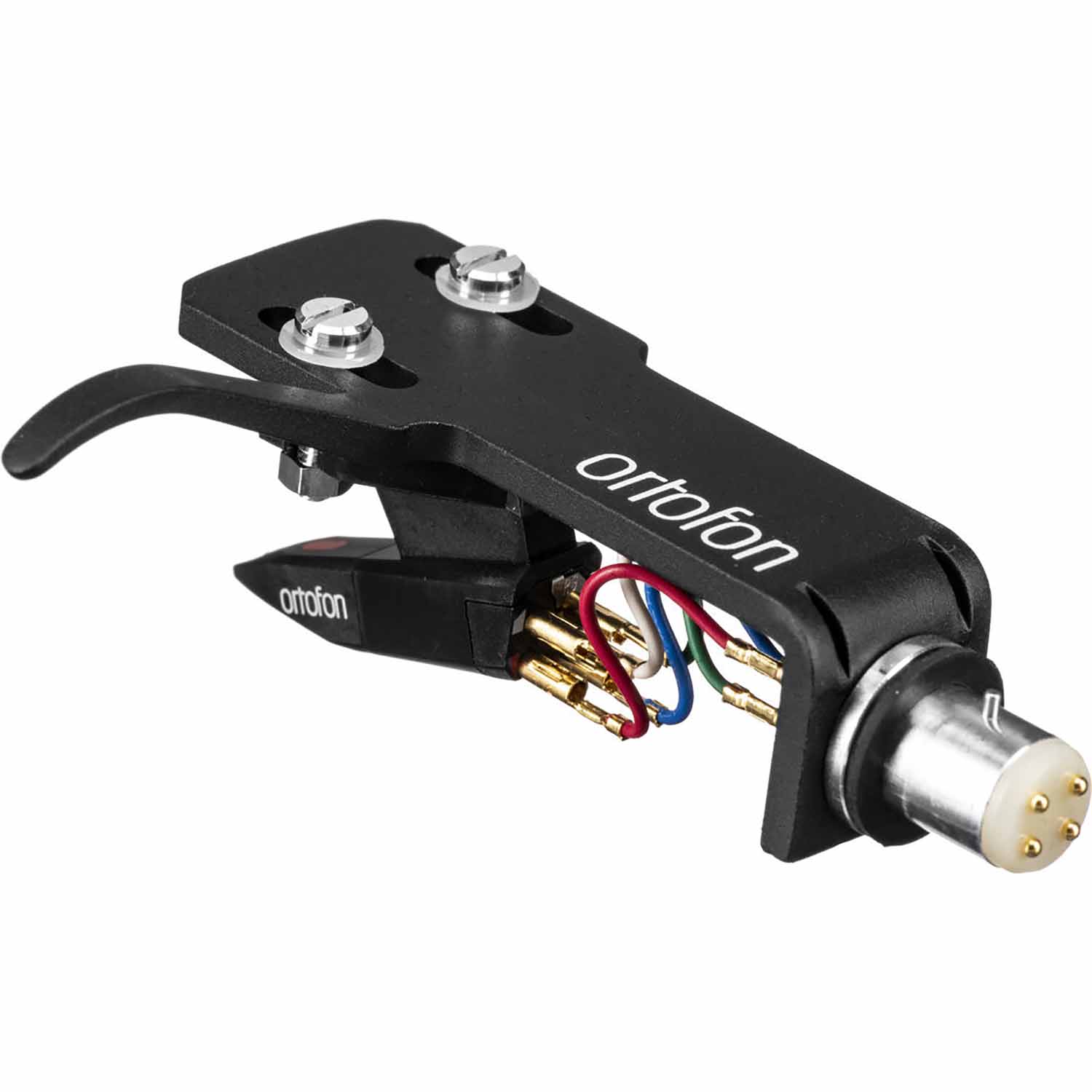

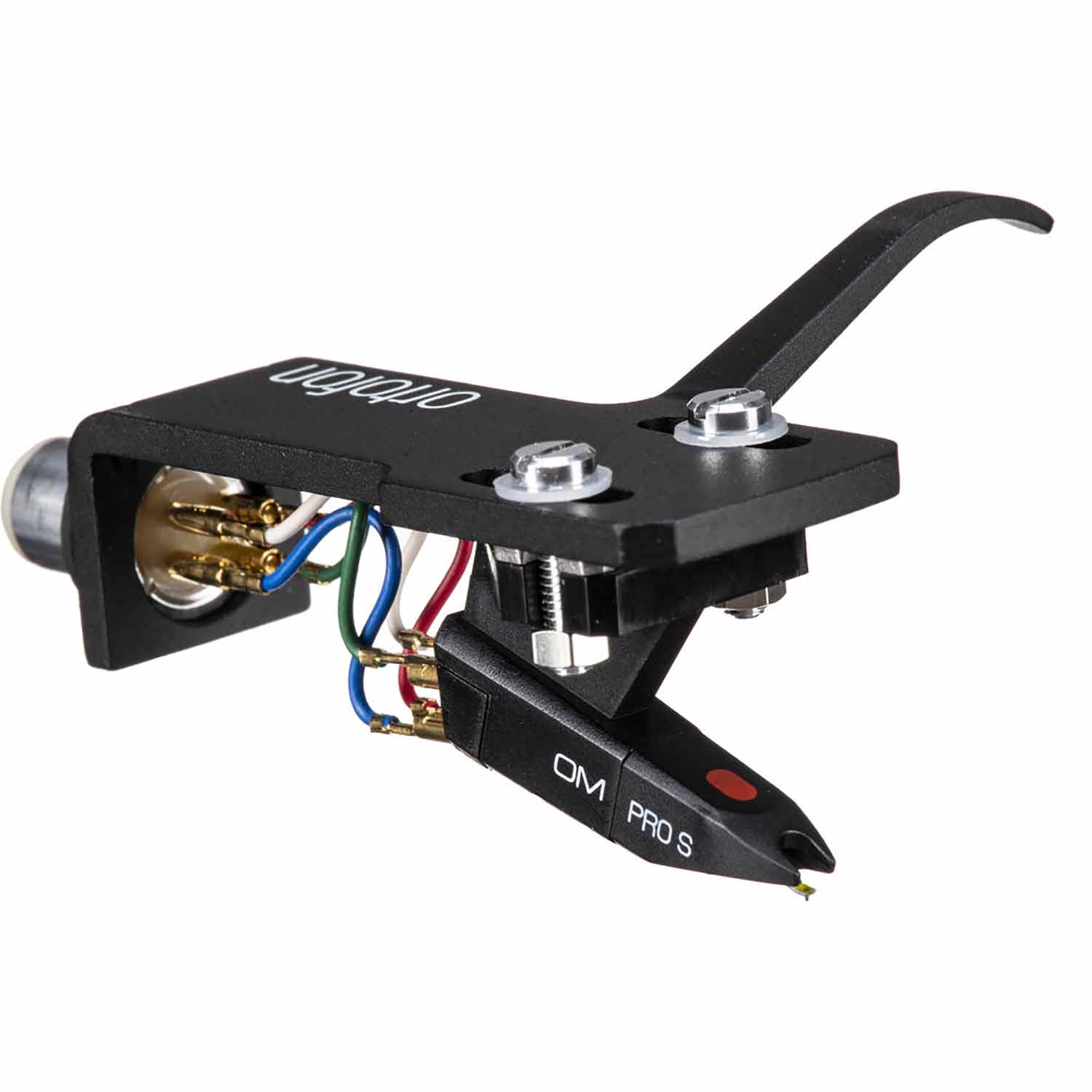

The Ortofon PROS OM PREMOUNT on the SH-4 Black headshell is a practical and convenient solution for our customers who wish direct and easy mounting and replacement on their S-shaped tonearm.
Product Specification:
Output Voltage At 1000Hz, 5cm/Sec: 5 mV
Channel Balance At 1khz: 2 dB
Channel Separation At 1khz: 20 dB
Channel Separation At 15 Khz: 15 dB
Tracking Ability At 315 Hz At Recommended Tracking Force: 70 μm
Compliance, Dynamic Lateral: 7 μm/m N
Stylus Type: Spherical
Stylus Tip Radius: R 18 μm
Tracking Force Range: 3 - 5 g
Tracking Force Recommended: 4 g
Tracking Angle: 20°
Internal Impedance, DC Resistance: 750 Ohm
Internal Inductance: 450 mH
Recommended Load Resistance: 47 kOhm
Recommended Load Capacitance: 200-600 pF
OM Cartridge Weight: 5,0 g
OM Pre-Mounted On SH-4 Weight Incl. Screws: 14,5 g
Replacement Stylus Unit: Pro S
