Description

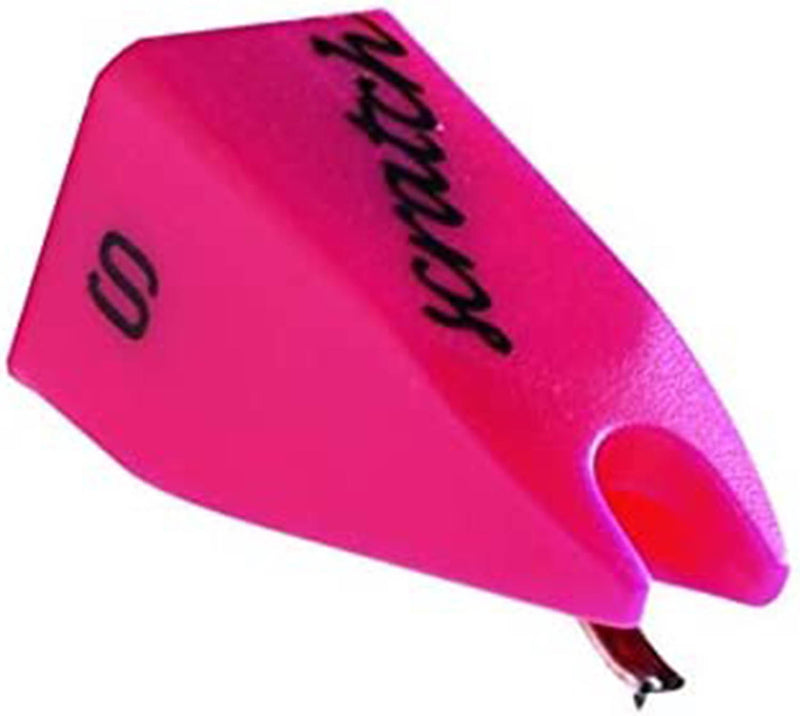

The ORTO SCRATCH STYLUS Replacement Stylus is engineered for DJs who demand maximum control, durability, and output when performing scratch and back-cueing techniques. Built to withstand higher tracking forces without sacrificing sound quality or stylus life, it delivers a powerful and energetic sound suitable for all DJ styles.
Thanks to its reinforced suspension system, the stylus maintains excellent groove contact, ensuring reliable tracking even during aggressive performance. Solid low-frequency reproduction combined with extended high frequencies results in a punchy, forward sound that cuts through any mix. With very high output and precise tracking capability, this stylus guarantees confident performance in both live and studio environments.
Product Specifications:
Stylus Type: Spherical
Output Voltage: 7 mV
Channel Balance at 1 kHz: 1.5 dB
Channel Separation at 1 kHz: 25 dB
Frequency Response: 20 Hz – 20 kHz (3 dB / -2 dB)
Tracking Ability at 315 Hz: 80 µm
Compliance, Dynamic Lateral: 6 µm/mN
Stylus Tip Radius: R 18 µm
Tracking Force Range: 3.0 – 5.0 g
Recommended Tracking Force: 4.0 g
Tracking Angle: 20°
Internal Impedance (DC Resistance): 750 Ohm
Internal Inductance: 450 mH
Recommended Load Resistance: 47 kOhm
Recommended Load Capacitance: 200 – 600 pF
Cartridge Weight: 18.5 g / 0.0185 kg
Product Dimensions (H×W×D): 0.7 × 1.2 × 1.8 inches
Shipping Dimensions (H×W×D): 2.0 × 3.5 × 5.0 inches
Shipping Weight: 0.3 kg / 0.66 lbs.
