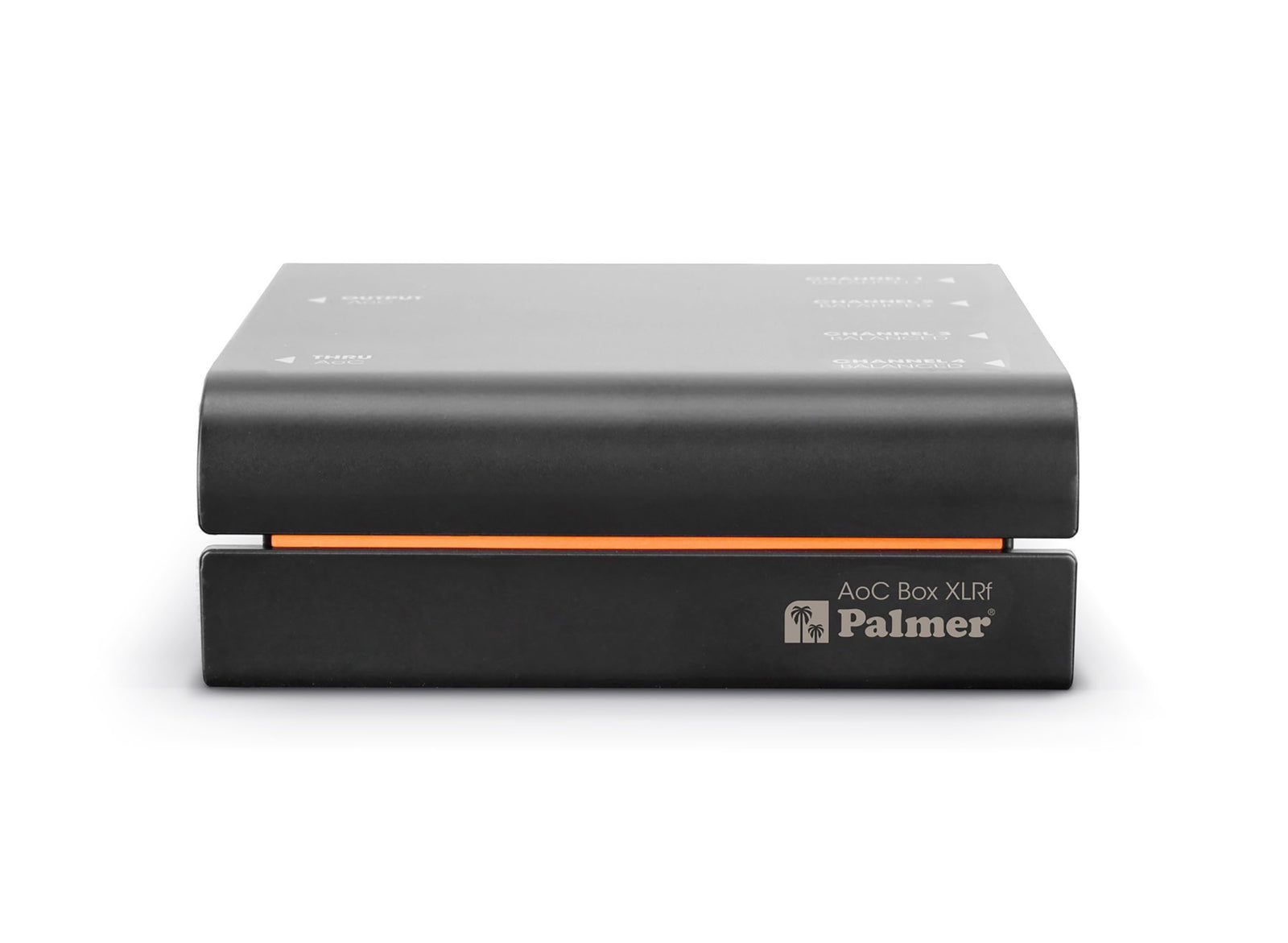

Palmer AoC Box XLRf Audio Over Cat Box from etherCON to 4 x XLR Female

Save $38.99
SKU: H-PALM-AOCXLRF   |  MPN:PAL-PAOCXLRF

Price:
Sale price$129.99 Regular price$168.98
Stock:
Sold out

Notify me when available

Free 2nd Day Air on most items

Price Match Guarantee

Request Package Pricing

Call us for package deal pricing anytime 800-700-4542.

Description

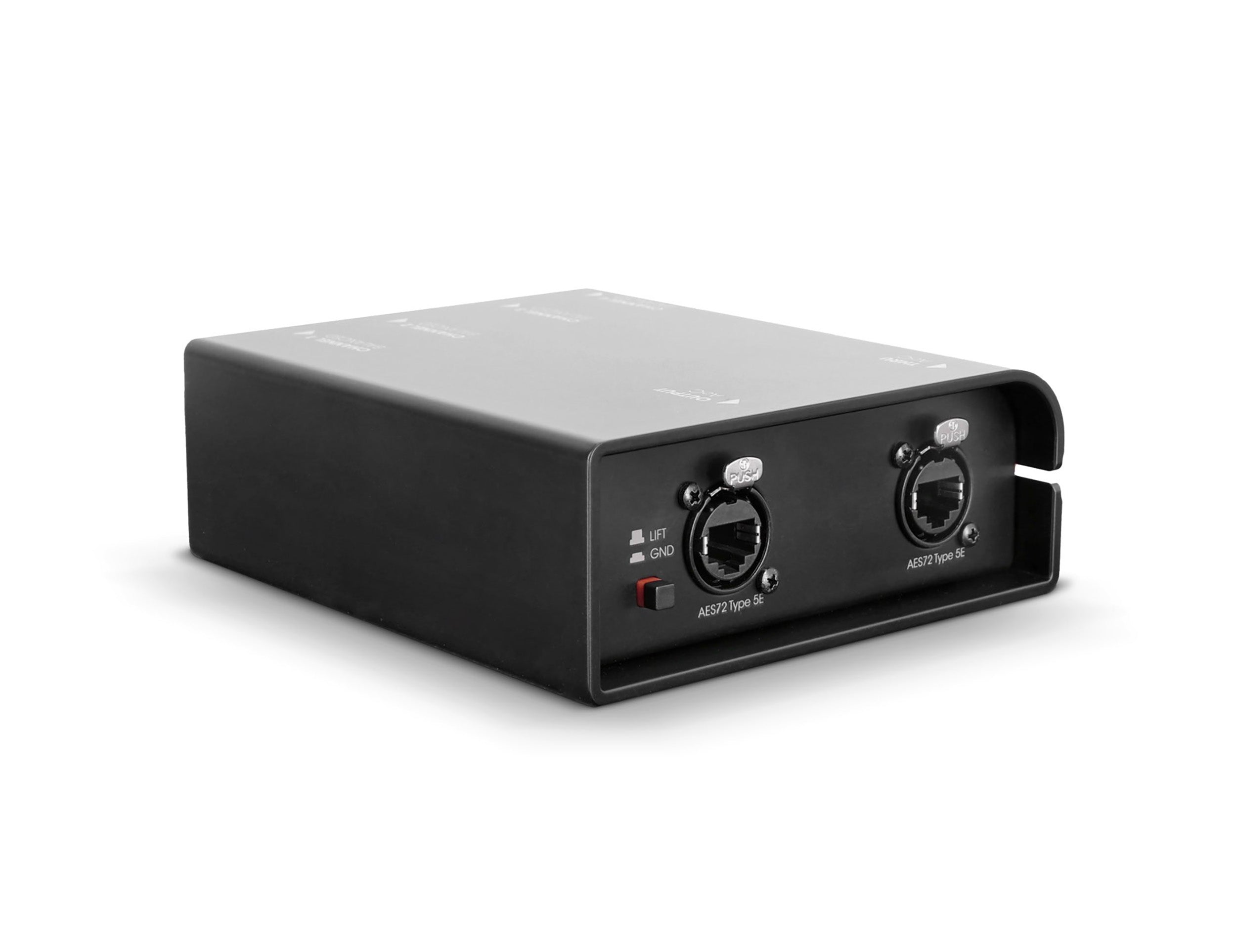

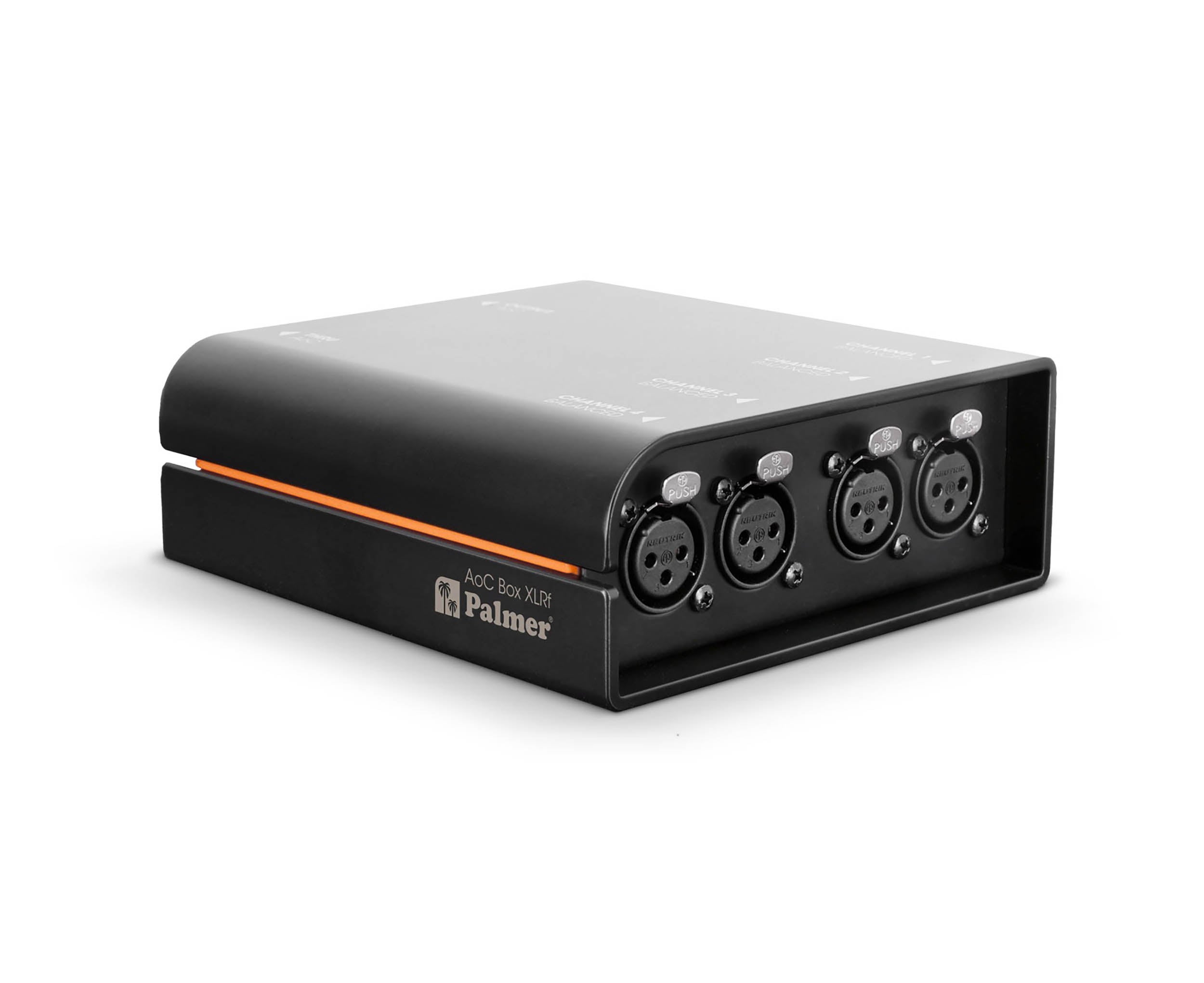

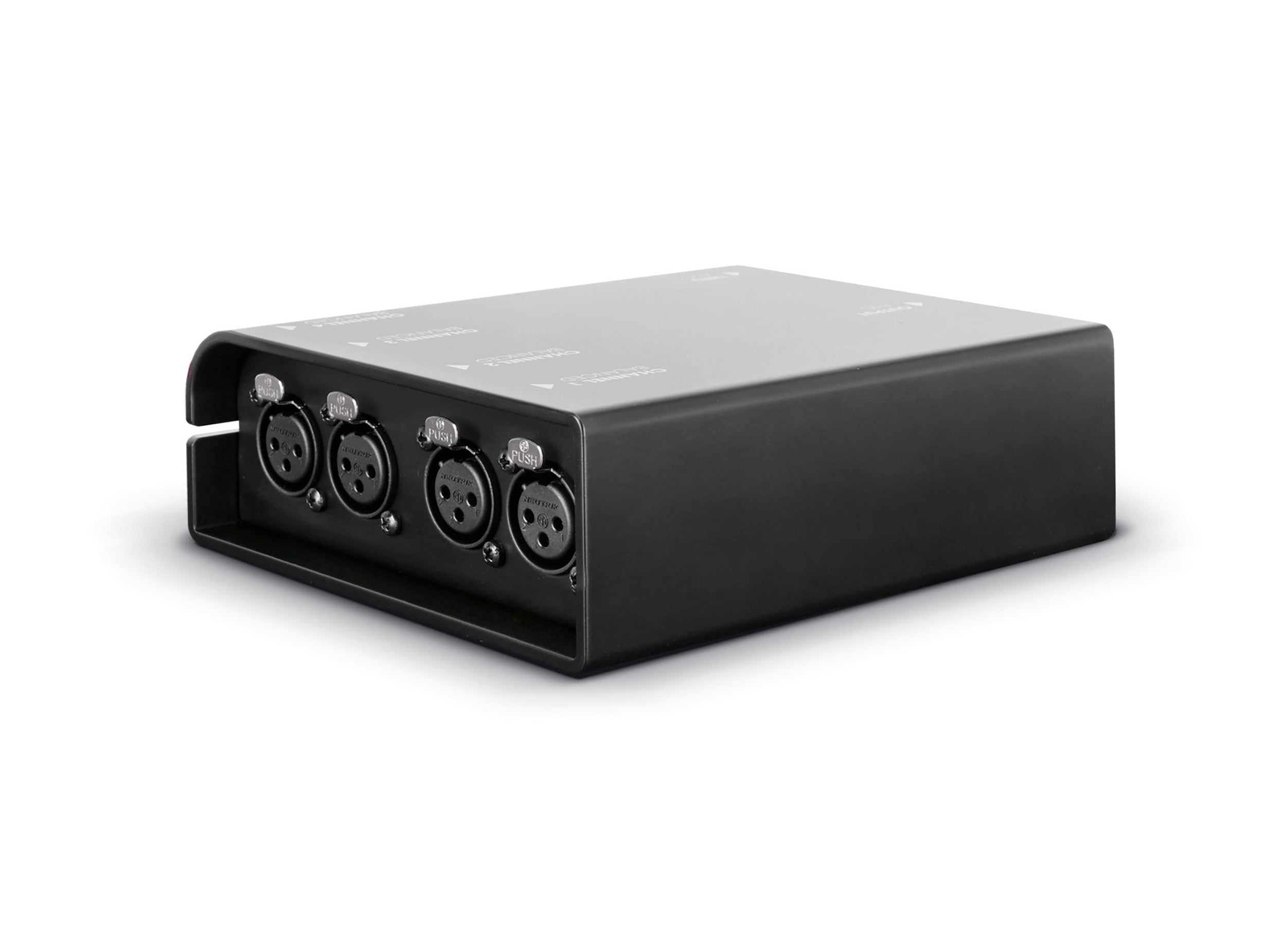

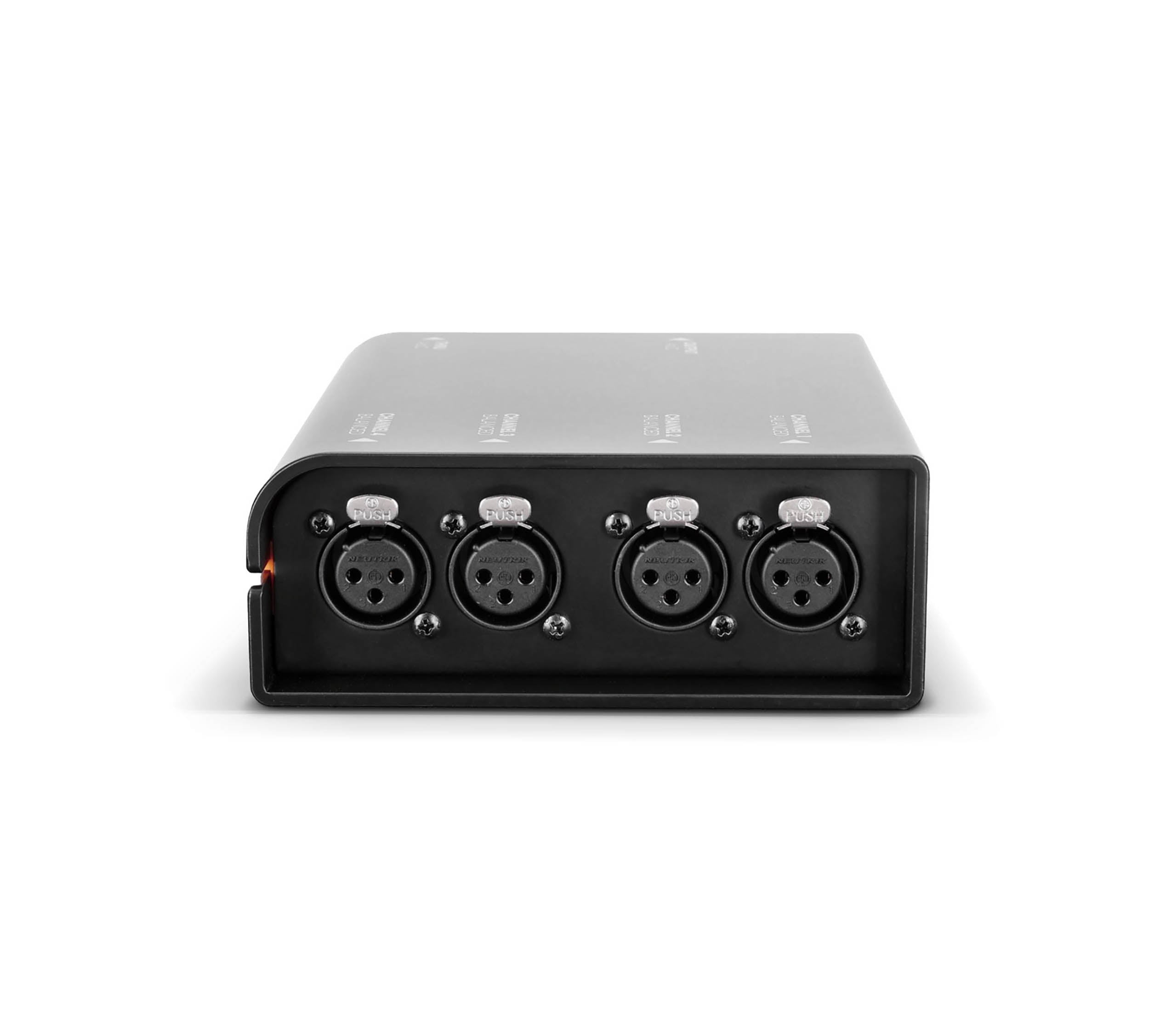

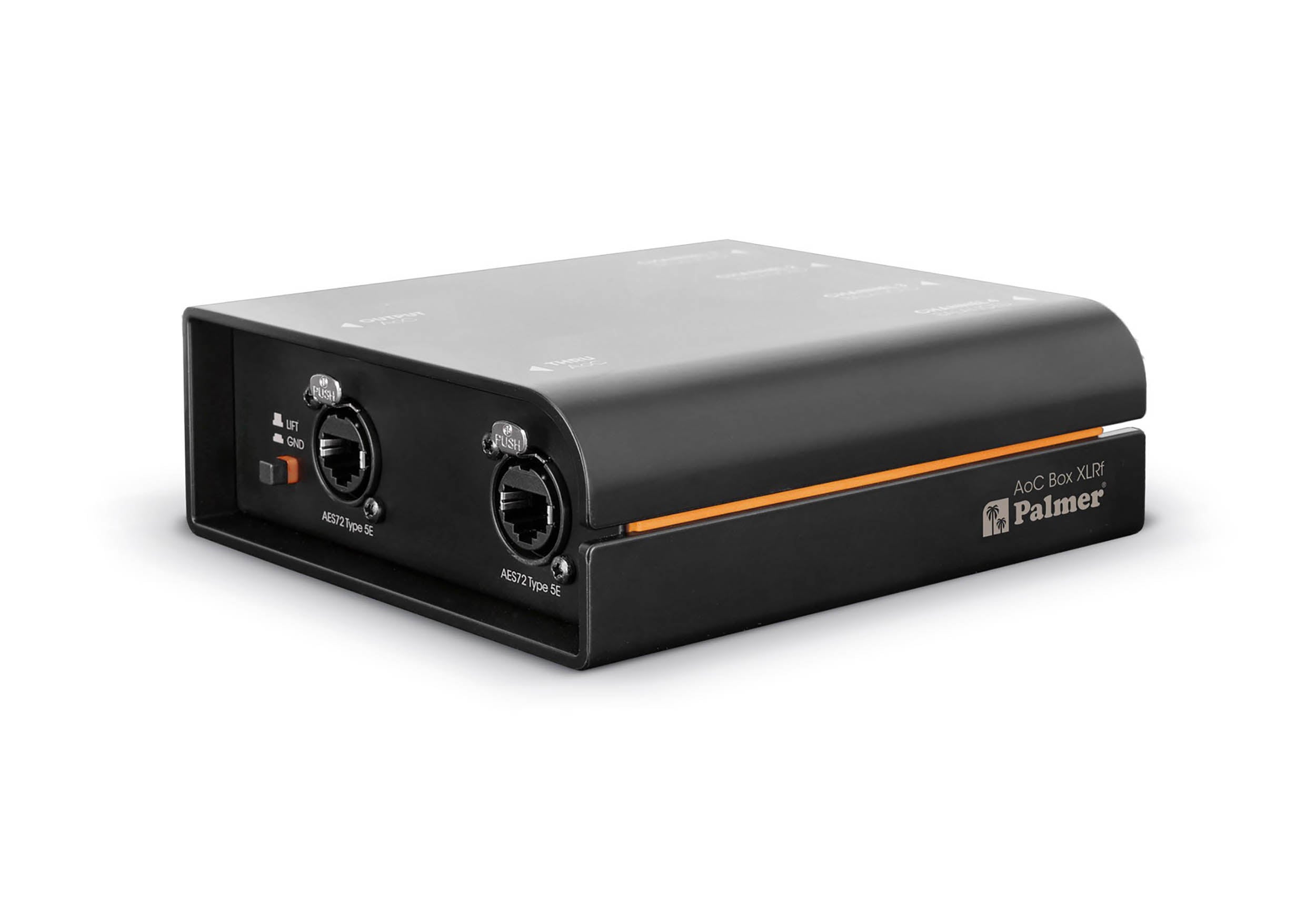

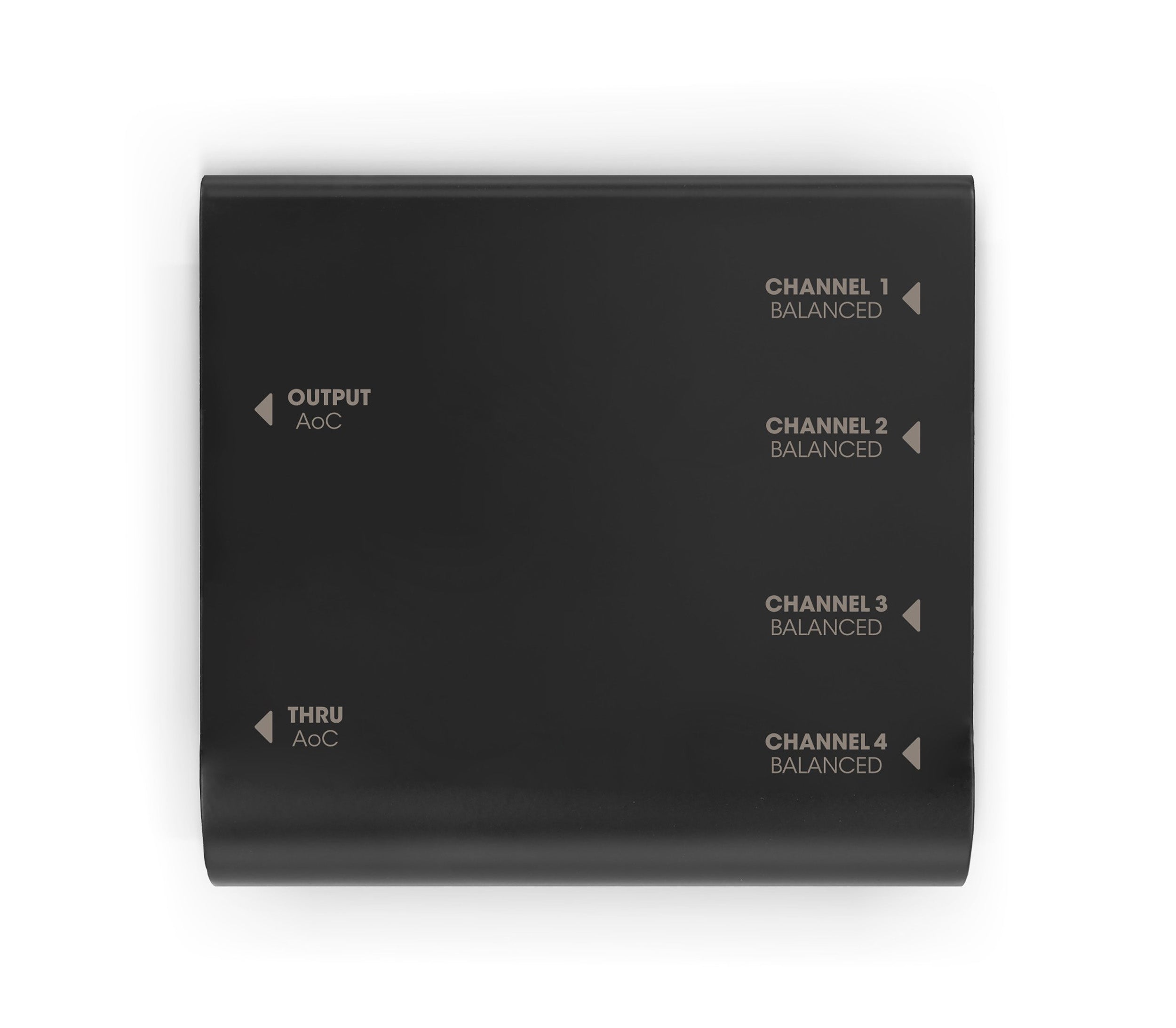

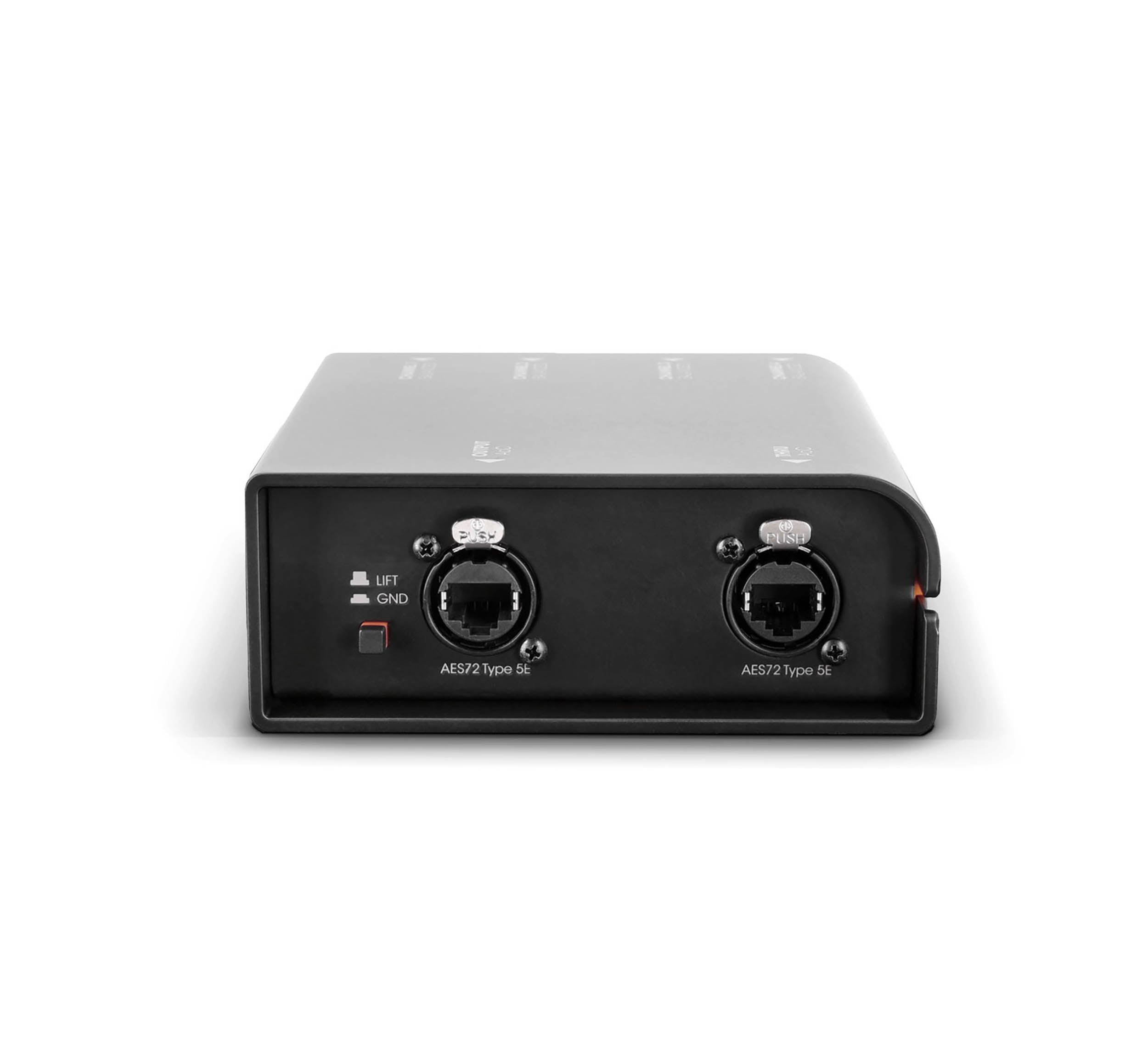

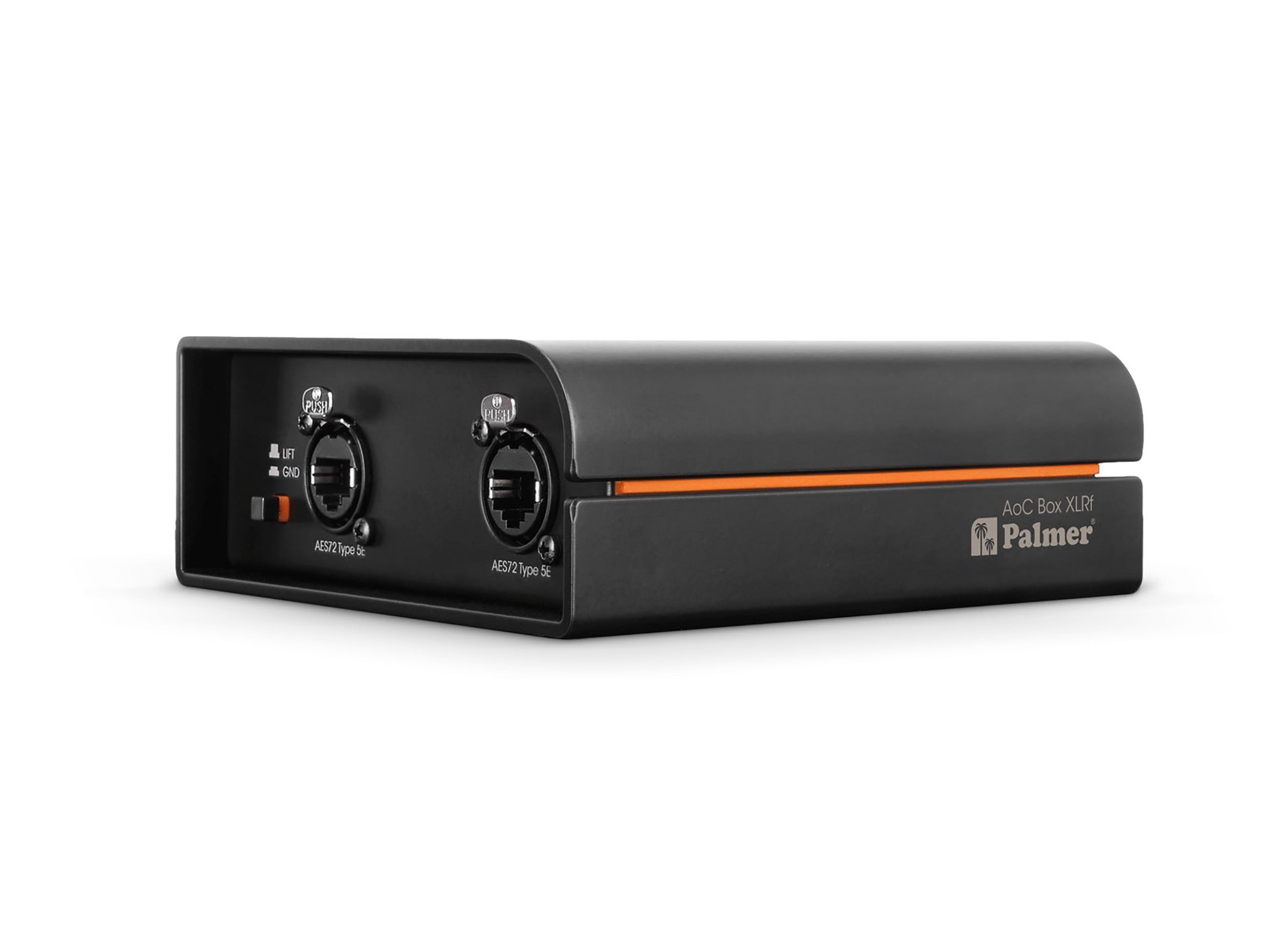

The Palmer AoC Box XLRf Audio over Cat box from etherCON to 4 x XLR female is a multicore box that facilitates the stable transmission of 4 separate analogue and balanced audio signals or 8 digital AES3 signals through a network cable (not included). To mitigate the risk of ground loops, the etherCON connection features a ground lift switch. In addition, a secondary etherCON THRU connection – linked in parallel – facilitates the transmission of signals to external devices. Both of the etherCON connections are safeguarded against unlocking to prevent accidental cable disconnection.

In addition to audio signals, the AOC B XLR F enables the transmission of DMX, or MIDI control signals, along with 48-volt phantom power, via a single, standard Ethernet cable. This versatility allows it to be used flexibly across various applications, be it for live concerts, studio sessions, press conferences, or other productions.

Featuring high-quality Neutrik components as well as a solid aluminium-steel housing, the AOC B XLR F guarantees reliable signal transmission and durability in professional environments. Its simple, high-quality design also enhances the visual appeal of any setup. All these factors make the AOC B XLR F a reliable and durable tool that provides an affordable and flexible alternative to conventional 4-channel multicores without compromising audio quality - as you have always come to expect from Palmer.

Product Specifications:

Product Type: Aluminium, Audio over Cat adapter, Steel

Number of Inputs: 4

Input Type: Balanced

Input Connector: RJ45

Number of Outputs: 4

Output Type: Balanced

Output Connector: XLR 3-pin female

Number of LINK Outputs: 4 (via RJ45 THRU)

Ground Lift Switch: yes (for RJ45 THRU)

Material: Aluminium, Steel

Width: 128 mm

Depth: 140 mm

Height: 50 mm

Weight: 0,5 kg

Operating Temperature: - 20 - 70 °C

Air Humidity: < 80 % ( non-condensing )

Audio: Max. input level (< 1% THD, 1 kHz): + 32 dBu dBu

Frequency Range: 0 Hz - 20 kHz

THD (1 kHz, +4 dBu, unity, unweighted): < 0,0005 %
