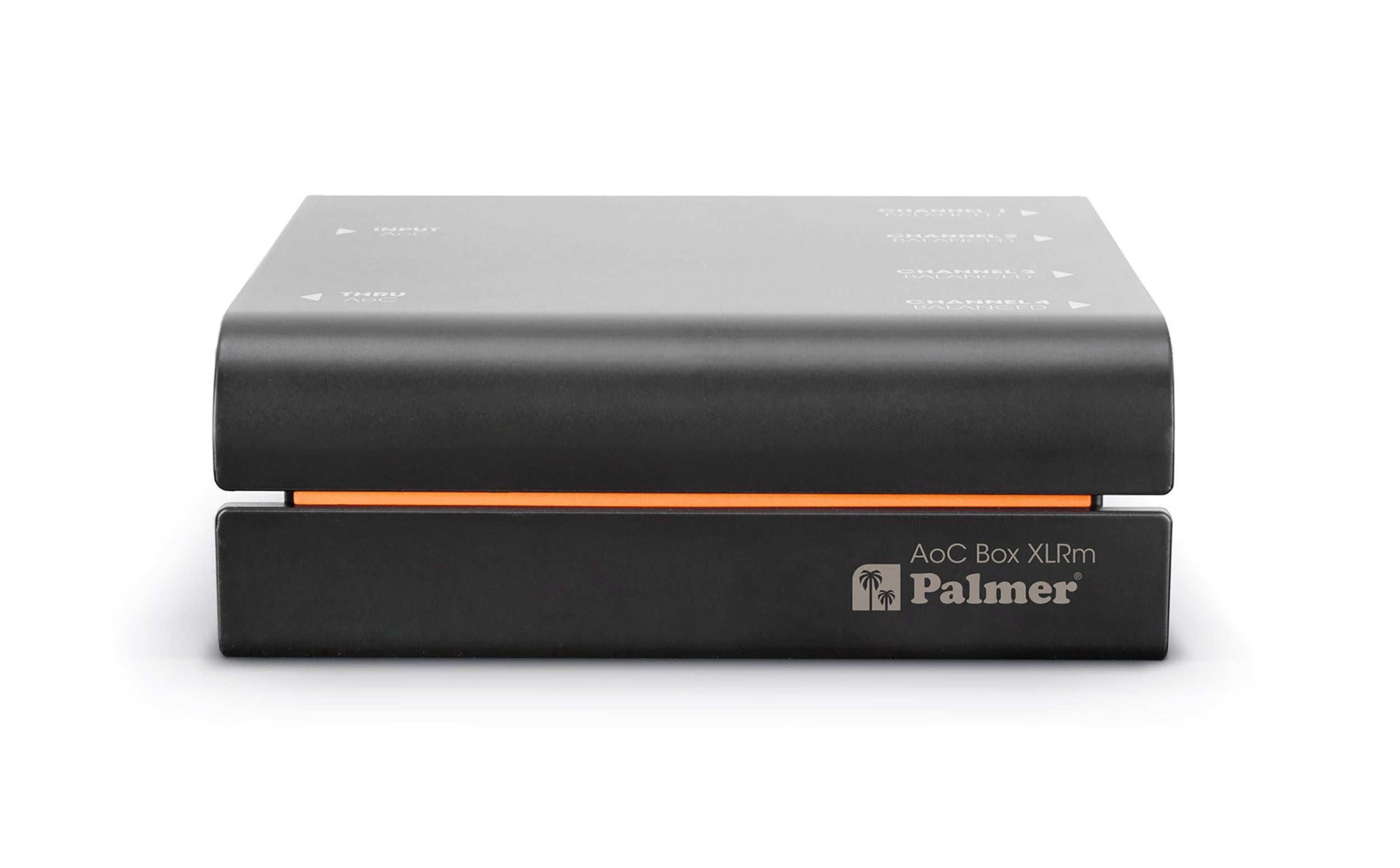

Palmer AoC Box XLRM Audio over Cat Box from etherCON to 4 x XLR Male

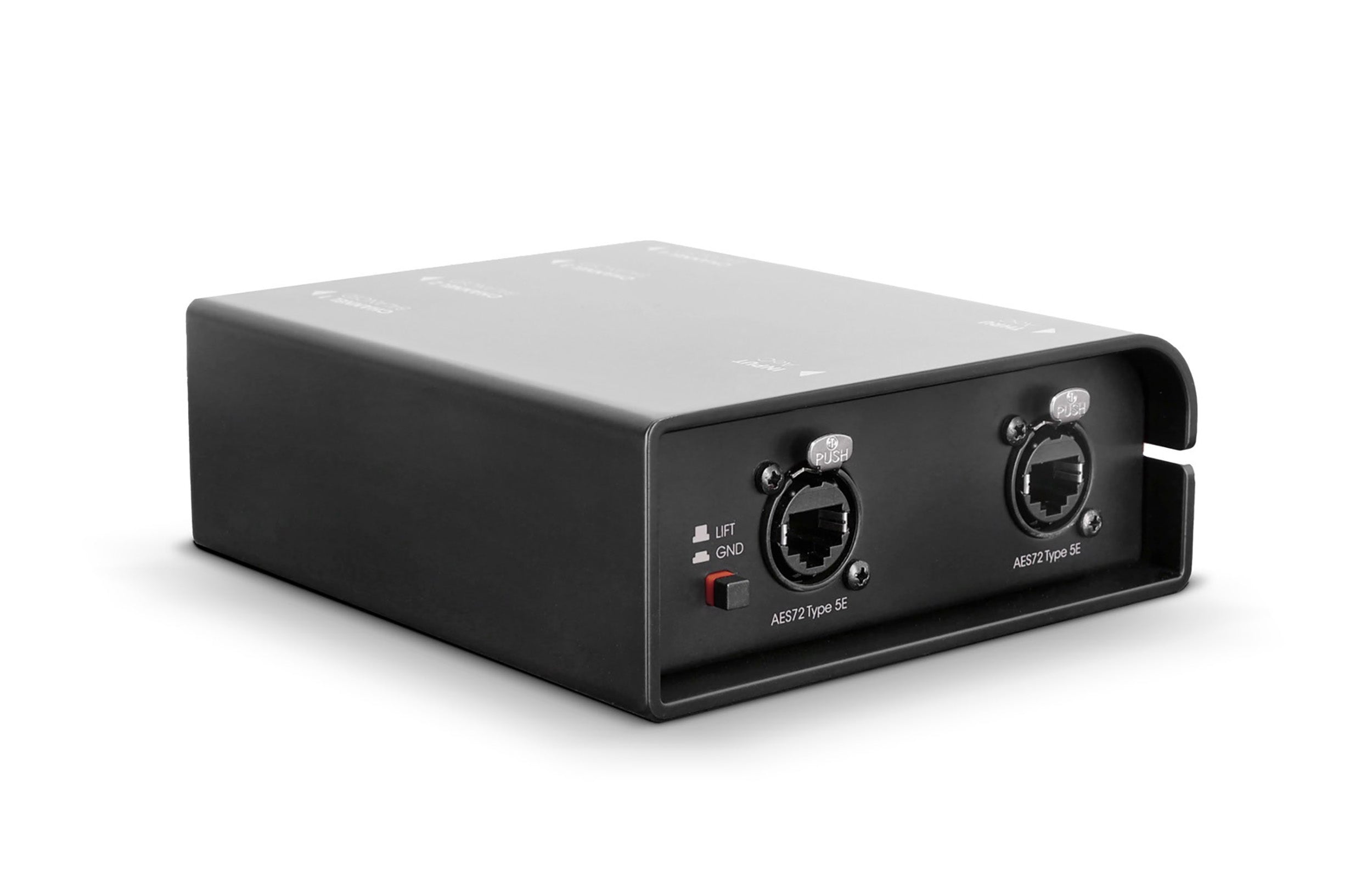

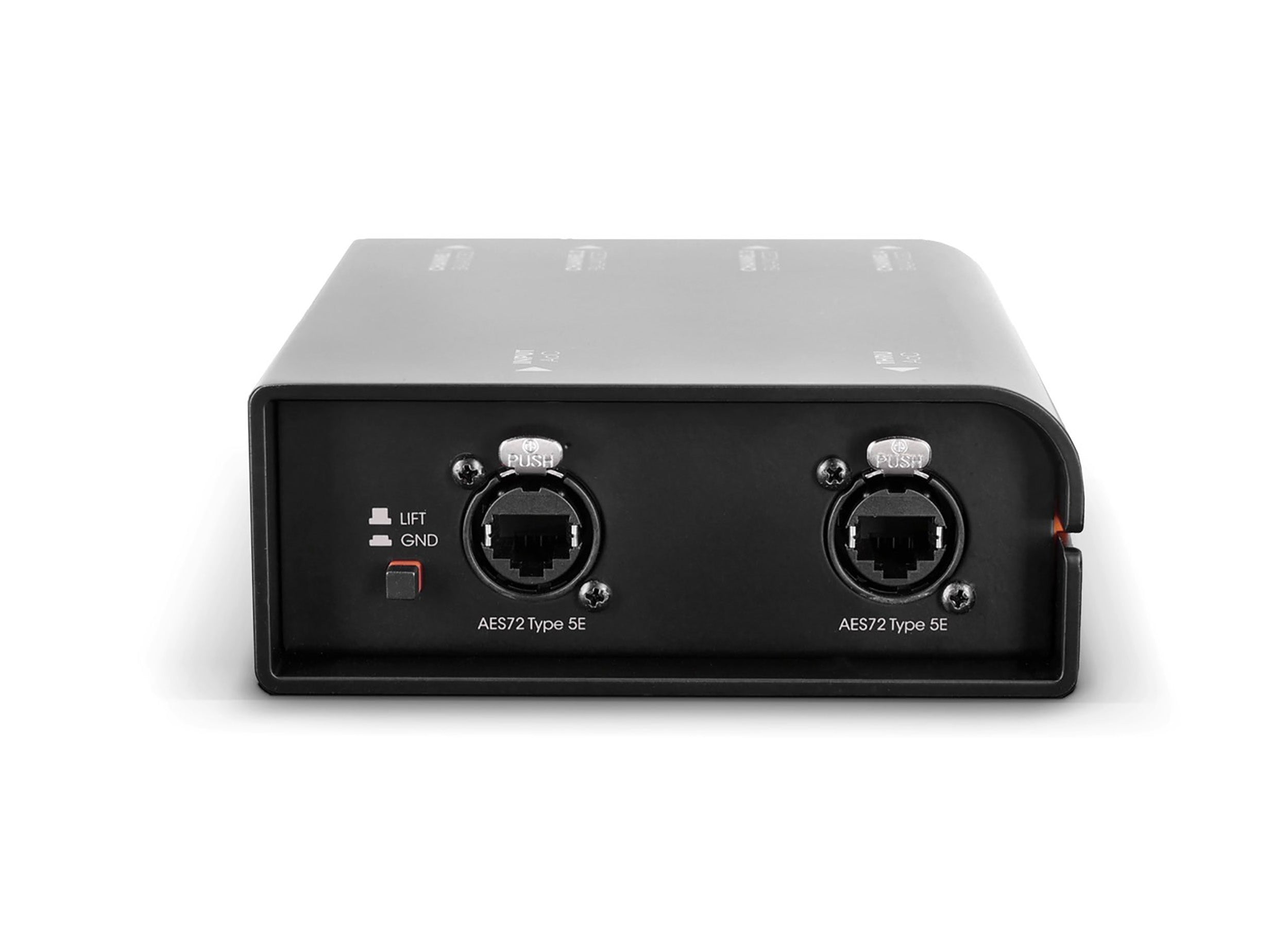

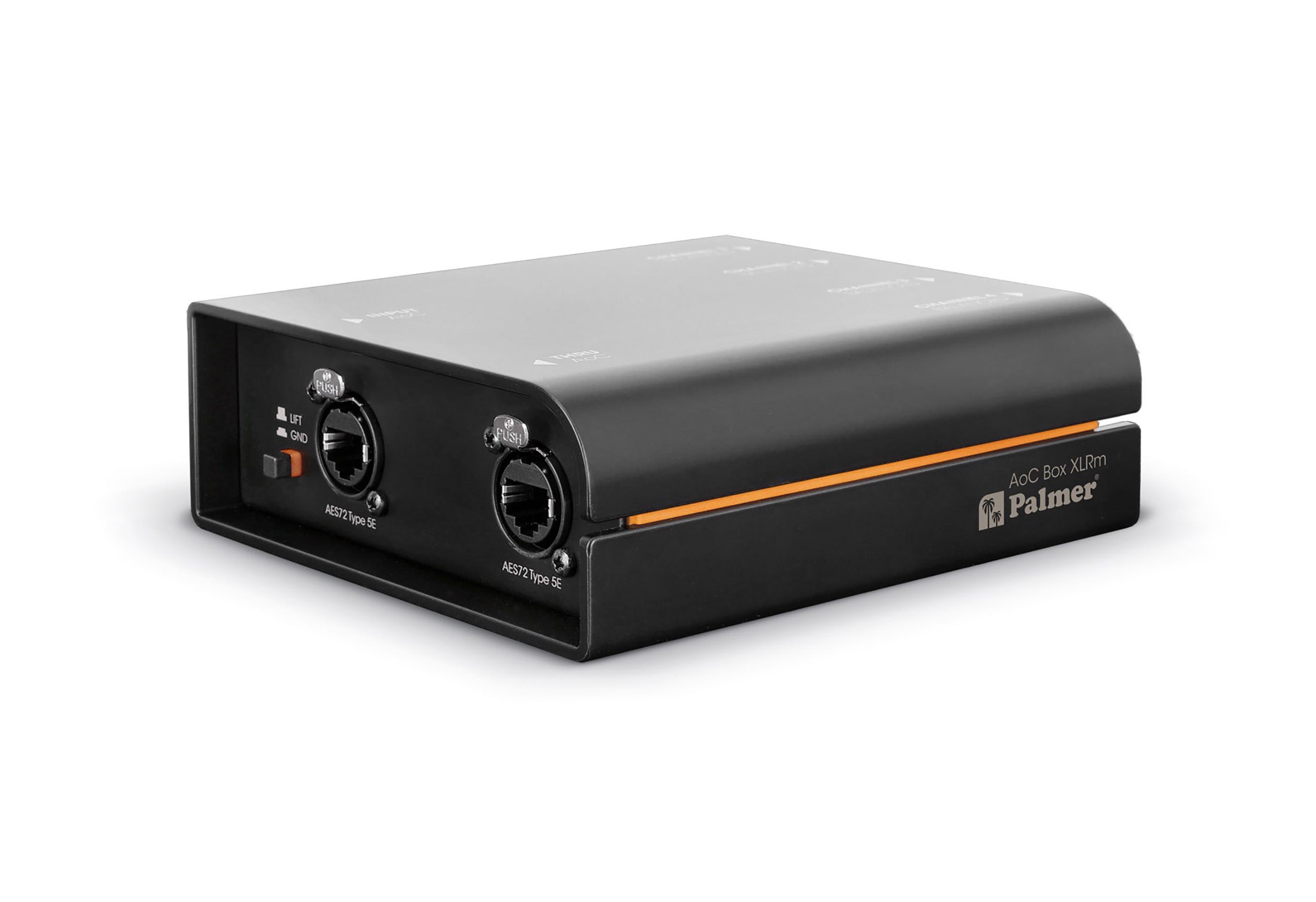

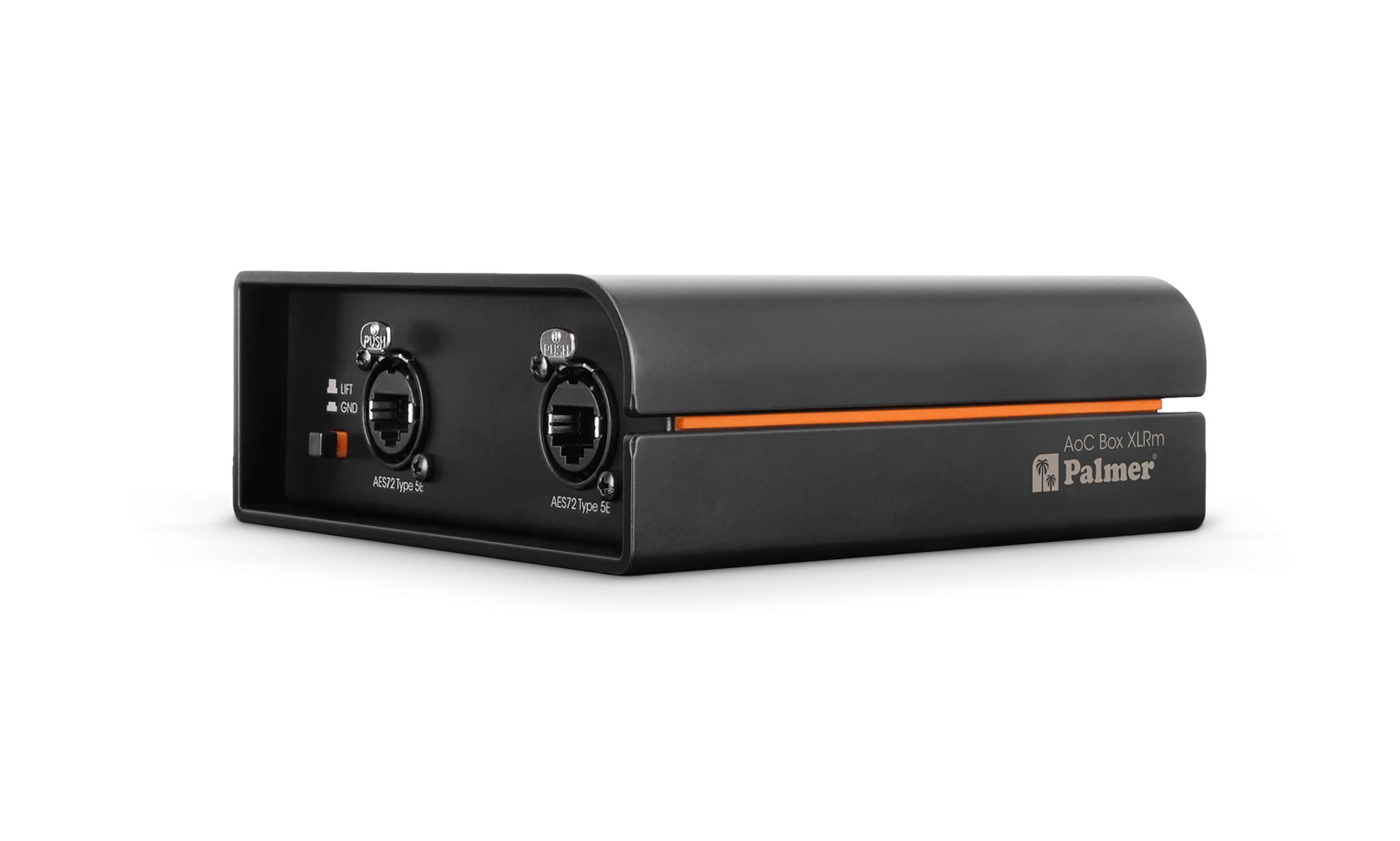

The Palmer AoC Box XLRM Audio over Cat Box from etherCON to 4 x XLR Male is a multicore box that facilitates the stable transmission of 4 separate analogue and balanced audio signals or 8 digital AES3 signals through a network cable (not included). To mitigate the risk of ground loops, the etherCON connection features a ground lift switch. In addition, a secondary etherCON THRU connection – linked in parallel – facilitates the transmission of signals to external devices. Both of the etherCON connections are safeguarded against unlocking to prevent accidental cable disconnection.

In addition to audio signals, the AOC B XLR M enables the transmission of DMX, or MIDI control signals, along with 48-volt phantom power, via a single, standard Ethernet cable. This versatility allows it to be used flexibly across various applications, be it for live concerts, studio sessions, press conferences, or other productions.

Featuring high-quality Neutrik components as well as a solid aluminium-steel housing, the AOC B XLR M guarantees reliable signal transmission and durability in professional environments. Its simple, high-quality design also enhances the visual appeal of any setup. All these factors make the AOC B XLR M a reliable and durable tool that provides an affordable and flexible alternative to conventional 4-channel multicores without compromising audio quality - as you have always come to expect from Palmer.

Product Specifications:

Product Type: Audio over Cat adapter

Number of Inputs: 4

Input Type: Balanced

Input Connector: RJ45

Number of Outputs: 4

Output Type: Balanced

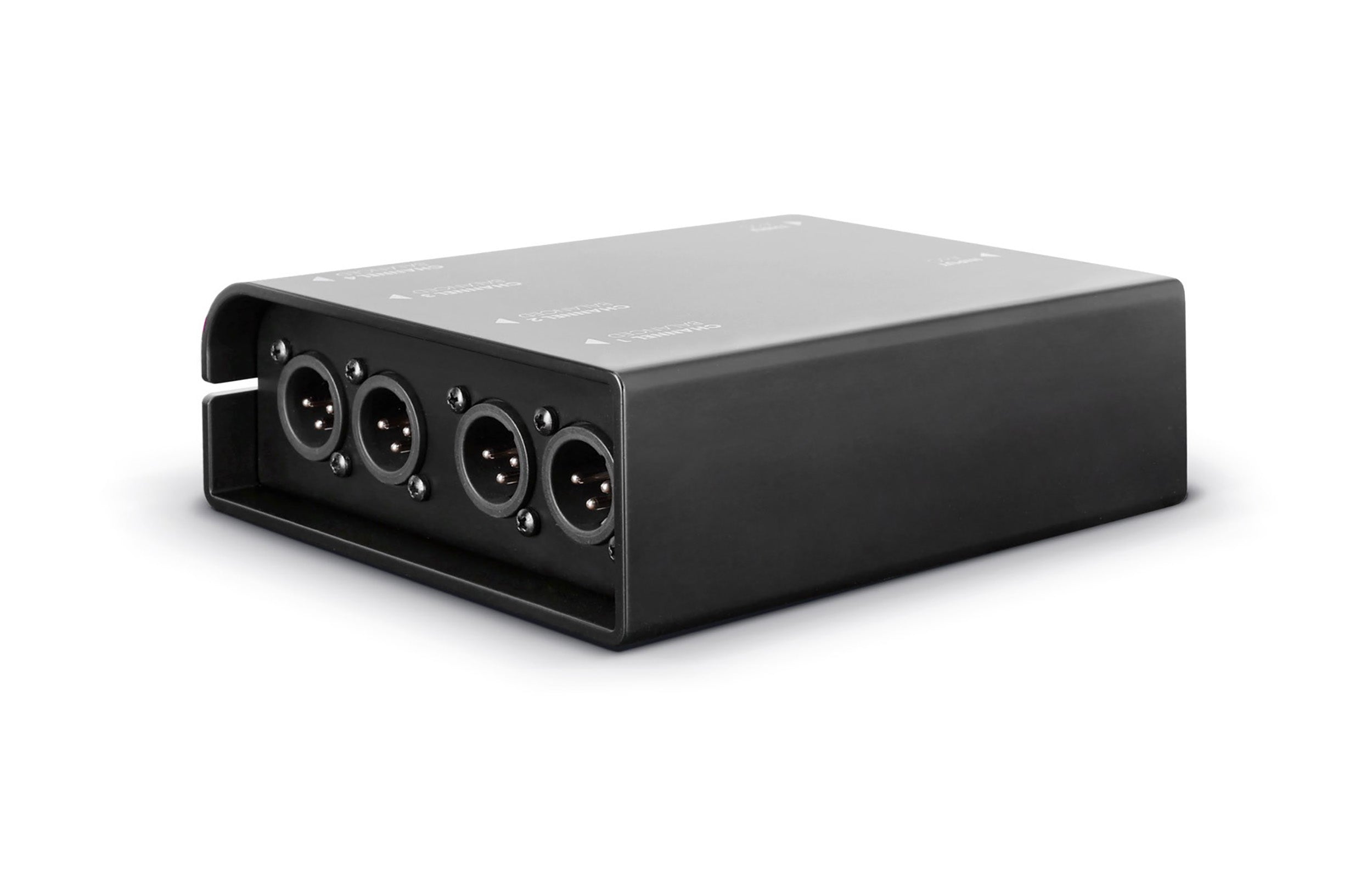

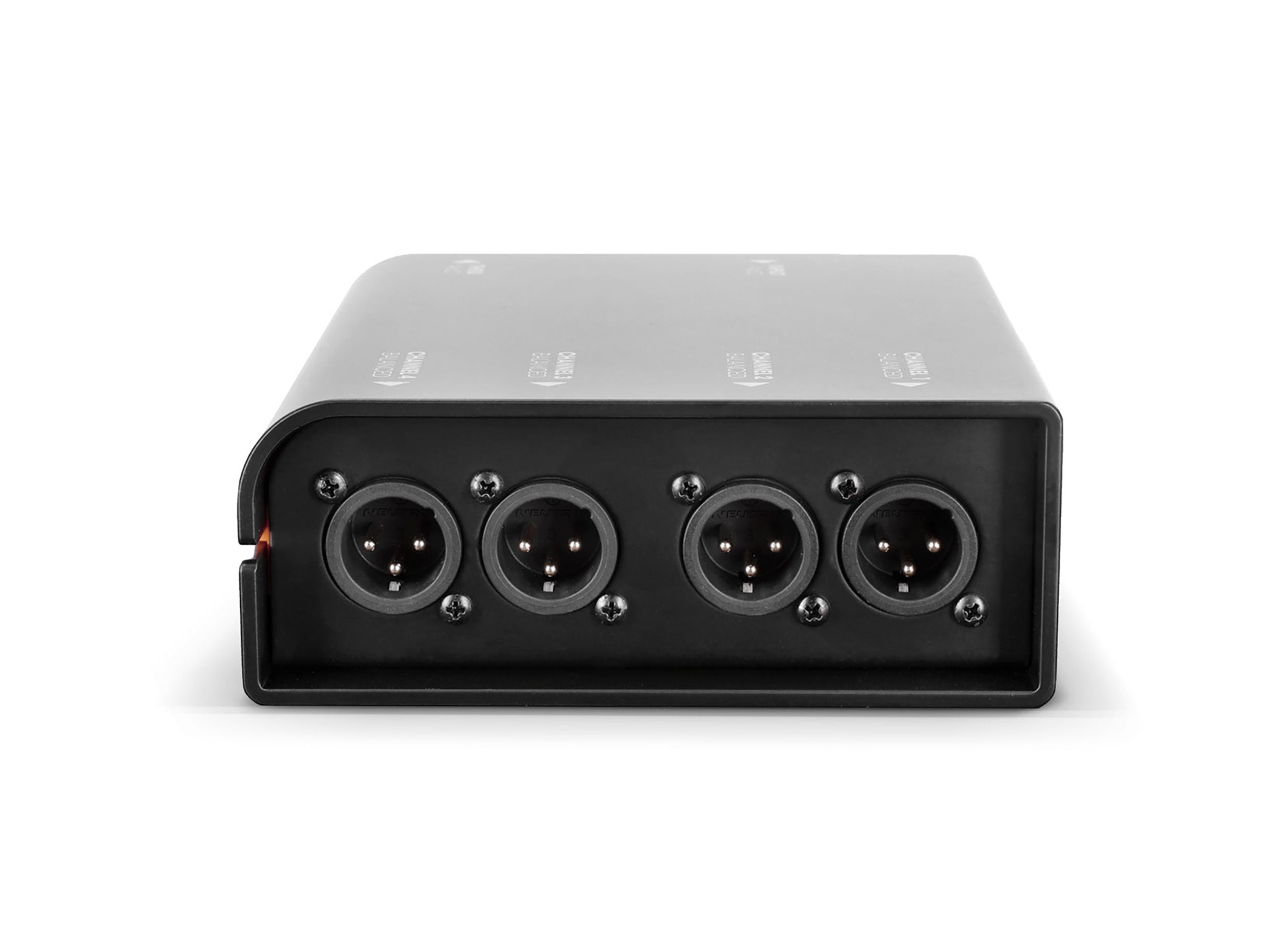

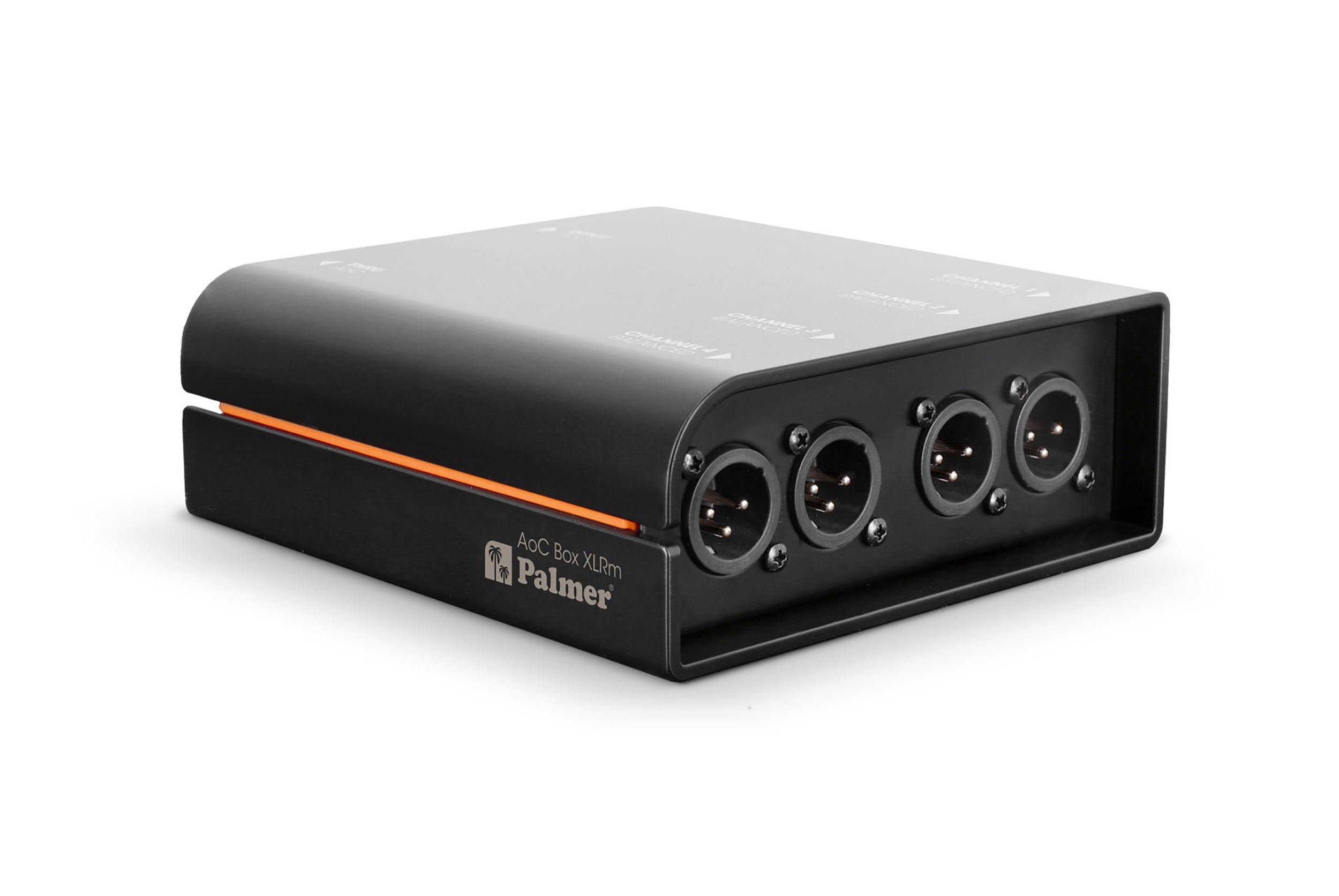

Output Connector: XLR 3-pin male

Number of LINK Outputs: 4 (via RJ45 THRU)

Ground Lift Switch: Yes (for RJ45 THRU)

Material: Aluminium, Steel

Width: 128 mm

Depth: 140 mm

Height: 50 mm

Weight: 0,5 kg

Operating Temperature: -20 - 70 °C

Air Humidity: > 80 % (non-condensing)
