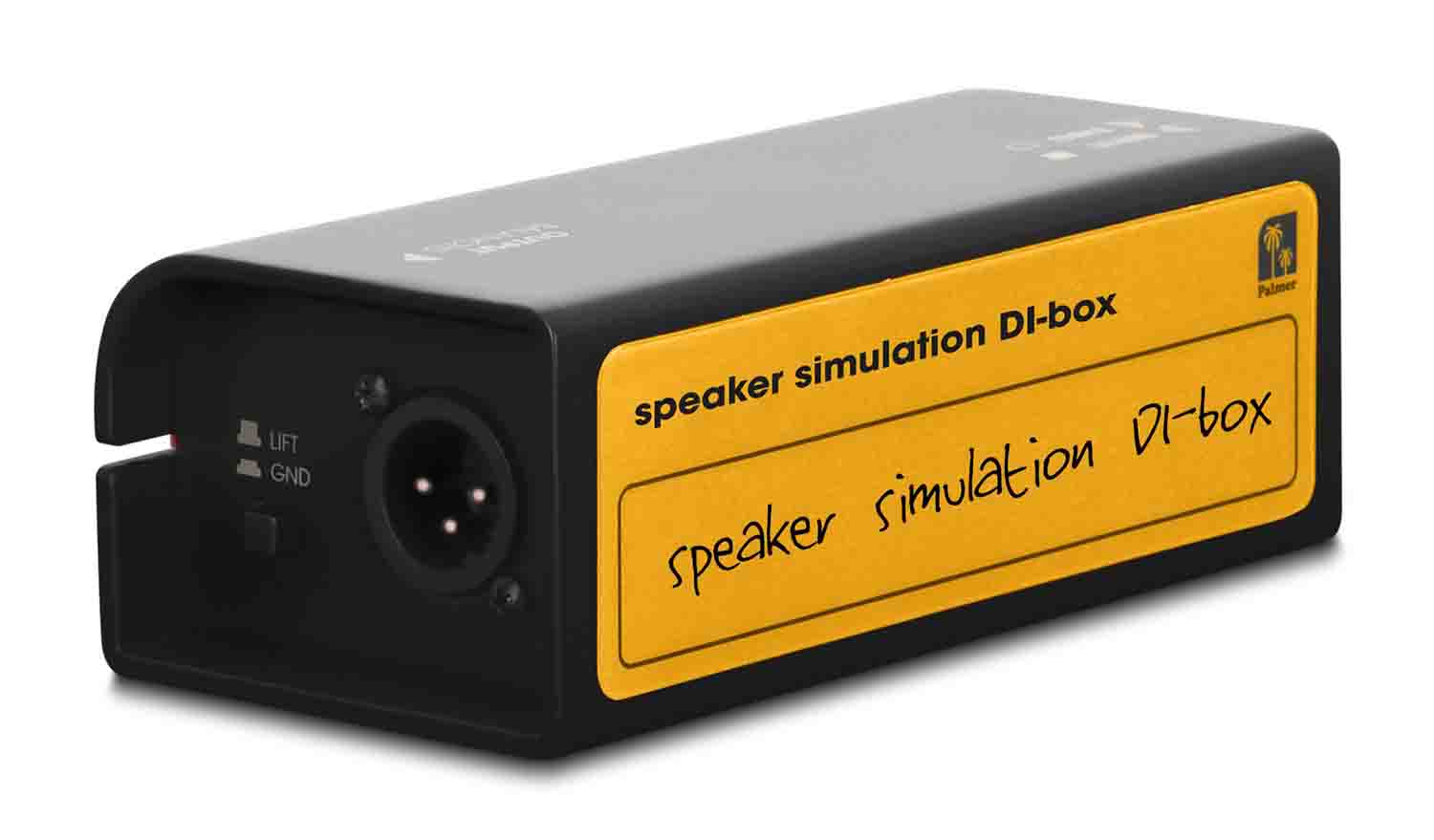

Palmer ilm Passive Speaker Simulation DI-Box

The Palmer ilm Passive Speaker Simulation DI-Box removes all the uncertainties of amp micing such as microphone choice, acoustic environment and positioning. With a sophisticated filter switch simulating the sound behavior of a real guitar speaker, it captures your authentic sound, even without a microphone. Its direct signal always sounds the same, whether at home, in the (home) studio, during rehearsals, or on stage, whatever the room size.

The Palmer ilm offers three analog guitar speaker simulation settings, which represent typical guitar speaker models. We'll leave the flowery names to the others; on the Palmer ilm, they are called "normal", "mellow" and "bright".

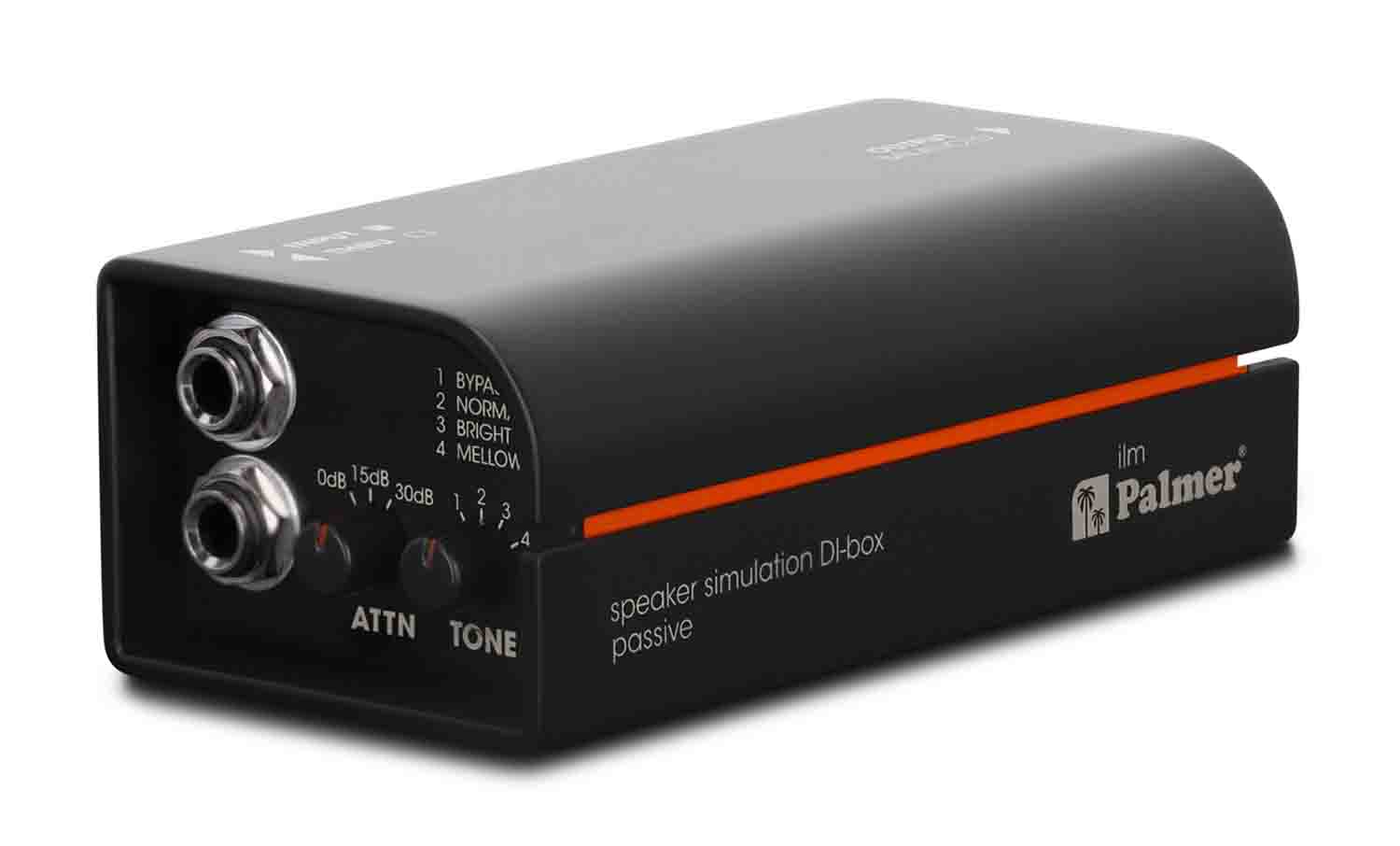

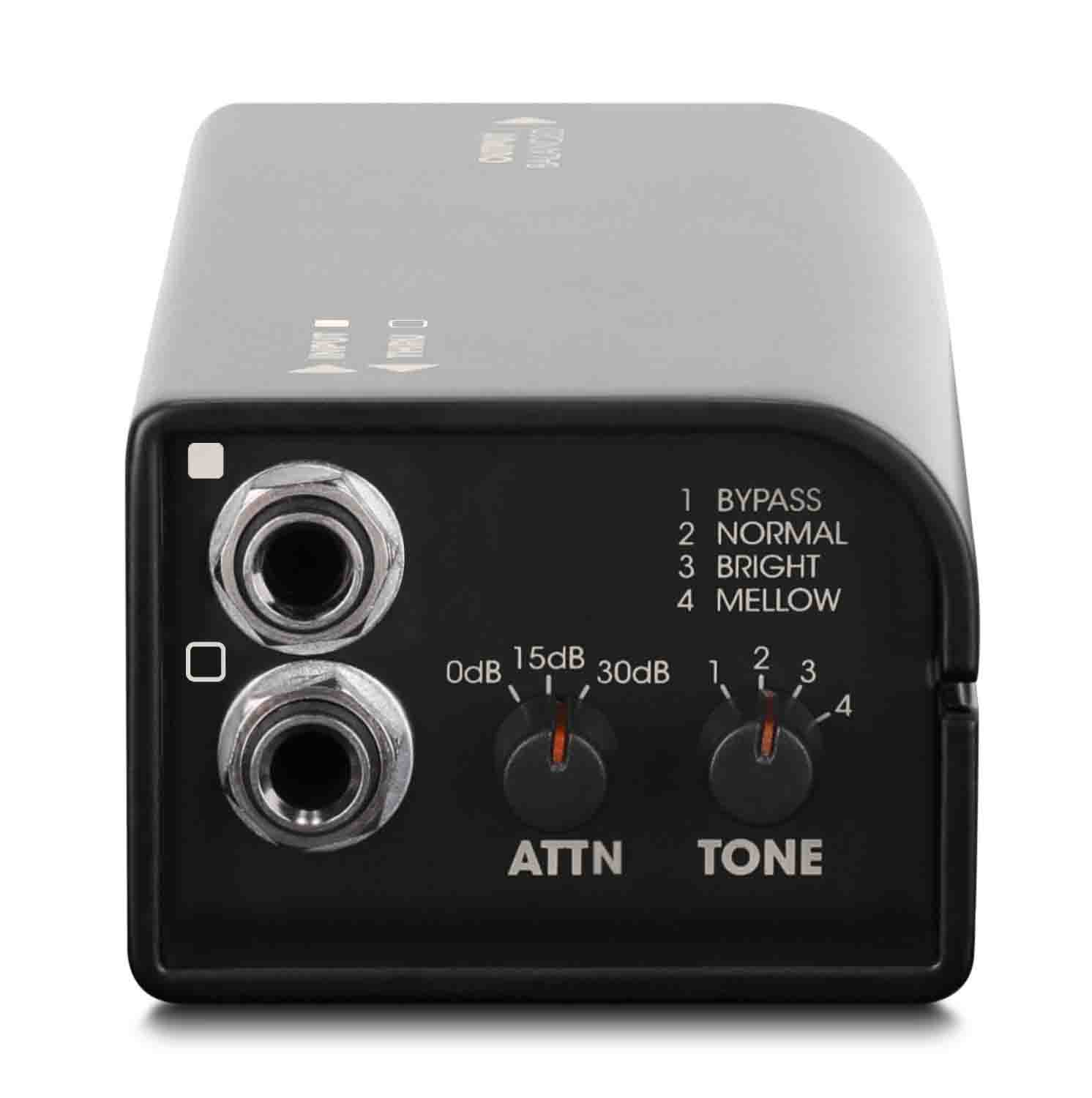

Generally, the Palmer ilm is looped in between the guitar amp output and guitar speaker; but it can also be operated on the amplifier's line out. For input-level adjustment, the ilm has a pad switch with three settings: 0, -15 and -30 db.

The output of the Palmer ilm is balanced and transformer isolated which means there is no interference or ground loop hum when connecting it to a mixing console or audio interface. With the Palmer ilm, you can always rely on what really matters: Your music, your instrument and your sound.

Product Specifications:

Product type: Speaker Simulation DI-Box

Type: passive

Channels: 1

Transformer isolated: Yes

Inputs: 1

Input type: unbalanced

Input connectors: 6.3 mm jack

Outputs: 1

Output type: balanced

Output connectors: XLR

THRU outputs per channel: 1

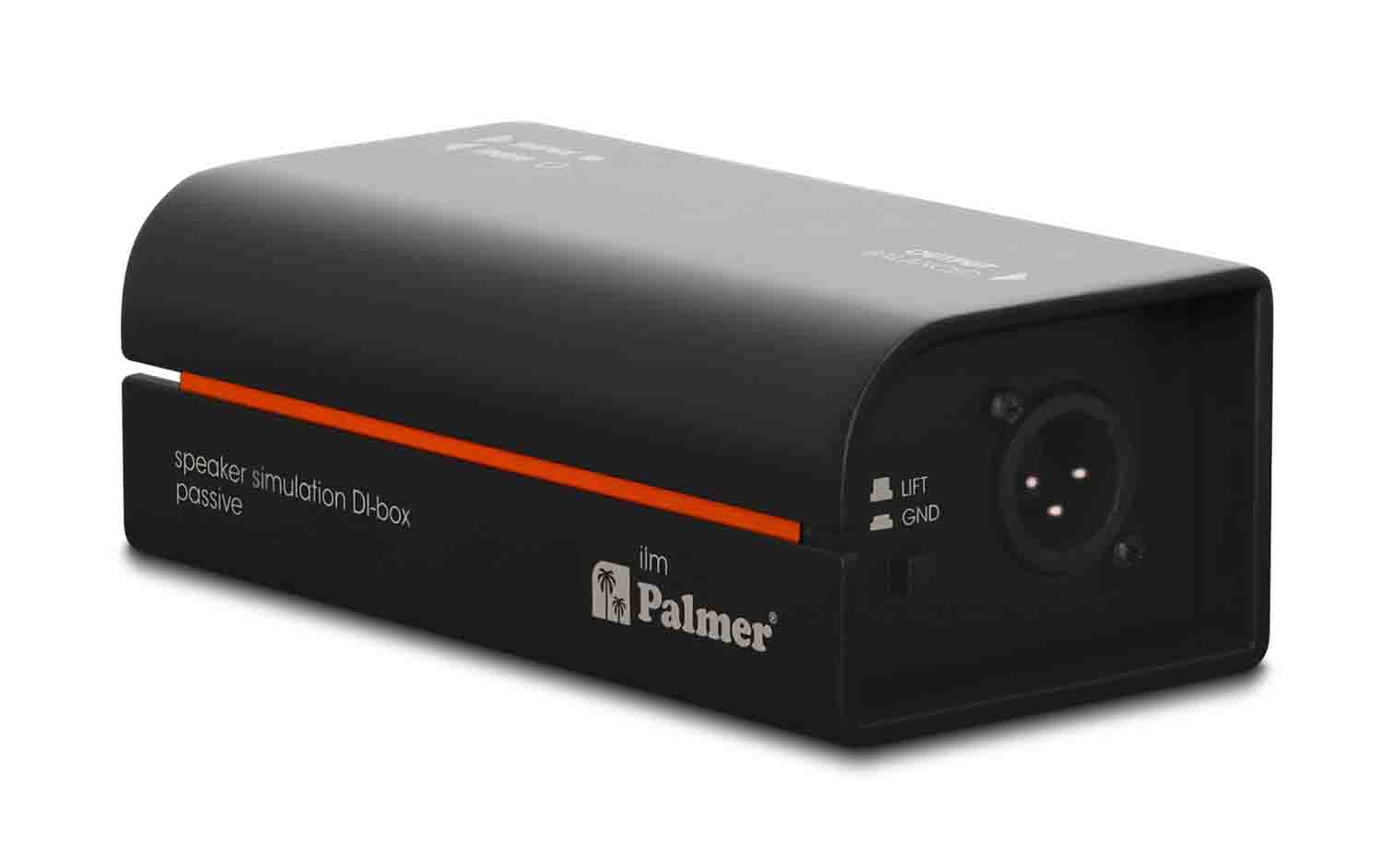

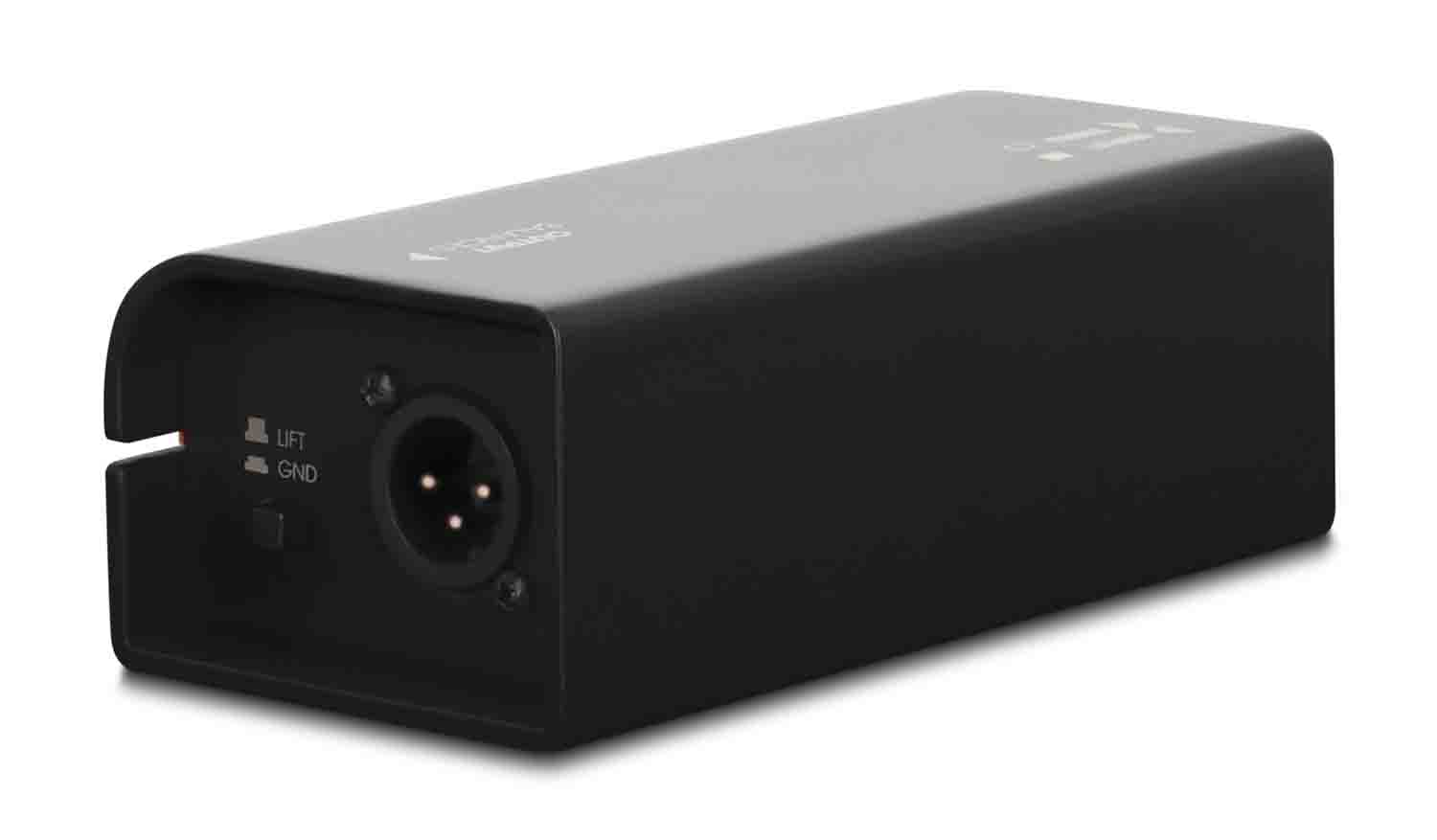

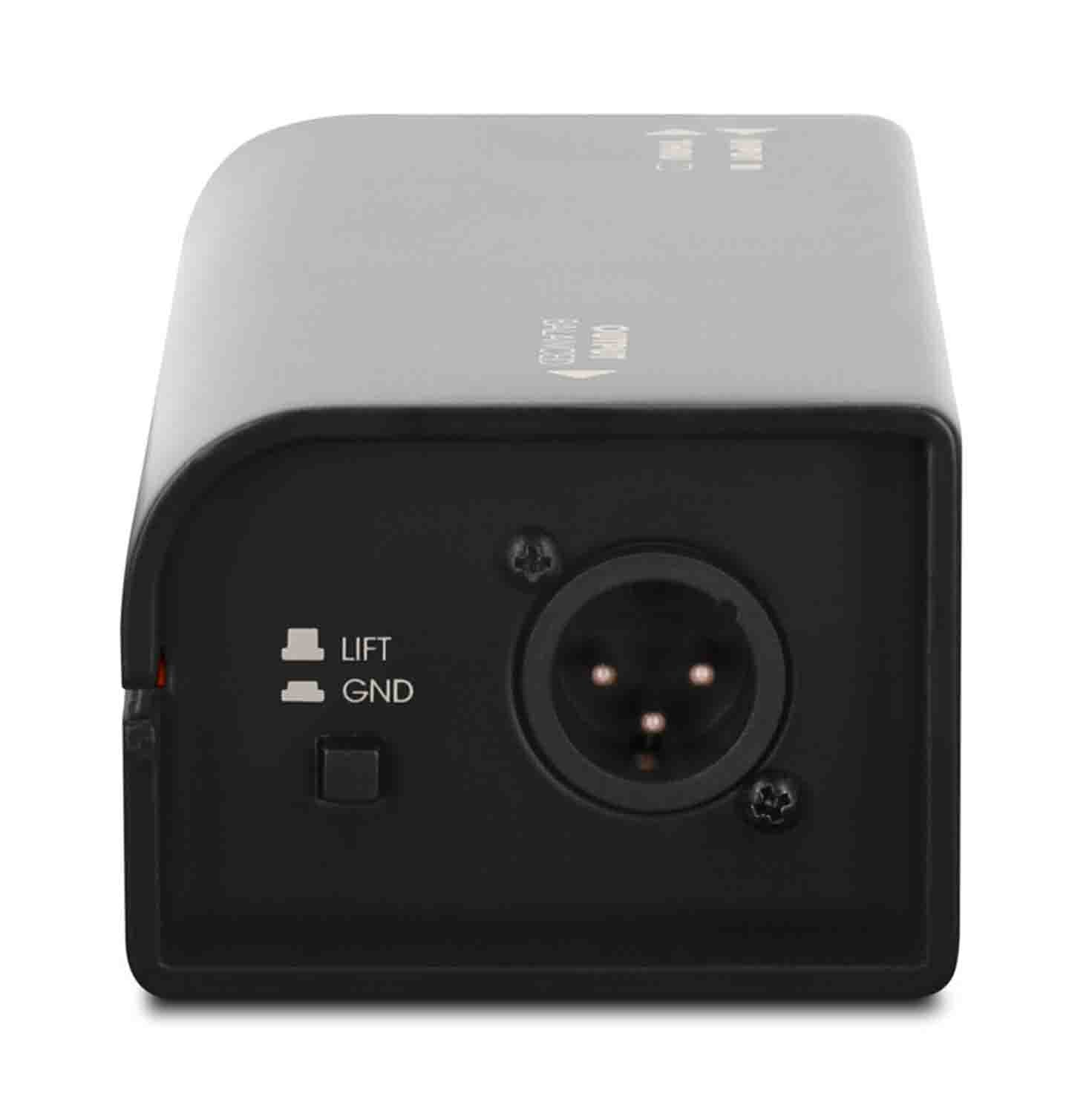

Ground lift switch: Yes

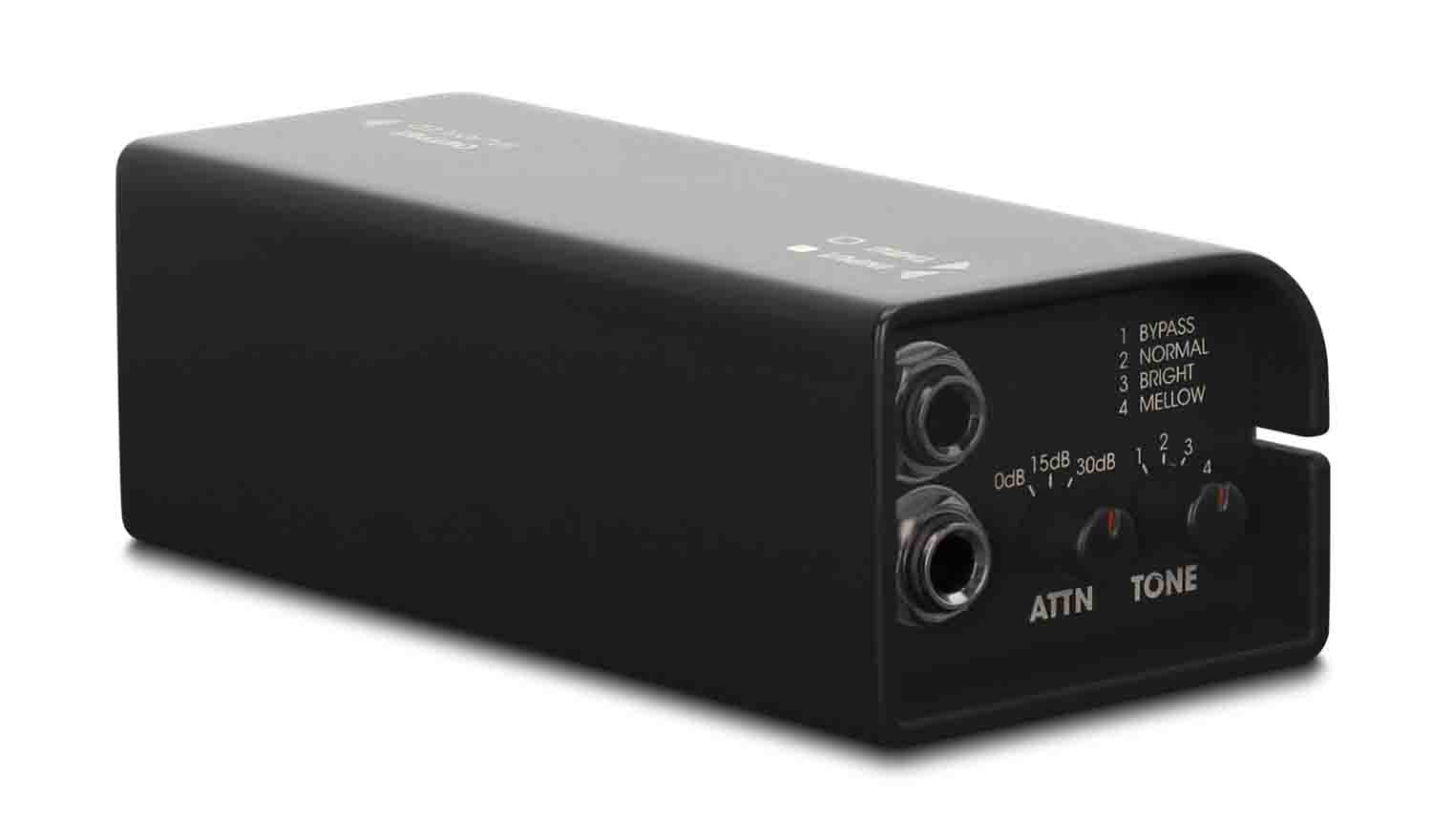

More features:  Tone: Bypass, Normal, Bright, Mellow

Housing material: Aluminum continuous casting

Ambient temperature (in operation): - 20 - 70 °C

Relative Humidity: < 80 %, not condensing

Accessories (included): Inscription label (tour label), rubber feet

Package Weight: 1.45 lb

Box Dimensions (LxWxH): 2.94 x 2.15 x 6"
