Description

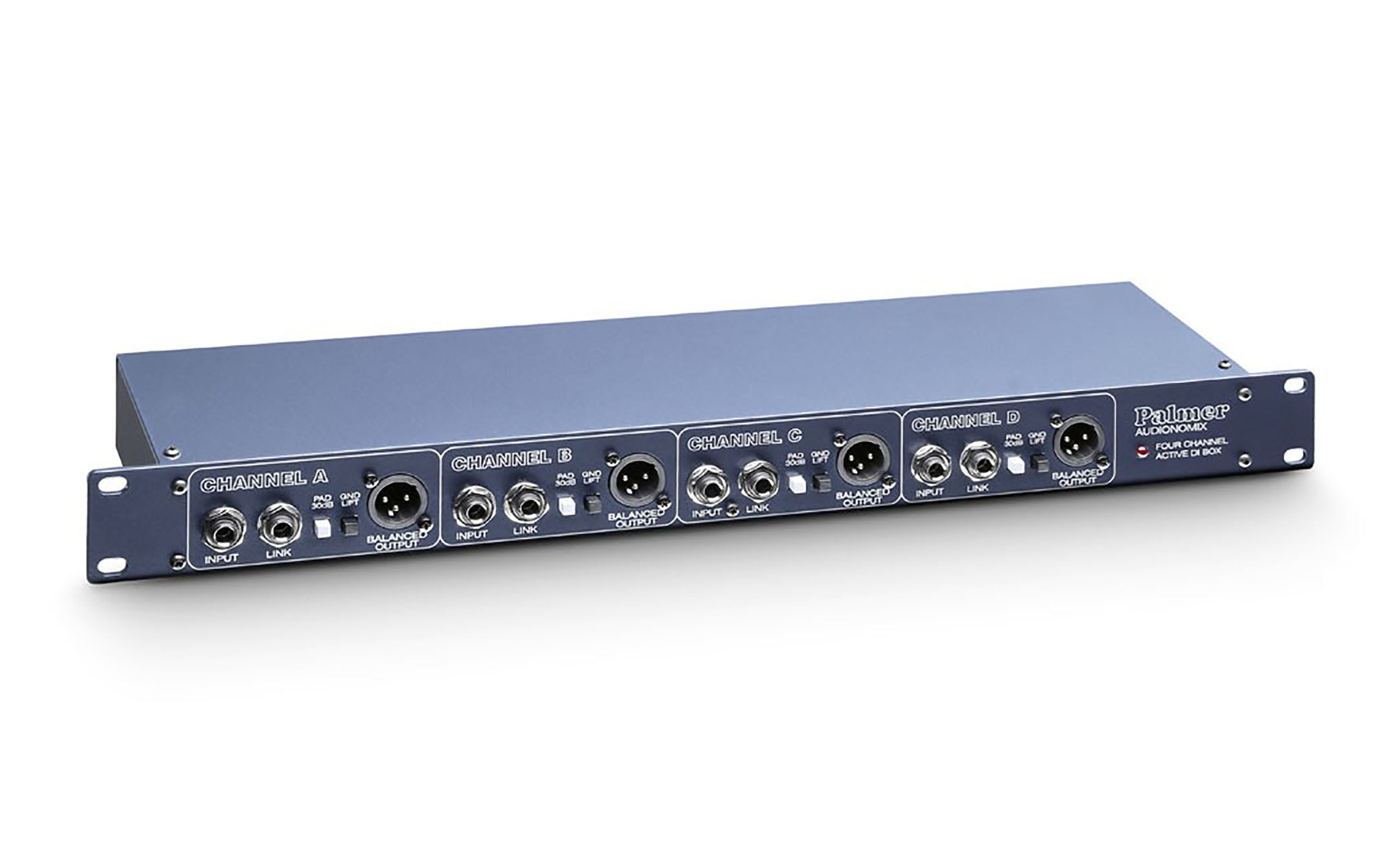

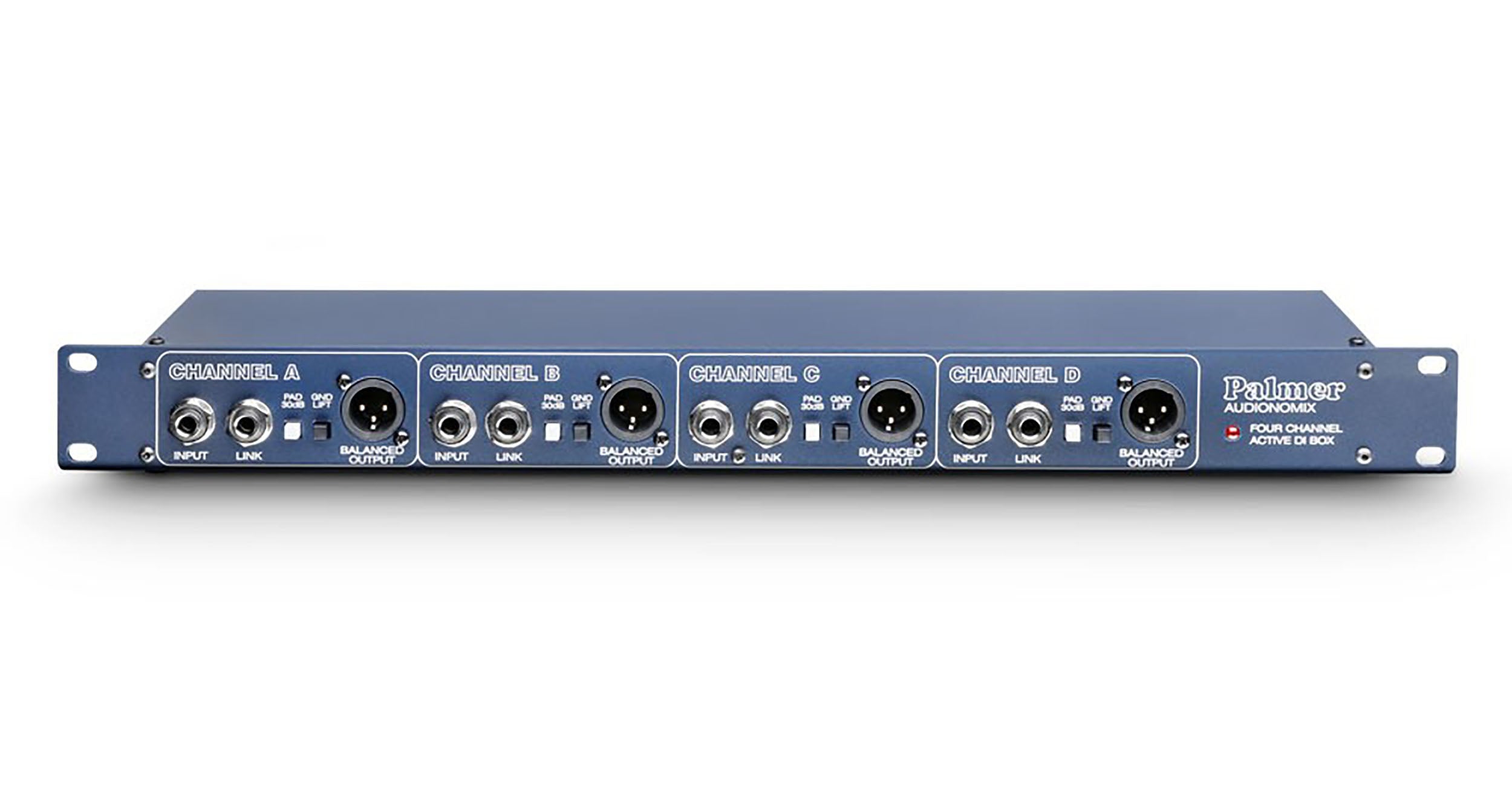

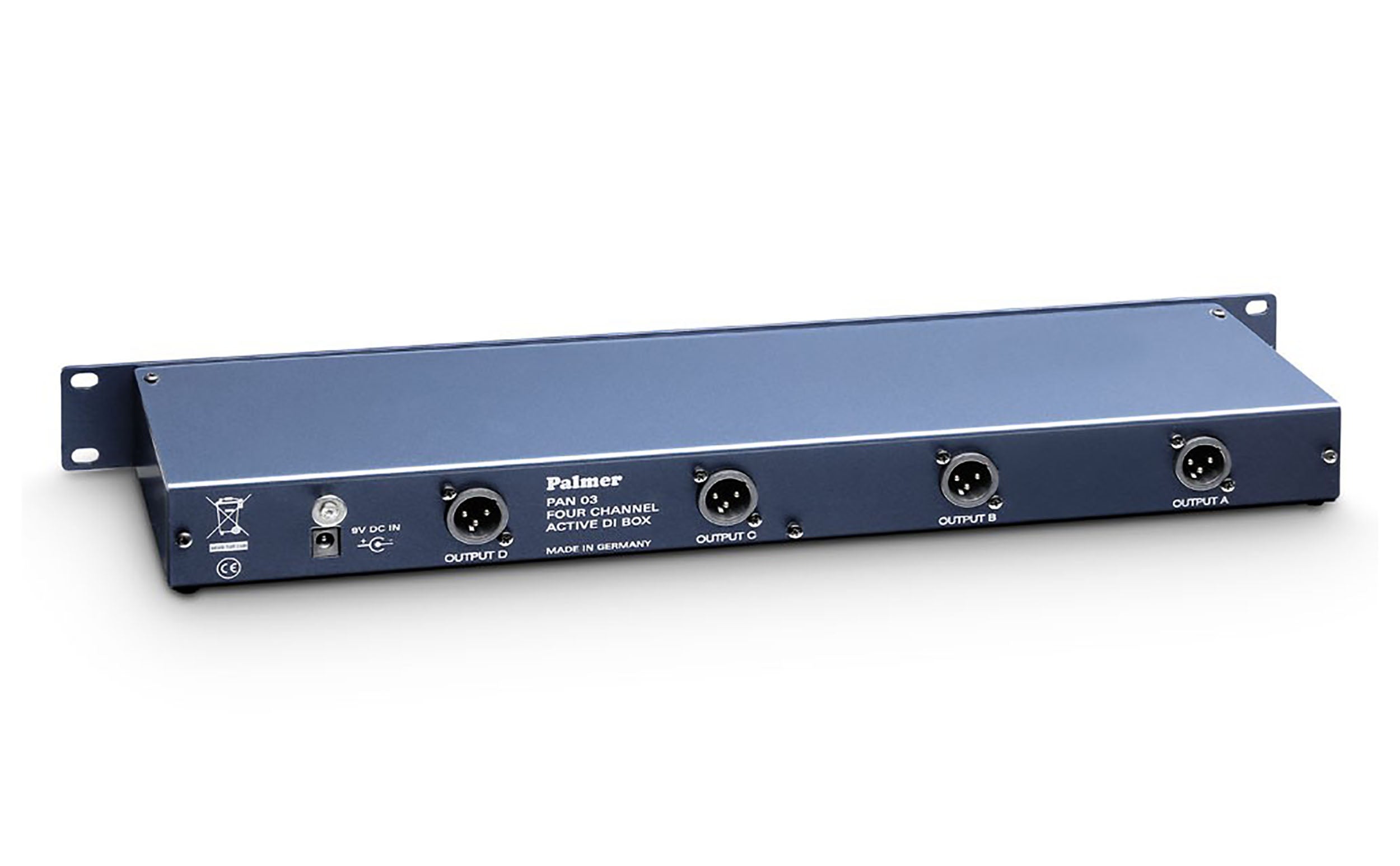

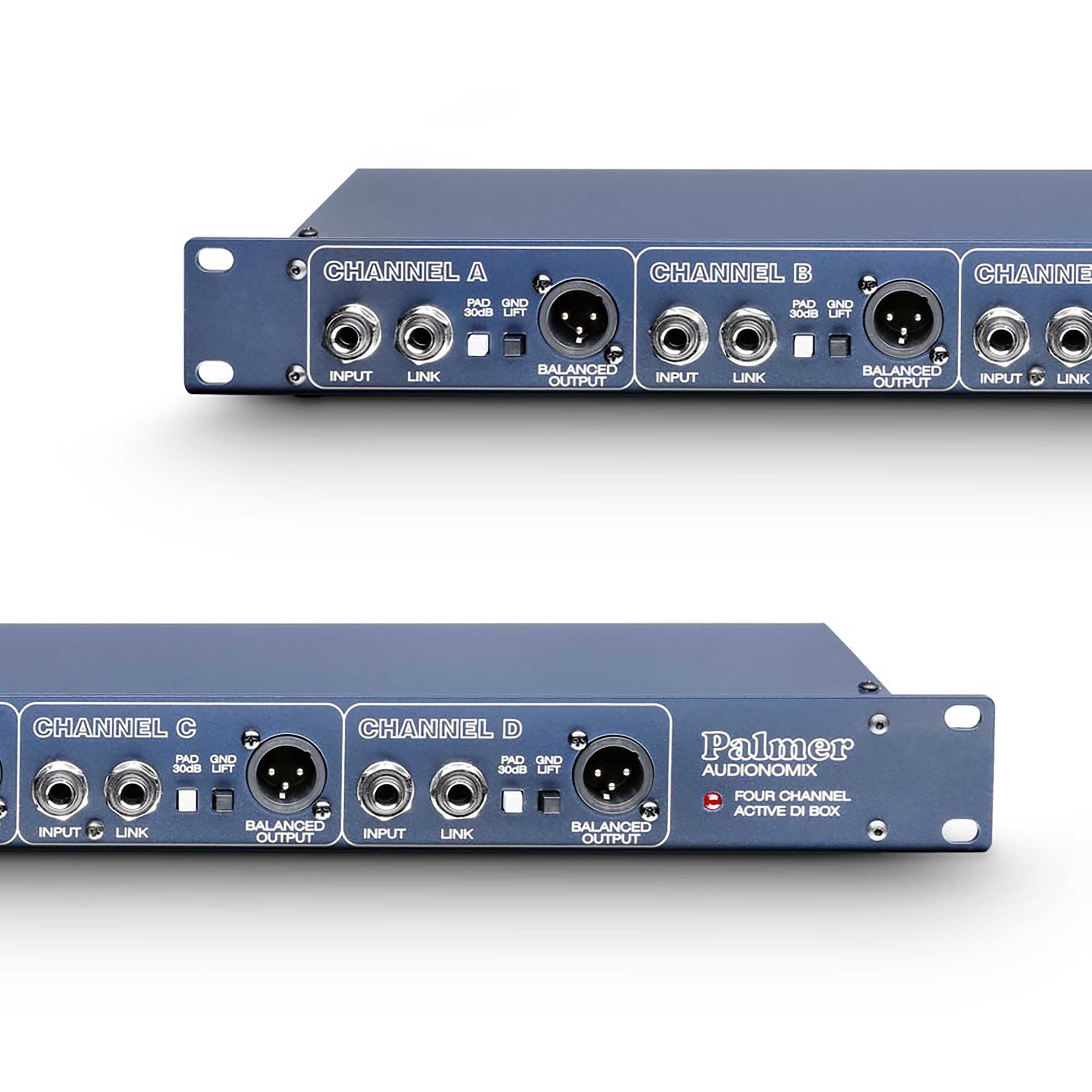

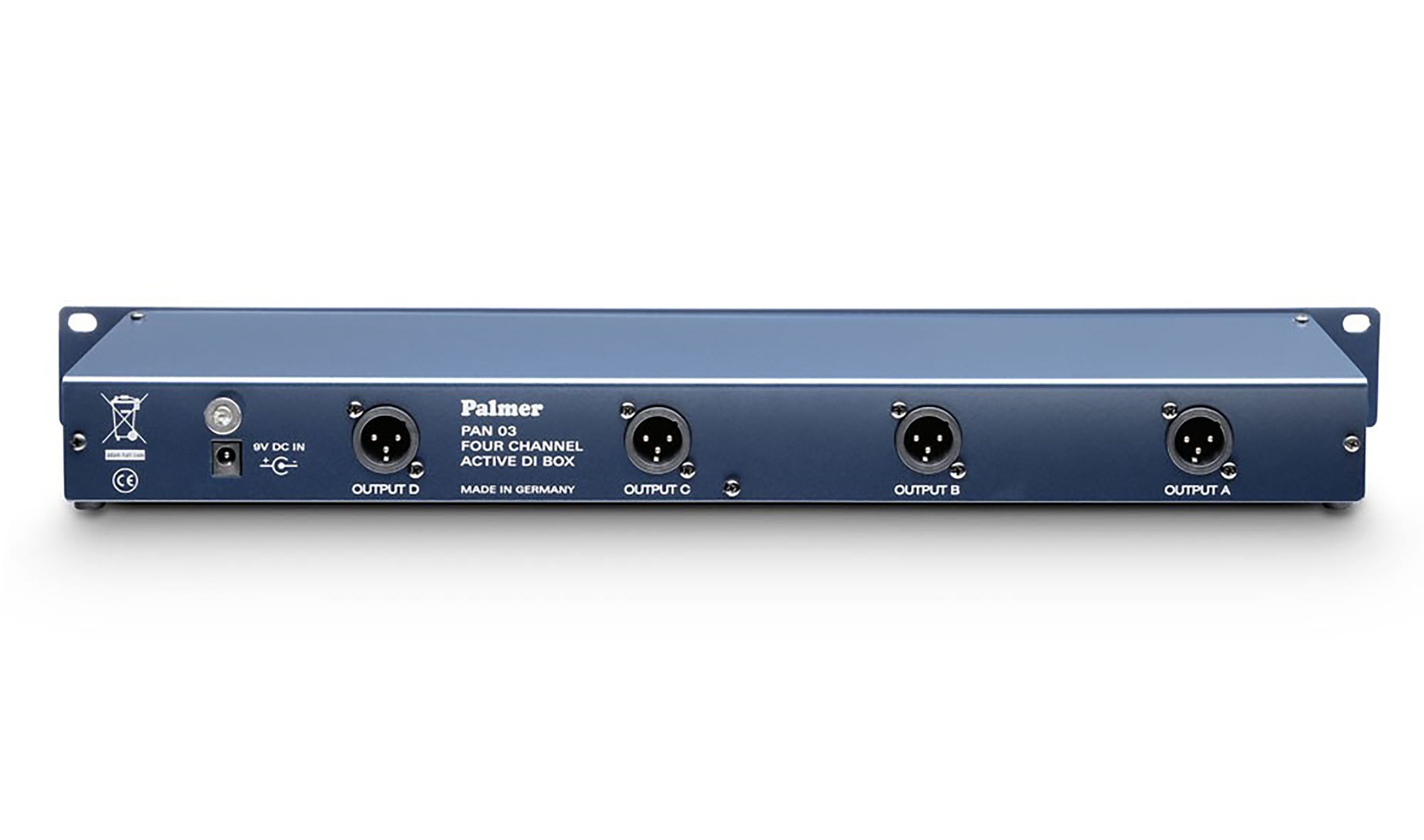

The Palmer PAN 03 19" is Active 4-channel DI box. Each channel has a jack input with a parallel output for passing through the signal. An attenuation switch (-30 dB) allows either a line or loudspeaker signal to be connected.Active 4 x DI box, 19" format. Technical specitications identicl to the PAN-02, however, the PAN-03 is built for mains operation. All connections and switches are located on the front panel, an additional parallel XLR output is located in back. 19 inch rack-mount format, 1 rack space, 90 mm front to back.
Product Specifications
Product Type: DI boxes
Type: Active
Channels: 4
Inputs: 4
Input Connectors: 6.3 mm jack
Max. input Level: + 45 dBu
Input Impedance: (@ 60 Hz) 1 M Ohm(s)
Input Pad: 0 / -30 dB
Number of Outputs: 4 (+ 4 parallel XLR outs)
THRU Outputs/Channel: 1
Output Connectors: 6.3 mm jack, XLR
Max. Output Level: + 10 dBu
Output Impedance: 600 Ohm(S)
Frequency Response: 10 - 20000
Transformer Balanced: Yes
Ratio: 10 : 1
Indicators: Power
Controls: Attenuator, Ground Lift
Power Supply: External
Cabinet Material: Sheet Steel
Cabinet Surface: Powder Coated
Width: 480 Mm
Width: 19 "
Depth: 90 Mm
Height: 45 Mm
Height: 1 U
Weight: 1,6 Kg
