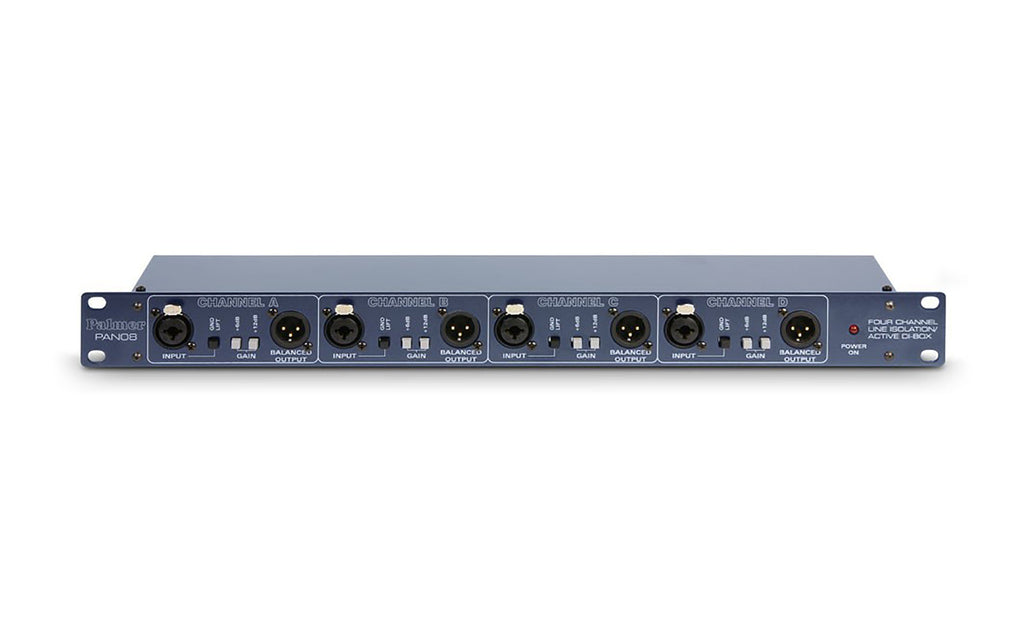

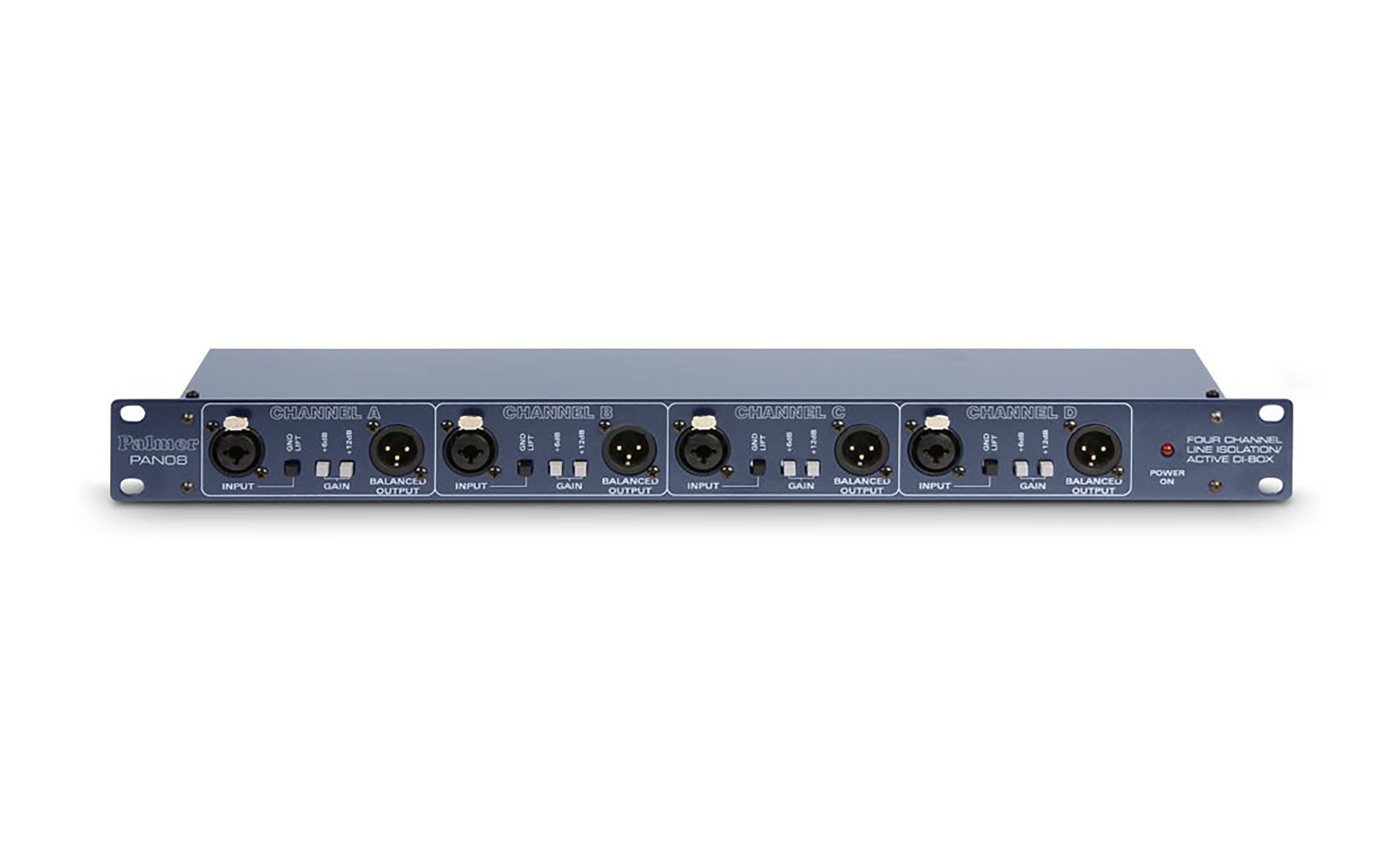

Palmer PAN 08 19" DI/Line Isolation Box 4 Channels Active

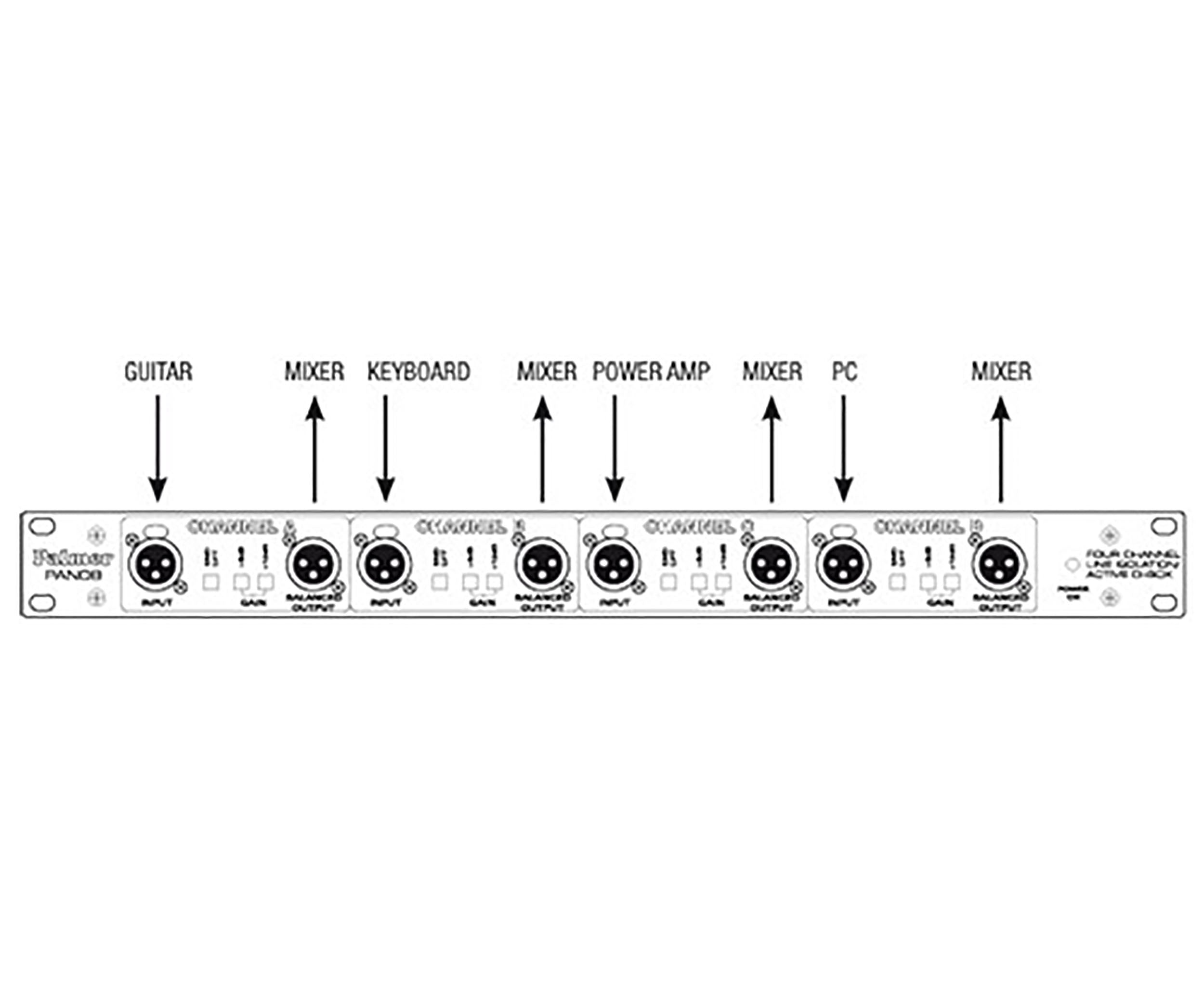

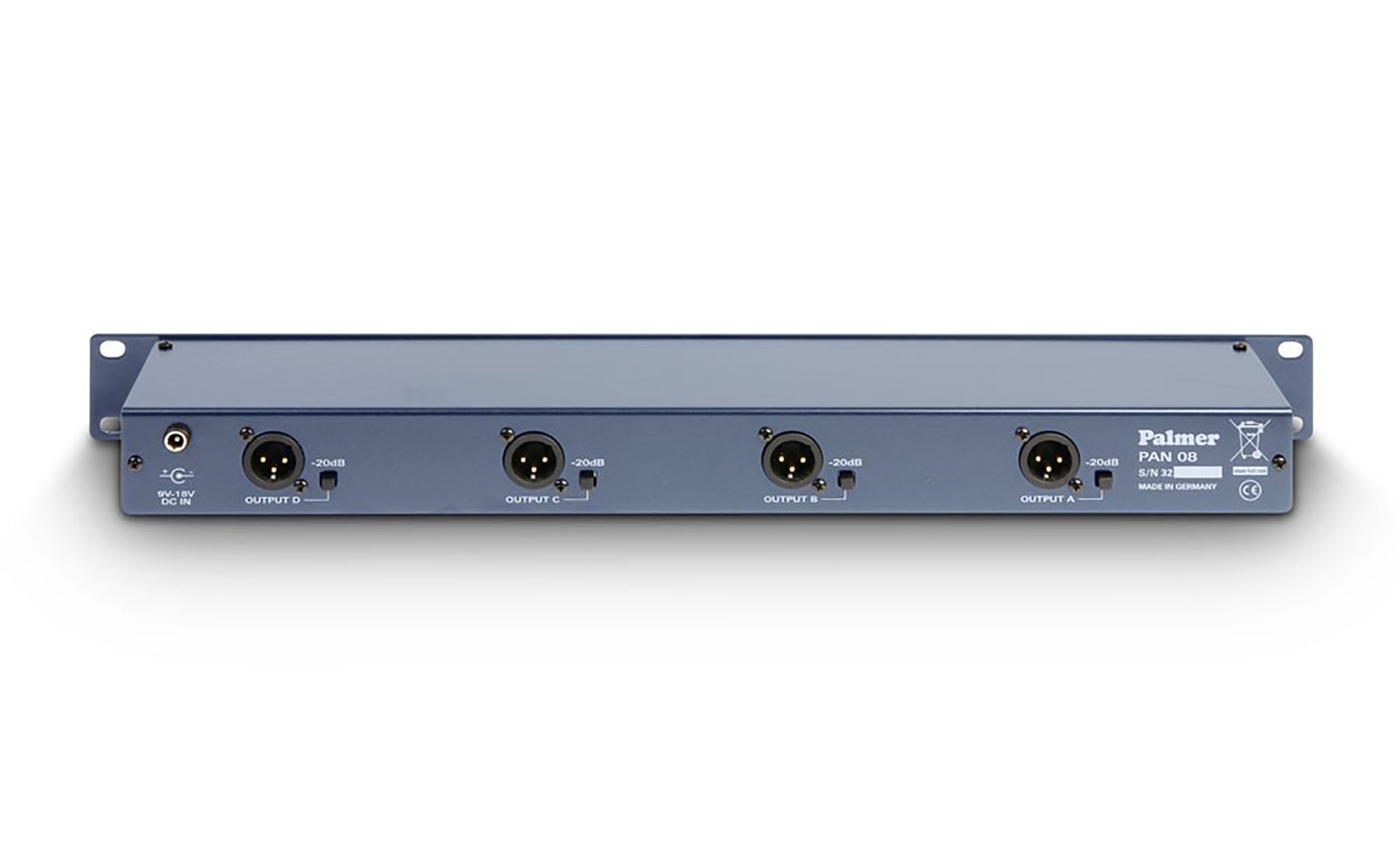

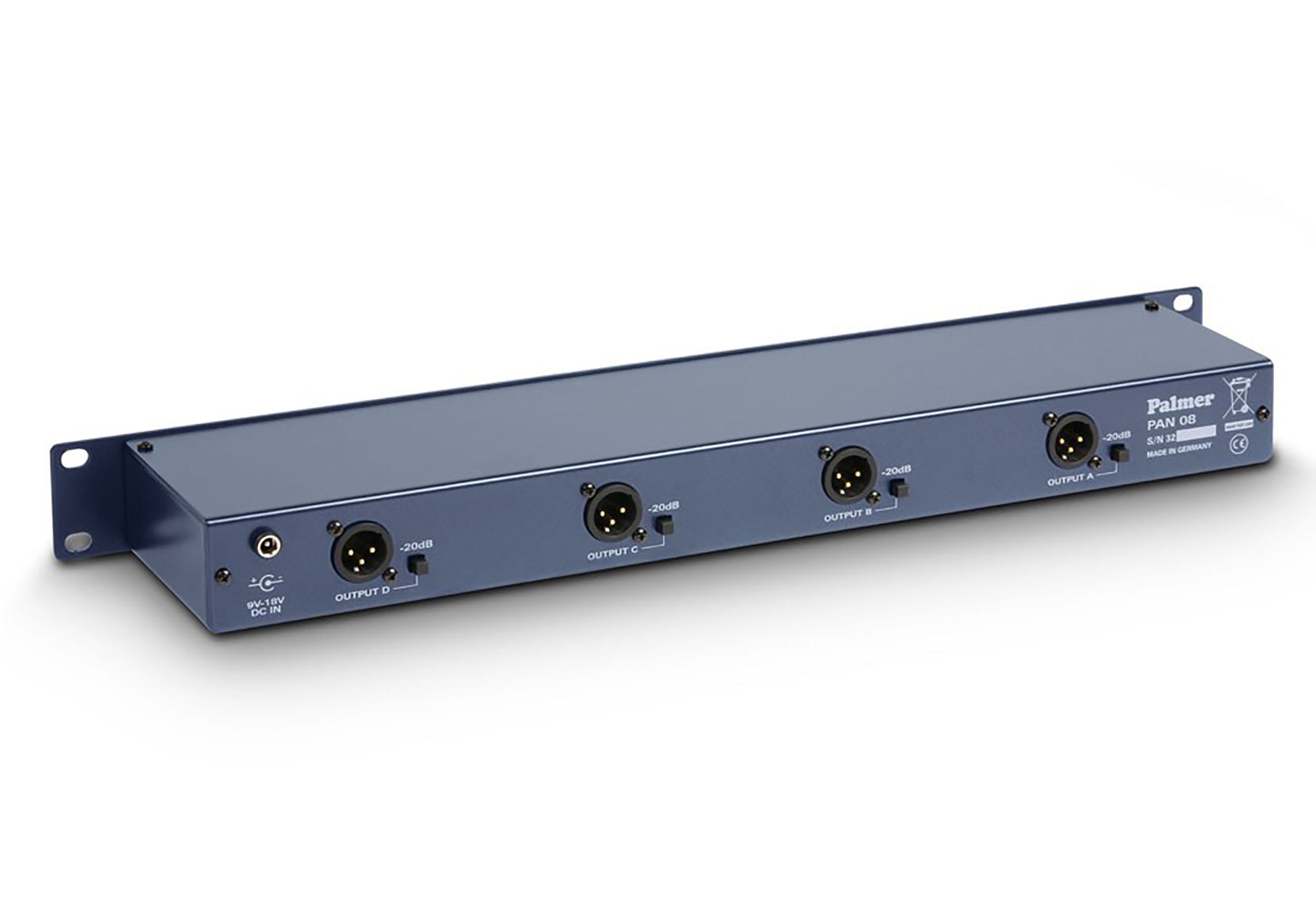

The Palmer PAN08 19" DI/Line Isolation Box 4 Channels Active is a multifunctional device. Each of the four channels can be used independently as an active DI box, line isolation box or booster. The combination socket input accepts unbalanced and balanced signals. The output has dual transformer balanced XLR jacks (front and rear).

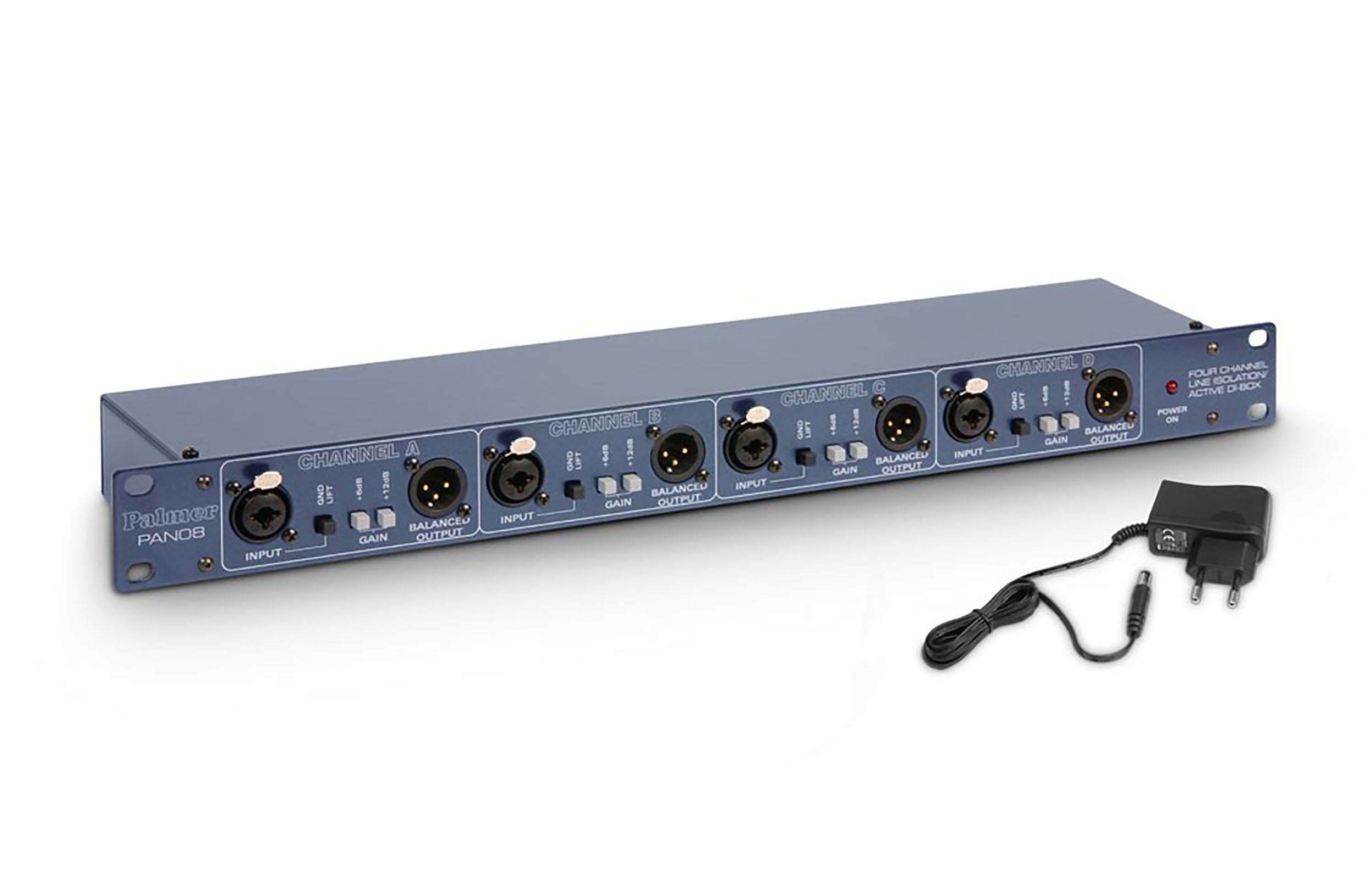

The signal level can be attenuated by 20 dB for microphone inputs, but can also be boosted in three stages by up to 18 dB for LINE inputs if necessary. With an output level of +12 dBu on a load of 600 Ohms with 0.05 % THD / 40 Hz and an output noise level of less than -110 dBu, the unit meets even high professional standards. One special feature that is worthy of mention is battery power. The supply voltage may range from 9 to 18 V. Thus the PAN08 can also be used without mains power outdoors.

Product Specifications

Product Type: DI boxes

Type: Active

Channels: 4

Inputs: 4

Input Connectors: 6.3 mm jack, XLR

Max. input level: +12 dBu

Input Impedance: Balanced: 20k Ohm(s)

Number of Outputs: 8

THRU Outputs/Channel: 0

Output Connectors: XLR

Max. Output Level: +12 dBu

Output Impedance: 600 Ohm(s)

Frequency Response: 20 - 20000

Transformer Balanced: Yes

Ratio: Variabel

Indicators: Power

Controls: 2 x gain, attenuator, ground lift

Power Supply: 9 V DC power supply

Cabinet Material: Sheet steel

Cabinet Surface: Powder coated

Width: 480 mm

Width: 19 "

Depth: 90 mm

Height: 45 mm

Height: 1 U

Weight: 1,59 kg
