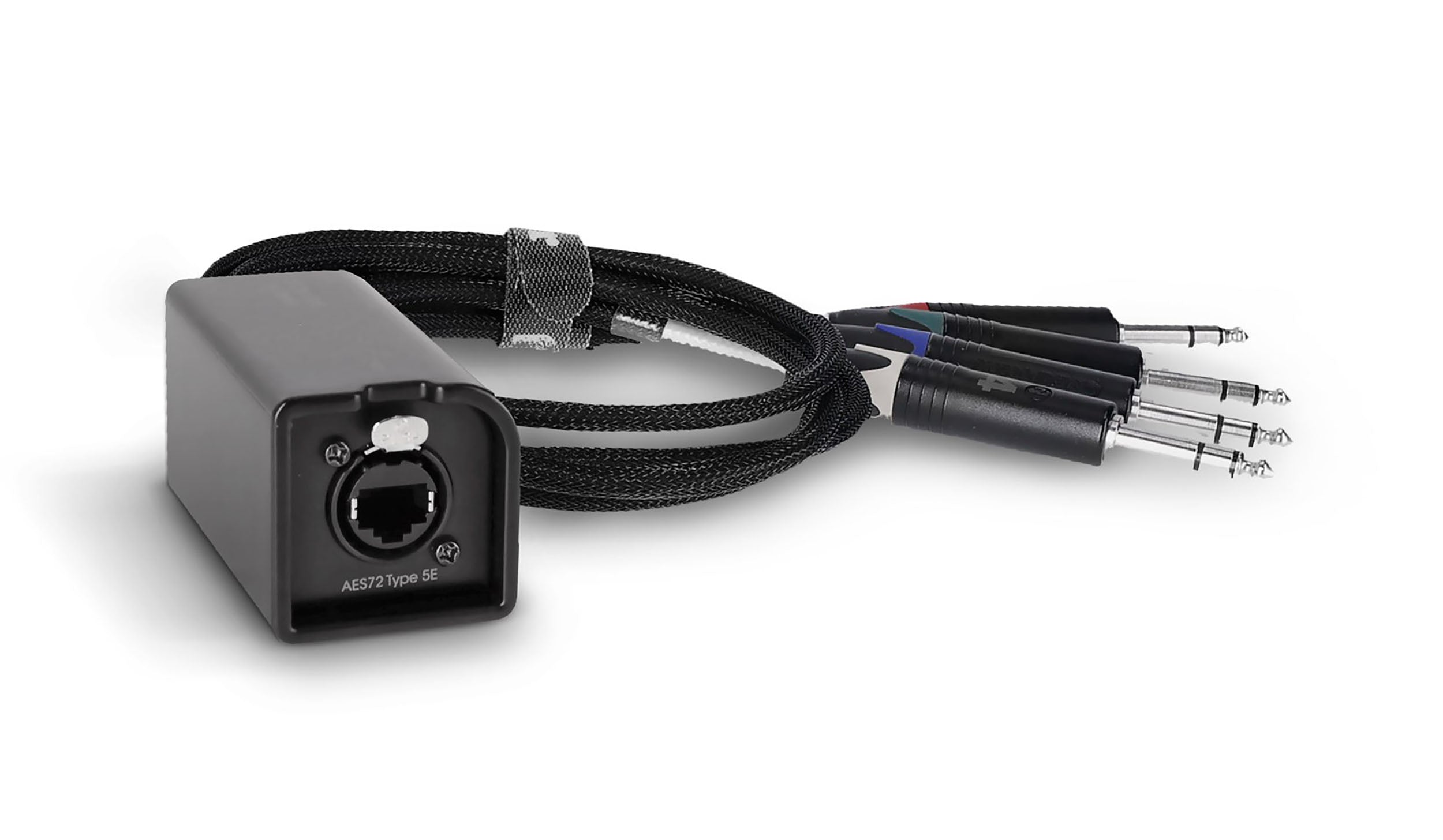

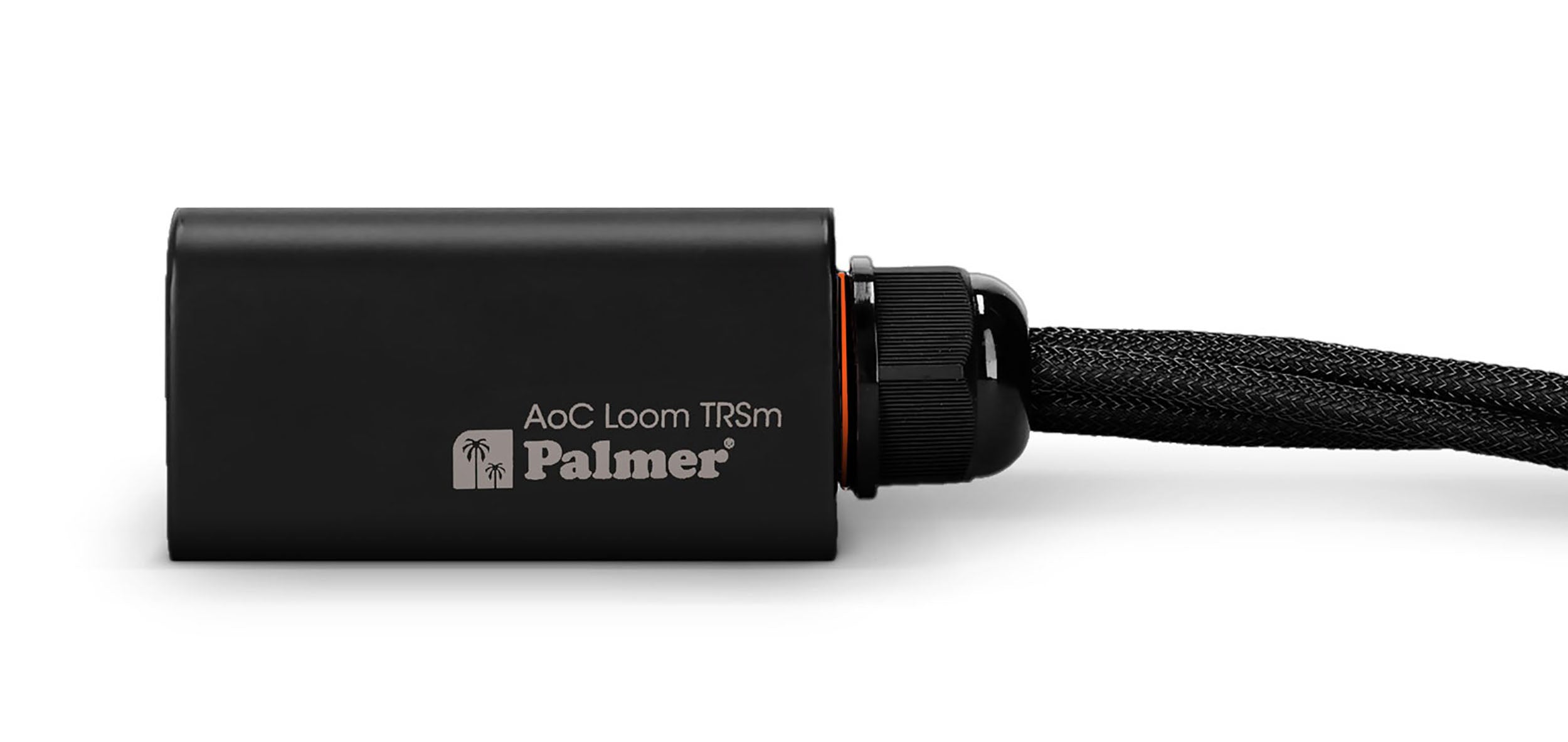

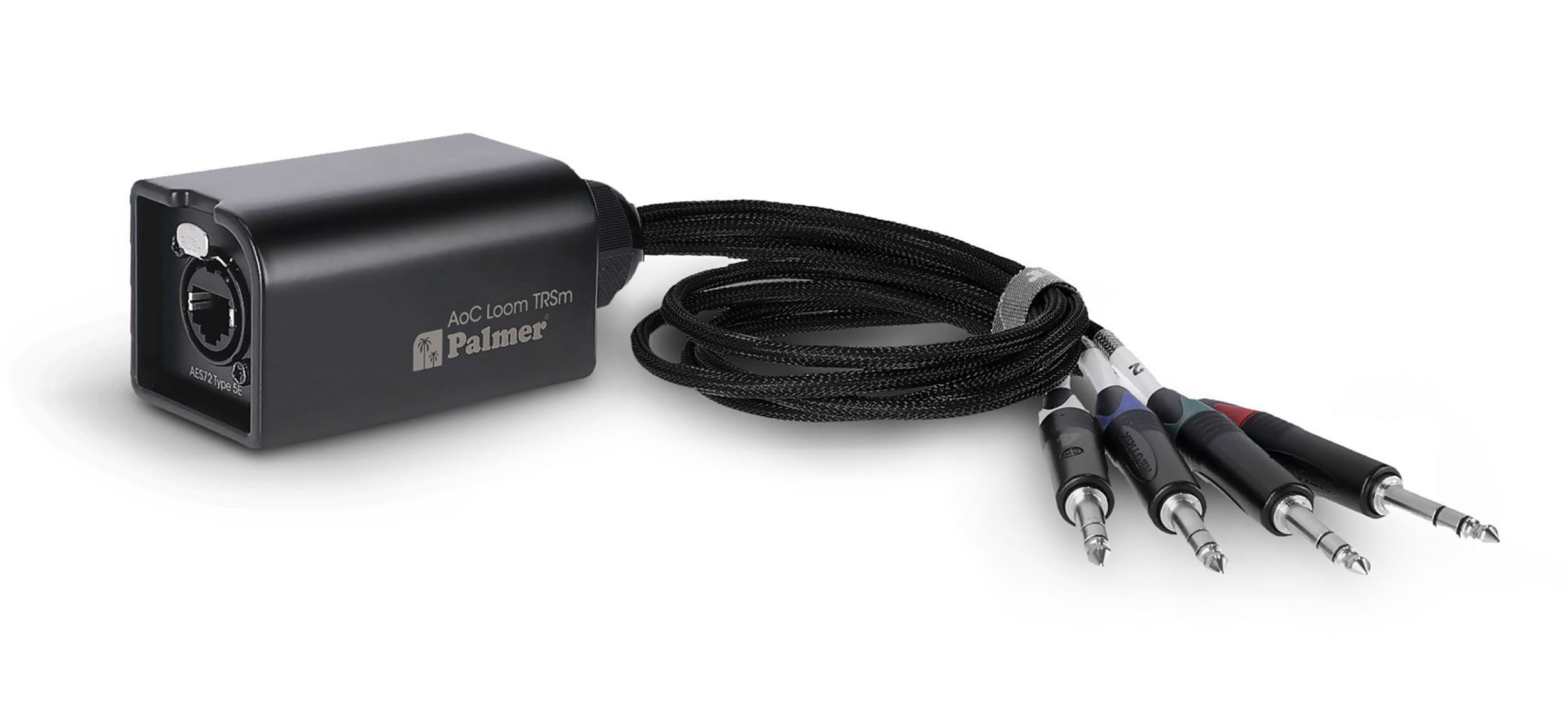

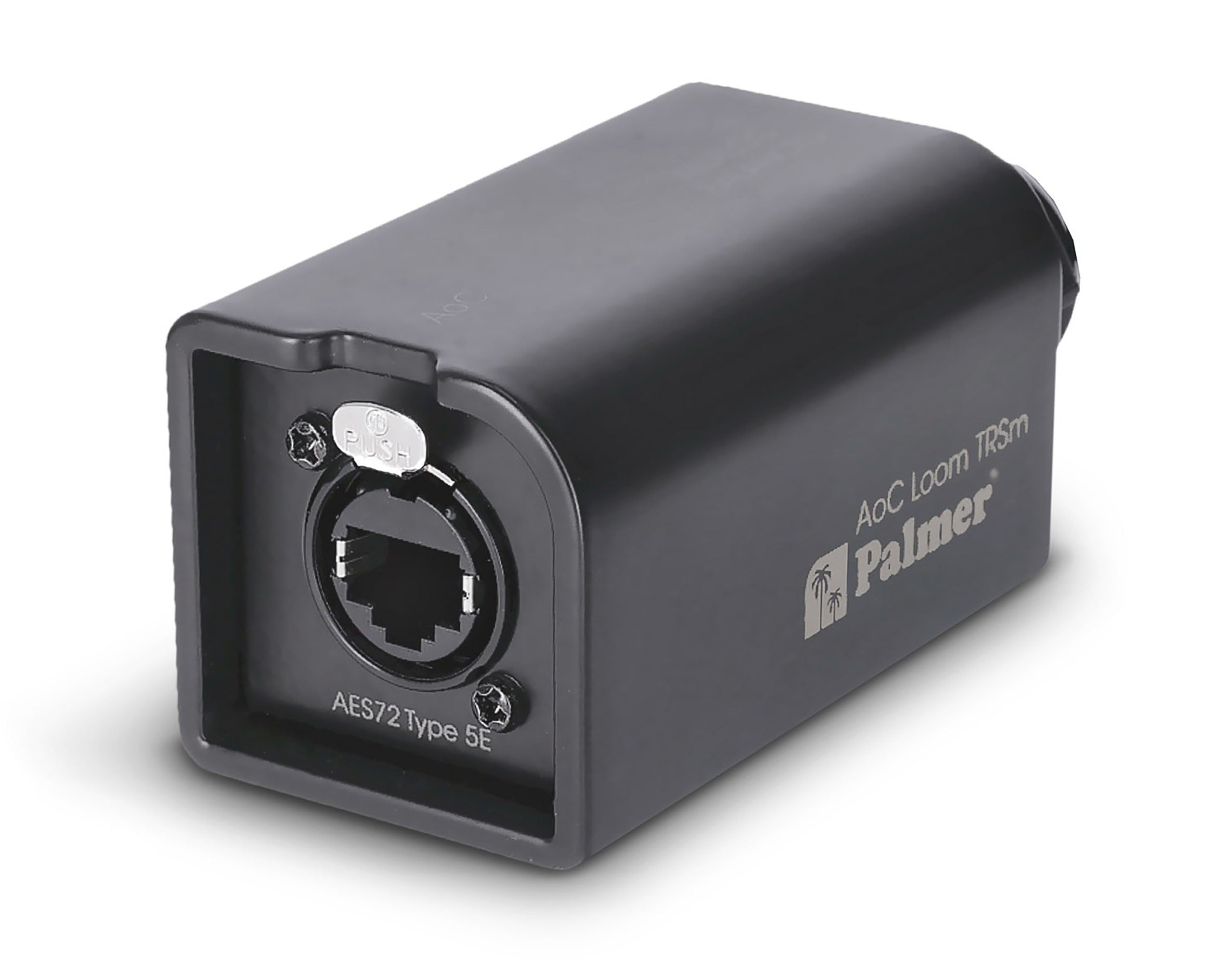

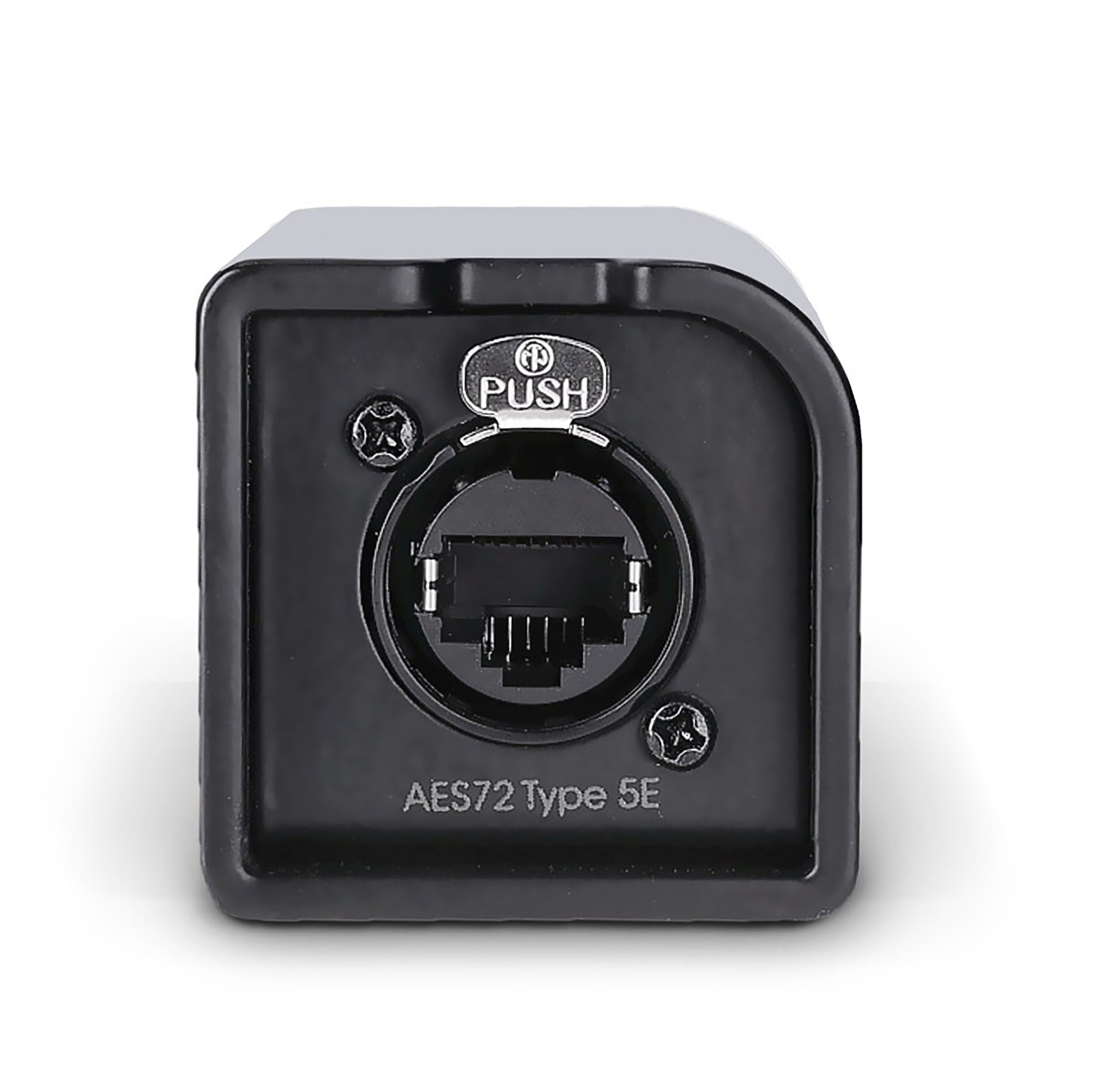

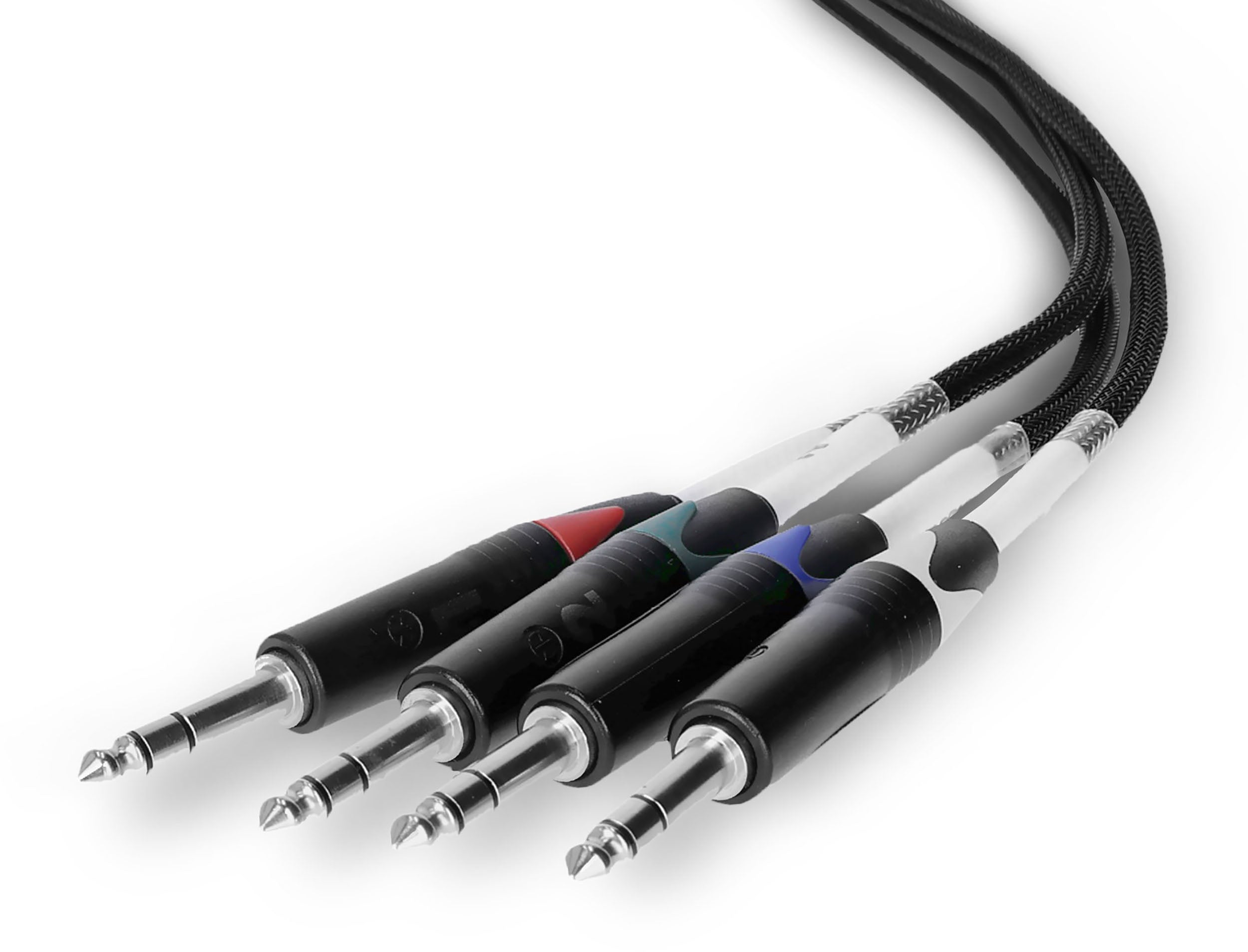

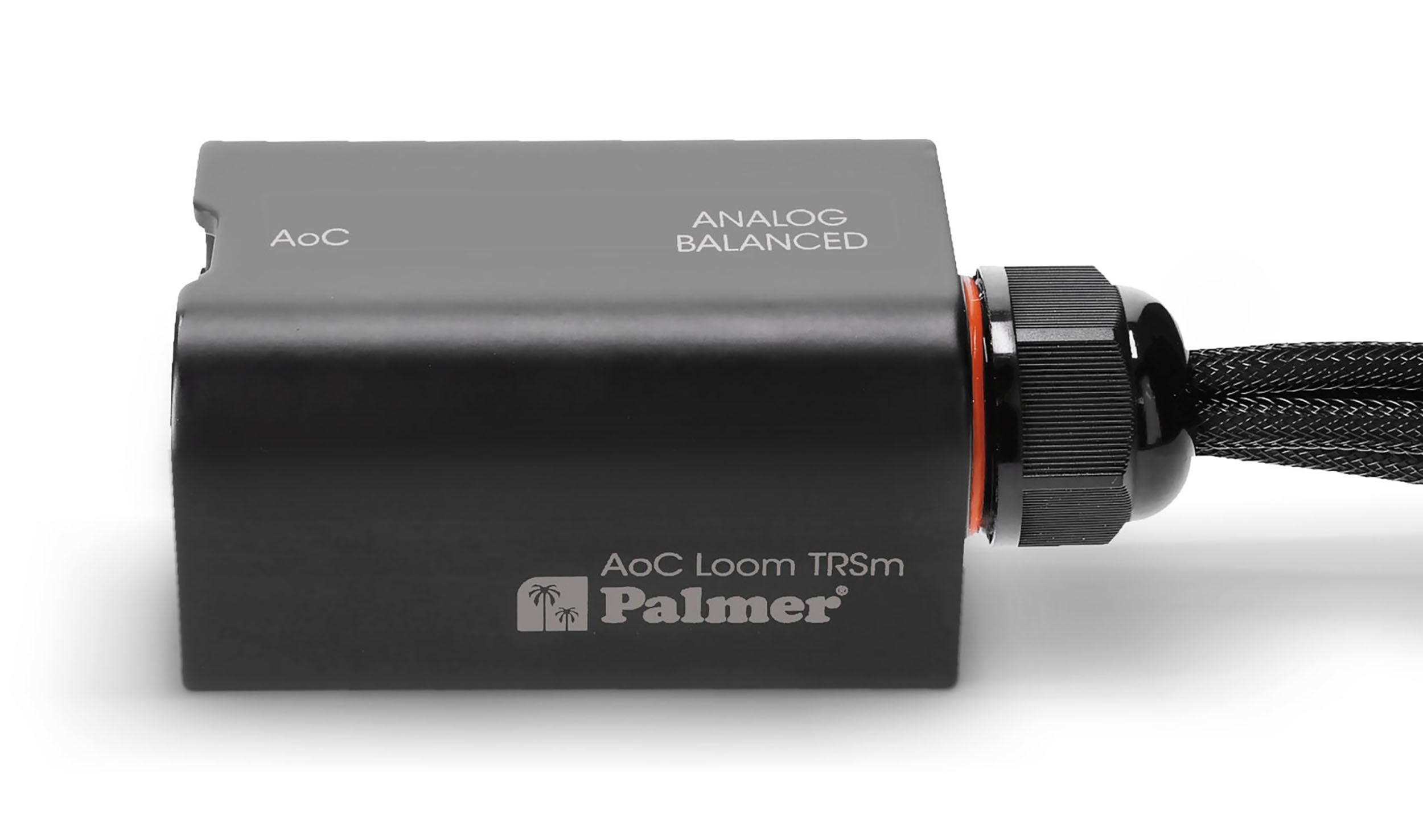

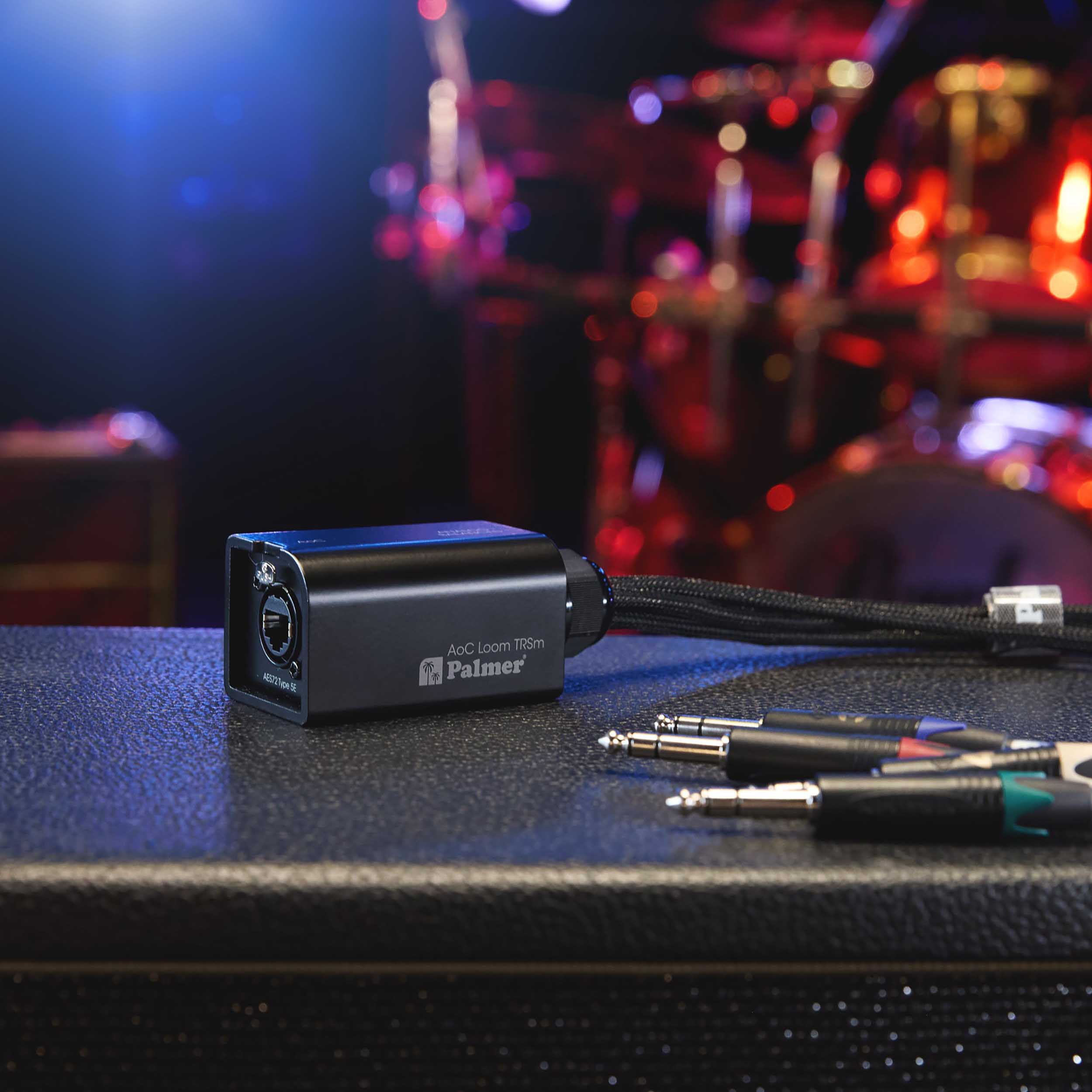

Palmer PAOCLTRSM, Audio over Cat Loom from Ethercon to 4 x 6.3 mm TRS Jack

The Palmer PAOCLTRSM, Audio over Cat Loom from Ethercon to 4 x 6.3 mm TRS Jack is a multicore adapter cable that facilitates the stable transmission of 4 separate analog and balanced audio signals through a network cable (not included). The 6.3 mm TRS jacks are numbered and color-coded for easy identification. The Ethercon connection is safeguarded against unlocking to prevent accidental cable disconnection. Audio is transmitted via a single, standard Ethernet cable, allowing the P AOC L TRS M to be used flexibly across various applications, be it for live concerts, studio sessions, press conferences, or other productions.

Featuring high-quality Neutrik components, a solid aluminum-steel housing, and robust mesh cables with a 50 cm splice, the P AOC L TRS M guarantees reliable signal transmission and durability in professional environments. It’s simple, high-quality design also enhances the visual appeal of any setup. All these factors make the P AOC L TRS M a reliable and durable tool that provides an affordable and flexible alternative to conventional 4-channel multicores without compromising audio quality - as you have always come to expect from Palmer.

Product Specification:

Product Type: Audio over Cat adapter

Number of inputs: 4

Input Type: Balanced

Input Connector: RJ45

Number of Outputs: 4

Output Type: Balanced

Output Connector: 6.35 mm TRS stereo jack

Material: Aluminium, Steel

Cable Length: 0.5 m

Width: 128 mm

Depth: 140 mm

Height: 50 mm

Weight: 0,35 kg

Operating Temperature: - 20 - 70 °C

Air Humidity: > 80 % (non-condensing)

Max. input level (< 1% THD, 1 kHz): + 32 dBu dBu

Frequency Range: 0 Hz - 20 kHz

THD (1 kHz, +4 dBu, unity, unweighted): < 0,0005 %
