Palmer PAOCLXLRF, Audio over Cat Loom from Ethercon to 4 x XLR Female

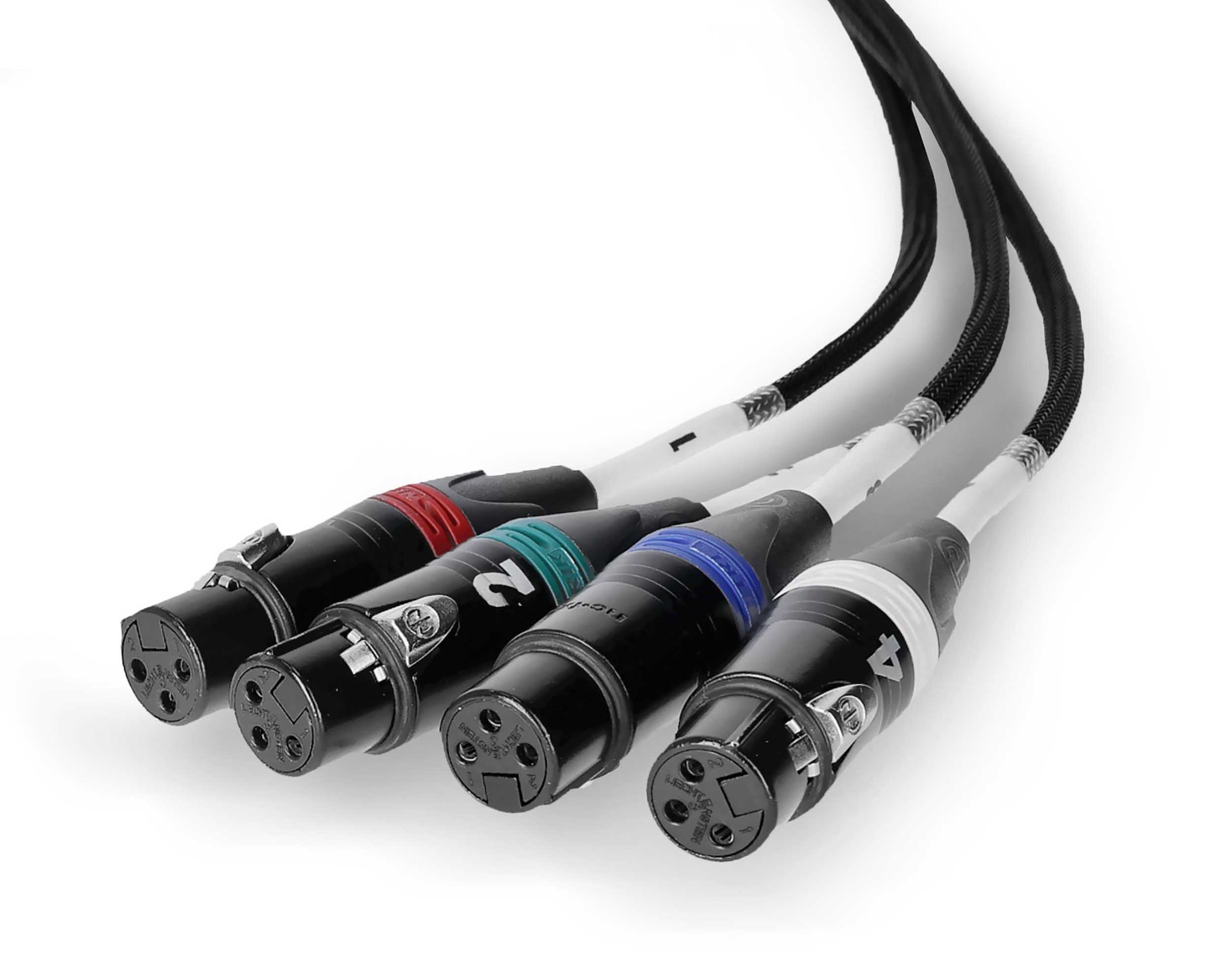

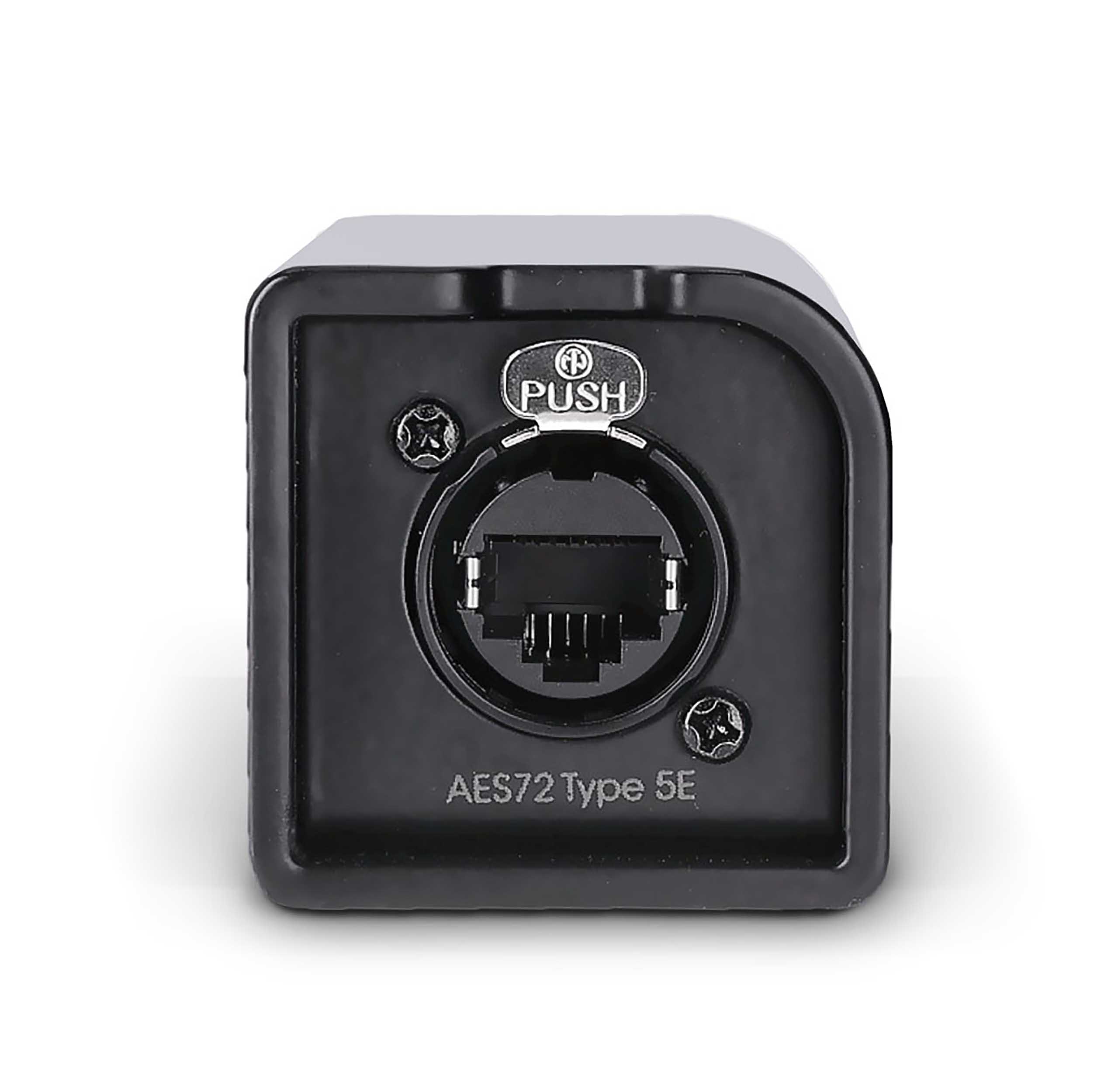

The Palmer PAOCLXLRF is a multicore adapter cable that facilitates the stable transmission of 4 separate analog and balanced audio signals or 8 digital AES3 signals through a network cable (not included). The female XLR plugs are numbered and color-coded for easy identification. The Ethercon connection is safeguarded against unlocking to prevent accidental cable disconnection.

In addition to audio signals, the P AOC L XLR F enables the transmission of DMX, or MIDI control signals, along with 48-volt phantom power, via a single, standard Ethernet cable. This versatility allows it to be used flexibly across various applications, be it for live concerts, studio sessions, press conferences, or other productions. Featuring high-quality Neutrik components, a solid aluminum-steel housing, and robust mesh cables with a 50 cm splice, the P AOC L XLR F guarantees reliable signal transmission and durability in professional environments. Its simple, high-quality design also enhances the visual appeal of any setup. All these factors make the P AOC L XLR F a reliable and durable tool that provides an affordable and flexible alternative to conventional 4-channel multicores without compromising audio quality - as you have always come to expect from Palmer.

Product Specifications:

Product Type: Audio over Cat adapter

Number of inputs: 4

Input Type: Balanced

Input Connector: RJ45

Number of outputs: 4

Output Type: Balanced

Output Connector: XLR female

Material: Aluminium, Steel

Cable Length: 0.5 m

Width: 128 mm

Depth: 140 mm

Height: 50 mm

Weight: 0,39 kg

Operating Temperature: - 20 - 70 °C

Air Humidity: < 80 % ( non-condensing )

Max. input level (< 1% THD, 1 kHz): + 32 dBu dBu

Frequency Range: 0 Hz - 20 kHz

THD (1 kHz, +4 dBu, unity, unweighted): < 0,0005 %
