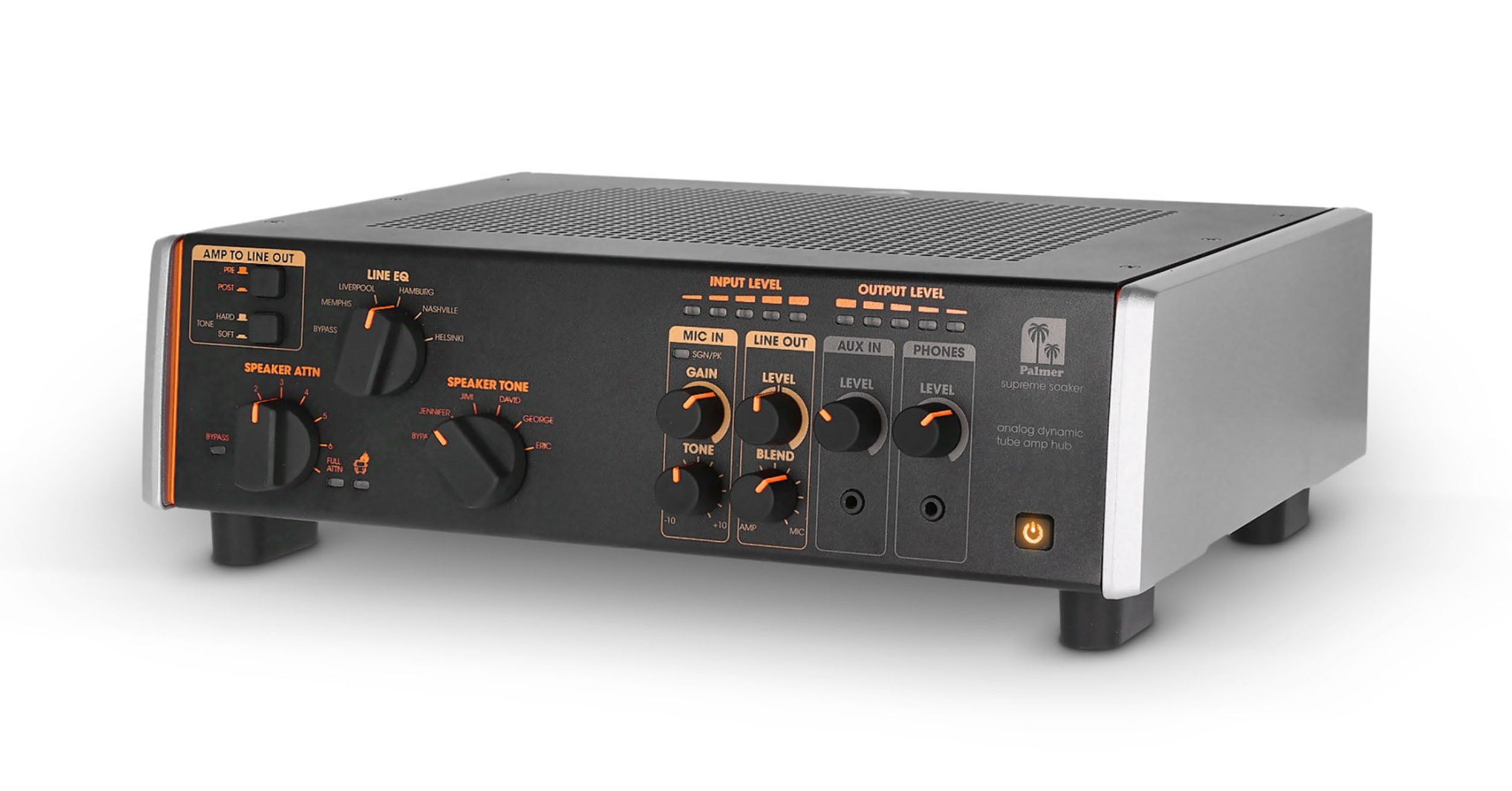

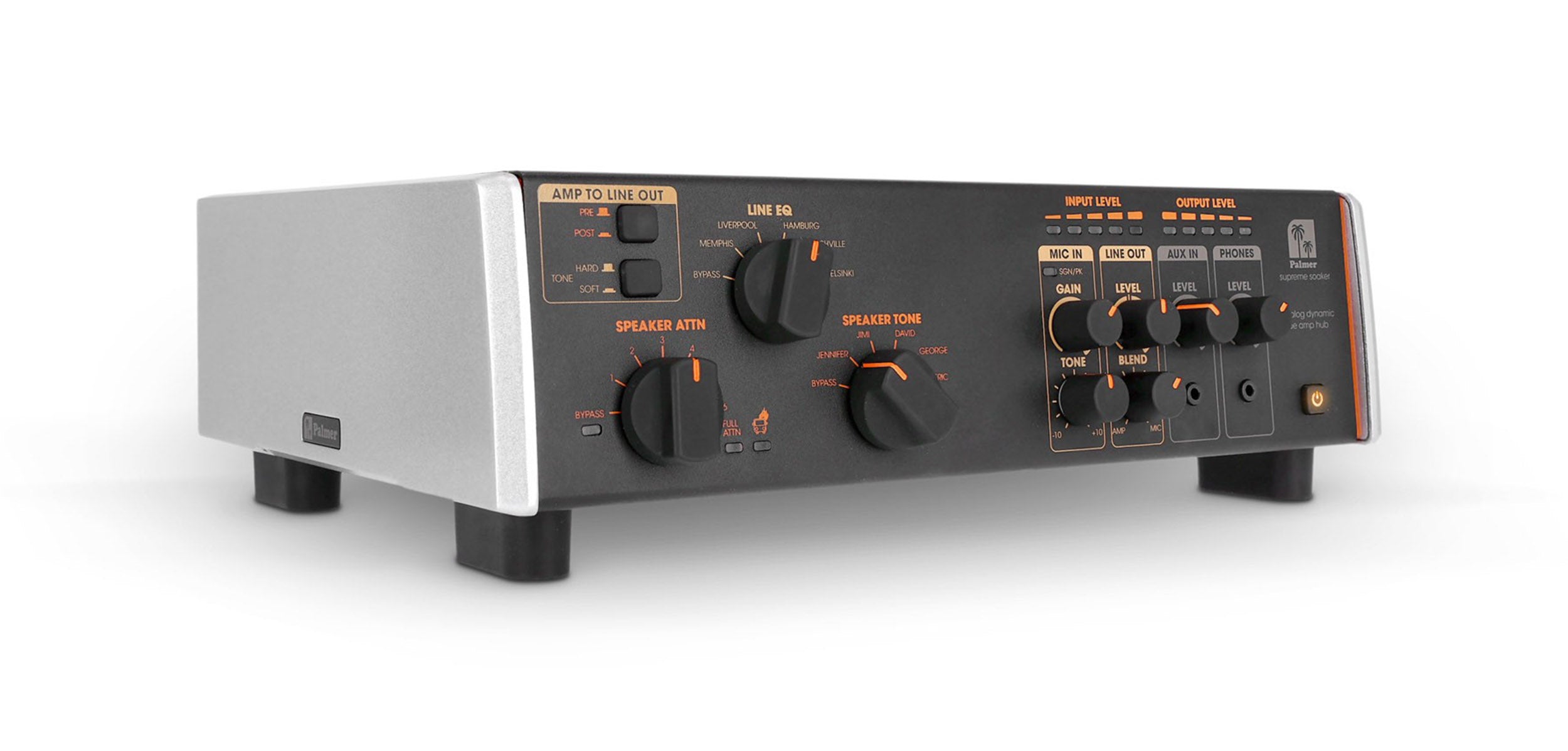

Palmer PSUPSOAK, Analog Dynamic Tube Amp Hub

Maximize the potential of your tube amp like never before with the Supreme Soaker! For decades, Palmer has been at the forefront of analog amp tech. Now, following in the award-winning footsteps of our iconic PDI-09 and PDI-03 speaker simulators, comes the latest innovation for the discerning guitarist. The Supreme Soaker, A pinnacle of analog design, this dynamic tube amp hub lets you enjoy your tube amp's tone, feel and dynamics to the fullest anytime and anywhere, and at any volume with unparalleled precision and analog purity.

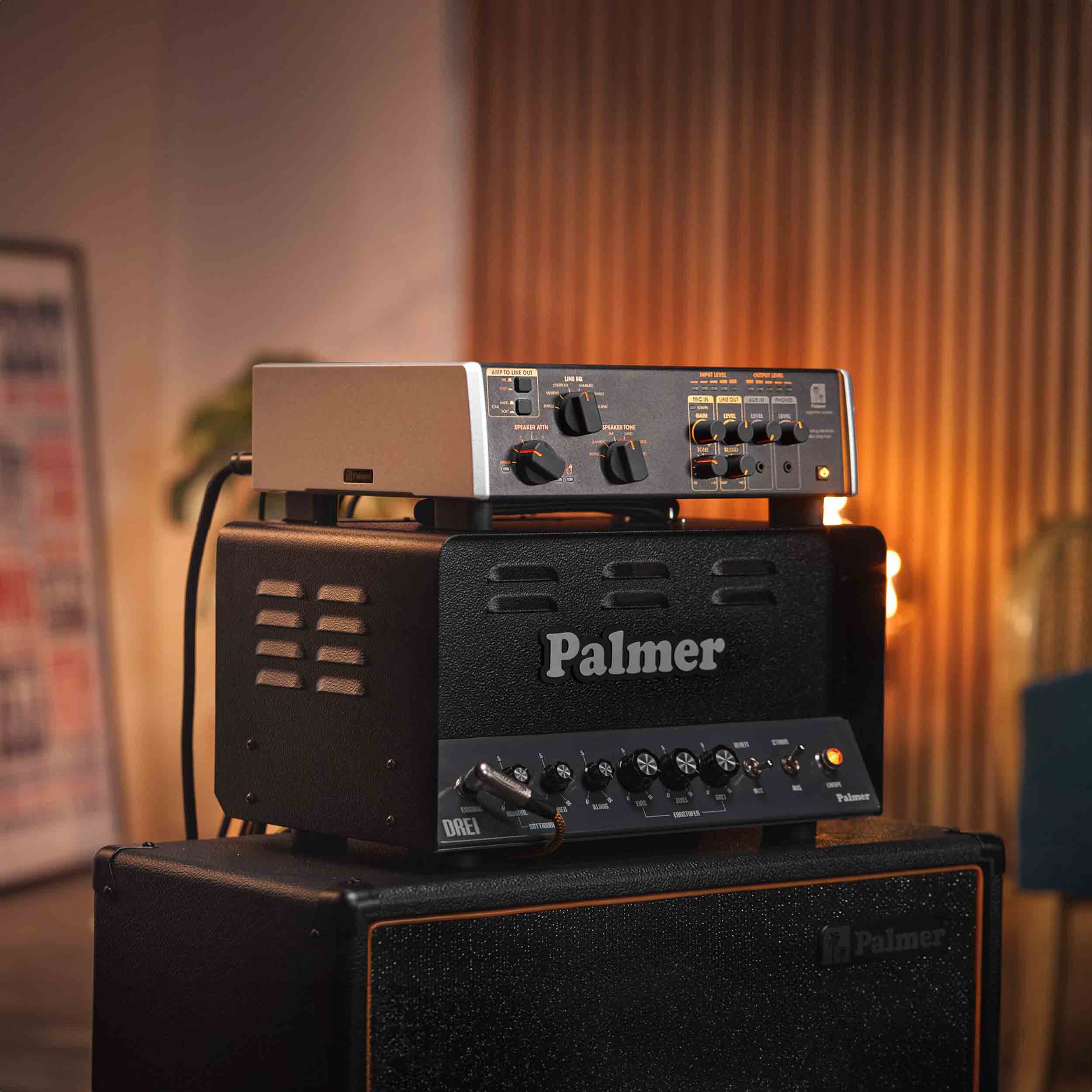

Whether you make music at home or with others, the Supreme Soaker is the perfect way to tame your amp for the job. As a reactive attenuator and load box with a finely tuned analog speaker simulator built in, the Supreme Soaker allows you to permanently dial in your amp’s sweet spot – at any volume – and it will quickly become your go-to device in any musical situation, from playing and recording at home to rehearsing with a band, and even playing live… without sacrificing one iota of your precious tone!

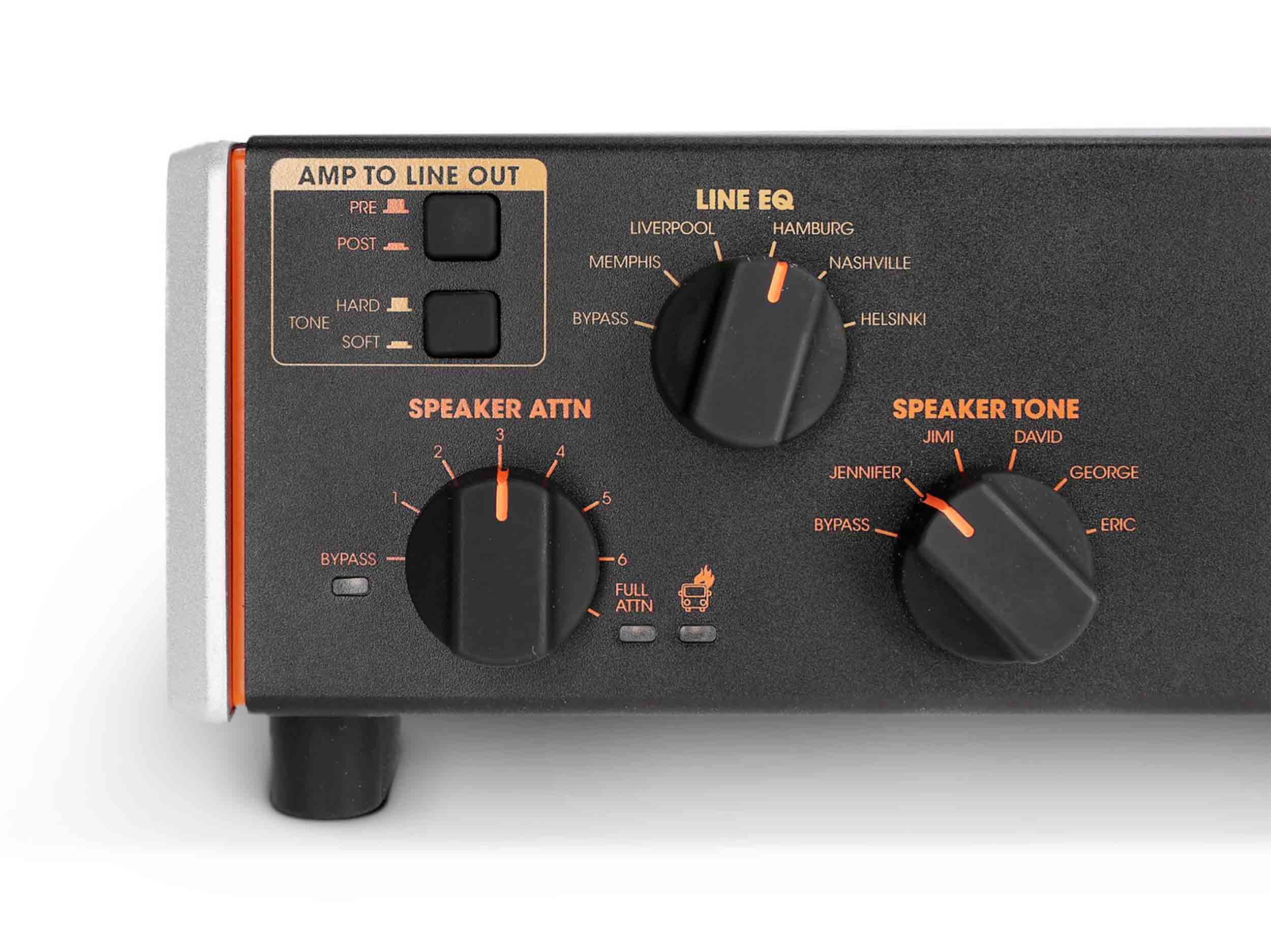

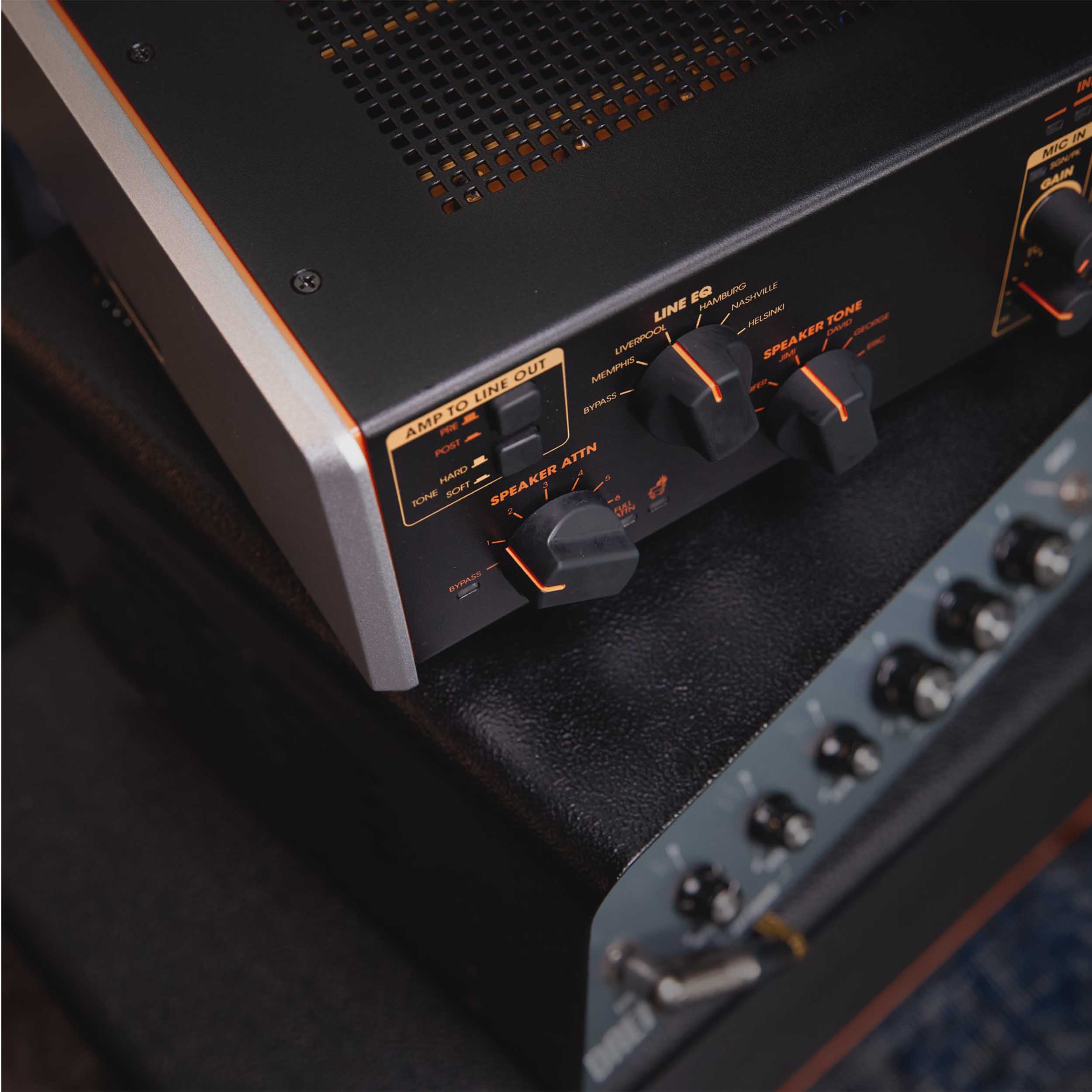

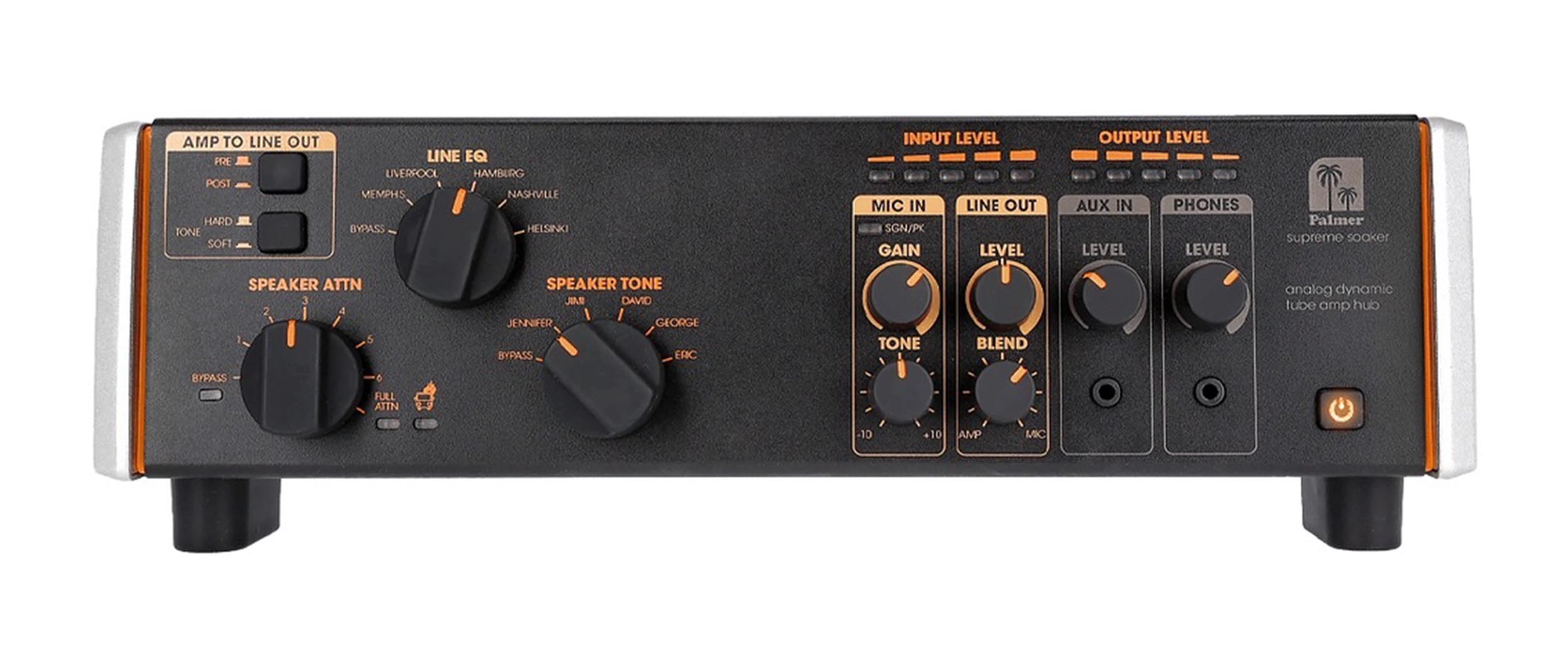

The LINE EQ and SPEAKER TONE controls are your gateway to tube amp tonal bliss! Each control gives you access to five finely-tuned analog emulations (plus a bypass option) so you can tweak your tone exactly the way you want it and conjure up new iconic worlds of sound, no menu diving needed!

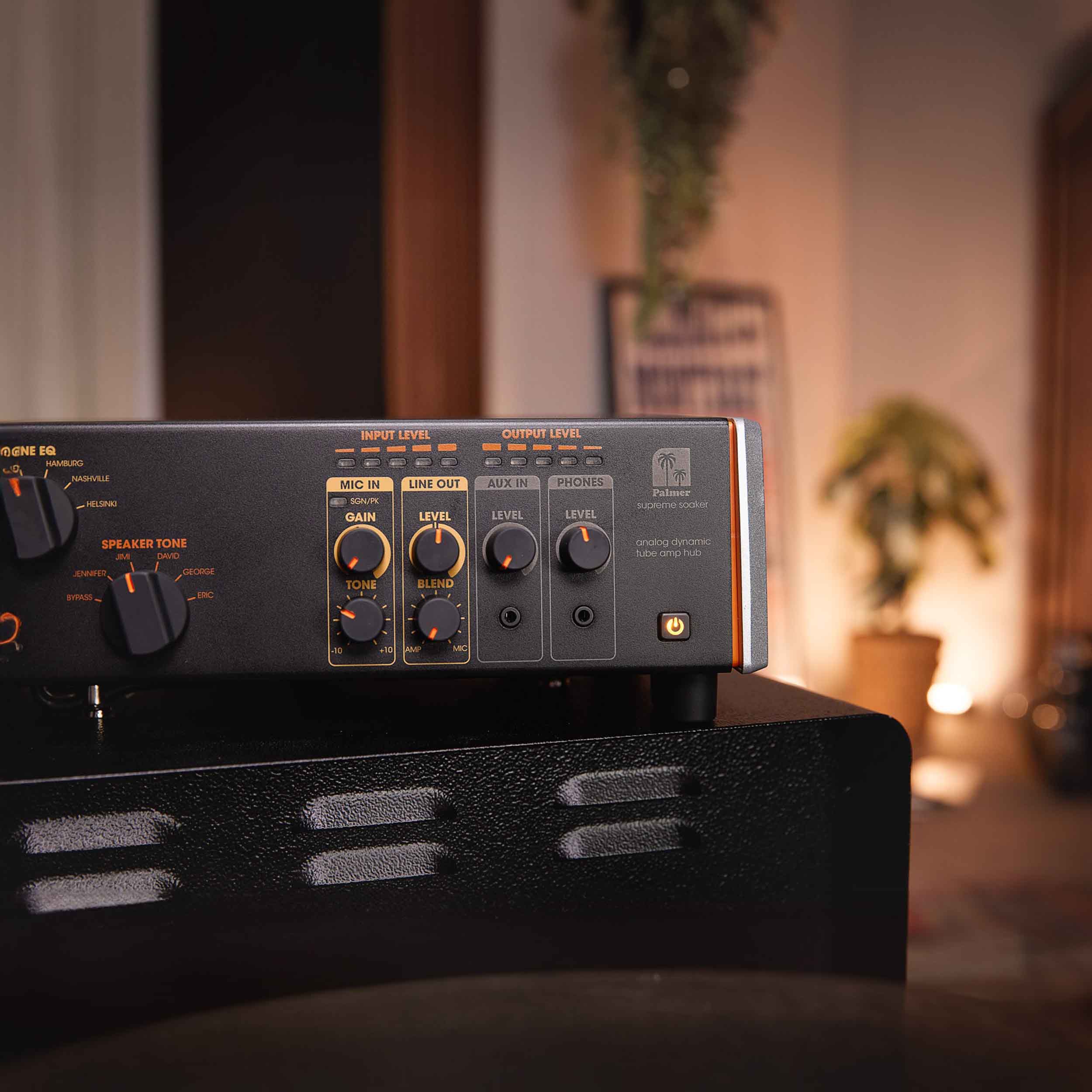

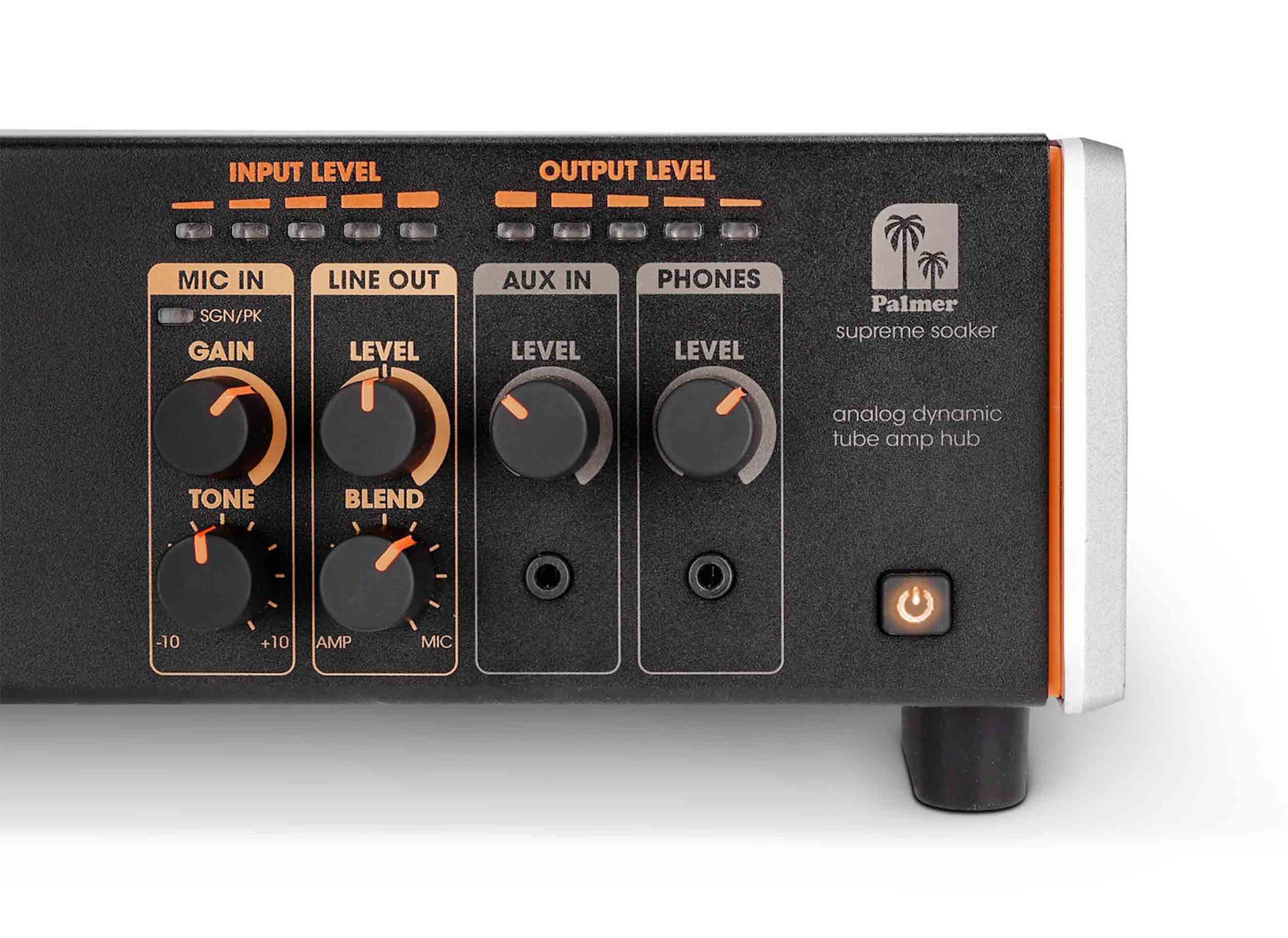

The Supreme Soaker has your back whether you’re playing a show or practicing at home. At gigs, use the Mic/Line In to blend your favorite cab/mic combo with the Supreme Soaker’s speaker simulator for a supreme analog sound experience. When you need to be quiet, the Headphone Out is your friend. And if you want to jam along to backing tracks, or even play to a click, the Aux Input makes this an exercise in convenience.

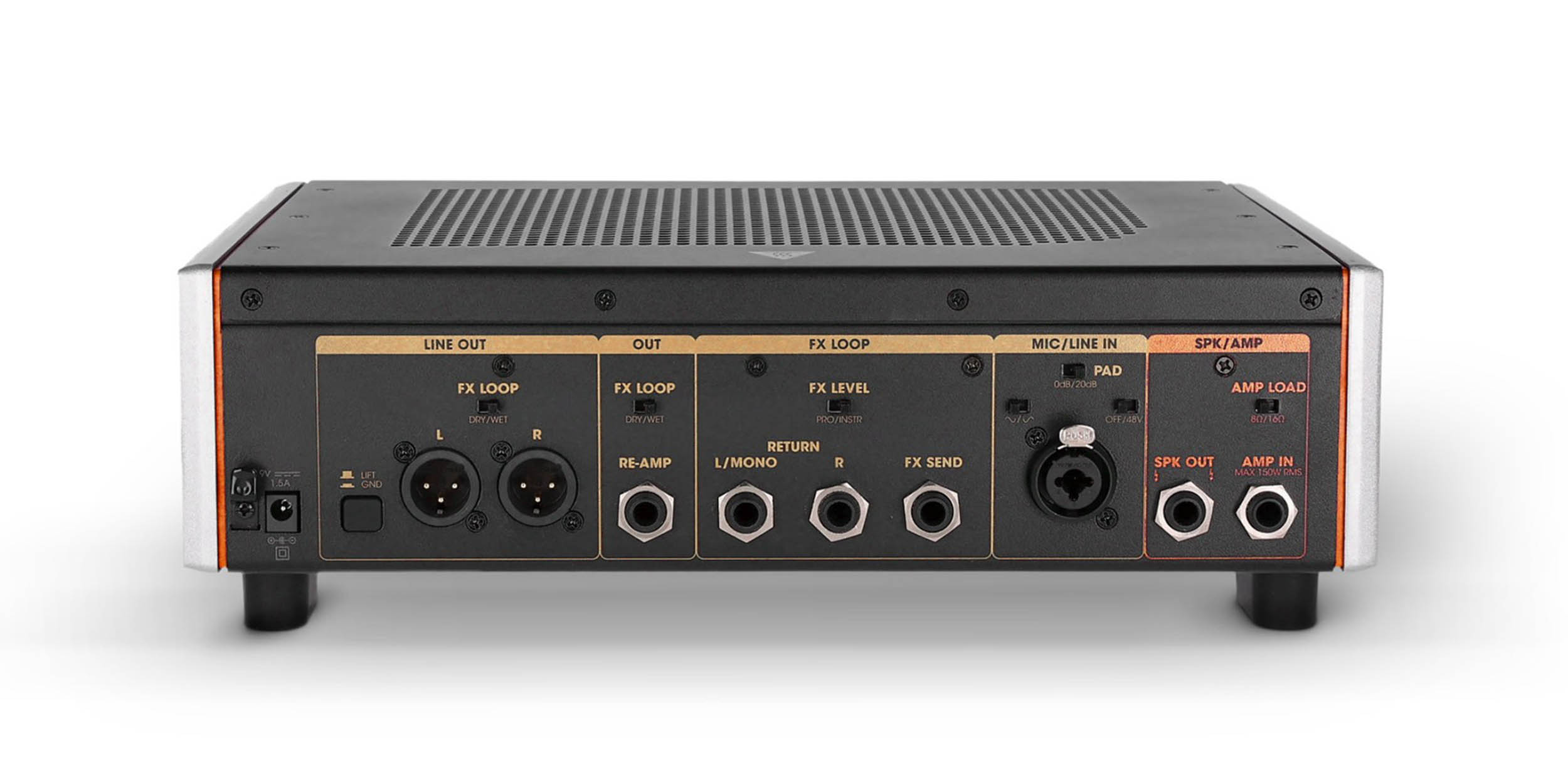

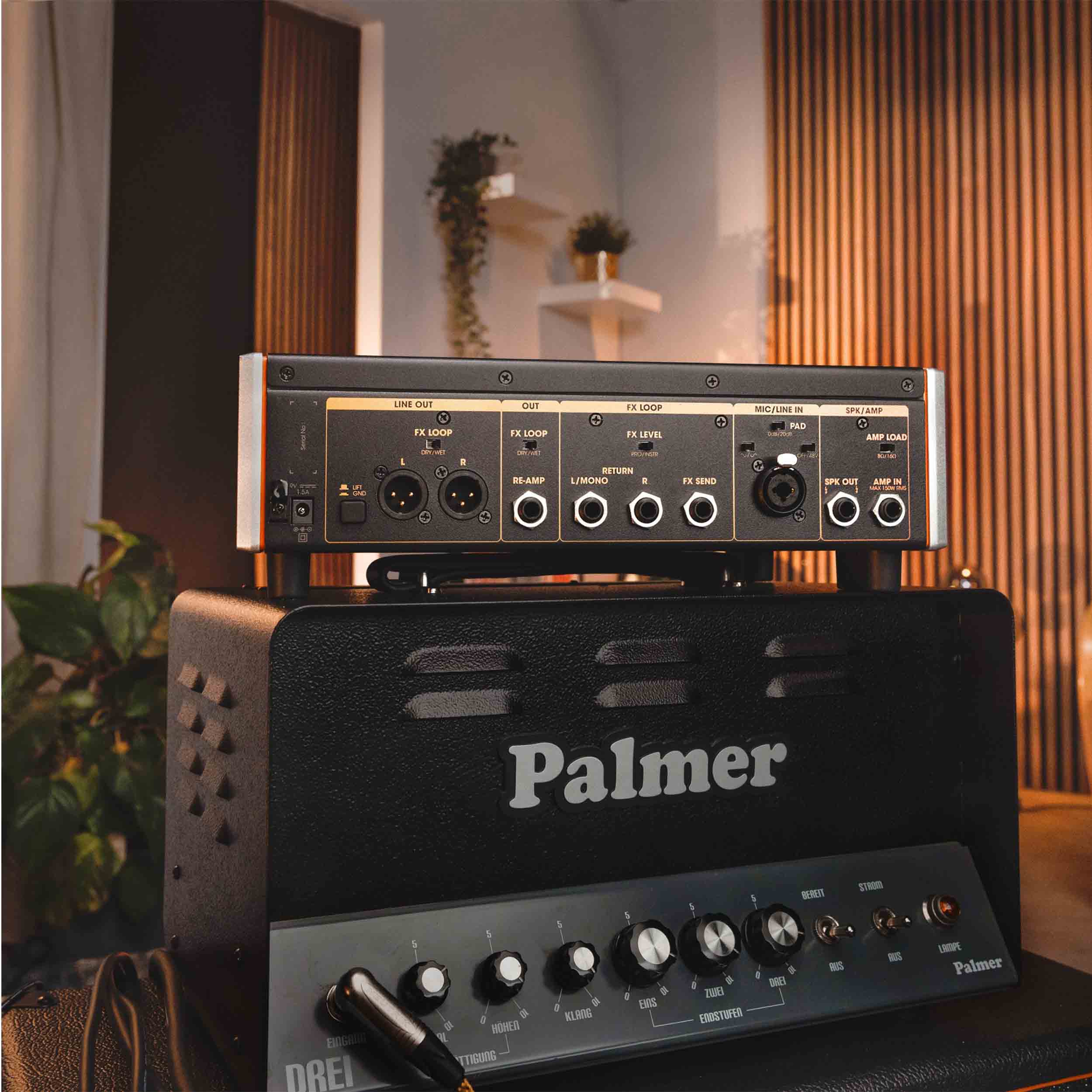

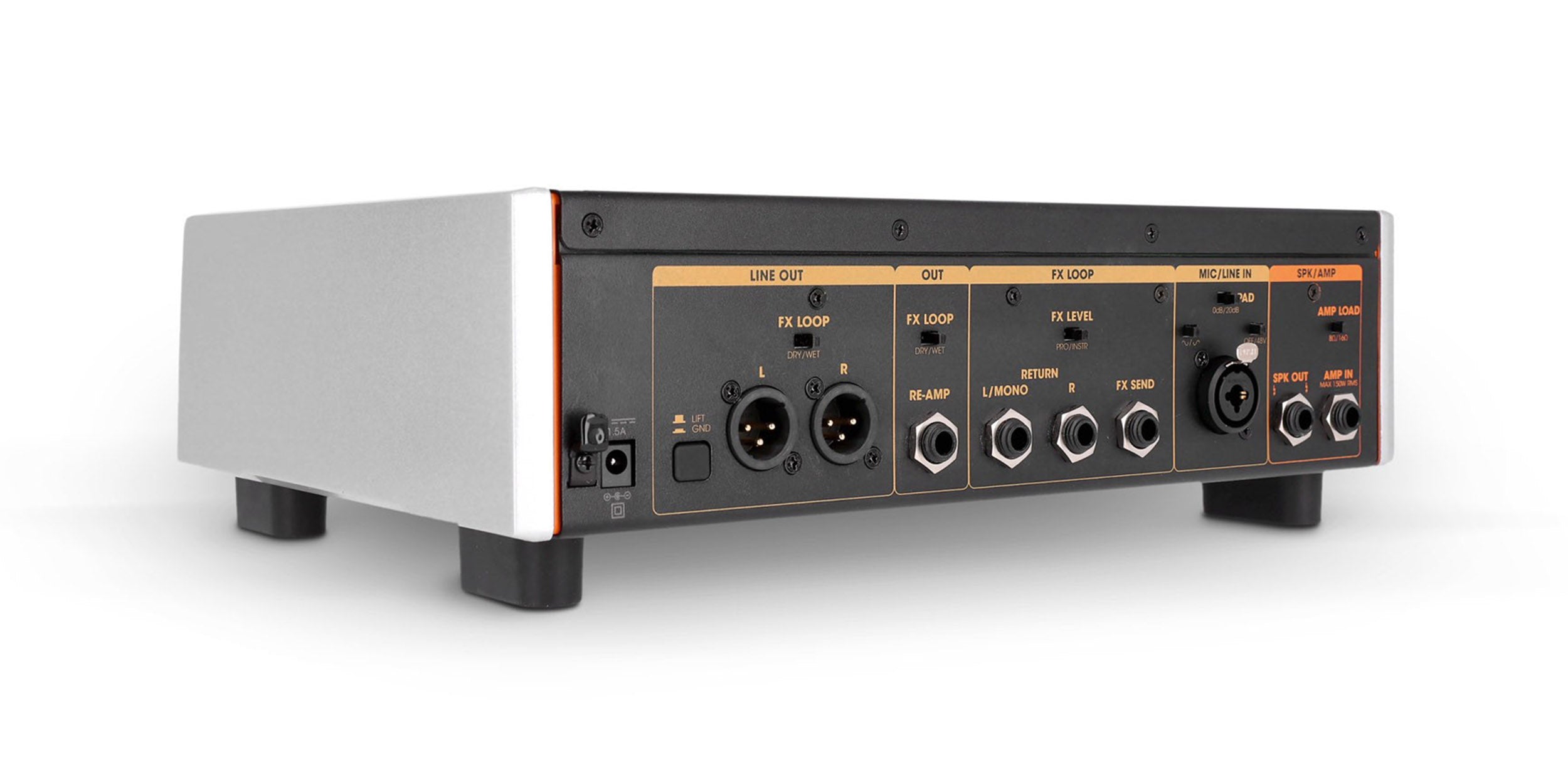

Hook your stereo (and mono!) FX pedals up to the Supreme Soaker to hear everything exactly the way it was meant to be. And if you love to record, the balanced stereo XLR Line Outputs offer the key to pro level studio tracks. Plus, if you’re into reamping, no problem the Reamp Out on the Supreme Soaker makes reamplification a breeze.

Product Specifications:

Product Type:

Attenuator

DI Box

Headphone Amp: Load Box

Microphone Preamplifier

Power Soak

Re-Amping Device Analogue

Speaker Simulator

Signal Processing: Analog

Number of Inputs: 5

Input Type: Balanced, Unbalanced

Input Connectors: 3.5 Mm Jack, 6.3 Mm Jack, XLR

Number of Outputs: 6

Output Type: Balanced, Unbalanced

Output Connectors: 3.5 Mm Jack, 6.3 Mm Jack, XLR

Ground/Lift Switch: Yes

Internal Load Impedance: 16 Ohms, 8 Ohms

Minimal Load In OFF Status: 16 Ohms

Max Input Handling: 150 W

Power Attenuator: 7-Step

Voicing Filter: 5-Step Speaker Tone And 5-Step Line EQ

Power Supply Polarity: Center Negative

Power Connector: 2 X 5.5mm

Maximum Power Consumption: 13.5 W

Standby Power Consumption: 0.3 W

Dimensions (W X H X D): 334 X 108 X 274 Mm

Weight: 6,6 Kg

Ambient Temperature (In Operation): - 20°C - 25 °C

Relative Humidity: < 80 % (Non-Condensing)

Accessories (Included): Power Supply

MIC / LINE IN Low Cut Frequency (-3db): 90 Hz

MIC IN Max. Gain: 58 Db

MIC / LINE IN Gain Range: 0 - 25 Db

MIC IN (XLR) Max. Input Level (< 1% THD, 1khz): + 1 Dbu

LINE IN (TRS) Max. Input Level (< 1% THD, 1khz): + 22 Dbu

MIC IN To LINE OUT THD+N (1khz, +4dbu): < 0.006 %

MIC IN To LINE OUT THD+N (20Hz-20khz, +4dbu): < 0,04 %

MIC IN To LINE OUT EIN (Max. Gain, Unweighted): - 114 Dbu

MIC IN To LINE OUT SNR (All Bypass): 105 Db

MIC/LINE IN PAD Attenuation: 20 Db

MIC IN (XLR) Input Impedance (Balanced): 1500 Ohm(S)

LINE IN (TRS) Input Impedance (Balanced): 24000 Ohm(S)
