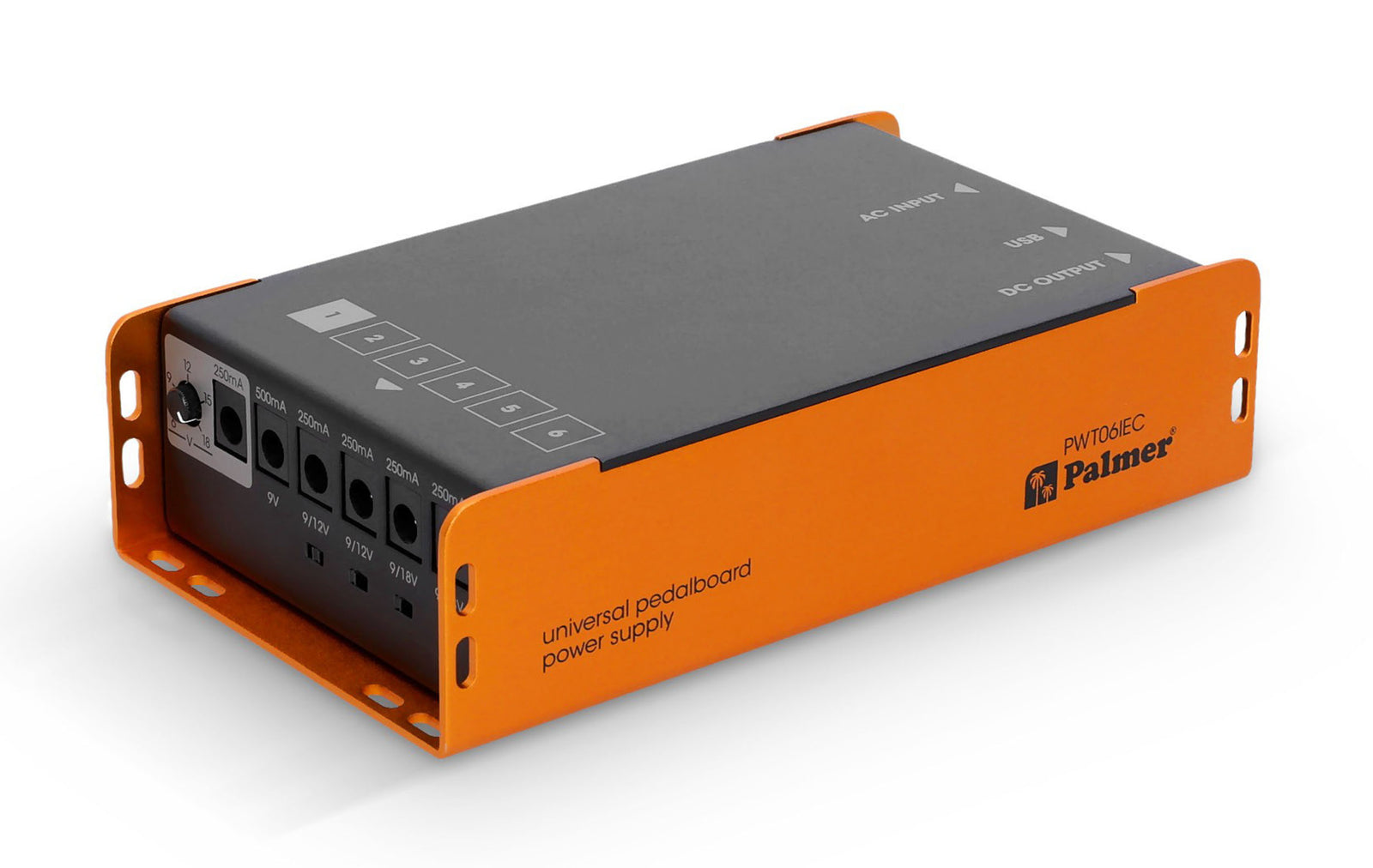

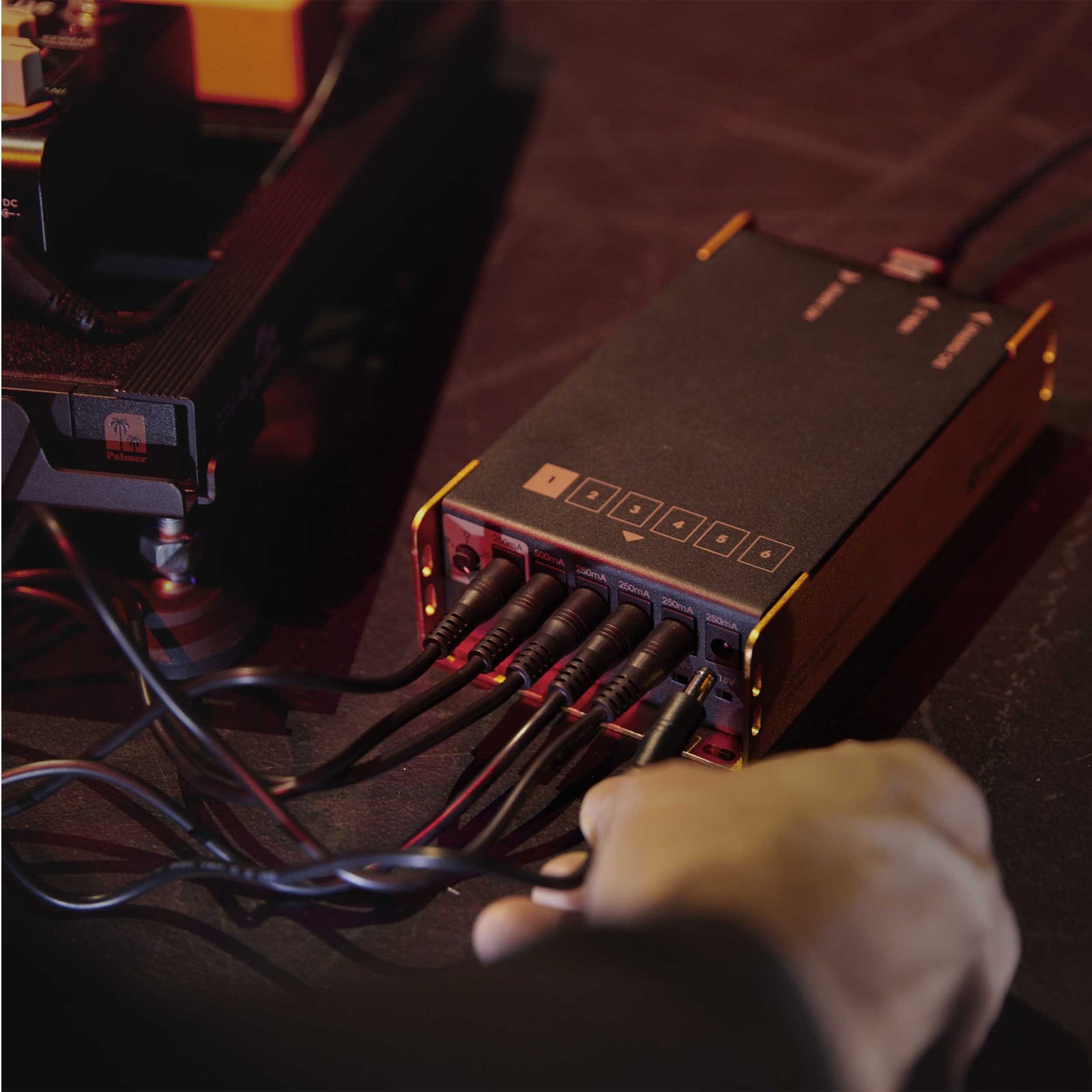

Palmer PWT 06 IEC, Universal Pedalboard Power Supply with USB

The Palmer PWT 06 IEC, Universal Pedalboard Power Supply with USB with six high current, individually isolated, ultra-low noise outputs - each with its own dedicated regulator and custom isolated transformer - the PWT 06 IEC represents the next generation of Palmer® isolated pedal power supplies. Featuring one variable voltage output, the PWT 06 IEC lets you adjust the voltage between 6 and 18 volts, giving you even more headroom to run your overdrive pedals, as well as the "dying battery" sound that many guitarists love. In addition, the Palmer PWT 06 IEC has a USB C and USB A output with 18W so you can charge your mobile devices or even power your MIDI keyboards. We designed the PWT 06 IEC to address guitarists' main pain points when it comes to powering their precious effects pedals, so you can perform with complete peace of mind, knowing that your pedals and rig will sound as good as they can.

Product Specifications:

Product Type: Power Supplies

Input Voltage: AC 100 - 240 V

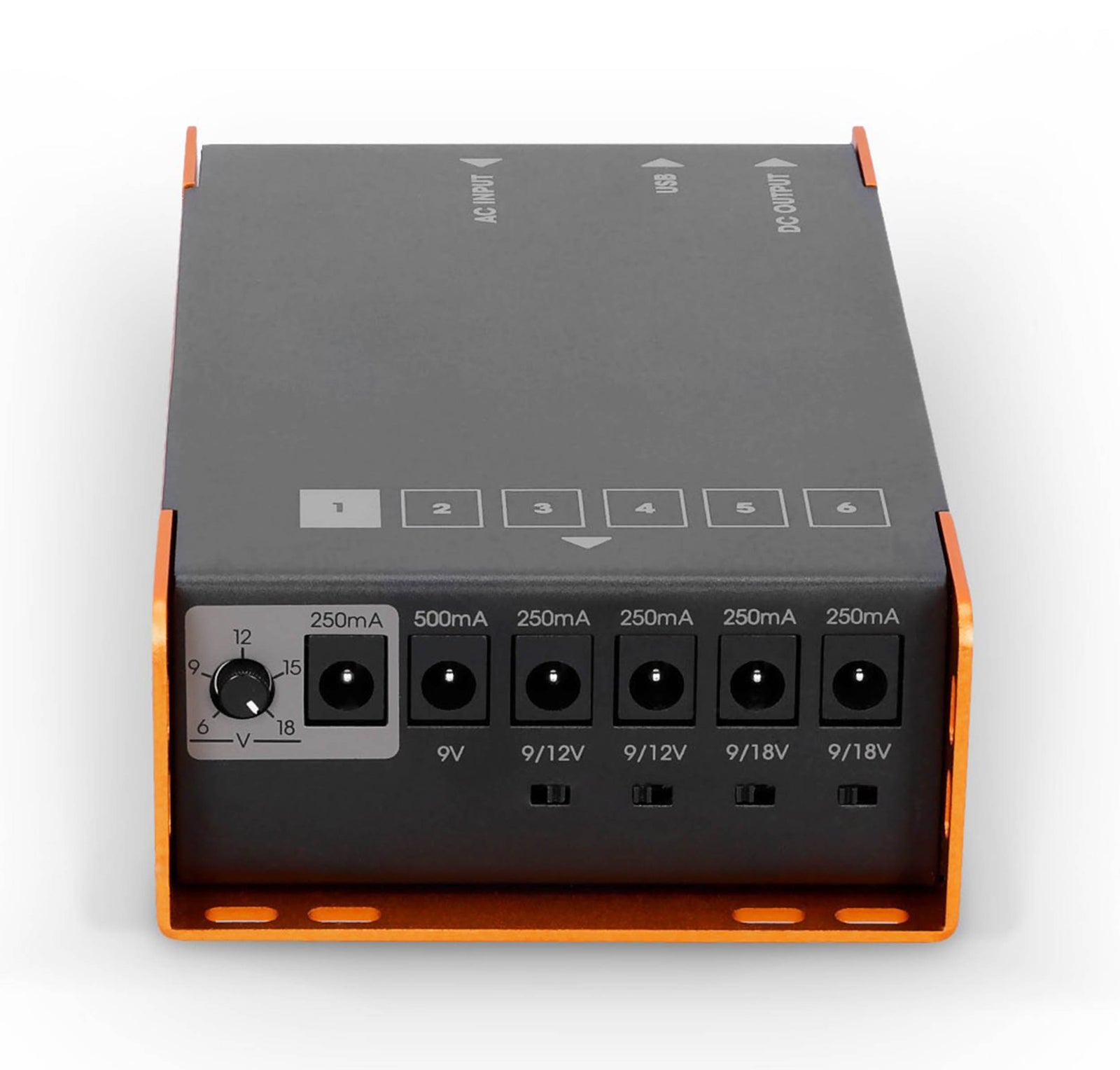

Single Isolated DC Outputs: 6

Output 1: 6 - 18 V (250 Ma Max)

Output 2: 9 V (500 Ma Max)

Output 3-4: 9 / 12 V (250 Ma Max)

Output 5-6: 9 / 18 V (250 Ma Max)

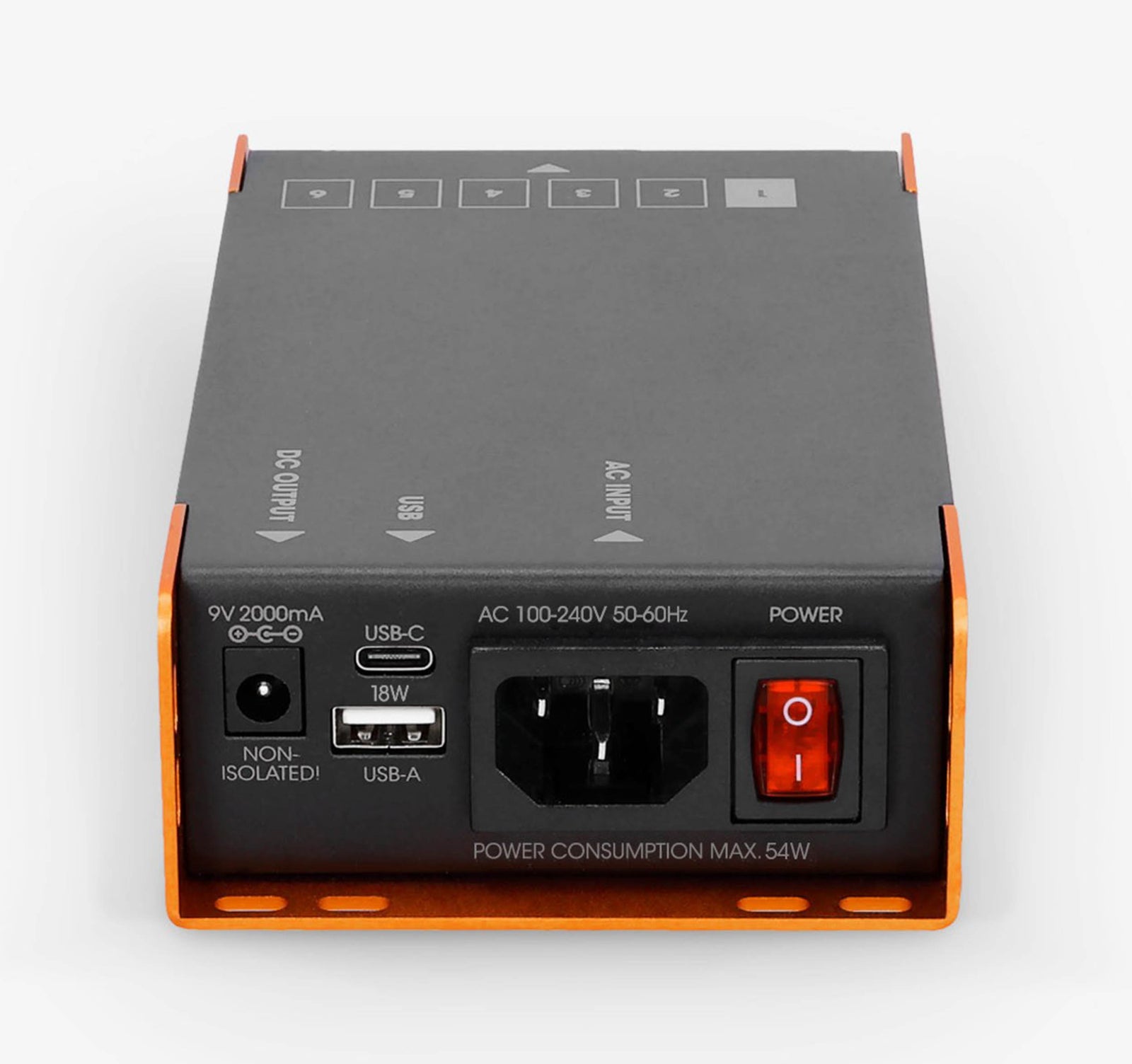

Non-Isolated DC Output: 9 V (2000 Ma Max)

Output Connectors: 2.1 X 5.5 Mm

Output Voltage: 6 V - 18 V

Max. Output Power: 36 W

Max. Power Consumption: 54 W

Individually Isolated Outputs: Yes

Polarity: Center Negative

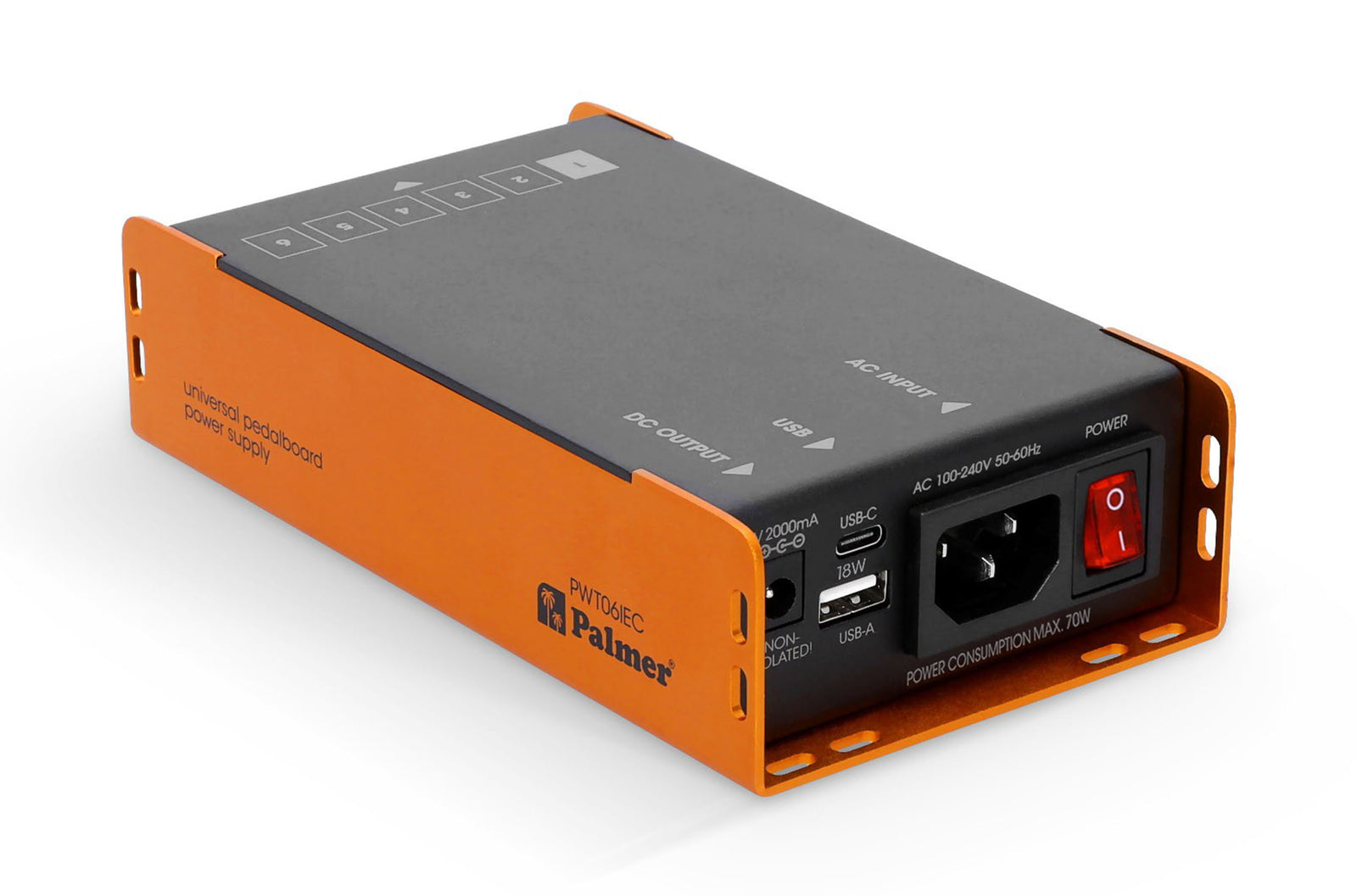

USB-C / USB-A Output Power: 18 W Max.

Indicators: Power

Controls: Mains Switch, Output Voltage Selector and Switch

Accessories: Power Cable, 9x DC Cable (30 / 60 Cm), 4x Rubber Feet

Noise: < 40 µv (Output 1 - 6)

Ambient Temperature (In Operation): 0 - 40 °C

Relative Humidity: < 80 %, Not Condensing

Shipping Weight: 2 Lbs

Shipping Dimension: 5, 8, 3 Inches
