Description

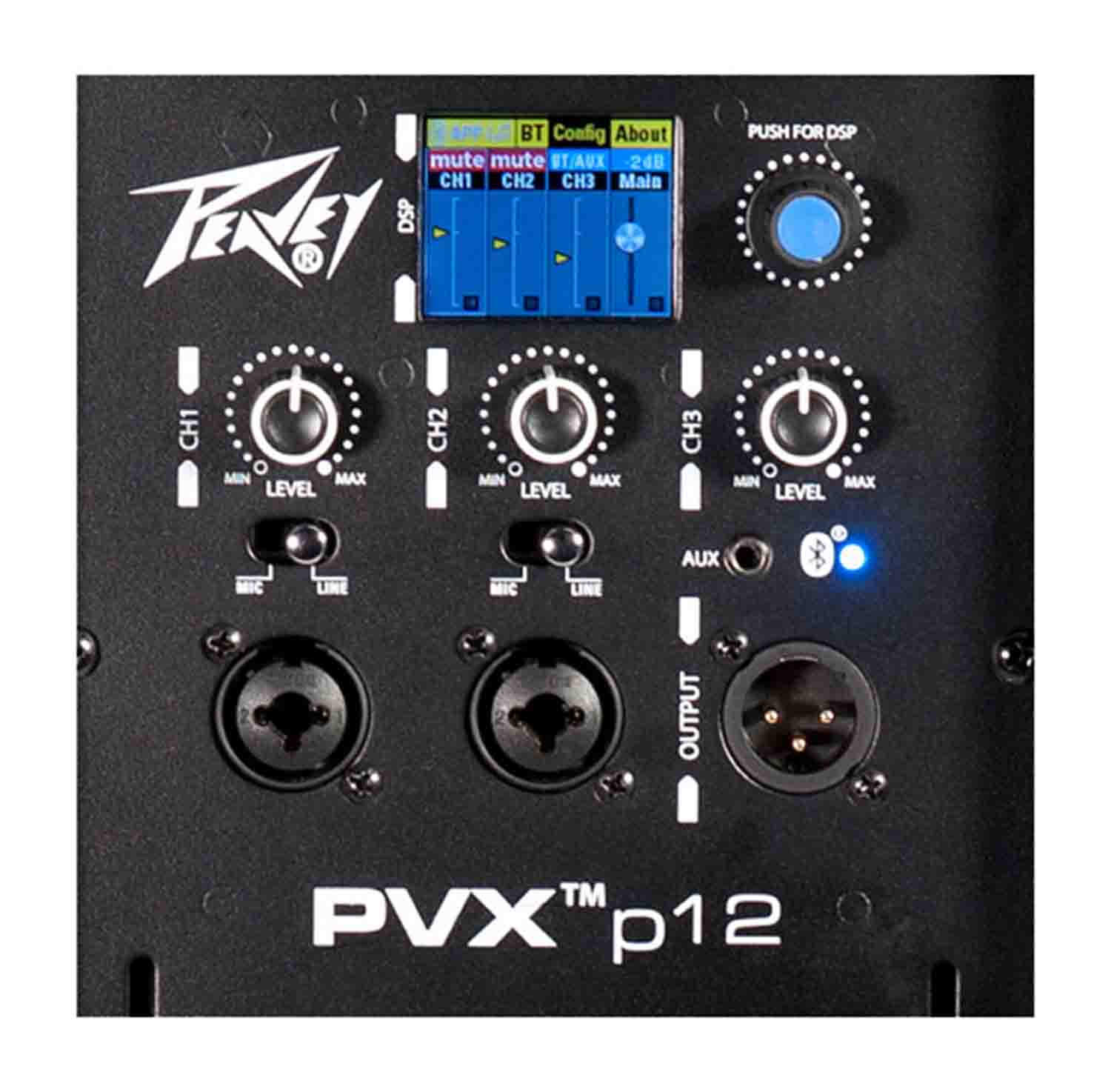

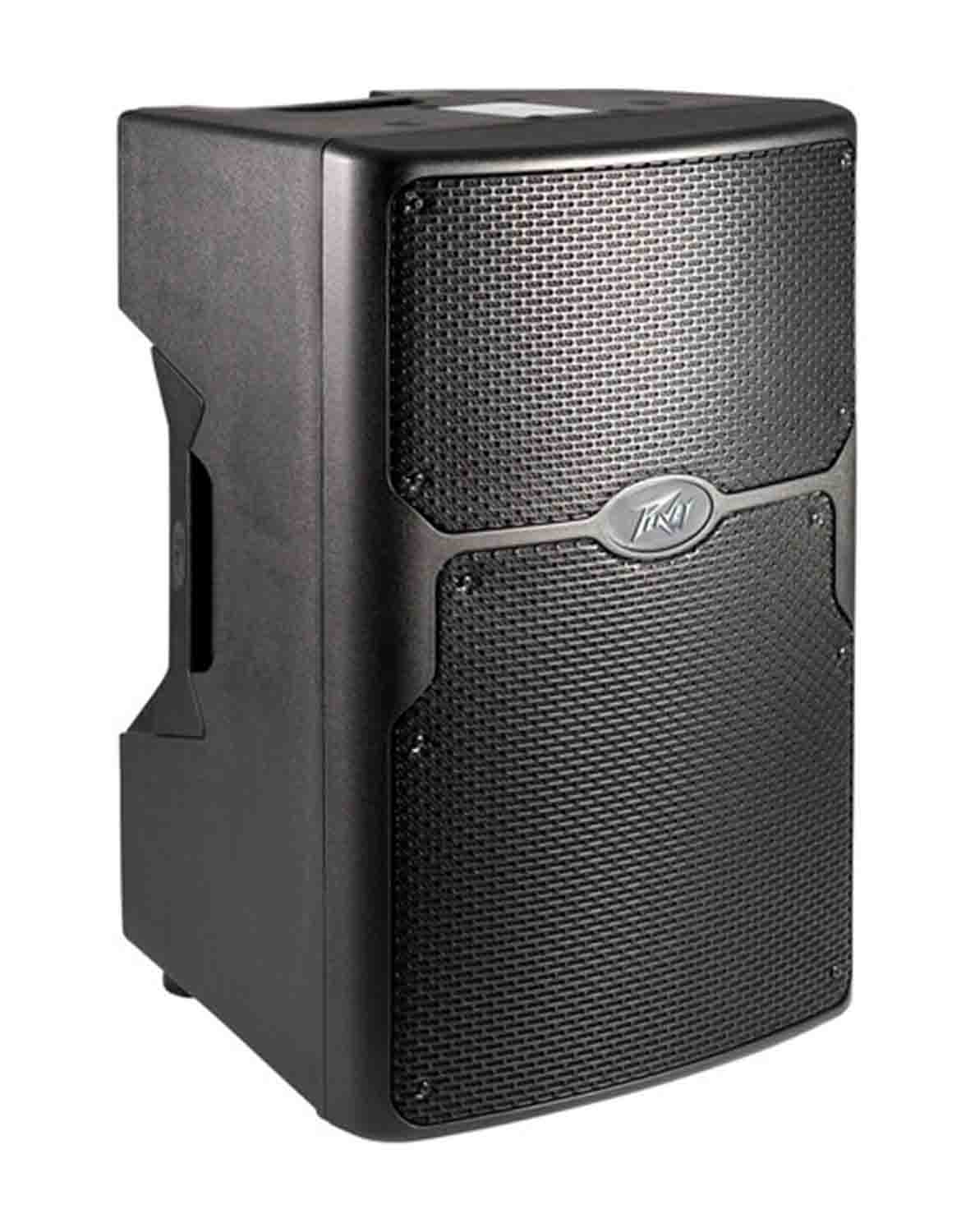

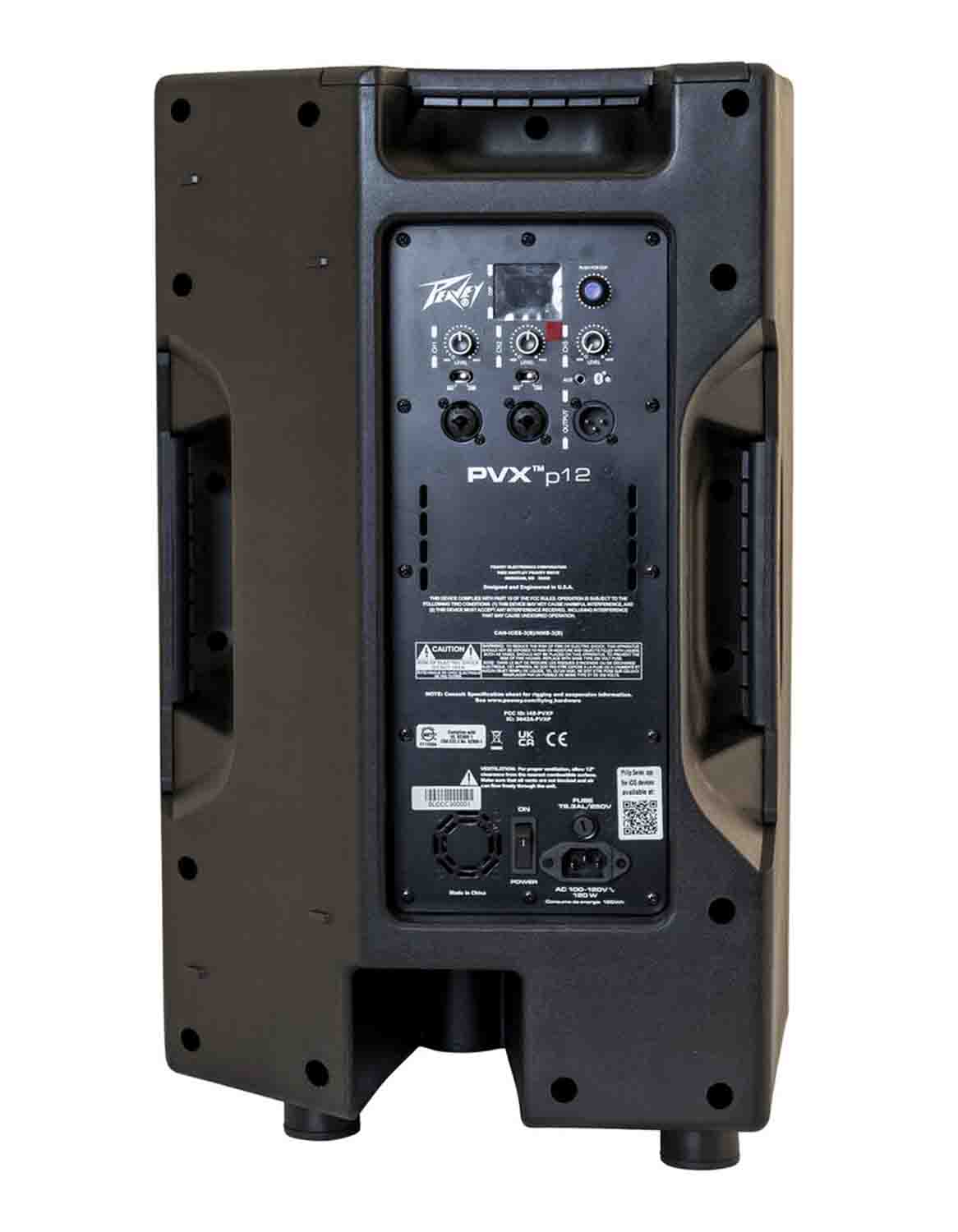

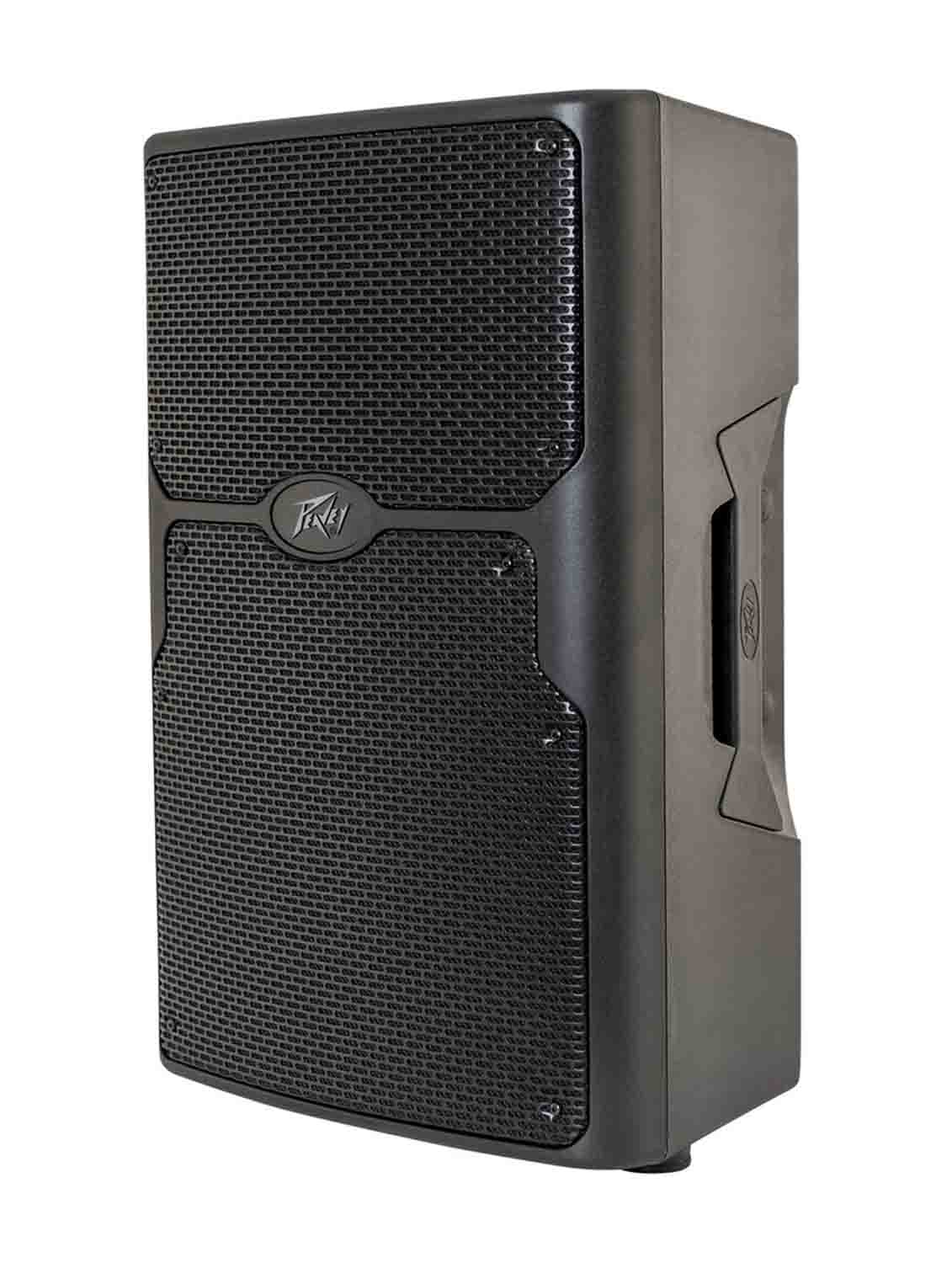

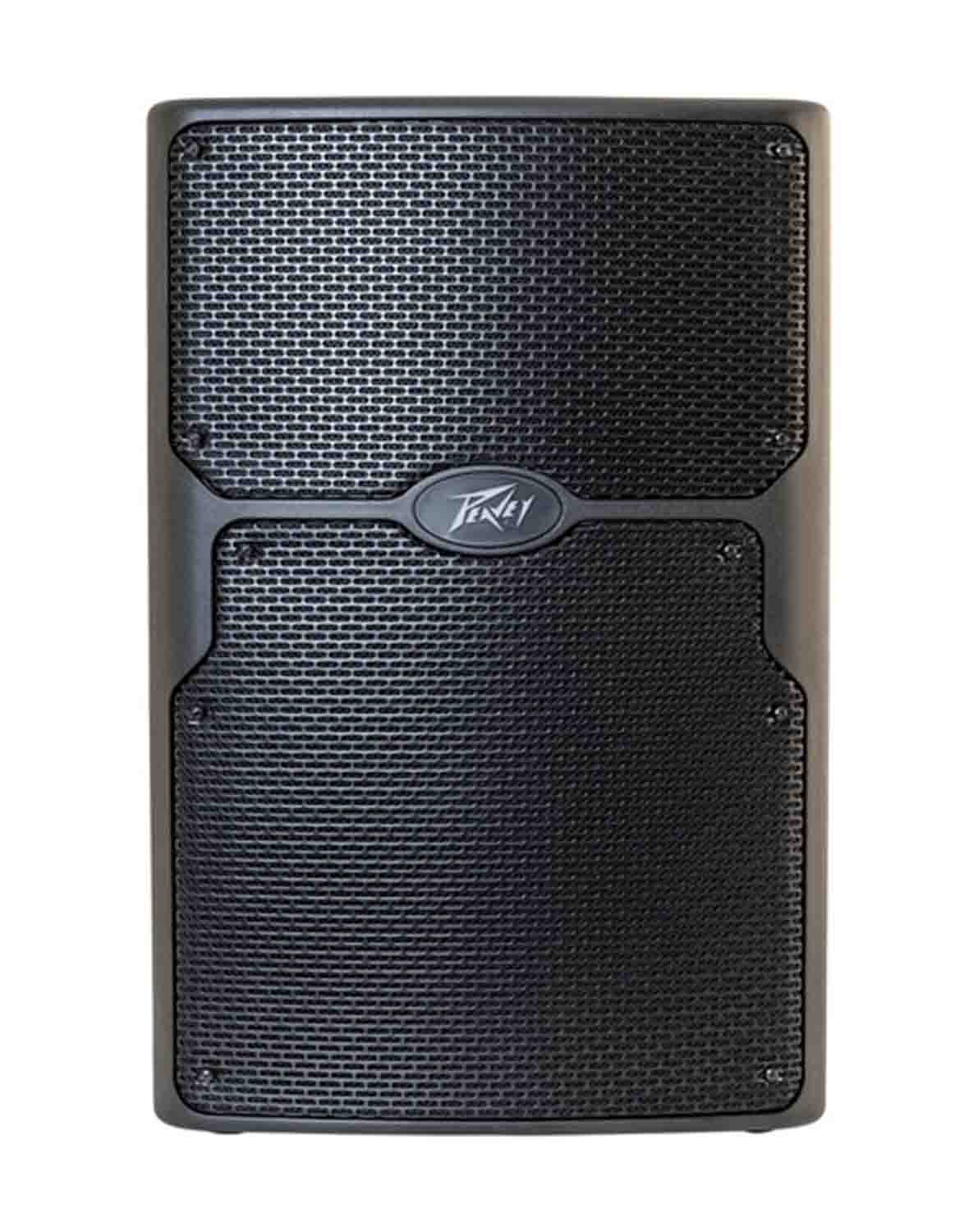

The Peavey PVXp 12 is a Bluetooth 12-inch Powered Loudspeaker. The PVXp 12 Bluetooth® features a reliable bi-amped power section that provides a total of 980 Watts of peak dynamic power with DSP-based compression and limiting. This enclosure features a 12" heavy-duty woofer with a 2 3/8" inch voice coil and 50-ounce magnet, and the RX14™ compression driver with a 1.4 inch titanium diaphragm on a 100-degree horizontal x 50 degree vertical pattern asymmetrical horn. The PVXp™ 12 Bluetooth® provides two channels with a balanced input via a combination jack that accepts balanced TRS 1/4" inch input as well as a balanced XLR input. A switch is provided to change between line level gain and mic level gain. A third channel is for a Bluetooth source, or alternatively a 1/8" AUX input jack. Each channel has an adjustable Level control and a three-band EQ section. There is a balanced output, a Male XLR, that can feed the mixed signals from the three channels out to another component. A front baffle LED indicator can be set to light when power is on, and when the "soft-limiting" DDT circuit is activated, or it can be turned off altogether. The LCD display and EQ preset, along with other DSP operating parameters are accessed via a one-knob selector.
Product Specifications:
Powered: Yes
Power Configuration: Bi-amped
Channels: 3-channel mixer
LF Driver Size: 12" woofer
HF Driver Size: 1.4-inch titanium diaphragm
LF Driver Power Amp: 840W
HF Driver Power Amp: 140W
Total Power: 980W (peak)
Inputs: 2 x XLR-1/4" combo, 1 x 1/8" TRS
Outputs: 1 x XLR
Bluetooth: Yes (audio in)
Frequency Range: 54Hz-20khz
Frequency Response: 63Hz-20kHz (±3dB)
Crossover Frequency: 24dB/octave @ 1800Hz
Maximum Peak SPL: 127dB SPL @ 1m
Horizontal Coverage Angle: 100°
Vertical Coverage Angle: 50°
Signal Processing: DSP, 24bit/48kHz
Software: PVXp iOS app
Enclosure Material: Black injection-molded plastic
Mounting Options: Pole, Floor Wedge
Power Source: Standard IEC AC cable
Height: 24.5"
Width: 16.1"
Depth: 15"
Weight: 42 lbs.
