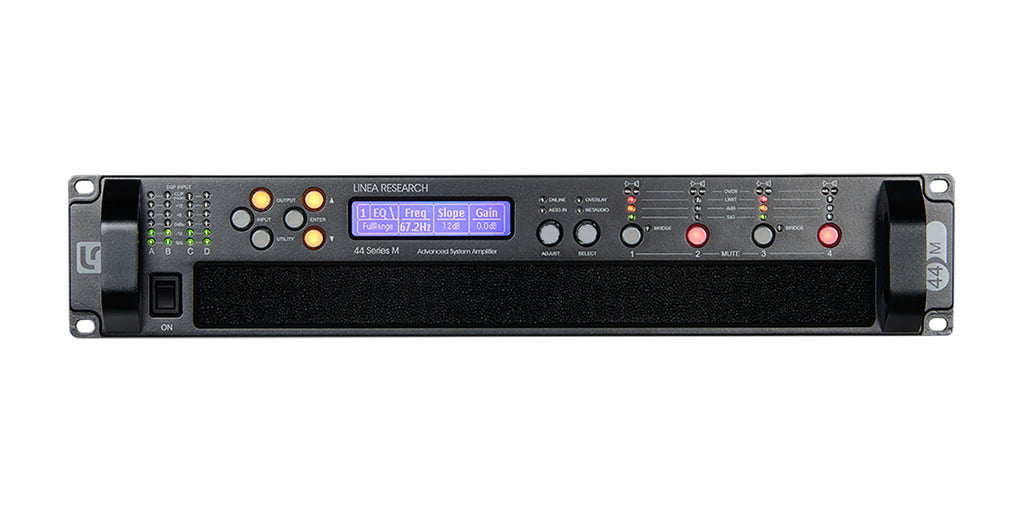

Pioneer LR-44M20 4 Channel Advanced System DSP Amplifier

Pioneer DJ LR-44M20 is a Linea Research 4 channel amplifiers offer a unique combination of power and audio performance, seamlessly combined with advanced DSP and network control. Sharing the same feature set and form factor as Linea's 48M series amplifiers and available in models developing between 1,500 Watts. and 5,000 Watts per channel or 10,000 Watts for a bridged pair.

Uniquely each channel of the 44M10 and 44M06 can be configured to deliver their maximum powers into 2 or 4 Ohm nominal loads as well as 25V, 70V & 100V constant Voltage (CV) lines. This offers designers and integrators unparalleled flexibility and effectiveness.

State of the art components and a finely optimised design results in generous power reserves that ensures pristine sound quality is maintained even under the most extreme conditions.

Product Specification:

Number of Output Channels: Four

Total Power Output, All Channels Driven: 20,000, 10,000 and 6,000 Watts RMS

Audio Inputs: 4x Analogue, 2x AES3 and 4x DanteTM (factory fitted option)

Digital Signal Processing: High performance 96kHz DSP on all inputs and outputs

Control, Monitoring and System Status Alarms: Ethernet network, Volt-free relay and contact closure port

Power-Save Modes: Standby after user defined time with fast wake up on audio

Deep ECO sleep after user defined time with wake up on command

System Standby and Wakeup: Front panel switch, network command and audio detection

Net Weight: 12.5kg (27.5 Lbs)
