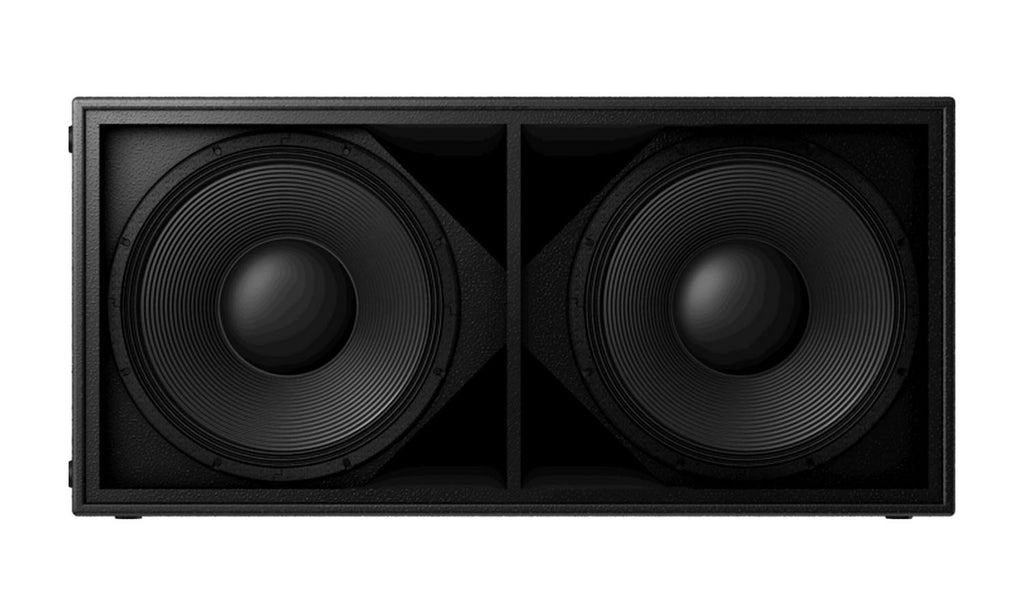

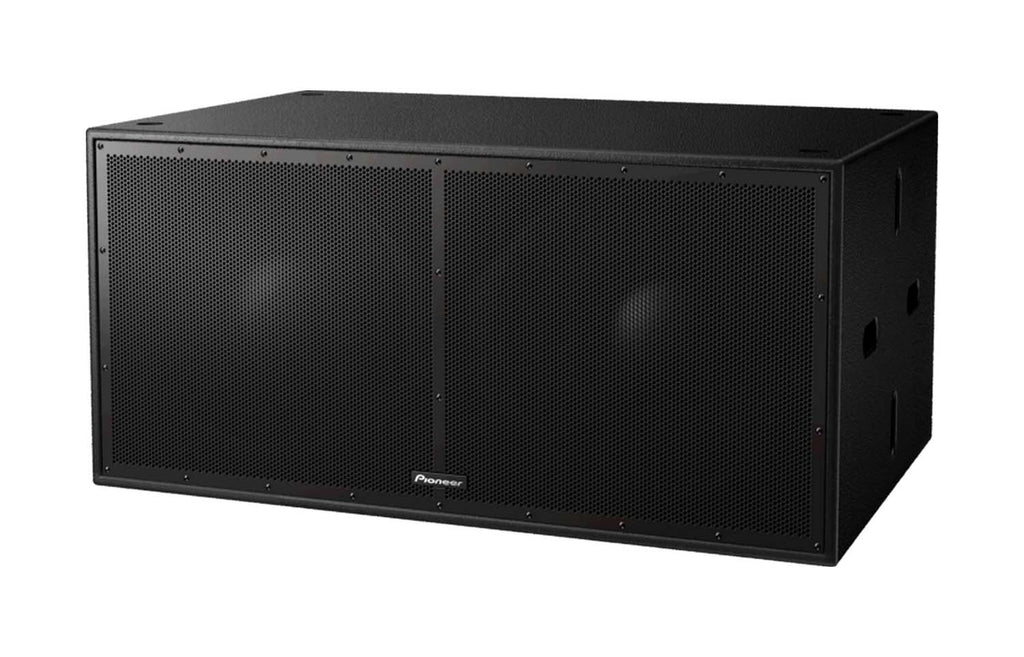

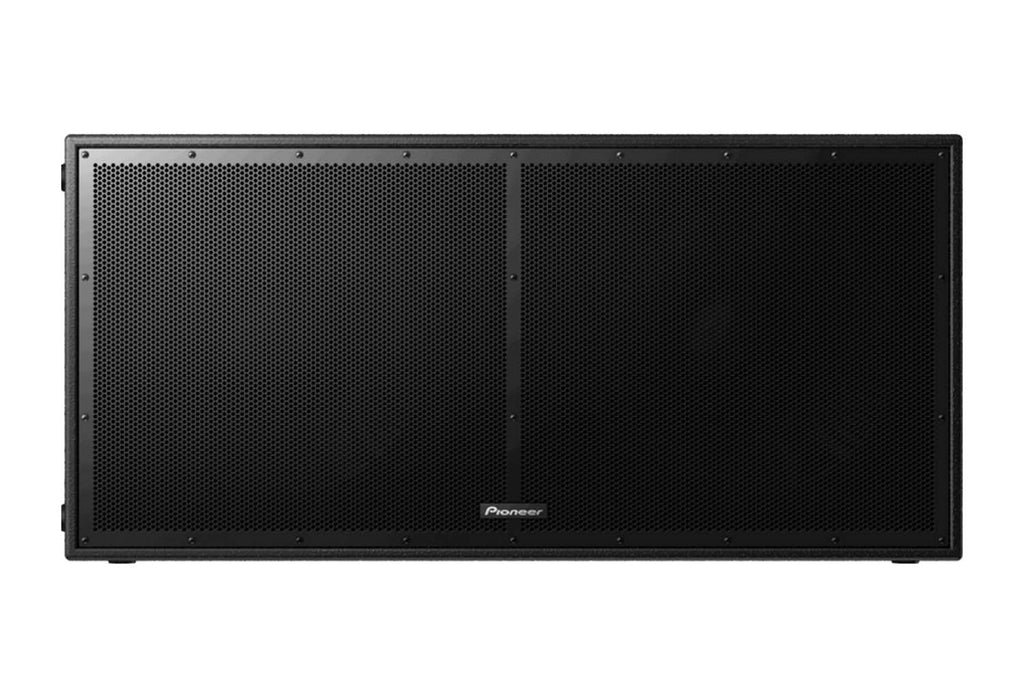

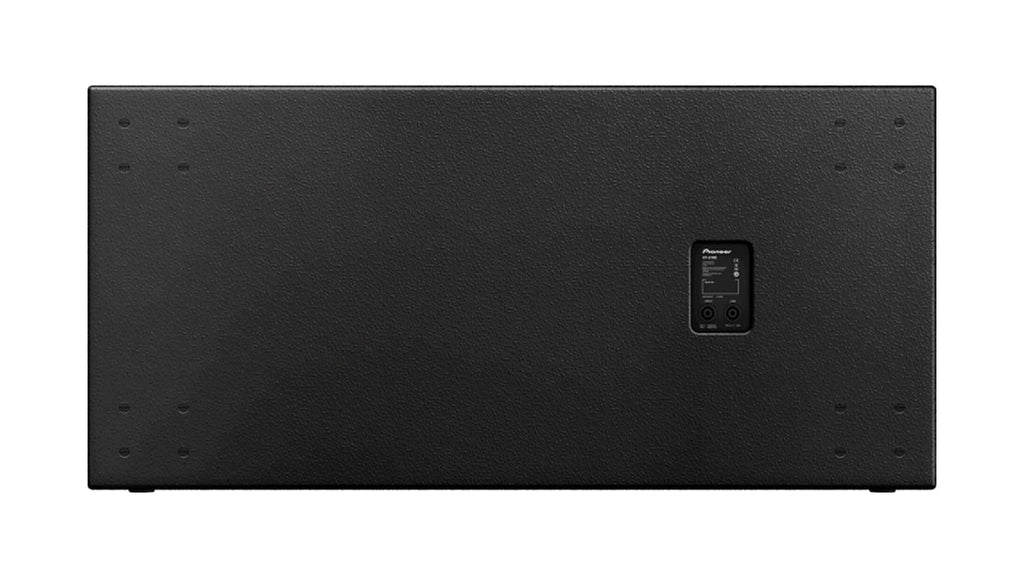

Pioneer Pro XY-218S Dual 18" Bass Reflex Subwoofer

The Pioneer Pro XY-218S High-power subwoofer with two 18-inch, low-frequency driver. Capable of reproducing deep bass as low as 32 Hz without distortion. Strong pillars installed in the cabinet ensure rigidity against the most powerful bass. Requires an active crossover to set the necessary frequency range (presets can be provided from Pioneer for combinations using the Pioneer XY-152 and XY-122). NL4 INPUT and LINK OUT connections as standard. Robust enclosure made from premium multi-laminate birch plywood.

Product Specification:

Hardware

Enclosure Type

Dual driver, reflex-loaded subwoofer

Rigging and Hardware

8 × flush handles (4 left/4 right),

8 × rubber feet (bottom and left) and 4 ×mating recesses (top),

16 × M8 holes with pre-inserted bolts for 4 × castors on rear

Grille

Hex punched steel

Enclosure

18 mm (0.7 inch) birch plywood

Finish

Impact-resistant, Black semi-matt textured

System data

Frequency response

32 Hz to 150 Hz

Sensitivity (1W/1m)

102 dB (half space)

Nominal Impedance

4 Ω

Loudspeaker data

Power Handling

1600 W RMS, 3200 W Program

Power Handling AES

134 dB cont., 140 dB peak (half space)

Transformer taps

2 × 18 inch (460 mm) LF cone drivers

Dispersion

2 × Neutrik SpeakON™ NL4

Dimensions / Weight

Dimensions ( W x H x D)

1164 × 558 × 745 mm

(45.8 × 22 × 29.3 inch)

Weight

93 kg (205 lbs)

Other

Suggested Power Amplifier

Recommended : K10DSP

Minimum : K6DSP"
