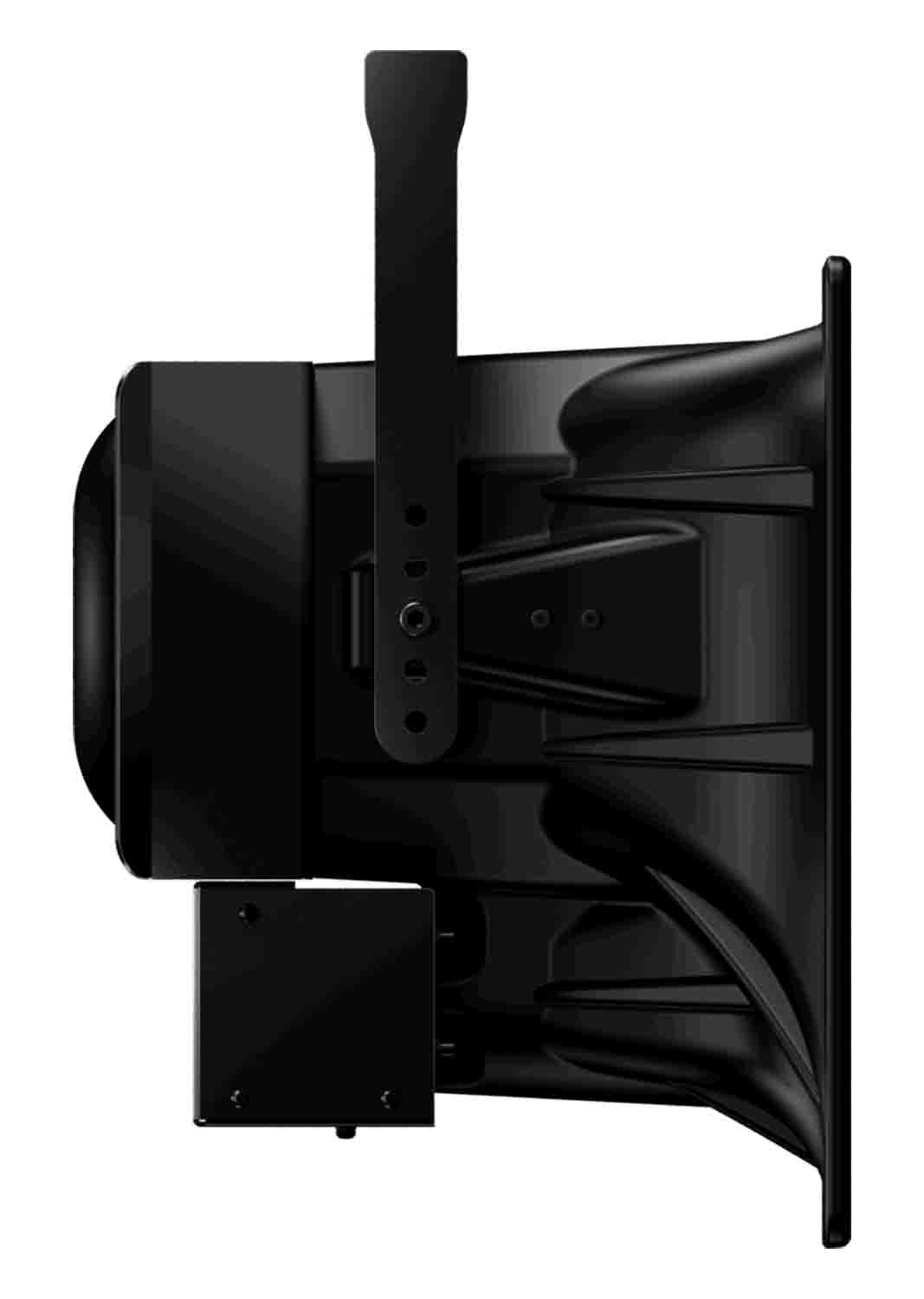

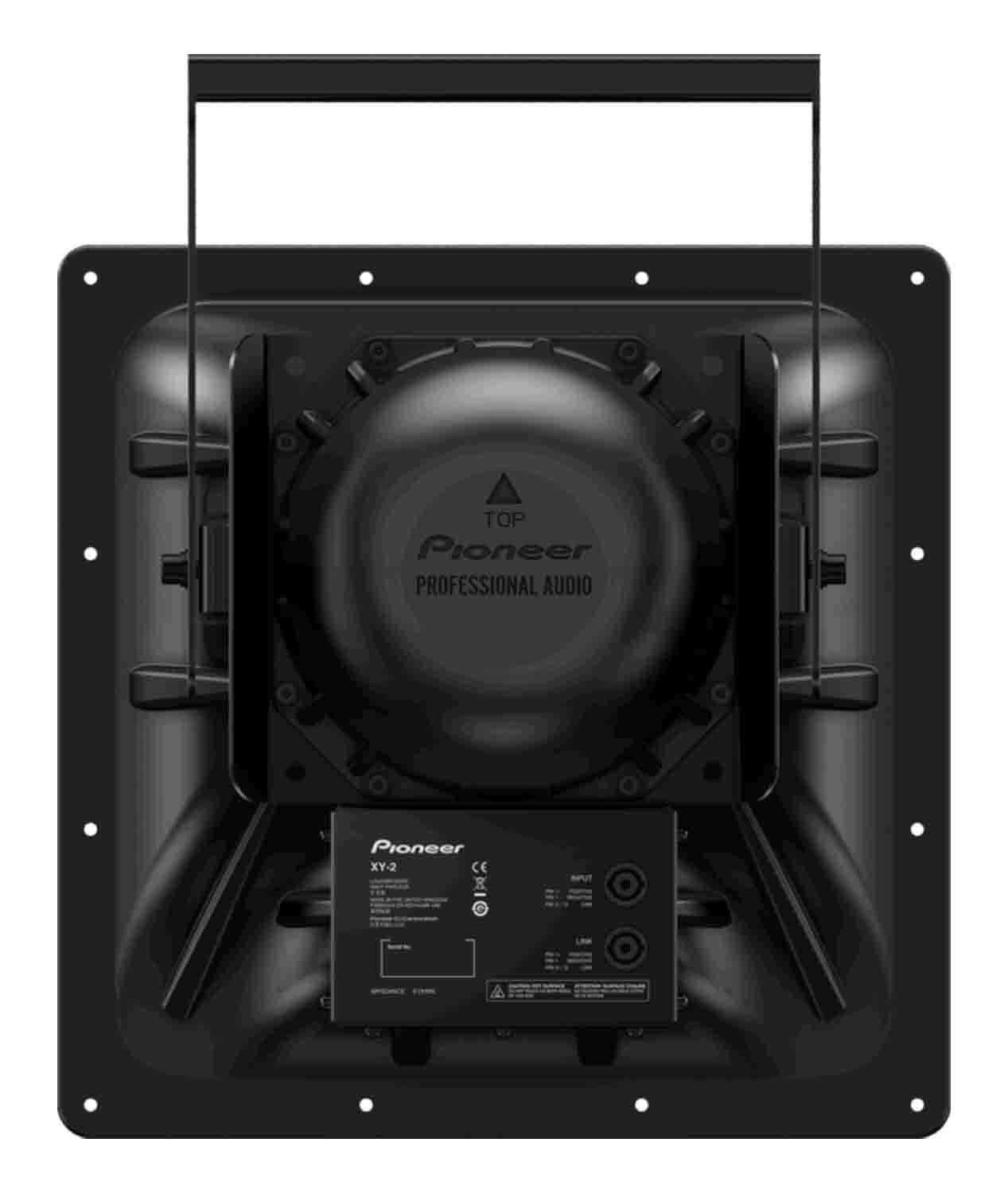

Pioneer XY-2, 8” Two-Way Passive Mid-High Loudspeaker

The Pioneer XY-2 is an 8” Two-Way Passive Mid-High Loudspeaker. The XY-2 speaker is the mid-high section of the XY-3B. Designed specifically for large-scale venues and Stadiums, the XY-2 can be used for PA applications, as a DJ booth monitor or as a down fill in an XY-3B cluster setting.

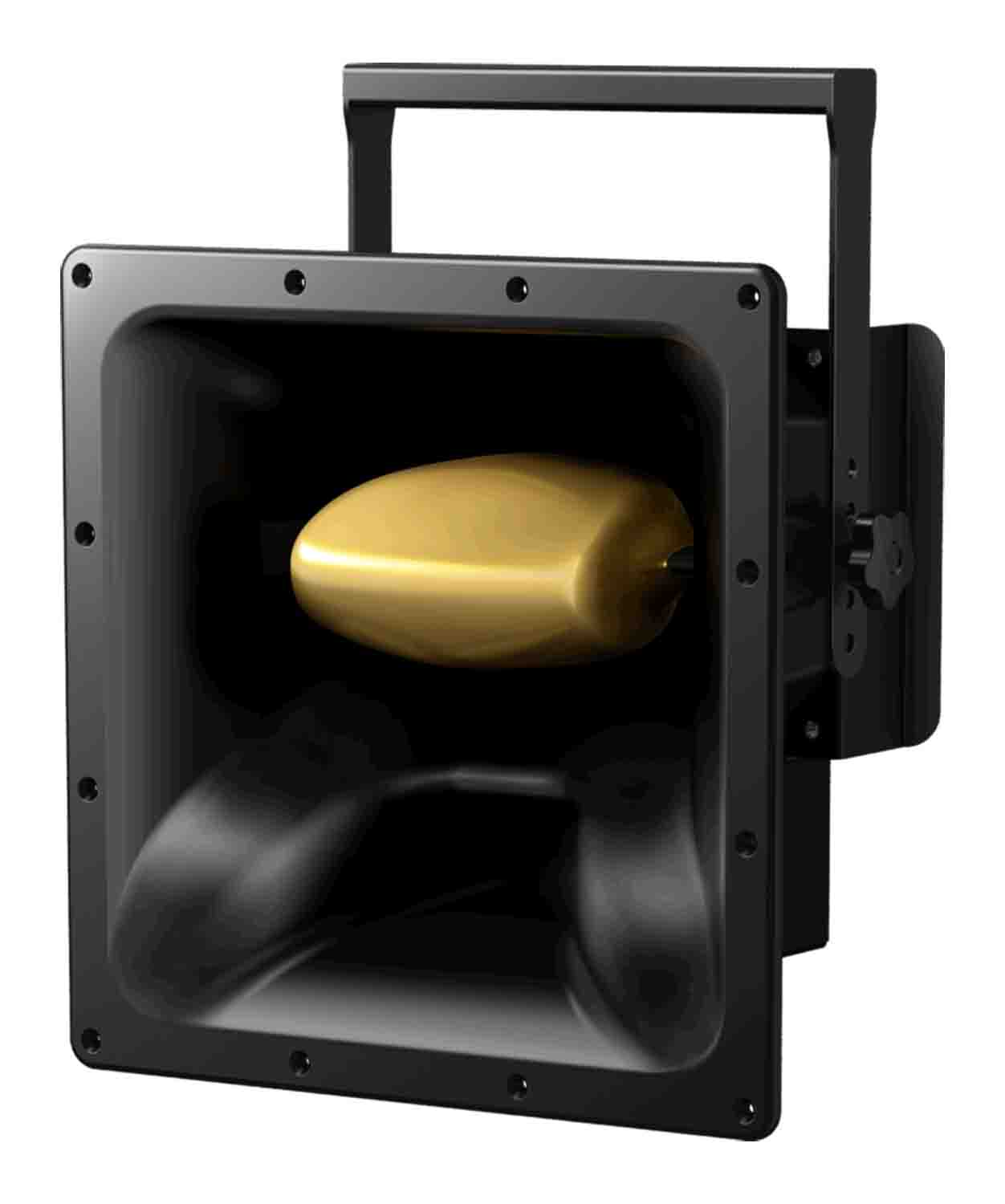

Moulded Bi-Horn

The 8-inch mid-range driver and the 1-inch compression driver are attached to the integrated waveguide with their depths perfectly aligned to minimize the difference of physical distance and reduce cancellation around the crossover frequency. This unique Bi-horn combines mid and high frequencies in a deep position inside the waveguide, improving the blend of the sounds compared to the performance of a conventional separated horn structure. The waveguide’s curved shape perfectly controls dispersion at 50 degrees horizontal and 35 degrees vertical, providing natural sound with high SPL in the targeted area while reducing the sound pressure outside that area.

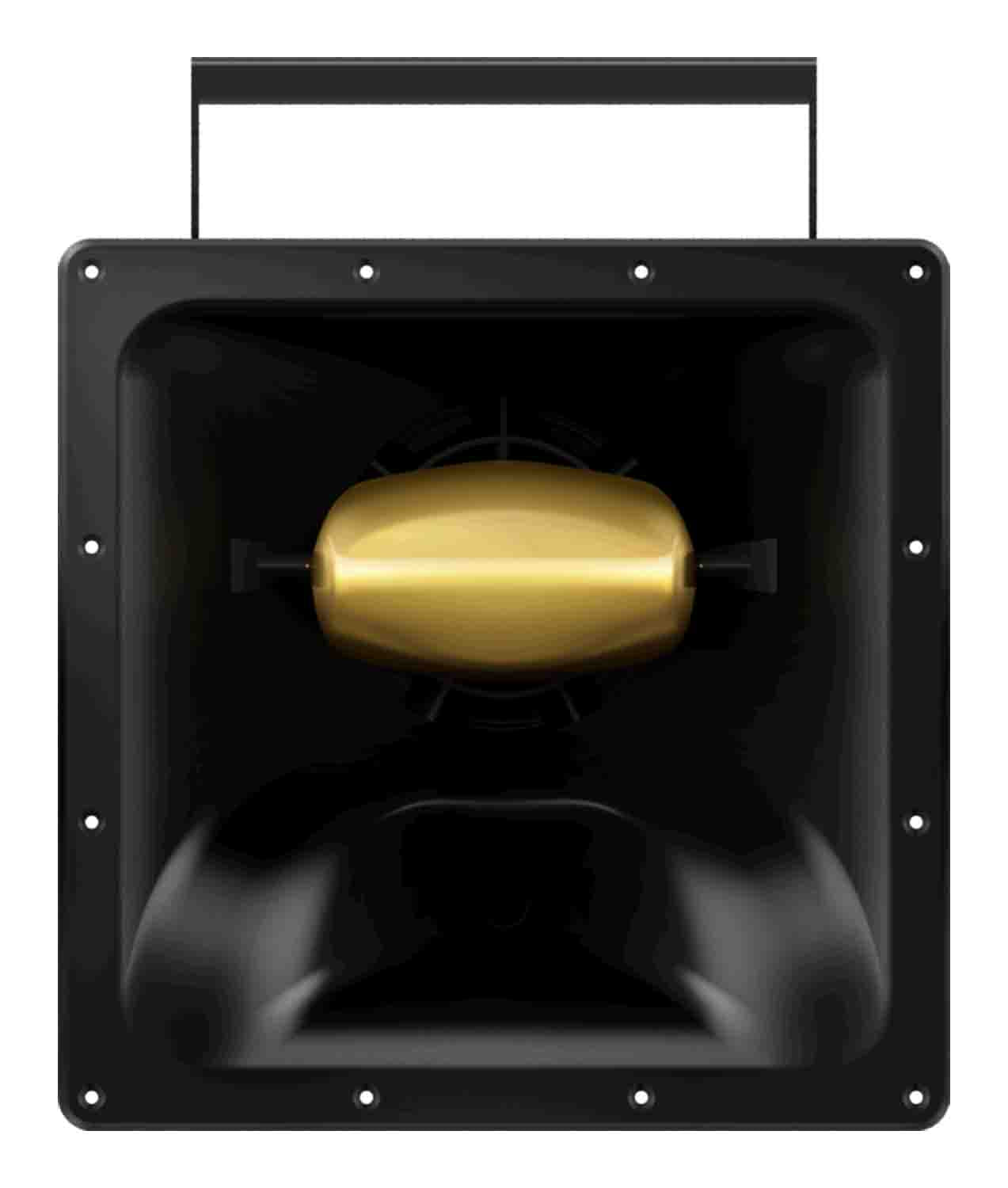

X-Phase System with Gold X-Phase Plug

Driver cone cancellation is minimized thanks to Pioneer Pro Audio’s X-Phase system. The convex shape forces sound waves into small slits which are arranged in a fan shape, allowing all sound waves to exit in perfect phase aliment. The sound waves are forced over the top and bottom of the X-phase plug, producing higher SPL and greater sound projection over long distances.

Product Specifications:

Hardware

Enclosure Type: 2WAY ｍid-high loudspeaker

Enclosure: Polyurethane

Loudspeaker Data

Transformer Taps:

MF：8-inch neodymium cone driver

HF：1-inch exit neodymium compression driver

Power Handling: 200 W(RMS), 400 W(Program)

Power Handling AES: 130 dB(cont.), 136 dB(peak)

Dispersion: speakON® NL4 x 2

System Data

Frequency response: 170 Hz～17 kHz

Sensitivity (1W/1m): 107 dB

Nominal Impedance: 8 Ω

Dimensions (W x H x D): 480 mm x 480 mm x 376 mm

Weight: 13.5 kg
