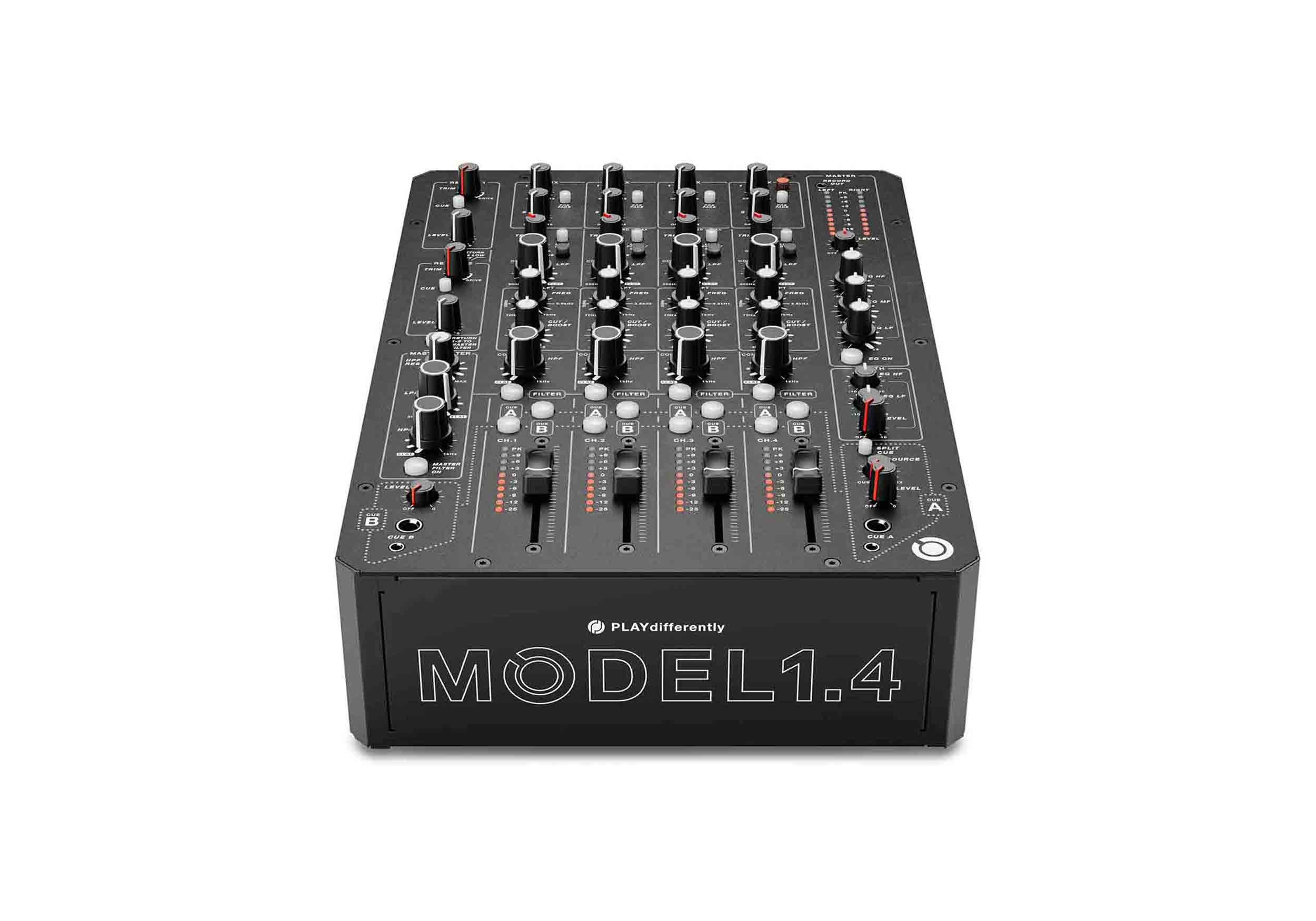

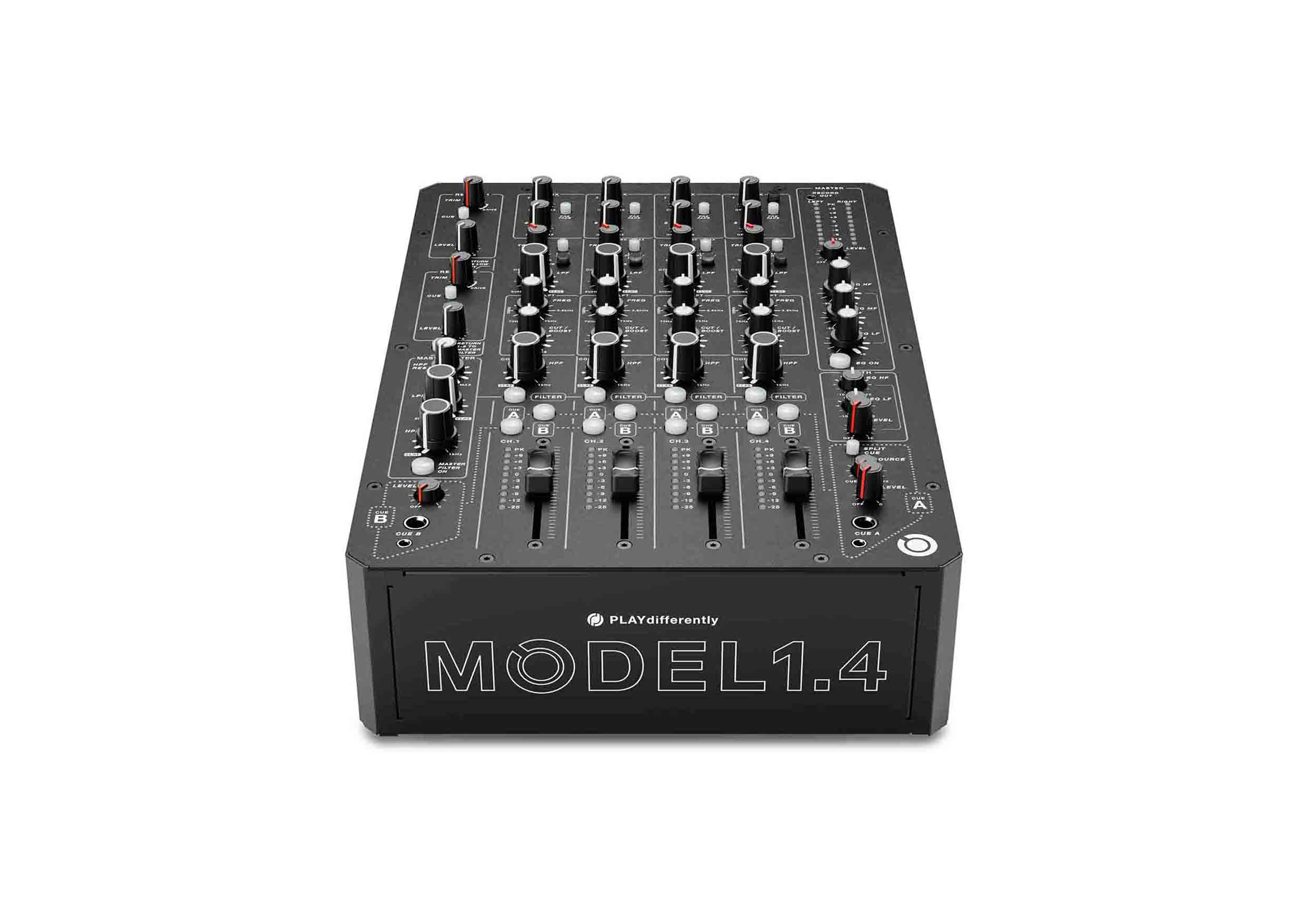

PLAYdifferently MODEL 1.4 Premium Ultracompact 4 Channel Analog DJ Mixer

The PLAYdifferently MODEL 1.4 Premium Ultracompact 4 Channel Analog DJ Mixer Design Now we’re bringing MODEL 1 performance to an ultra-compact 4-channel design, ideal for home studio use, or as the ultimate tour-able analogue mixer…so you can take your analogue core wherever you go. Engineered by Andy Rigby-Jones and co-designed by Richie Hawtin with feedback from artists, clubs and engineers, MODEL 1.4 features the same uncompromising approach to build quality, precision and detail that set MODEL 1 in a class of its own. MODEL 1.4 can be used standalone or paired with a MODEL1 using unique mixer-link functionality to deliver an unrivalled 10-Channel Live mix experience.

2 Stereo Sends

The two AUX controls send the channel signal to the Aux mix outputs for use with external effects processors or, in some applications, local monitors. AUX 1 offers either PRE or POST FADE while AUX 2 is internally set to post fader.

2 Stereo Returns

Two basic stereo channels for use as return inputs from external effects processors or other sources. Each return features TRIM to adjust the return signal, input DRIVE circuit, and CUE routing to both Cue A and Cue B. Each Return also feature Metering for visual feedback of the signal level, a rotary LEVEL fader to adjust Mix amount and combined Return 1-2 Low Cut EQ and Master Filter routing.

2 High Performance Phono Preamps

2 high performance turntable inputs, optimized for the club environment in order to minimise the tonal imbalance between vinyl and Digital audio, and to eliminate sub frequency feedback. Each phono input has its own Individual Turntable Earth Binding for greater flexibility.

Studio Grade Faders

Custom TKD 60mm faders. These twin rails faders have been carefully chosen to ensure long life and smooth operation and feature a heavy feel for greater precision.

Analog Overdrive

A unique feature on every input, the DRIVE control. This control allows the user to adjust the level at which the channel pre-amplifier clips the input signal, thus creating harmonic distortion as a creative effect.

Balanced Mix Bus

Fully balanced main mix bus (usually only found in very high end analogue studio consoles) resulting in >110dB of dynamic range, improved hum rejection, lower noise and crosstalk.

External Power Supply

Powered by an external 90W 24V universal voltage PSU. Internally, the 24 volts from the external supply, is converted to just under +/- 20V for the analogue power rails by using high frequency switching technology, giving MODEL 1 some of the highest signal headroom of any professional mixer, irrespective of its application.

Front Mounted Record Out

Mounted on the front panel at the top of the Master section the RECORD OUT - 3.5mm TRS Jack socket feeds the post Master EQ signal as a pre- fader record output. Nominal level is –2dB

Product Specifications:

Maximum Output Level: +28dBu Balanced +23dBu Unbalanced

Output Impedance: 50R Balanced, 68R Unbalanced

Residual Noise: -100dBu Un-weighted, 22Hz to 20kHz

Dynamic Range: >112dB

Frequency Response: 20Hz - 40kHz +0/-2dB

Distortion (THD+N): 0.008% Line In to Mix 1 out, 0dBu Unity Gain

Inter-Channel Crosstalk: < -100dB

Left/Right Crosstalk: -80dB 1kHz

Power Consumption: 45W maximum

Weight: 5.00kG

Dimensions: L 368mm x W 248mm x H 111mm
