Description

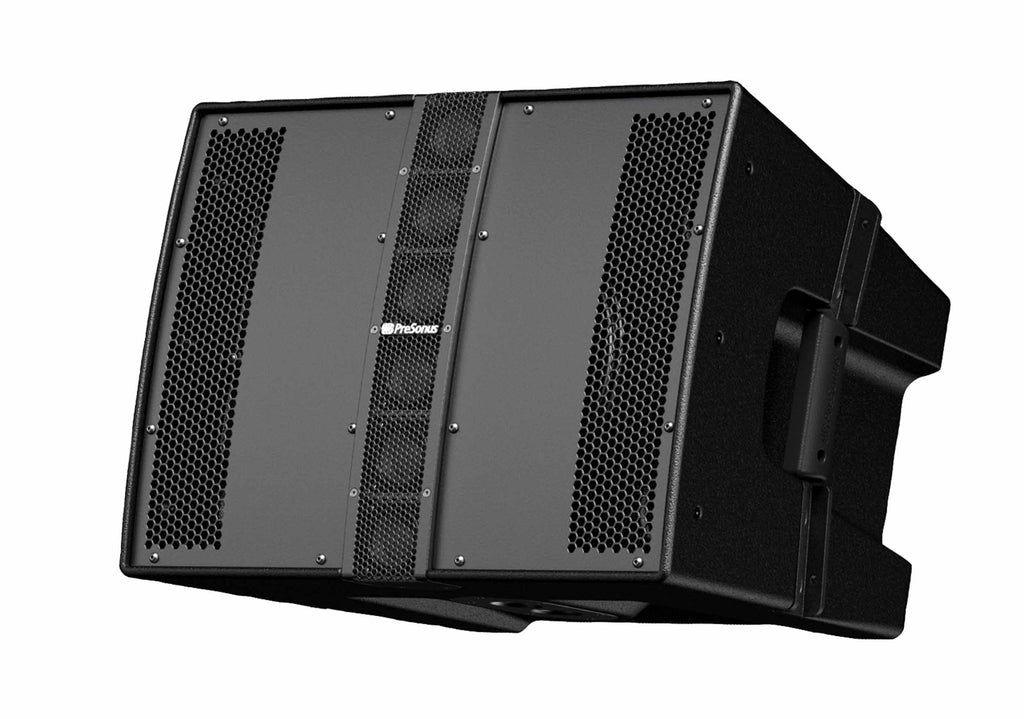

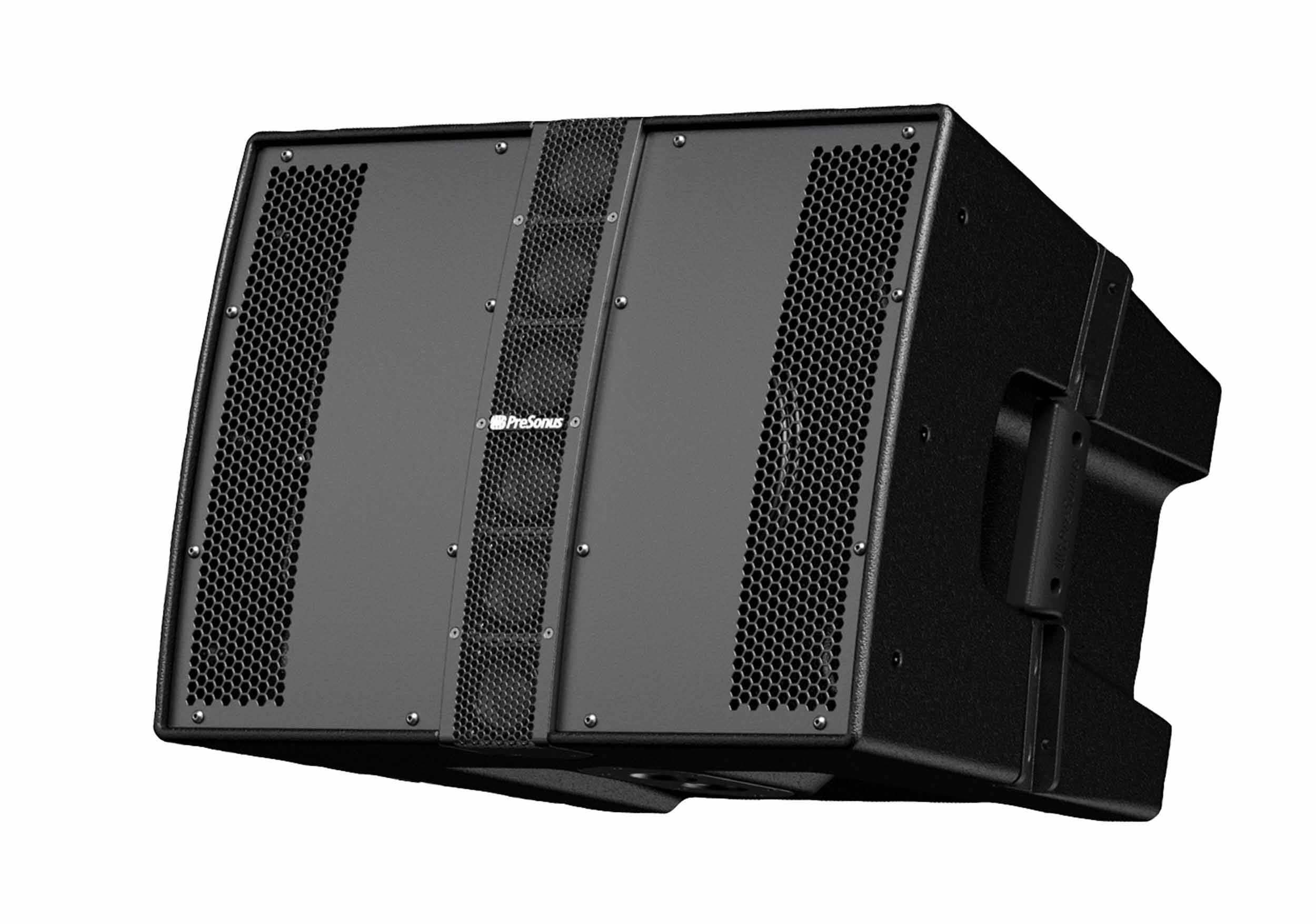

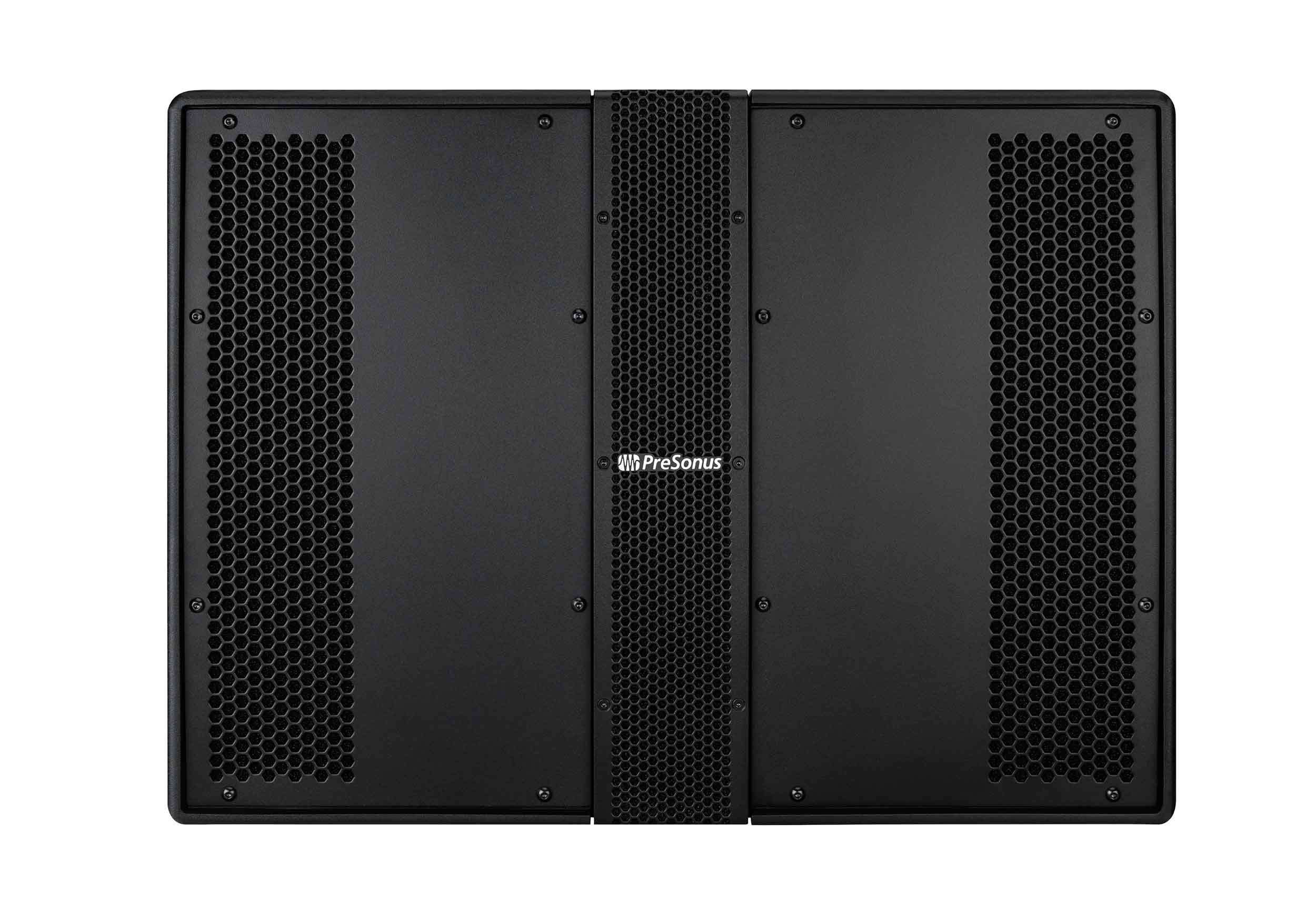

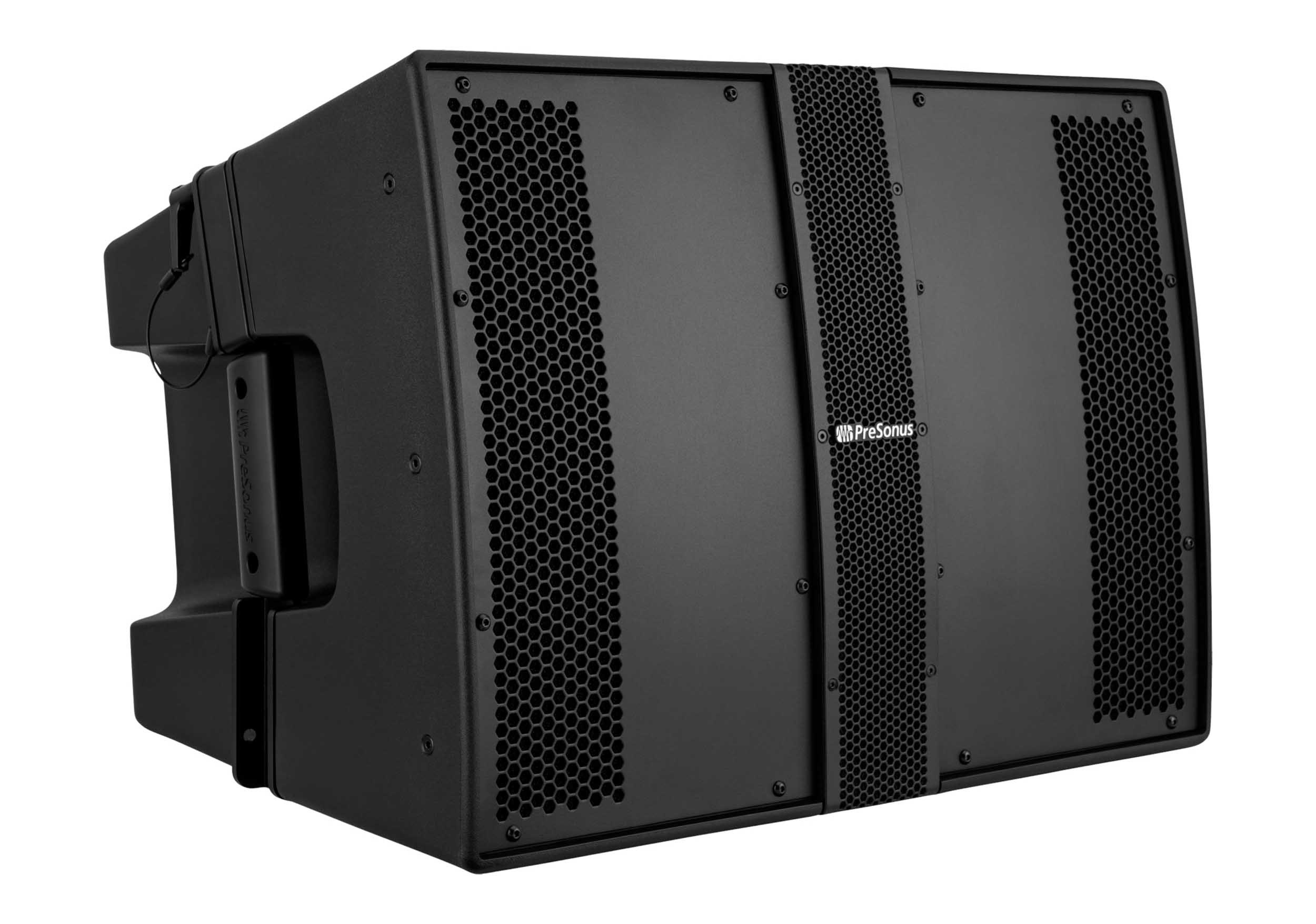

The CDL12 loudspeakers impressed ears around the world when we introduced them, thanks in no small part to their unique, patent-pending driver design that fills venues with consistent, articulate speech and music reproduction without sacrificing consistent SPL. Now that same constant-directivity performance is available in the new CDL10P, a lighter-weight design ideal for touring bands and mobile DJs who want the same scalability and sonic performance in portable design.
Like the CDL12P, CDL10P is the result of years of research and development, combining the best attributes of point source and line array technology into a unique patent-pending design. You get clear, articulate speech intelligibility and natural music reproduction thanks to its highly focused pattern with consistent SPL throughout the frequency response range, both on- and off-axis.

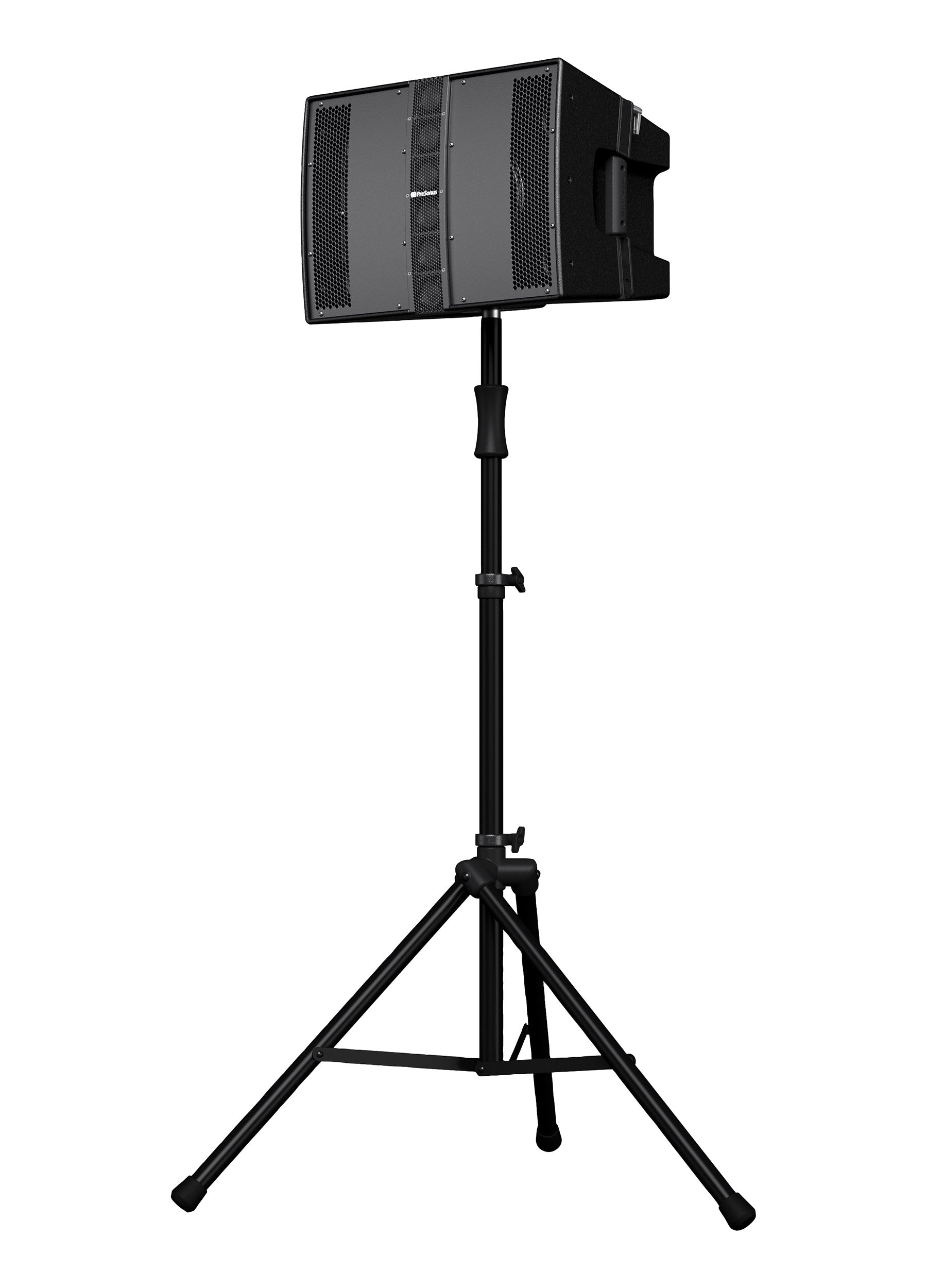

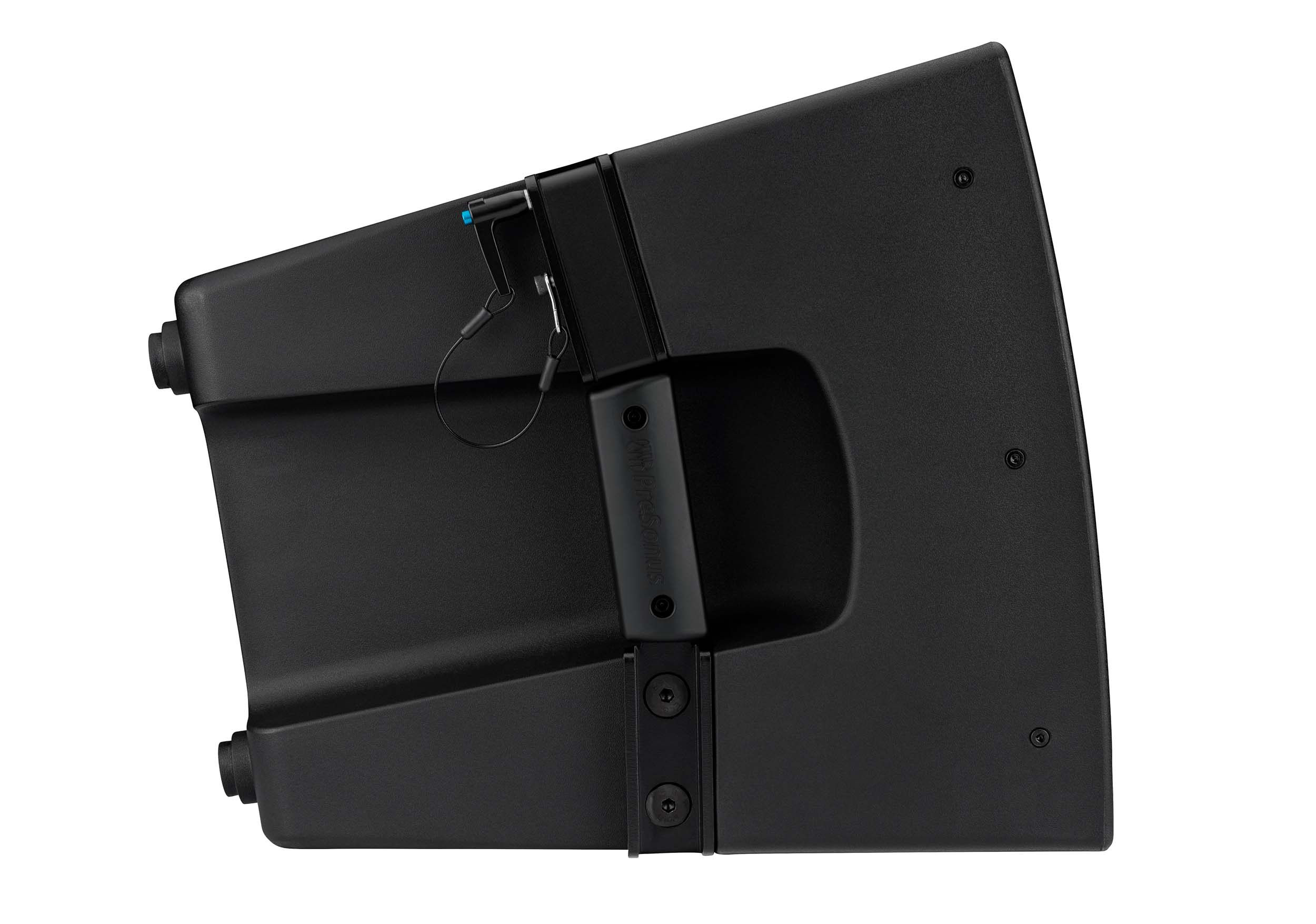

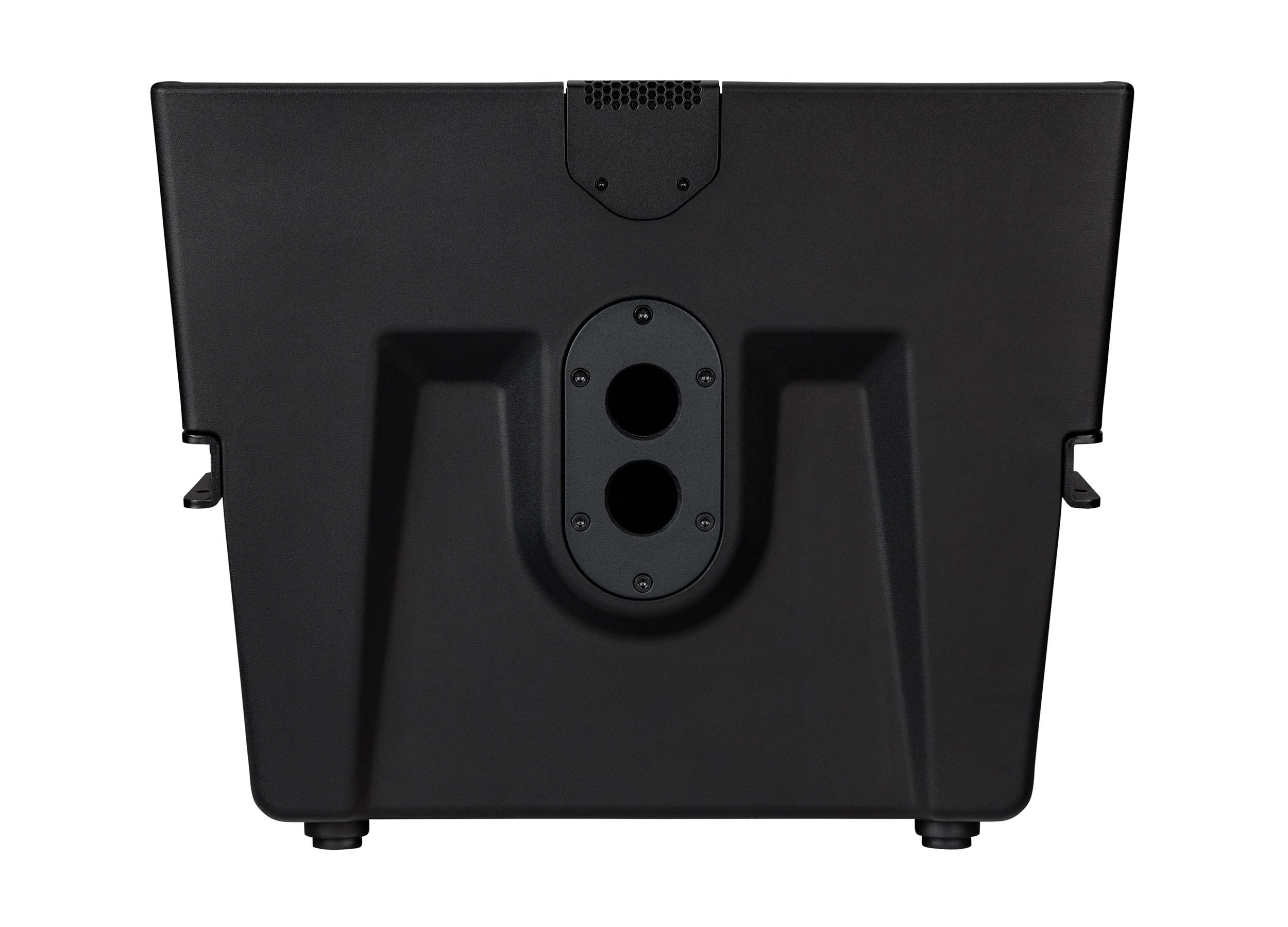

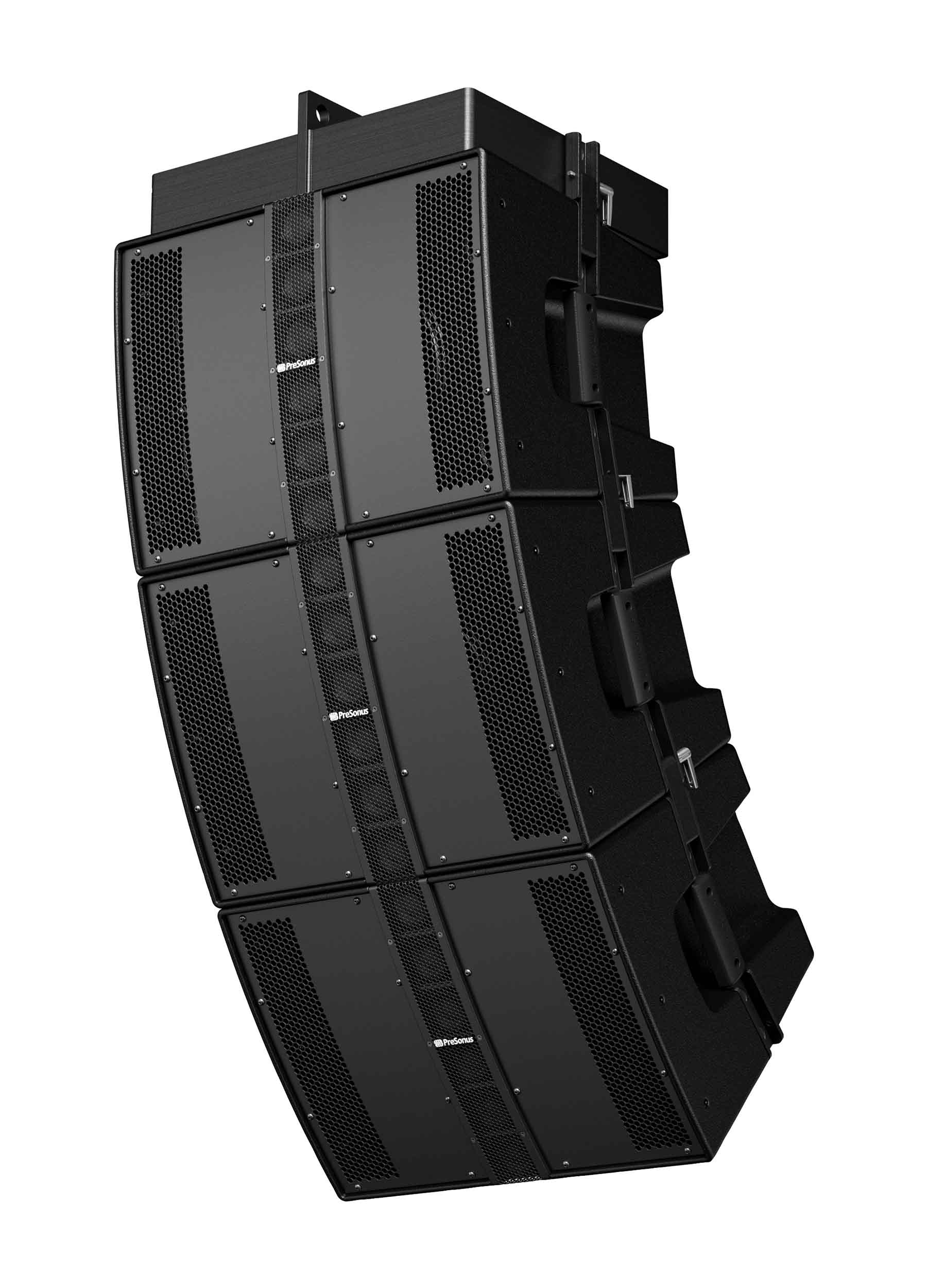

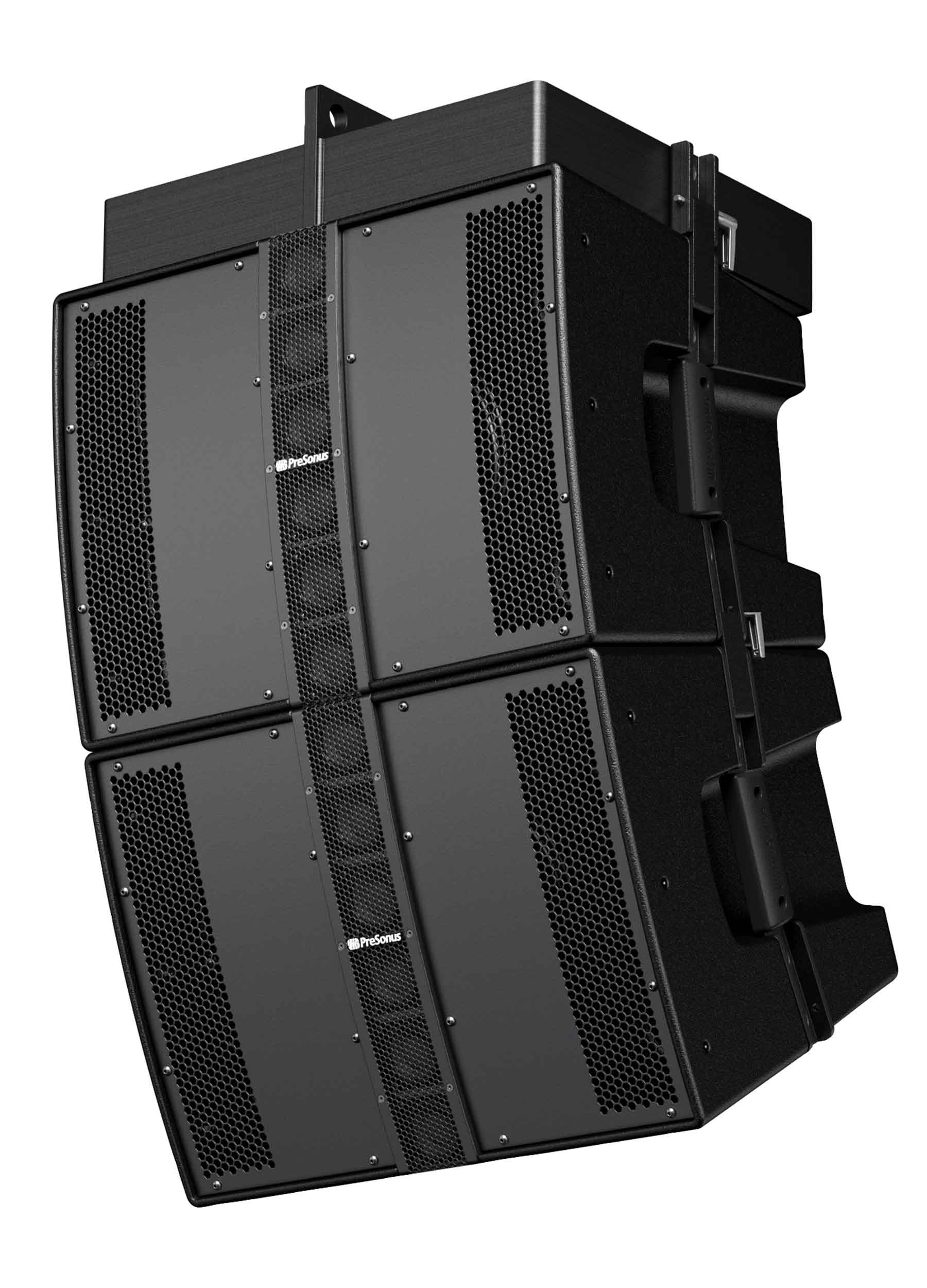

The CDL10P's hybrid point-source/line-array design delivers focused sound with consistent SPL coverage both on- and off-axis, making it an excellent choice for mobile and installed applications. Rigging CDL10P enclosures is made easier thanks to integrated pin-loaded rigging hardware. A dual-angle pole mount is provided, supporting the use of one or two enclosures when pole-mounted. The CDL10P's integrated 500W x 500W Class D power amplifier features onboard DSP presets to facilitate and simplify arrayed configurations.
Product Specifications:
Color: Black
Type: Active 2-Way
LF Driver: 10" (2.5" Voice Coil)
HF Driver: 6 × 2" (1" Voice Coil)
Amplifier Type: Class D
Total System Power: 2000W Peak, 1000W Program (500W RMS)
LF Driver Power: 1000W Peak, 500W Program (250W RMS)
HF Driver Power: 1000W Peak, 500W Program (250W RMS)
Frequency Response (±3 dB): 48 Hz – 18 kHz
Crossover Frequency: 420 Hz
Maximum Peak SPL: 130 dB
Horizontal Coverage: 120°
Vertical Coverage: 15°

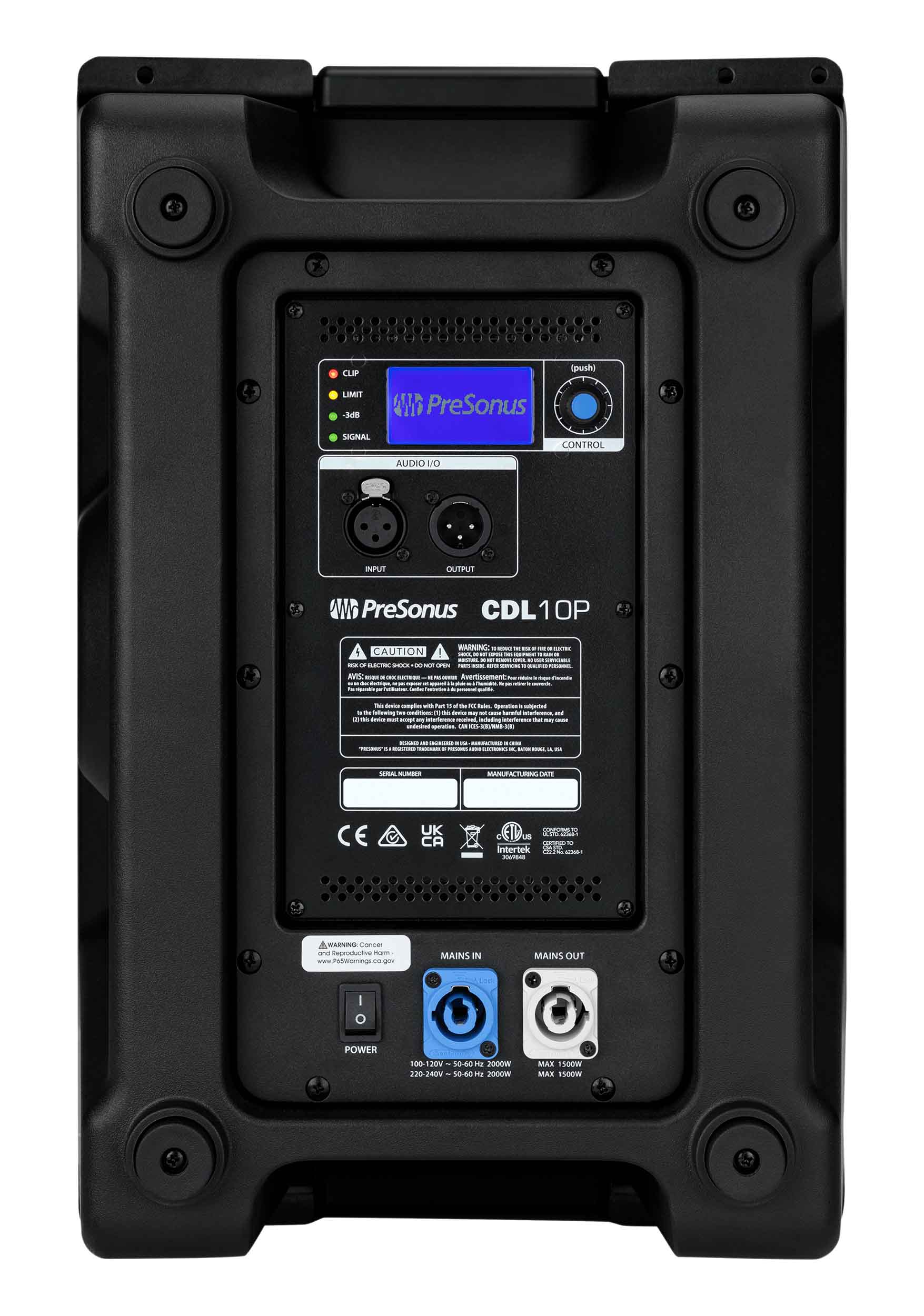

Input: XLR Line Input
Output: XLR Direct Line Out
Mains Connection: Locking 3-Conductor AC In/Out
DSP Functions: HPF On/Off, Array Configuration
Product Weight: 46.8 lbs.
Product Dimensions (L x W x H): 16.1 " x 19.6 " x 14.37 "
