Description

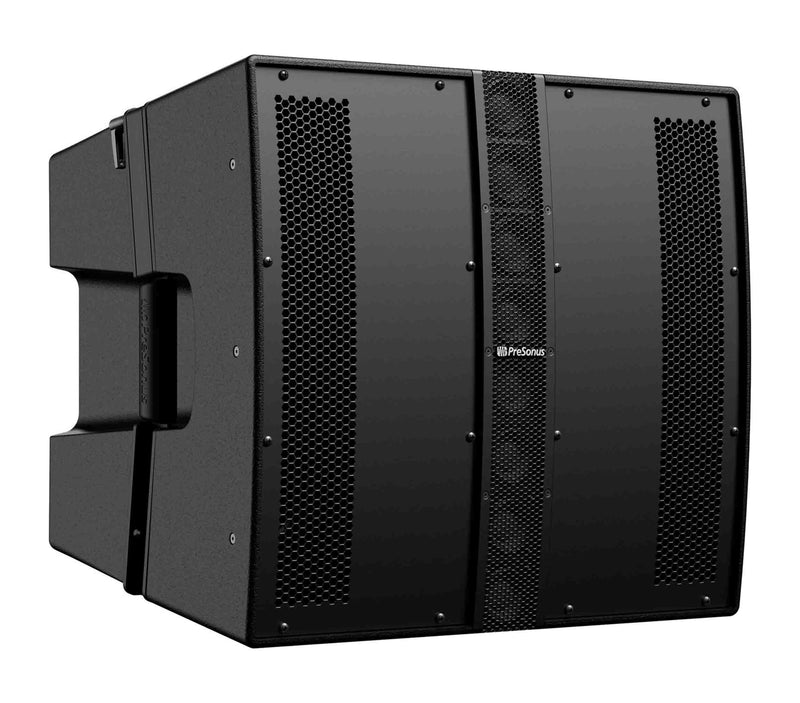

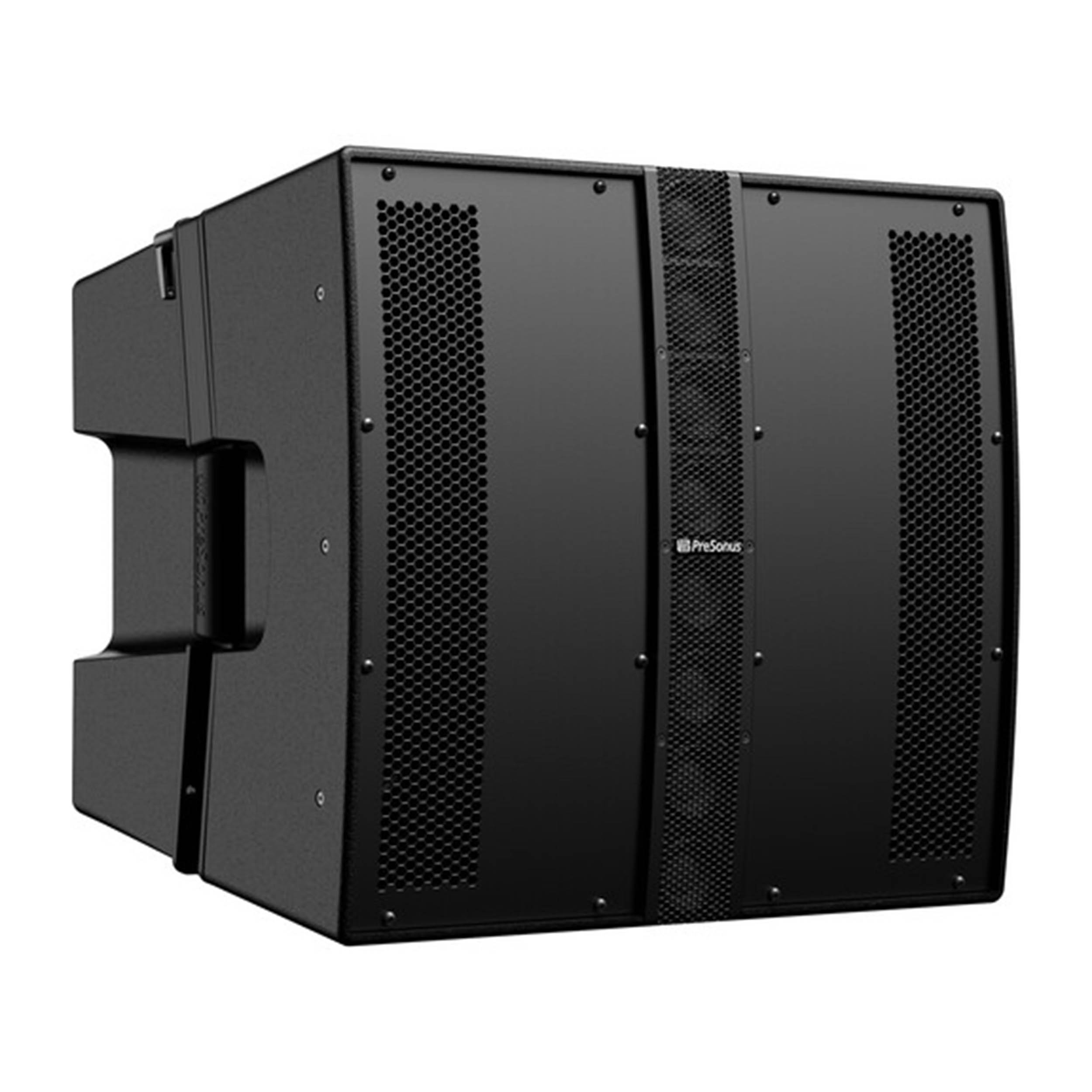

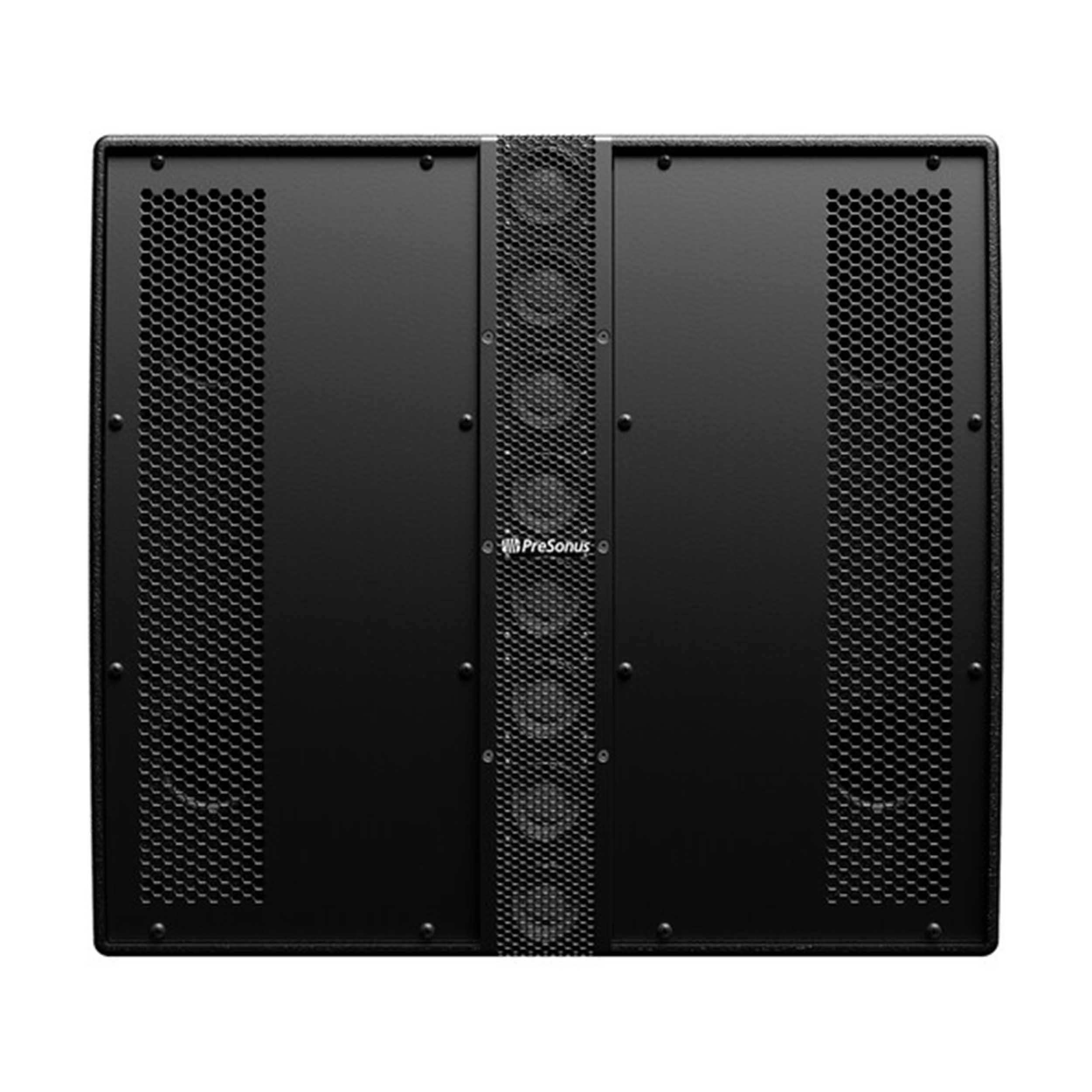

The CDL12 loudspeakers impressed ears around the world when we introduced them, thanks in no small part to their unique, patent-pending driver design that fills venues with consistent, articulate speech and music reproduction without sacrificing consistent SPL. Now that same constant-directivity performance is available in the new CDL12P, a lighter-weight design ideal for touring bands and mobile DJs who want the same scalability and sonic performance in portable design.
Like the CDL12, CDL12P is the result of years of research and development, combining the best attributes of point source and line array technology into a unique patent-pending design. You get clear, articulate speech intelligibility and natural music reproduction thanks to its highly focused pattern with consistent SPL throughout the frequency response range, both on- and off-axis.

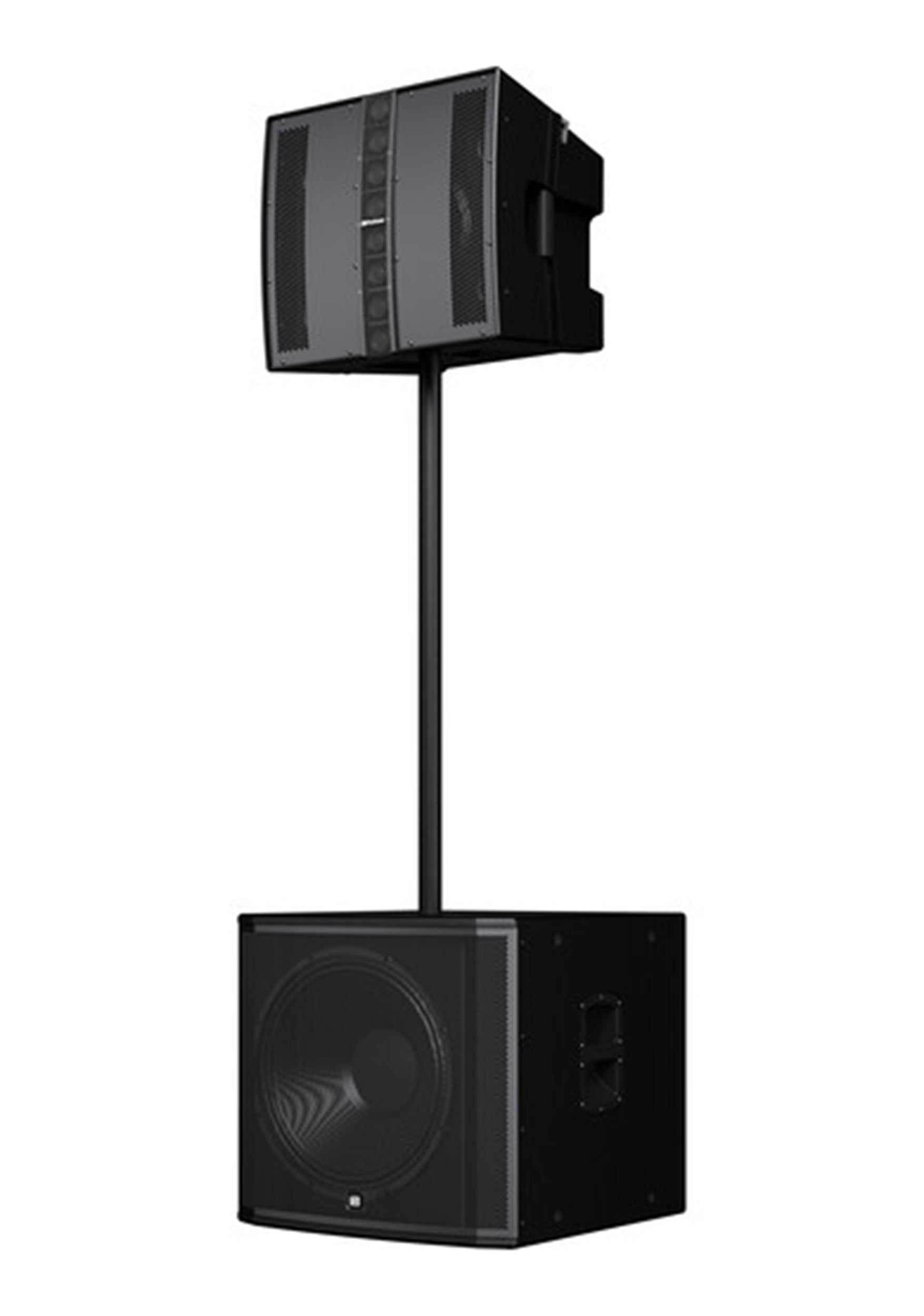

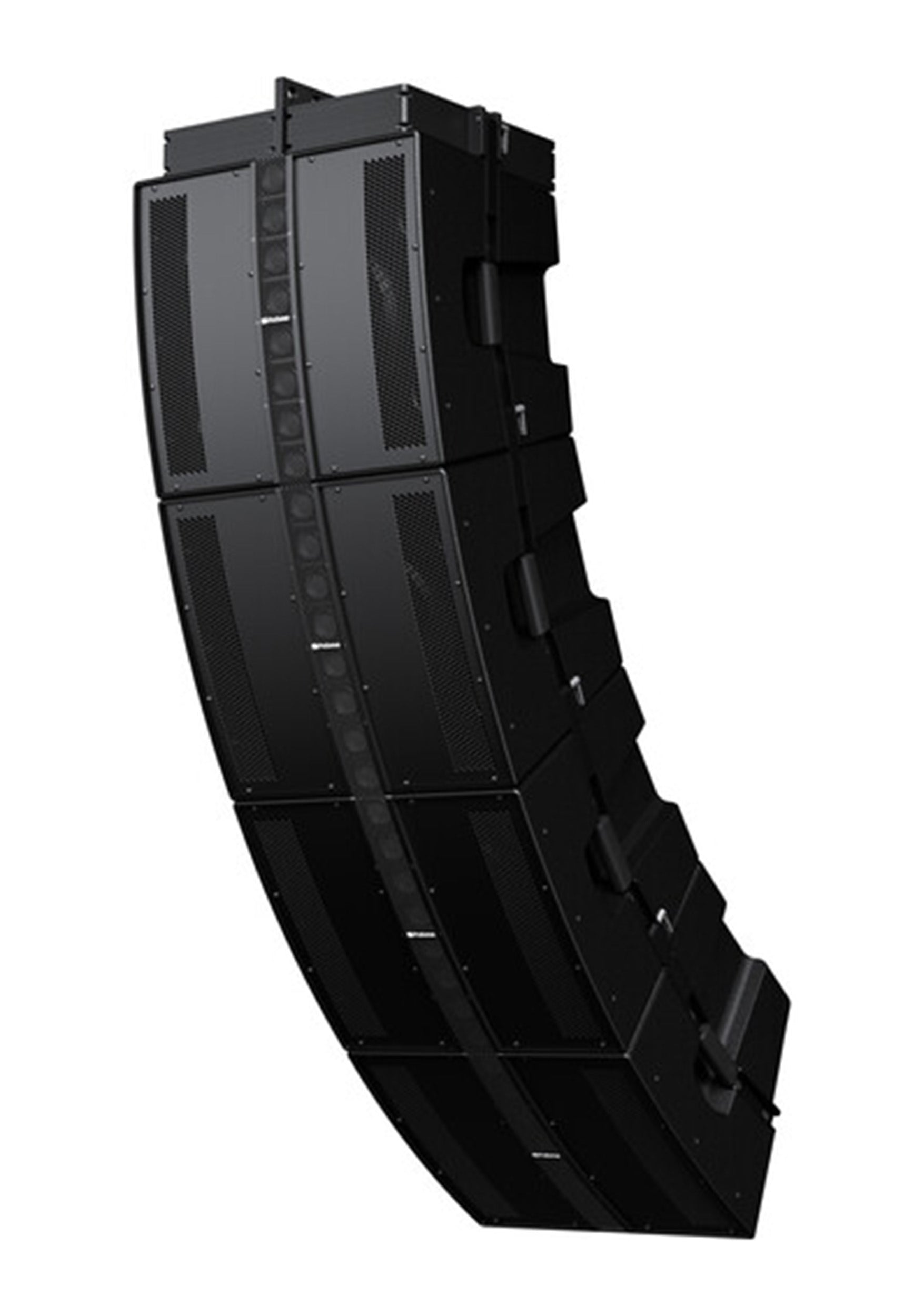

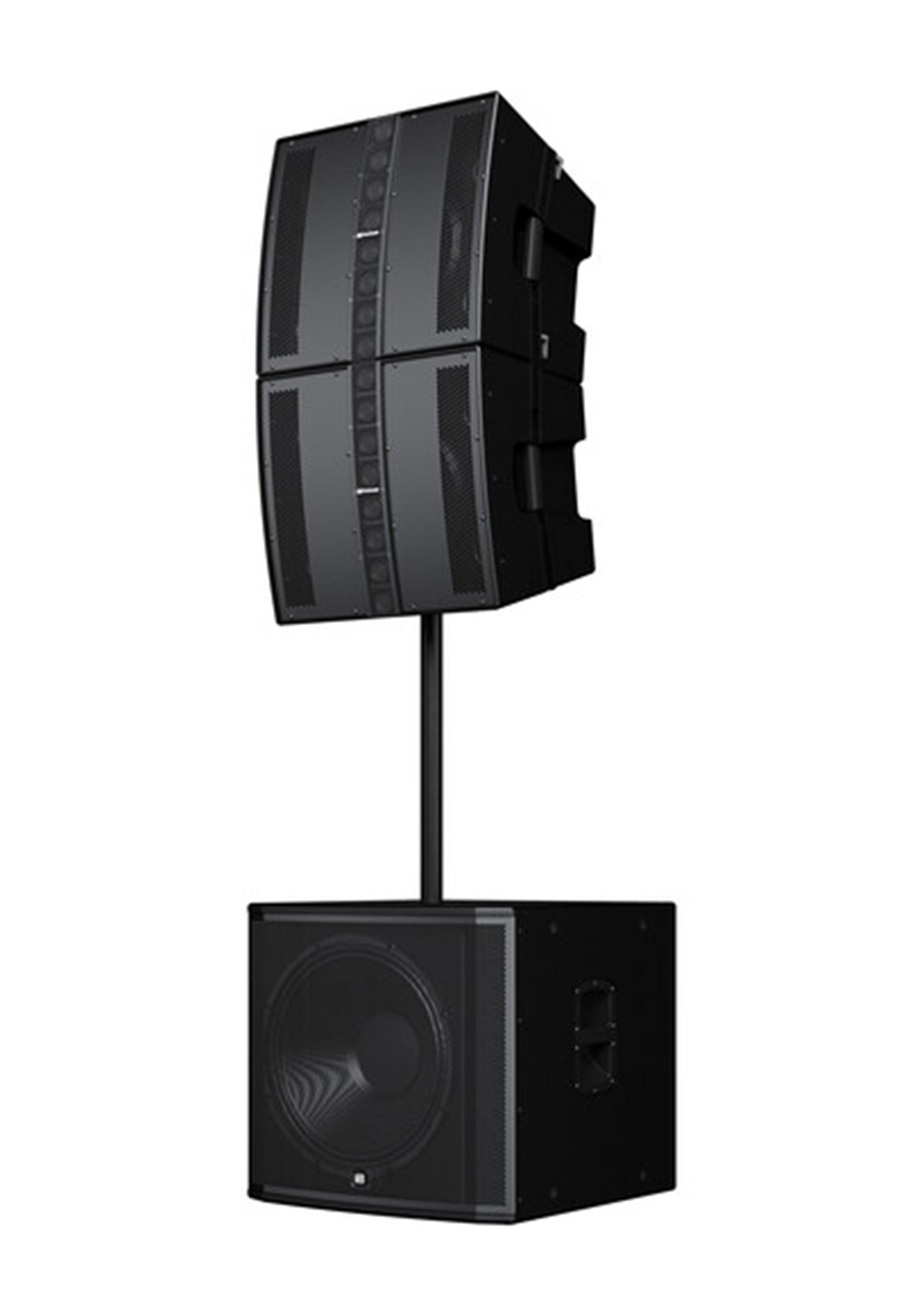

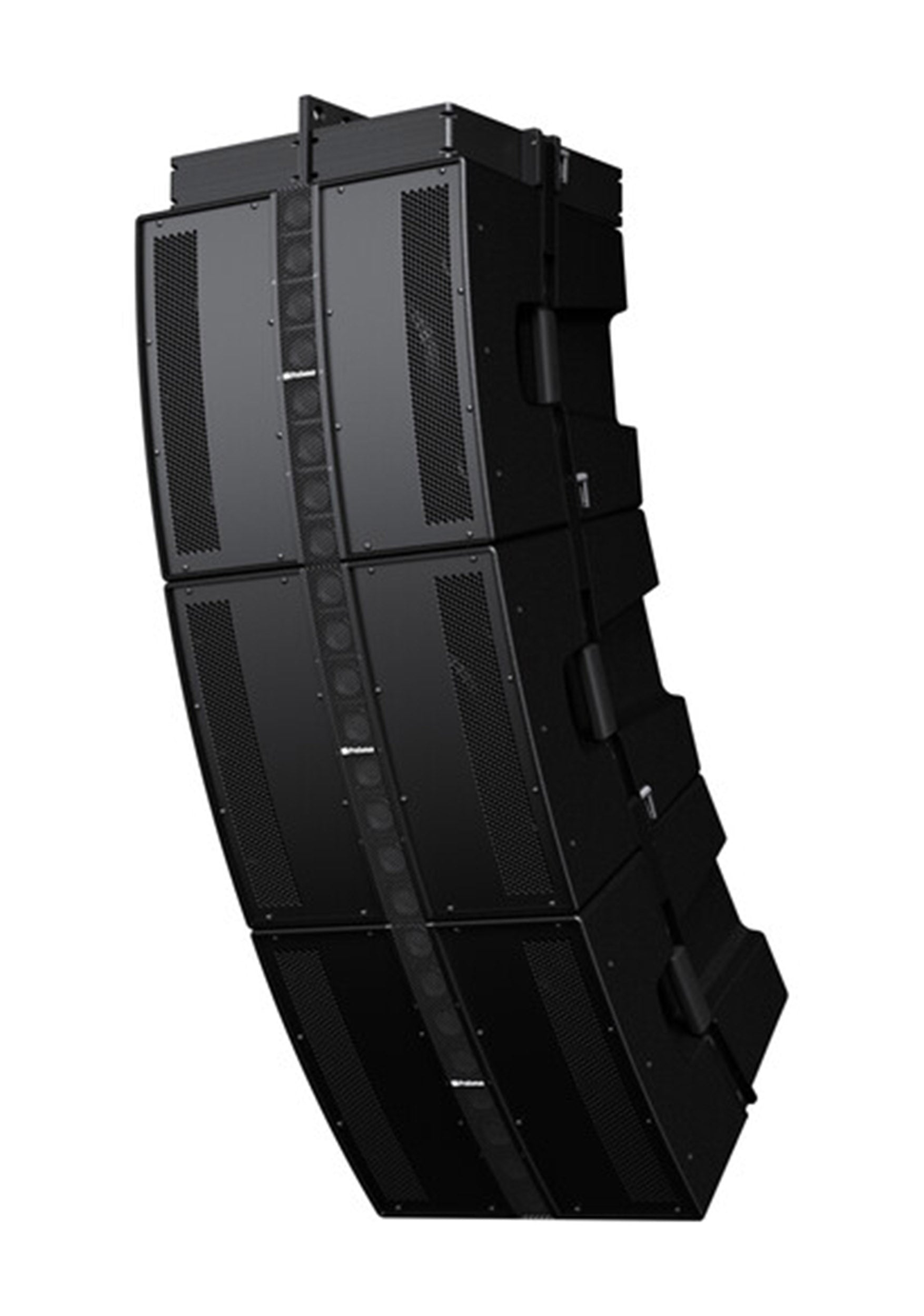

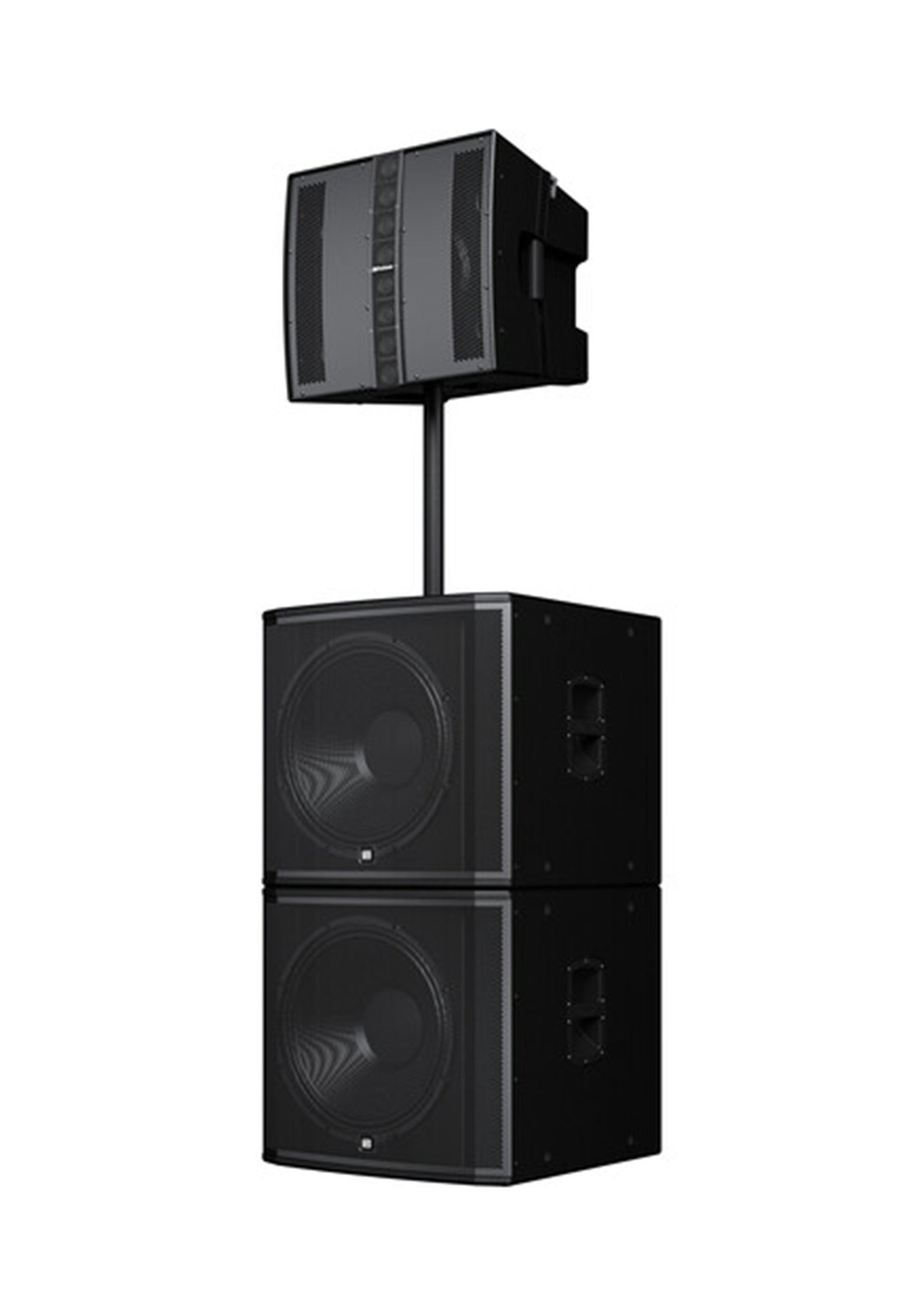

The CDL12P's hybrid point-source/line-array design delivers focused sound with consistent SPL coverage both on- and off-axis, making it an excellent choice for mobile and installed applications. Rigging CDL12P enclosures is made easier thanks to integrated pin-loaded rigging hardware. A dual-angle pole mount is provided, supporting the use of one or two enclosures when pole-mounted. The CDL12P's integrated 500W x 500W Class D power amplifier features onboard DSP presets to facilitate and simplify arrayed configurations.
Product Specifications:
Color: Black
Type: Active 2-way
LF Driver: 12” (2.5” voice coil)
HF Driver: 8 × 2” (1” voice coil)
Amplifier Type: Class D
Total System Power: 2000W peak, 1000W program (500W RMS)
LF Driver Power: 1000W peak, 500W program (250W RMS)
HF Driver Power: 1000W peak, 500W program (250W RMS)
Frequency Range (+/- 3dB): 48 Hz to 18 kHz
Crossover Frequency: 420 Hz
Maximum Peak SPL: 130 dB
Horizontal Coverage: 120°
Vertical Coverage: 15°

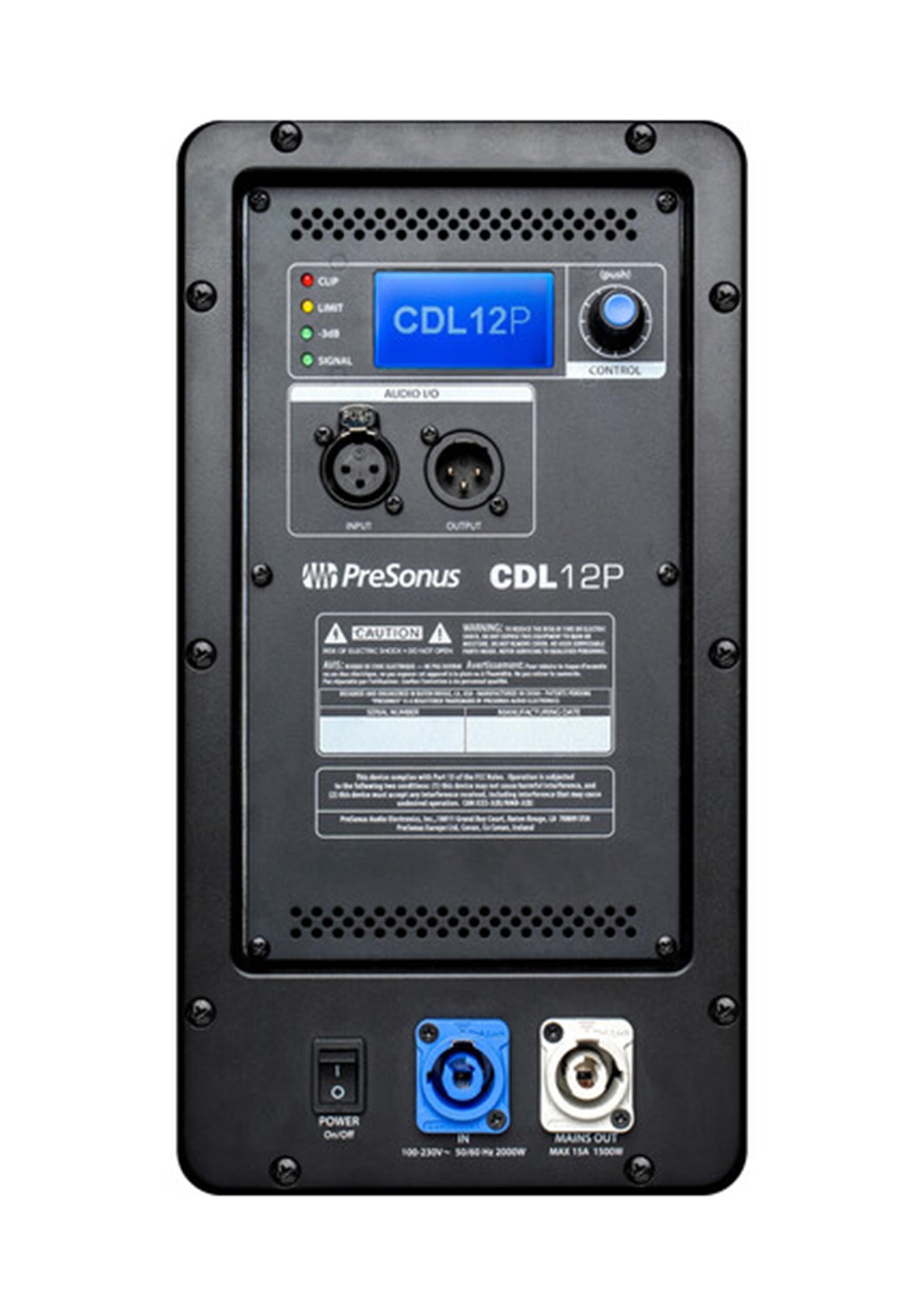

Input Line: XLR
Output: Direct line out (XLR)
Mains Connection: Locking 3-conductor AC
Product Weight: 63 lbs.
Product Dimensions (H x W x D): 18.6”x 20.8”x 17.5”
