Description

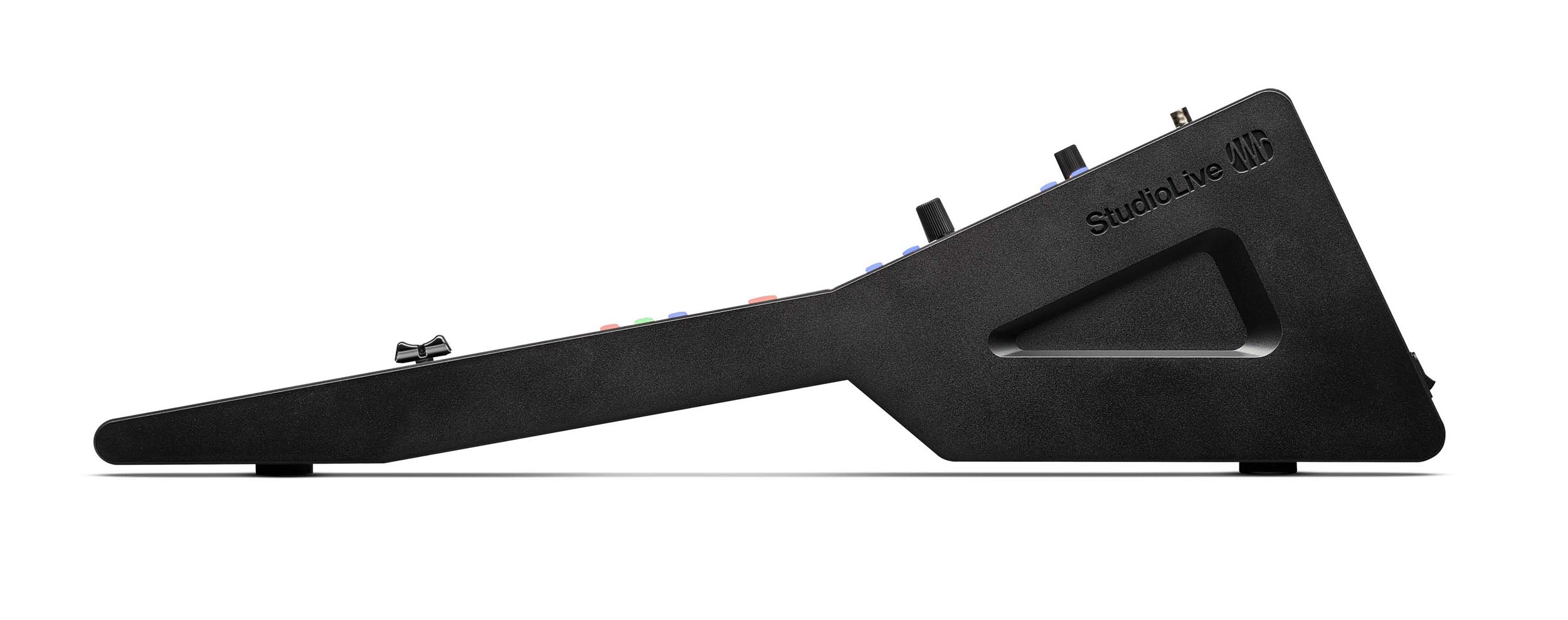

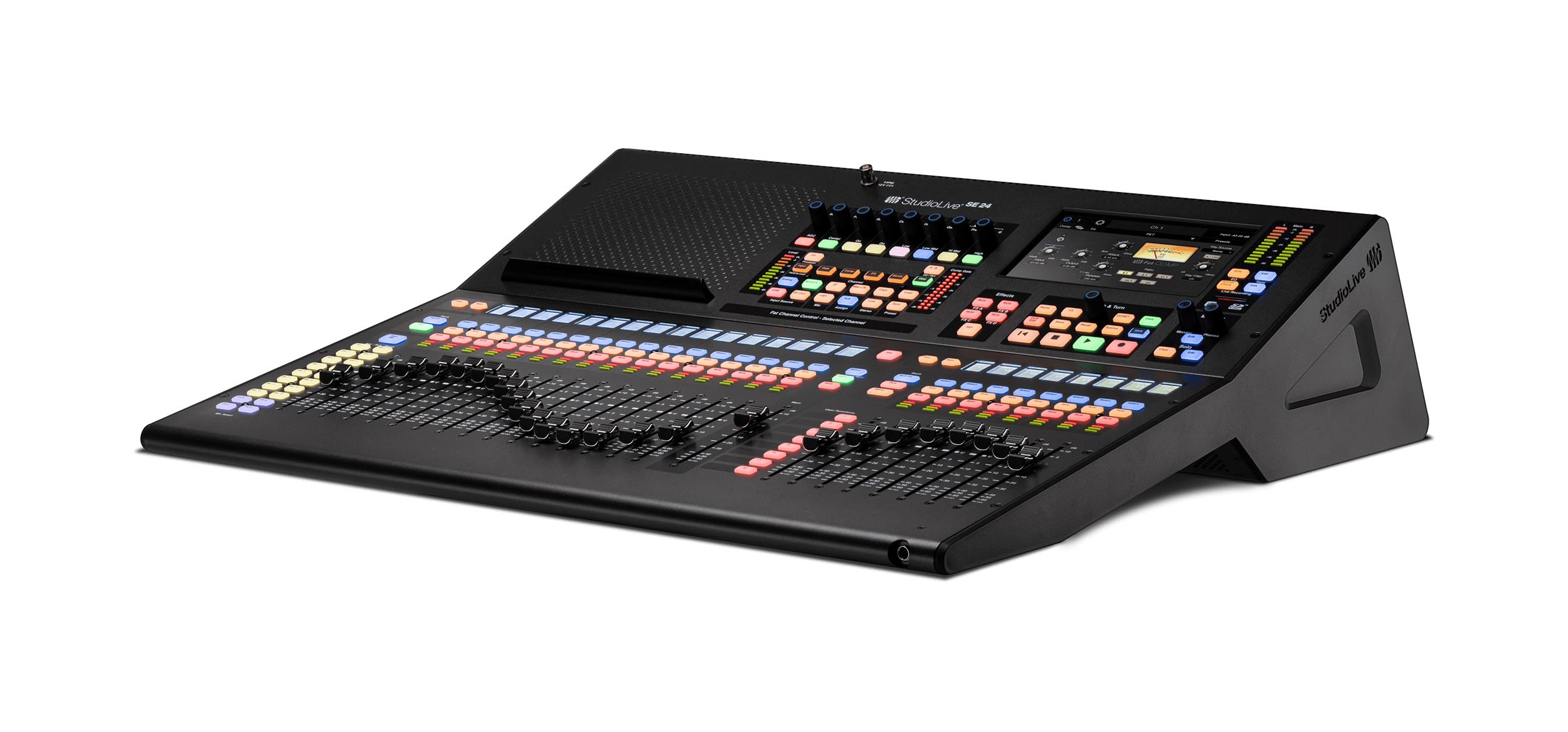

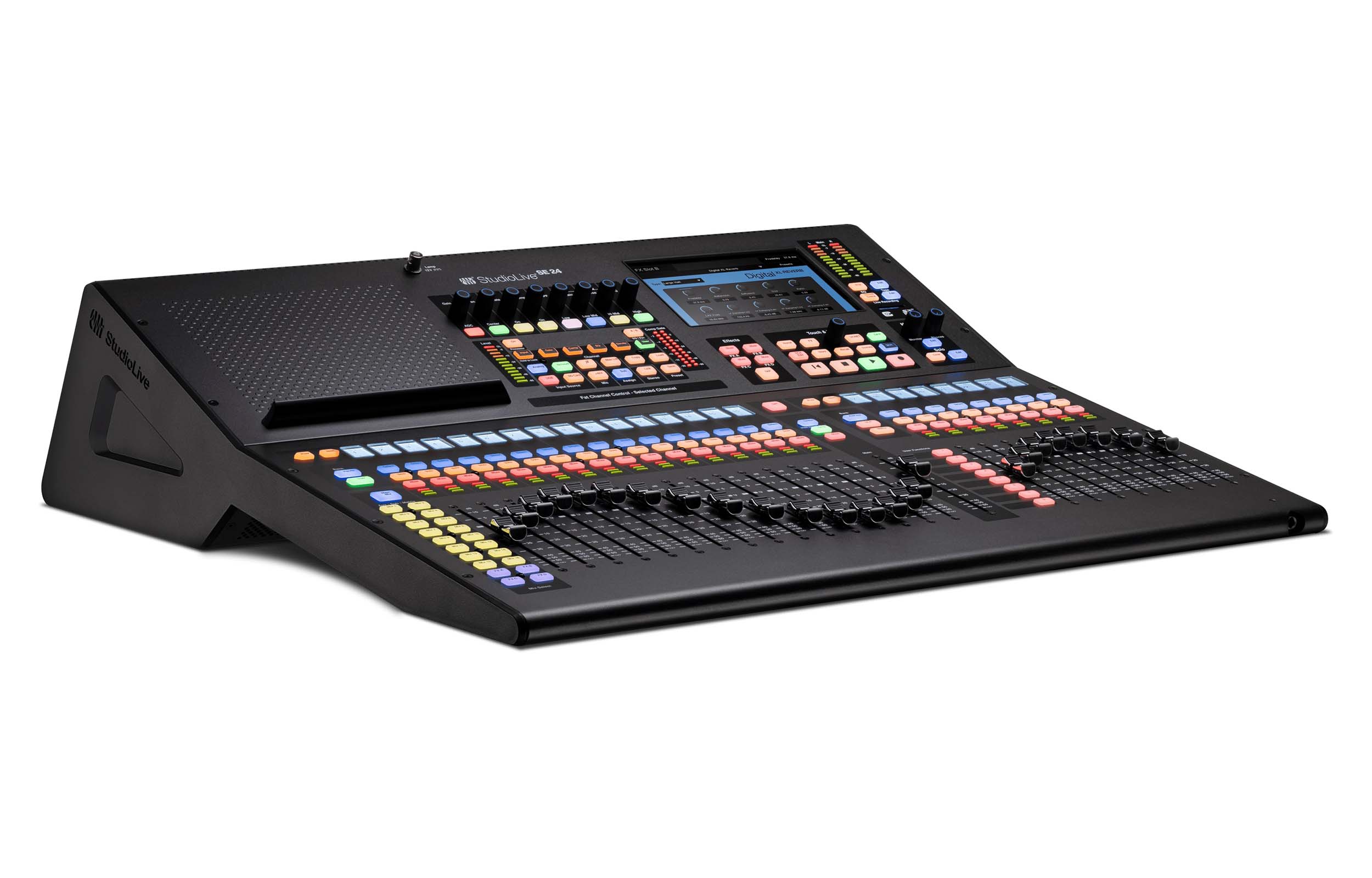

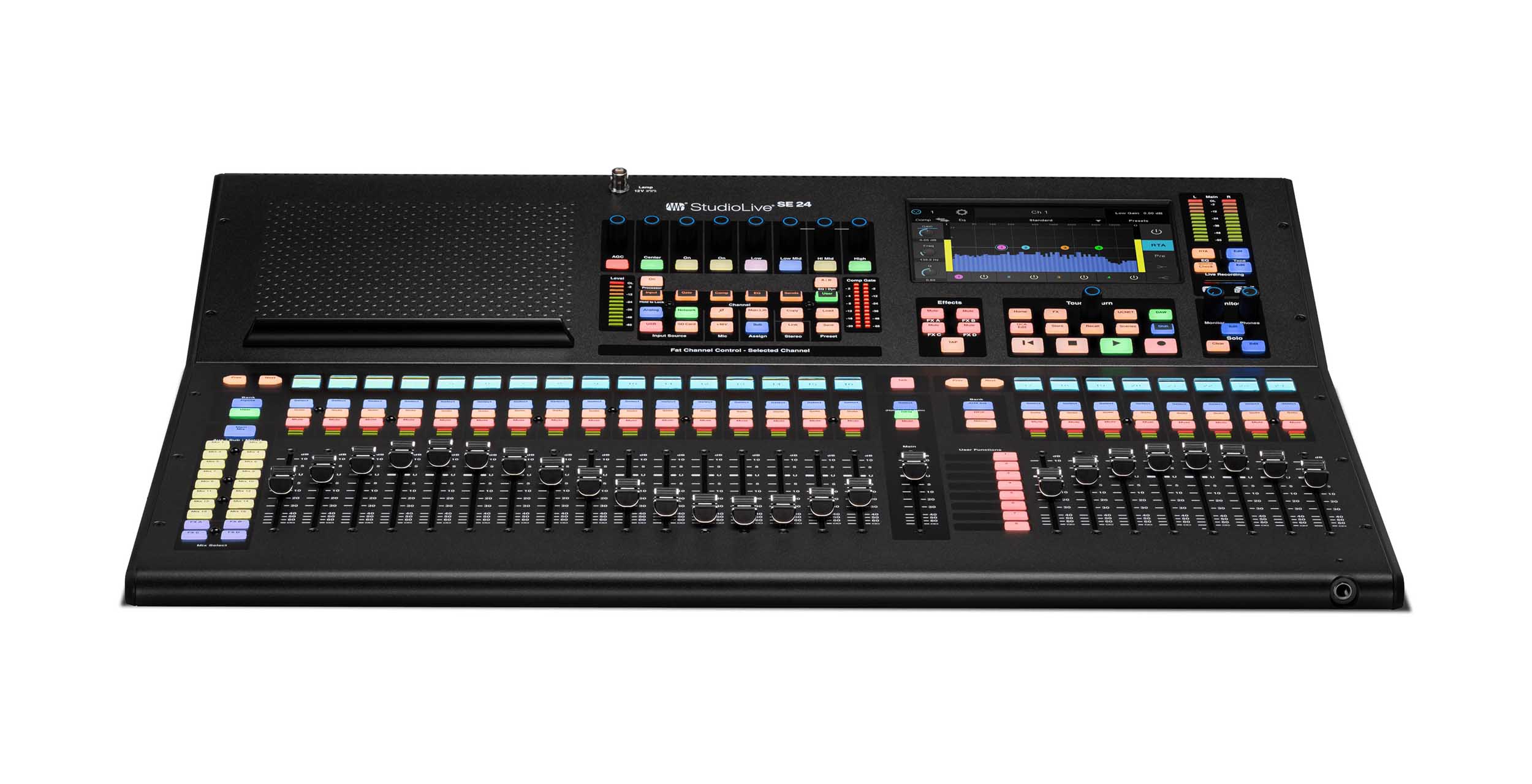

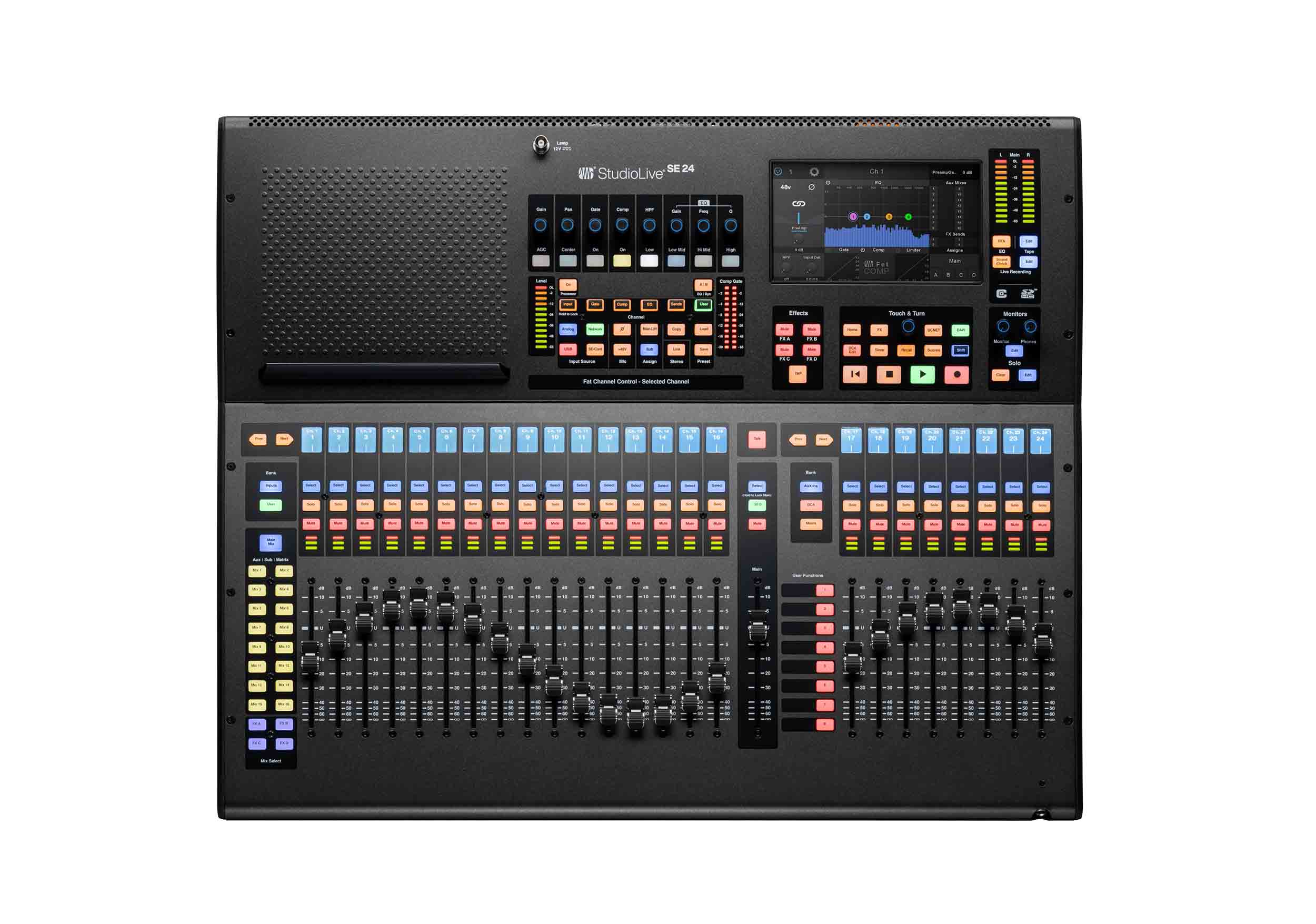

The PreSonus STUDIOLIVE SE24 Digital Console Mixer is Designed to inspire and built to perform, StudioLive SE delivers pristine, ultra-low noise studio-quality sound to the stage in a compact, rack-mountable frame. Dial in your mix with an arsenal of audio processors and effects, including meticulous digital models of coveted EQs, compressors, limiters, and reverb.
But live sound for touring, installations, and houses of worship demands more than pristine audio and powerful effects. With the StudioLive SE 24, you get access to capabilities beyond any solution in its class—like seamless multitrack recording, playback and streaming with integrated Fender Studio Pro and Capture software, remote access mix, console management, and one-click virtual soundcheck.
Expand your system and stay industry-ready—StudioLive SE connects effortlessly to networked StudioLive Stage Boxes and any Milan-compatible I/O, while its sleek design, intuitive layout, ergonomic feel, and high-contrast UI maximize comfort and streamline workflow during long sessions.
Product Specifications:
ADC Dynamic Range: 115 dB (A-wtd, 48 kHz)
DAC Dynamic Range: 115 dB (A-wtd, 48 kHz)
USB Recording Port: USB 2.0, Type-B
AES/EBU Output: XLR Male
Network Control Port: RJ-45
AVB Audio Network Port: Locking XLR Ethernet
Internal Processing: 32-bit floating point
DSP Engine: Quad-core FLEX DSP
Sampling Rate: 44.1 / 48 kHz
A/D/A Bit Depth: 24-bit
Reference Level (0 dBFS): +18 dBu
Total System Latency: 1.9 ms (all processing active)
Jitter: <20 ps RMS (20 Hz–20 kHz)
Jitter Attenuation: >60 dB (1 ns in, 1 ps out)
Display: 7” TFT LCD touchscreen
Power Connector: IEC
Input Voltage Range: 90–230 VAC (±10%)
Power Consumption: 85 W (continuous)
Operating Temperature: 0–40°C

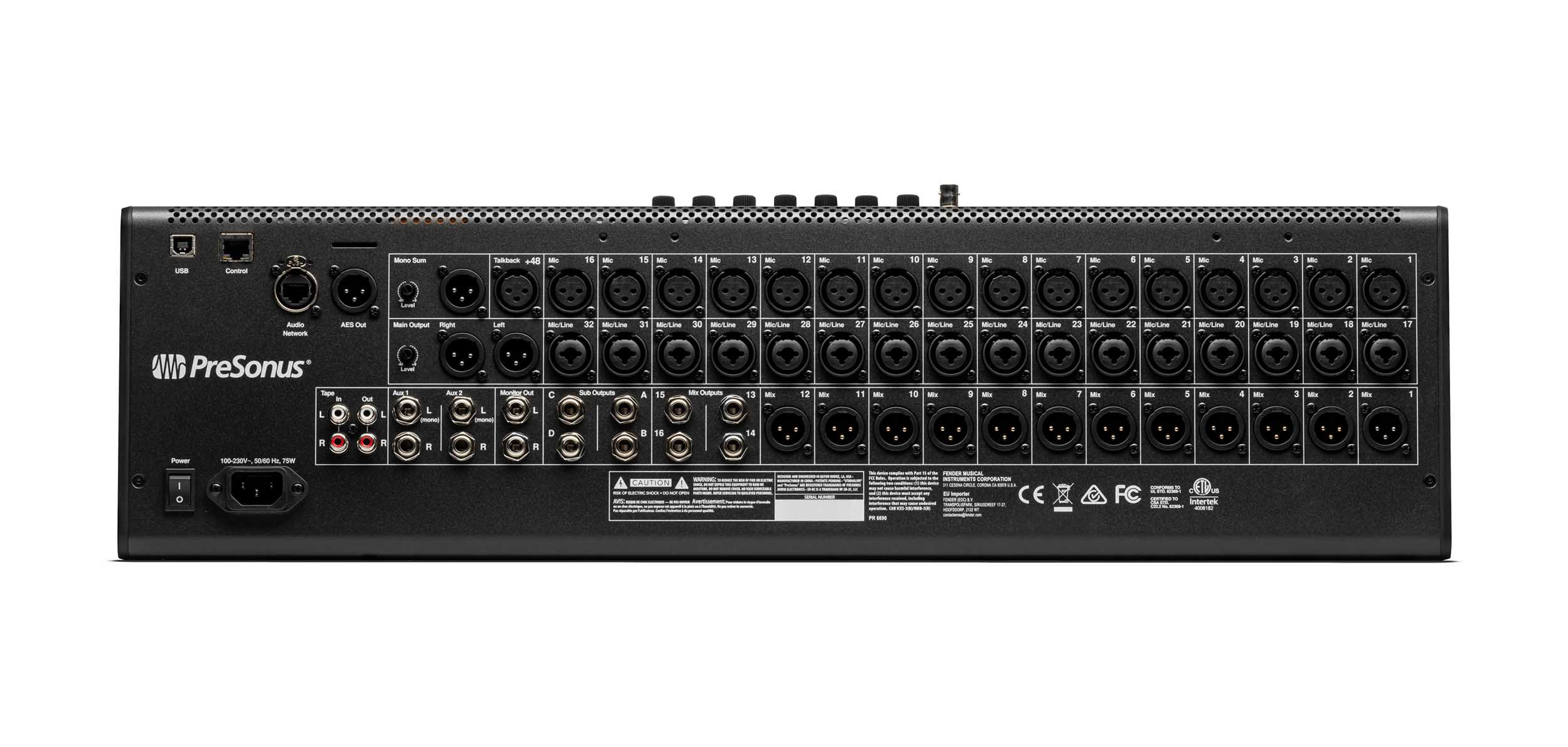

Microphone Inputs: 32 XLR female (combo)
Line Inputs: 16 × ¼" TRS balanced (combo)
Tape Inputs: RCA stereo pair (unbalanced)
Input Impedance (Mic): 1 kΩ
Input Impedance (Line): 10 kΩ
Gain Range: 0 to +60 dB
Max Mic Input Level: +12 dBu
Max Line Input Level: +18 dBu
Phantom Power: 48 V (switchable per channel)
FlexMix Outputs: 16 (12 XLR, 4 TRS) balanced
Subgroup Outputs: 4 × ¼" TRS balanced
Main Outputs: 3 XLR (L/R + Mono) balanced
Monitor Outputs: ¼" TRS stereo pair
Tape Outputs: RCA stereo pair
Headphone Output: ¼" TRS, 100 mW/ch @ 60 Ω
Output Level (Max): +24 dBu (mix/subgroup/main), +18 dBu (monitor/tape)
Output Impedance: 100 Ω
Headphone Response: 20 Hz–20 kHz (±0.5 dB)
THD+N (Headphones): 0.01%
S/N Ratio: 96 dB (headphones), 94 dB (inputs)
Crosstalk: -90 dB (input/output), -87 dB (adjacent channels)
Product Weight: 30 lbs.
Product Dimensions (L x W x H): 22.97” x 25.98” x 6.51”
