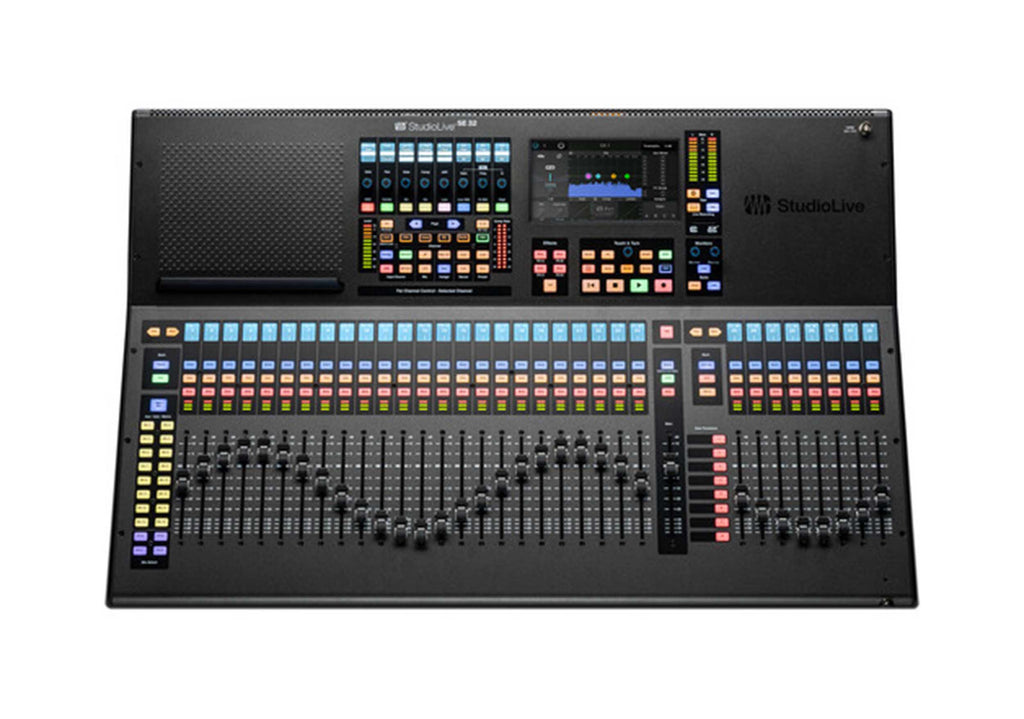

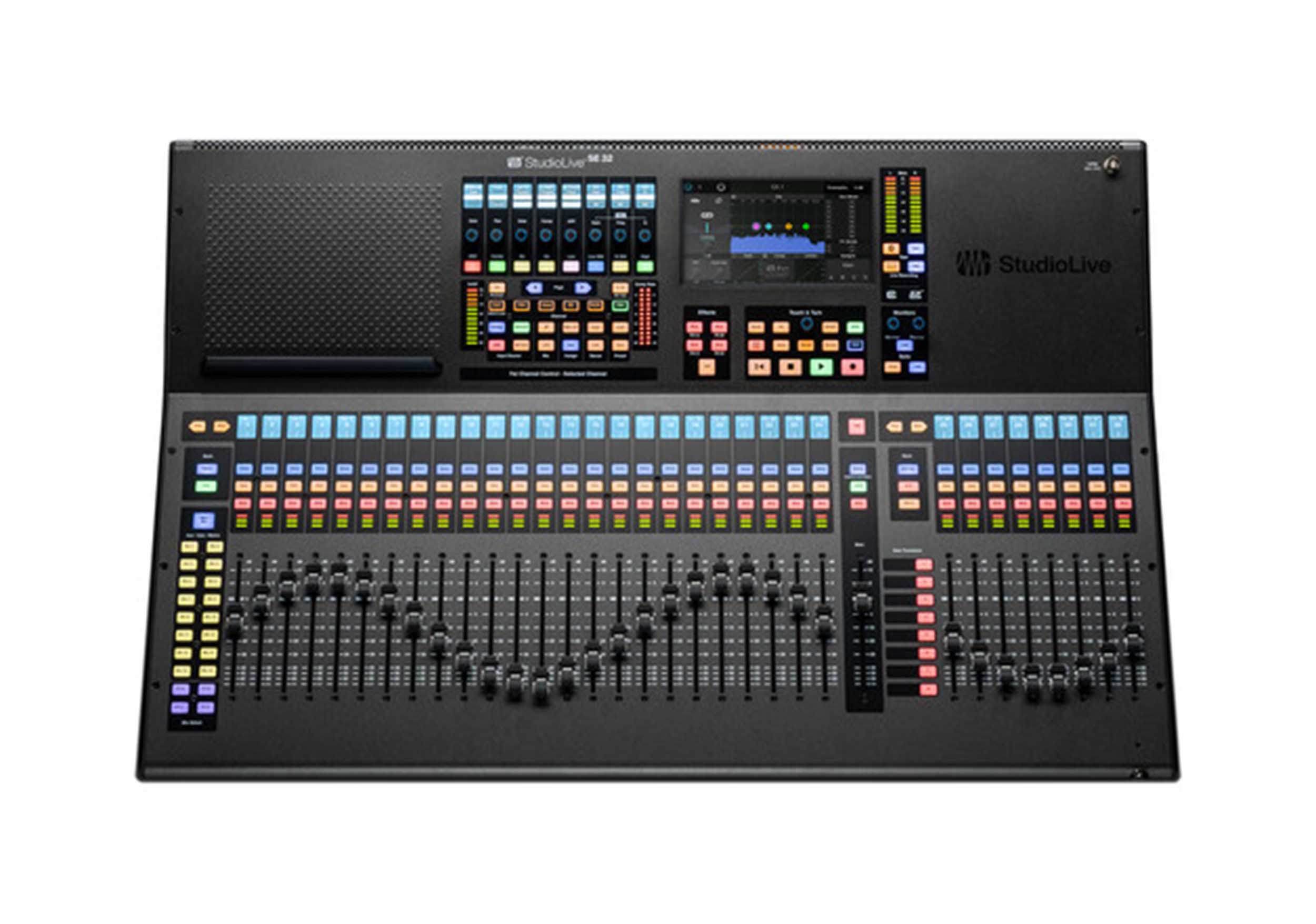

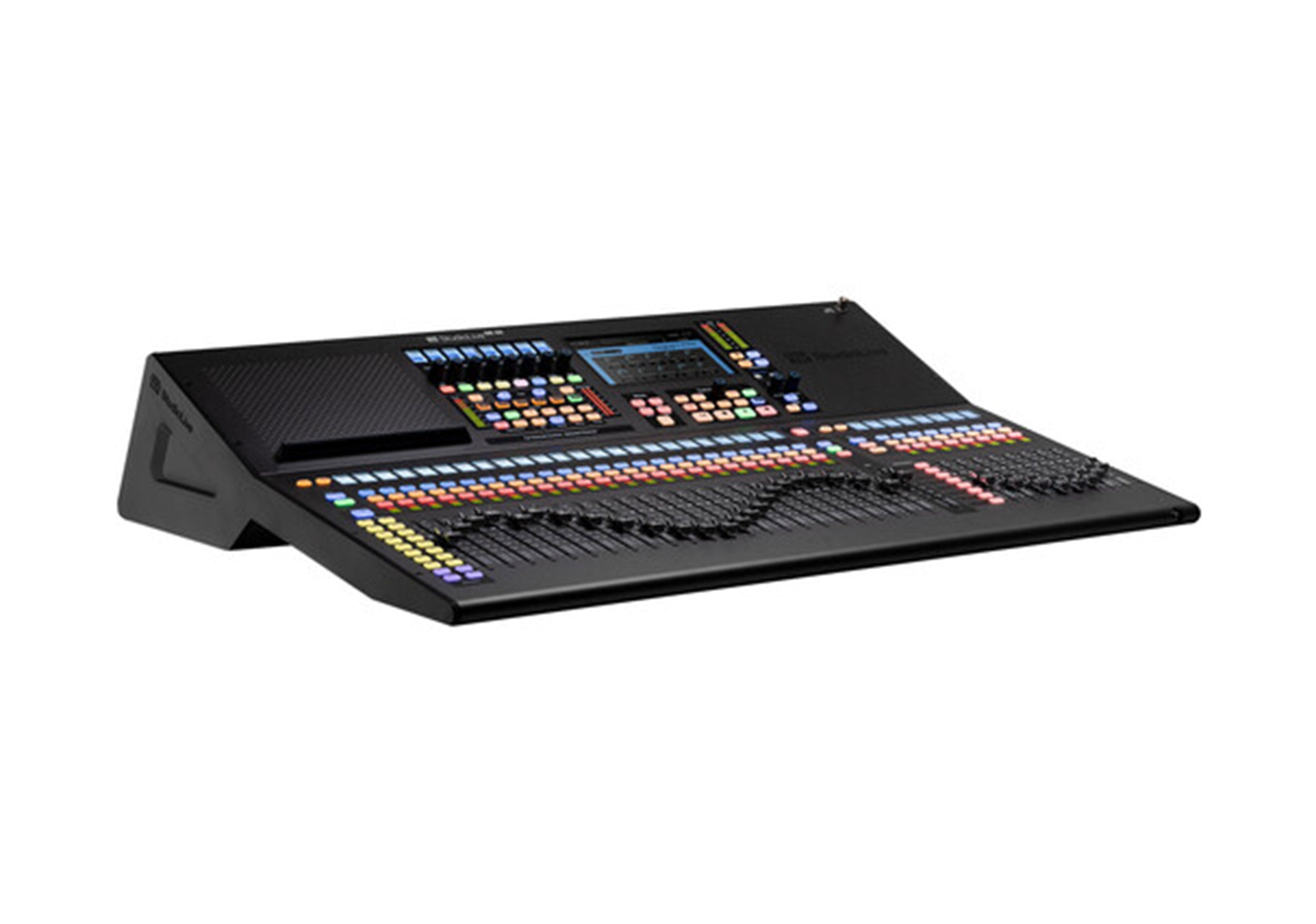

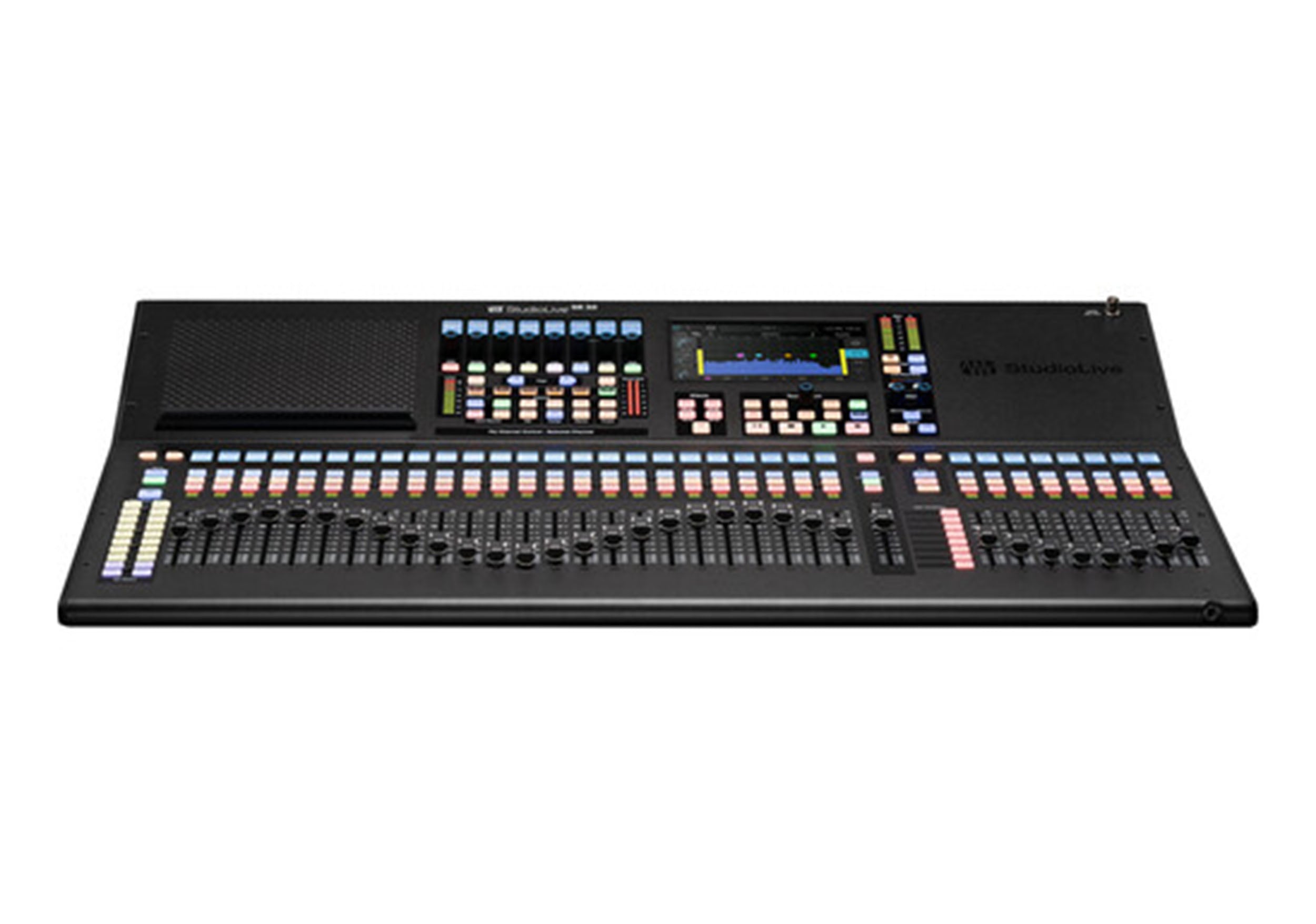

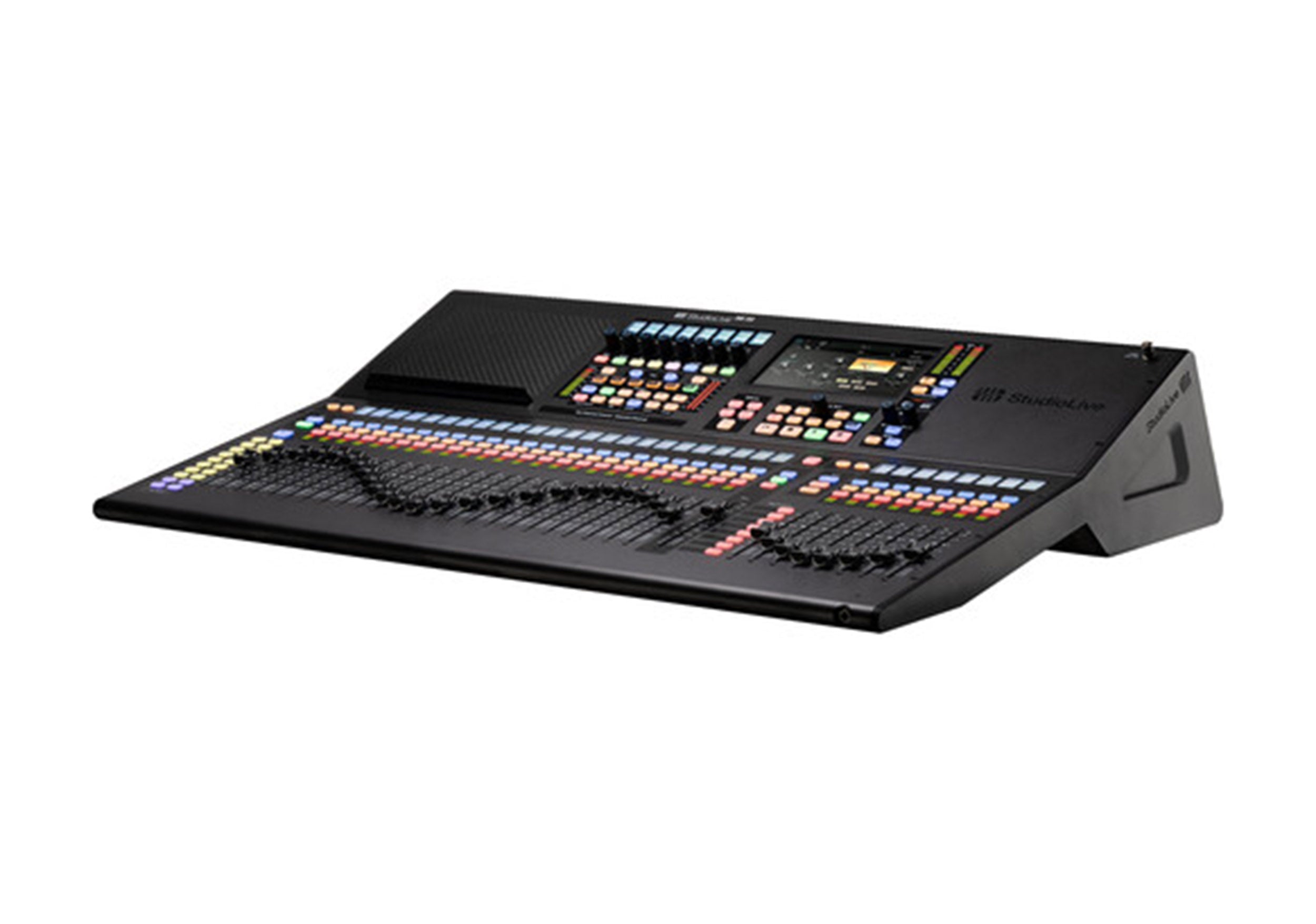

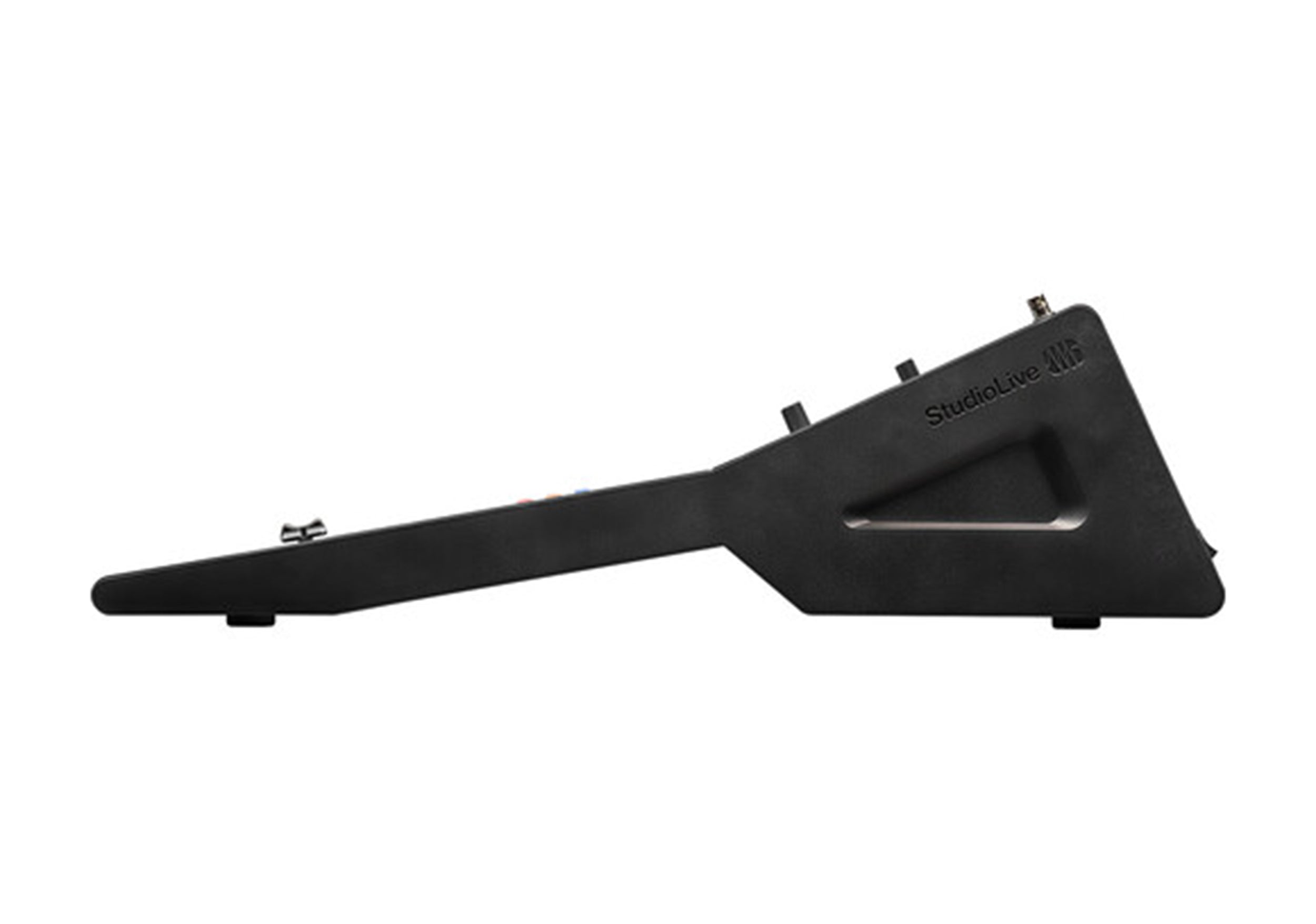

PreSonus STUDIOLIVE SE32, Series III 26-Bus Digital Console Mixer

The PreSonus StudioLive SE 32 is a professional 32-channel digital mixing console designed for touring, installation, and live production environments. It delivers ultra-low noise studio-grade sound with high-resolution 32-bit floating-point DSP and 115 dB converters. The system combines powerful mixing tools, advanced Fat Channel processing, and flexible routing for complete control over complex audio setups.

Built for modern workflows, it supports multitrack recording, playback, and virtual soundcheck through integrated USB and SD recording systems. Seamless integration with AVB and Milan networking allows expansion with stage boxes and distributed audio systems. Remote control capabilities enable engineers to manage mixes from anywhere using dedicated software tools.

But live sound for touring, installations, and houses of worship demands more than pristine audio and powerful effects. With the StudioLive SE 32, you get access to capabilities beyond any solution in its class—like seamless multitrack recording, playback and streaming with integrated Fender Studio Pro and Capture software, remote access mix, console management, and one-click virtual soundcheck.

Expand your system and stay industry-ready—StudioLive SE connects effortlessly to networked StudioLive Stage Boxes and any Milan-compatible I/O, while its sleek design, intuitive layout, ergonomic feel, and high-contrast UI maximize comfort and streamline workflow during long session.

Product Specifications:

Color: Black

Headphone Jack: 1/4" TRS Active Stereo

Phantom Power: +48 VDC (±2 VDC)

Power Consumption: 85 W (continuous)

Voltage: 120 V

Voltage Requirements: 100–230 VAC, 50–60 Hz

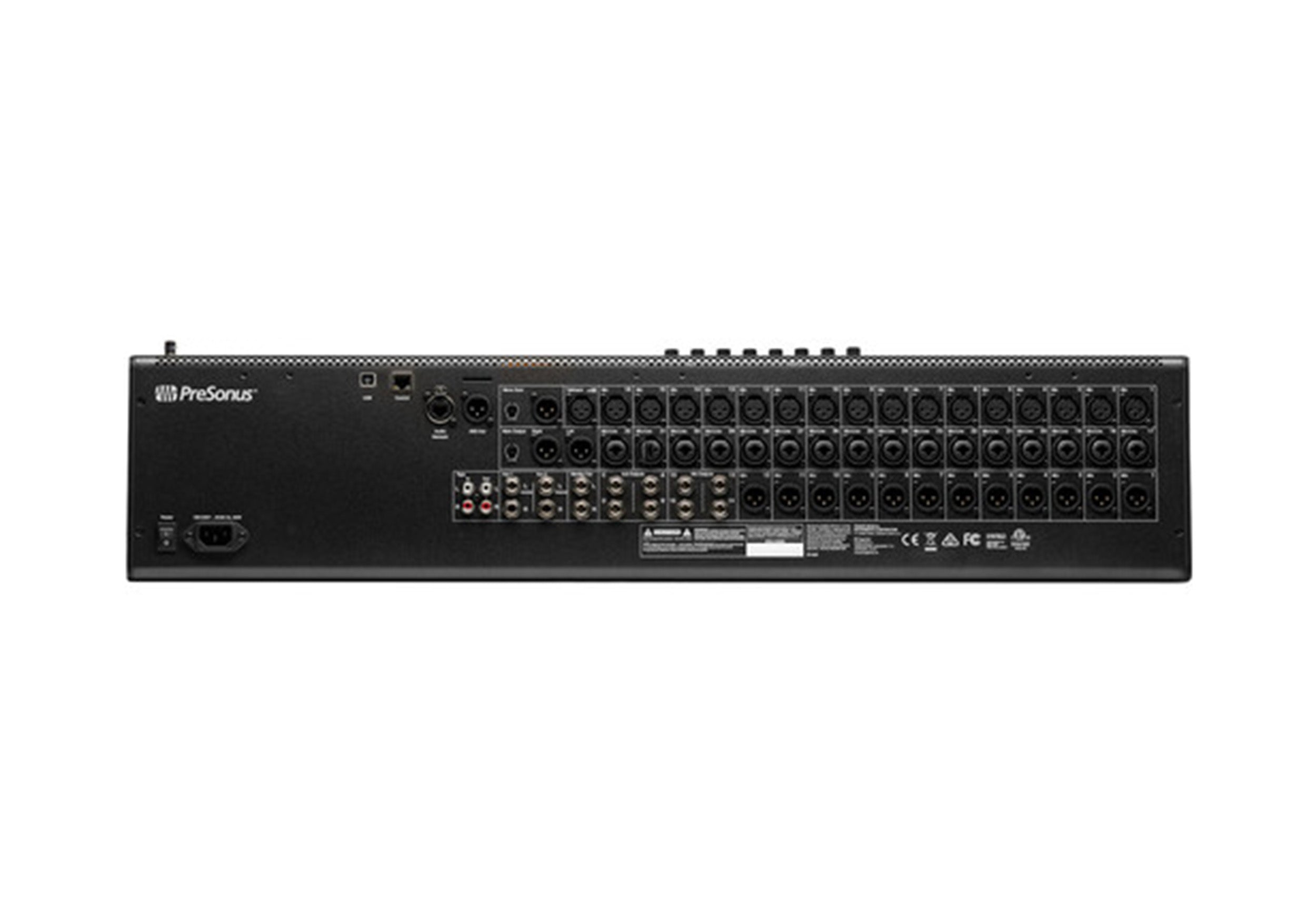

AES/EBU Output: XLR Male

Bluetooth Input: 4.1, Stereo

Network Control Port: RJ-45

USB Recording Port: USB 2.0, Type-B

Internal Processing: 32-bit Floating Point

Power Cable: IEC

Recording File Format: WAV

Supported Sample Rates: 44.1 kHz, 48 kHz

Headphone Maximum Output: 100 mW/ch @ 60 Ω load

Headphone THD: 0.01% (1 kHz, max gain, 20 Hz BW, unwtd)

Line Outputs Maximum Level: +18 dBu ±0.5 dBu

Line Outputs Impedance: 100 Ω

Tape Maximum Output Level: +18 dBu ±0.5 dBu

Tape Output Impedance: 100 Ω

XLR Outputs Maximum Level: +24 dBu ±0.5 dBu

XLR Outputs Impedance: 100 Ω

Bit Depth: 24-bit

ADC/DAC Dynamic Range: 115 dB (A-weighted, 48 kHz)

Reference Level (0 dBFS): +18 dBu

Total System Latency: 1.9 ms (all processing active)

SD Recorder Bit Depth: 24-bit recording, 16/24-bit playback

SD Recorder Sample Rate: 44.1 kHz / 48 kHz

Product Weight: 37.2 lbs.

Product Dimensions (L x W x H): 22.97” x 32.37” x 6.51”
