Description

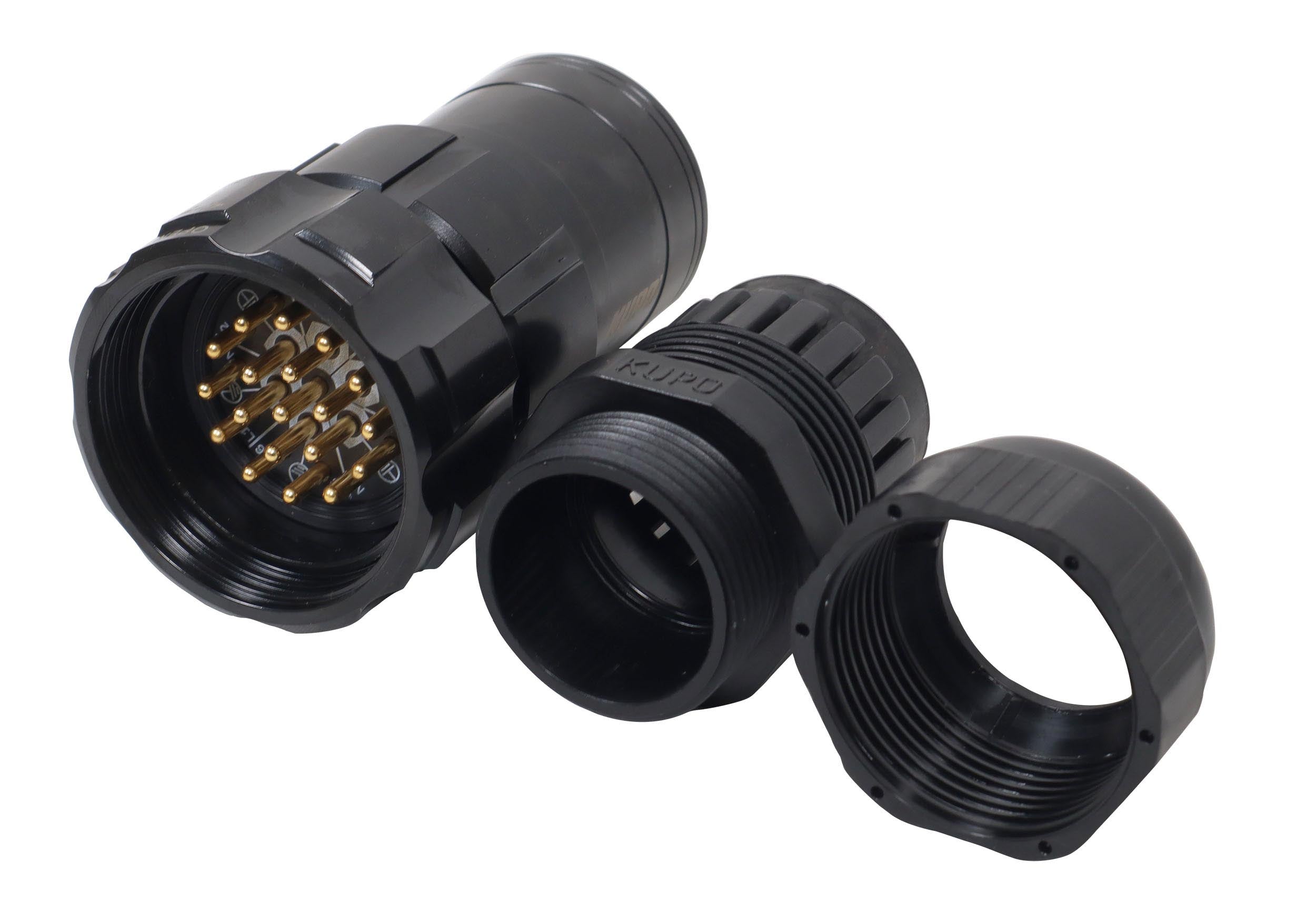

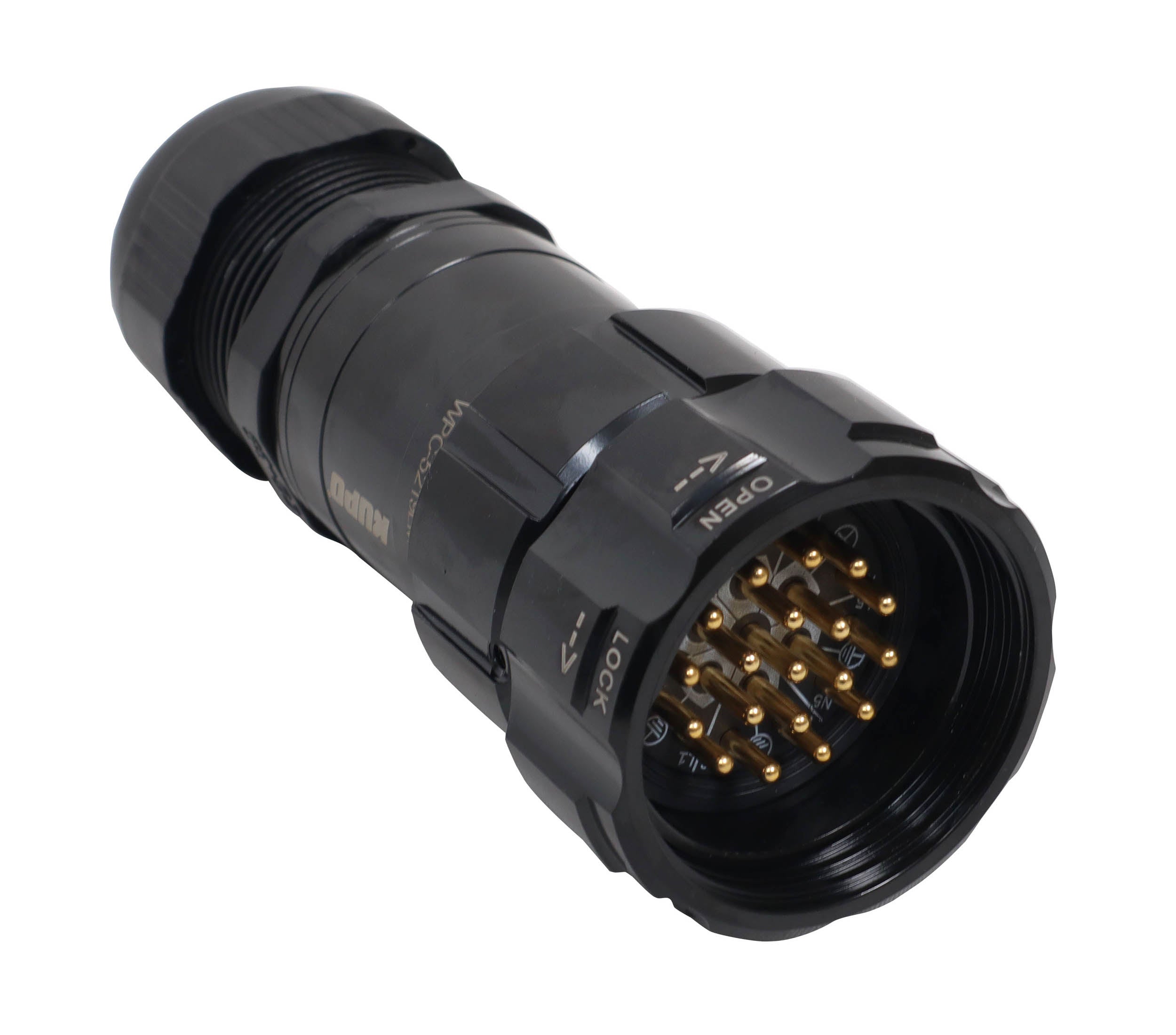

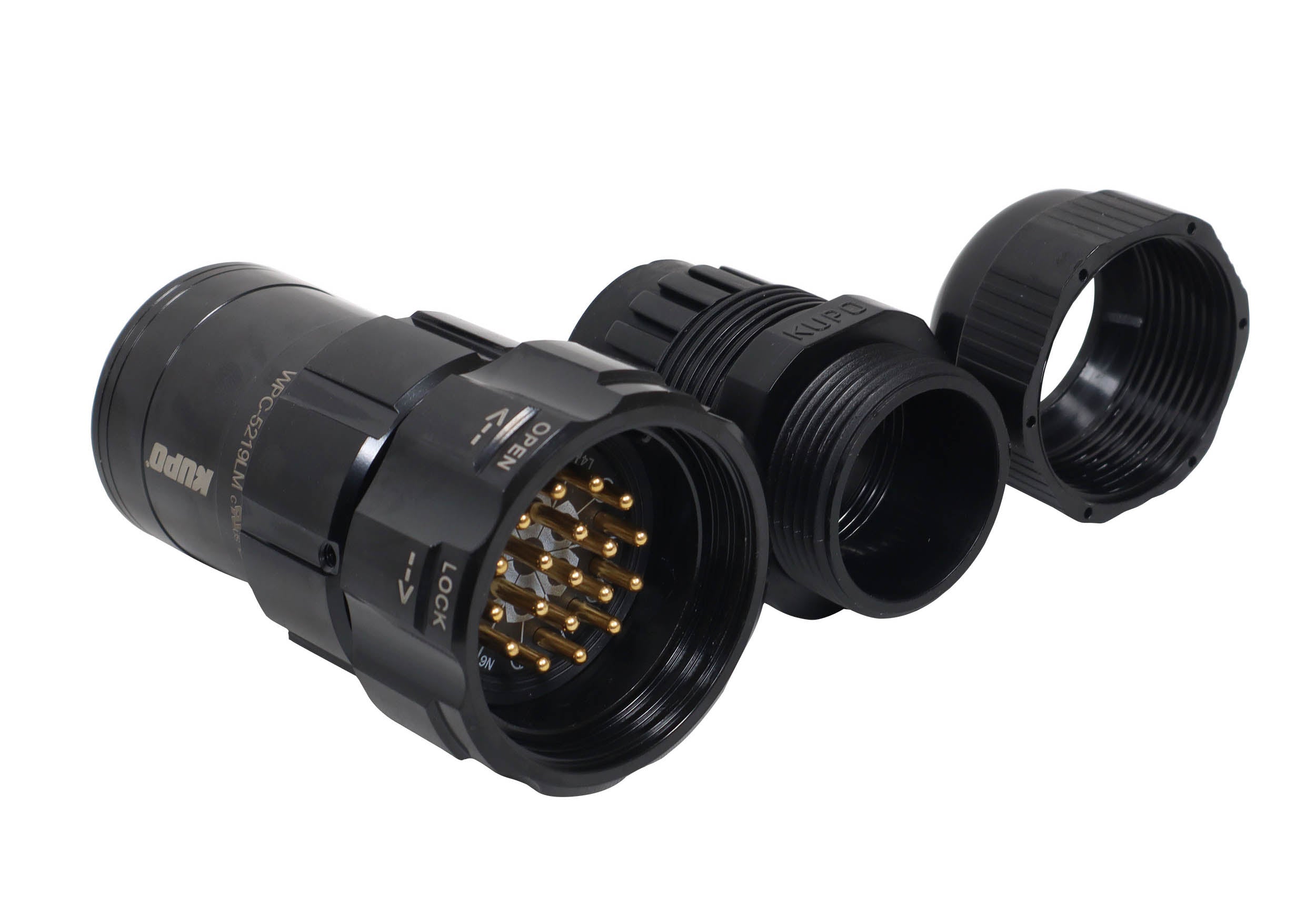

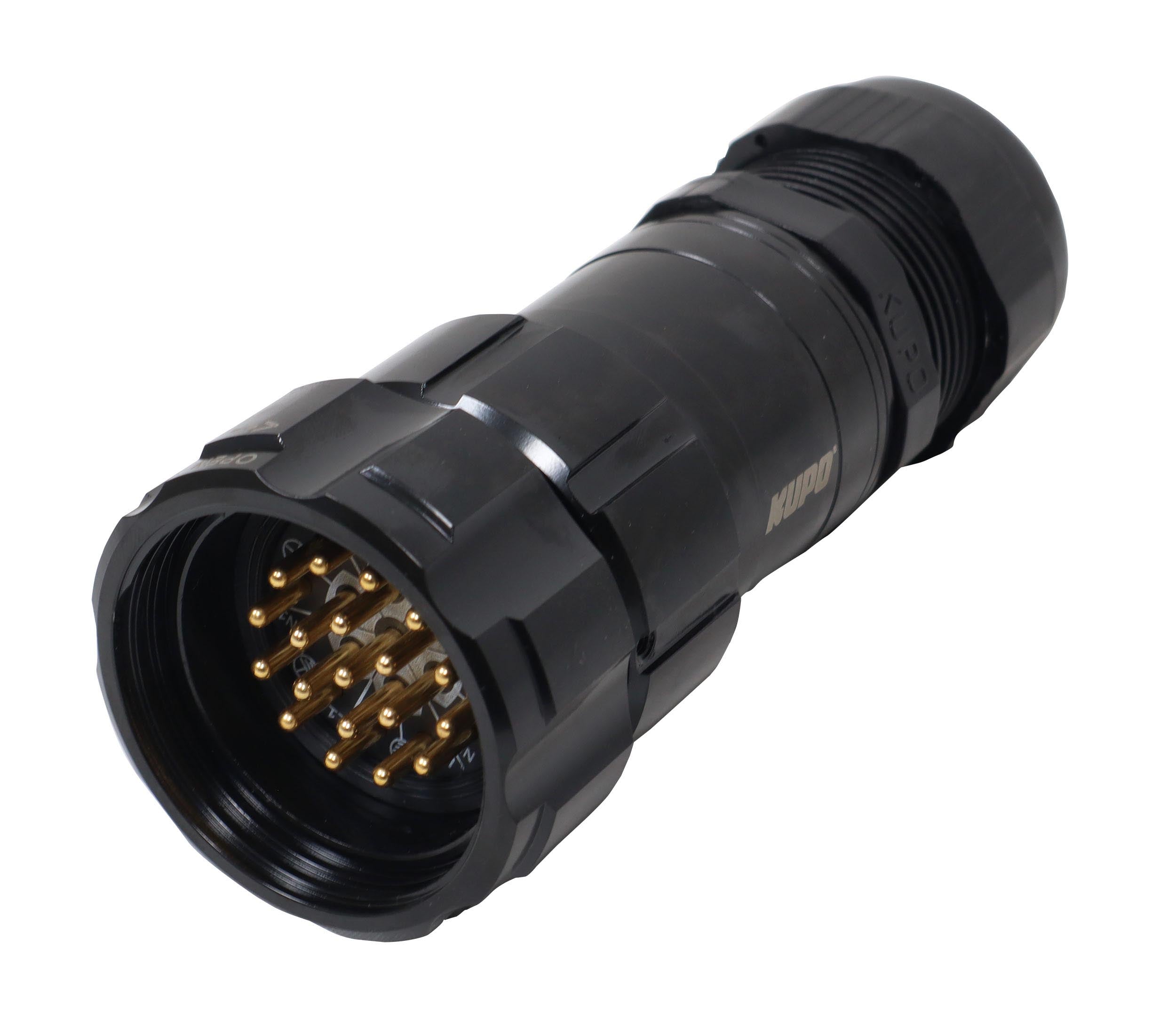

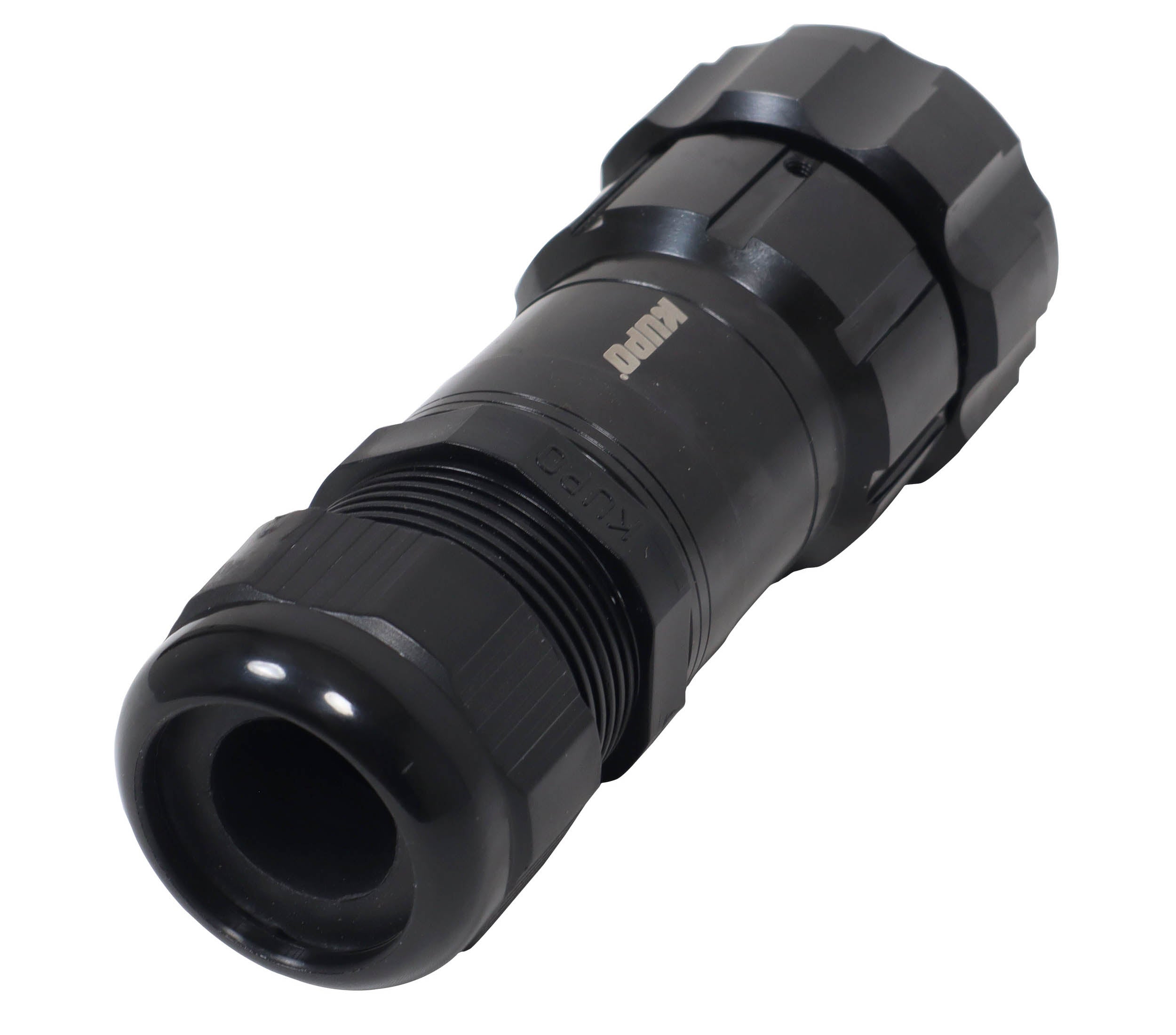

The ProX XC-P19PMALE 19-Pin Solder Line Male Kupo PLS-5219LM Power Connector is a professional-grade multi-pin connector designed for reliable power distribution in live production, staging, and permanent installations. Engineered for high-performance applications, this 19-pin male connector efficiently handles multi-circuit power runs, making it ideal for custom power looms, stage power breakouts, and modular power systems used by touring professionals and event production teams.
Built with rugged die-cast aluminum alloy shells and a black non-conductive finish, the XC-P19PMALE ensures durable protection while providing a convenient two-shell assembly for easy cable handling. Hard gold-plated copper alloy machined contacts deliver excellent conductivity for both solder and crimp connections, while non-conductive first-grade Bakelite offers superior insulation and safety. Extended ground contacts at the female interface guarantee a “mate first, break last” operation for added operational safety.
Rated for AC 20A at 250V and capable of operating up to 400V, this connector meets UL and cUL safety standards, with insulation resistance greater than 2000M Ohms and contact resistance below 3M Ohms. Designed to withstand over 5,000 connection cycles, the XC-P19PMALE performs reliably in extreme conditions ranging from -40°C to 85°C, making it a dependable solution for professional-grade stage, lighting, and power distribution setups.
Product Specifications:
Connector Type: 19-Pin Male
Model: Kupo PLS-5219LM
Shell Material: Die-Cast Aluminum Alloy, Black Non-Conductive Finish
Contact Material: Hard Gold-Plated Copper Alloy
Insulation: First-Grade Bakelite
Termination: Solder and Crimp Compatible
Strain Relief: Integral-Compressed
Ground Contact: Extended “Mate First, Break Last”
Compatibility: Socapex 419, Veam VSC, LK Connectors
Current Rating: 20A AC
Voltage Rating: 250V AC (up to 400V)
Insulation Resistance: >2000 MΩ
Contact Resistance: <3 MΩ
Operating Temperature: -40°C to 85°C
Durability: >5000 Mating Cycles
Certifications: UL / cUL Listed
Shipping Weight: 2 lbs.
Shipping Dimensions (L x W x H): 2.8 x 3.1 x 4.7 in
