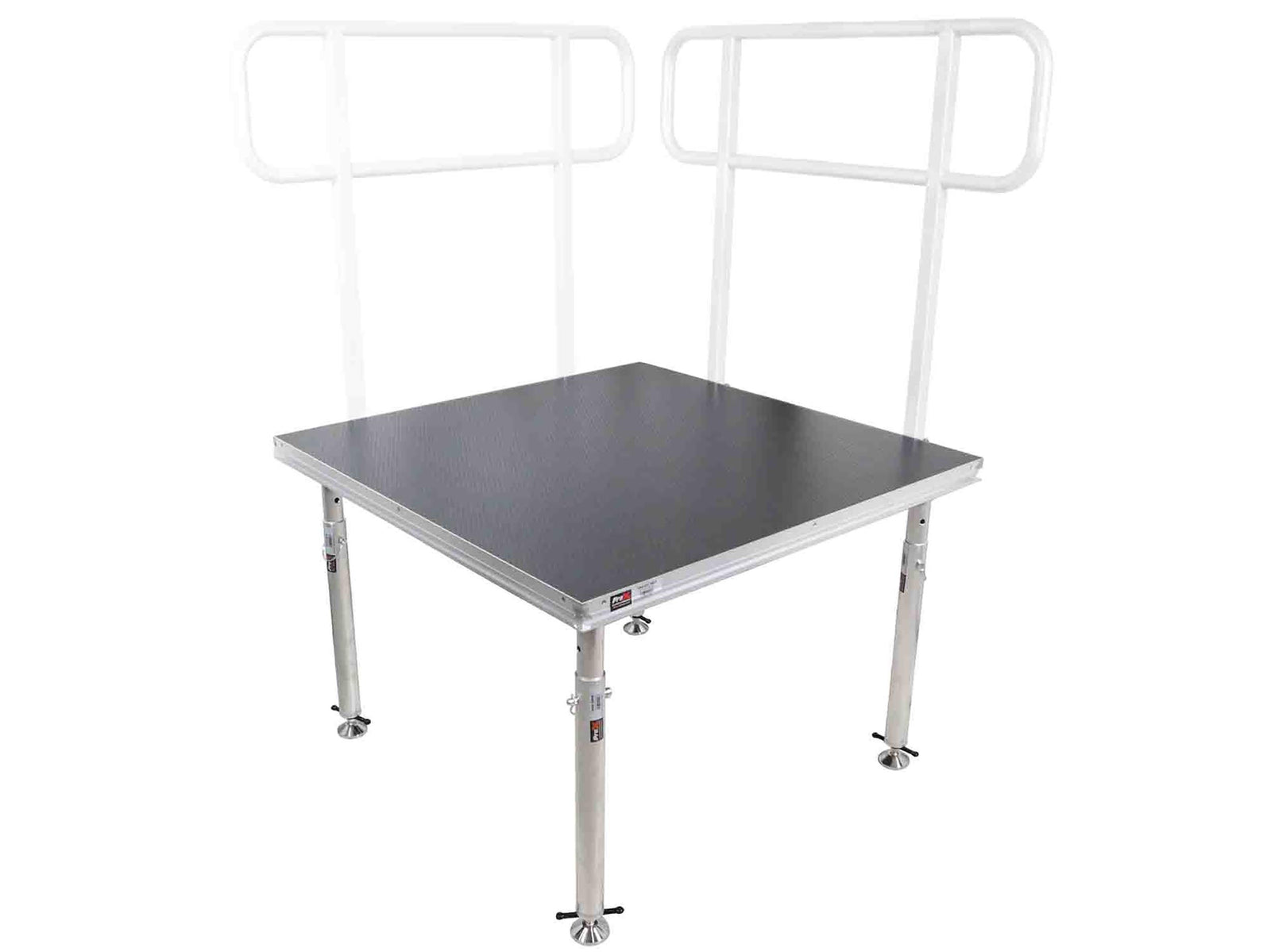

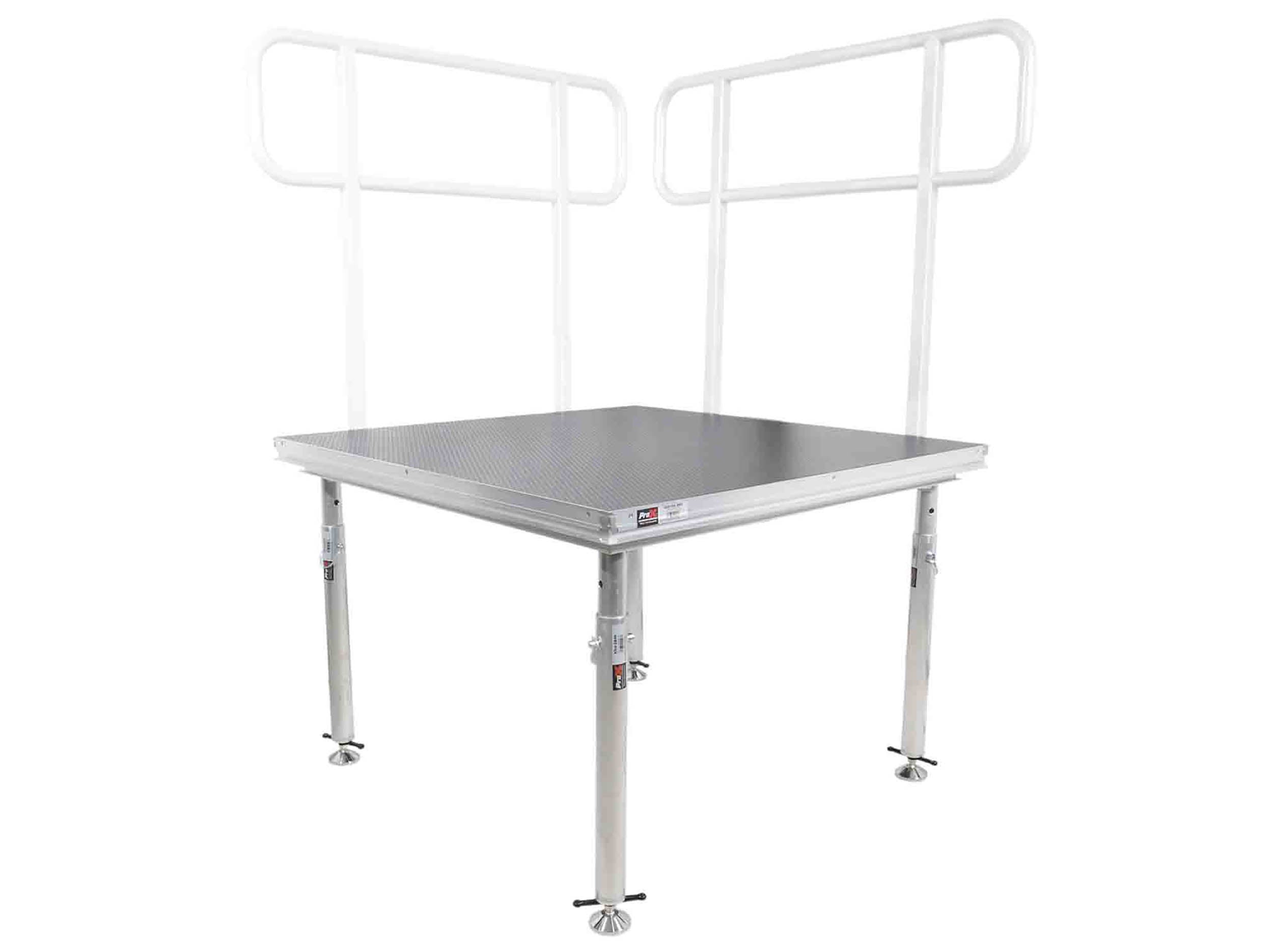

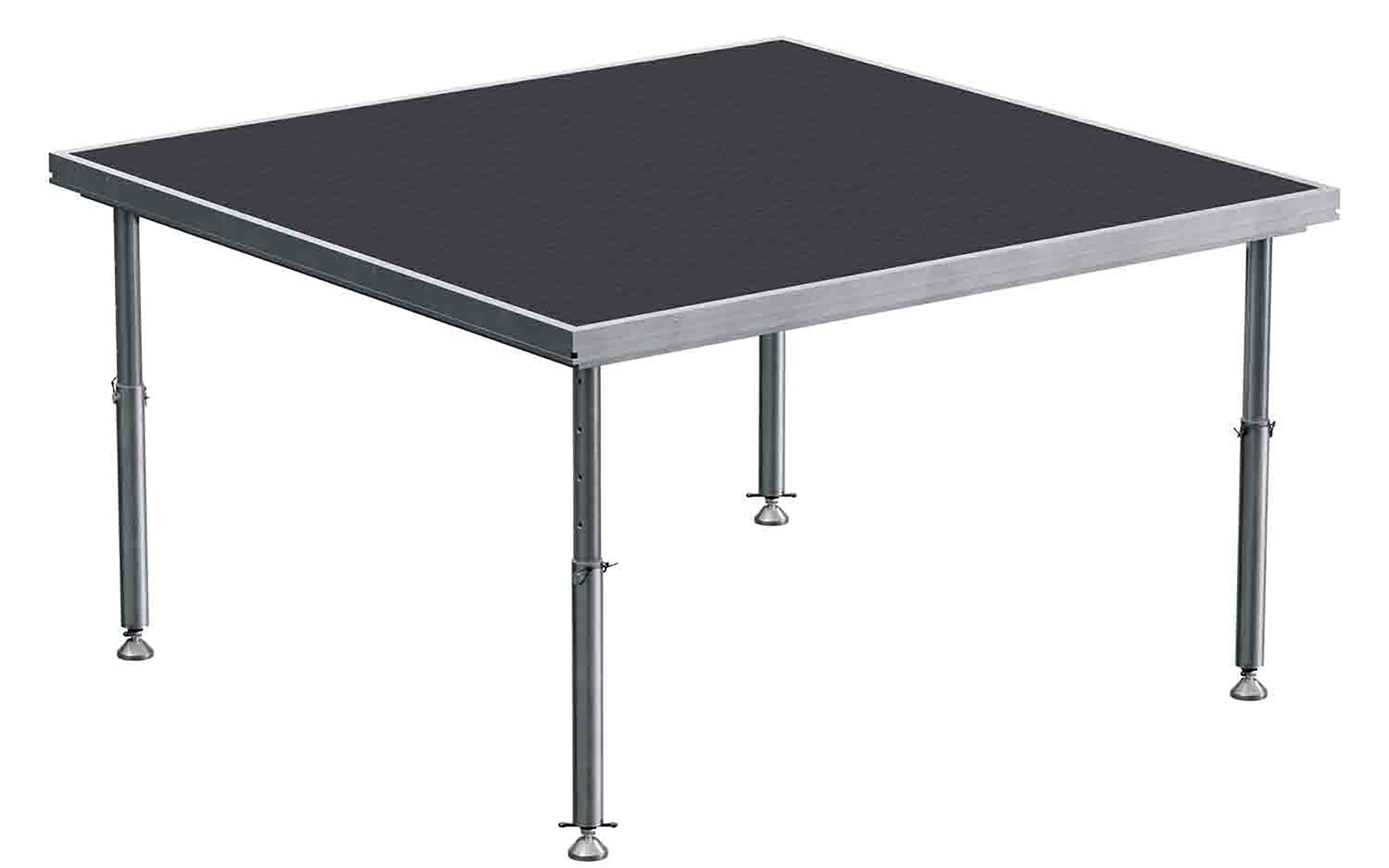

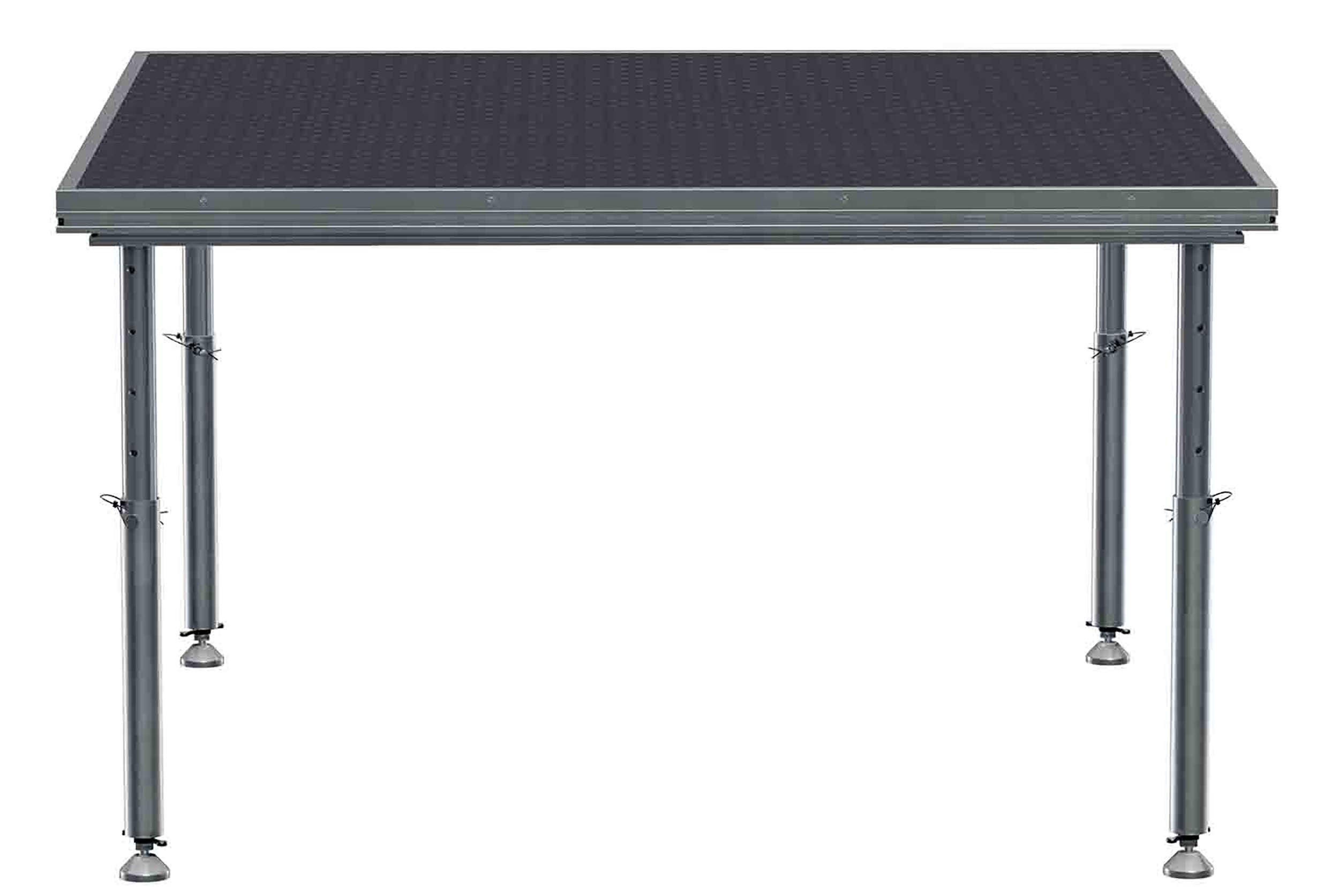

The ProX XSQ-4X4 StageQ™ is a modular 4 ft × 4 ft stage deck package designed for production companies, rental businesses, schools, houses of worship, and live event professionals. With a maximum evenly distributed load capacity of 1500 lbs per deck, it provides a stable platform for performers, DJs, equipment, and event setups. Its modular design allows multiple decks to connect together to create larger staging.

The deck features a Signature Honeycomb Digital™ high-pressure laminate surface with a hexagonal pattern designed to provide dependable grip and durability. High-temperature heat press lamination bonds the surface to the 7/8" (22 mm) AAA-grade exterior-rated birch plywood

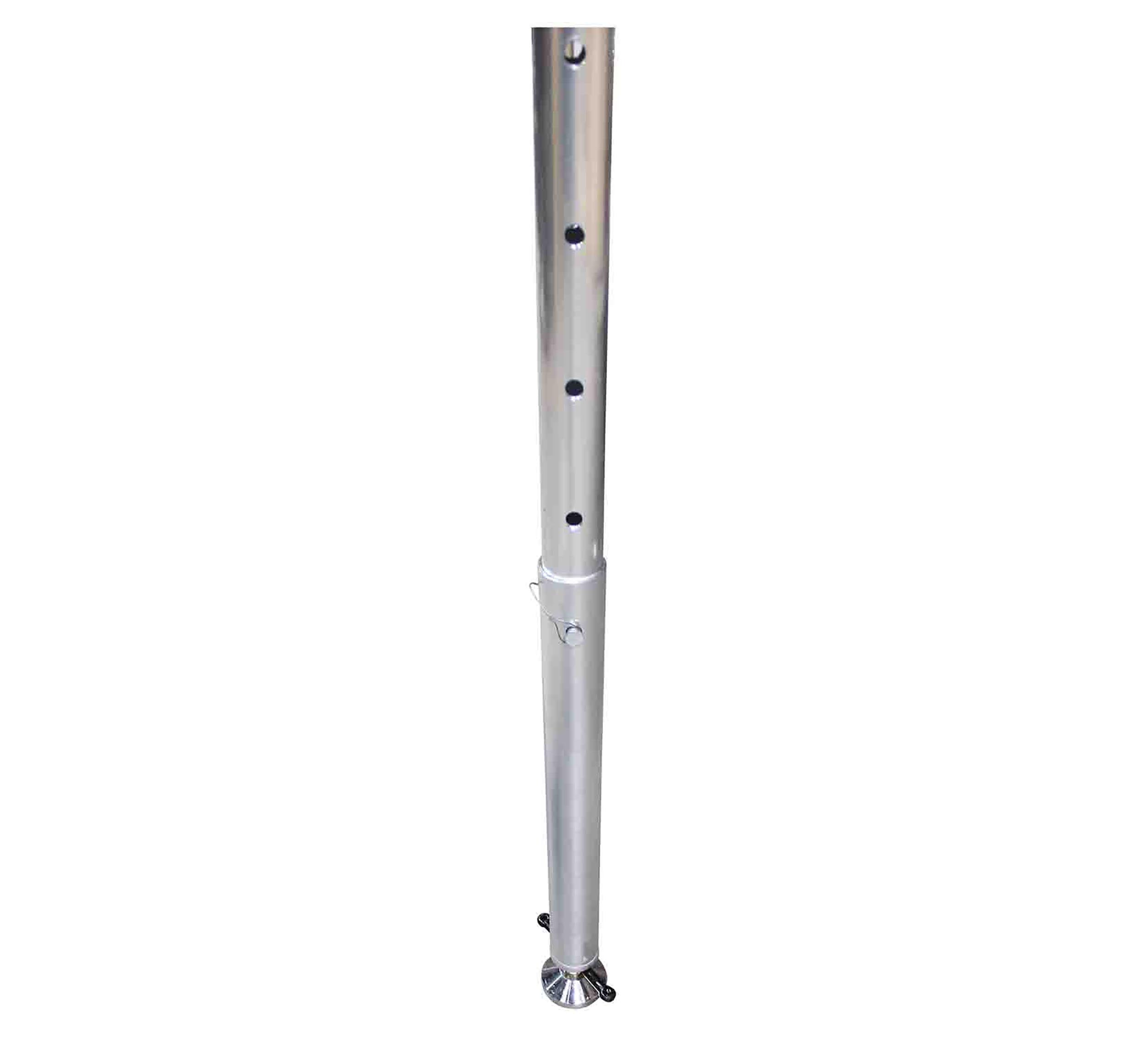

The included telescoping leg set adjusts from 28" to 48", allowing the platform height to suit different venues and staging requirements. Integrated locking pins and cables secure the selected height, while M16-threaded micro-adjustable.

Key Features

• Supports up to 1500 lbs of evenly distributed load per 4 ft × 4 ft deck.
• Provides a durable, high-grip Signature Honeycomb Digital™ laminate surface.
• Uses a 7/8" AAA-grade exterior-rated birch plywood platform.

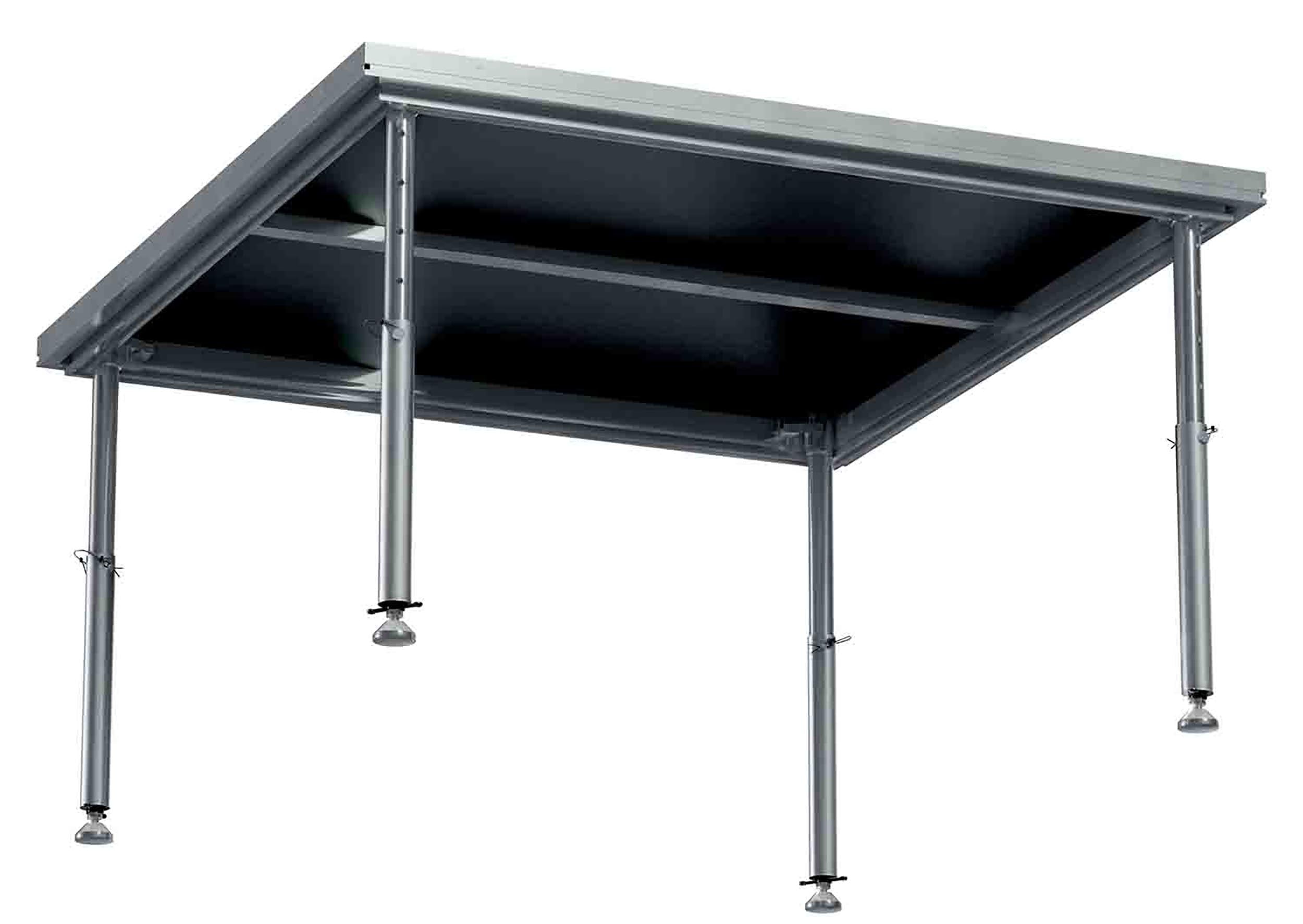

• Features a high-strength aluminium frame with TIG-welded corners.
• Adjusts platform height from 28" to 48" with the included telescoping legs.

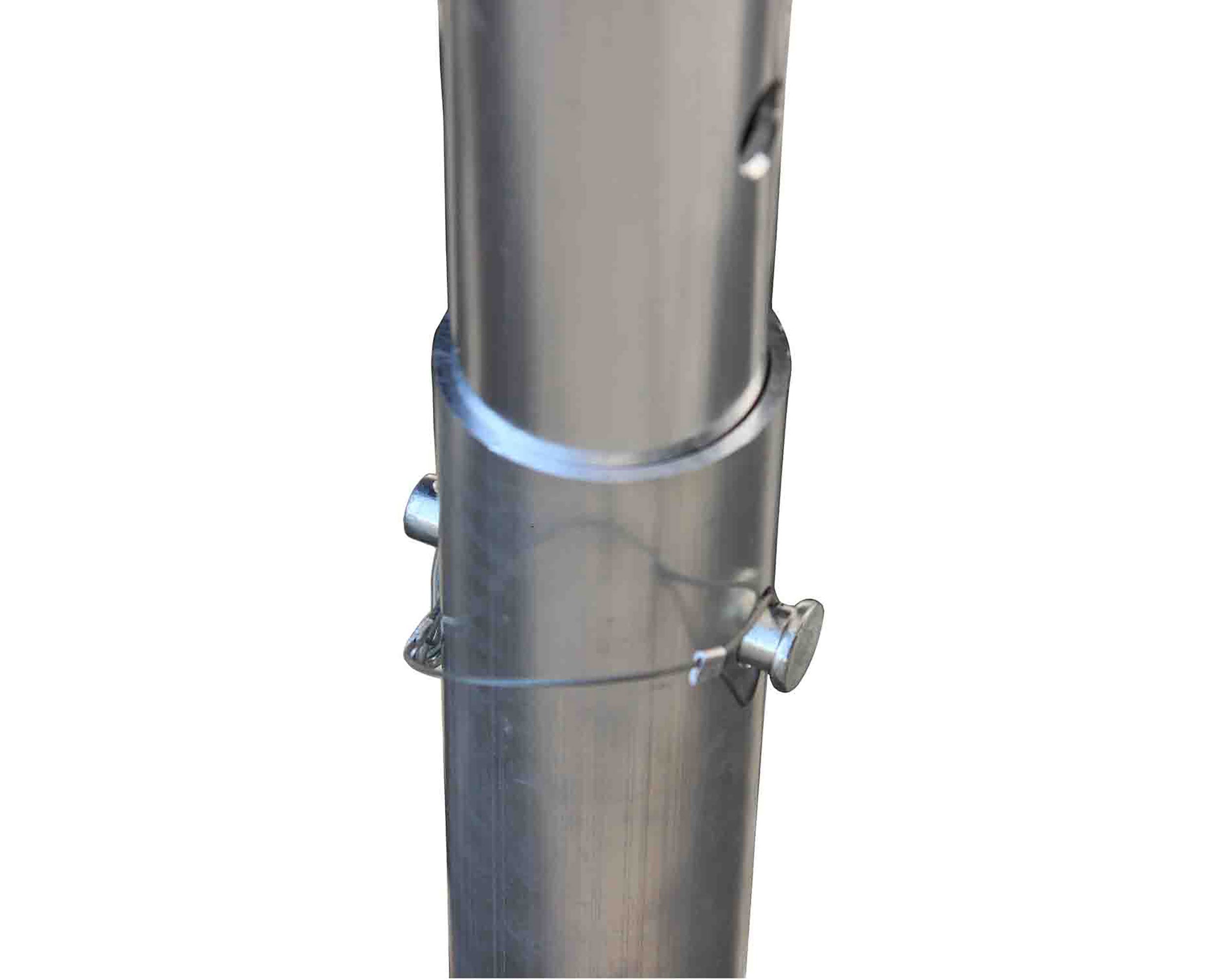

• Secures leg height with an integrated locking pin and cable system.

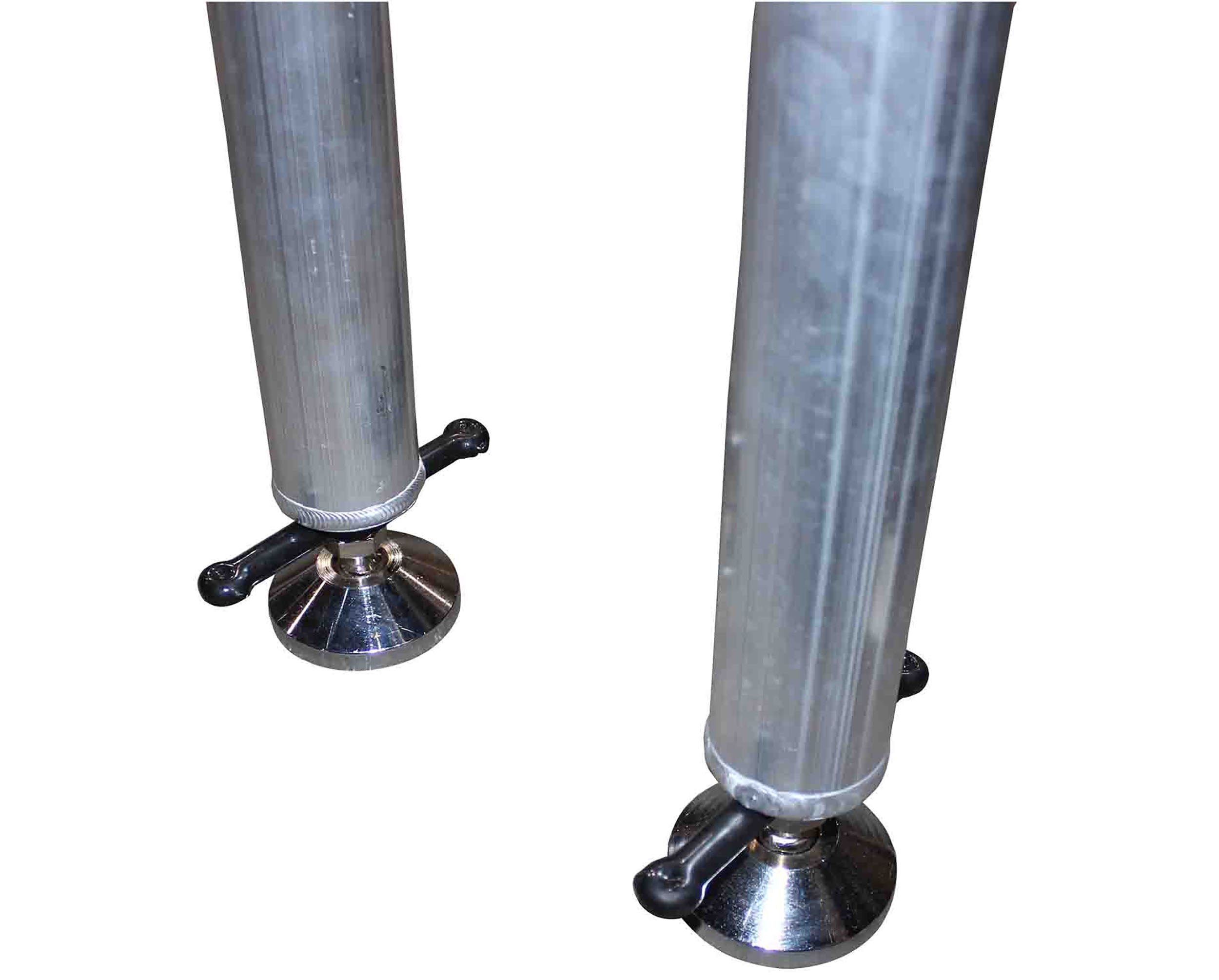

• Helps stabilize platforms on uneven surfaces with micro-adjustable leveling feet.

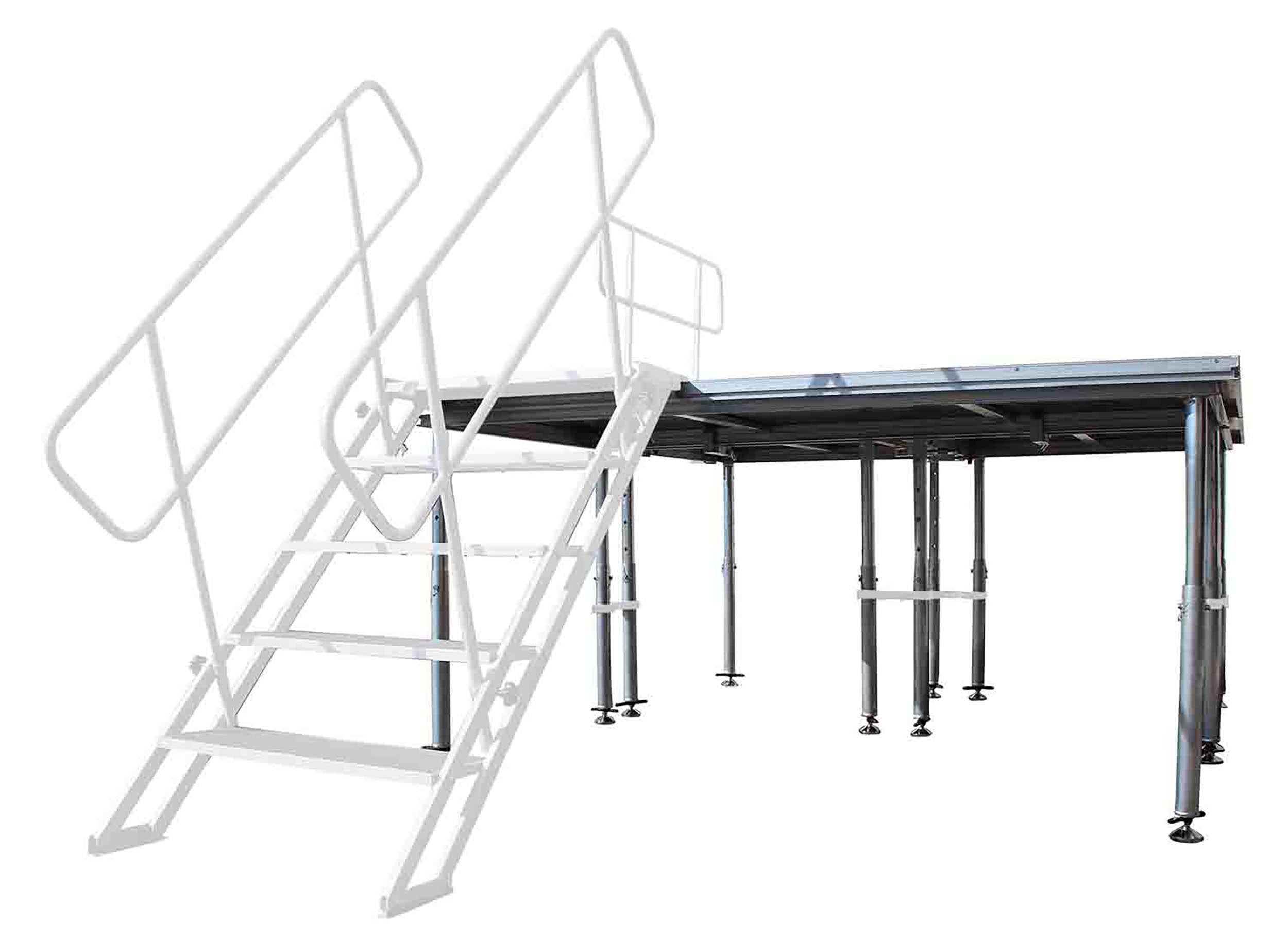

• Connects with additional StageQ™ decks to create larger stage configurations.

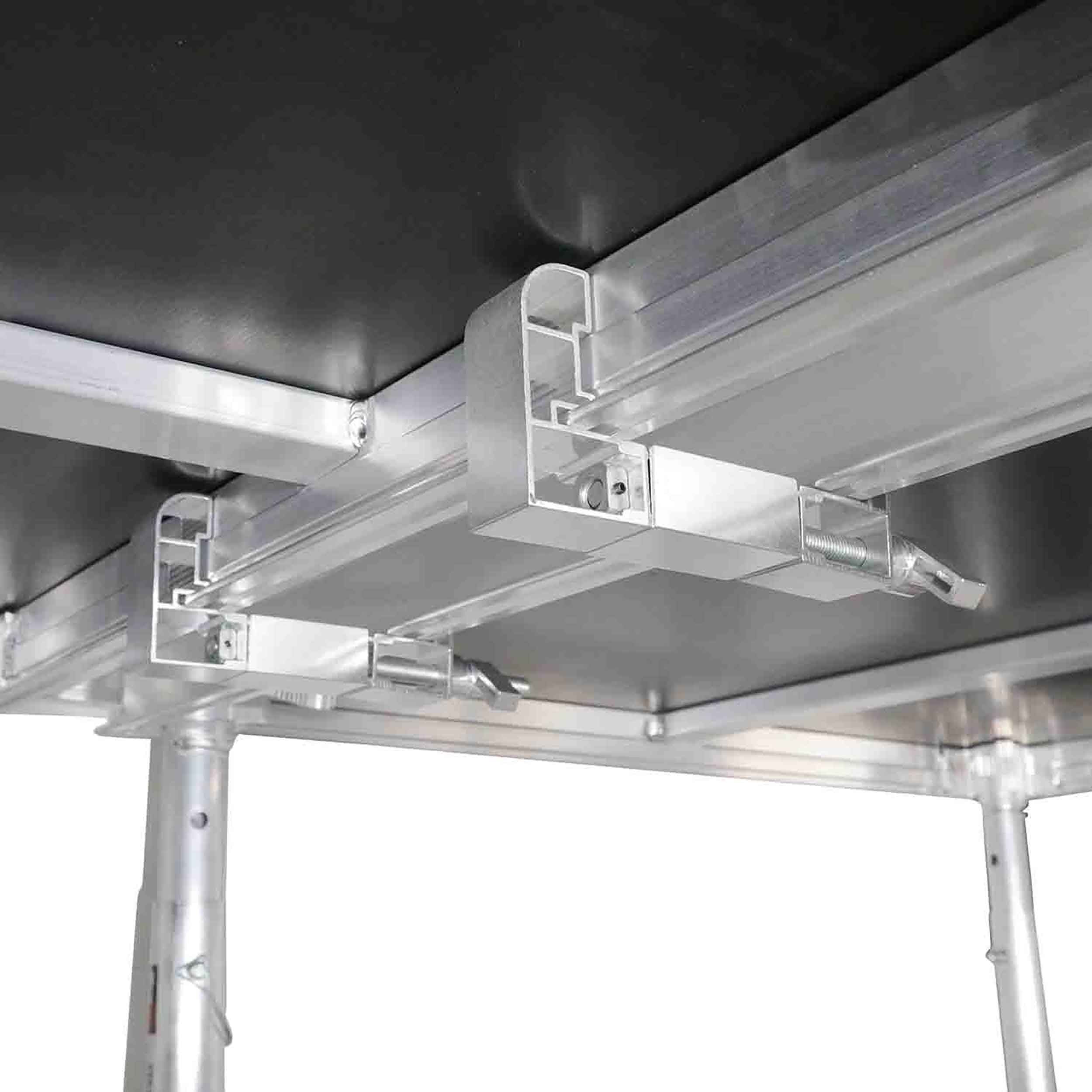

• Includes security clamps and a deck leveler joint for modular assembly.

Ideal For

• Concerts and live performances
• DJ platforms and entertainment setups
• Corporate events and presentations
• Schools and houses of worship
• Event production and staging rental companies
• Indoor and outdoor modular stage installations

What’s in the Box

• 1 × ProX XSQ-4X4 StageQ™ 4 ft × 4 ft stage platform.
• 1 × XSQ-2848X4 telescoping leg set, adjustable from 28" to 48".
• 2 × XSQ-C11MK2 lower deck security clamps.
• 1 × XSQ-C05 deck leveler joint.

Inputs & Outputs

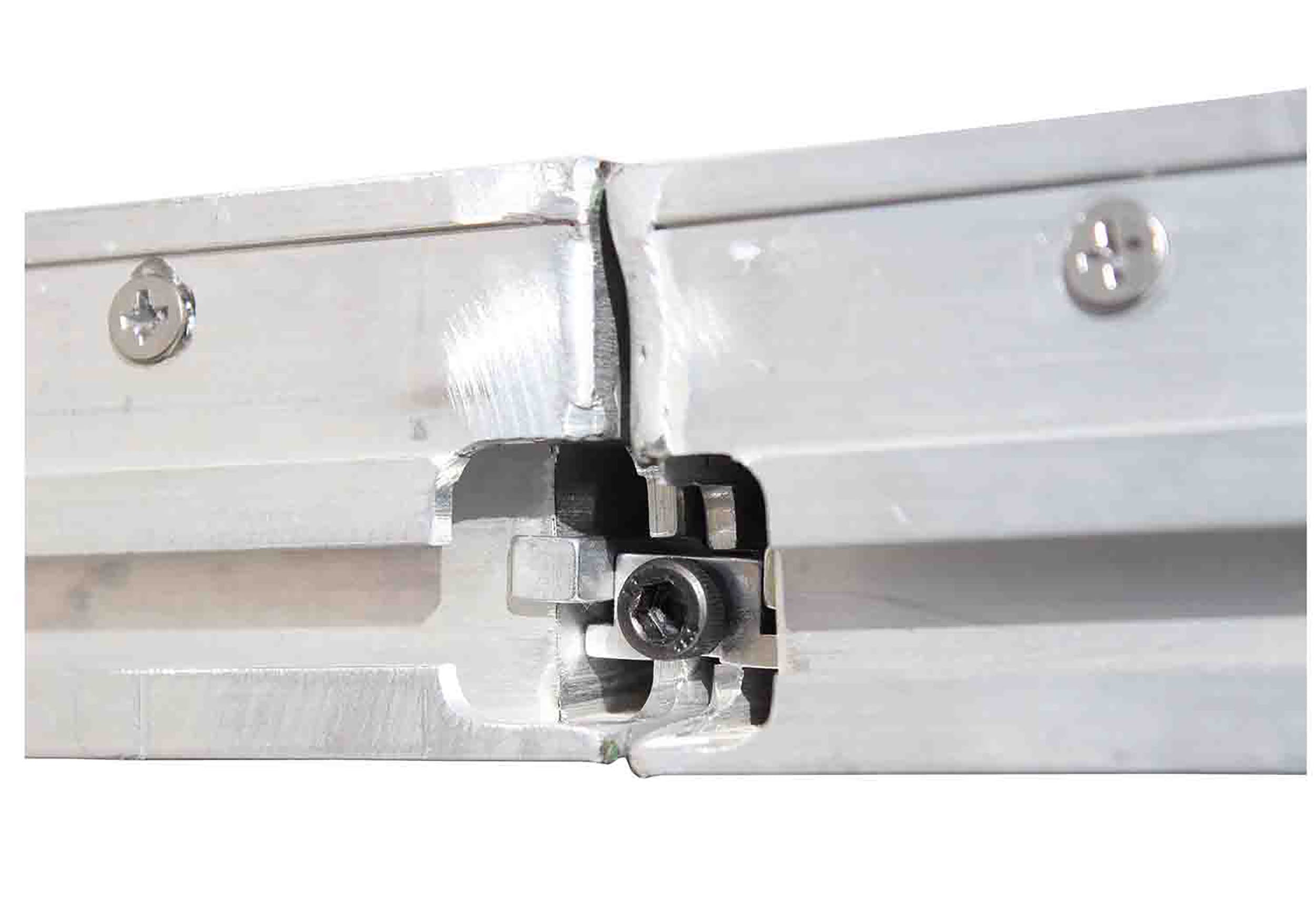

• Modular Connections: StageQ™ deck connection system
• Leg Adjustment: Telescoping legs with integrated locking pins and cables
• Leveling System: M16-threaded adjustable leveling feet
• Deck Security: Lower deck security clamps and deck leveler joint

Frequently Asked Questions

What is the size of the ProX XSQ-4X4 stage deck?

It is a nominal 4 ft × 4 ft modular stage section, with a stated deck size of 47.25" × 47.25".

How much weight can the deck support?

The stated maximum load capacity is 1500 lbs per deck when the load is evenly distributed.

What is the adjustable height range?

The included telescoping legs adjust from 28" to 48".

Can the platform be used outdoors?

The deck uses exterior-rated birch plywood and is designed for suitable indoor and outdoor installations. Follow the manufacturer's guidance for weather exposure, setup, and safe use.

Full Technical Specifications

General

Product Type	Modular Stage Deck Package
Nominal Deck Size	4 ft × 4 ft
Actual Deck Size	47.25" × 47.25"
Maximum Load Capacity	1500 lbs evenly distributed per deck
Deck Surface	Signature Honeycomb Digital™ high-pressure laminate
Lamination Process	High-temperature heat press
Deck Material	7/8" (22 mm) AAA-grade exterior-rated birch plywood
Frame Material	High-strength aluminium
Frame Construction	Precision TIG-welded corners
Leg Type	Telescoping
Adjustable Leg Height	28"–48"
Leg Locking System	Integrated security pin and cable
Leveling Feet	Micro-adjustable with M16 threaded bolts
Upper Leg Shaft Exterior Diameter	2" (50 mm)
Lower Leg Shaft Exterior Diameter	2.25" (57 mm)
Upper Leg Shaft Interior Diameter	Approximately 1.7" (44 mm)
Lower Leg Shaft Interior Diameter	Approximately 2" (51 mm)
Modular Connection System	StageQ™ deck connections
Certification	TÜV Rheinland tested and certified
Recommended Applications	Indoor and suitable outdoor staging
Optional Accessories	Steps, guardrails, and stage skirts sold separately

Physical Specifications

Stage Deck Dimensions	3.50" H × 47.00" W × 47.50" L
Stage Deck Weight	68 lbs
Leg Set Dimensions	7.50" H × 7.50" W × 28.00" L
Leg Set Weight	23 lbs
Product Weight	91 lbs (deck and leg set combined)
Shipping Weight	78 lbs
Shipping Dimensions	5" H × 49" W × 49" L
