Description

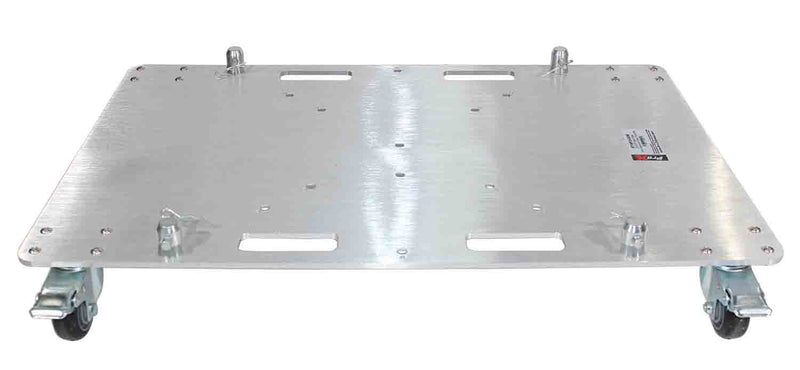

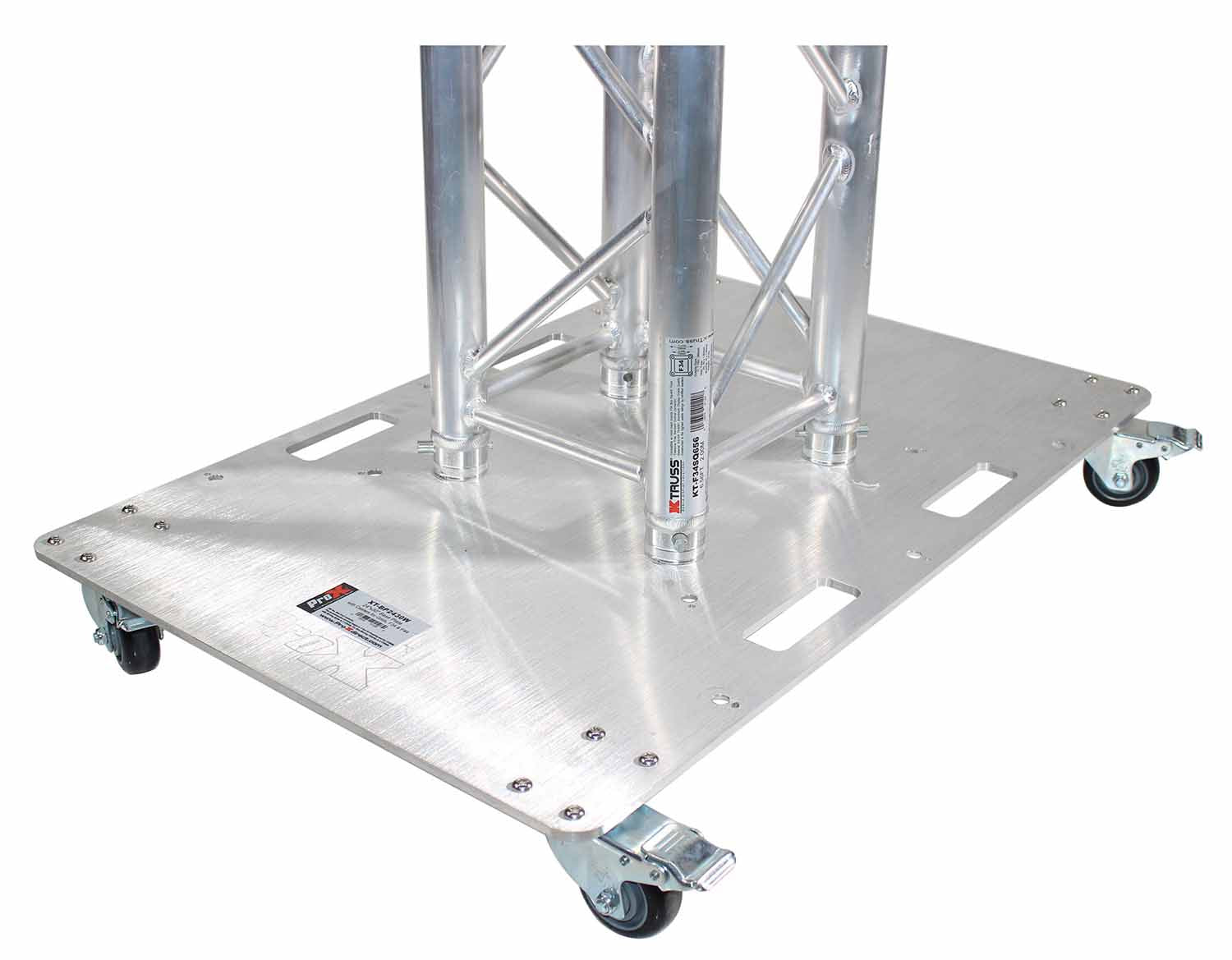

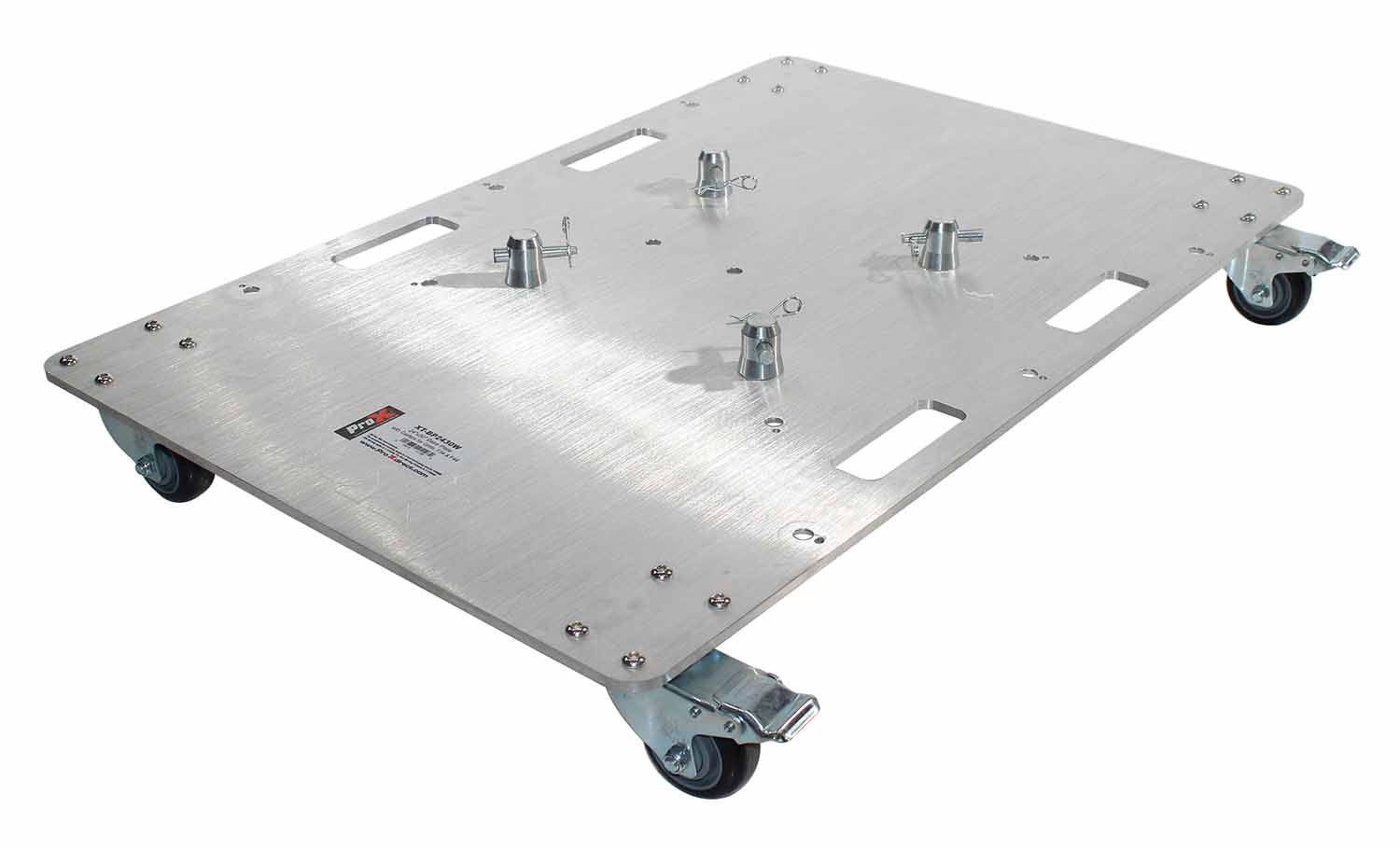

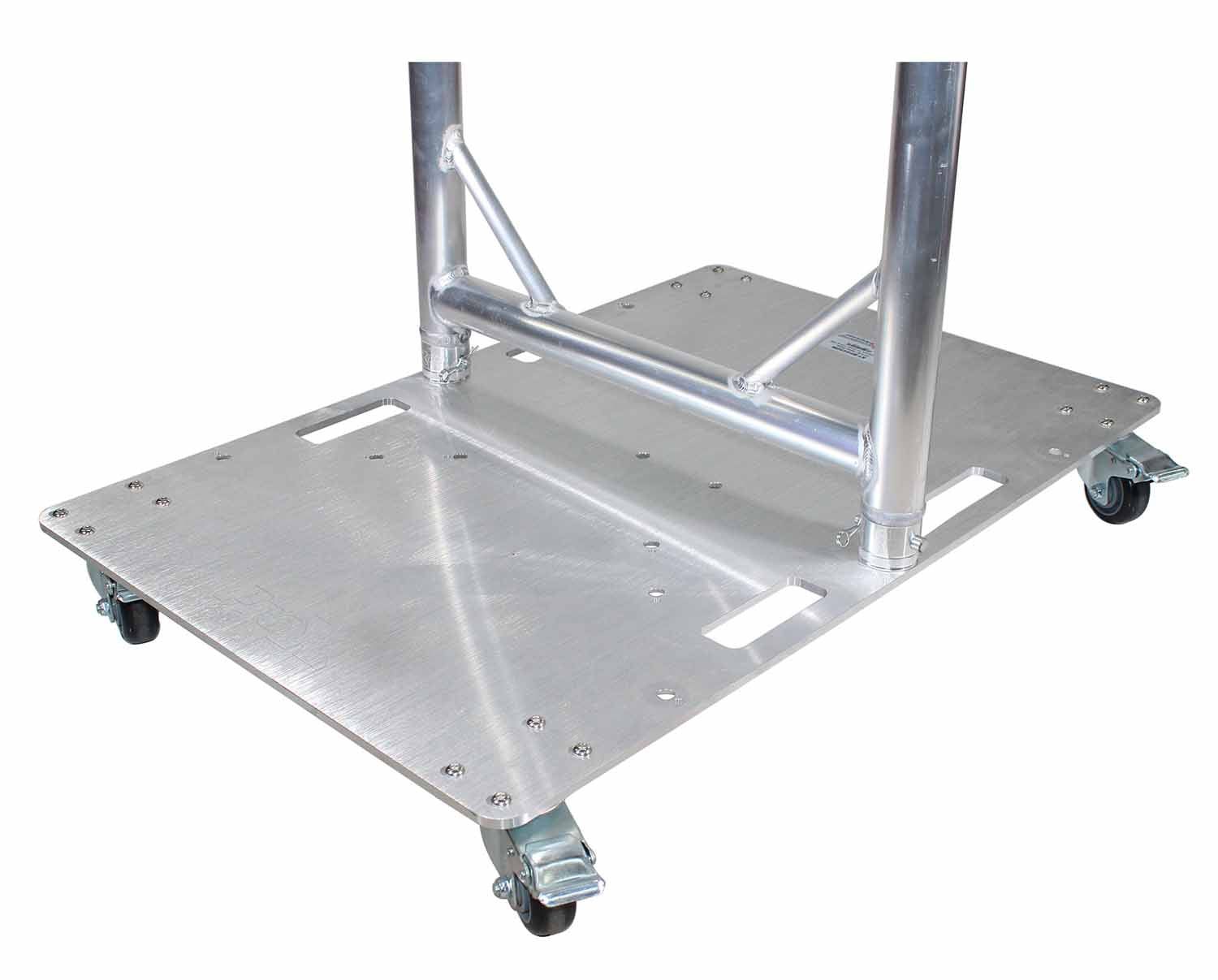

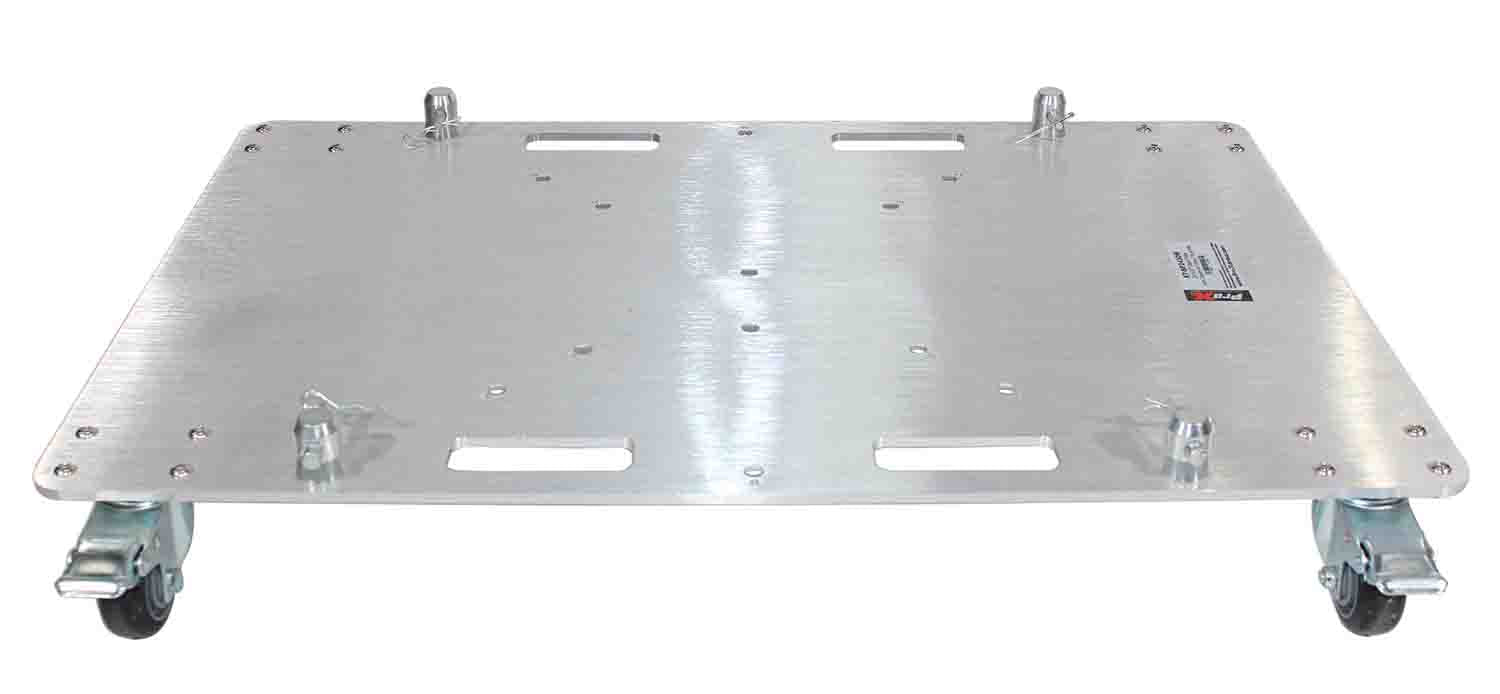

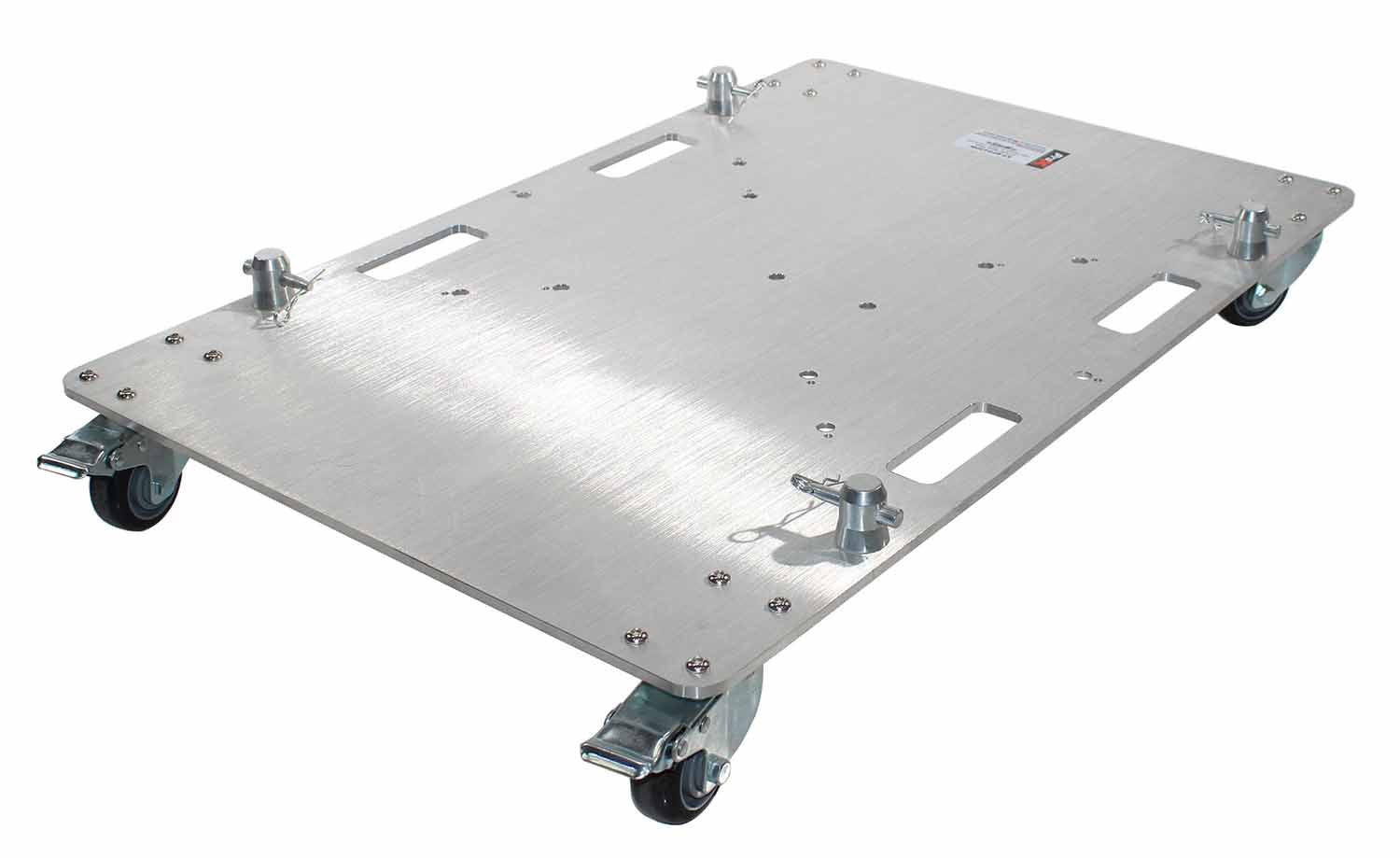

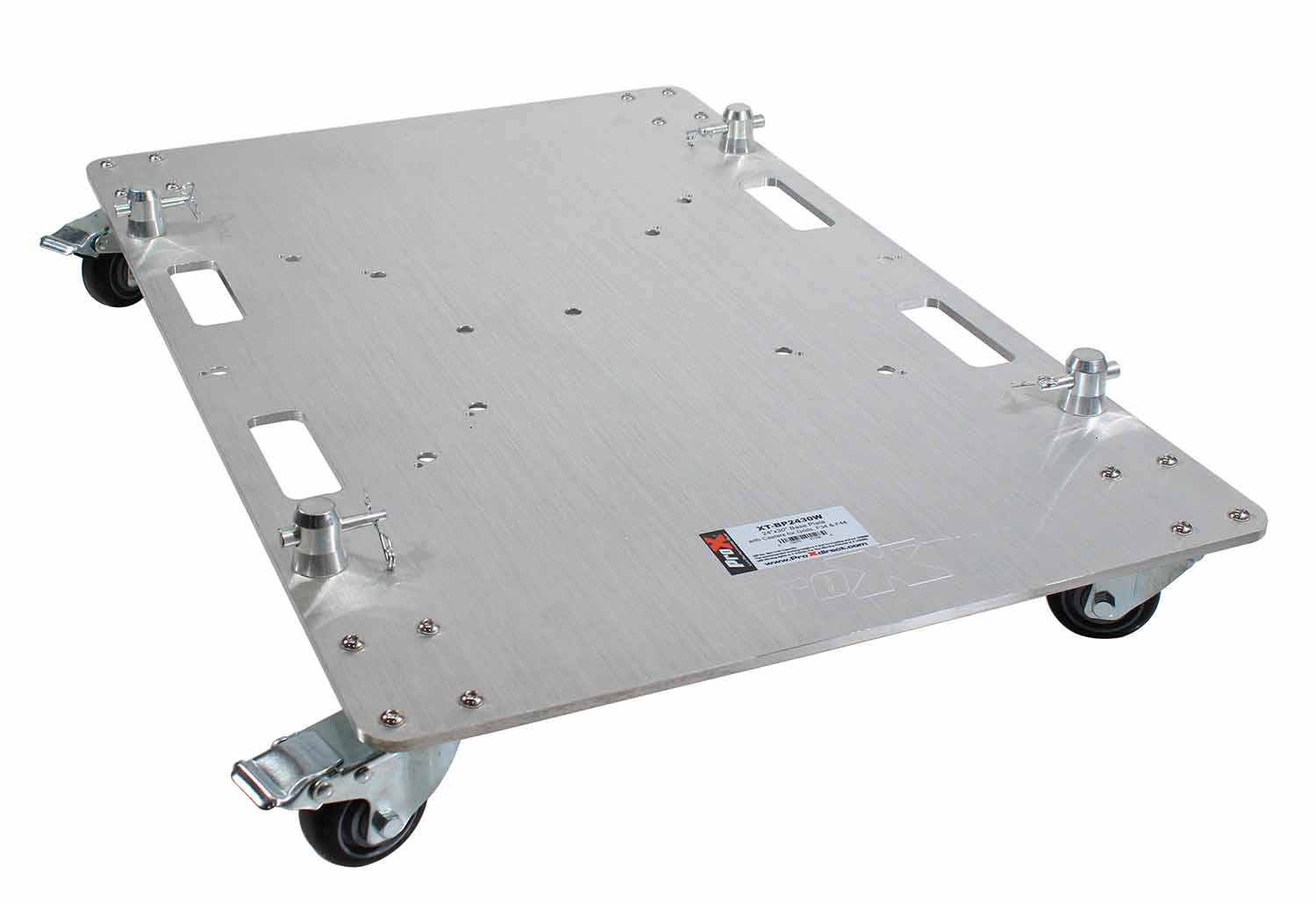

The ProX XT-BP2430W (XT BP2430W) is a 24 x 30 inch rolling base plate for the ProX XT-GRU Rapid Grid modular system, and it can also be configured to work with F34 truss. It is cut from 10mm EN-AWT6 6061 aluminum plate and rides on four 3 inch locking casters, so a grid or truss build rolls from the truck to the venue to the stage.
The plate has handle cutouts and multiple drilled stud mounting holes for different setups, and it ships with connecting hardware. It is designed for the XT-GRU3024 Rapid Grid unit, which builds single fixture positions, double hangs, ladders of fixtures or a full wall of hanging positions. ProX makes it in its own factory with TUV certified aluminum fabrication.
XT-BP2430W specifications
| Type | Rolling module base plate with locking casters |
|---|---|
| Plate size | 24 x 30 in (about 610 x 762 mm) |
| Material | 10mm EN-AWT6 6061 aluminum plate |
| Casters | 4 x 3 in (76 mm) locking casters |
| Designed for | ProX XT-GRU3024 Rapid Grid unit; can also be configured for F34 truss |
| Features | Handle cutouts, multiple drilled stud mounting holes |
| Included | Connecting hardware |
| Fabrication | TUV certified aluminum fabrication, made in ProX's own factory |
| Overall dimensions | 37.00 x 24.00 x 6.00 in (L x W x H), about 940 x 610 x 152 mm |
| Weight | 38.00 lbs (17.2 kg) |
| UPC | 019372411284 |
What is the XT-BP2430W made for?
The ProX XT-GRU Rapid Grid modular system. It is designed to carry the XT-GRU3024 grid unit and roll it into position, which protects the lighting fixtures hung on it during moves.
Does it work with F34 truss?
Yes. ProX says the base plate can also be configured to work with F34 trussing products, so a rolling truss build can sit on it as well.
Do the casters lock?
Yes. All four 3 inch casters lock, so the build stays put once it is in position.
What goes with the XT-BP2430W?
The XT-GRU3024 Rapid Grid U module it is designed for, plus the XT-GRTOP24 top bar and the XT-GRU-ARM truss tube. The XT-GRU-PKGX2 and XT-GRU-PKGX3 packages bundle Rapid Grid modules with a rolling aluminum base plate.
XT-BP2430W or XT-BP2424A?
The XT-BP2430W is a 24 x 30 in rolling plate in 10mm 6061 aluminum on four 3 in locking casters, 6.00 in tall overall and 38.00 lbs. The XT-BP2424A is a fixed 24 x 24 in plate in 8mm 6082 aluminum for F34 truss with conical connectors, 2.00 in tall and 22.00 lbs. Pick the XT-BP2430W when the rig has to roll, the XT-BP2424A for a static truss tower. See all base plates.
