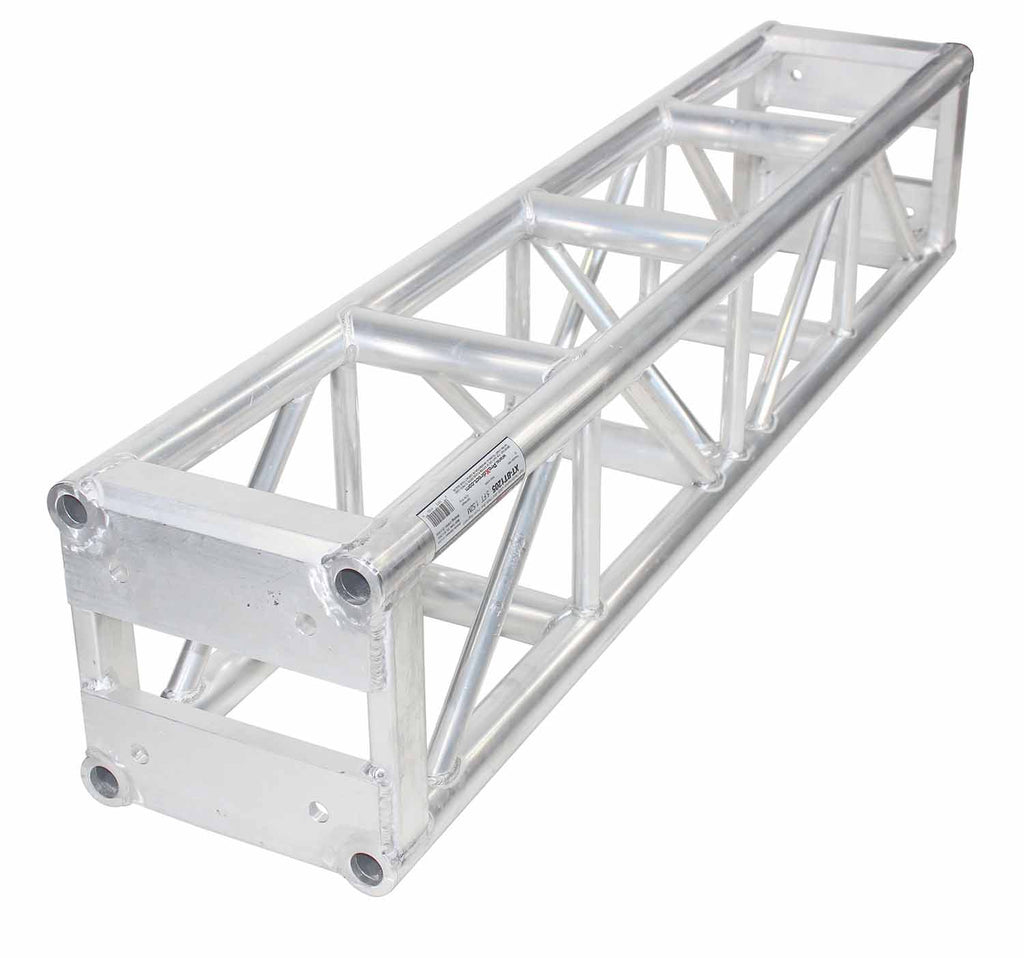

ProX XT-BT1205 MK2, 3mm Wall BoltX Bolted 12 Inch Professional Box Truss Segment - 5 Feet

Save 50%
ProX CasesSKU: H-PROX-XTBT1205
UPC: 019372412229
Sale price$569.99 Regular price$1,139.99
In stock (75 units), ready to be shipped

2 Day Shipping is Free or heavily discounted on most items! Make sure you select 2nd Day Shipping. We want to ship your order the fastest way possible.

Signature required for all deliveries/shipments for your security.

Call us for package deal pricing, we can help.

We price match competitor advertised prices.

Our online prices are always honored instore guaranteed.

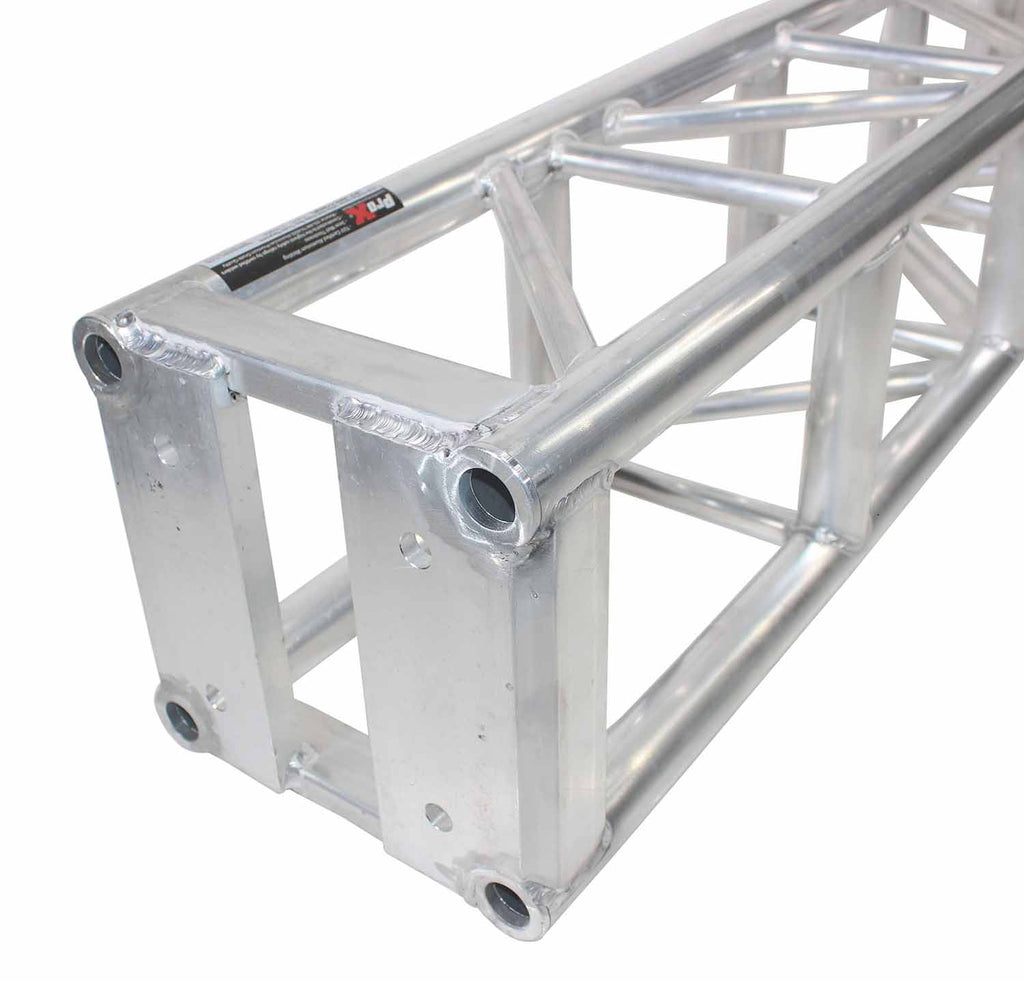

The ProX XT-BT1205 MK2, 3mm Wall BoltX Bolted 12 Inch Professional Box Truss Segment - 5 Feet is designed and engineered for high quality and for many applications like stage lighting, concerts, Ninja Obstacle Course type construction, and similar uses.  Setting ourselves apart from other box truss manufacturers BoltX has an innovative end plate designed and manufactured with heavy-duty aluminum material, welded on both sides, and our exclusive circular rings at each corner of the truss to reduce or eliminate damage to the main chord ends.  Since box trussing is often dropped or is dragged along concrete floors, this design will substantially lessen the need for expensive repairs to the tubes from the mishandling of the truss sections.  Our outstanding quality control and manufacturing techniques assure excellent fitment at every connection to expedite your setups.

Compatible with most other 12? Professional Box Truss Manufacturers utilizing a 6.75" bolt center pattern.

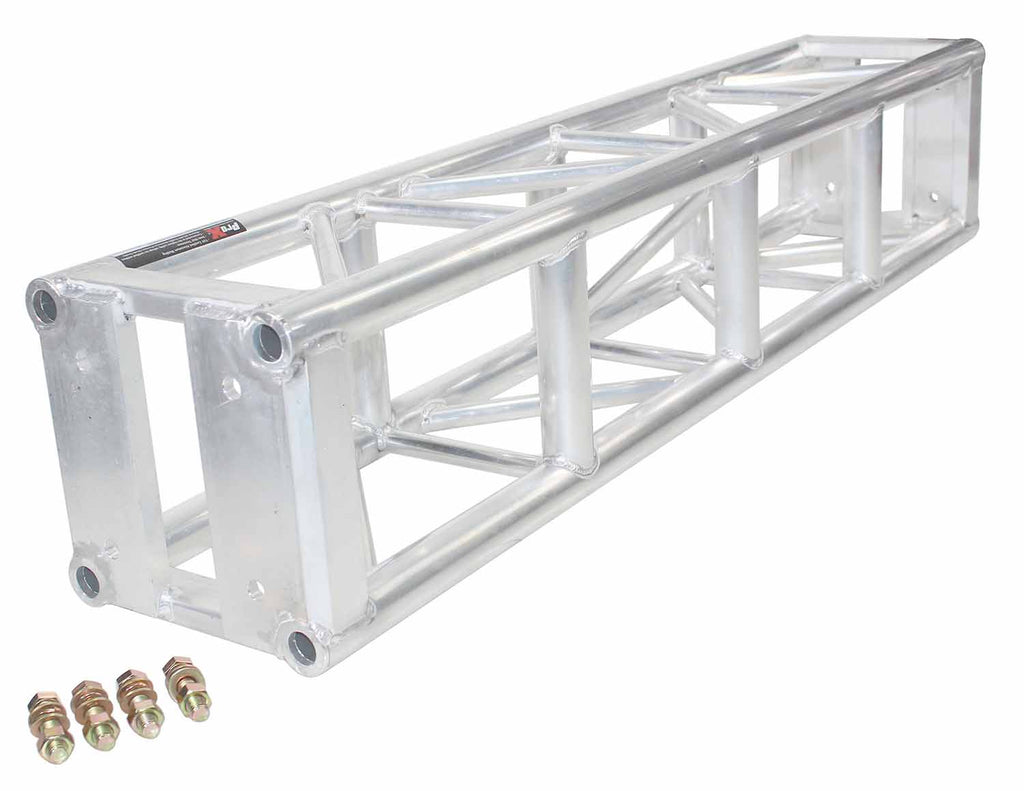

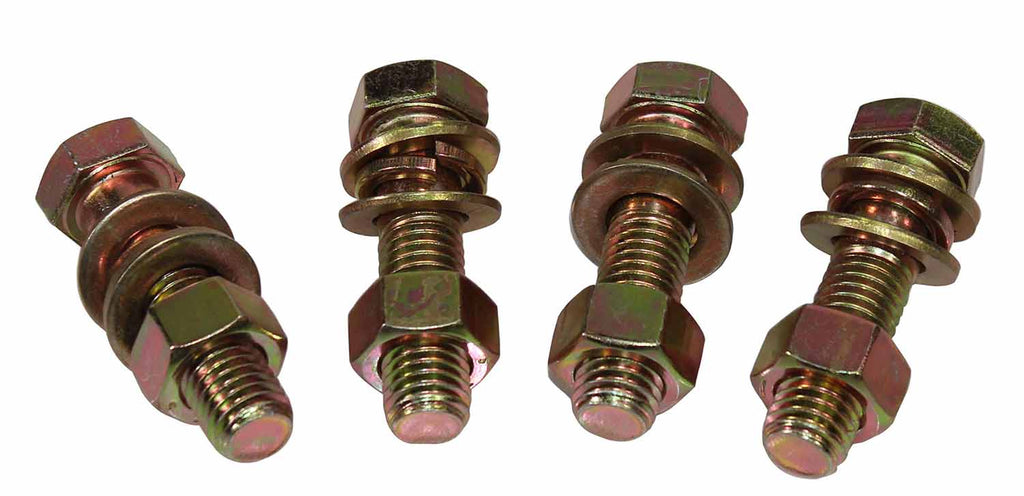

Each section of the truss includes one set of Four 5/8" - 11 x 2.5" (NC) attachment bolts, nuts, flat & lock washers.

IMPORTANT NOTE: All bolts in a span of truss must face the same direction, and truss uprights need to have the bolts on top, nuts on the bottom. When you are tightening the bolts, always wrench down with your ratchet from the nut side, and only turn a few cranks past firms. Bolts should be inspected on a regular basis. Washers must be used on both sides of a connection. Bolt sets should be replaced periodically as normal use degrades the threads on both the bolt and the nut. If you over-tighten your bolts you risk seriously damaging or even breaking them. Remember that any time you are bolting the truss, safety is of the highest importance. This is not a subject to be taken lightly. Before raising a bolted box truss build, one person should inspect all truss connections and the rigging.

Fits: ProX BoltX Bolted  Professional 12 x 12 Box Truss is 100% compatible with the industry-standard bolt patterns of most other 12? Professional Box Truss Manufacturers

Product Specification:

Dimensions: 60.00"L x 12.00"W x 12.00"H

Weight: 39.00 lbs

Shipping Dimensions: 61.00"L x 13.00"D x 13.00"H

Shipping Weight: 45.00 lbs

Load Bearing Chart
