Description

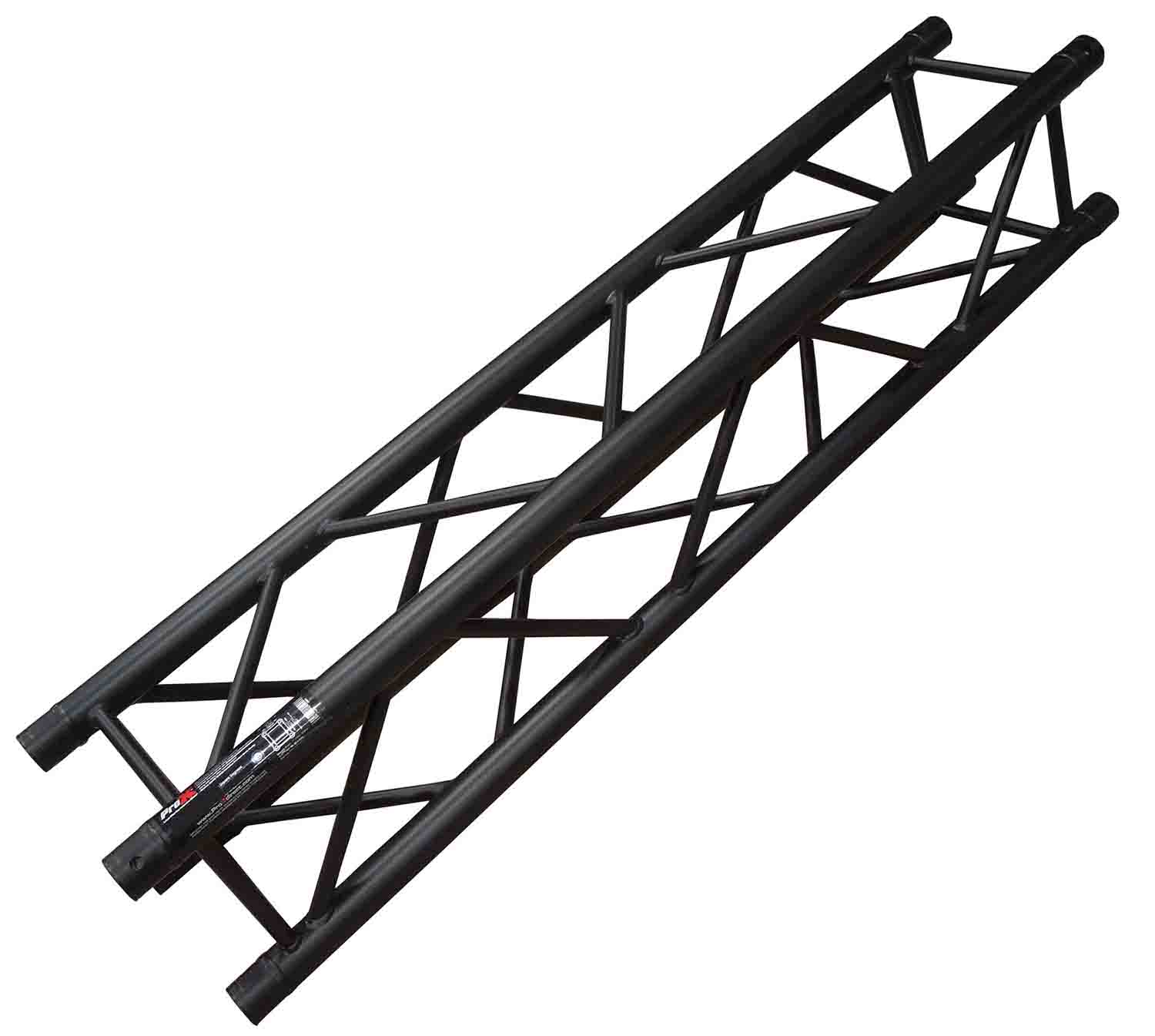

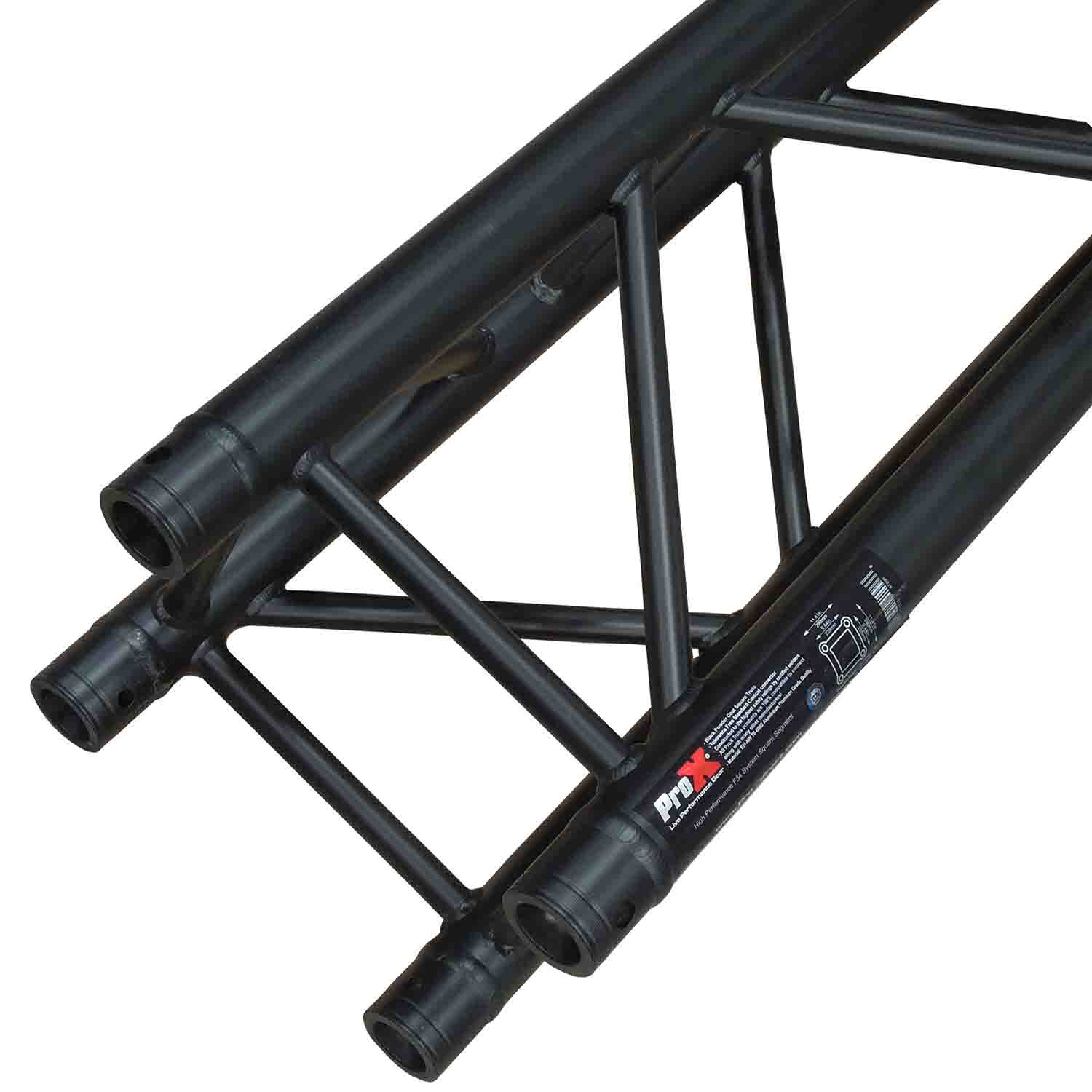

The ProX XT-SQ328BLK (XT SQ328 BLK) is a 3.28 ft (1 m) F34 square truss segment in black powder-coated aluminum for stage lighting, nightclub and installation rigs. It is built from EN-AWT6 6082 aluminum with 2 in (50 mm) main tubes and a 2mm wall, measures 11.42 x 11.42 in in cross section, weighs 19 lbs, and uses the standard conical connector system shared by most F34 brands.
The black powder coat is tougher than paint and resists scratches, chipping, abrasion, corrosion and fading, and it adds a distinct black look to a truss design. A connecting hardware set is included. ProX builds XT series truss in its own factory with TUV certified aluminum welding, and offers matching corners, base plates, connectors and accessories to expand the design.
XT-SQ328BLK specifications
| Type | F34 square (box) truss segment, conical connectors |
|---|---|
| Length | 3.28 ft, 39.36 in (1 m) |
| Cross section | 11.42 x 11.42 in (290 x 290 mm) |
| Main tube | 2 in (50 mm) |
| Wall thickness | 0.08 in (2 mm) |
| Braces | 0.75 in (20 mm) |
| Material | EN-AWT6 6082 aluminum |
| Finish | Black powder coat |
| Weight | 19 lbs (8.6 kg) |
| Included | Connecting hardware set |
| Fabrication | TUV certified aluminum welding, made in ProX's own factory |
| Compatibility | Standard F34 configurations with conical connectors from most brands |
| UPC | 019372410973 |
Will the XT-SQ328BLK connect to another brand's F34 truss?
Yes, in most cases. ProX XT series truss uses industry-standard F34 dimensions and a standard conical connector system, so it mates with other brands of truss of the same size and connector type.
Are the connectors included?
Yes. Each segment comes with a connecting hardware set.
Why choose black powder coat over bare aluminum?
Looks and durability. Powder coating gives a stronger finish than paint and resists scratches, chipping, abrasion, corrosion and fading.
XT-SQ328BLK or XT-SQ328?
They share the same 3.28 ft length, 11.42 in square cross section, 2mm wall, 6082 aluminum and 19 lbs weight. The difference is the finish: the XT-SQ328BLK is black powder coated, while the XT-SQ328 is the same segment without the black coat. Pick the black segment to match a black truss build, the XT-SQ328 to match bare aluminum truss. Finish a black build with the XT-BLOCK-BLK sleeve block or the black adjustable plate hinge, and see all F34 truss segments.
