Description

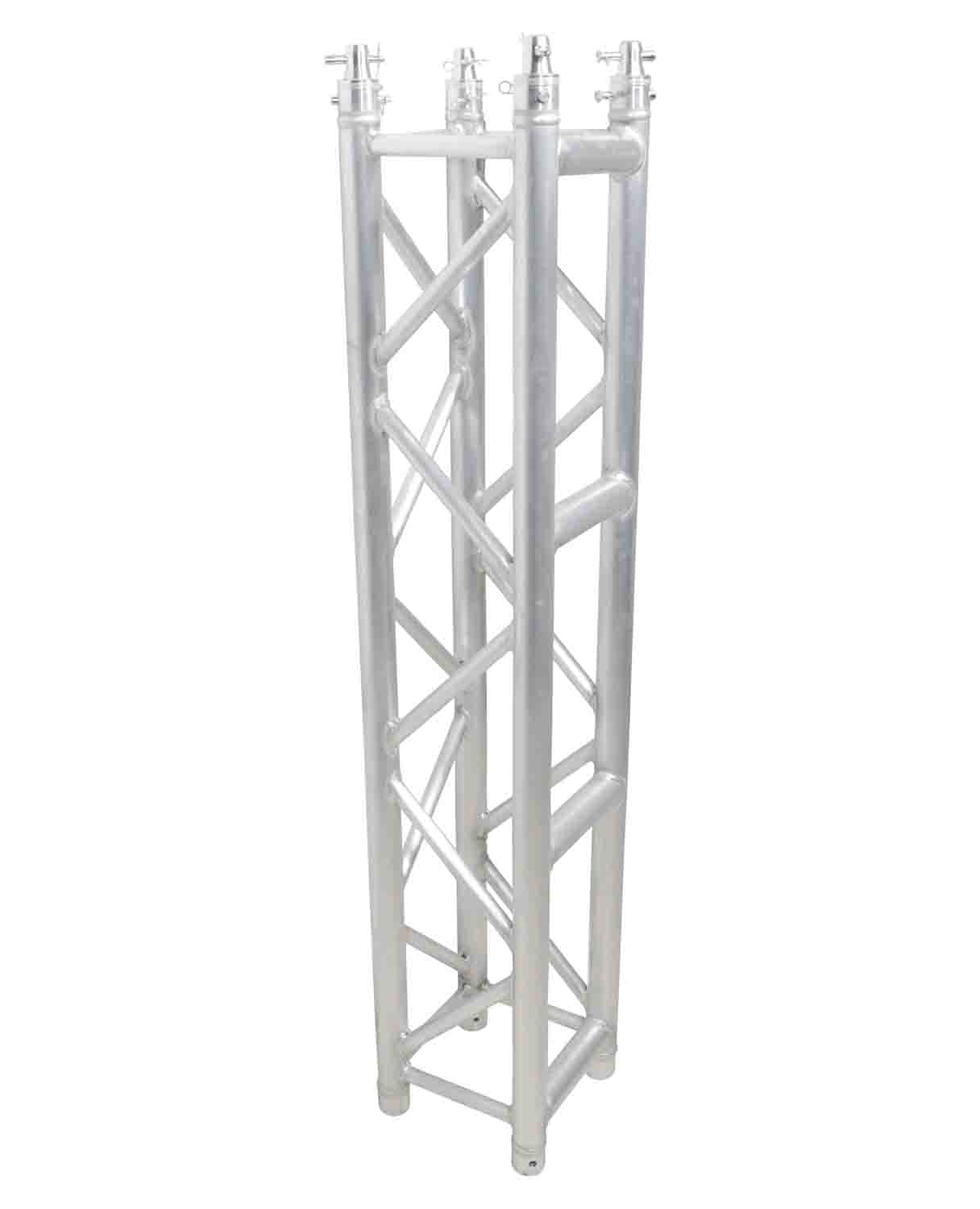

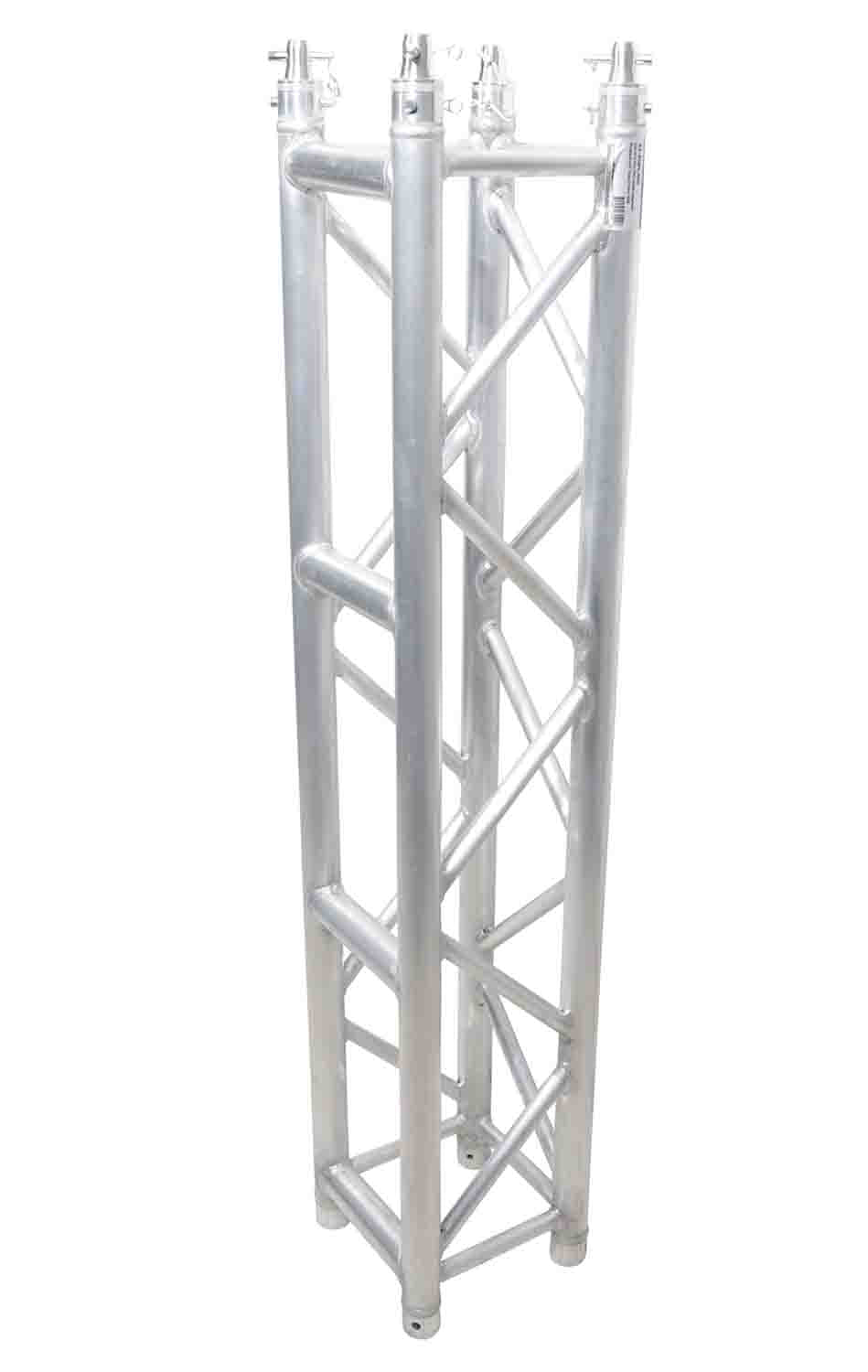

The ProX XT-SQPL492 is a F34 Professional Truss Ladder Segment with 4.92 feet. It is compatible in design with standard F34 Trussing but with a ladder brace on one side for safe climbing and with thicker tube walls for enhancing vertical load capacity in combination with standard main rig trussing. Prox Truss is one of the most trusted staging support systems in the industry and is built to the highest standards of safety and performance. It's a rugged and heavy-duty trussing solution perfect for mobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations. Also available in 3 meters and 1 meter.

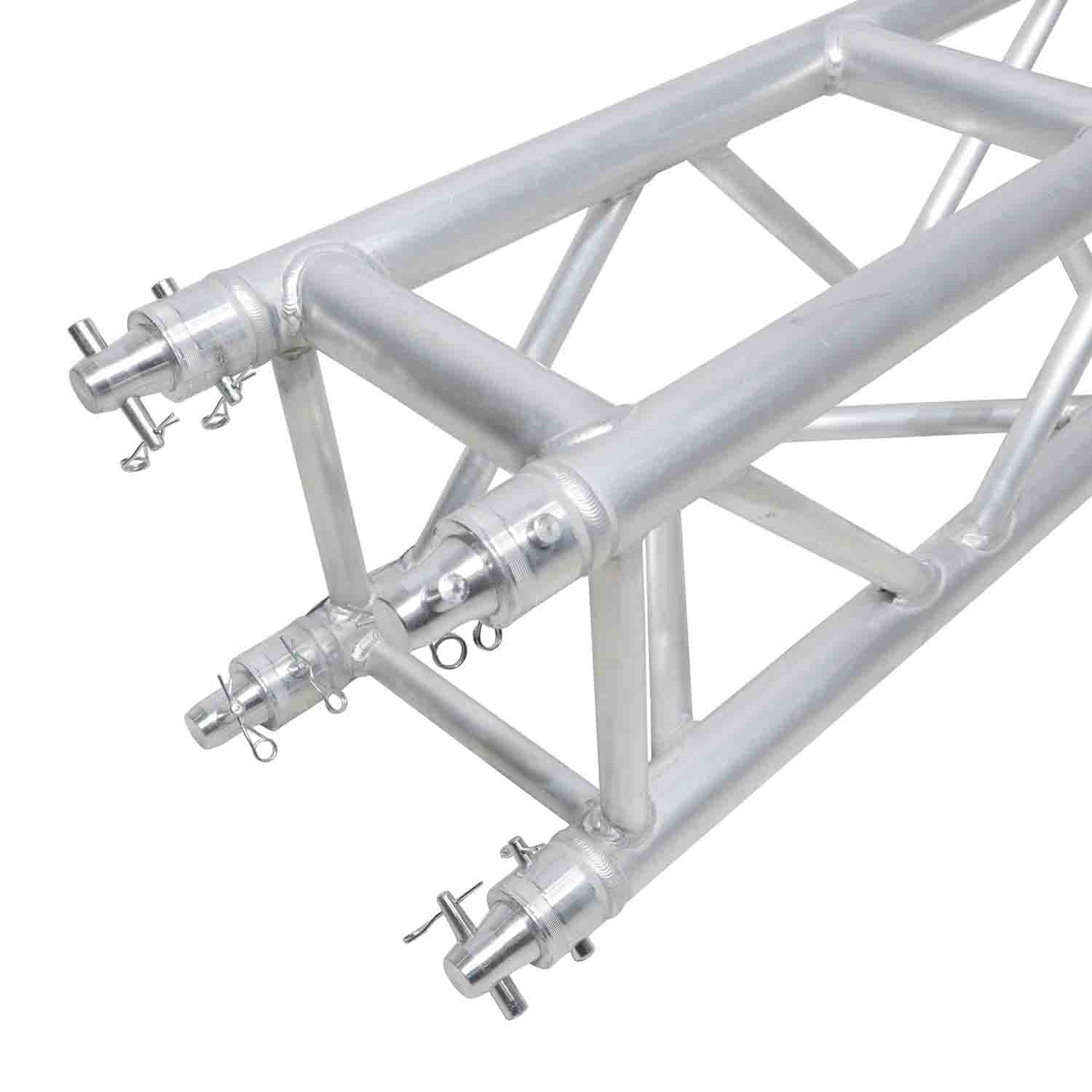

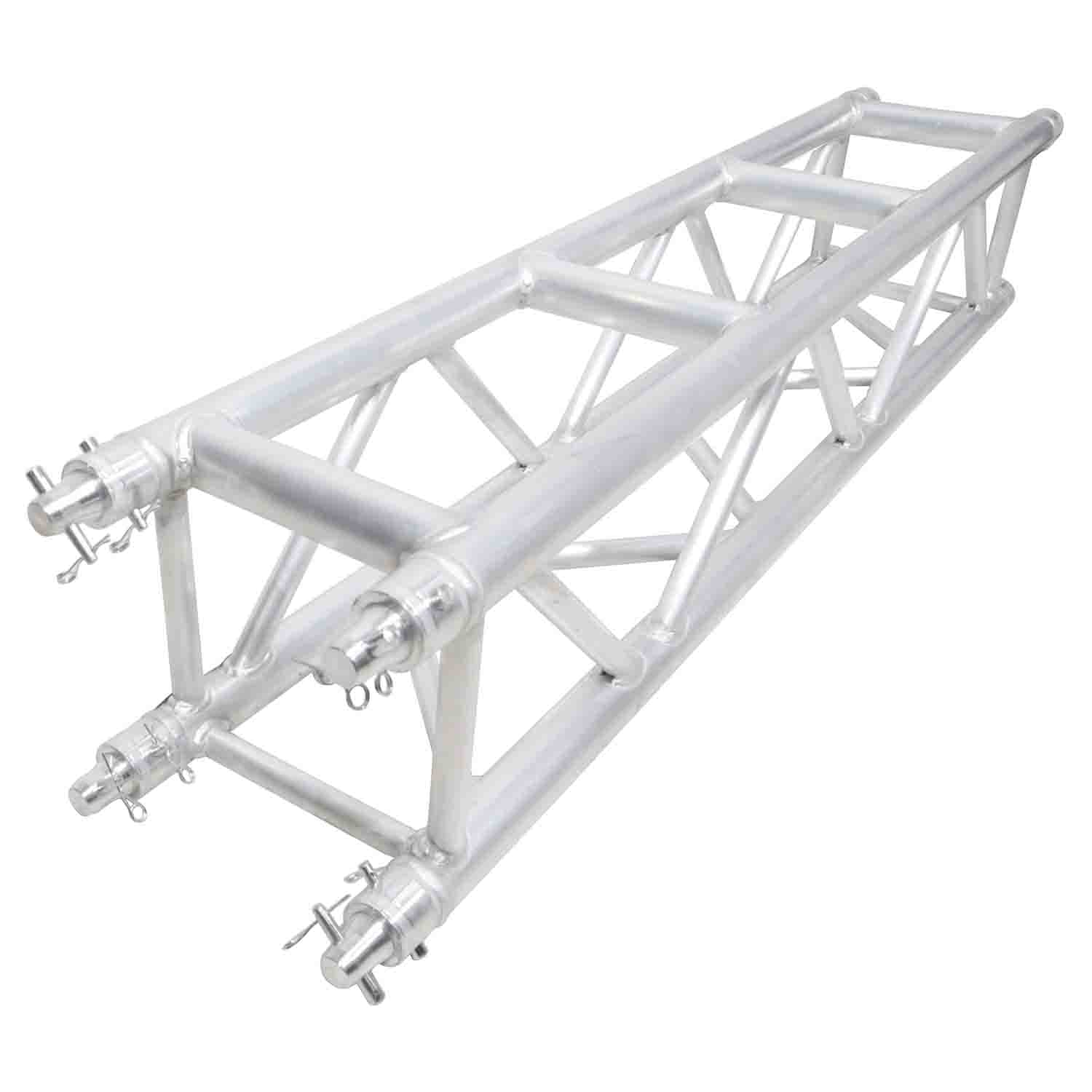

The Easy to Climb, Professional Ladder Truss system is a square truss that has one side as a ladder with 2" tubes with 9 3/4" spacing and utilizes a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors, and accessories that add stability while expanding on limitless configurations. Always consult an engineer for complex designs.
It is important to note that the ladder truss is designed to be installed in a vertical orientation. It is typically used at the lift/support points of a truss roofing system or indoor truss structure to make climbing of the structure easier and safer. It should not normally be used in a horizontal position. However, because it has 3mm wall tubes it will still be as strong as the 2mm tube standard XT-SQ trussing and the loading chart for the XT-SQ Truss should be used. The ladder side has no diagonal bracing so if ever used horizontally the ladder side should be oriented down. Always know your load weight for your equipment.
To Fit: Fits most F34 brands
Product Specification:
Dimensions: 59.00"L x 11.25"W x 11.25"H
Weight: 27.00 lbs
Shipping Dimensions: 60.50"L x 13.00"D x 13.00"H
Shipping Weight: 32.00 lbs
