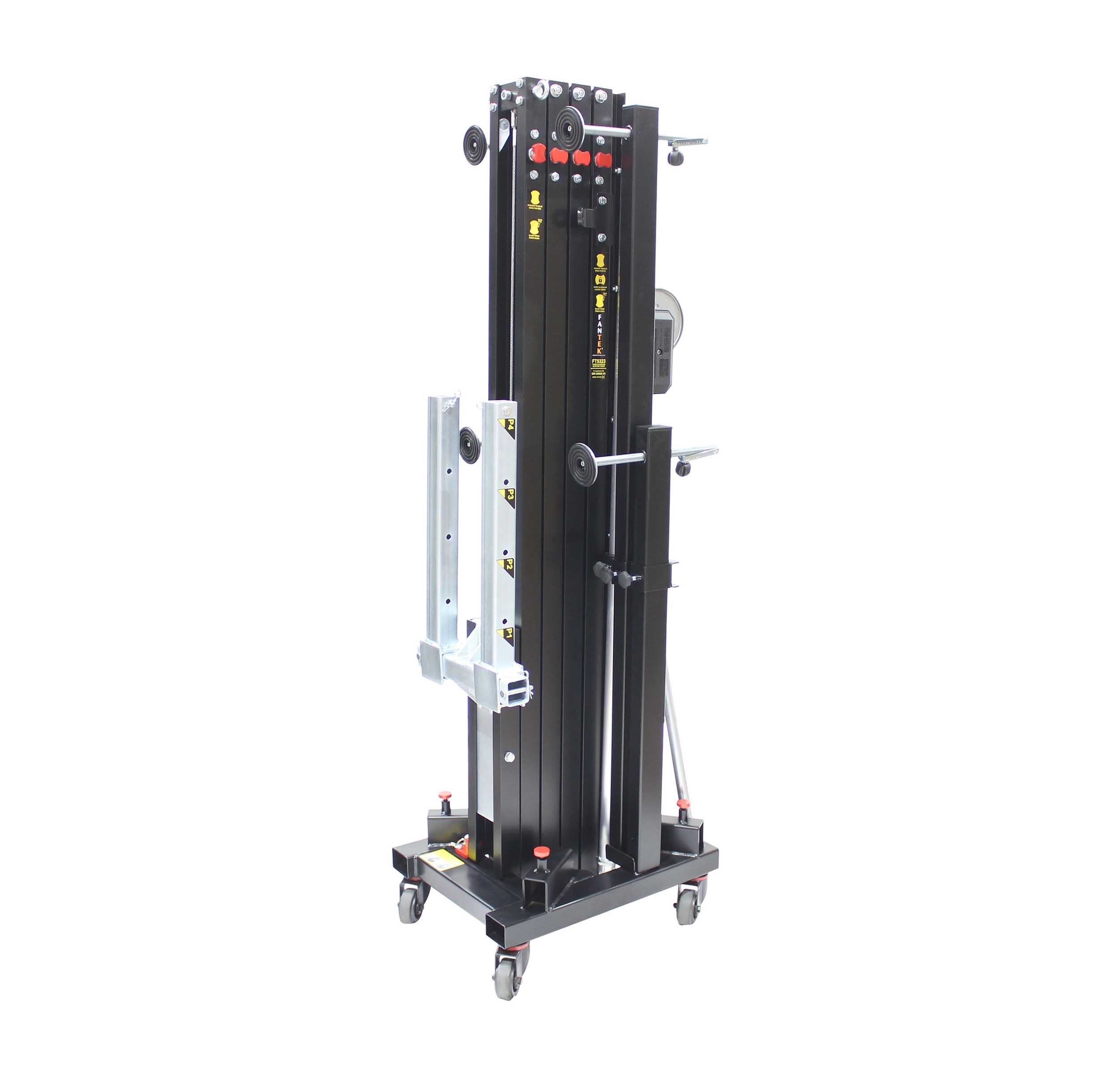

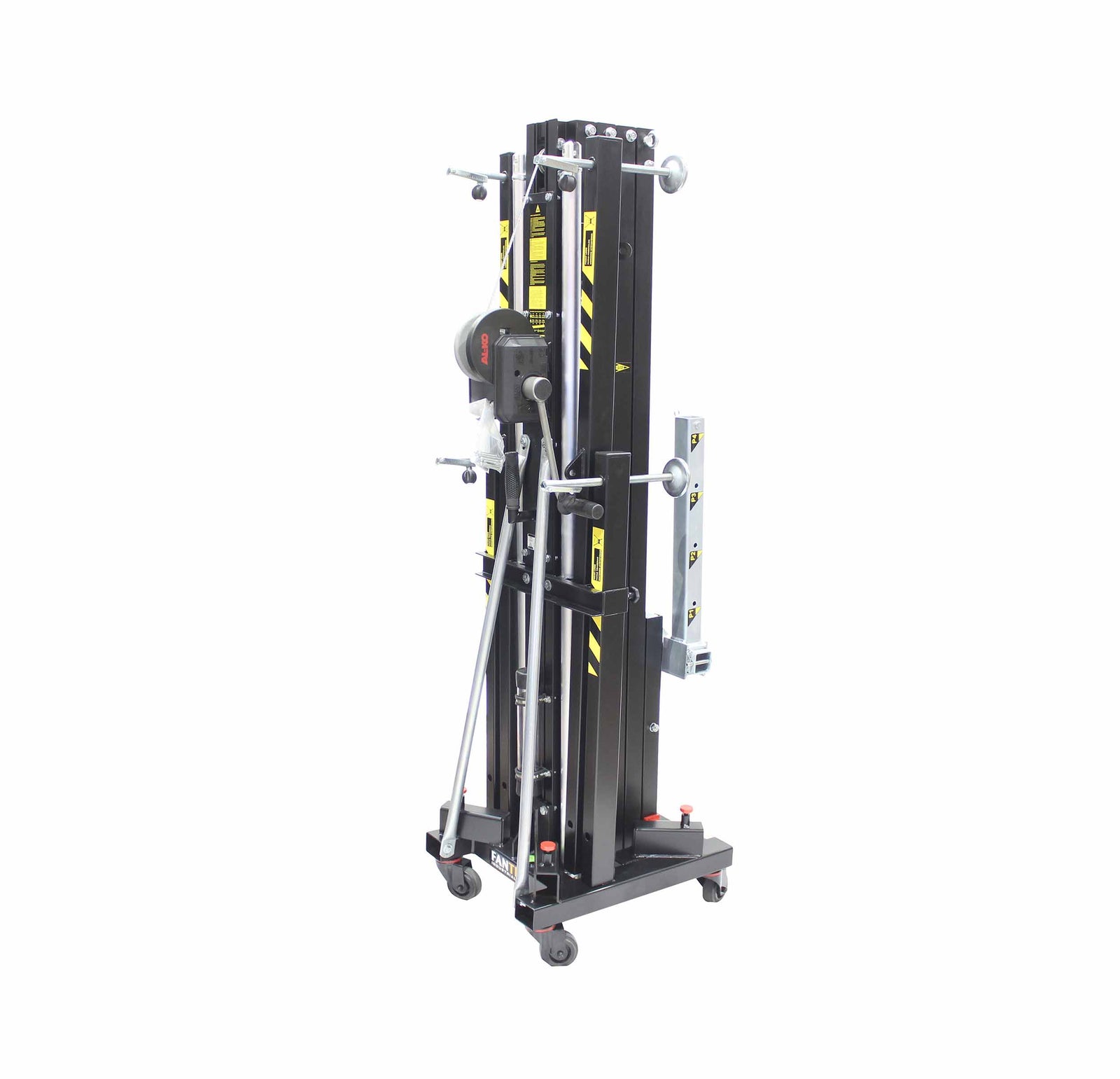

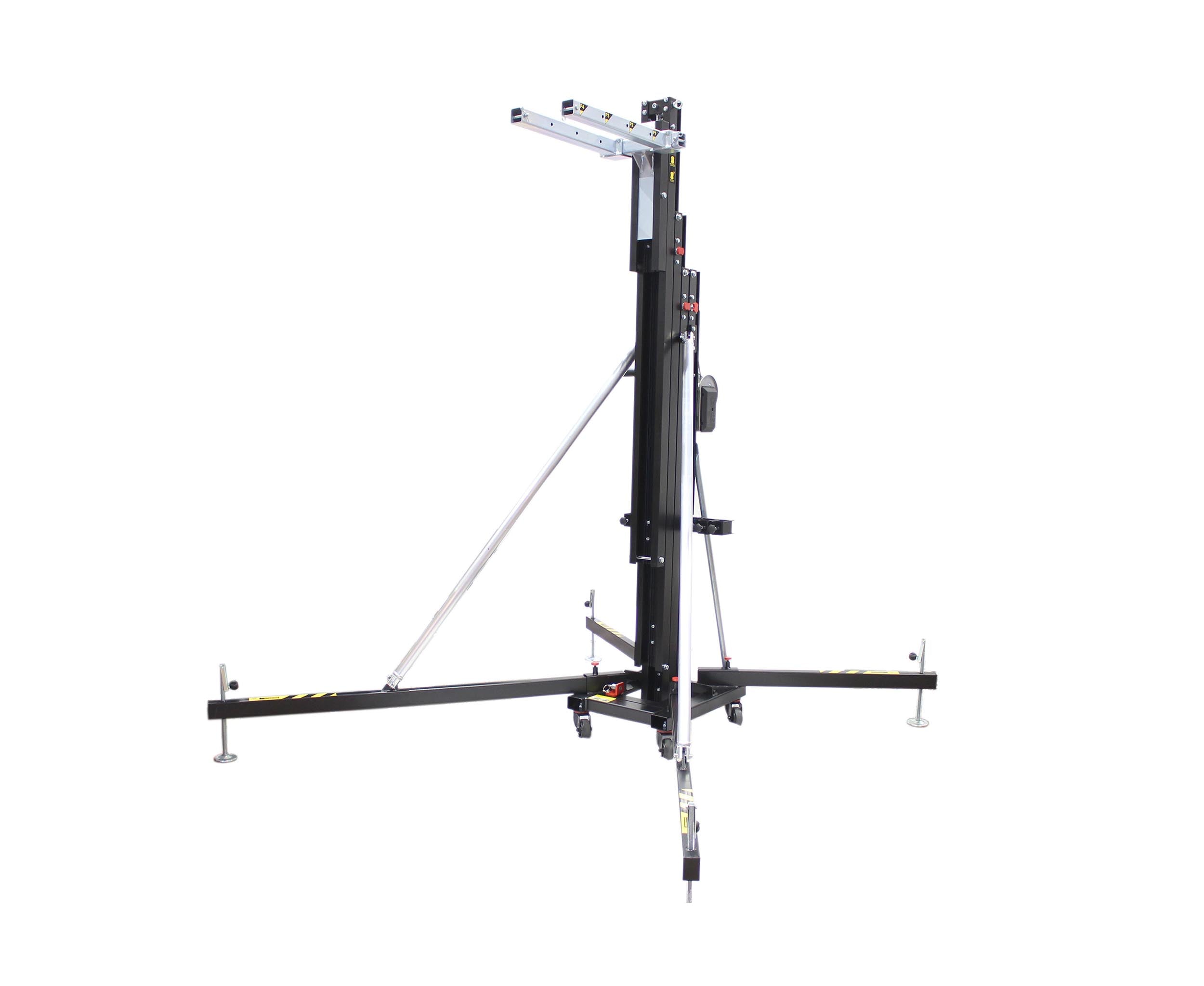

The ProX XTF-FT5323 FANTEK (Made in Spain) Compact Front-Loading Lifting Line Array Systems Tower 518 lbs. Capacity - Max Height 16ft. Includes XTF-ATF16PA Line Array Adapter with Hanging Ring. XTF-FT5323 FANTEK Lifting Tower is a front-loading system designed for the effortless elevation of heavy loads from the floor. This tower can reliably lift Line Array Systems weighing up to 235 kg (518 lbs.) to a maximum height of 4.98 meters (16.33 Ft). Its versatility makes it suitable for suspending line array systems, trusses, and LED screens, with a compact design and integrated castors for exceptional maneuverability, reducing storage space. This tower is the perfect solution for applications in touring, rental, and event production, including concerts, trade fair stands, theaters, and more.
Included with this item is an XTF-ATF16PA Line Array Adapter with a Hanging Ring. Our patented Dynamic Overlap stacking trusses, incorporating four masts, are crafted from extruded aluminum and TIG welded for safety. The tower's telescopic mechanism includes a Pin Locking System for secure stopping during lifting, relieving the load from the wire rope. Additionally, the DYNSYS system ensures user safety by monitoring torque and preventing overloading, and the WIREDRIVE minimizes wire angle for smooth operation. The steel base and adjustable screw jacks provide stability, and it's crucial to secure loads at a locking point, not on the winch alone.

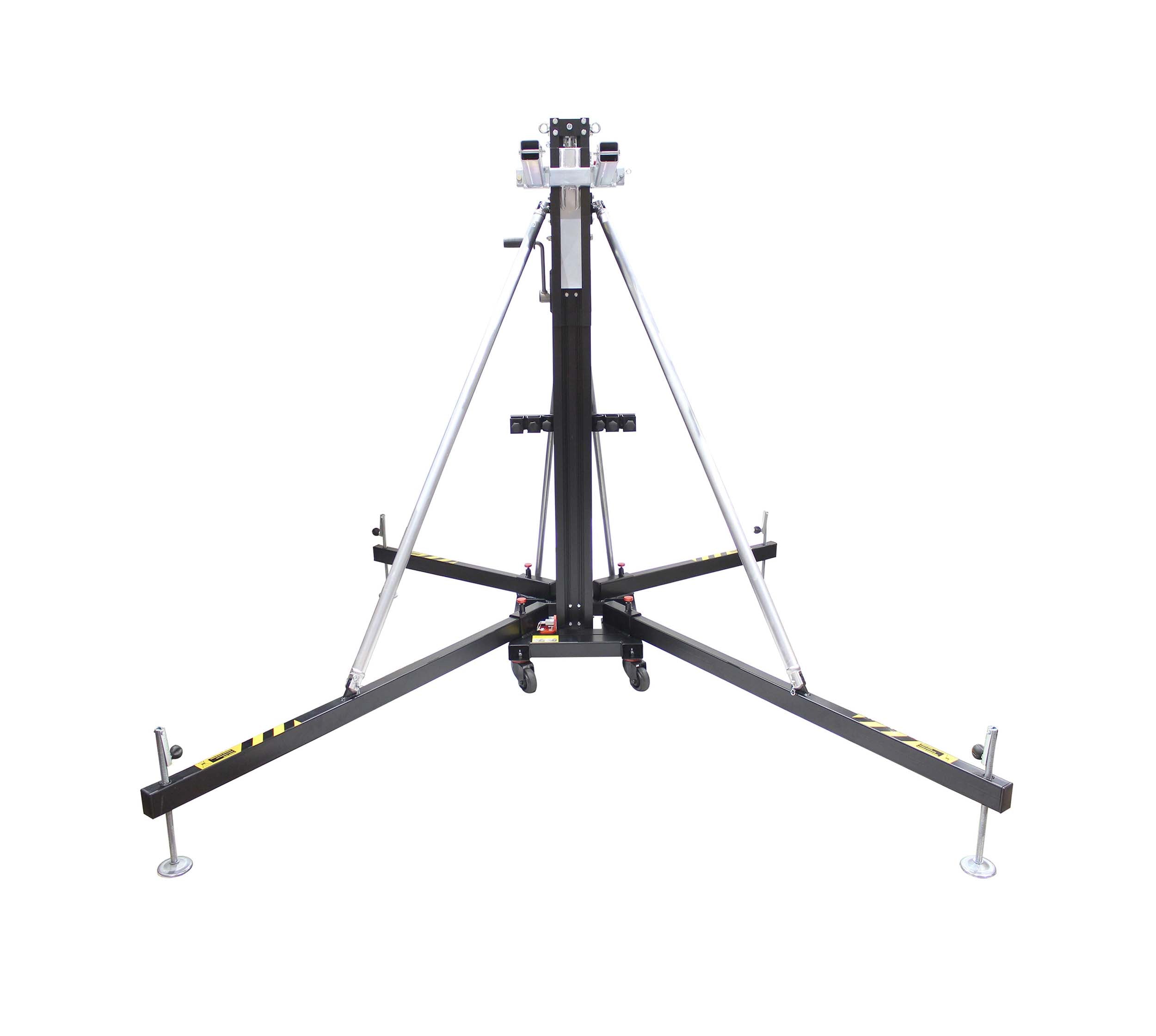

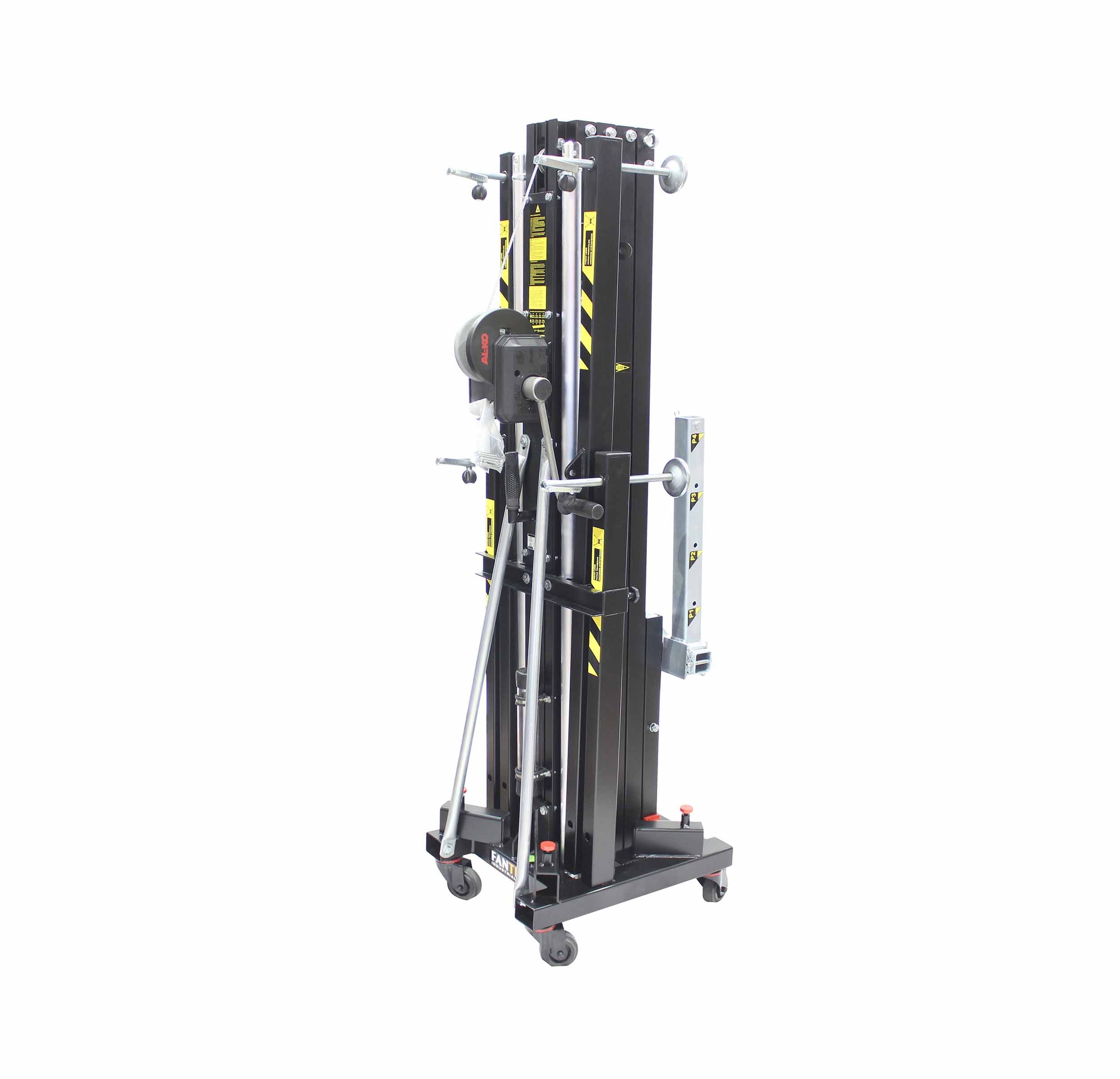

These Patented Dynamic Overlap stacking trusses (4 Masts) are manufactured with extruded aluminum (Alloy: EN-AW according to 6082 T6) and TIG welded by Certified Welders for maximum safety, are specially designed to be compact when folded, reducing storage space and making it easier to handle. FANTEK towers use a reinforced steel base with outriggers that support heavy loads and high heights.

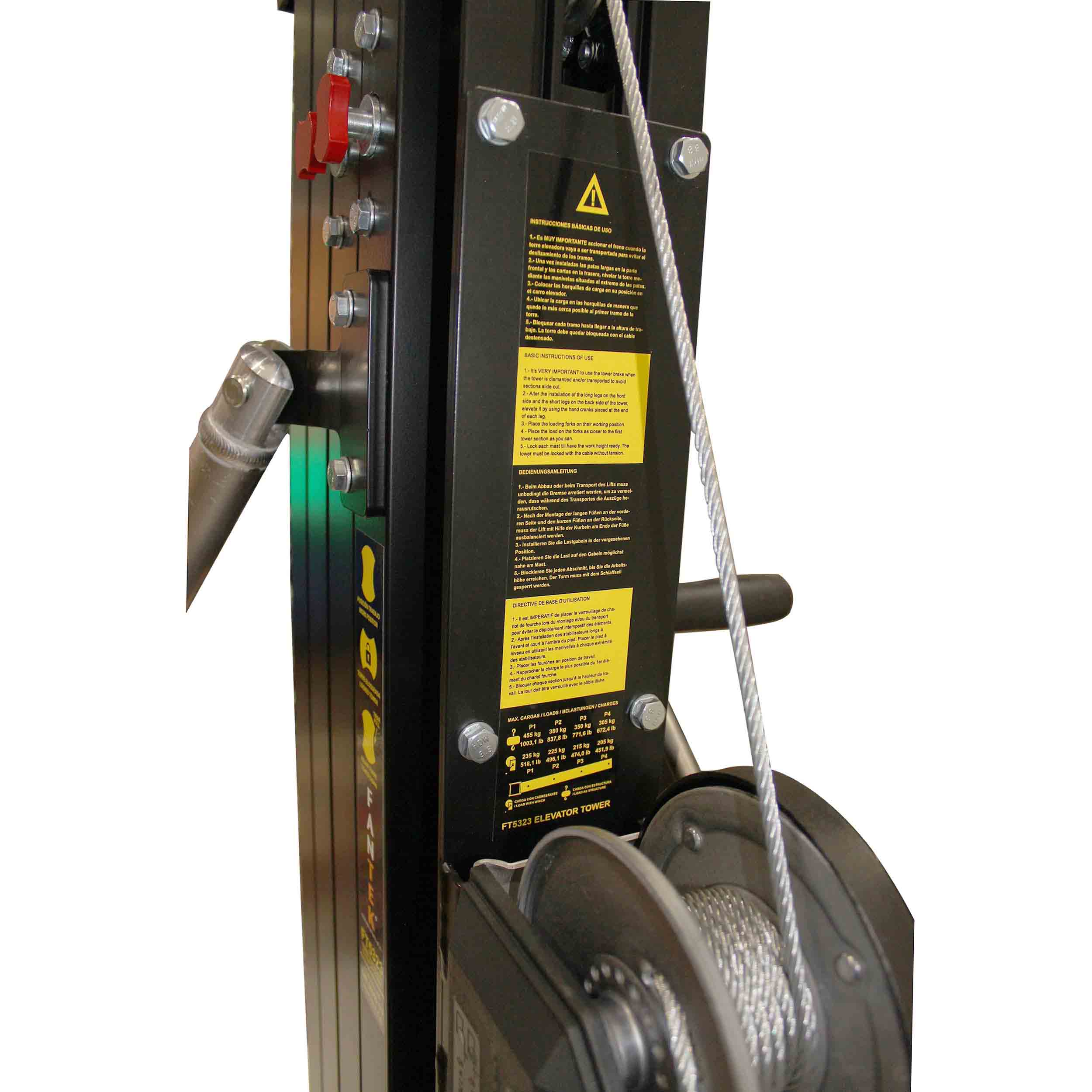

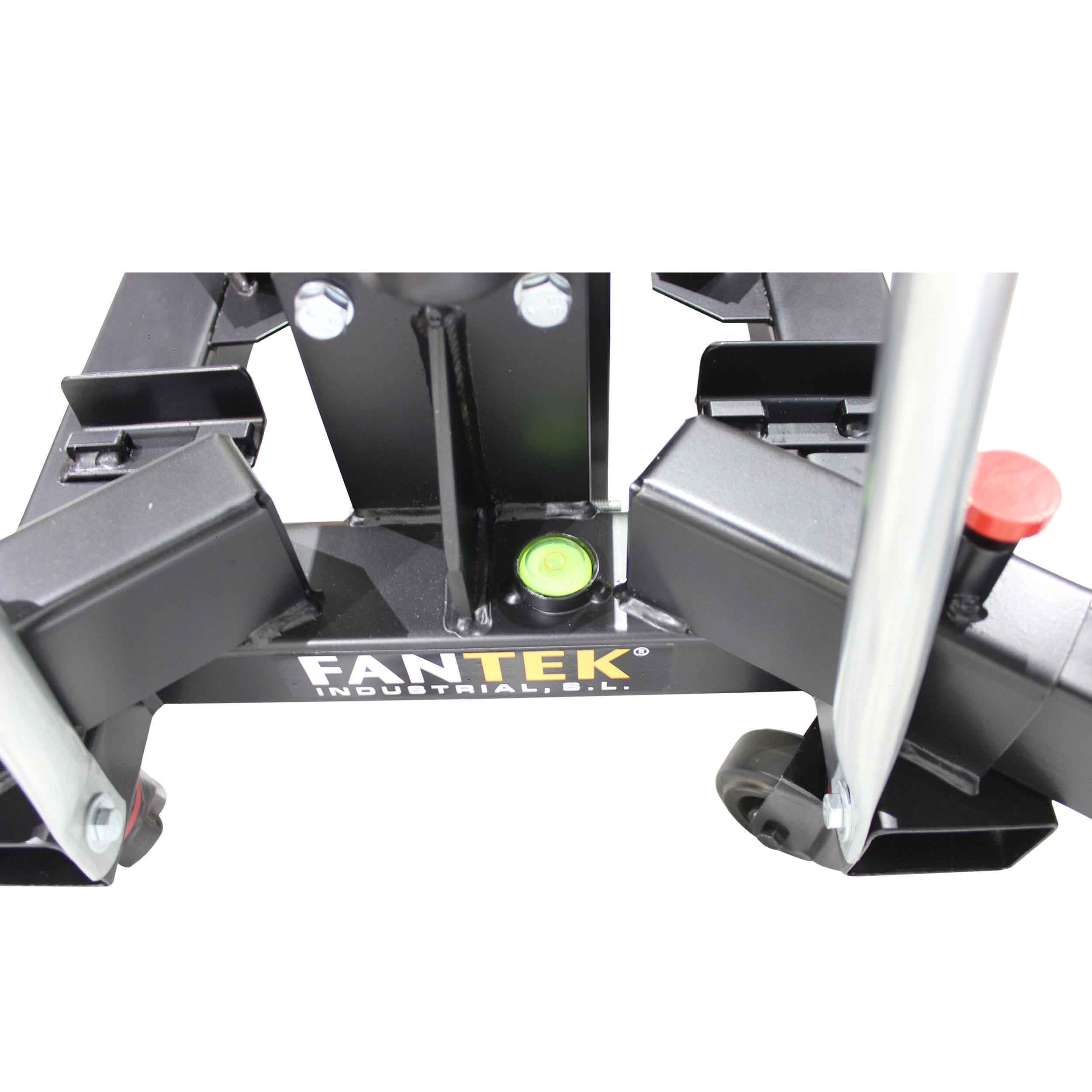

During lifting, the tower telescopic mechanism lift can stop safely at any of the Pin Locking System positions. These pins take the load off the wire rope. Additionally, the DYNSYS is a system designed to guarantee the “health” and good operation of the tower, since it accomplishes many functions, all focused on maximizing user safety. Each Dynsys system is adjusted to control the torque that is applied on the winch and, when this is exceeded, the system acts and does not allow to continue the lifting process. The WIREDRIVE is a multidirectional grooved pulley that reduces the wire angle between the winch drum and its entry to the first mast. The steel base provides great stability when the adjustable screw-jacks are well balanced and the bubble level on the base provides accurate leveling. Always secure loads at a locking point and never on the winch alone!
Product Specifications:
Minimum Height: 1.71 meters (5.62 feet)
Maximum Height: 4.98 meters (16.33 feet)
Maximum Load Capacity: 235 kg (518 lbs.)
Winch Capacity: 500 kg (1003.10 lbs.)
Loading Fork Dimensions: 500 mm (19.68 inches)
Material: EN-AWT6 6082 Aluminum
Certification: CE - DGUV V17/18
Included Adapter: XTF-ATF16PA Line Array Adapter with Hanging Ring
Exterior Dimensions & Weight:
67.00"H x 17.00"W x 21.50"L - Weight: 188.00 lbs.
Shipping Dimensions & Weight:
69.00"H x 18.00"W x 24.00"L - Shipping Weight: 198.00 lbs.
