ProX XTF-FT6045 FANTEK Compact Front-Loading Lifting Line Array Tower

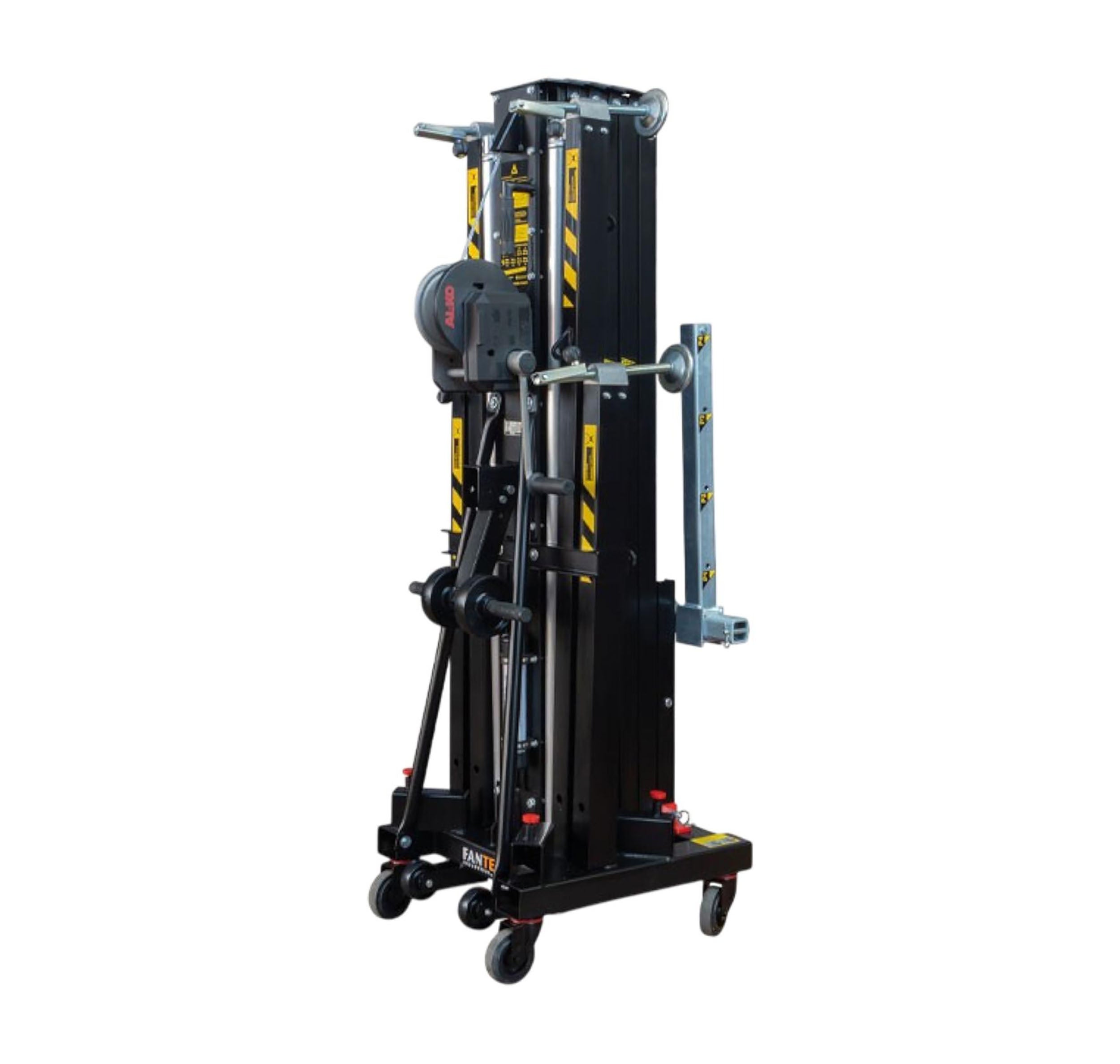

The ProX XTF-FT6045 FANTEK Lifting Tower is Front Loading and allows raising the load from the floor, avoiding any single effort and specially designed for a reliable lifting of Line Array Systems of up to 330 kg (727.5 lbs) to a maximum height of 5.95 meters / 19.52 Ft. This product is perfect to fly line array systems, trusses and LED screens. The compact design with castors gives the XTF-FT6033 Rigging tower easy handling and maneuverability, reducing storage space and it is the ideal solution for touring, rental and event production (concerts, events, trade fair stands, stage construction, fitting-out discos, theaters, broadcasting, TV, etc.).  This Compact model is only 5.64ft (1.72 m) folded height.

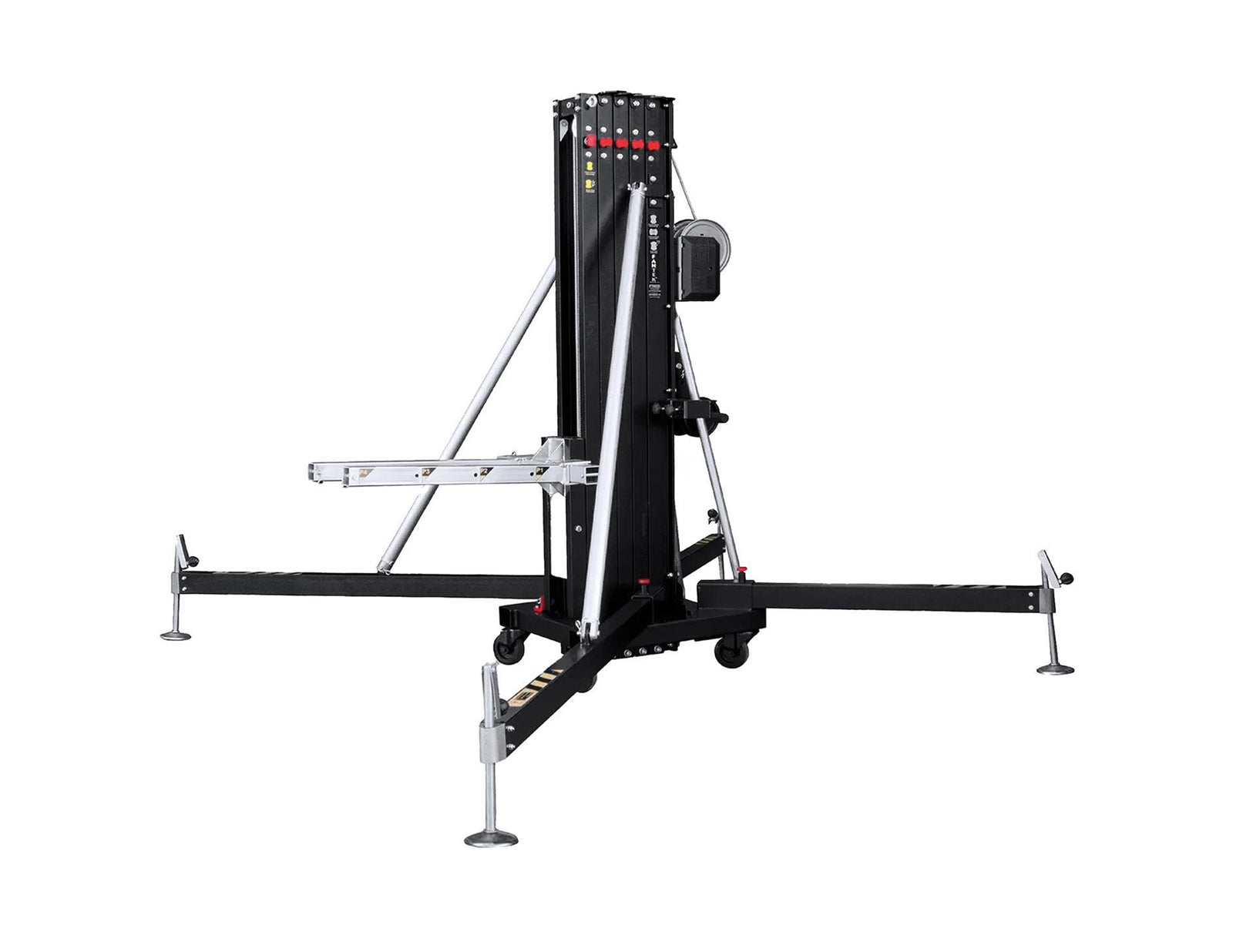

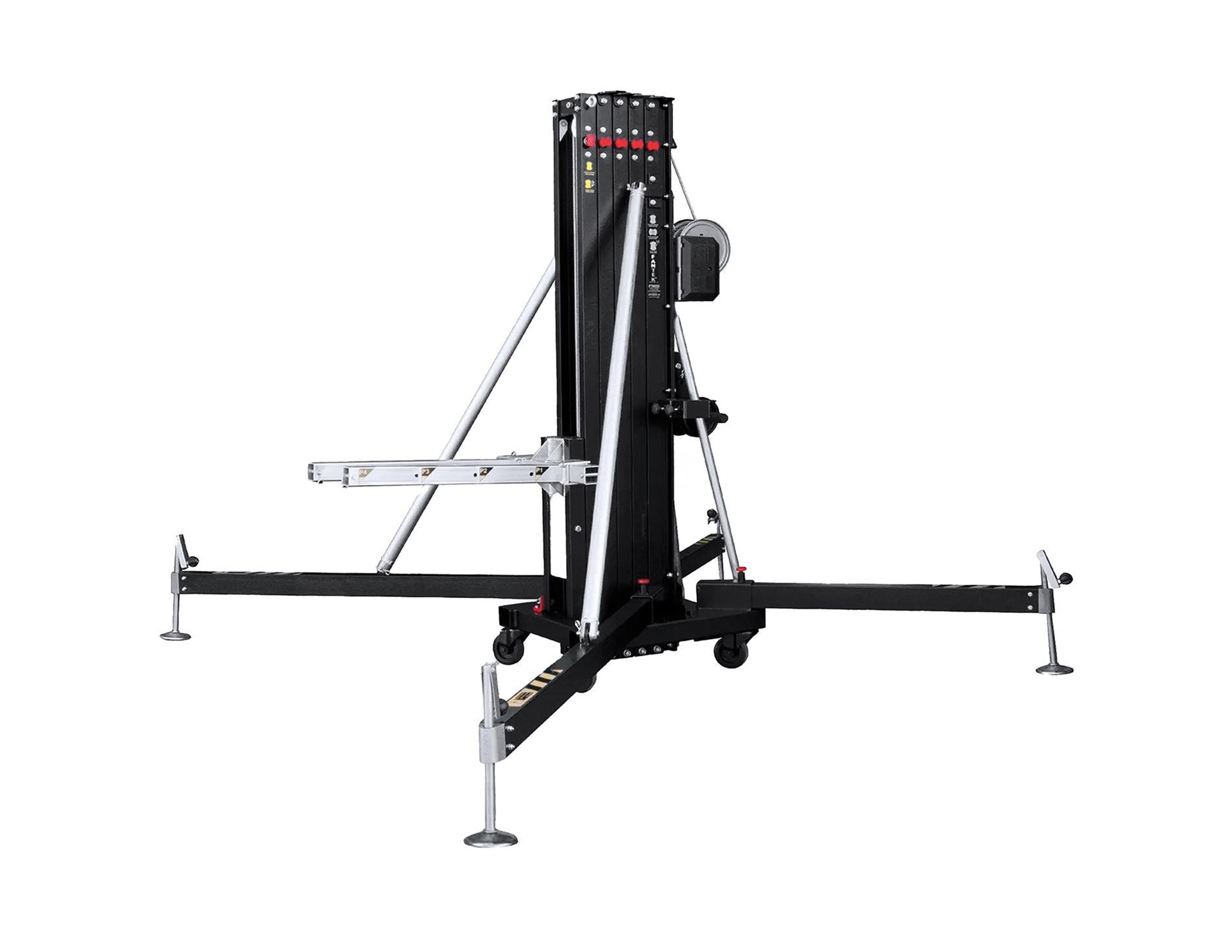

This system includes a XTF-ATF17PA Line Array Adapter W/Hanging Ring. These Patented Dynamic Overlap stacking trusses (5 Masts) are manufactured with extruded aluminum (Alloy: EN-AW according to 6082 T6) and TIG welded by Certified Welders for maximum safety, are specially designed to be compact when folded, reducing storage space and making it easier to handle. FANTEK towers use a reinforced steel base with outriggers that support heavy loads and high heights.

During lifting, the tower telescopic mechanism lift can stop safely at any of the Pin Locking System positions. These pins take the load off the wire rope.  Additionally, the DYNSYS is a system designed to guarantee the “health” and good operation of the tower, since it accomplishes many functions, all focused on maximizing user safety. Each Dynsys system is adjusted to control the torque that is applied on the winch and, when this is exceeded, the system acts and does not allow to continue the lifting process. The WIREDRIVE is a multidirectional grooved pulley that reduces the wire angle between the winch drum and its entry to the first mast. The steel base provides great stability when the adjustable screw-jacks are well balanced and the bubble level on the base provides accurate leveling.  Always secure loads at a locking point and never on the winch alone!

DGUV is a 3rd Party Certification Body and provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality. CE marking is a certification mark that indicates conformity with health, safety, and environmental protection standards for products sold/manufactured within the European Economic Area (EEA).

FANTEK was founded in 1940 and with a major expansion in 1984 and with many years of experience is the manufacturer of lifting towers in Valencia Spain, offers innovative high-end qlity, reliable and efficient products to all customers worldwide. ProX Live Performance Gear is the only distributor of Fantec Lifting Towers in the USA. The XT-FT6033 Meets strict European standards. Certified to current standards [CE - DGUV].

Product Specifications:

Use With:

XTF-ATF17PA Line Array Adapter (with Hanging Ring)

XTF-ATF17PAM Movable Line Array Adapter

XTF-ATF1DS Reversible Truss Adapter

Masts: 5

Maximum Height: 5.95 m (19.52 ft)

Folded Height: 1.72 m (5.64 ft)

Maximum Load: 330 kg (727.50 lb)

Structural Maximum Load: 445 kg (1003.10 lb)

Winch Capacity: 900 kg (1984.16 lb)

Loading Fork Width: 600 mm (23.62 inches)

CE Certified: Yes

DGUV Certified: Yes

Dynamic Overlap: Yes

Weight: 164.2 kg (362 lbs)

Shipping Weight: 388 lbs.

Shipping Dimensions (LxWxH): 48 x 40 x 73"
