Description

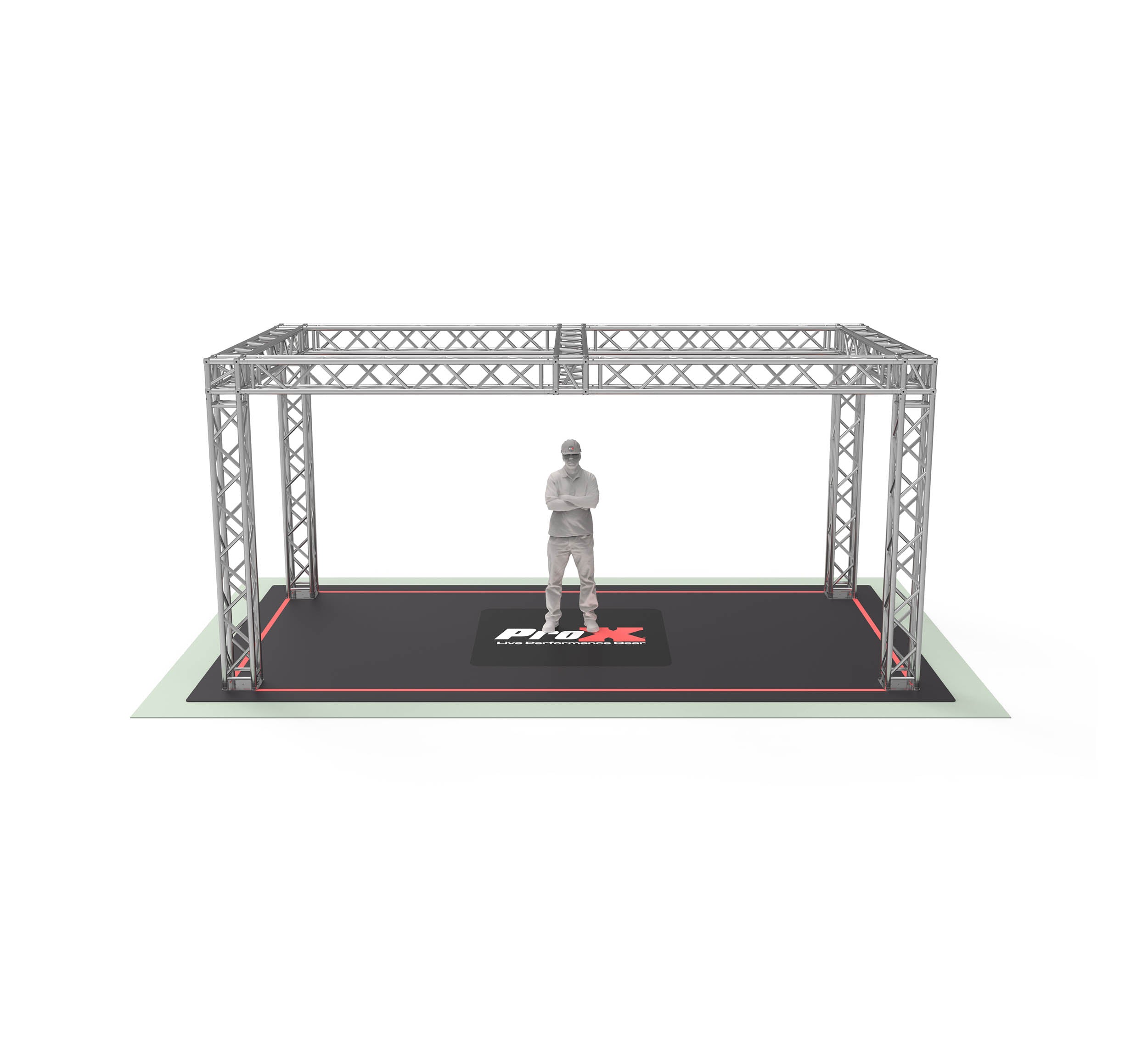

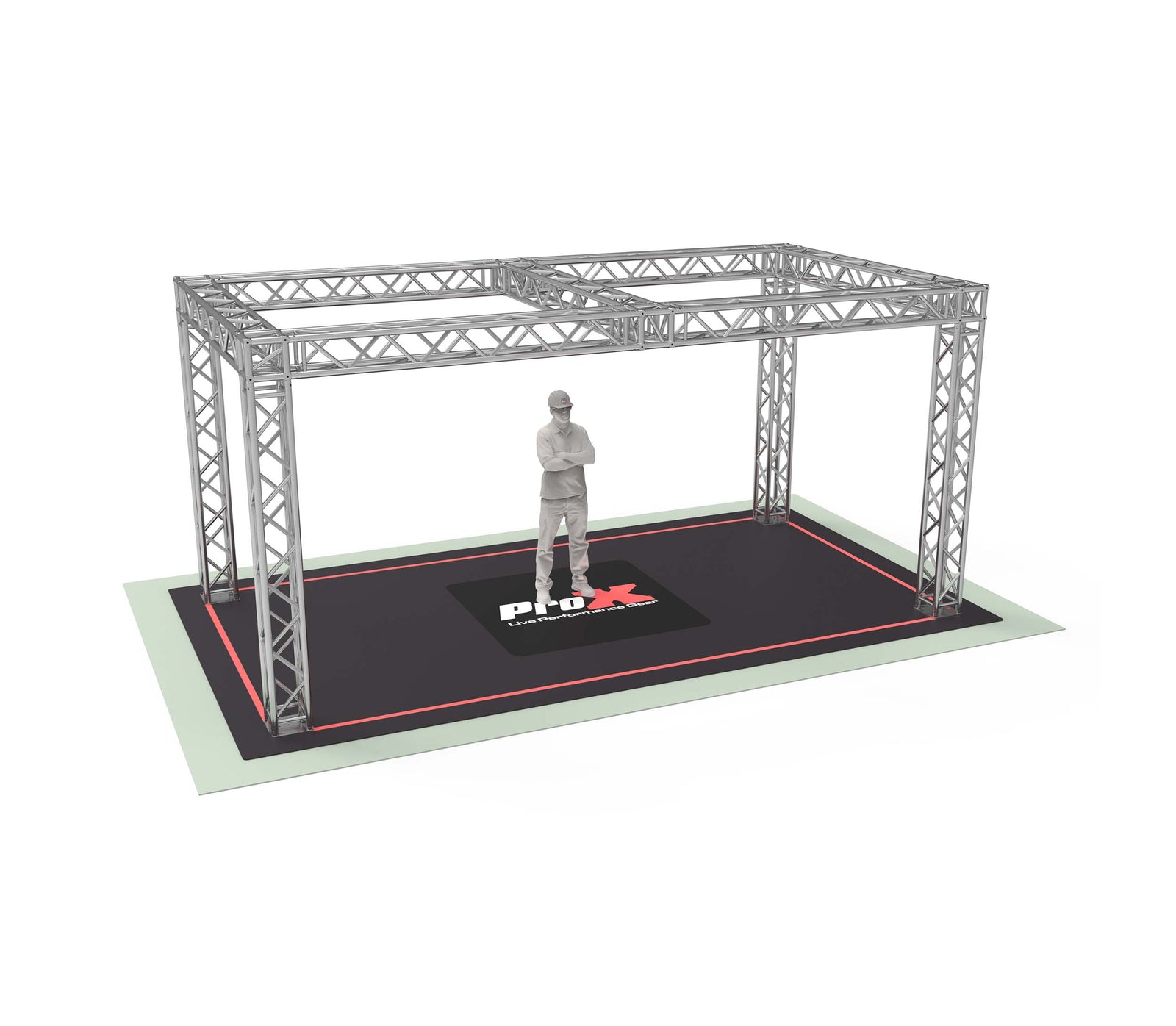

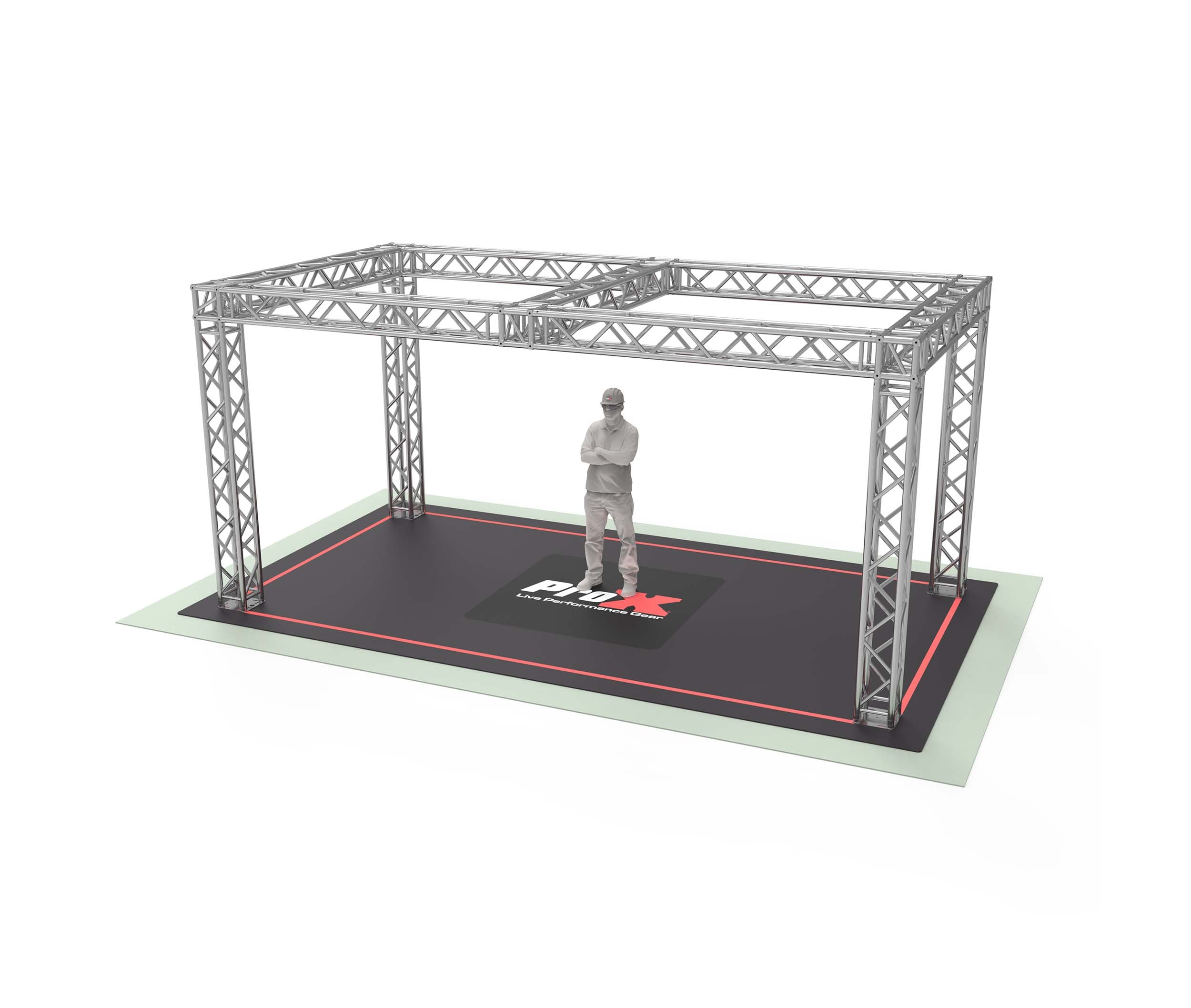

The ProX XTP-20109B F34 Trade Show Display Booth Truss System - 20 x 10 x 9 Ft is ideal for Trade shows, Exhibits, Kiosks, DJ booths, Pop-Up Shops, Retail Spaces, Concerts, Performances, Speeches, and Church Gatherings. ProX Truss offers reliable staging support systems built to high safety standards. It's rugged yet lightweight, suitable for mobile or permanent installations.
Let's create an unforgettable experience for participants together! ProX provides various temporary booth and trade show solutions for indoor and outdoor events. Our Engineering Department specializes in custom DJ and Production set projects, ensuring safety and stability.
Collaborate with our Truss and Show Designers to build your unique, professional display with ProX Truss. All ProX Truss products are 100% compatible and constructed with certified welders for top safety ratings.
This Package Includes:
- 11 ProX XT-SQ820, 8.20 Ft (2.50 M) F34 Square Truss Segment - 2 mm Wall
- 6 ProX XT-JB6W-2W, 6 Way Square Truss Junction Block
- 4 ProX XT-BP12A ,12" x 12" F34 8mm Aluminum Top Plate with Slots and Mounting Holes for Totems
- 6 ProX XT-CP-103P Truss Junction Box Connector Pack
11 ProX XT-SQ820, 8.20 Ft (2.50 M) F34 Square Truss Segment - 2 mm Wall
The ProX XT-SQ820 is a 2.50 M F34 Square Truss Segment with 2 mm Wall. Truss is designed for high-frequency usage or installations, which demands higher loading. This trussing is Ideal for rental, touring, and exhibition companies. ProX is one of the most trusted truss manufacturers in the live entertainment industry and is engineered and manufactured to the highest standards of safety and performance.
ProX Live Performance Gear specializes in high-quality, general-purpose aluminum lighting and stage trussing in F31/F32/F34 and 12” bolted configurations designed for live stages, theaters, nightclubs, church installations, mobile applications, trade shows, and retail applications. The ProX Conical Coupling System allows for genderless trusses, providing a more precise lineup of chords and fastening points, while the conical shape of the couplers helps maintain overall rigidity at the stress points and makes parts harder to damage. This system also makes assembly/disassembly quick and easy, all you need is a small brass or aluminum hammer.
The XT-SQ series easily mates with most other brands of trusses of the same size and connector type and is available in a variety of lengths to suit your designs. Our outstanding quality control and manufacturing techniques assure excellent fitment at every connection to expedite your setups. We manufacture with EN-AWT6 6082 Aluminum for safety and strength. The 2mm wall thickness assures durability and strength and can be used for spans up to 52.5 Ft. ProX XT-SQ series F34 trussing is a rugged and durable trussing solution perfect for live outdoor or indoor productions, exhibitions, retail displays as well as nightclubs, and other permanent installations.
ProX also manufactures a comprehensive selection of trussing accessories including clamps, hanging & lifting points, spacers, box corners, mounting poles, base/top plates and much more to complete your ideas and make your design an impressive rigging project or a simple show booth. Always consult an engineer for complex designs.
To Fit: Standard F34 Square Truss Configurations Fits most other manufacturers truss with conical connectors.
Product Specification:
Actual Length: 8.2 ft
Material: EN-AWT6 6082 Aluminum
Height: 11.42in / 290mm
Width: 11.42in / 290mm
Main Tube: 2in / 50mm
Wall Thickness: .08in / 2mm
Braces: .75in / 20mm
Weight: 36.00 lbs.
6 ProX XT-JB6W-2W, 6 Way Square Truss Junction Block
The ProX XT-JB6W-2W Square Truss Junction Block is a universal connecting point for F34 trusses, and it's equipped with connecting hardware for use with ProX XT F34 square truss components. It features 2" outer diameter tubing and 3/4" diagonal bracing. It has XT Series 2mm thick tube walls, this truss junction block is strong and can be used for many applications. It is built to the highest standards of safety and performance.
At the heart of the system is square truss that utilizes a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations.
Fits: Standard F34 Square Truss Configurations.
XT-SQ SERIES DIMENSIONS:
Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 21lb per 3.28 ft / 9,5kg per meter
Main Tube: 2in / 50mm
Wall Thickness: .08in / 2mm
Braces: .75in / 20mm
Product Specification:
Product Dimensions: 11.45"L x 11.45"W x 11.45"H
Product Weight: 17.00 lbs.
Shipping Dimensions: 12.50"L x 12.50"D x 12.00"H
Shipping Weight: 17.50 lbs.
4 ProX XT-BP12A ,12" x 12" F34 8mm Aluminum Top Plate with Slots and Mounting Holes for Totems
The ProX XT-BP12A is a 12" x 12" F34 8mm Aluminum Top Plate with Slots and Mounting Holes for Totems is the perfect addition to your show totems and for truss construction when you need to mount lights or other equipment at the top or end of a run of a truss. The plate comes with slots near the edges a center hole and an offset hole for mounting to fit virtually any light/speaker or device that you want to mount, it also has a handy finger hold for easy carrying. It comes with all the necessary hardware to mount to the trussing. Speaker Spud not included, available separately as XT-SPST.
Fits: F34 Trussing for Mounting of Moving Heads and other equipment to totems or top/ends, Fits most manufacturers F34 using conical connectors.
Product Specifications:
Dimensions: 12.00"L x 12.00"W x 1.50"H
Weight: 4.00 lbs.
Shipping Dimensions: 13.00"L x 13.00"D x 2.00"H
Shipping Weight: 5.00 lbs.
6 ProX XT-CP-103P Truss Junction Box Connector Pack
The ProX XT-CP-103P is a Truss Junction Box Connector Pack for One Side. Fits One Side of a Junction Box (One Set of 4) 4 Half-Ended Conical, 4 Bolts, 4 Connector Pins, and 4 Safety Clips.
To Fit: F34 Conical Junction Block
Product Specifications:
Dimensions: 20 x 10 x 9 Ft
Material: EN-AWT6 6082 Aluminum and welded steel
Wall Thickness: 0.08 in (2 mm)
Connectors: Tolerance-free conical connectors
Certification: TUV-Certified for safety, quality, and sustainability
Fittings: Fits one side of a junction box (one set of 4)
4 Half-Ended Conical
4 Bolts
4 Connector Pins
4 Safety Clips
