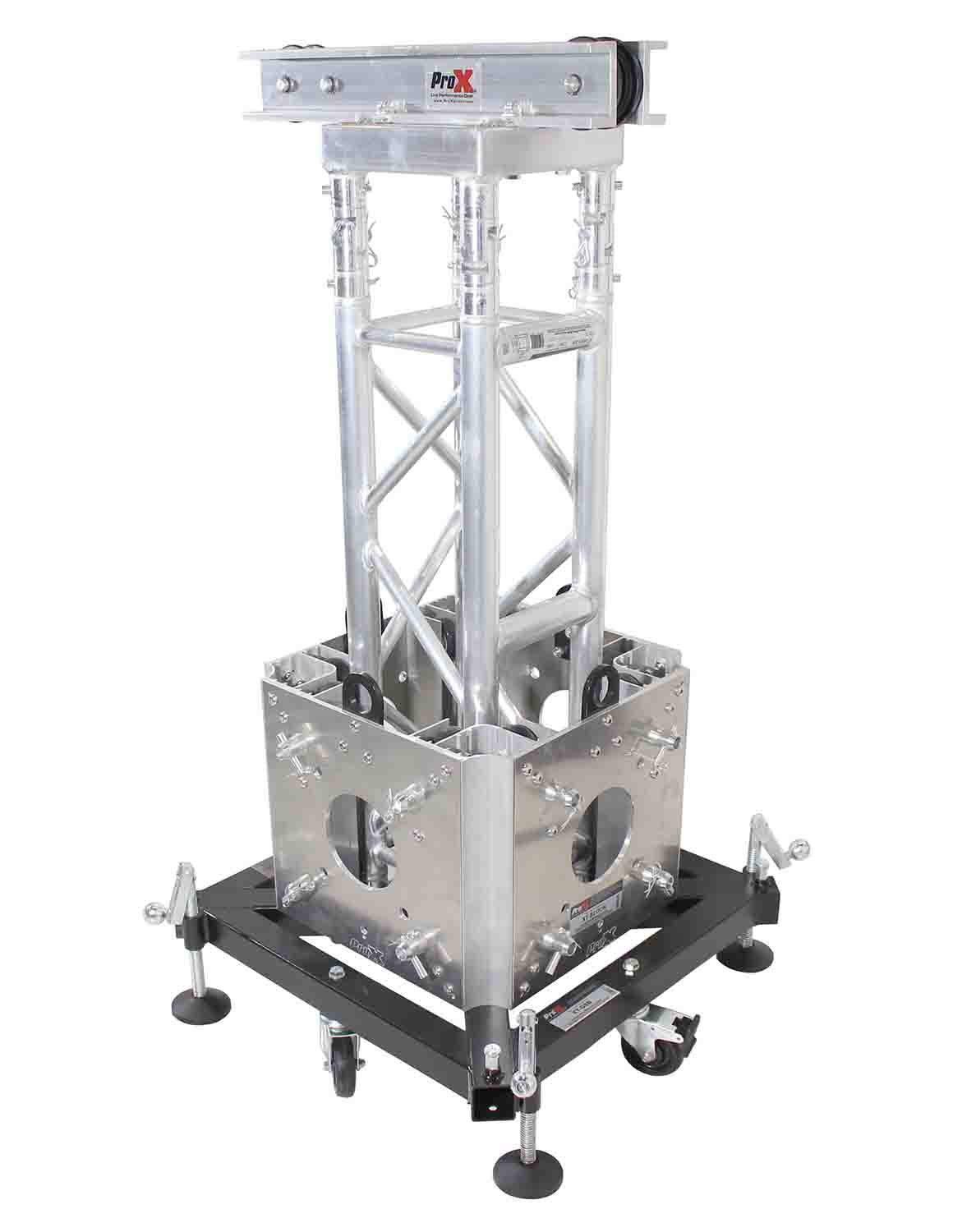

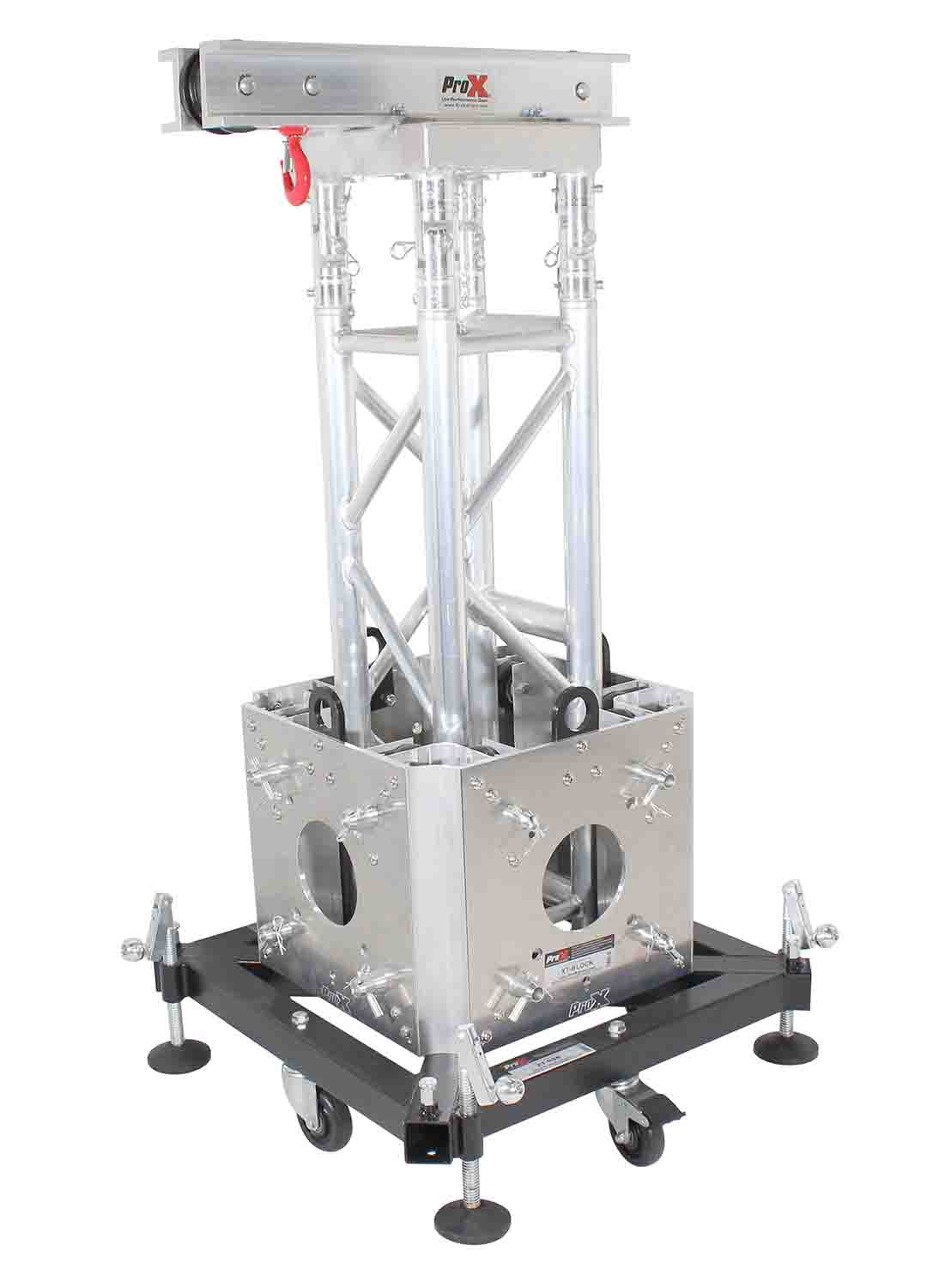

ProX XTP-GSBPACK3 PRO, Truss Tower Stage Lift System Package

The ProX XTP-GSBPACK3 PRO is a Truss Tower Stage Lift System Package. The ProX XTP-GSBPACK3 PRO is a Full Package of four-legged outrigger Truss base, with a 4-way Square Truss junction box Sleeve Block, on a 3' Ladder Truss Segment (3mm Wall). Complete with the Rigging Top. In this package, you have everything you need (except for lift hoist) for one climbable leg in the building and flying of a large-scale truss, supporting mid to heavy-grade level stage installations.

ProX XT-SQPL series trussing is a rugged and durable truss solution perfect for live outdoor or indoor productions, exhibitions, retail displays as well as nightclubs, and other permanent installations where easy to climb corners are needed. ProX also manufactures a comprehensive selection of trussing accessories including clamps, hanging & lifting points, spacers, box corners, mounting poles, base/top plates and much more to complete your ideas and make your design an impressive rigging project or a simple show booth. Always consult an engineer for complex designs.

Package Includes

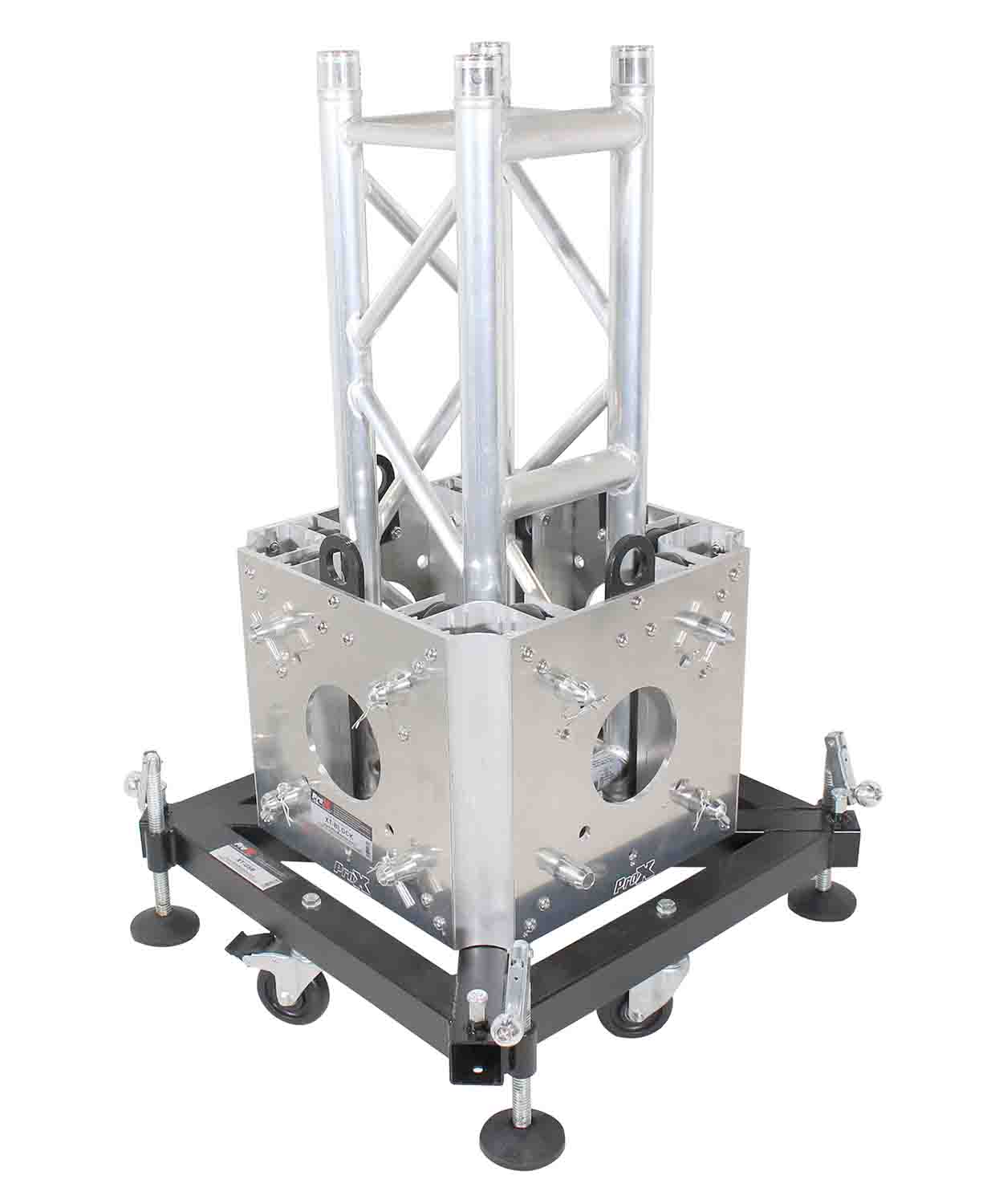

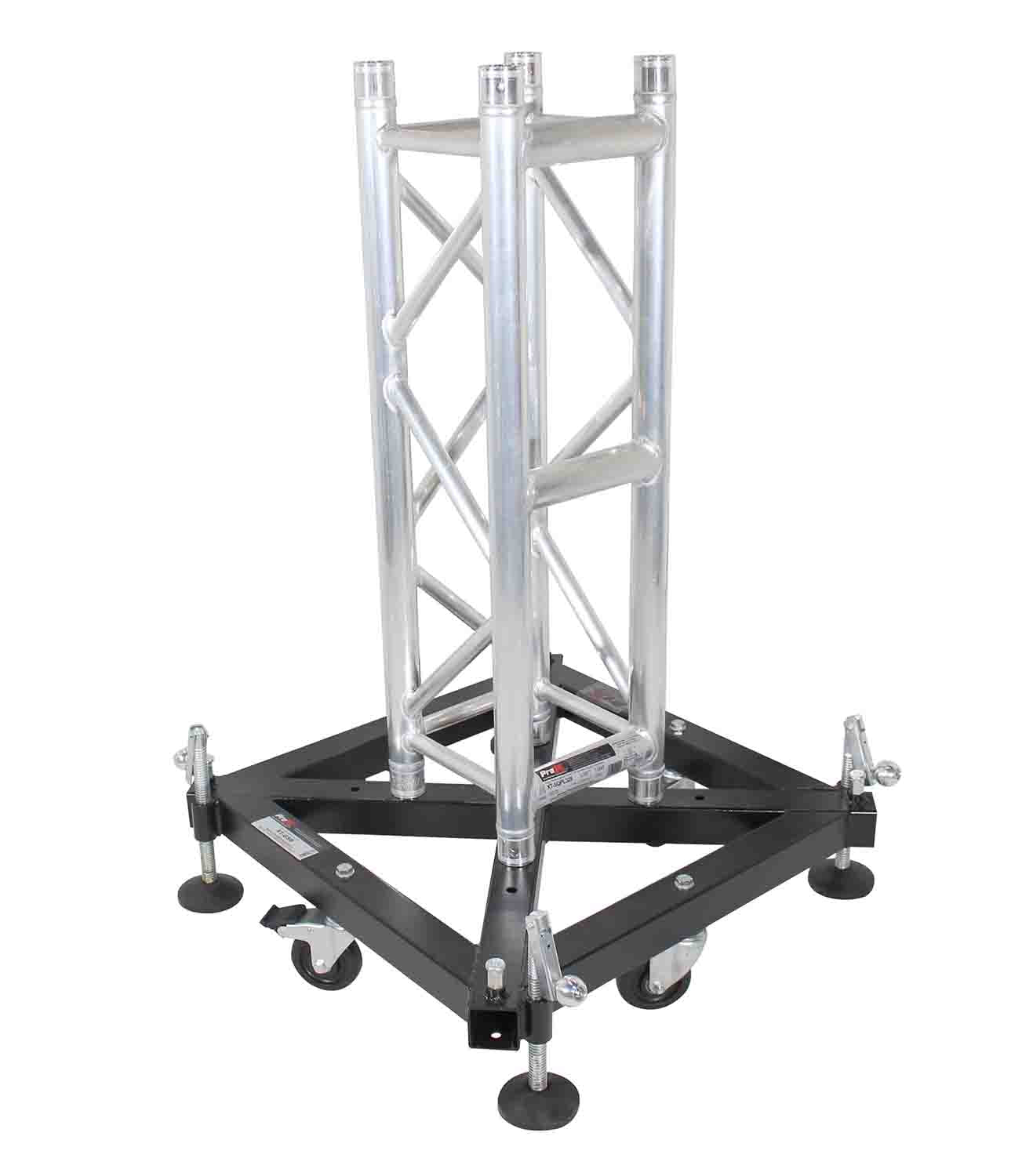

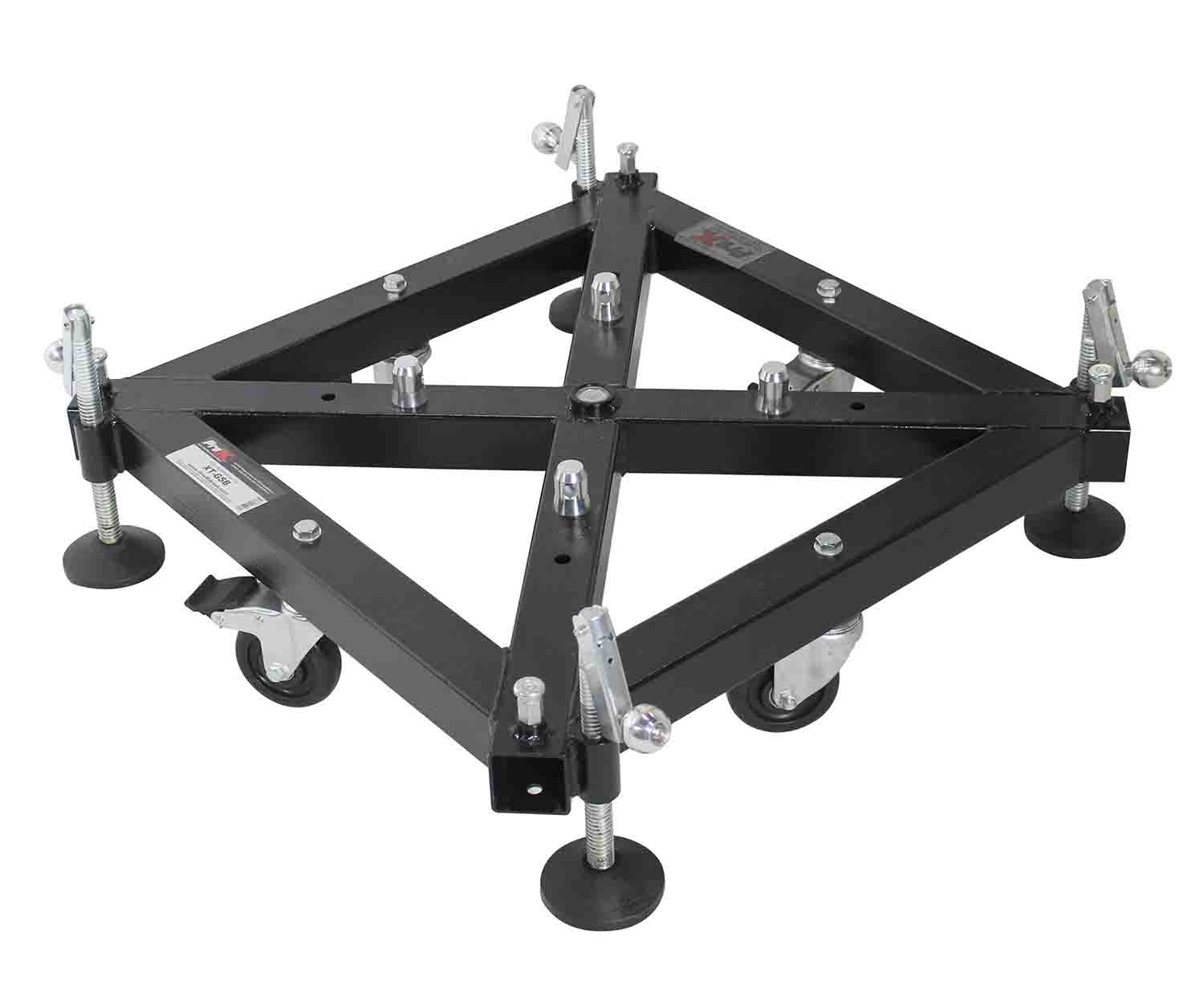

XT-GSB MK2 Rigger Base, with Extendable Feet

XT-SQPL328 3.28ft Long LADDER Truss segment (Longer segments available at extra cost)

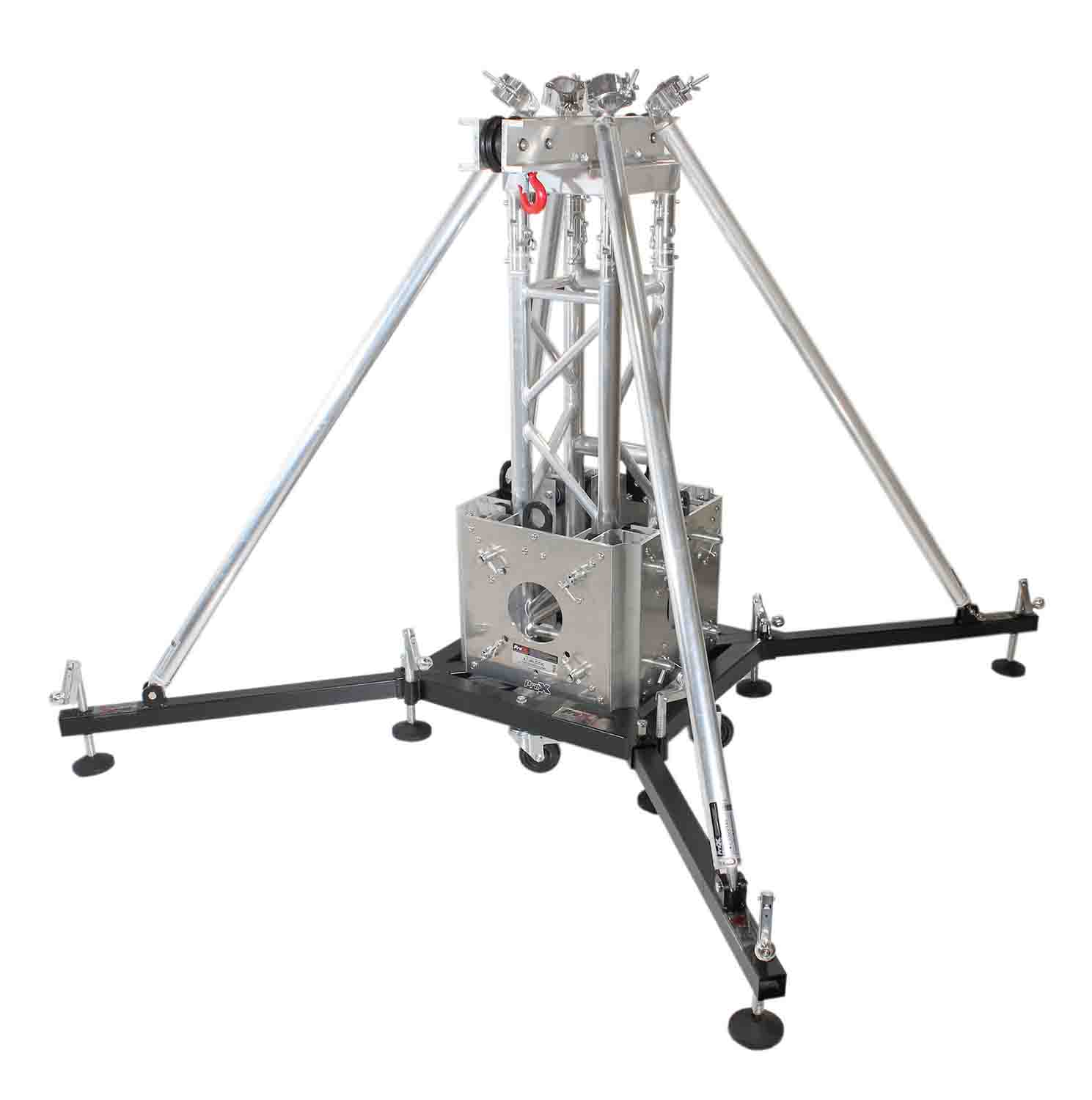

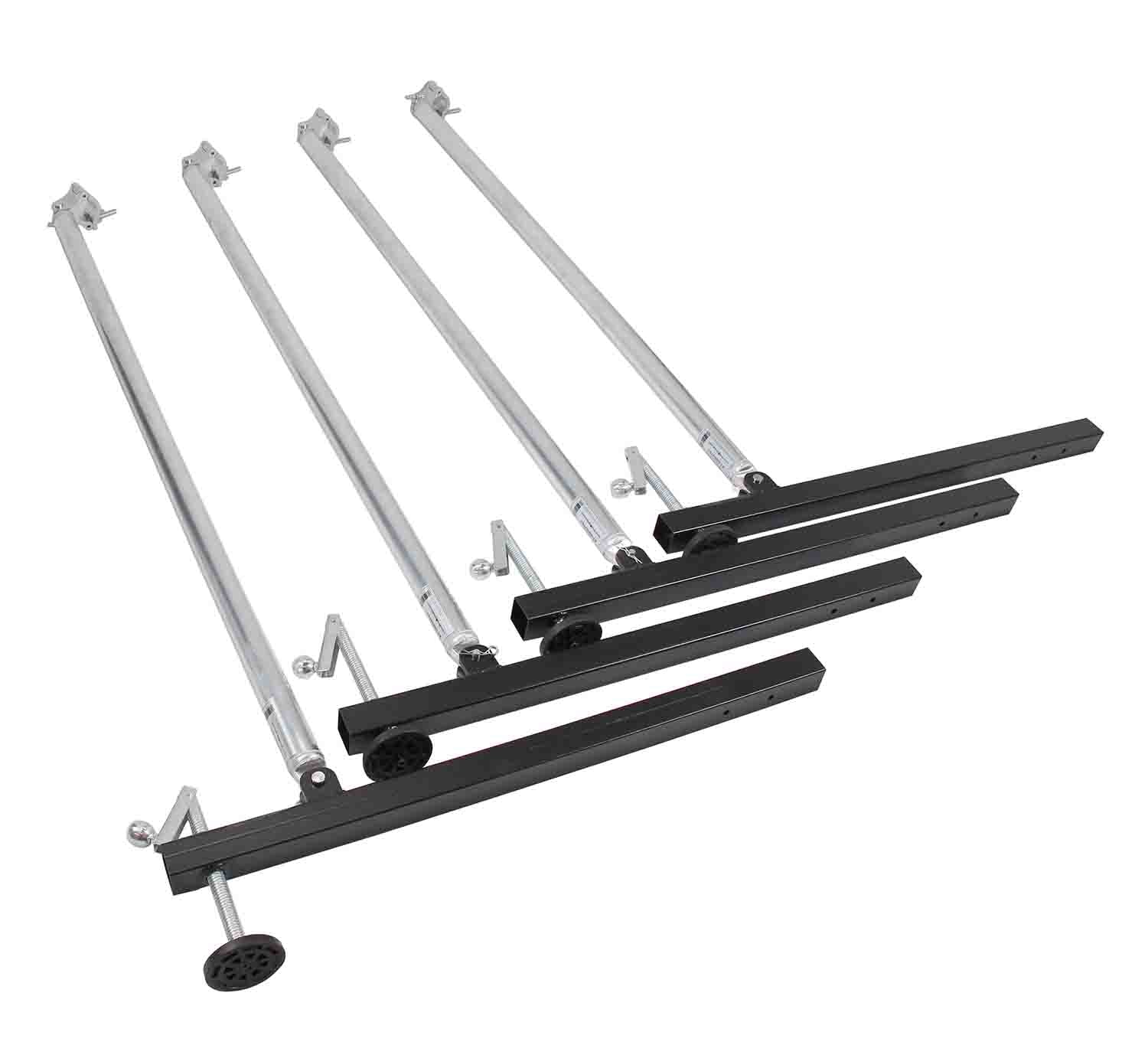

XT-GSOUT3 3' Outrigger Brace Tubes (4) with clamps

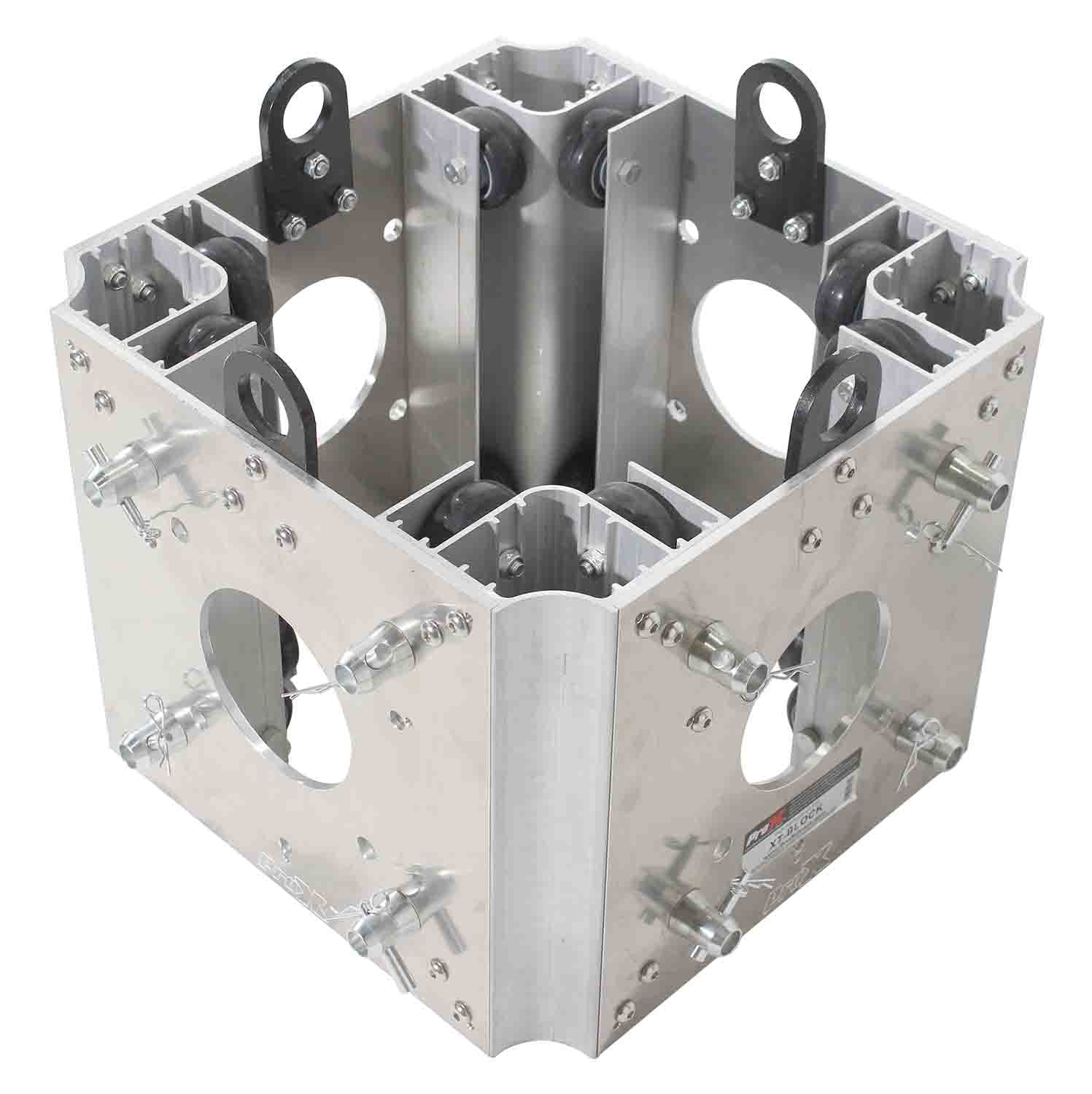

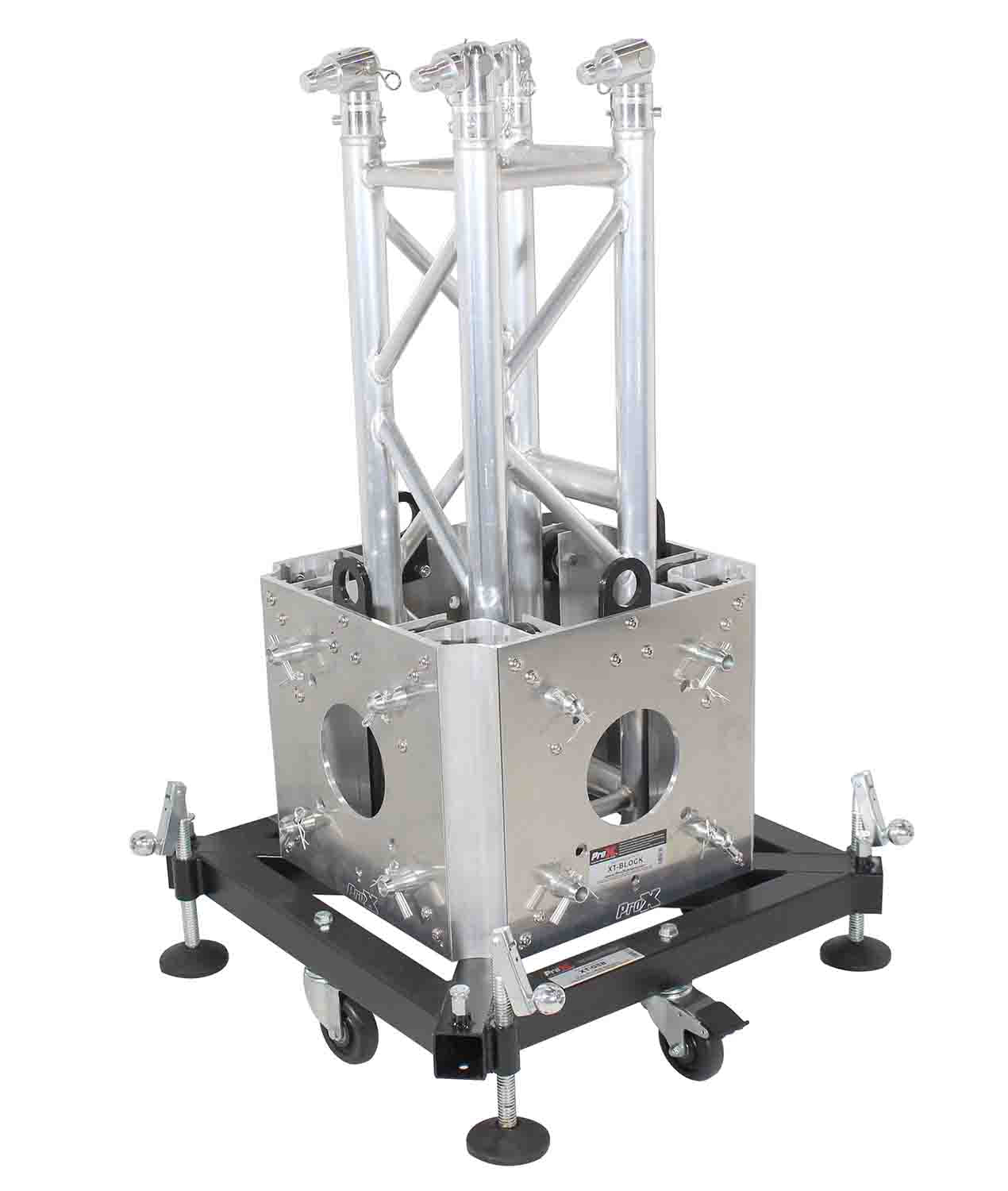

XT-BLOCK Sleeve Block 4-Way Junction box

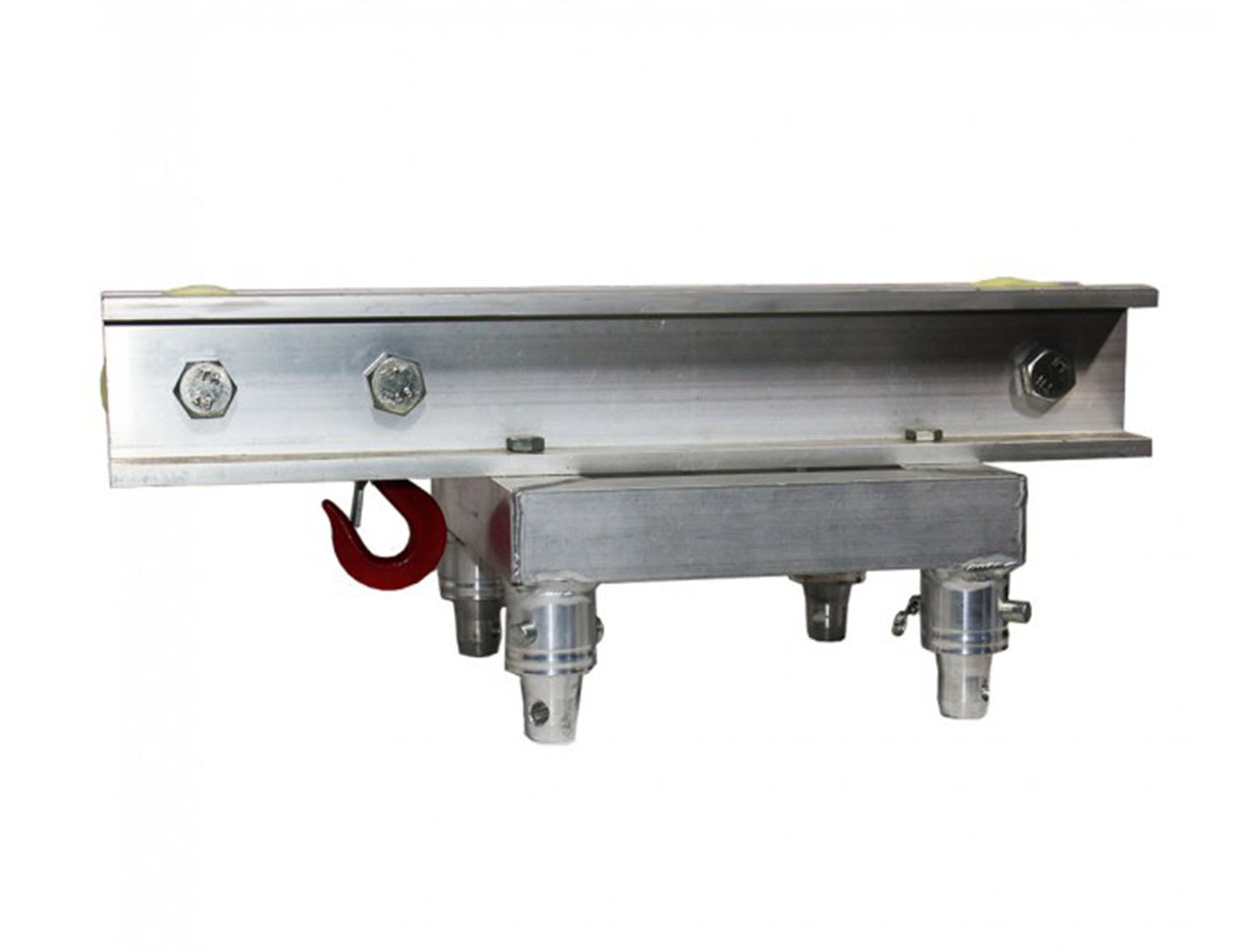

XT-TOPCM Truss Top with I-Beam mount with chain Pulley wheels

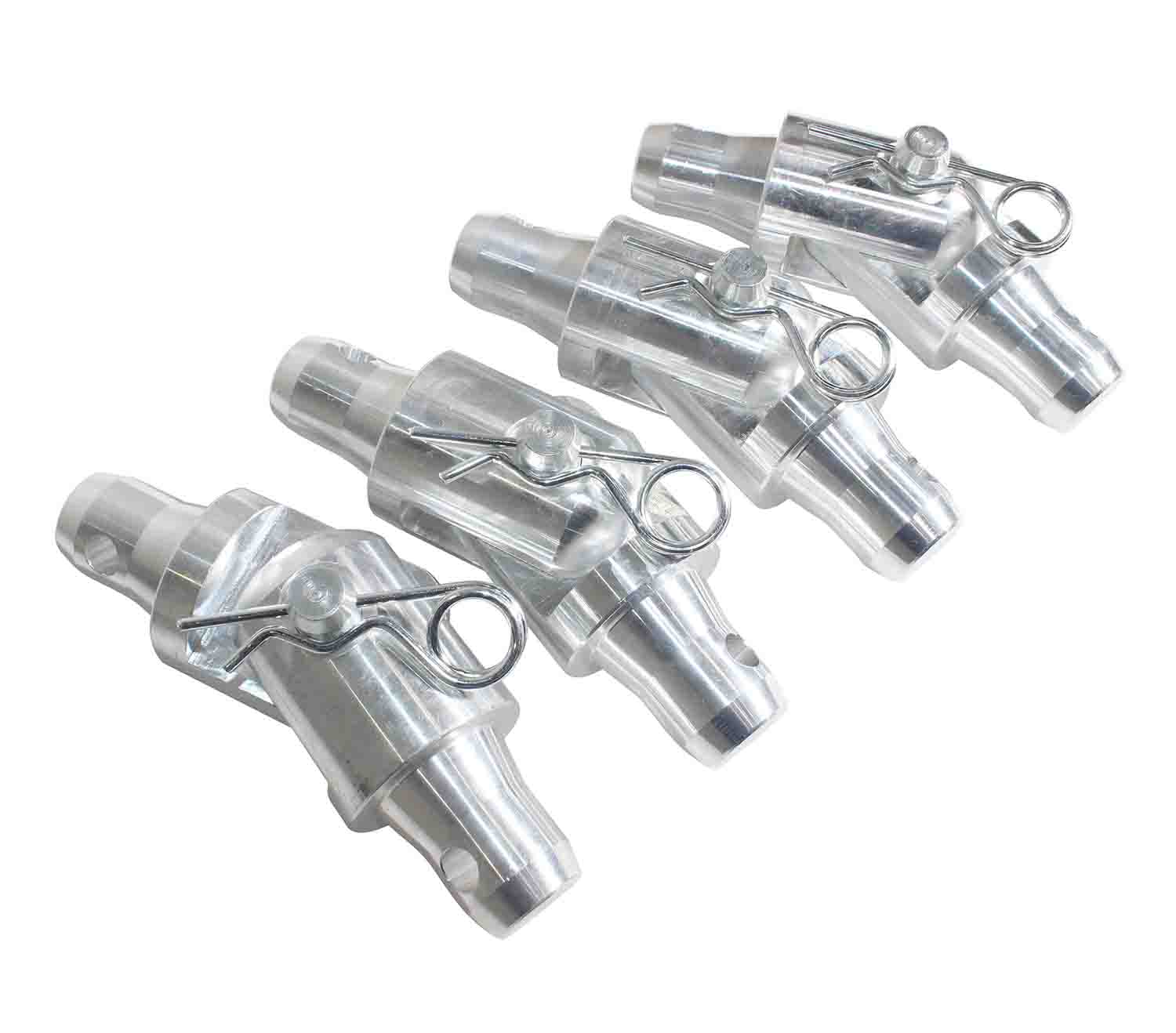

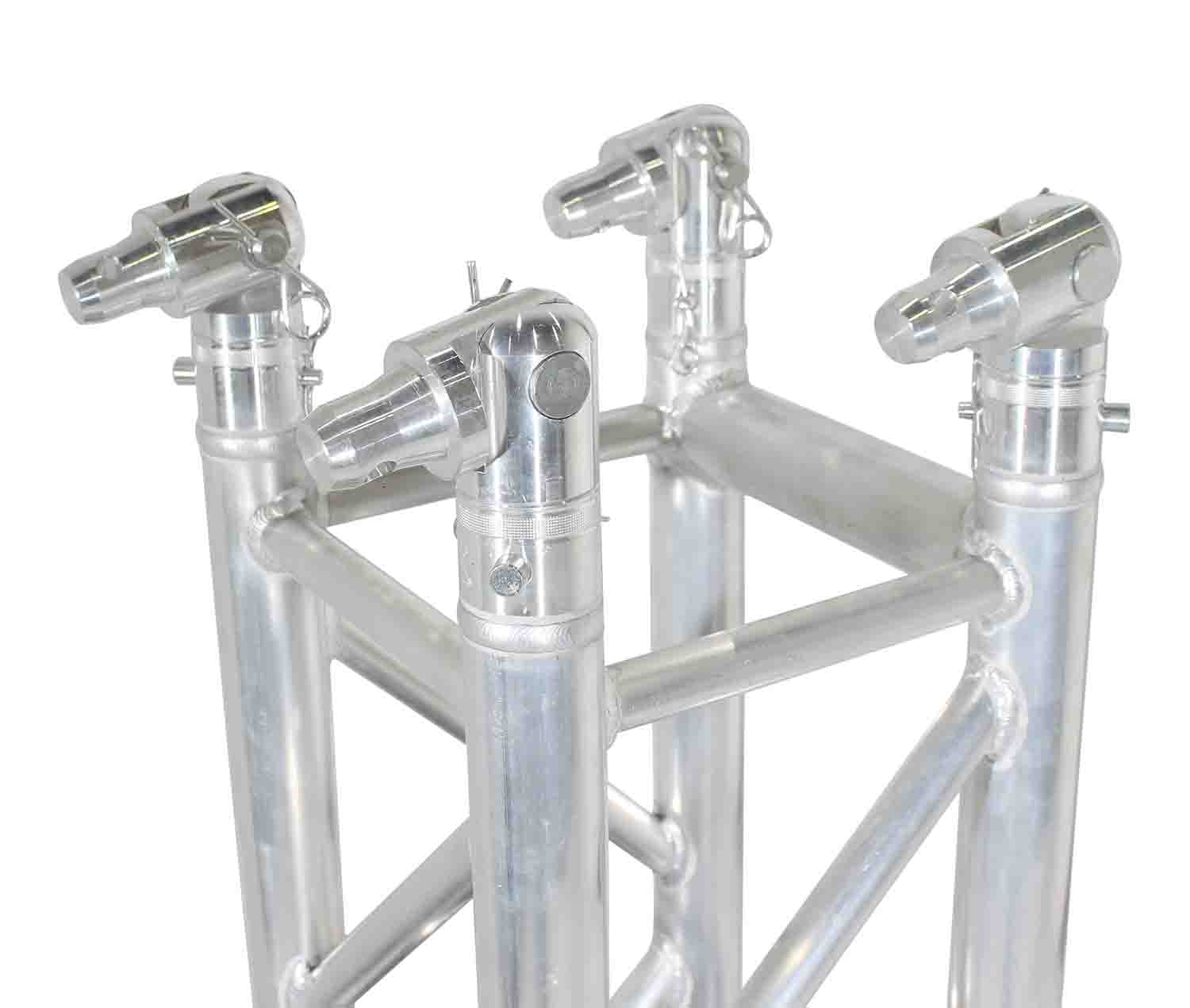

XT-HINGE  4 Hinge block set

XT-SQPL Series Dimensions:

Height: 11.42in / 290mm

Width: 11.42in / 290mm

Weight: 21lb/9.5kg per 3.28 ft/1 meter

Main Tube: 2in / 50mm

Premium Tubing - Wall Thickness: 1/8in / 3mm

Braces: .75in / 20mm

Ladder Steps: 2in / 50mm

Ladder Step Spacing: 9.84in / 250mm

Material: EN-AWT6 6082 Aluminum

To Fit:

Standard/Ladder F34 Square Truss Configurations - Fits most other manufacturers truss with conical connectors.

Product Specifications:

Weight: 265.00 lbs

Shipping Weight: 285.00 lbs
