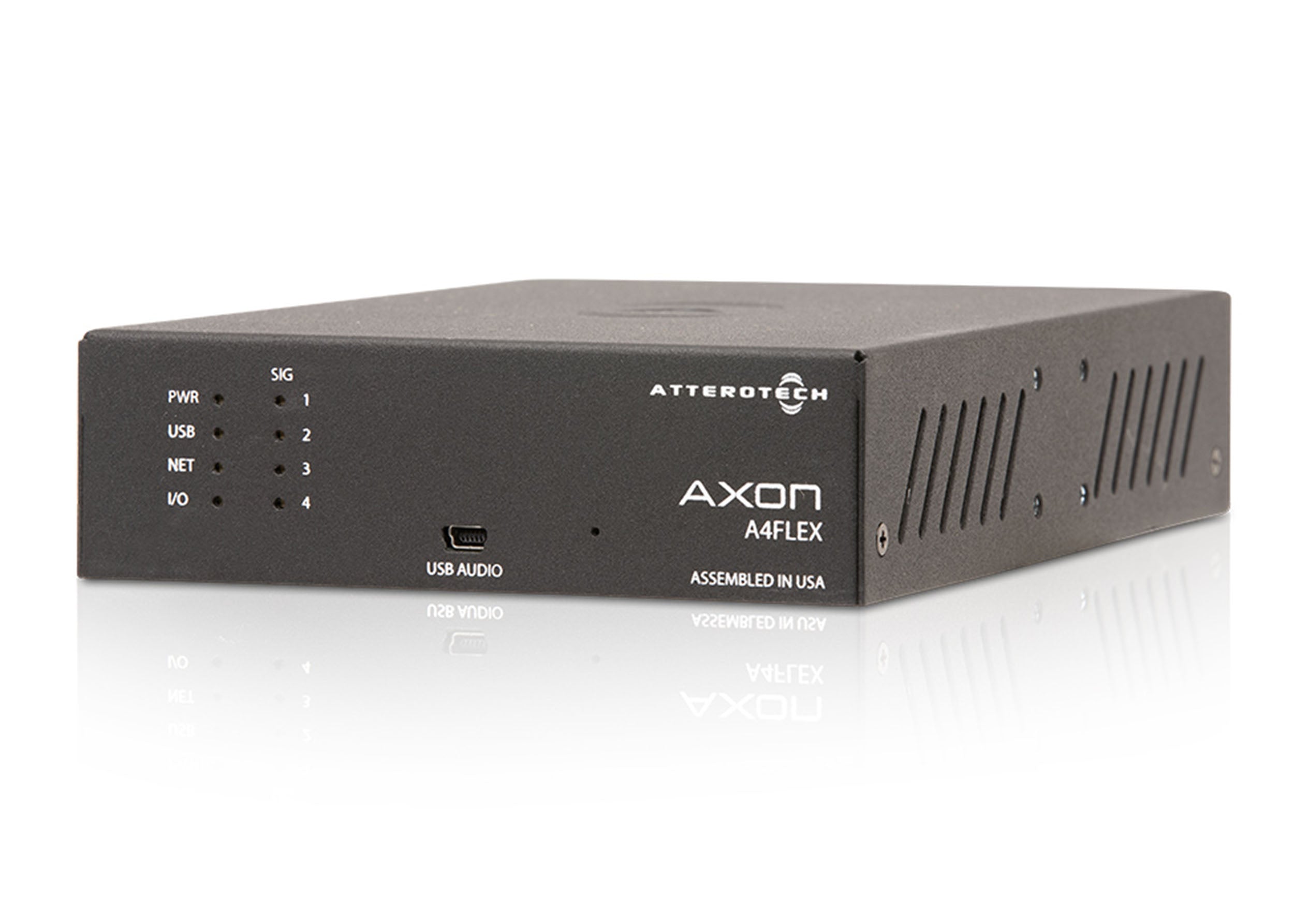

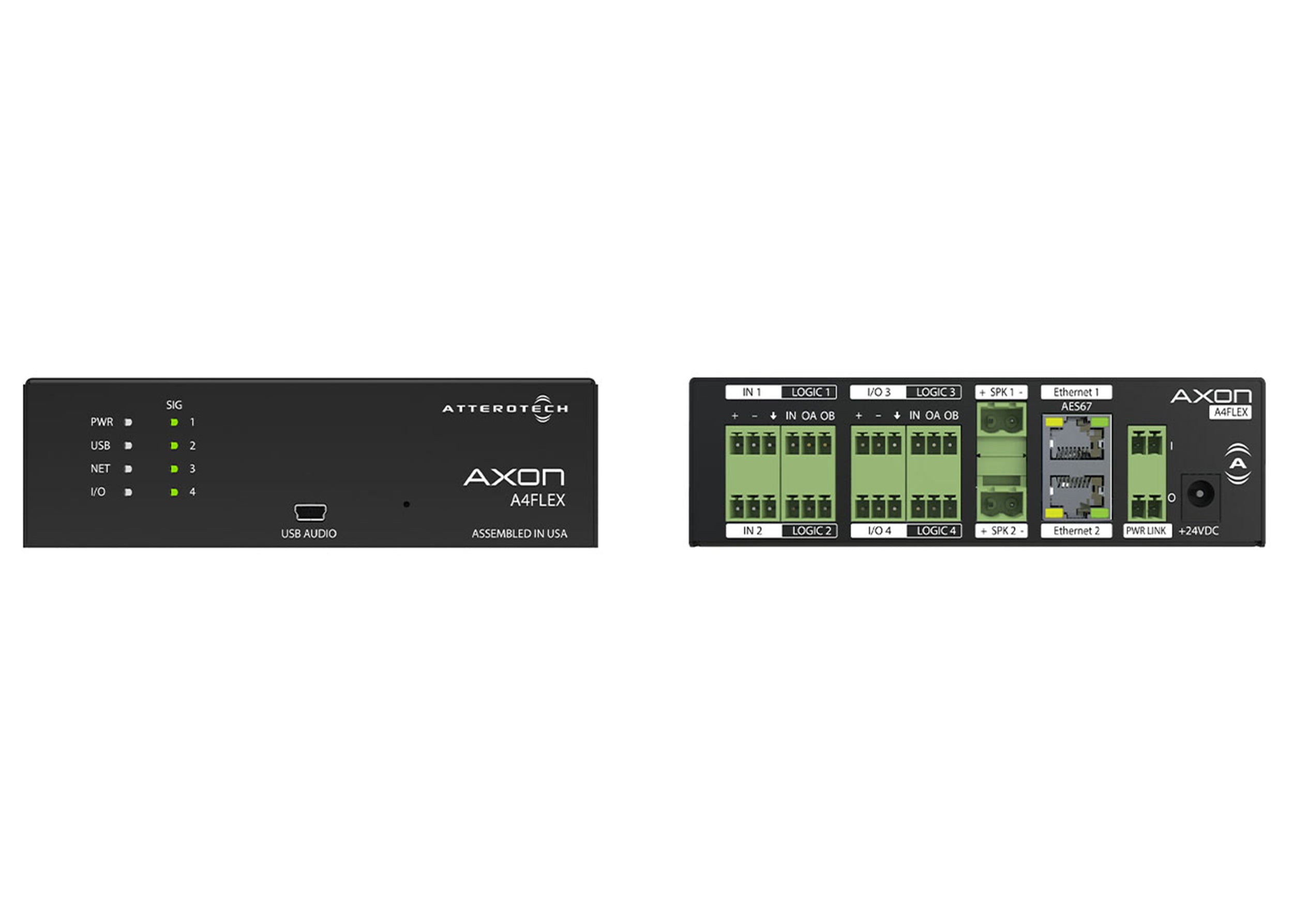

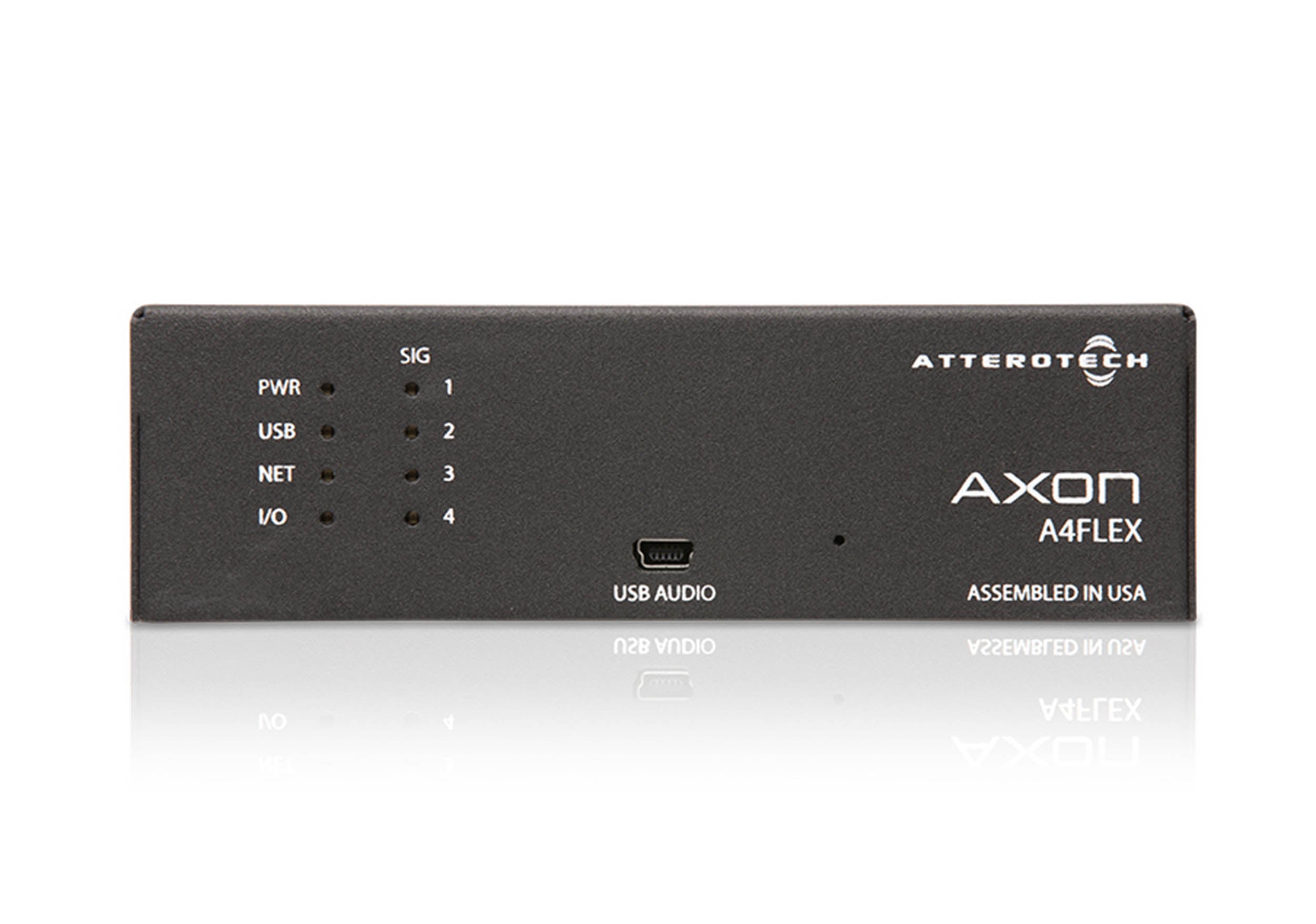

QSC A4FLEX Attero Tech Axon AES67 Networked Audio Connectivity

The QSC A4FLEX Attero Tech Axon AES67 Networked Audio Connectivity is interface with four mic/line inputs (two of which are software-configurable as outputs), USB, logic I/O, AES67 audio and control interfaces, and a two-channel power amplifier.

Additionally, the Axon A4FLEX is well suited to act as a standalone integration solution for huddle spaces, lecture halls, courtrooms, education, conference centers, or any network audio I/O endpoint for a networked AV&C system in a wide range of applications. QSC has developed a Q-SYS control plugin that allows integration into the Q-SYS Ecosystem without any additional programming.

Product Specifications:

Audio Inputs: Mic/Line

Connector Type: 0.2" / 3.8 mm Euroblock, 3 Position (16-28 AWG)

Gain: -8 dB to +34 dB Gain, 1 dB Increments

Maximum Input Level: -8 dB Gain, Max Input = +16.5 dBu (+24 dBu with Pad)

Phantom Power: +48 V, Software Selectable per Channel

Audio Outputs: Mic/Line

Connector Type: 0.2" / 3.8 mm Euroblock, 3 Position (16-28 AWG)

Maximum Output Levels: +24 dBu (-15.5 dBu with Pad)

Phantom Power: +48 V, Software Selectable per Channel

Dynamic Range: 100 dB

Network:

Connectors: Dual RJ45

Cable Quality: Cat 5e or Better, UTP

Transmission Speed: 1 Gb/s

Product Weight: 1.8 lb / 830 g

Product Dimensions: 1.6 x 5.4 x 7.9 Inches

Shipping Weight: 2.365 lbs.

Shipping Dimensions (LxWxH): 11.1 x 7.4 x 1.9 Inches
