Description

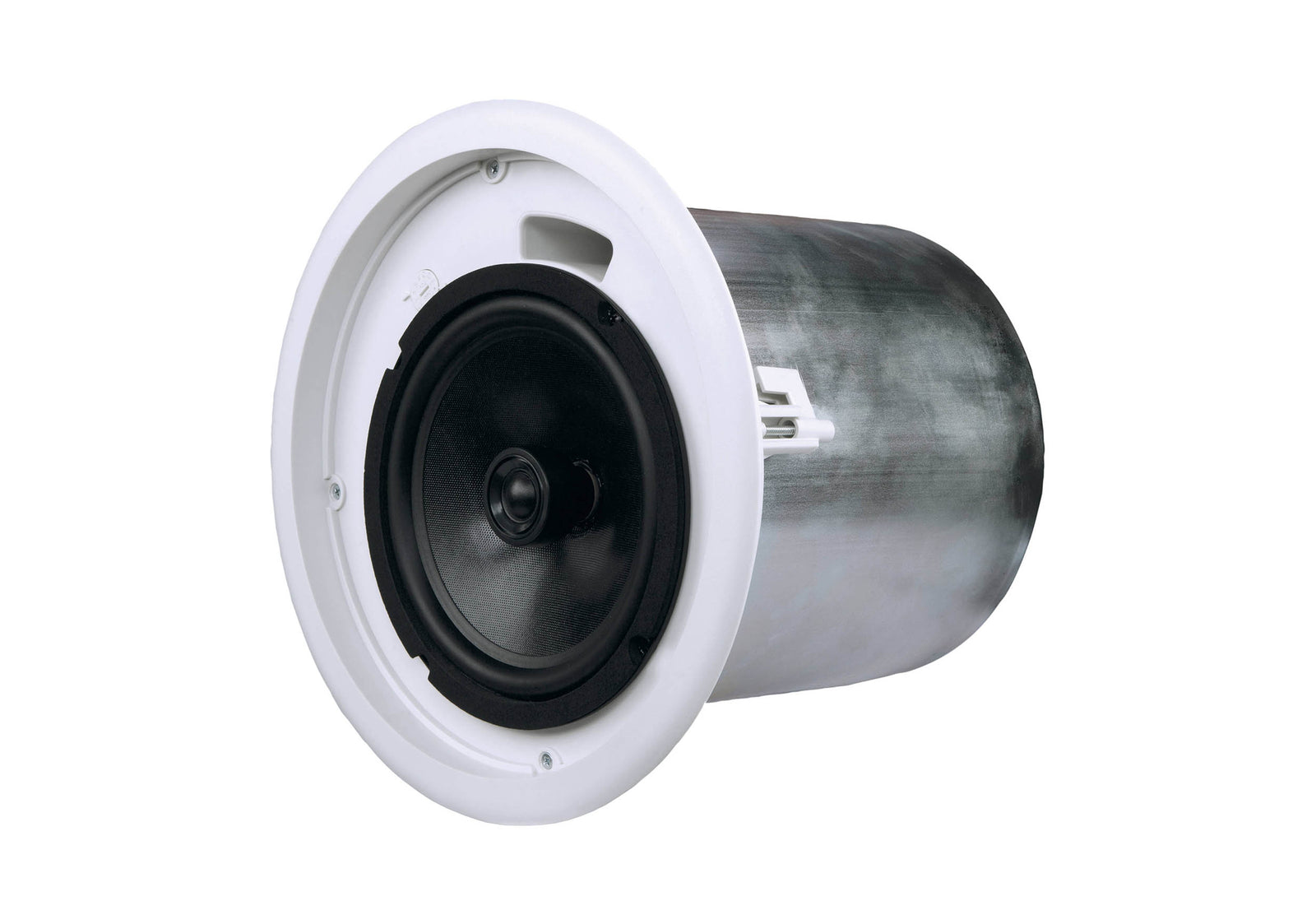

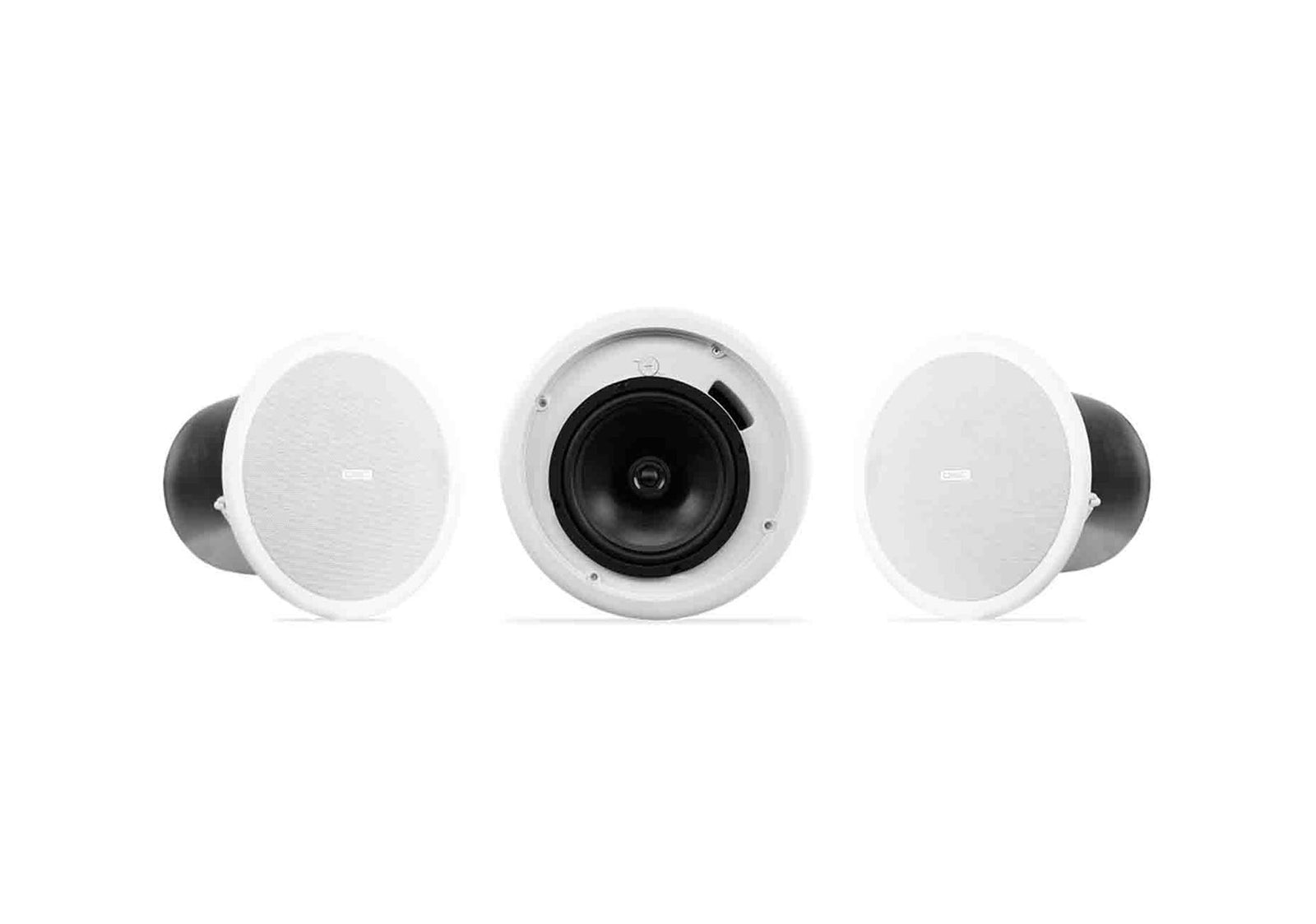

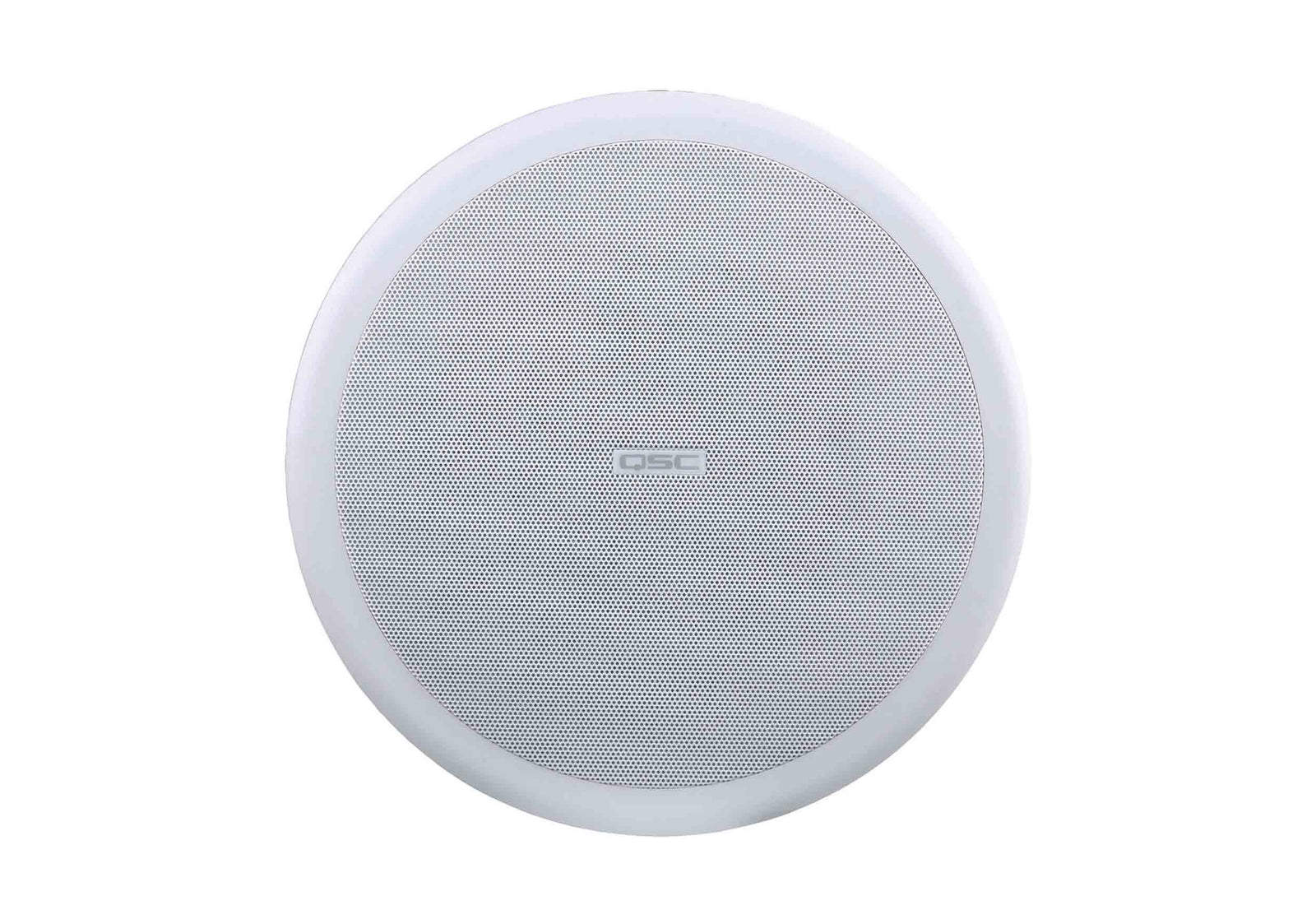

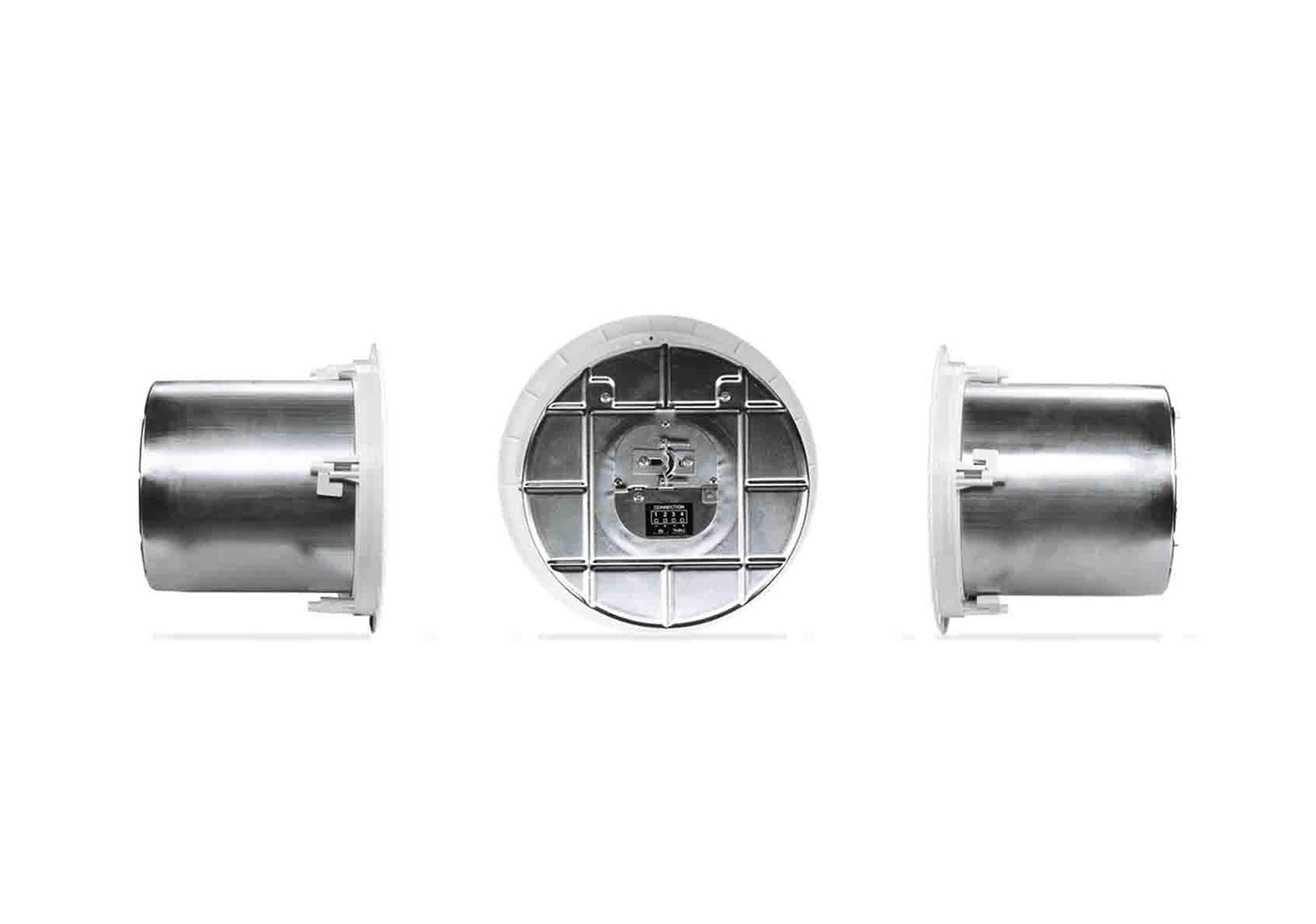

The QSC AC-C8T Acoustic Coverage Series 8 Inch 2-Way 80W Ceiling Loudspeaker - Pair White is a pair of transformer-equipped 8" ceiling loudspeakers voiced to deliver enhanced clarity in the vocal range, making them suitable for 70/100V or 8-ohm operation in a variety of paging, A/V conferencing, and background music applications.

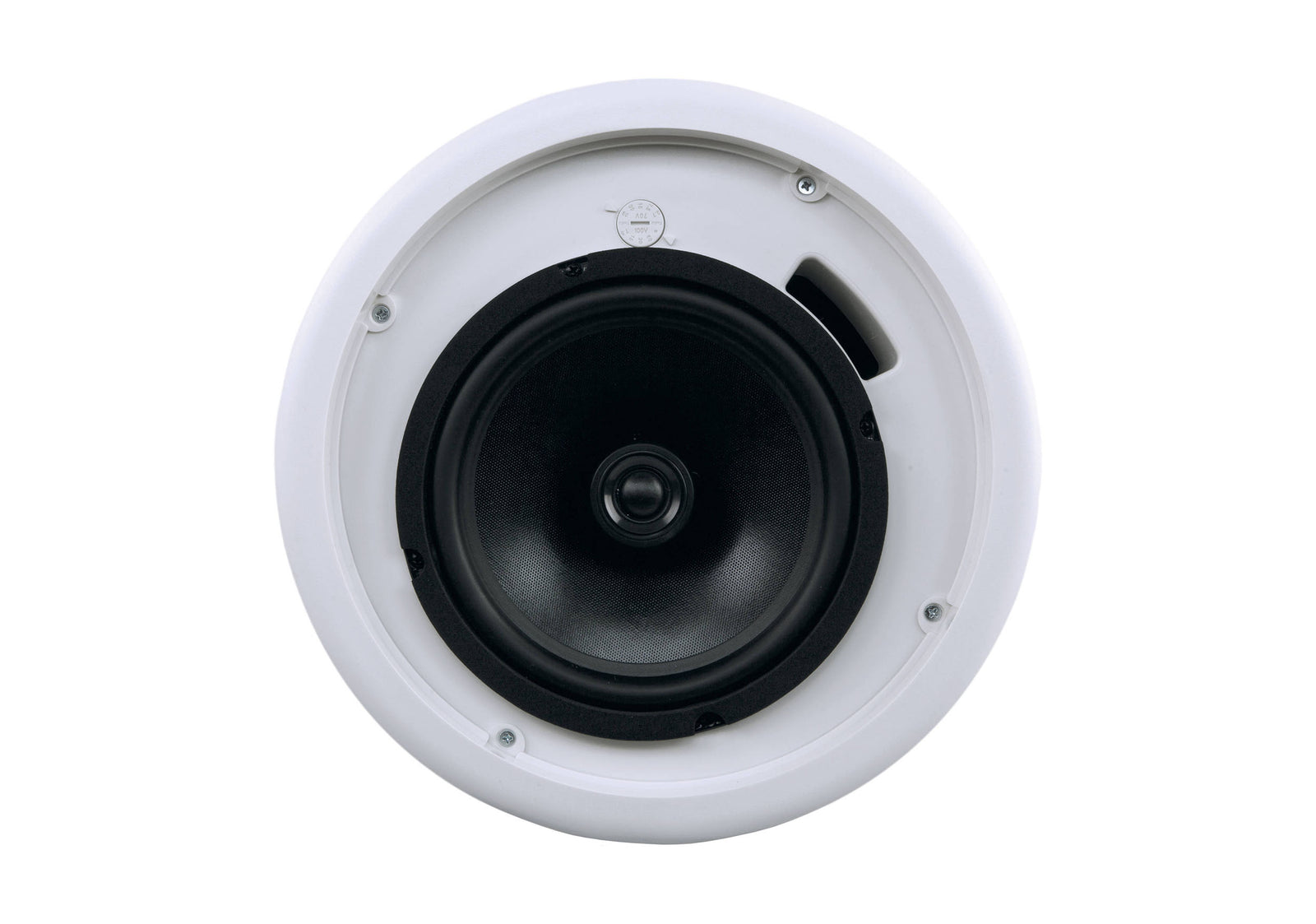

Outfitted with an 8" polypropylene woofer and a coaxially mounted 0.86" silk dome tweeter in a blind mount assembly with a ported baffle, the AC-C8T offers broad 100° conical coverage while providing a frequency range of 52 Hz to 20 kHz (-10 dB). The speaker is capable of handling 80W RMS and producing a peak maximum SPL of 114 db.

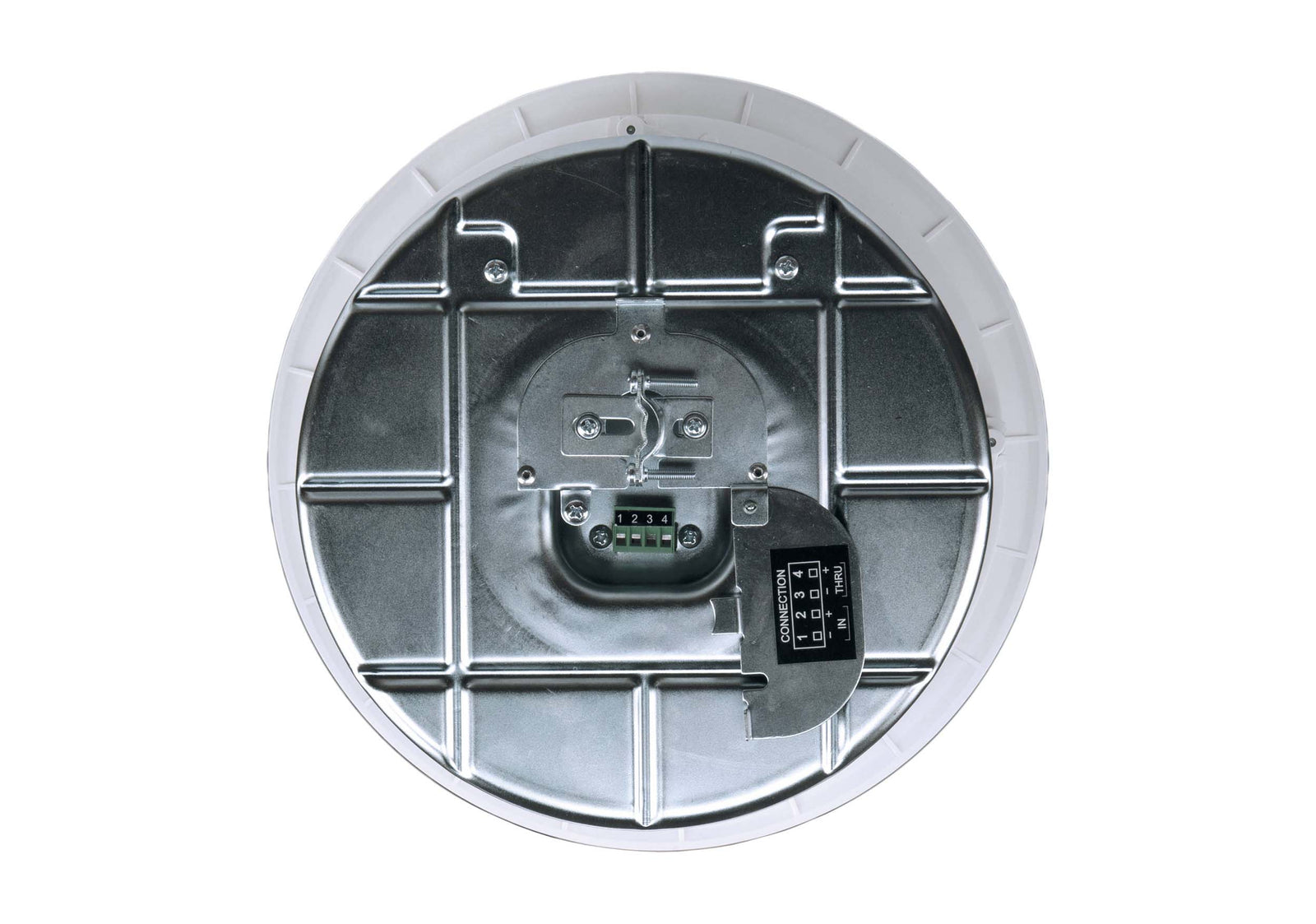

The AC-C8T utilizes a 4-pole Euro block connector under a swivel plate for easy input and loop-thru wiring. Mounting hardware is included for simplified in-ceiling installation.
Product Specifications:
Active/Passive: Passive
Number of Included Speakers: 2
Speaker Configuration: 2-Way
Power Handling: 80 W RMS
Constant Voltage / Transformer Taps:
70 V: 60 / 30 / 15 / 7.5 / 3.8 W or 8 Ohms Bypass
100 V: 60 / 30 / 15 / 7.5 W or 8 Ohms Bypass
Impedance: 8 Ohms (Transformer Bypassed)
Transformer Wattage: 60 W
Enclosure Type: Bass-Reflex
Shielded: No
HF Driver: 1x 0.86" / 2.18 cm Silk Dome Tweeter
LF Driver: 1x 8" / 20.32 cm Polypropylene Woofer
Frequency Range: 52 Hz to 20 kHz -10 dB
Maximum SPL:
108 dB (Continuous)
114 dB (Peak)
Sensitivity: 89 dB (Half-Space)
Coverage Angle: 100° (Conical)
Maximum Input Voltage: 25.3 V RMS
Inputs/Outputs: 1x Block 4-Pole Speaker Input/Thru (Removable)
Maximum Wire Gauge: 18 AWG
Certifications: UL
Environmental Resistance: No
Color: White
Mounting: In-Ceiling
Cutout Size: 11.2 x 11.2" / 28.4 x 28.4 cm
Mount Surface Thickness: 0.2 to 1.5" / 0.6 to 3.8 cm
Construction Material: ABS, Metal Grille, Steel
Dimensions: 12.4 x 11.3" / 31.5 x 28.7 cm
Weight: 11.5 lb / 5.2 kg
Shipping Weight: 30.3 lbs.
Shipping Dimensions (LxWxH): 29.5 x 15.5 x 15.3 Inches
