Description

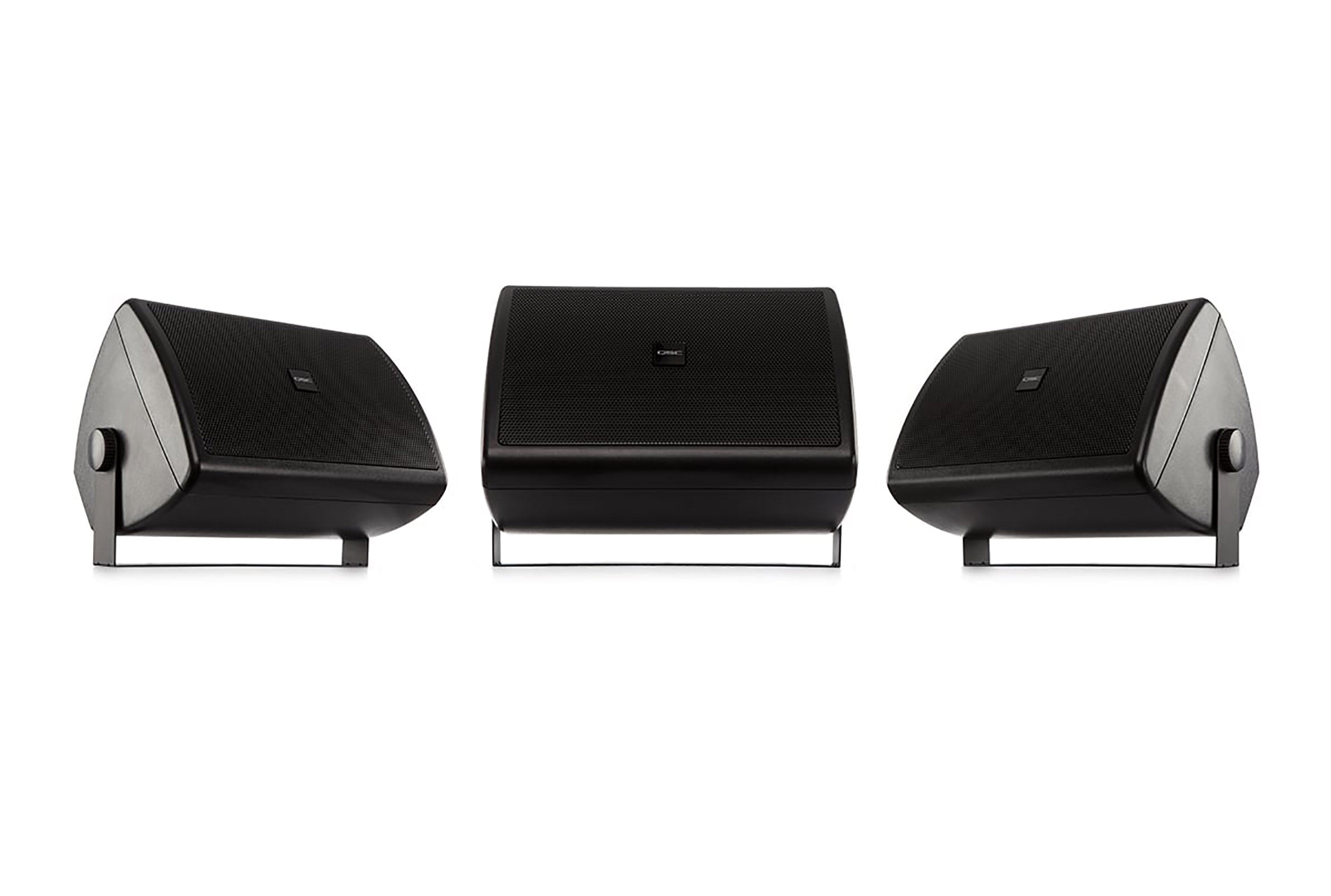

The QSC AC-S6T-BK Acoustic Coverage Series 6.5" 2-Way 30W Loudspeaker - Black is a pair of transformer-equipped 6.5" surface-mount loudspeakers voiced to deliver enhanced clarity in the vocal range, making them suitable for 70/100V or 8-ohm operation in a variety of paging, A/V conferencing, and background music applications.
Outfitted with a 6.5" polypropylene woofer and a 1" aluminum dome tweeter in a UV-treated ABS enclosure with a ported baffle, the AC-S6T offers broad 130° conical coverage while providing a frequency range of 60 Hz to 20 kHz (-10 dB). The speaker is capable of handling 30W RMS and producing a peak maximum SPL of 107 dB.

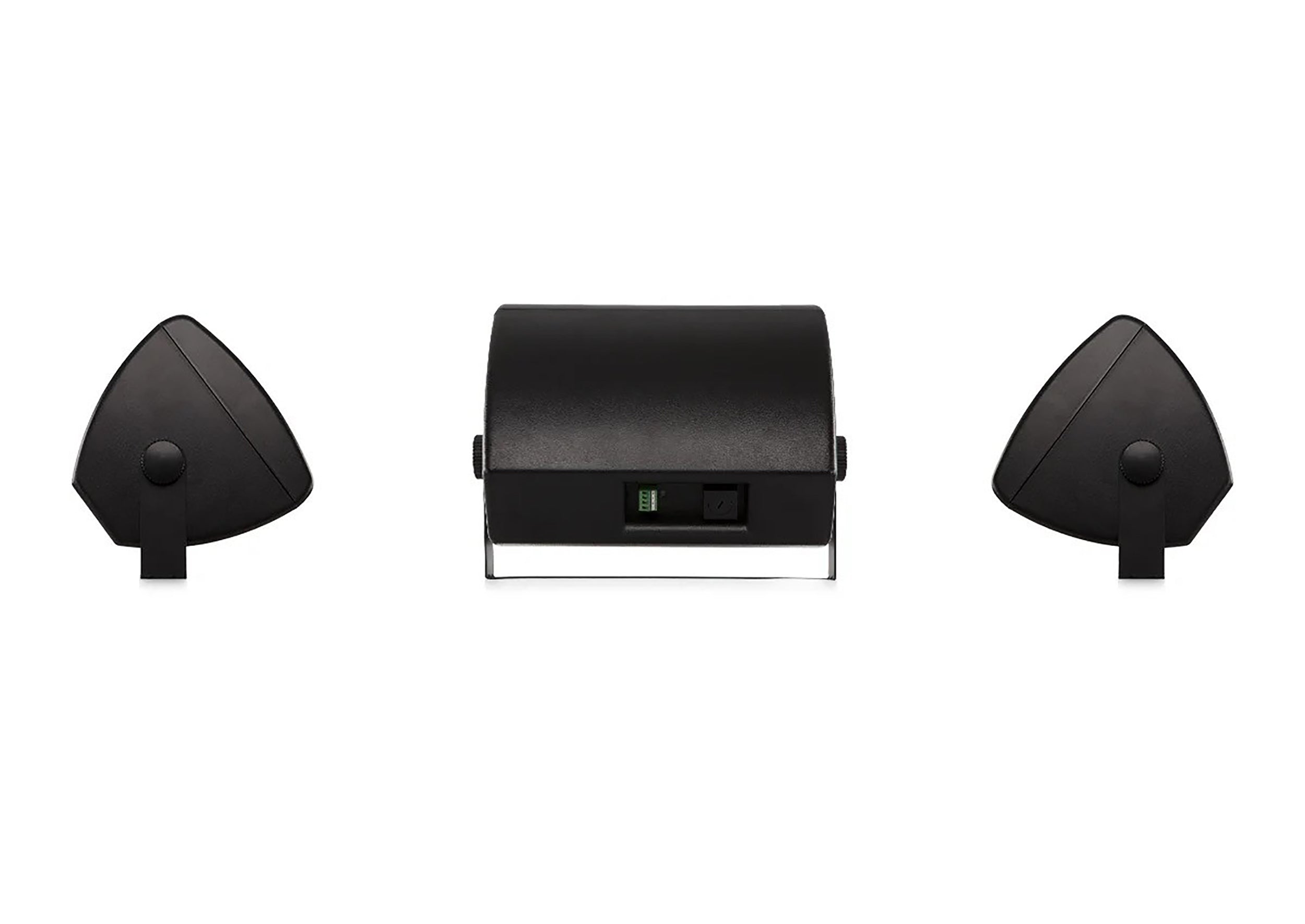

The AC-S6T utilizes a 4-pole Euroblock connector on the rear panel for easy input and loop-thru wiring. A yoke bracket is included for simplified surface-mount installation.
Product Specifications:
Active/Passive: Passive
Number of Included Speakers: 2
Speaker Configuration: 2-Way
Power Handling:
For 2 Hours: 30 W RMS
Recommended Amplifier Power: 60 W
Constant Voltage / Transformer Taps:
70 V: 30 / 15 / 7.5 / 3.7 / 1.9 W or 8 Ohms Bypass
100 V: 30 / 15 / 7.5 / 3.8 W or 8 Ohms Bypass
Impedance: 8 Ohms (Transformer Bypassed)
Transformer Wattage: 30 W
Enclosure Type: Bass-Reflex
Shielded: No
HF Driver: 1x 1" / 2.54 cm Aluminum Dome Tweeter
HF Voice Coil: 1" / 2.54 cm
LF Driver: 1x 6.5" / 16.51 cm Polypropylene Woofer
LF Voice Coil: 1" / 2.54 cm
Frequency Range: 60 Hz to 20 kHz -10 dB
Maximum SPL:
101 dB (Continuous)
107 dB (Peak)
Sensitivity: 86 dB SPL
Coverage Angle: 130° (Conical)
Directivity:
6 (Directivity/Q Factor)
8 dB (Directivity Index)
Maximum Input Voltage: 15.5 V RMS
Inputs/Outputs: 1x Block 4-Pole Speaker Input/Thru (Removable)
Maximum Wire Gauge: 18 AWG
Environmental Resistance: Dust/Water-Resistant (IP44)
Operating Conditions: -4 to 122°F / -20 to 50°C
Color: Black
Mounting: 1x Bracket Point (Each Side)
Construction Material: ABS, Metal Grille
Dimensions: 11.9 x 8.5 x 7.8" / 30.23 x 21.59 x 19.81 cm
Weight: 8.3 lb / 3.8 kg (Each Speaker)
Shipping Weight: 18.5 lbs.
Shipping Dimensions (LxWxH): 14 x 10 x 10 Inches
