Description

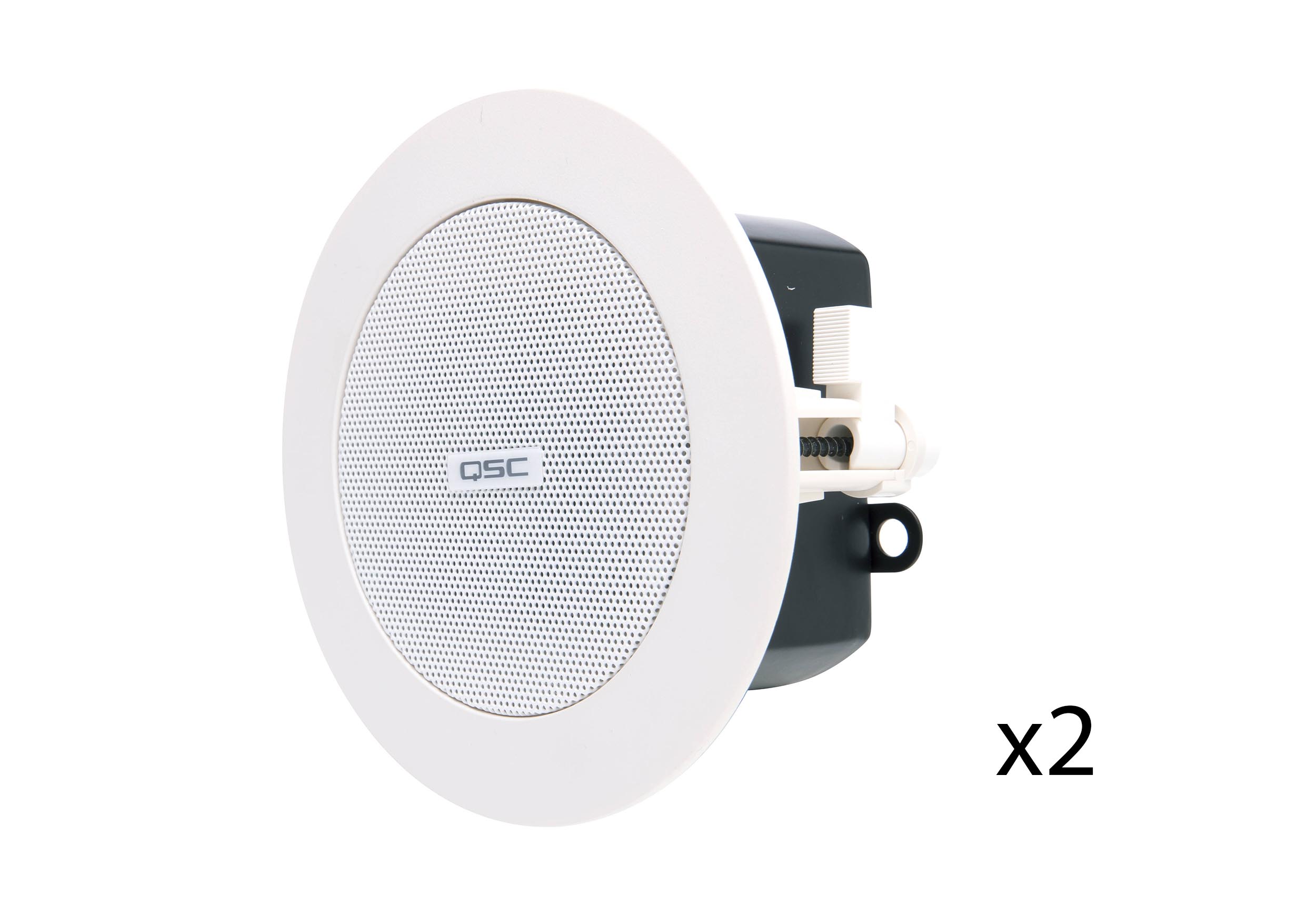

The QSC AD-C.SAT-WH 2.75-Inch Small Format Ceiling Satellite Loudspeaker - White is part of the Acoustic Design Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings. The Acoustic Design Series SUB/SAT loudspeakers are specifically designed to be mix-and-match capable; meaning any combination of satellites may be paired with any subwoofer in the AD Series SUB/SAT line.
Product Specifications
| Specification | Details |
|---|---|
| LF Transducer | N/A |

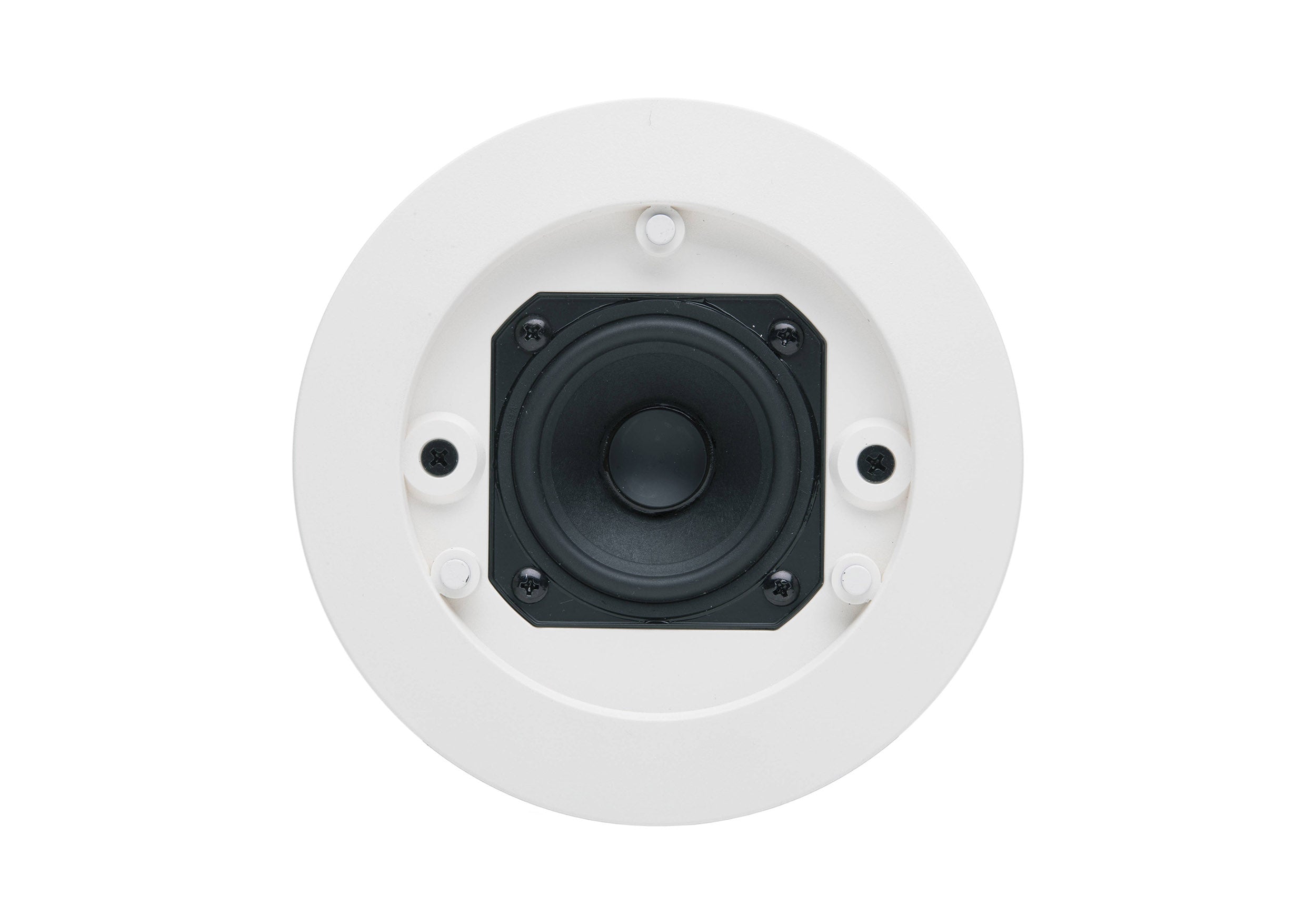

| HF Transducer | 2.75-inch (70 mm) weather treated paper cone woofer |
| Effective Frequency Range | 150 Hz – 20 kHz |
| Rated Noise Power / Voltage | 25 W / 20 V (rms) |
| Sensitivity [Db] (Rated @ 1 W, 1 M) | 82 |
| Coverage (‐6 Db) | 170° Conical |
| Directivity Factor | TBD |
| Directivity Index [Db] | TBD |
| Maximum SPL [Db](Continuous / Peak) | 90 / 96 |
| Recommended Amplifier | 25 W (with 1st order high-pass filter at 200 Hz) |
| Transformer Taps / Impedance Bypass | 16 Ω |
| Connector | 2-pole Euroblock connectors |
| Enclosure Material | ABS baffle on powder coated steel back can |
| Grille Material | Powder coated steel |
| Ingress Protection | IP-34 |
| Operating Environment | Designed for indoor use |
| Operating Temperature Range | -4 to 122° F (-20 to 50° C) |
| Cutout Dimension | Ø 4.5-inch (Ø 115 mm) |
| Net Weight | 1.39 lb (630 g) |
| Product Dimensions (Ø X H) | Ø 5.9 x 3.4” |
