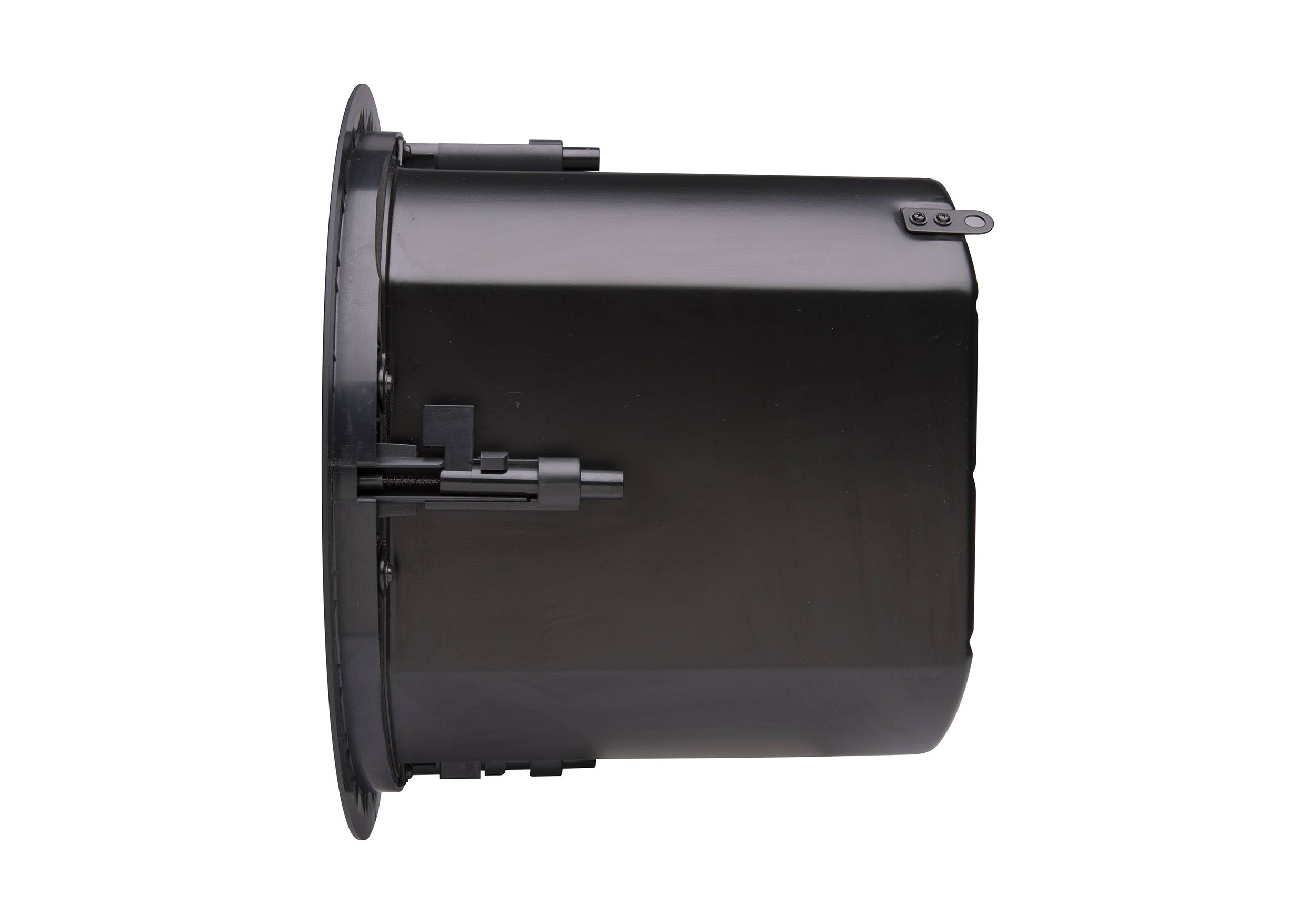

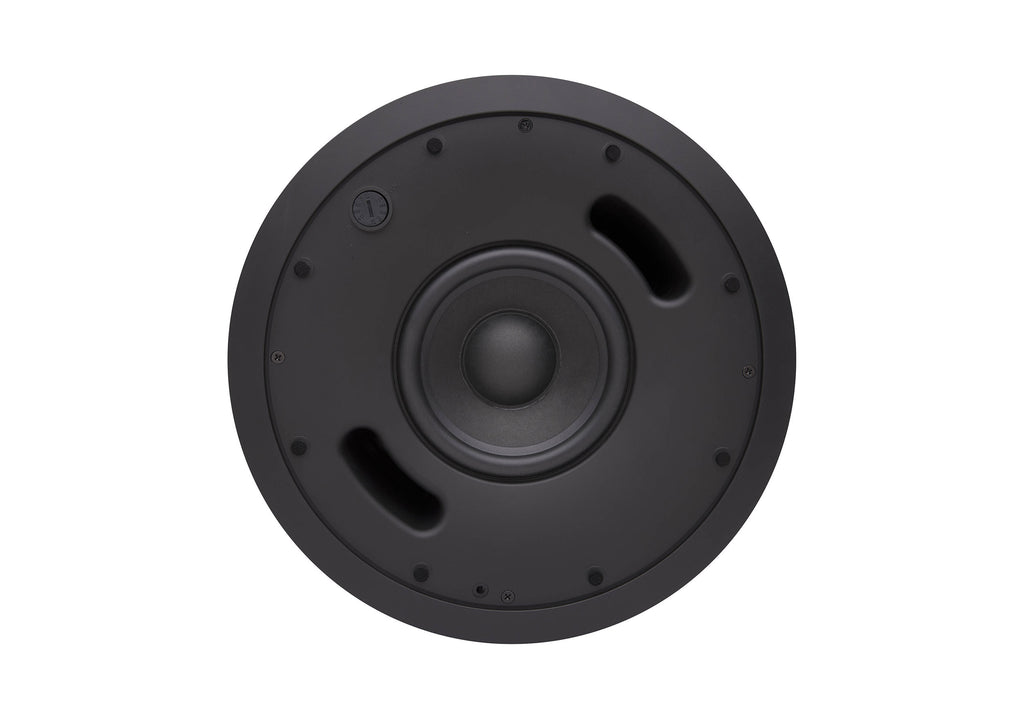

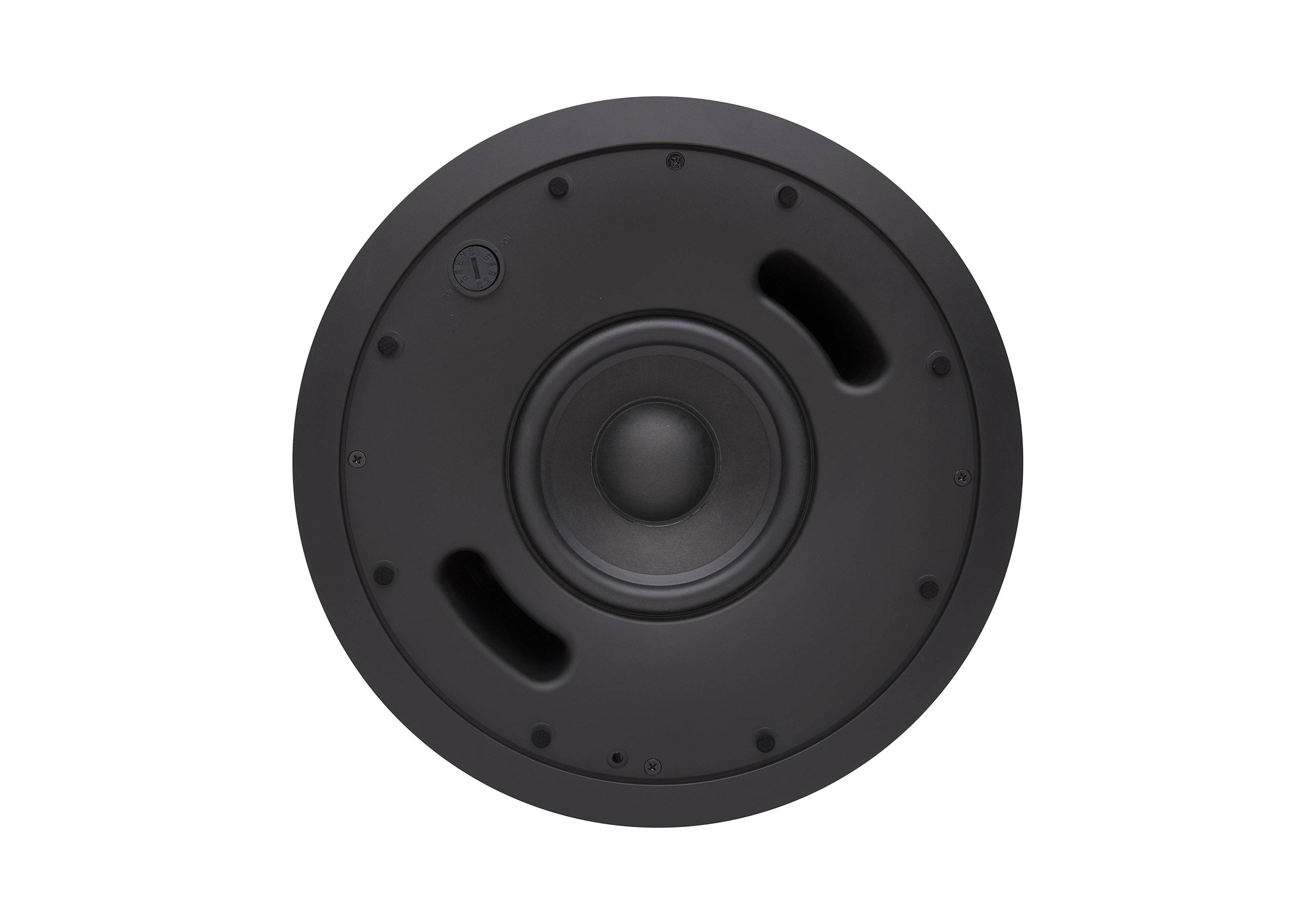

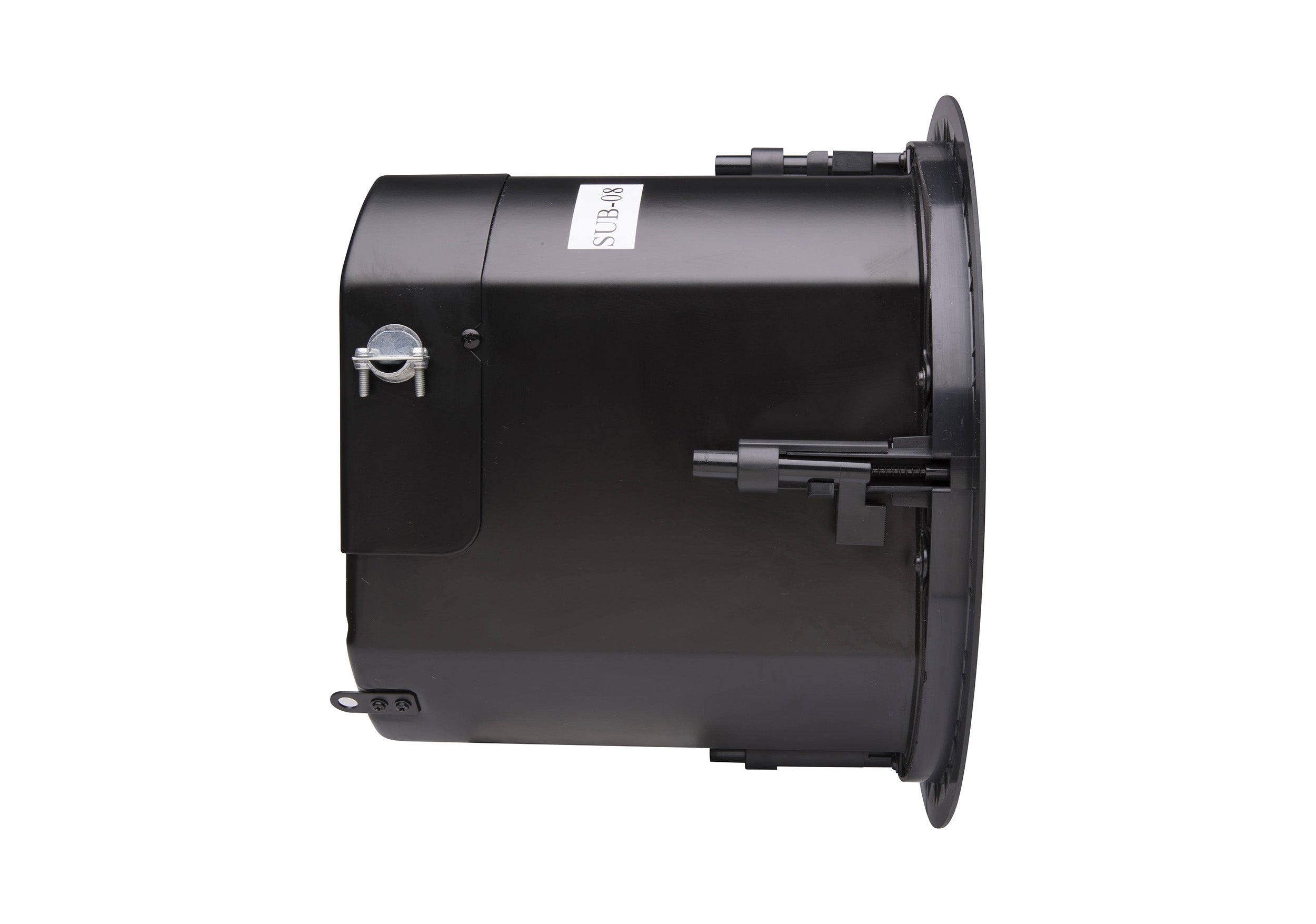

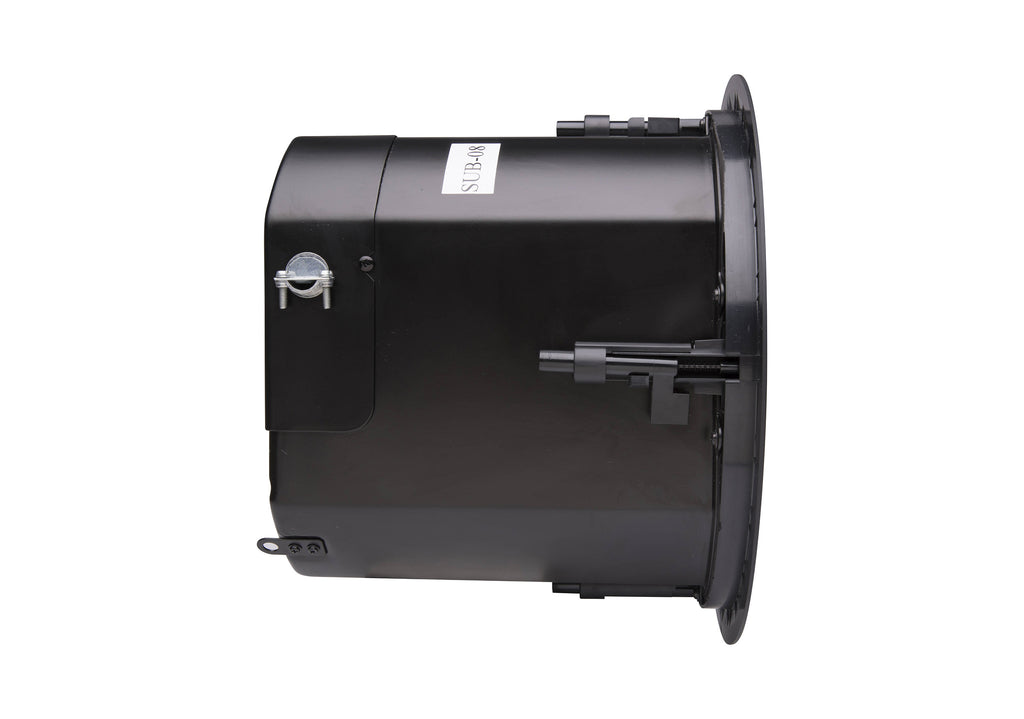

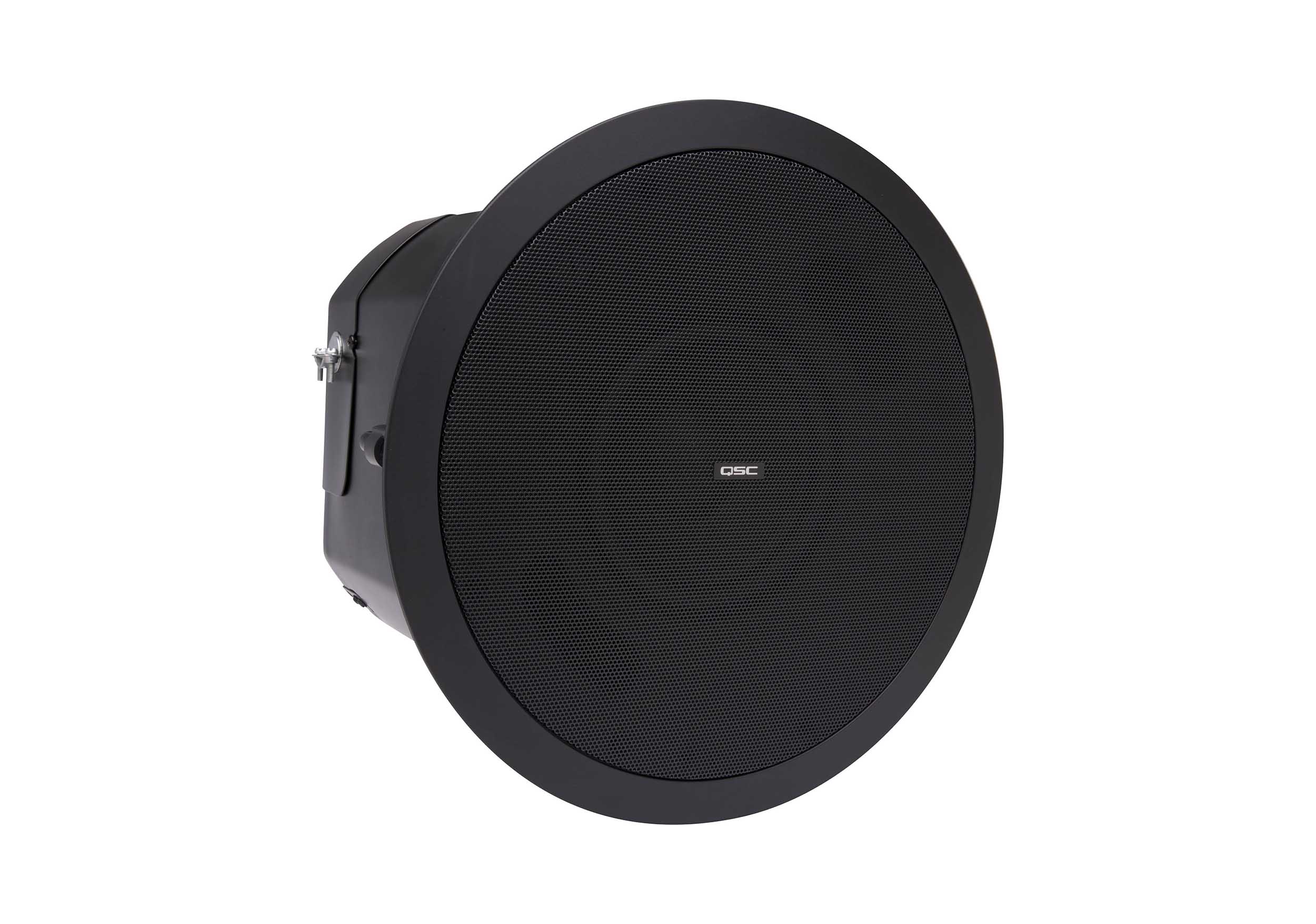

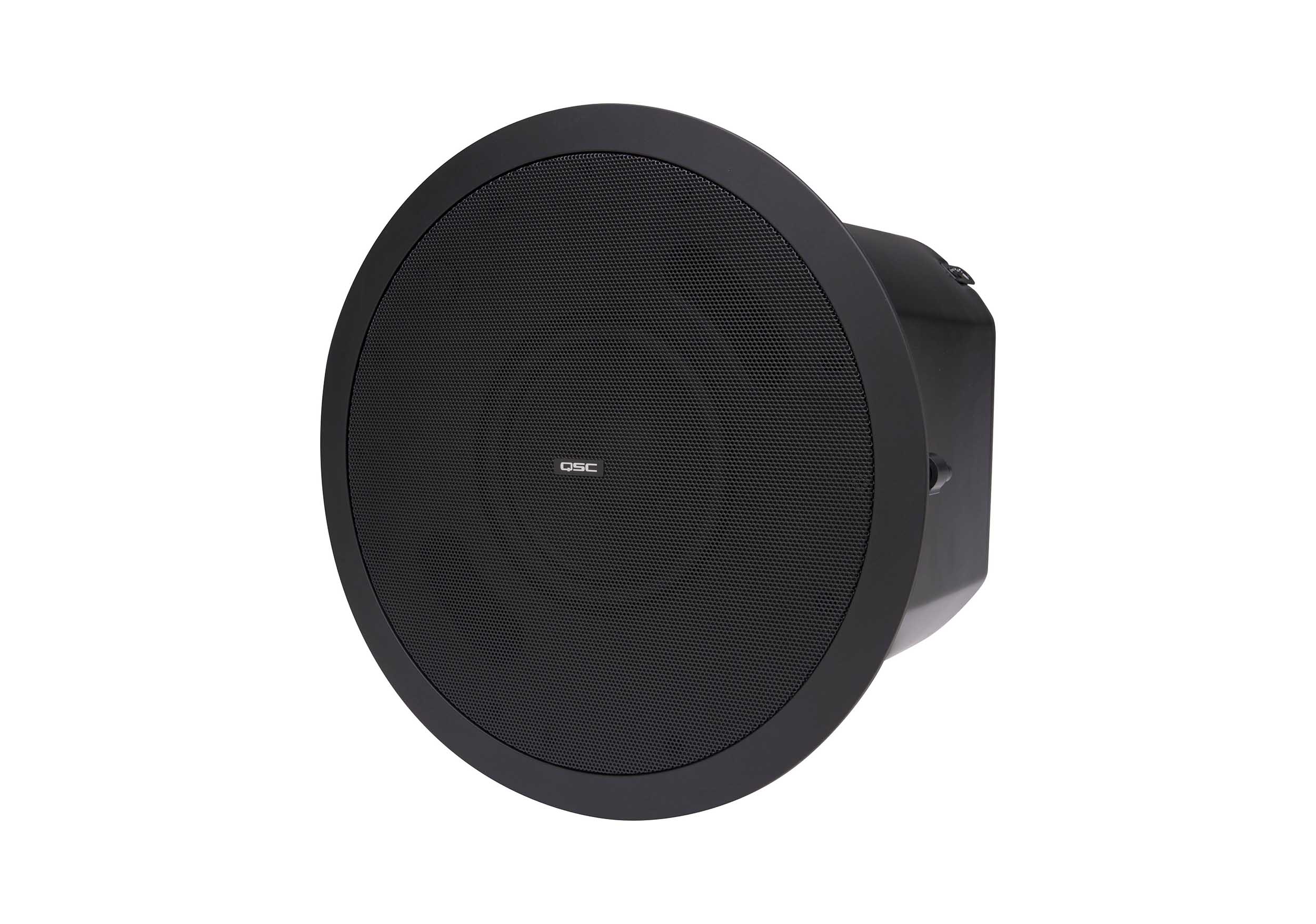

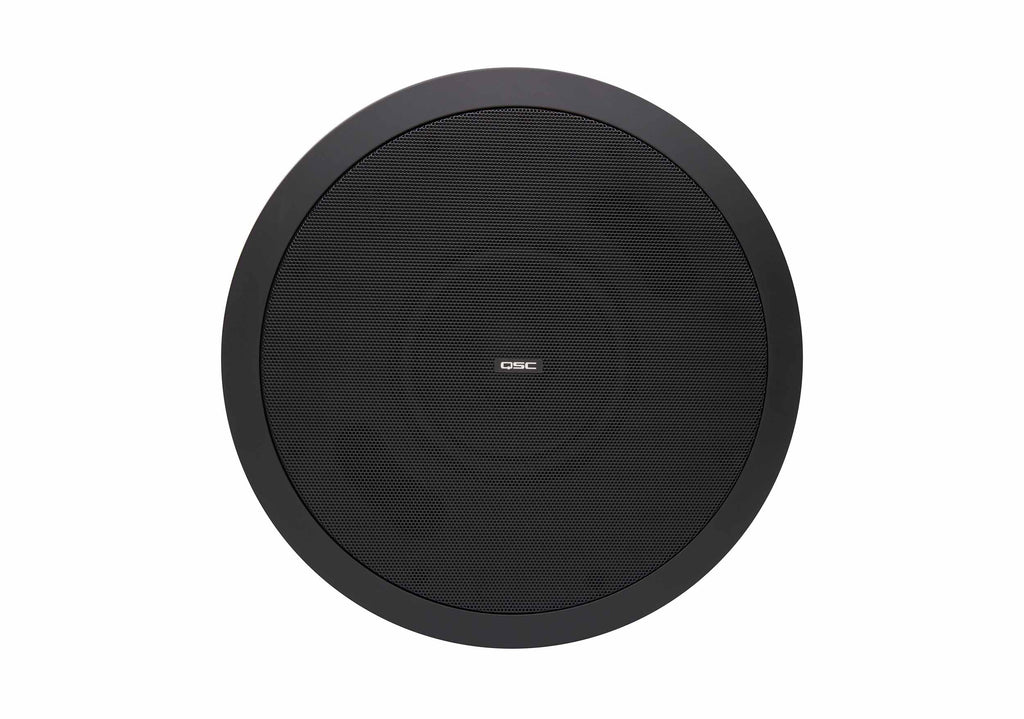

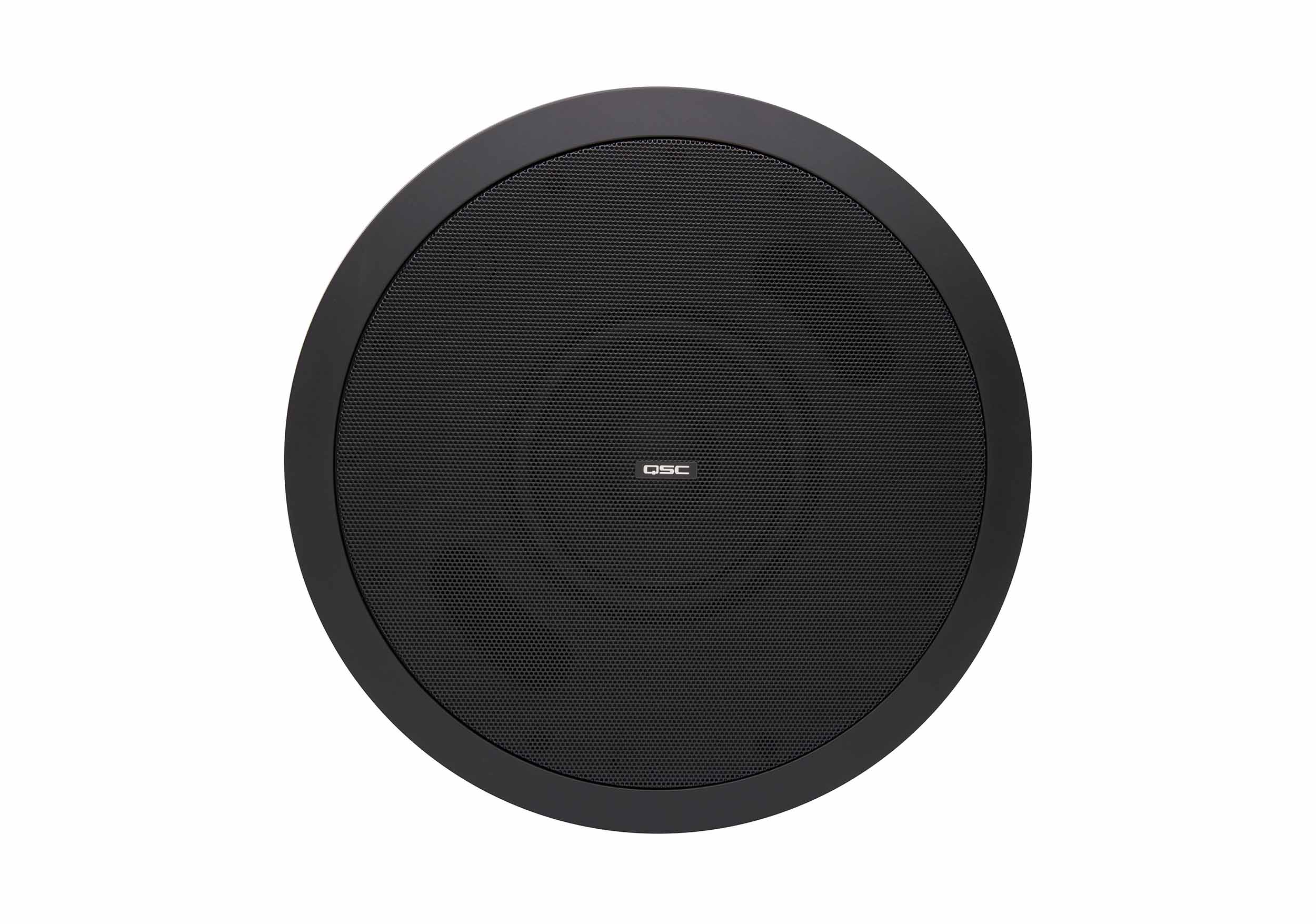

QSC AD-C.SUB-BK 6.5" Small-Format Passive Ceiling Sub nch Black

The QSC AD-C.SUB-BK 6.5-Inch Small-Format Passive Ceiling Subwoofer - Black  is part of the Acoustic Design Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings. The Acoustic Design Series SUB/SAT loudspeakers are specifically designed to be mix-and-match capable; meaning any combination of satellites may be paired with any subwoofer in the AD Series SUB/SAT line.

Product Specifications:

Active/Passive: Passive

Number of Included Speakers: 1

Speaker Configuration: Subwoofer

Power Handling: 100 W

Recommended Amplifier Power: 100 W

Constant Voltage / Transformer Taps:

70 V: 100 / 50 / 25 / 12.5 W

100 V: 100 / 50 / 25 W or 4 Ohms Bypass

Impedance: 4 Ohms

Enclosure Type: Bass-Reflex

LF Driver: 1x 6.5" / 165.1 mm Woofer

Frequency Range: 45 Hz to 150 Hz

Maximum SPL:

111 dB (Peak)

105 dB (Continuous)

Sensitivity: 86 dB

Coverage Angle: 250° (Conical)

Directivity:

1.8 dB (Directivity Index)

1.5 (Directivity/Q Factor)

Inputs/Outputs: 3x Block 4-Pole Speaker Input/Output (Locking)

Maximum Wire Gauge: 12 AWG

Certifications: CE, RoHS, UL

Environmental Resistance: Dust/Water-Resistant (IP34)

Operating Conditions: -4 to 122°F / -20 to 50°C

Color: Black

Mounting: 1x In-Ceiling

Construction Material: ABS, Steel

Dimensions: 13.4 x 10.4" / 340.36 x 264.16 mm

Weight: 19.2 lb / 8.7 kg

Shipping Weight: 25.9 lbs.

Shipping Dimensions (LxWxH): 21 x 21 x 14.25 Inches
