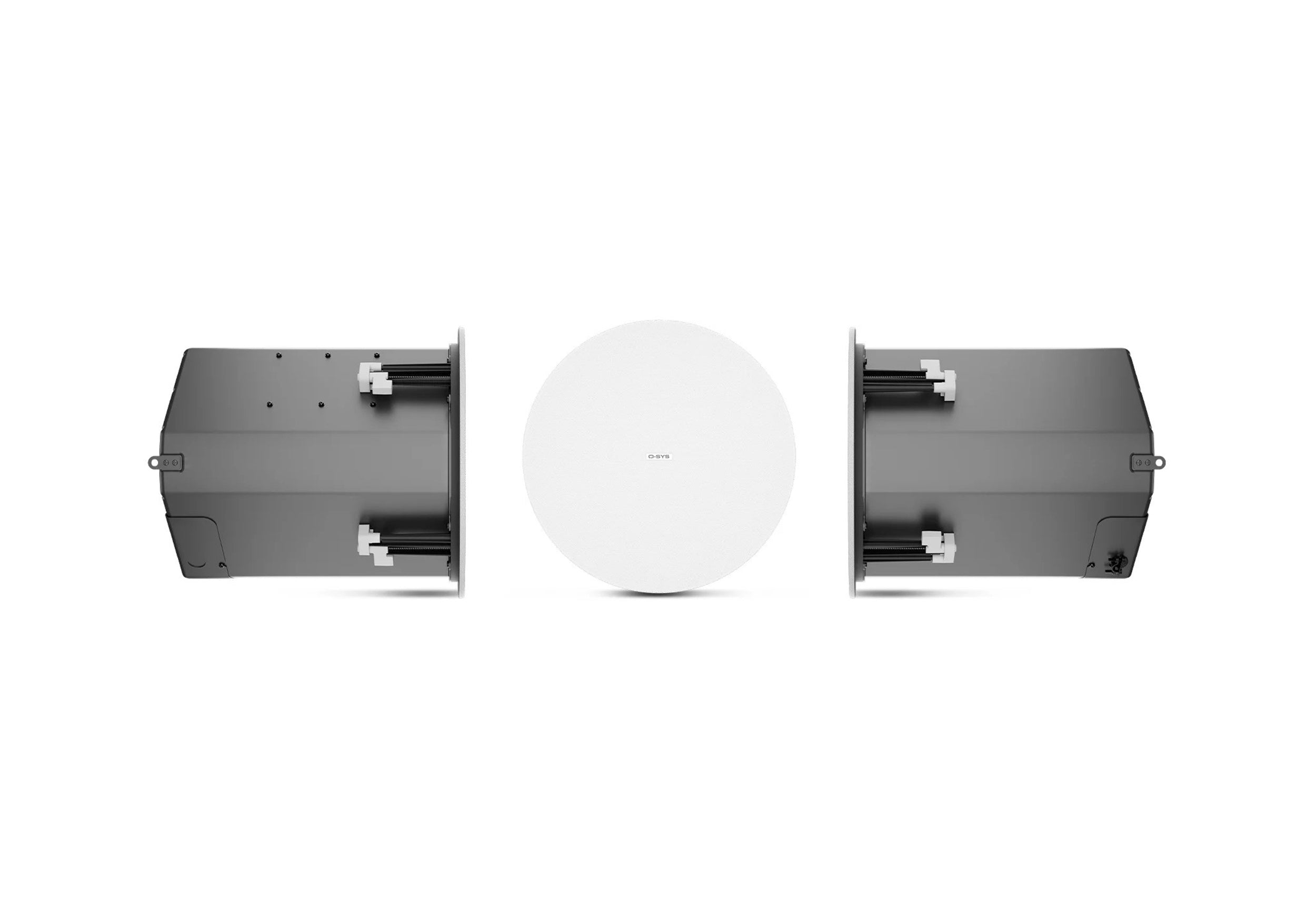

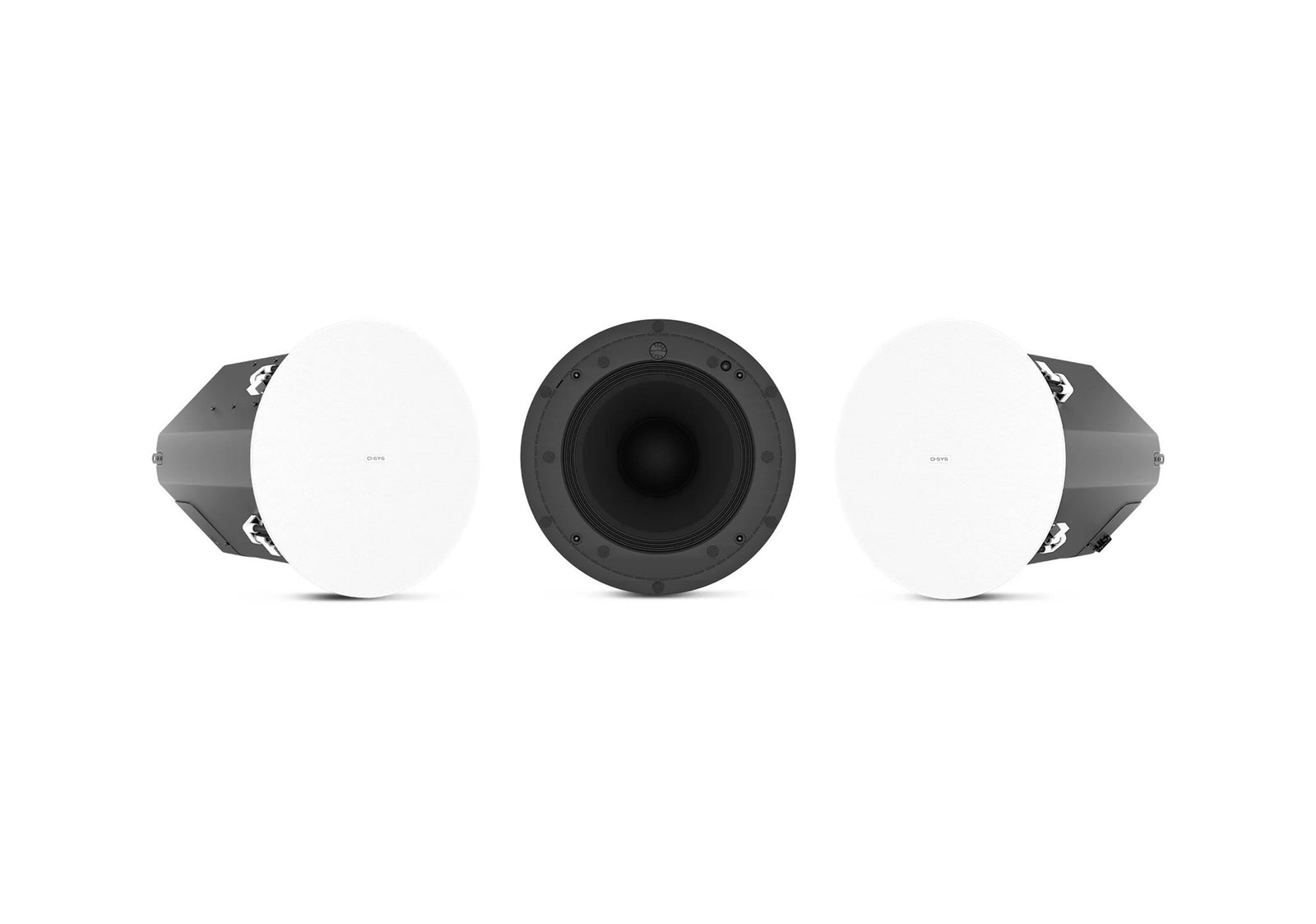

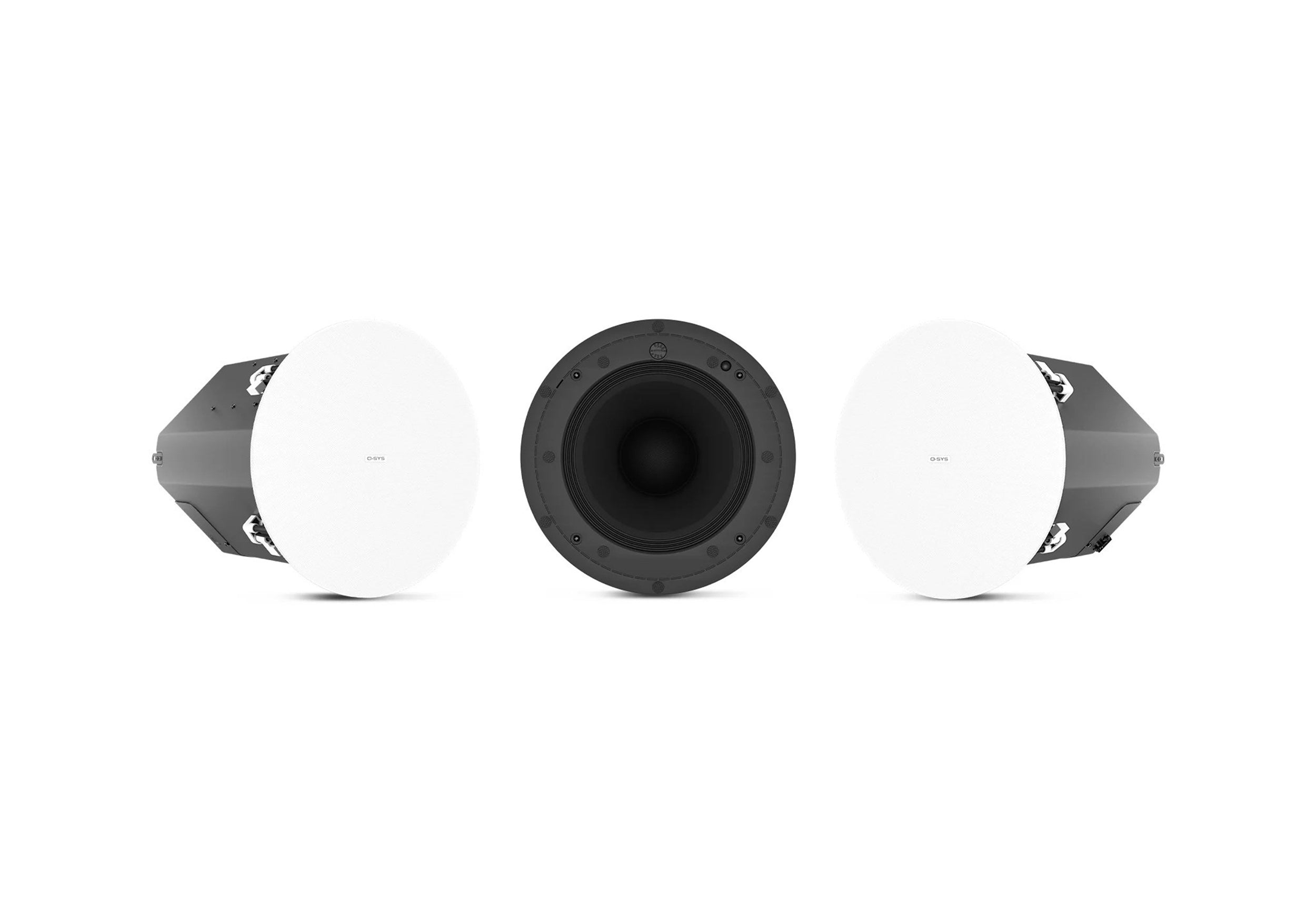

QSC AD-C10T-HPZB-WH 10" Two-Way High-Power Ceiling Speaker & Blind - Pair

The QSC AD-C10T-HPZB-WH, 10" Two-Way High-Power Ceiling Speaker, Blind Mount - Pair White is designed for premium audio performance in commercial installations. It features a bezel-less design, 90° conical coverage, and a Directivity Matched Transition (DMT) waveguide for even sound distribution. The snap-fit magnetic grille, long-travel dog-ear blind mount system, and removable conduit cover plate ensure easy installation. Supporting 70V/100V transformer taps and an 8Ω bypass, it offers flexible configurations. UL-certified for safety, it is ideal for air handling spaces.

Product Specification:

LF transducer: 10 in (254 mm), 2.0 in. (50.8 mm) voice coil, ferrite

HF transducer: Coaxial compression driver 1.5 in (38.1 mm) voice coil

Enclosure configuration: Two-way, ceiling loudspeaker, Sealed

Coverage: 90° conical DMT

System bandwidth (1):

-3 dB: 86 Hz - 20 kHz

-6dB: 76 Hz-20 kHz

-10 dB: 68 Hz-20 kHz

Sensitivity (2): 92.5 dB @ 1 W/ 1 m

Max SPL (continuous) (3): 116 dB

Max SPL (peak) (4): 128 dB

Max SPL (calculated) (5): 122 dB

Power rating: Continuous power 250 W @ 8Ω, rated Power 500 W

Bypass impedance: 8 Ω

Minimum impedance: 6.9 Ω @ 20 hz

Transformer taps (70v/100v): 25 W, 50 W, 100 W, 200 W / 50 W, 100 W, 200 W

Enclosure material: ABS baffle on powder coated steel backcan

Connectors: 4-pin 0.2 in. (5 mm) Euroblock connector with parallel output

Dimensions (H x W x D): 13.5 x 13.5 x 13.75 in (342.9 x 342.9 x 349.25 mm)

Cutout Dimensions: 305 mm

Weight: 23 lbs. (10.5 kg)

Shipping Dimensions (H x W x D): 19.5 x 17.5 x 32 in (495.3 x 444.5 x 812.8 mm), pair packed

Shipping Weight: 68.1 lbs. (30.9 kg)
