Description

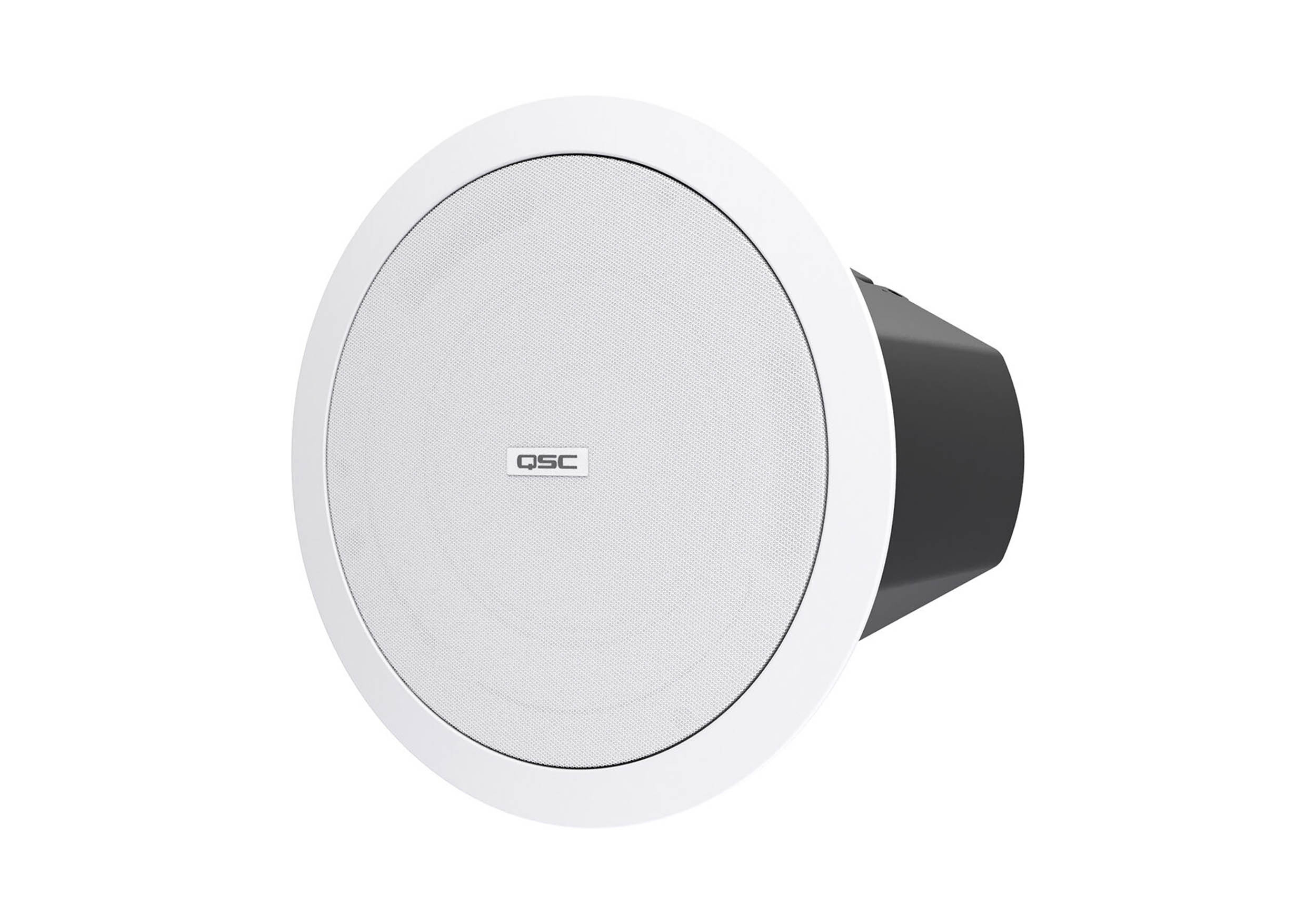

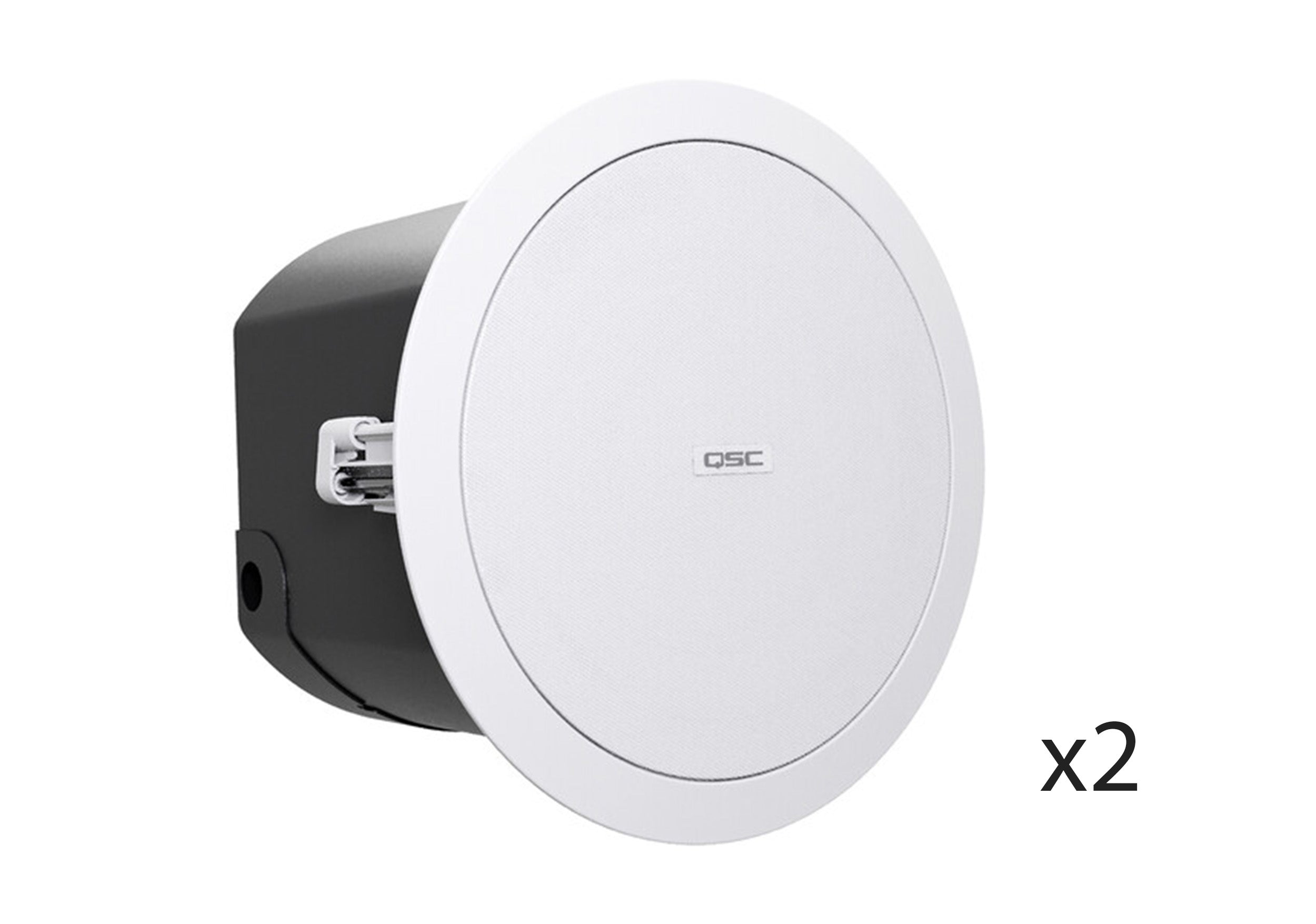

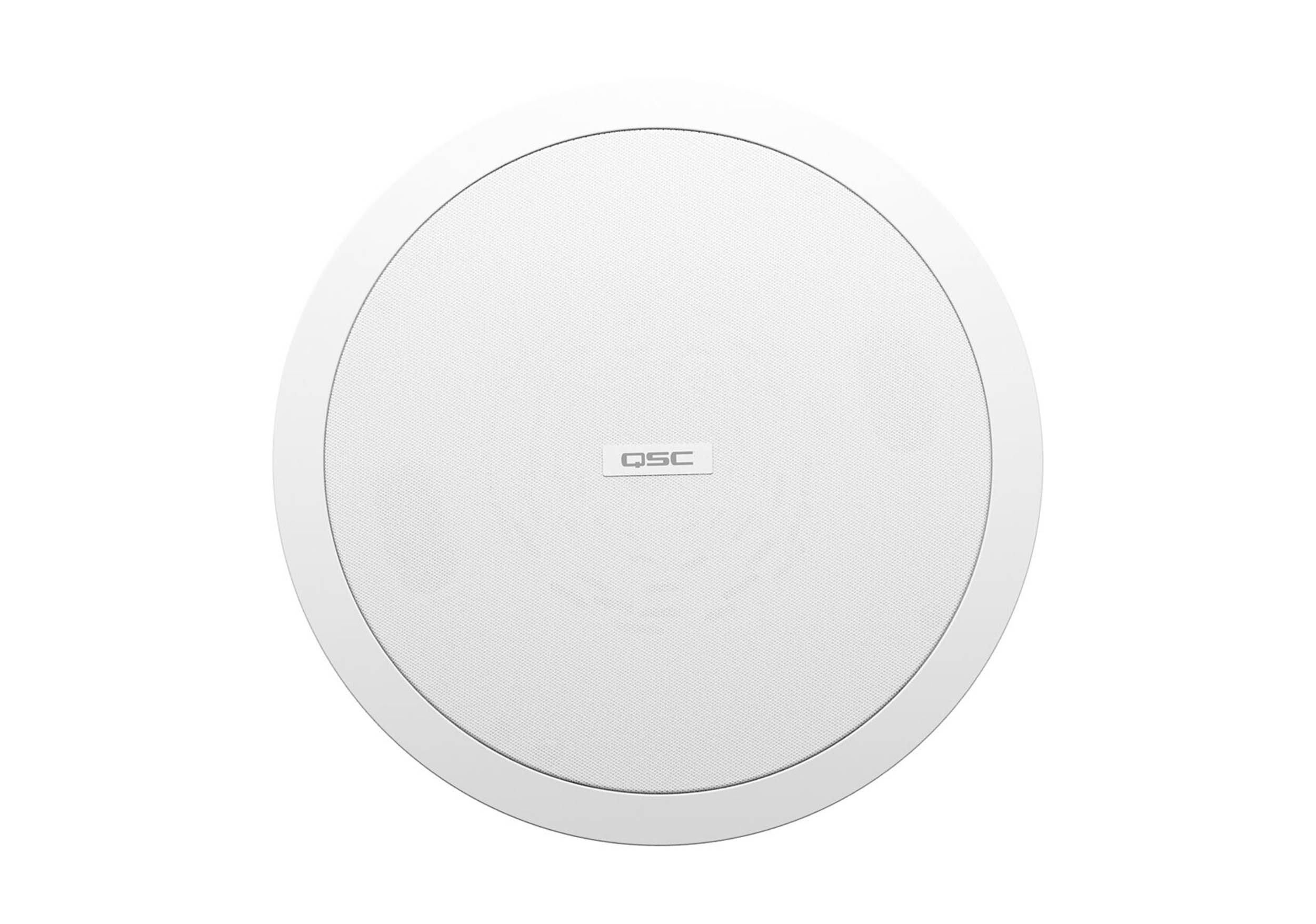

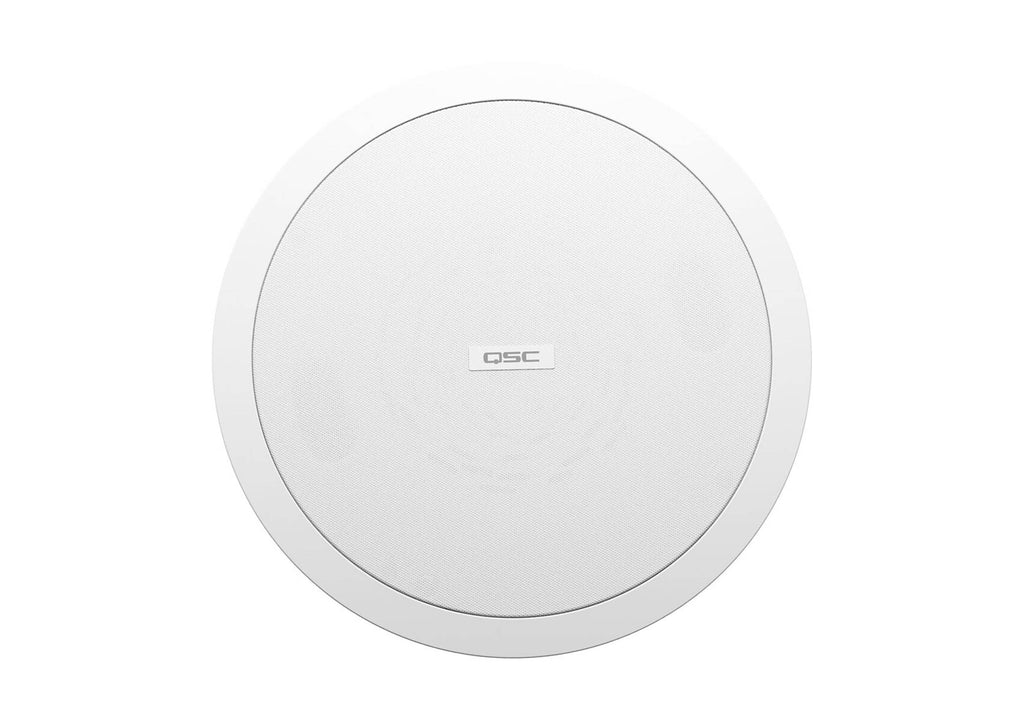

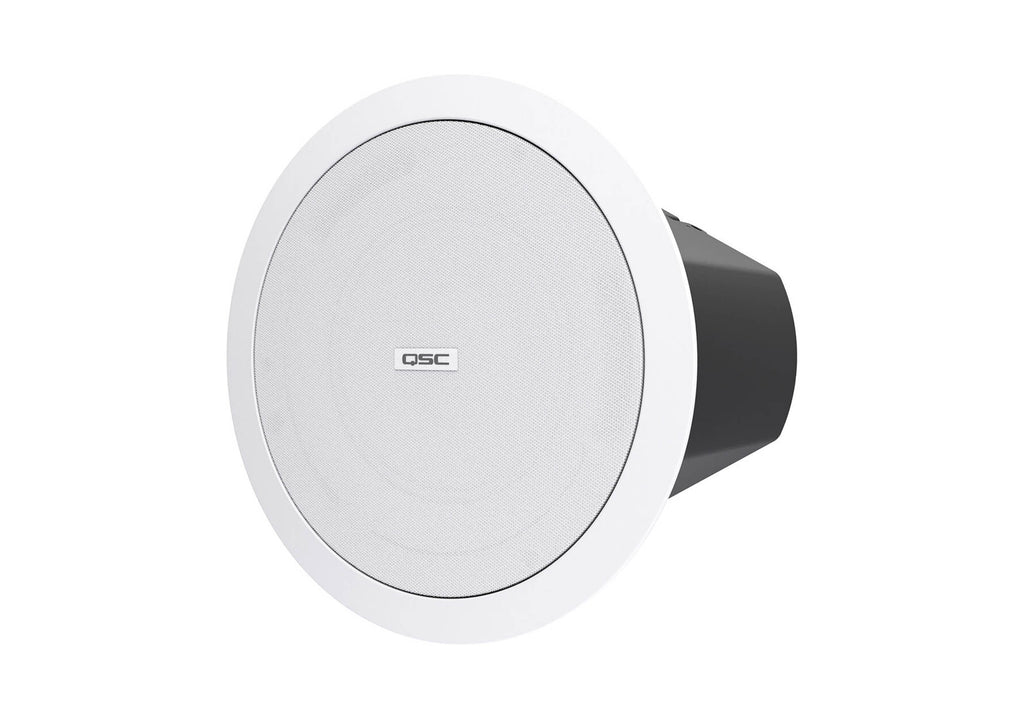

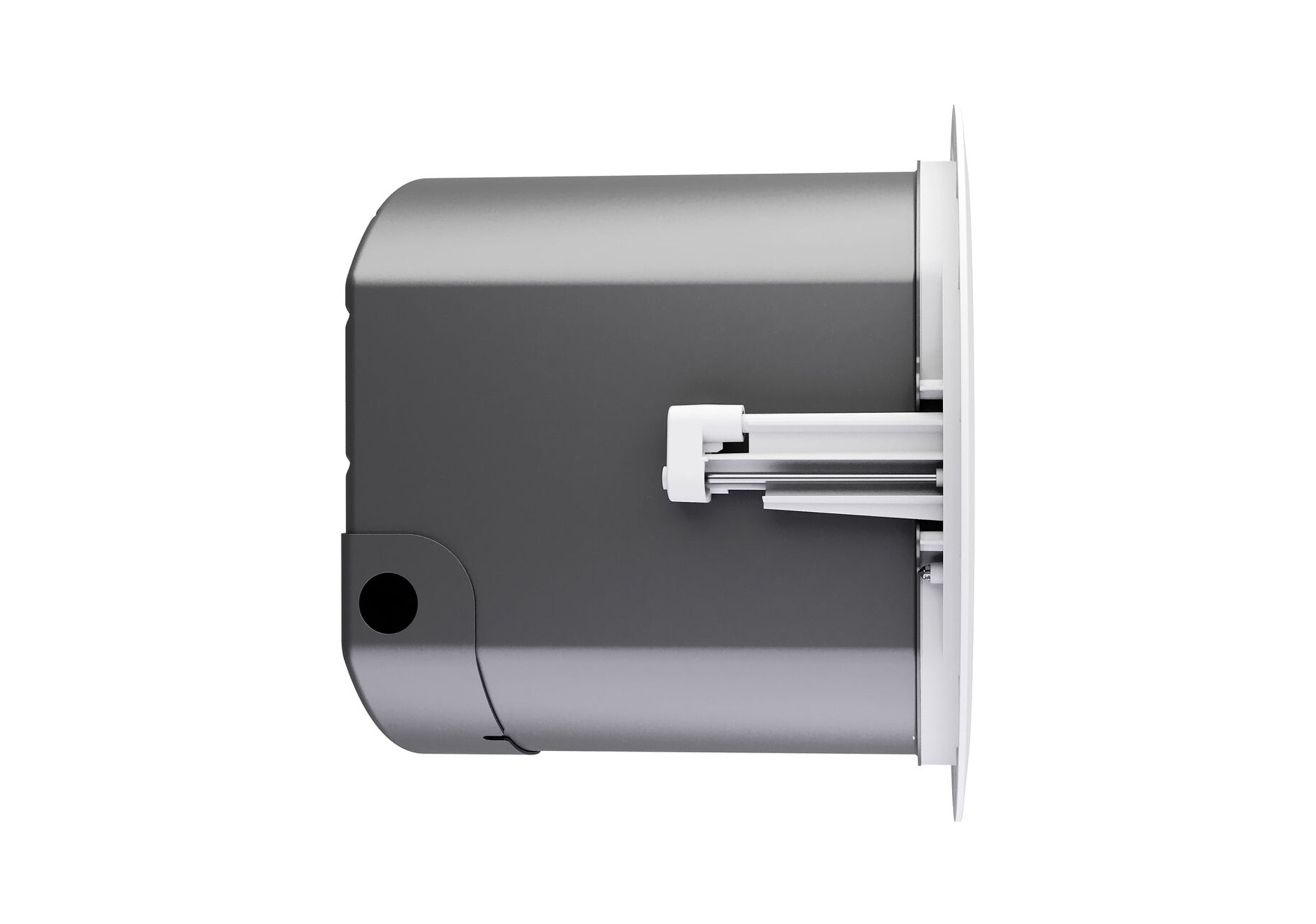

The QSC AD-C6T-HP, 6.5 Inch 2-Way High Power and Blind Mount 120 Deg Ceiling Speakers - 70/100V - White is a pair of high-power, passive, ceiling speakers well suited for restaurants, retail spaces, and large meeting facilities. Designed to deliver a remarkable foreground or background music experience, each ceiling-mount loudspeaker offers premium quality with high power handling to ensure optimal audio clarity with a higher noise floor.

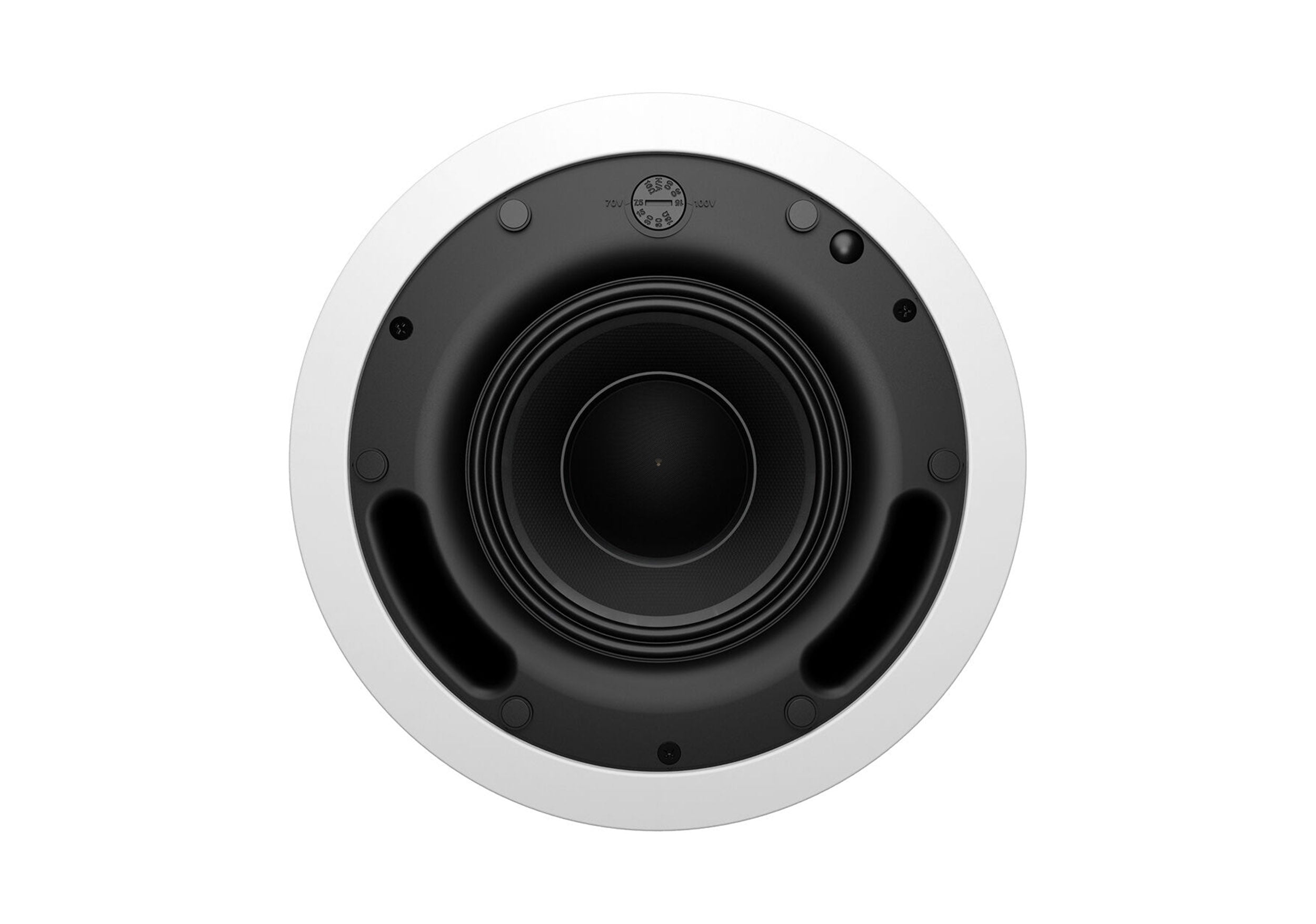

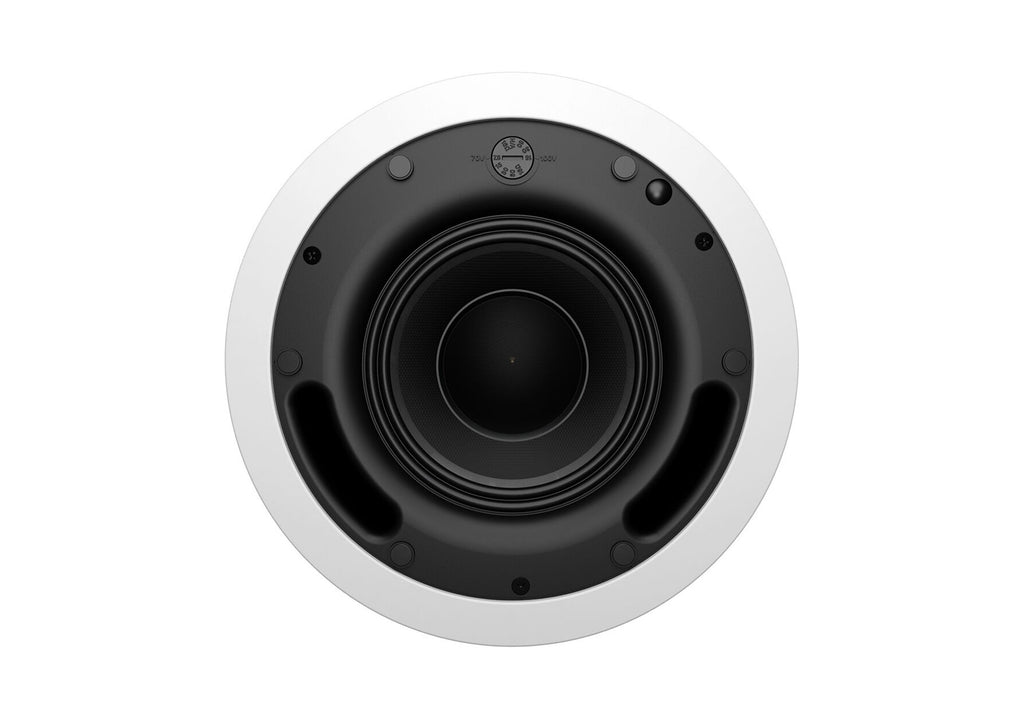

The speaker requires up to 120W of power to drive the 6.5" woofer and 1.4" dome compression driver, which combine to offer a frequency range of 58 Hz to 20 kHz (-10 dB) and a max SPL of 115 dB. The coaxial design ensures that both drivers are phase accurate for clear and precise sound over the 120° conical coverage pattern. The speakers are also compatible with 70/100V amplifiers, for even more flexibility when deploying. The pair of speakers include Euroblock connectors, a cutout guide, and mounting hardware.
Product Specifications:
Active/Passive: Passive
Number of Included Speakers: 2
Speaker Configuration: 2-Way
Power Handling: 120 W
Constant Voltage / Transformer Taps:
70 V: 60 / 30 / 15 / 7.5 W or 16 Ohms Bypass
100 V: 60 / 30 / 15 W or 16 Ohms Bypass
Impedance: 15.4 to 16 Ohms
Enclosure Type: Sealed
HF Driver: 1x 1.4" / 35.6 mm Dome Compression Driver
LF Driver: 1x 6.5" / 165.1 mm Paper Woofer
LF Voice Coil: 1.75" / 44.45 mm
Magnet:
LF: Ferrite
Frequency Range: 58 Hz to 20 kHz -10 dB
Maximum SPL:
109 dB (Continuous)
115 dB (Peak)
Sensitivity: 89 dB
Coverage Angle: 120° (Conical)
Directivity:
5.6 dB (Directivity Index)
3.6 (Directivity/Q Factor)
Crossover: 2.6 kHz
Inputs/Outputs: 1x Block 4-Pin Speaker Input/Thru
Environmental Resistance: No
Color: White
Mounting: In-Ceiling
Construction Material: ABS, Steel

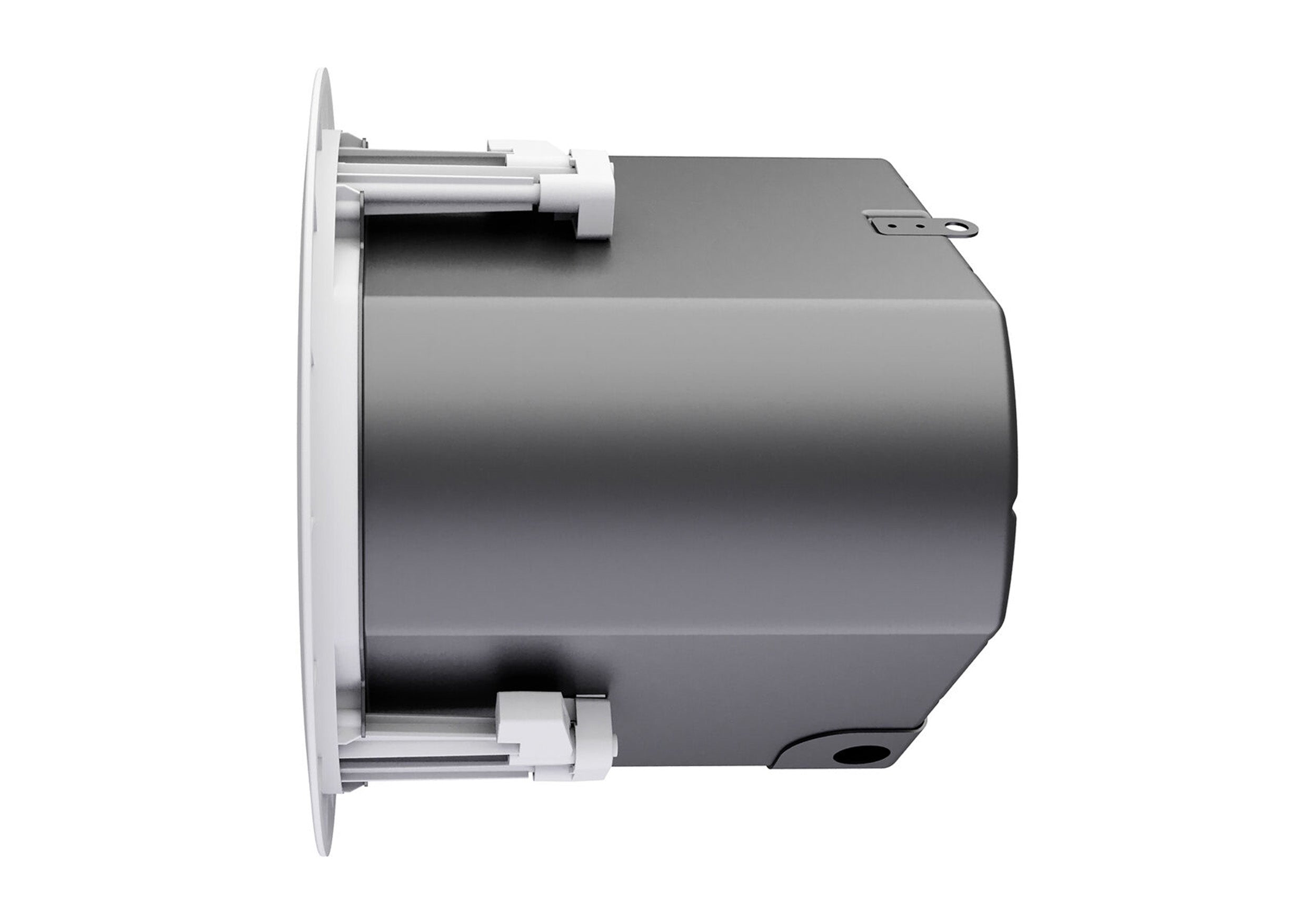

Dimensions: 11 x 11 x 9.3" / 279.4 x 279.4 x 236.2 mm
Weight: 13.4 lb / 6.1 kg (Each Speaker)
Shipping Weight: 38.5 lbs.
Shipping Dimensions (LxWxH): 27.75 x 15 x 11 Inches
