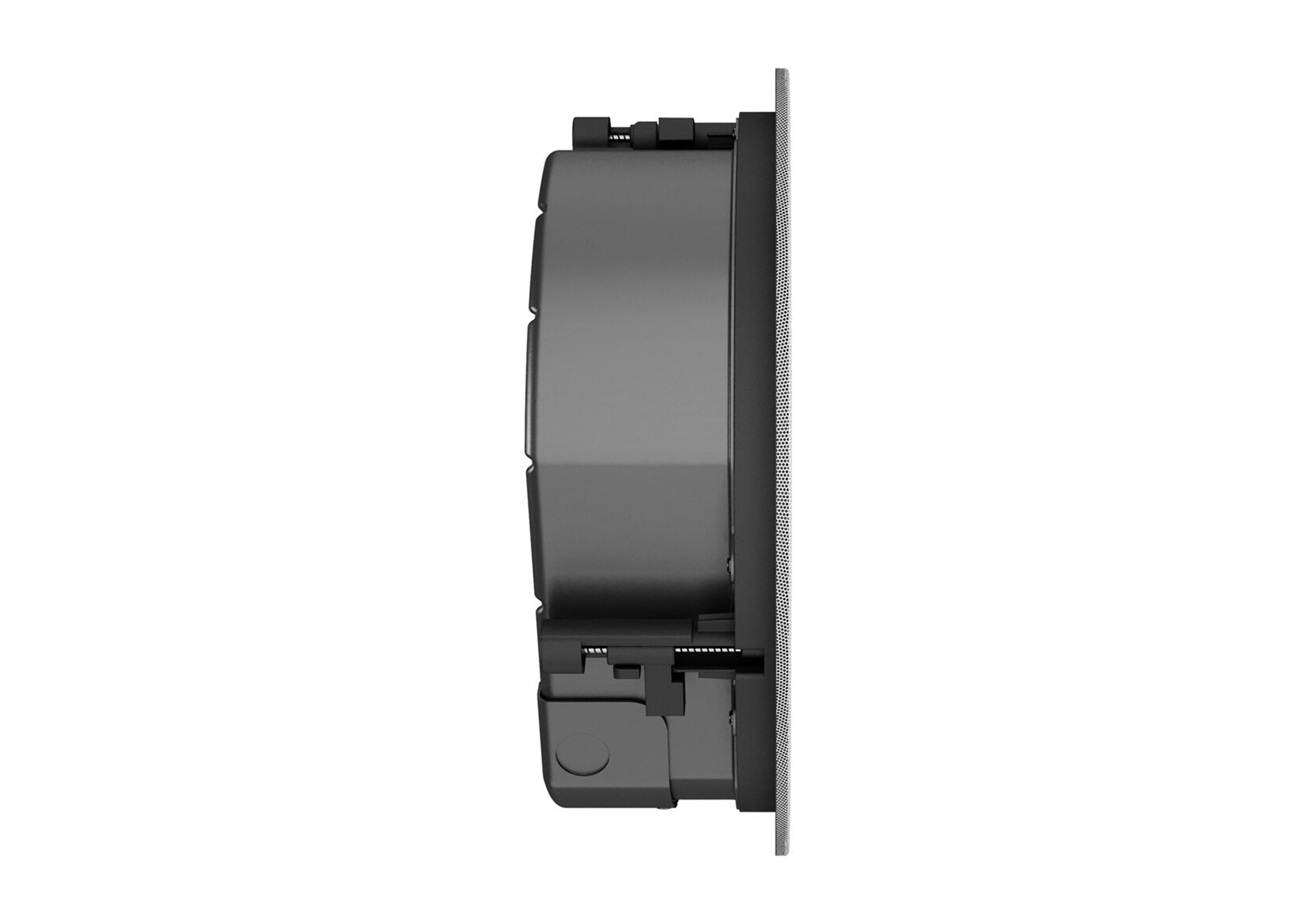

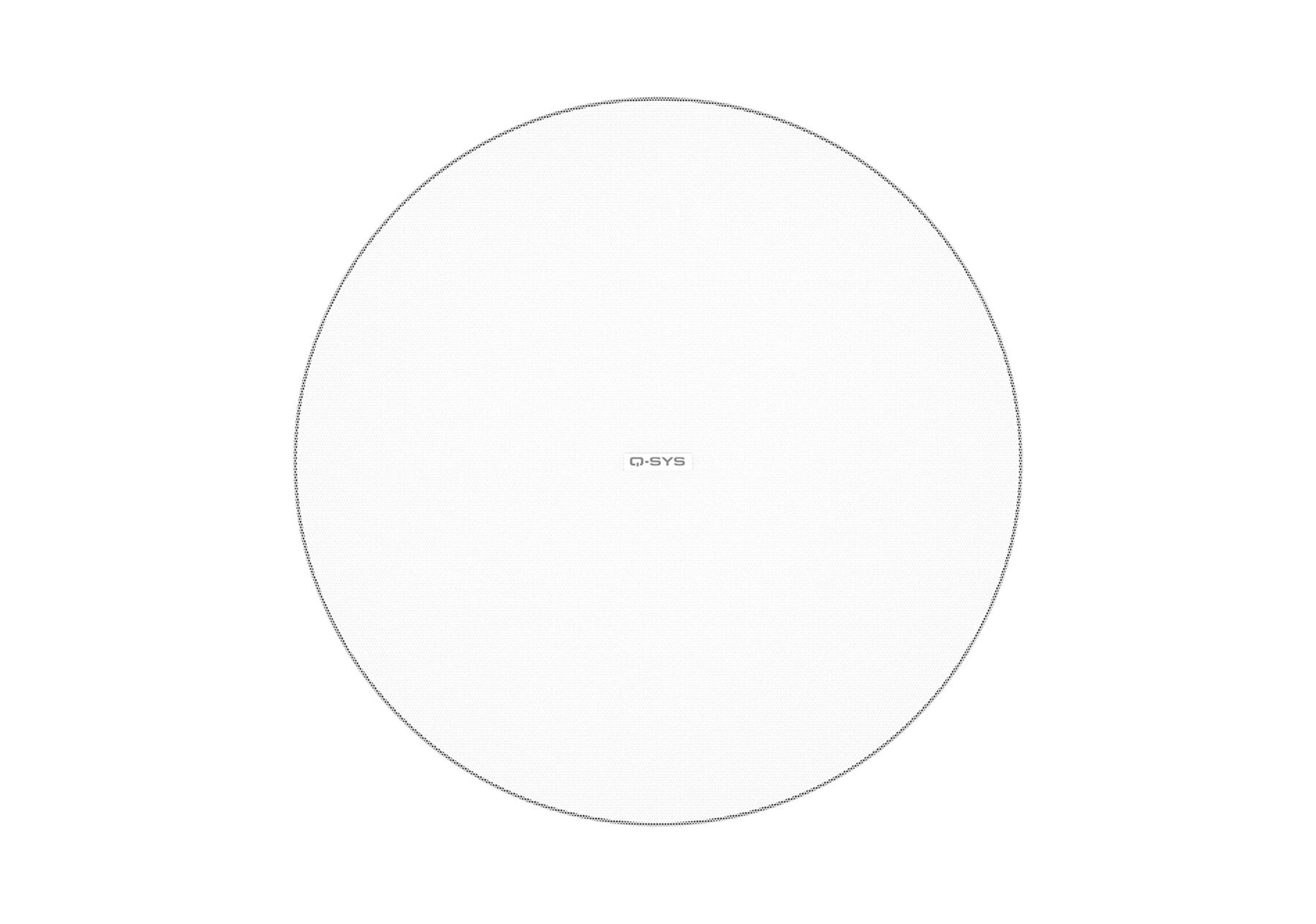

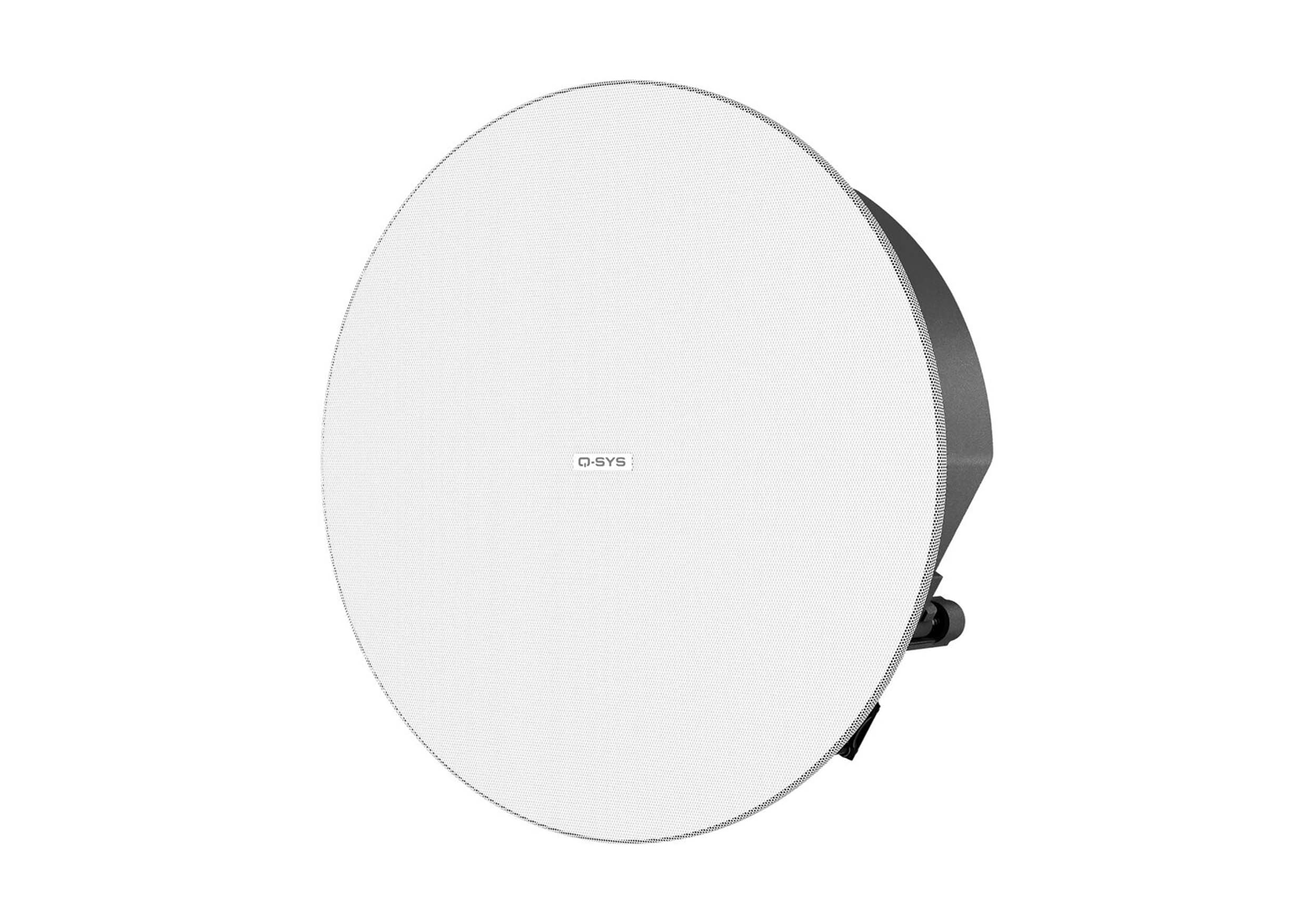

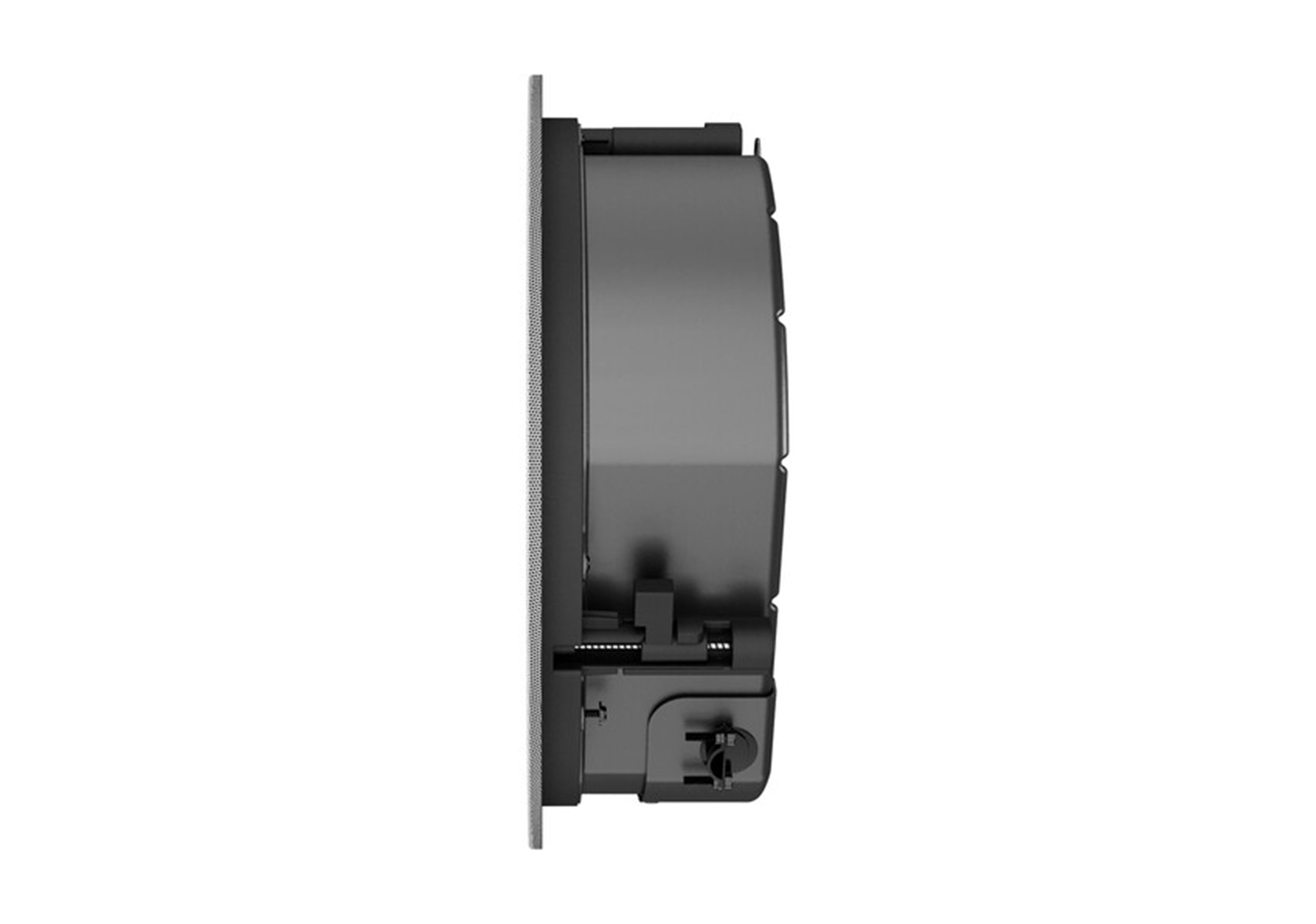

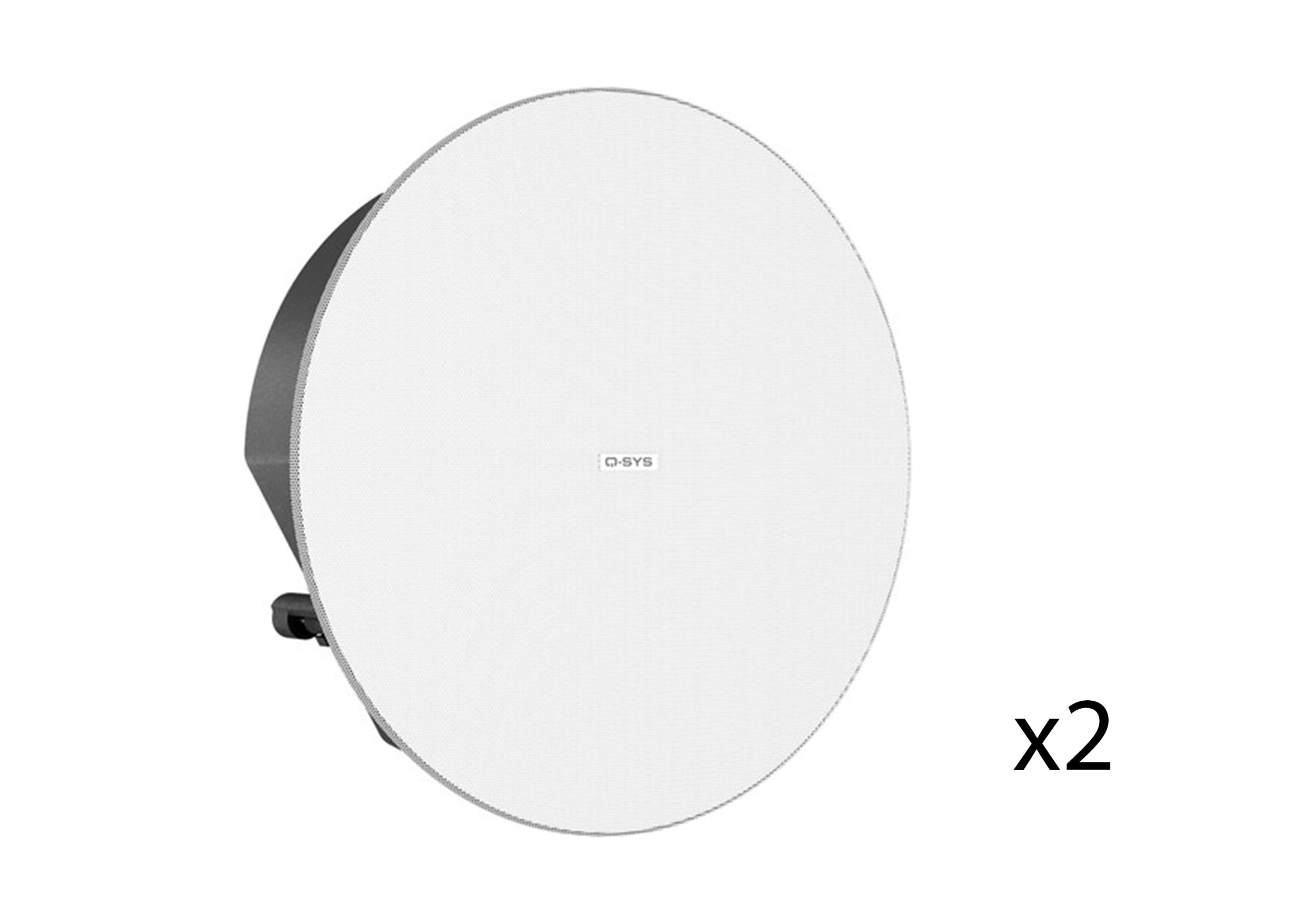

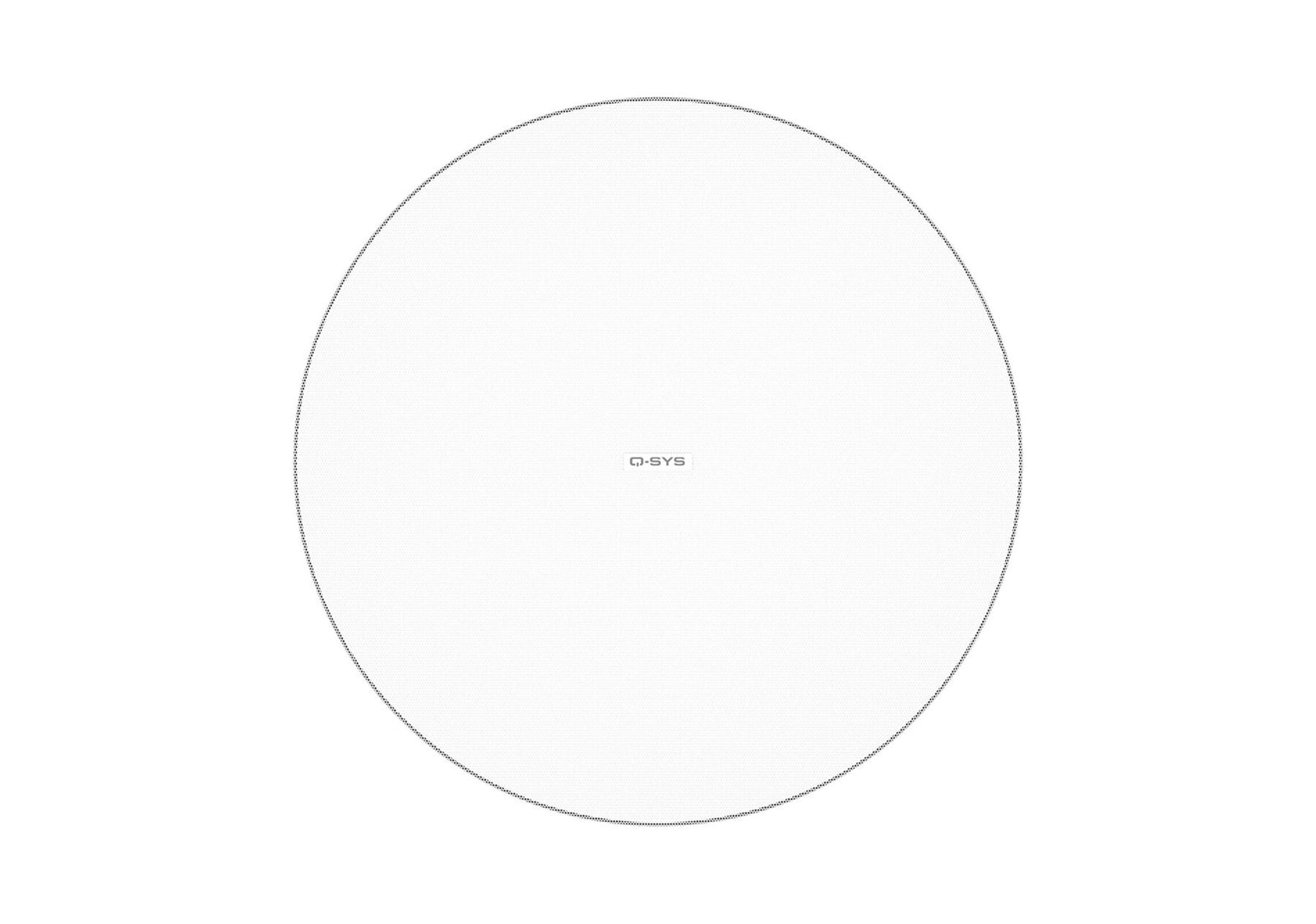

QSC AD-C6T-LPZB-WH, Acoustic Design 6.5" 2-Way Low-Profile Zero-Bezel Ceiling Loudspeaker - Pair White

The QSC AD-C6T-LPZB-WH, Acoustic Design 6.5" 2-Way Low-Profile Zero-Bezel Ceiling Loudspeaker - Pair White is Designed for foreground and background sound reinforcement applications, each speaker has a 70/100V multi-tap transformer that can also be bypassed for use with 16-ohm speaker systems.

Each speaker features a 6.5" weather-treated paper cone woofer and a 0.75" aluminum dome tweeter, which is positioned on a 135° DMT waveguide. With a frequency response of 65 Hz to 20 kHz and a max SPL of 112 dB, they are suitable for use in restaurants, retail stores, educational facilities, airports, and train stations. Each speaker includes a C-ring, tile rail, rail screws, a Euroblock connector, a cutout template, and a grille.

Product Specifications:

Active/Passive: Passive

Number of Included Speakers: 2

Speaker Configuration: 2-Way

Power Handling: 60 W

Constant Voltage / Transformer Taps:

70 V: 60 / 30 / 15 / 7.5 W or 16 Ohms Bypass

100 V: 60 / 30 / 15 W or 16 Ohms Bypass

Impedance: 83 to 667 Ohms

Transformer Wattage: 60 W

Enclosure Type: Sealed

HF Driver: 1x 0.75" / 19.05 mm Waveguide-Coupled Aluminum Dome Tweeter

LF Driver: 1x 6.5" / 165.1 mm Paper Woofer

Frequency Range: 65 Hz to 20 kHz -10 dB

Maximum SPL:

106 dB (Continuous)

112 dB (Peak)

Sensitivity: 88 dB

Coverage Angle: 135° (Conical)

Directivity:

6.5 (Directivity/Q Factor)

8 (Directivity Index)

Connectivity:

Inputs/Outputs: 1x Block 4-Pin Speaker Input/Thru

Environmental Resistance: No

Operating Conditions: -4 to 122°F / -20 to 50°C

Color: White

Mounting: Ceiling Tile

Cutout Size: 13.4" / 340.9 mm

Construction Material: ABS, Steel

Dimensions: 13.37 x 3.95" / 33.96 x 10.03 cm

Product Weight: 9.3 lb / 4.2 kg

Shipping Weight: 28.72 lbs.

Shipping Dimensions (LxWxH): 33.63 x 18.05 x 7.03 Inches
