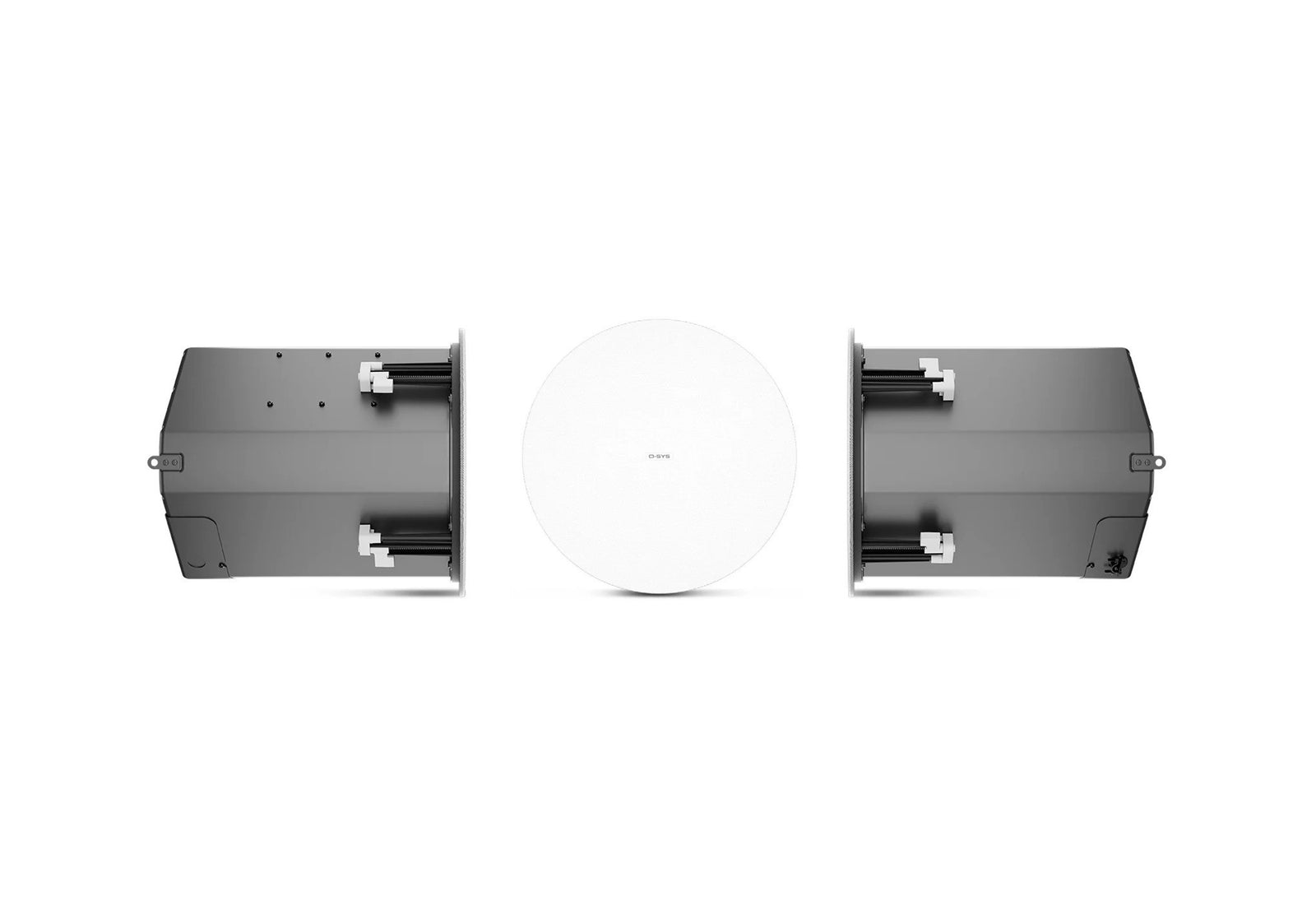

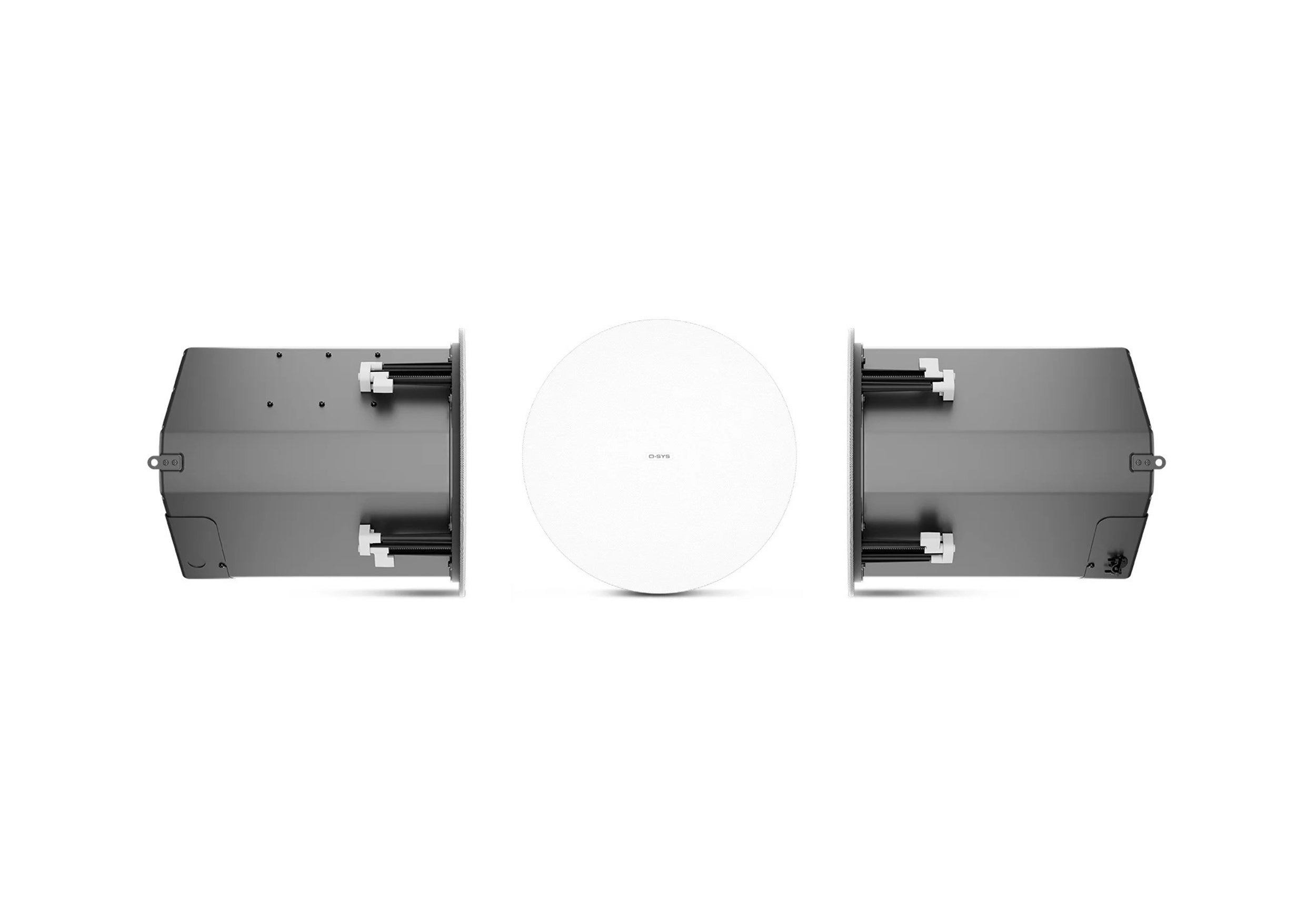

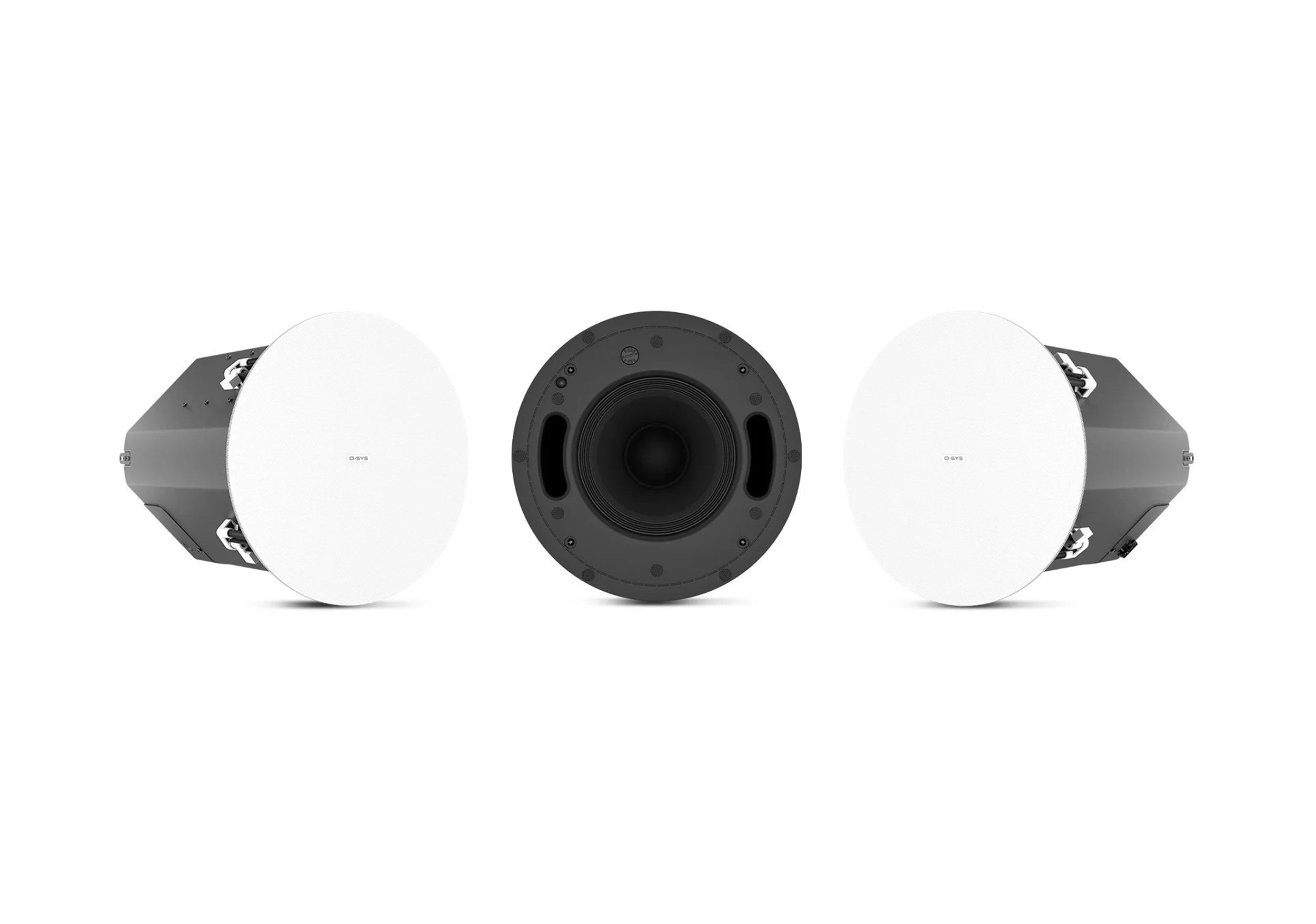

QSC AD-C8T-SWZB-WH, 8" Ceiling Subwoofer, Blind Mount - Pair White

The QSC AD-C8T-SWZB-WH, 8" Ceiling Subwoofer, Blind Mount - Pair White designed to deliver powerful low-frequency performance in commercial audio applications. Featuring a bezel-less design, it seamlessly integrates with the AcousticDesign Series for surface, ceiling, and pendant installations. The subwoofer utilizes a bass reflex enclosure with an omnidirectional coverage pattern and a built-in 125 Hz low-pass filter for smooth, extended bass response. It includes a snap-fit magnetic grille, a long-travel dog-ear blind mount system, and a removable conduit cover plate for convenient installation. UL1480 and UL2043 certifications ensure suitability for air handling spaces, and the Q-SYS Platform supports Intrinsic Correction voicings for optimal performance.

Product Specification:

LF transducer: 8 in (203 mm), 2.0 in. (50.8 mm) voice coil, ferrite

Enclosure configuration: Ceiling Subwoofer, Bass Reflex

Coverage: Omni

Filter: 125 Hz Low Pass, Passive

System bandwidth (1):

-3 dB: 65 Hz - 155 Hz

-6dB: 59 Hz - 170 Hz

-10 dB: 53 Hz - 195 Hz

Sensitivity (2): 92.3 dB @ 1 W/ 1 m

Max SPL (continuous) (3): 113 dB

Max SPL (peak) (4): 125 dB

Max SPL (calculated) (5): 123 dB

Power rating: Continuous power 250 W @ 8Ω, rated Power 500 W

Bypass impedance: 8 Ω

Minimum impedance: 6.4 Ω @ 118 Hz

Taps (70v/100v): 25 W, 50 W, 100 W, 200 W / 50 W, 100 W, 200 W

Enclosure material: ABS baffle on powder coated steel backcan

Connectors: 4-pin 0.2 in (5 mm) Euroblock connector with parallel output

Dimensions (H x W x D): 13.5 x 13.5 x 13.75 in (342.9 x 342.9 x 349.25 mm)

Cutout dimensions: 305 mm

Shipping dimensions (H x W x D): 19.5 x 17.5 x 32 in (495.3 x 444.5 x 812.8 mm), pair packed

Weight: 22.4 lbs. (10.1kg)
