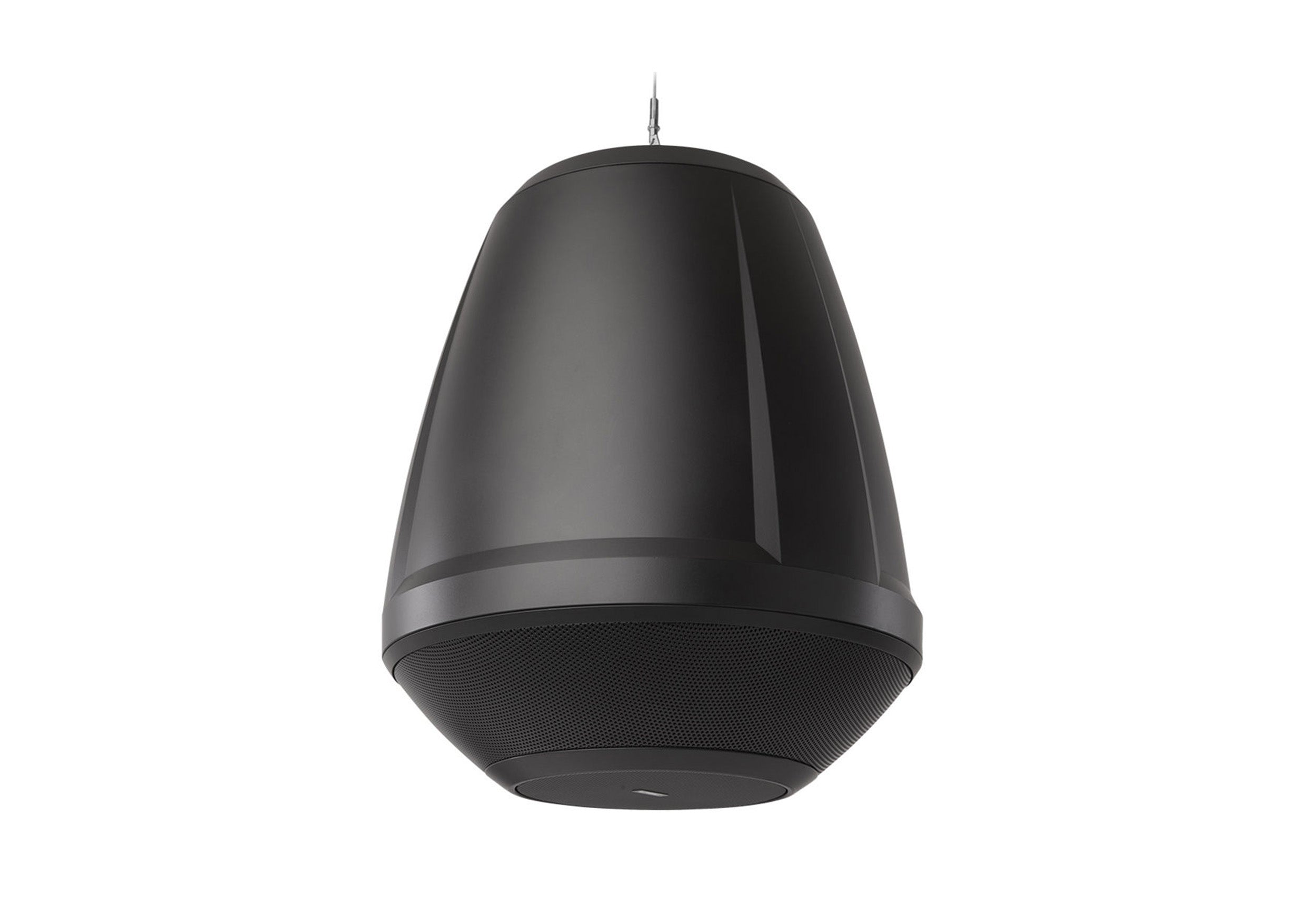

QSC AD-P.HALO-BK Integrated SUB/SAT Pendant Loudspeaker System

The QSC AD-P.HALO-BK Integrated SUB/Satellite Pendant Loudspeaker System - Black is purpose-designed and fully integrated in a single-enclosure pendant that is ready to hang right out of the box. This hassle-free design simplifies and expedites the installation process, lowering the overall project costs and allowing the integrator to focus on the sound.

Designed for Performance and Musicality

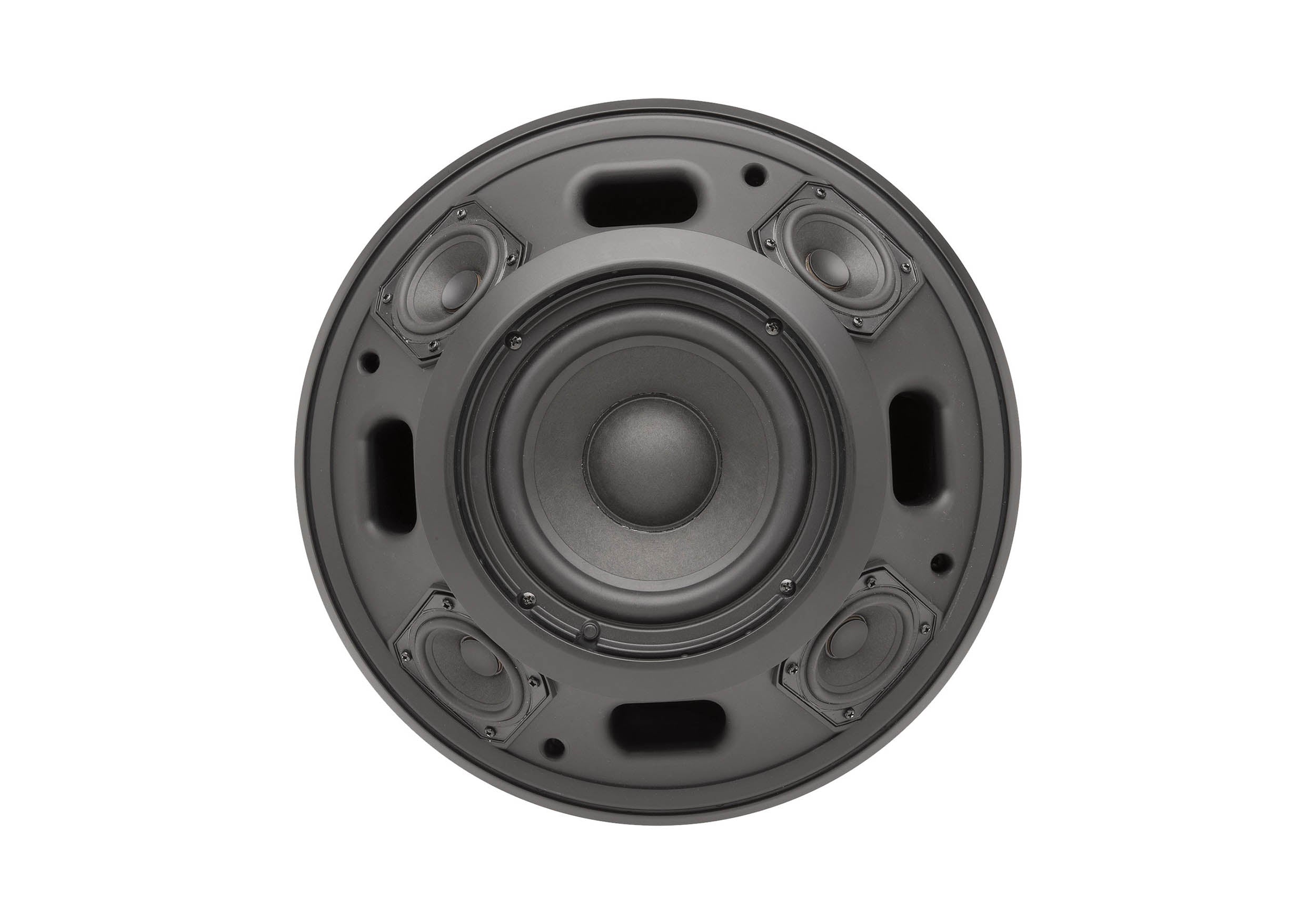

Featuring a 6.5" subwoofer and four 2.75" transducers in a single, pendant-mount enclosure, the AD-P.HALO brings high-performance and musicality to high-end retail and hospitality applications where sound drives the atmosphere. The 200 W RMS power rating provides significant dynamic headroom that far surpasses the background music performance of traditional two-way pendant-mount loudspeakers.

Perfect Acoustic Design Series Companion

The AD-P.HALO joins the Acoustic Design Series portfolio of loudspeakers, which offer sleek aesthetic design and high-quality sound across multiple form factors (ceiling-mount, pendant-mount and surface-mount).

Product Specifications:

Active/Passive: Passive

Number of Included Speakers: 1

Speaker Configuration: 2-Way

Power Handling: 200 W RMS

Constant Voltage / Transformer Taps:

70 V: 100 / 50 / 25 / 12.5 W

100 V: 100 / 50 / 25 W

Impedance:

4.9 Ohms (Minimum)

6 Ohms (Nominal)

Enclosure Type: Bass-Reflex

HF Driver: 4x 2.75" / 69.85 mm

LF Driver: 6.5" / 165.1 mm Paper

LF Voice Coil: Dual

Magnet:

HF: Neodymium

Frequency Range: 40 Hz to 20 kHz -10 dB

Maximum SPL:

105 dB (Continuous)

111 dB (Peak)

Sensitivity: 86 dB

Coverage Angle: 110° (Conical)

Directivity:

6 (Directivity/Q Factor)

8 dB (Directivity Index)

Crossover: 250 Hz

Inputs/Outputs:

1x Block 4-Pin Speaker Input (Locking)

1x Block 4-Pin Speaker Thru (Locking)

Screw Terminal Input/Thru

Physical:

Certifications: CE, UL

Color: Black

Mounting: Suspension

Construction Material: ABS, Perforated Metal Grille

Dimensions: 17 x 13.4" / 431.8 x 340.36 mm

Weight: 22.5 lb / 10.2 kg

Shipping Weight: 27.32 lbs.

Shipping Dimensions (LxWxH): 21.1 x 17.8 x 17.1 Inches
