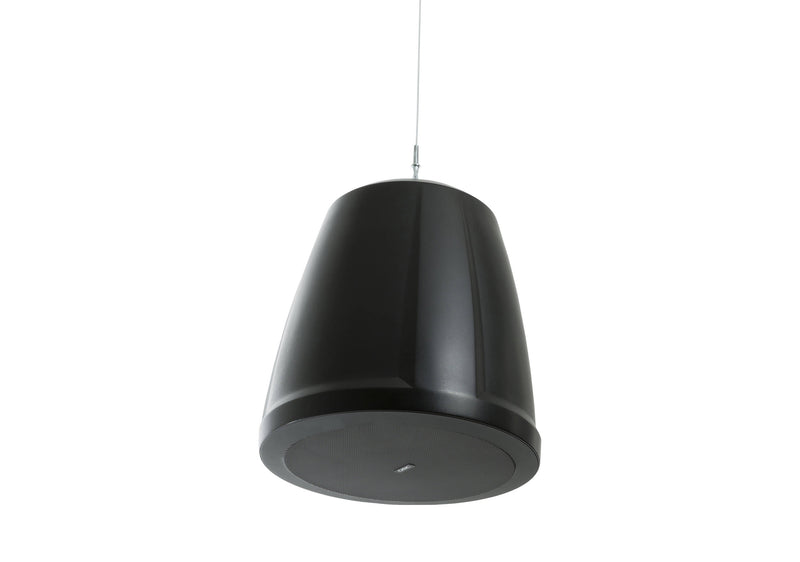

QSC AD-P6T-BK Acoustic Design Series 6.5" 2-Way 60W Pendant-Mount - Black

The QSC AD-P6T-BK Acoustic Design Series 6.5" 2-Way 60W Pendant-Mount Loudspeaker - Black is a transformer-equipped 6.5" pendant-mount loudspeaker voiced to deliver tonal consistency throughout the AcousticDesign range of speakers, making them suitable for 70/100V or 16-ohm operation in a variety of foreground and background music applications.

Outfitted with a 6.5" weather-treated woofer and a 0.75" aluminum dome tweeter on a DMT waveguide, the AD-P6T offers broad 135° conical coverage and improved off-axis power while providing a frequency range of 56 Hz to 20 kHz (-10 dB). The speaker is capable of handling 60W RMS and producing a peak maximum SPL of 112 dB.

The AD-P6T utilizes a 4-pole Euroblock connector under a sealable input cover for easy wiring and protection from moisture. It features a UV-treated ABS enclosure and a magnetic steel grille with a blemish-free removable logo. Quick-link cable assemblies and slip-lock fasteners are supplied for efficient installation.

Product Specifications:

Active/Passive: Passive

Number of Included Speakers: 1

Speaker Configuration: 2-Way

Power Handling:

For 2 Hours / At Low-Z: 60 W RMS

Recommended Amplifier Power: 120 W

Constant Voltage / Transformer Taps:

70 V: 60 / 30 / 15 / 7.5 W or 16 Ohms Bypass

100 V: 60 / 30 / 15 W or 16 Ohms Bypass

Impedance: 16 Ohms (Nominal, Transformer Bypassed)

Transformer Wattage: 60 W

Enclosure Type: Sealed

Shielded: No

HF Driver: 1x 0.75" / 1.91 cm Waveguide-Coupled Aluminum Dome Tweeter

LF Driver: 1x 6.5" / 16.51 cm Paper Woofer

LF Voice Coil: 1" / 2.54 cm

Frequency Range: 56 Hz to 20 kHz -10 dB

Maximum SPL:

106 dB (Continuous)

112 dB (Peak)

Sensitivity: 88 dB

Coverage Angle: 135° (Conical)

Directivity:

6.5 (Directivity/Q Factor)

8 dB (Directivity Index)

Maximum Input Voltage: 31 V RMS

Inputs/Outputs: 1x Block 4-Pole Speaker Input/Thru (Locking, Removable)

Maximum Wire Gauge: 18 AWG

Certifications: UL

Environmental Resistance: Dust/Water-Resistant (IP34)

Operating Conditions: -4 to 122°F / -20 to 50°C

Color: Black

Mounting: 1x Suspension (Rear)

Construction Material: ABS, Metal Grille

Dimensions: 12.7 x 11.3" / 32.26 x 28.7 cm

Weight: 9 lb / 4.1 kg

Shipping Weight: 12.25 lbs.

Shipping Dimensions (LxWxH): 16.3 x 13.8 x 13.7 Inches
