Description

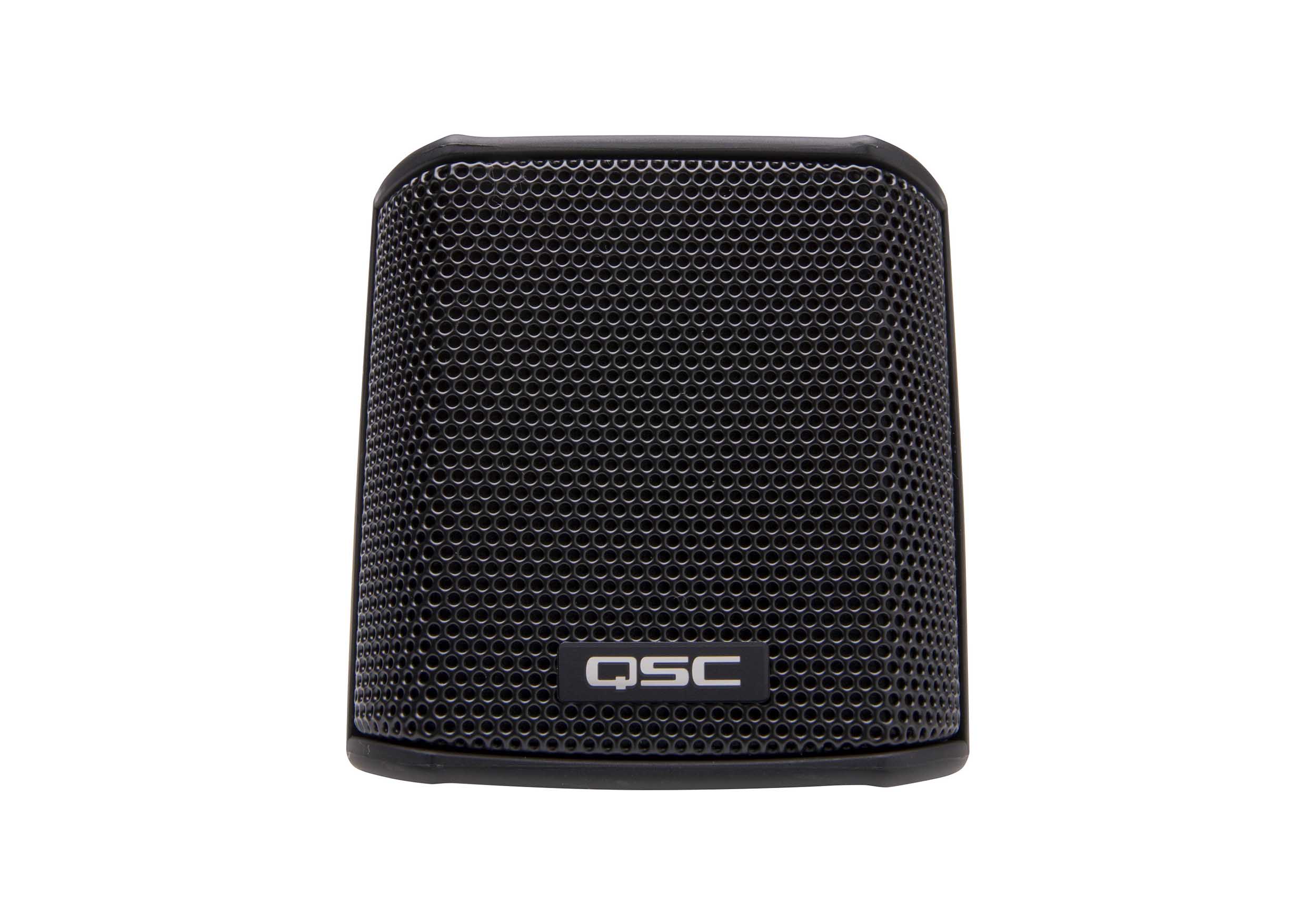

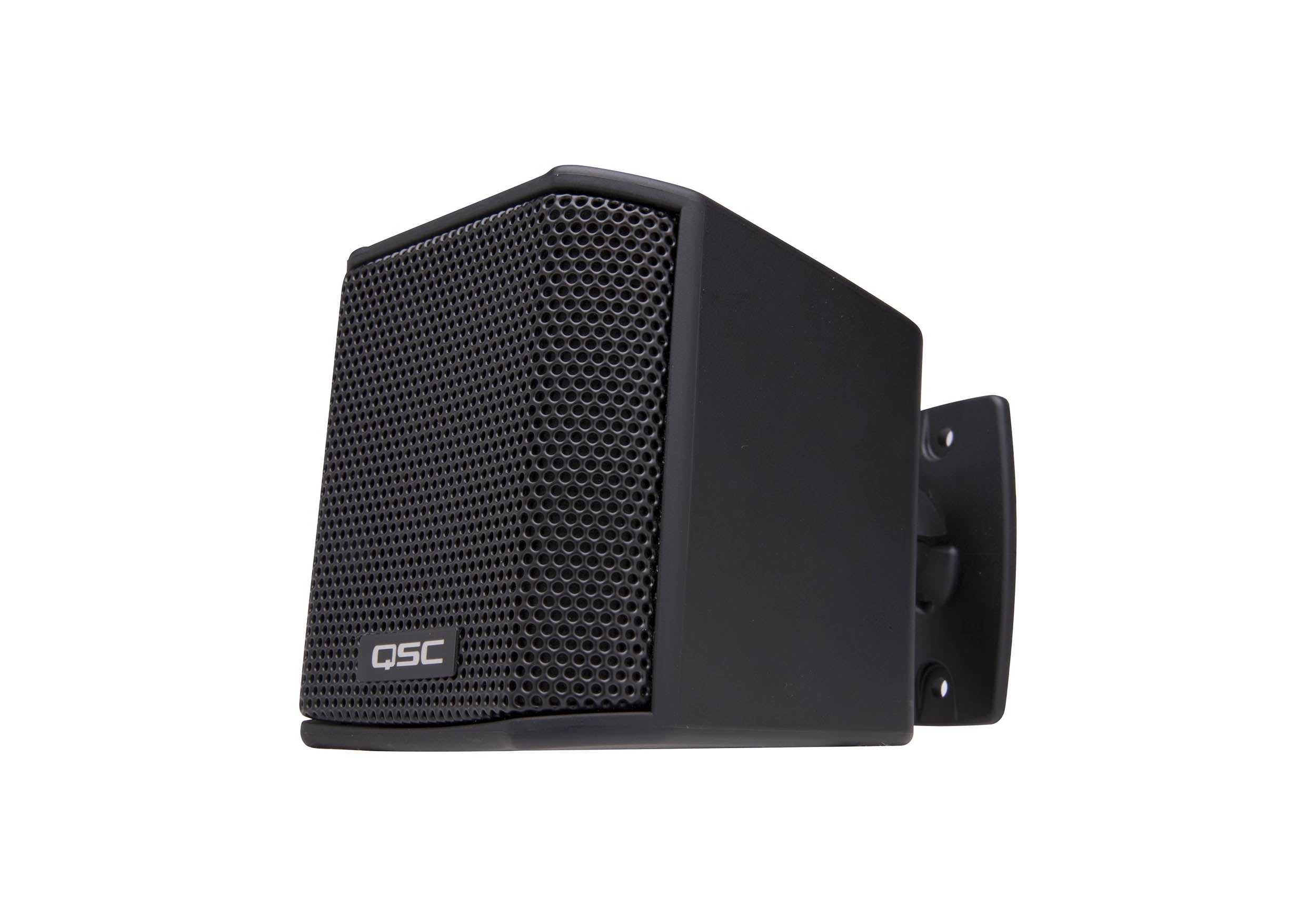

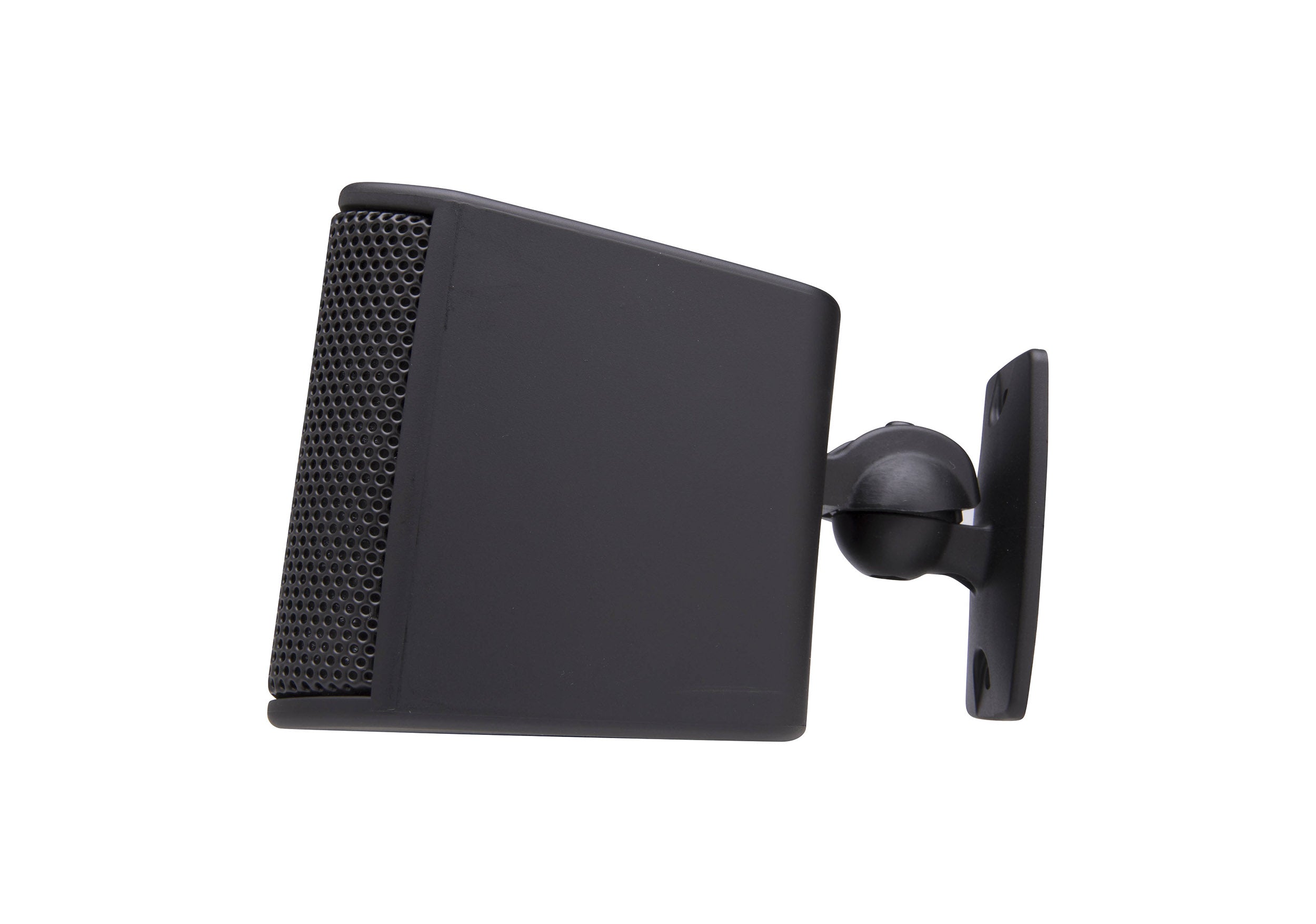

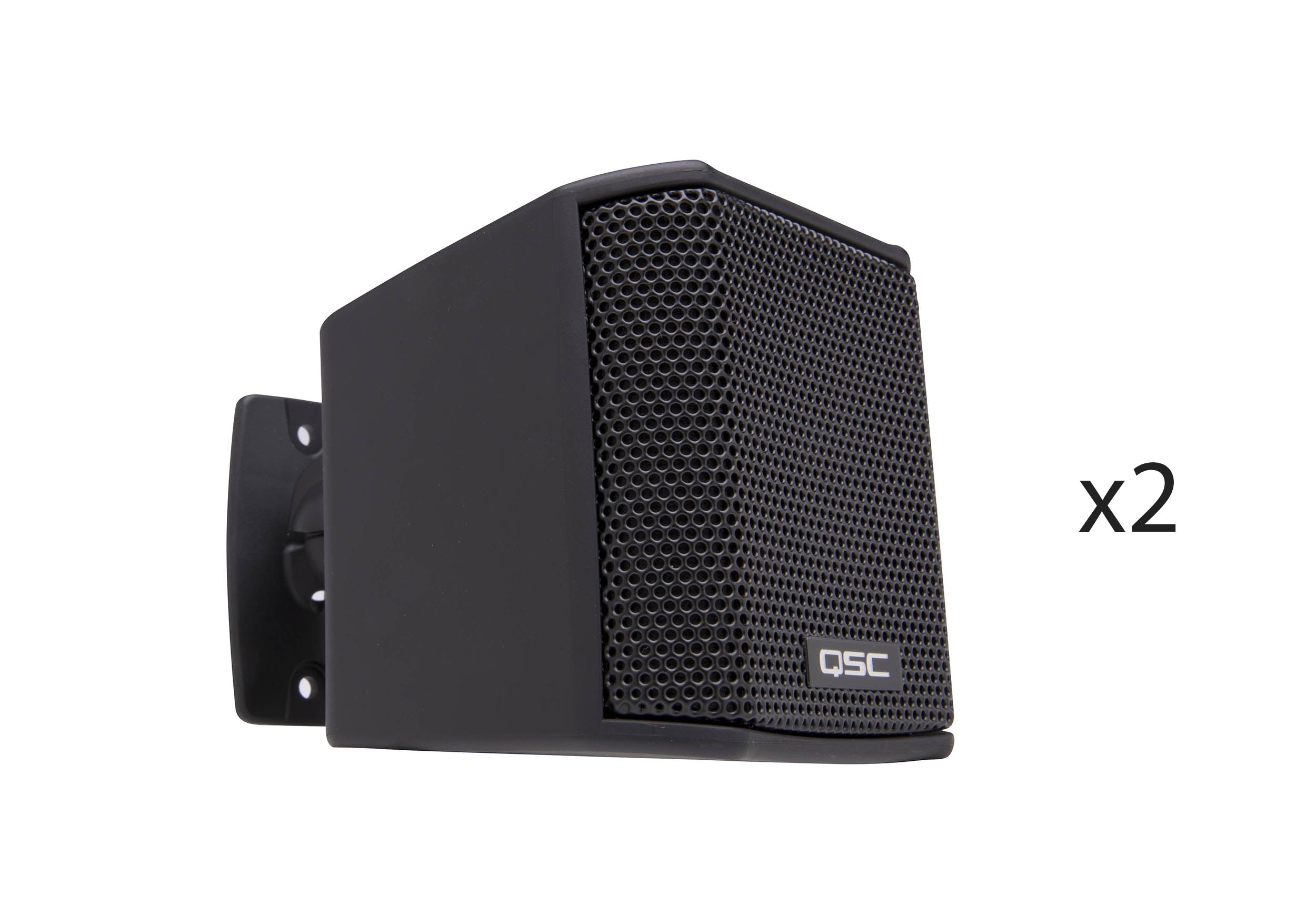

The QSC AD-S.SAT-BK, 2.75-Inch Acoustic Design AD-S.SAT Satellite Surface Loudspeaker - Pair Black is designed to maintain depth and clarity at low-volume settings and can be paired with an AcousticDesign series SUB/SAT subwoofer. Additionally, it can be used as a stand-alone loudspeaker with an external high-pass filter. The loudspeaker features a 2.75" paper-cone woofer and with an inverted aluminum dust cap for extended high-frequency presence within a sealed enclosure. Additional features include a rating of 16 ohms, a 150 Hz to 20 kHz effective frequency range, 2-pole Euroblock connectivity, compatibility with Intrinsic Correction voicings, and a removable QSC logo on the front. The AD-S.SAT comes with an X-Mount Mini bracket and two Euroblock plugs.
Product Specifications:
Active/Passive: Passive
Number of Included Speakers: 1
Speaker Configuration: Full-Range
Power Handling: 25 W
Recommended Amplifier Power: 25 W per Channel
Impedance: 16 Ohms (Transformer Bypassed)
Enclosure Type: Sealed
HF Driver: 1x 2.75" / 6.99 cm Aluminum Dome
Frequency Range: 150 Hz to 20 kHz
Maximum SPL:
97 dB (Continuous)
100 dB (Peak)
Sensitivity: 82 dB
Coverage Angle: 155° (Conical)
Directivity:
6 dB (Directivity Index)
4 dB (Directivity/Q Factor)
Recommended High-Pass Filter: 200 Hz
Connectivity:
Inputs/Outputs: 2x Block 2-Pole Speaker (Locking)
Maximum Wire Gauge: 12 AWG / 2 mm
Certifications: CE, RoHS
Environmental Resistance: Dust/Water-Resistant (IP34)
Operating Conditions: -4 to 122°F / -20 to 50°C
Color: Black
Mounting: 1x Bracket Point (Rear)
Rotation Range: 90° H x 90° V
Construction Material: ABS, Aluminum Grille
Dimensions: 5.4 x 3.6 x 3.5" / 13.72 x 9.14 x 8.89 cm
Weight: 0.9 lb / 408 g
Shipping Weight: 2.33 lbs.
Shipping Dimensions (LxWxH): 12.6 x 6.5 x 5.2 Inches
