Description

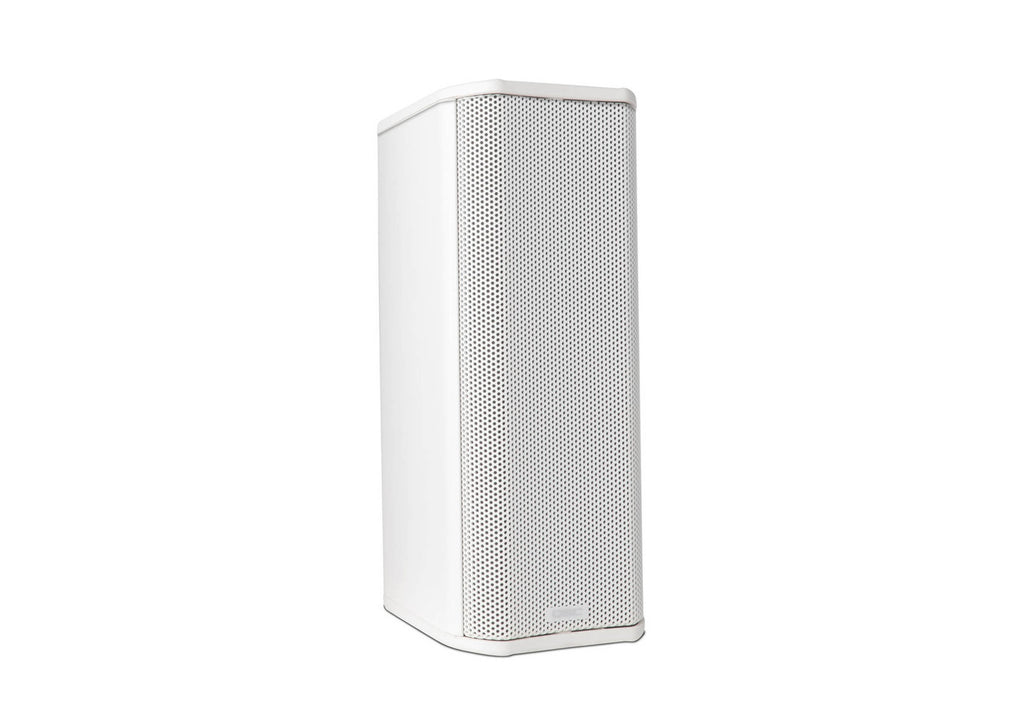

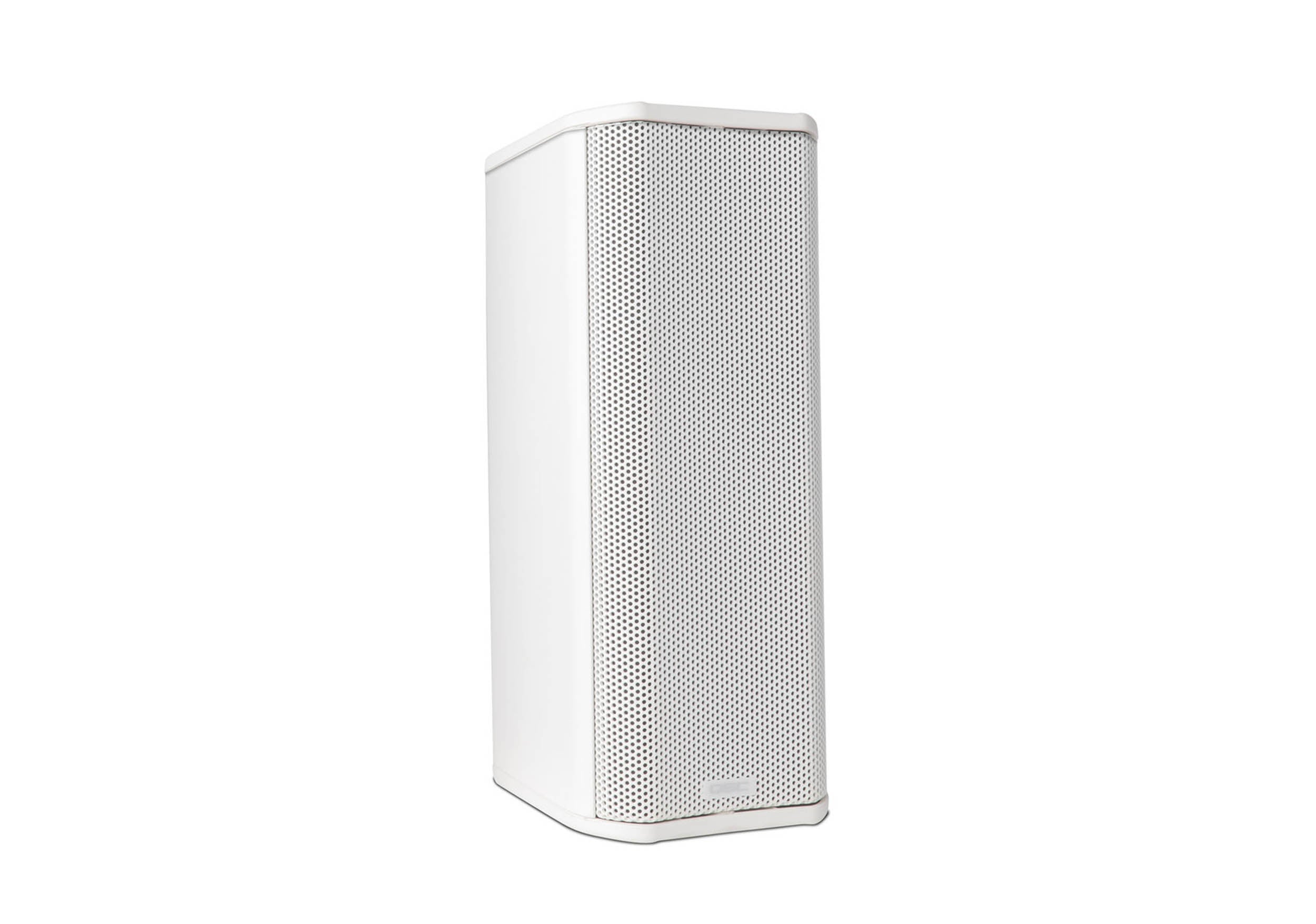

The QSC AD-S402T-WH Columnar Surface-Mount Loudspeaker - White is a loudspeaker that houses four 2.5" treated paper cone woofers. It is capable of handling 60W with 100V systems and 30W with 70V systems. Use the loudspeaker for transportation terminals, court houses, lecture halls, or any other space where vocal intelligibility is a prime concern. With an IP54 rating for dust and water, the speaker can operate in indoors or outdoors scenarios.
The loudspeaker is constructed out powder coated aluminum with stainless steel hardware. A proprietary PTT network has been employed to ensure a precise, consistent sound as well as directivity control. Thanks to its low-loss, low-saturation transformer with selectable taps, including a bypass for low-impedance applications, the AD-S402T-WH maintains an accurate frequency response across its 110 Hz to 20 kHz range. Connections are made by means of a locking 4-pole Euroblock with an attached wire sealing gland nut for direct cable attachments. Installation is a breeze thanks to the quick-hang pan/tilt mounting bracket.
Product Specifications:
Active/Passive: Passive
Number of Included Speakers: 4
Speaker Configuration: Full-Range
Power Handling: 60 W RMS
Recommended Amplifier Power: 120 W RMS
Constant Voltage / Transformer Taps:
100 V: 60 / 30 / 15 W or 16 Ohms Bypass
70 V: 30 / 15 / 7.5 W or 16 Ohms Bypass
Impedance:
666 Ohms
333 Ohms
167 Ohms
Enclosure Type: Sealed
Drivers:
Full-Range Driver: 4x 2.5" / 6.35 cm Paper Cone
Performance:
Frequency Range: 110 Hz to 20 kHz
Maximum SPL:
105 dB (Continuous)
111 dB (Peak)
Sensitivity: 85 dB
Coverage Angle:
150° H x 35° V
180° H x 90° V
180° H x 80° V
160° H x 46° V
180° H x 28° V"
Directivity:
11 (Directivity/Q Factor)
10.5 dB (Directivity Index)
Connectivity:
Inputs/Outputs: 1x Block 4-Pole Input (Locking)
Physical:
Operating Conditions: -4 to 122°F / -20 to 50°C
Color: White
Mounting: 1x Bracket Point
Construction Material: Aluminum, Paper, Steel
Product Dimensions: 12.89 x 5.17 x 4.97" / 32.74 x 13.13 x 12.62 cm
Product Weight: 7.5 lb / 3.4 kg (without Bracket)
Shipping Weight: 10.98 lbs.
Shipping Dimensions (LxWxH): 21.5 x 12 x 9.5 Inches
