Description

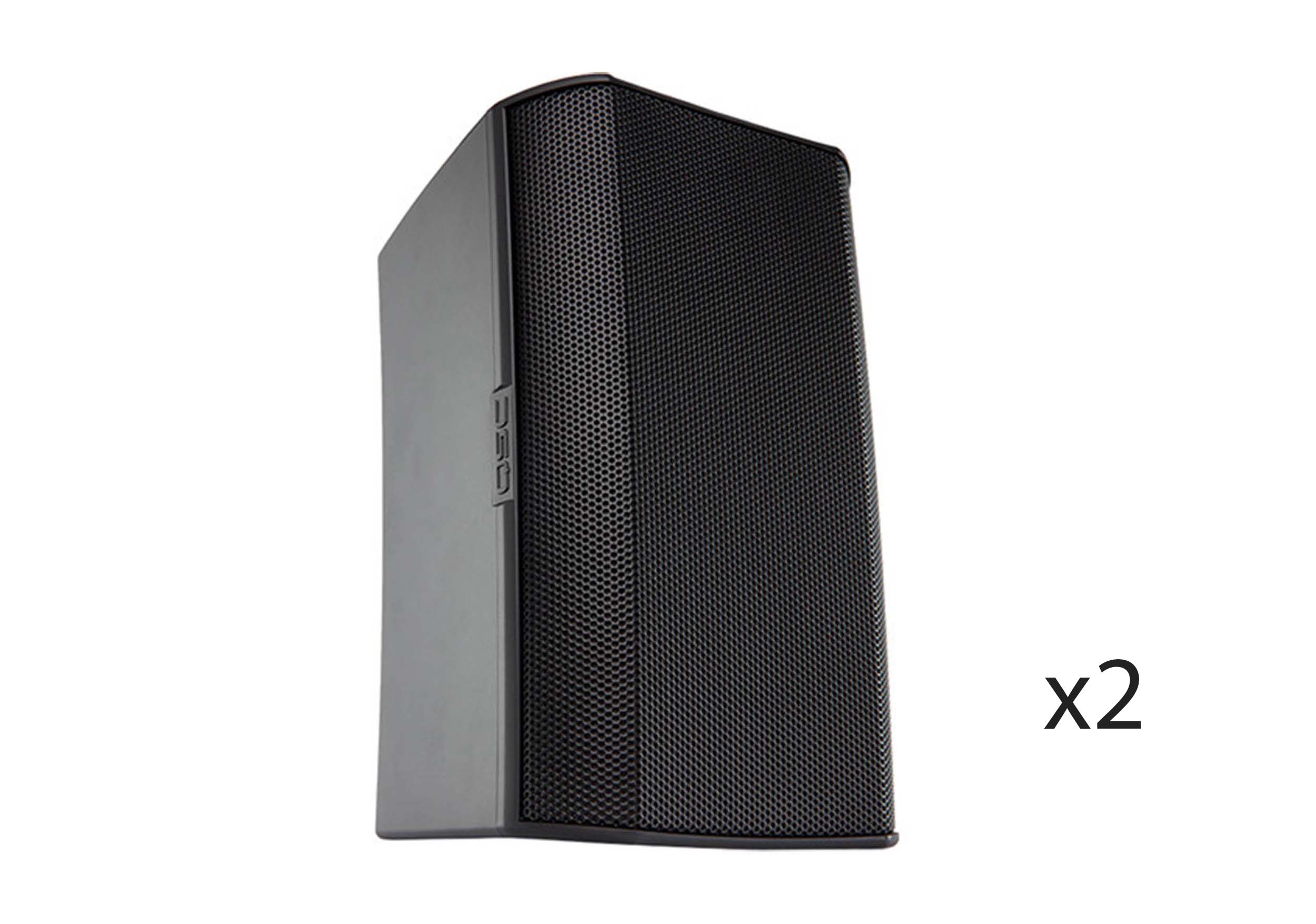

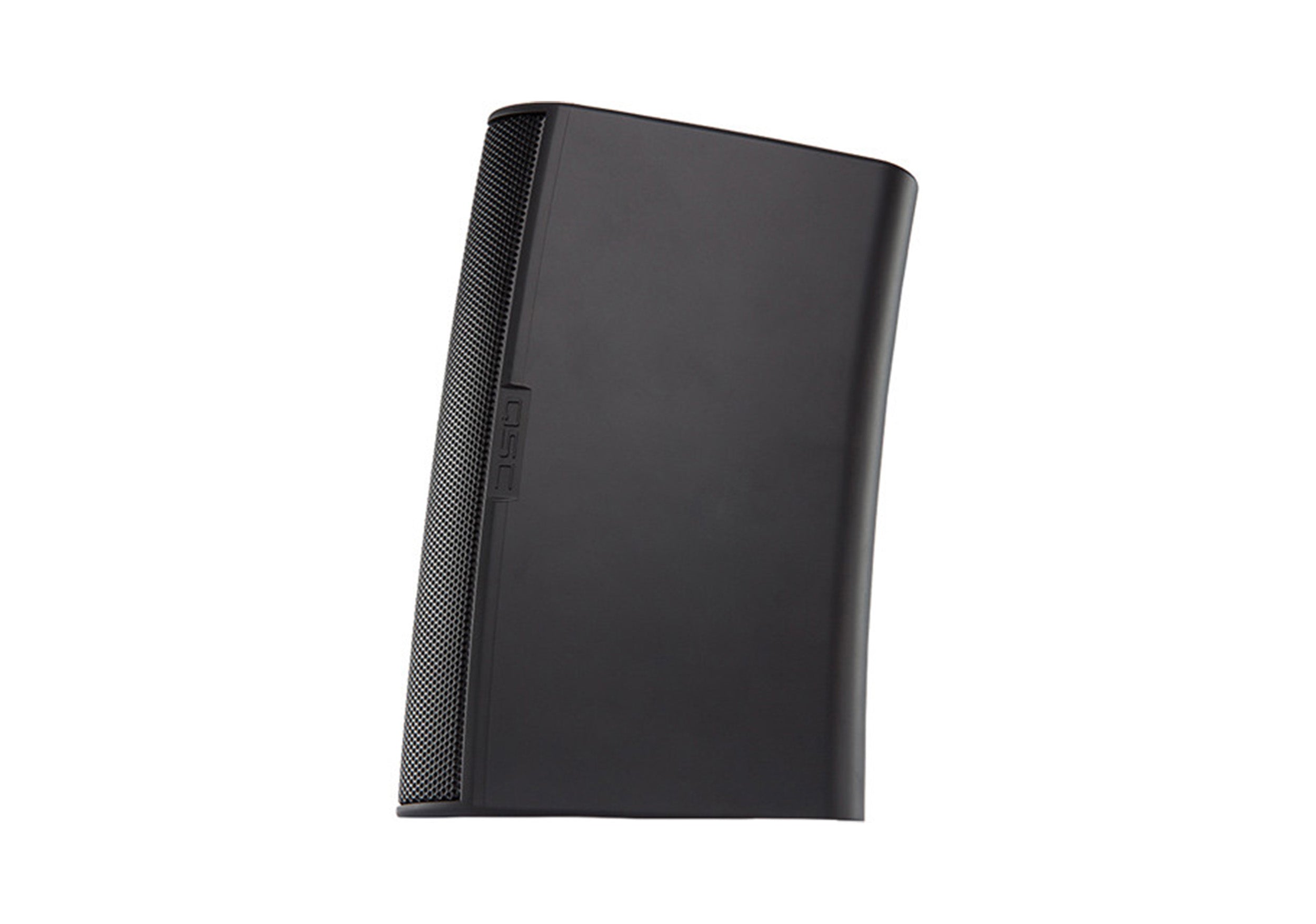

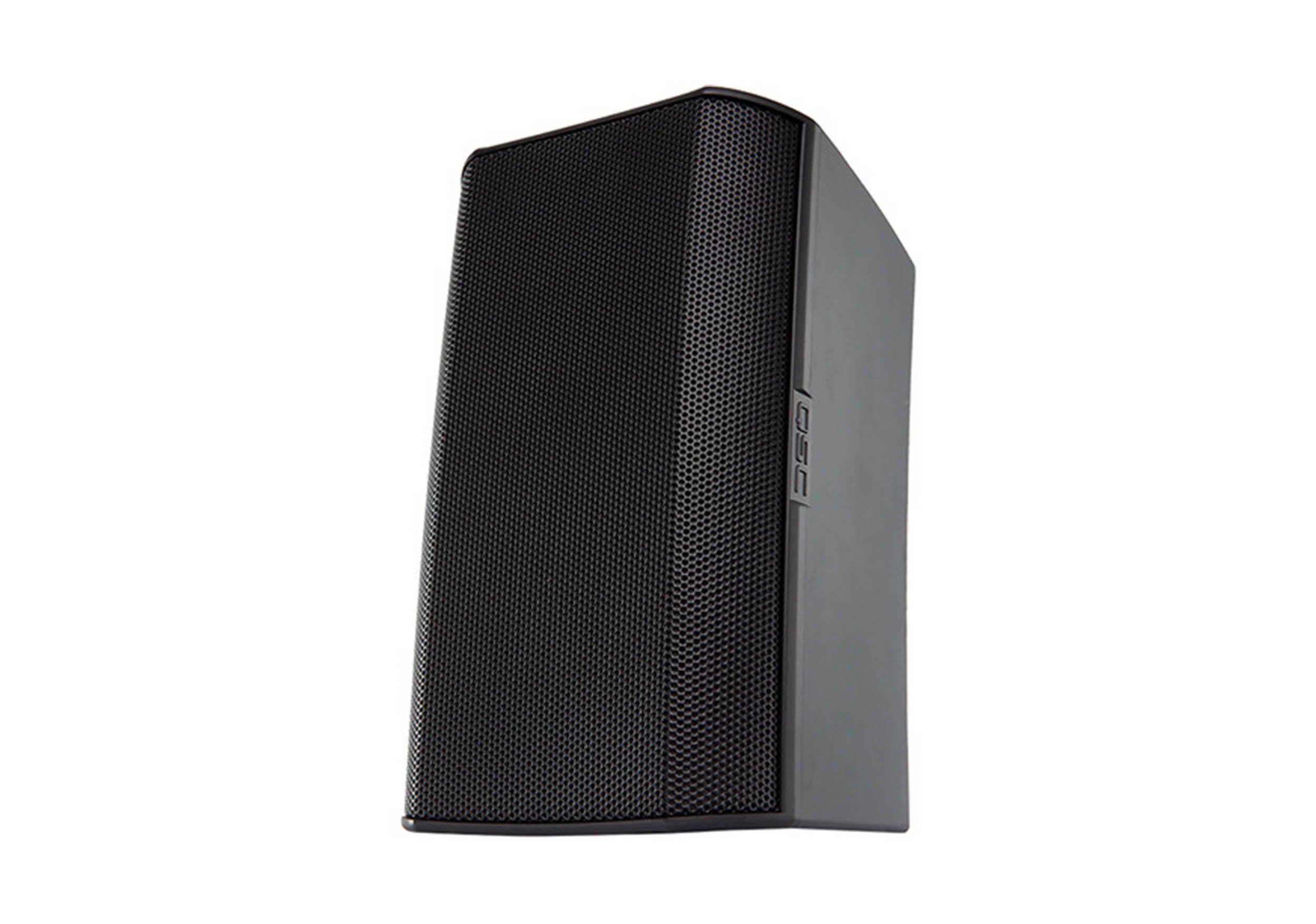

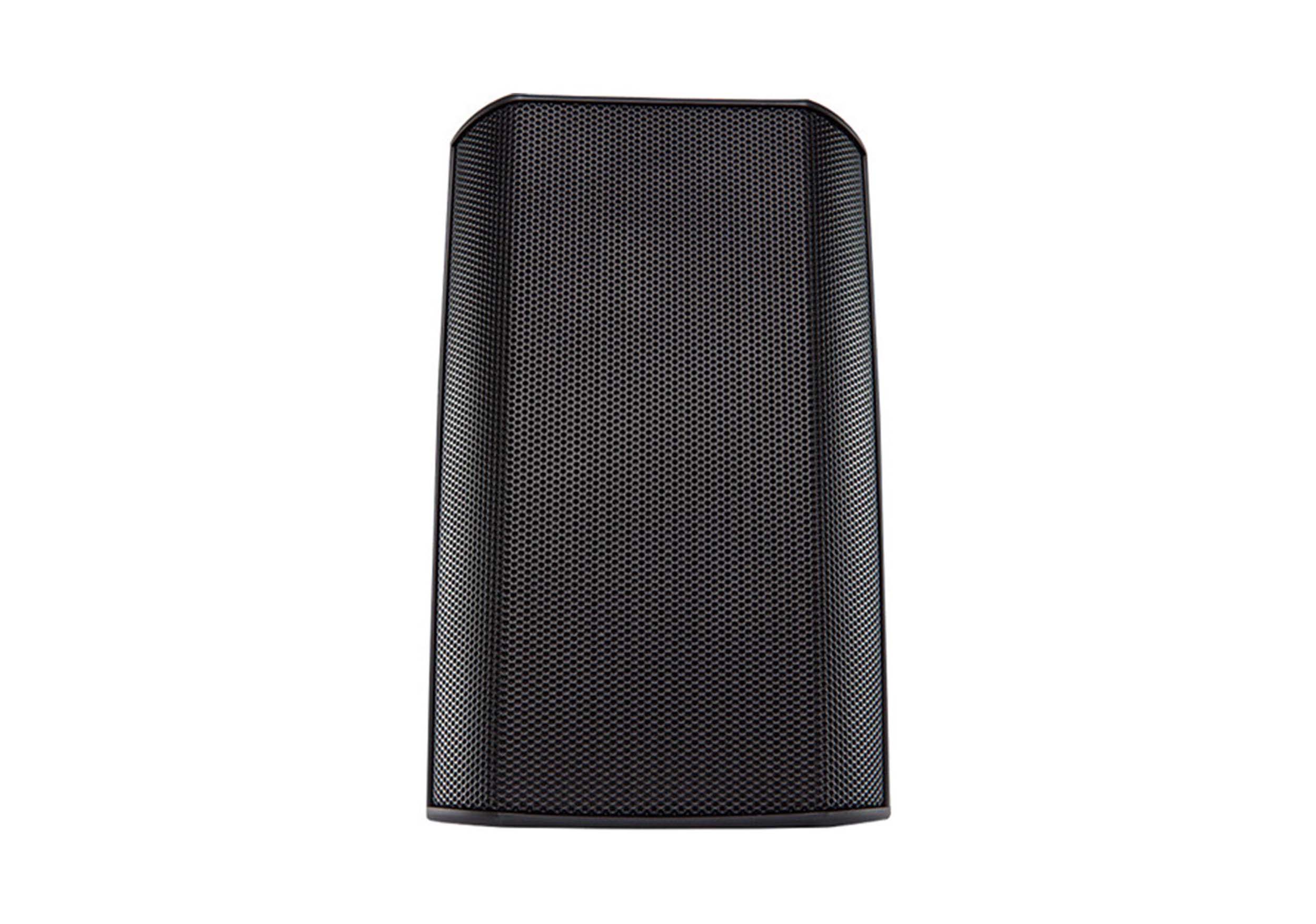

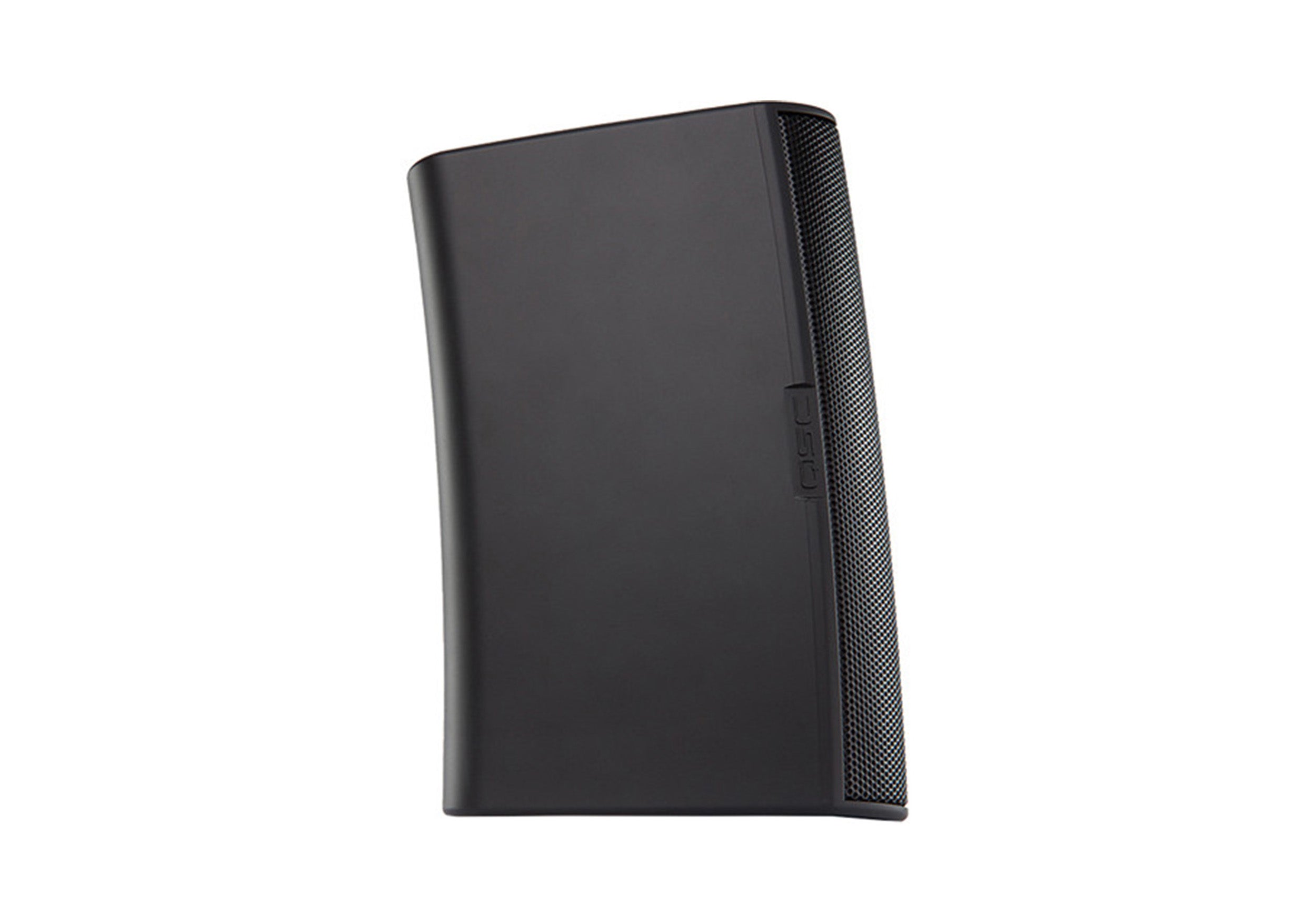

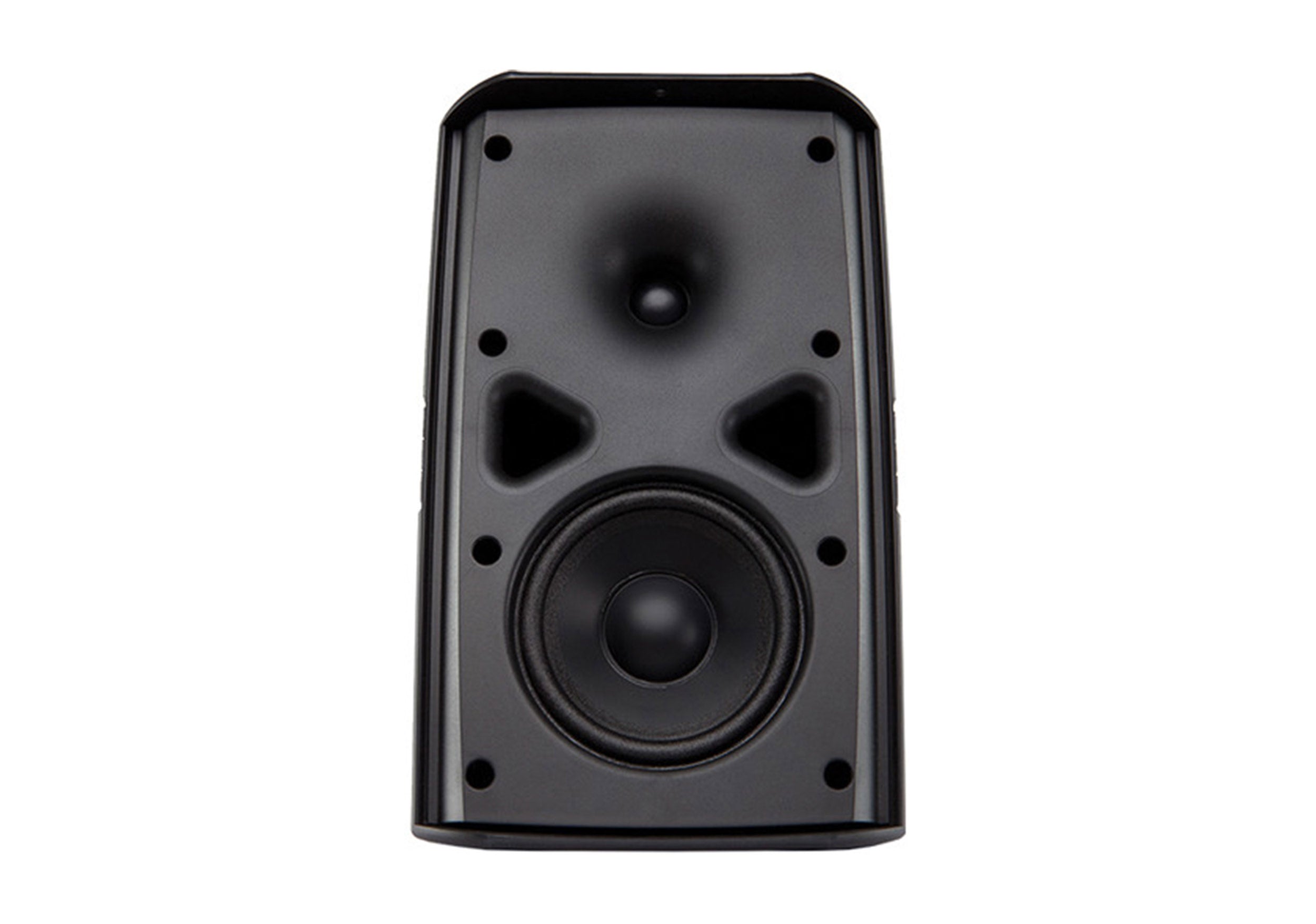

The QSC AD-S4T-BK, Two-Way 4-Inch Surface Mount Loudspeaker - Pair Black is designed for clarity and presence, these loudspeaker systems deliver pristine audio reproduction for installations requiring a refined audio experience. Models ship complete with the award-winning X-Mount system and weather input cover.
Consistent and even conical coverage is achieved through Directivity Matched Transition (DMT), a QSC innovation which matches the directivity patterns of the woofer and the high-frequency waveguide at the crossover point. The result is a coherent transition between transducers and improved off-axis response.

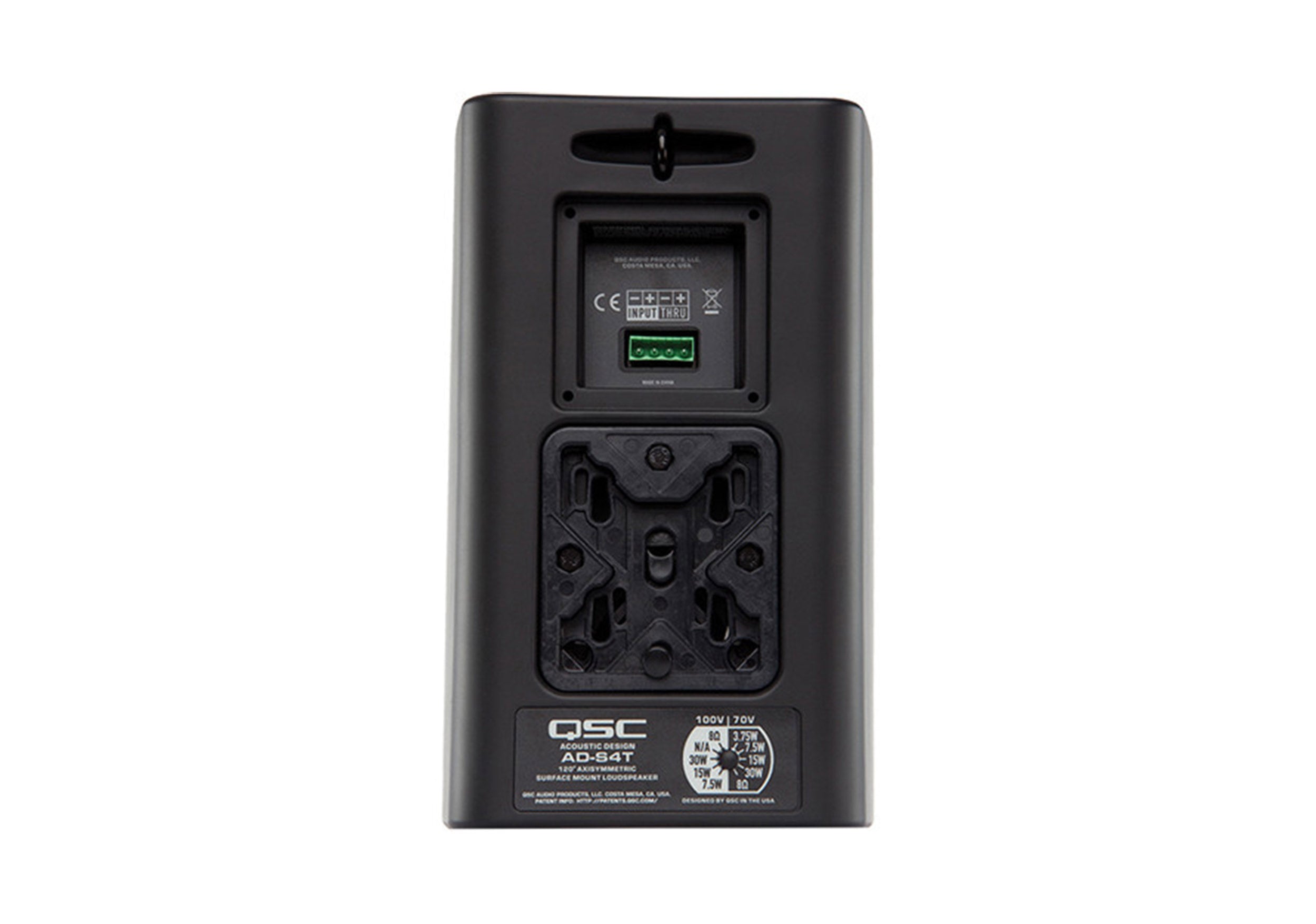

Acoustic Design models with (T) suffix feature low-loss, low-saturation transformers with selectable taps, including an 8Ω bypass. To enhance weather resistance, the rotary selector is located on the back of the enclosure, protected by a weather grommet.
To further enhance performance and speed of install with optimum result, advanced voicing filter sets using QSC Intrinsic Correction techniques are available via Q-SYS networked audio processing or CXD amplifier platforms for a complete QSC systems solution.
Product Specifications:
Active or Passive: Passive
Number of Included Speakers: 2
Speaker Configuration: 2-Way
Power Handling:
For 2 Hours / At Low-Z
50 W RMS
Recommended Amplifier Power: 100 W
Impedance: 8 Ohms (Transformer Bypassed)
Transformer Wattage: 30 W
Enclosure Type: Sealed
Shielded: No

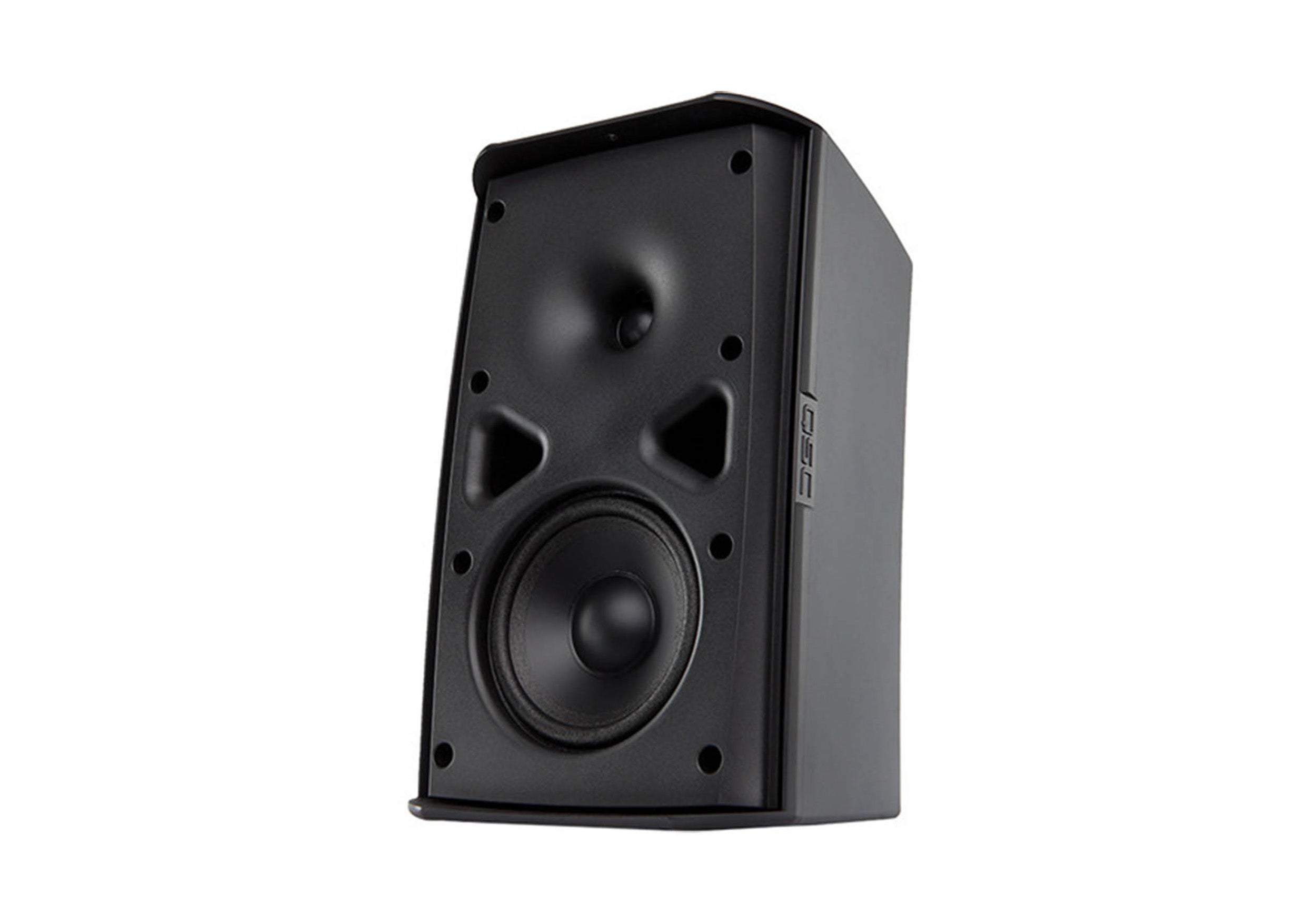

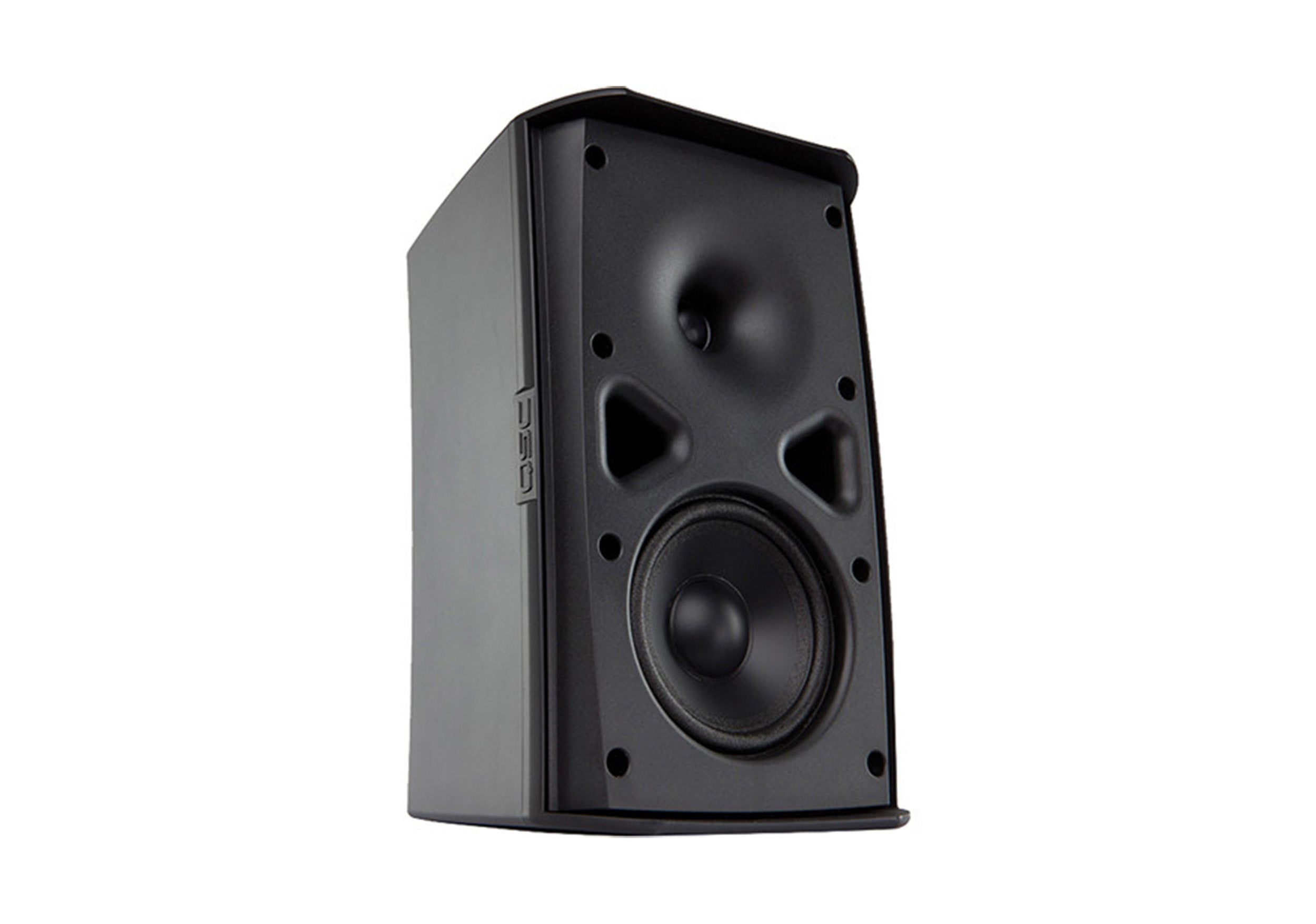

HF Driver: 1 x 0.75" / 1.91 cm Horn-Loaded Silk Dome Tweeter
HF Voice Coil: 0.75" / 1.91 cm
LF Driver: 1 x 4.5" / 11.43 cm Paper Woofer
LF Voice Coil: 1" / 2.54 cm
Sensitivity: 87 dB SPL
Coverage Angle: 120° (Conical)
Directivity
6 (Directivity/Q Factor)
8 dB (Directivity Index)
Maximum Input Voltage: 20 V RMS
I/O: 1 x Block 4-Pole Speaker Input/Thru (Removable)
IP Rating: IP54
Operating Temperature: -4 to 122°F / -20 to 50°C
Color: Black
Mounting: 1 x Bracket Point (Rear)
Construction Material: ABS, Aluminum Grille, Polymer
Shipping Weight: 16.5 lbs.
Shipping Dimensions (LxWxH): 15 x 10 x 10 Inches
