Description

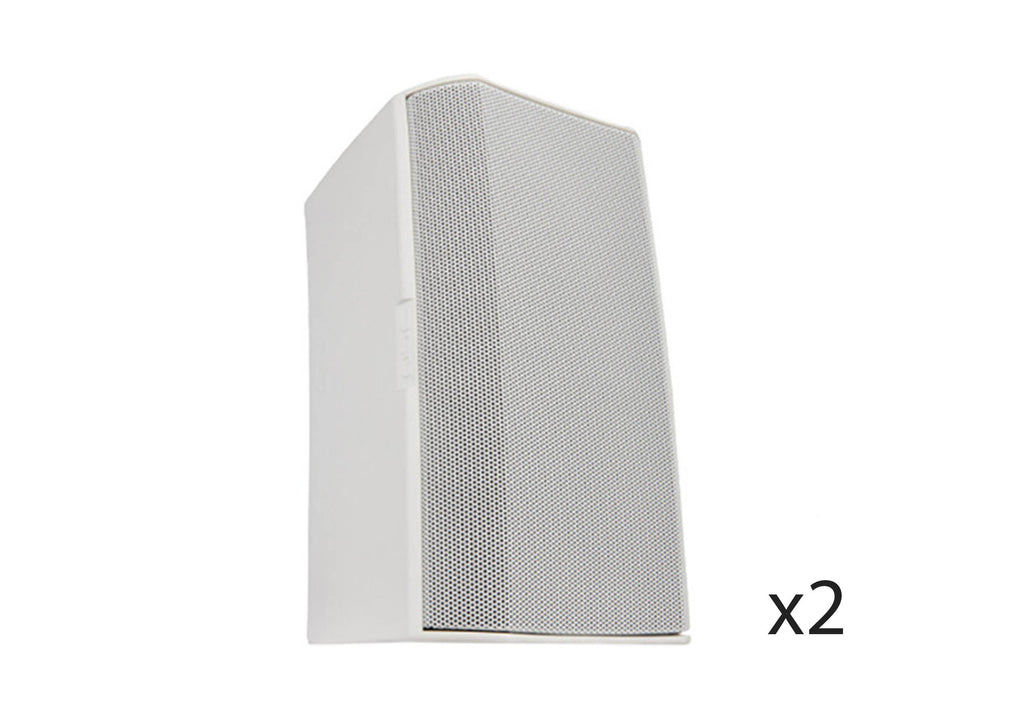

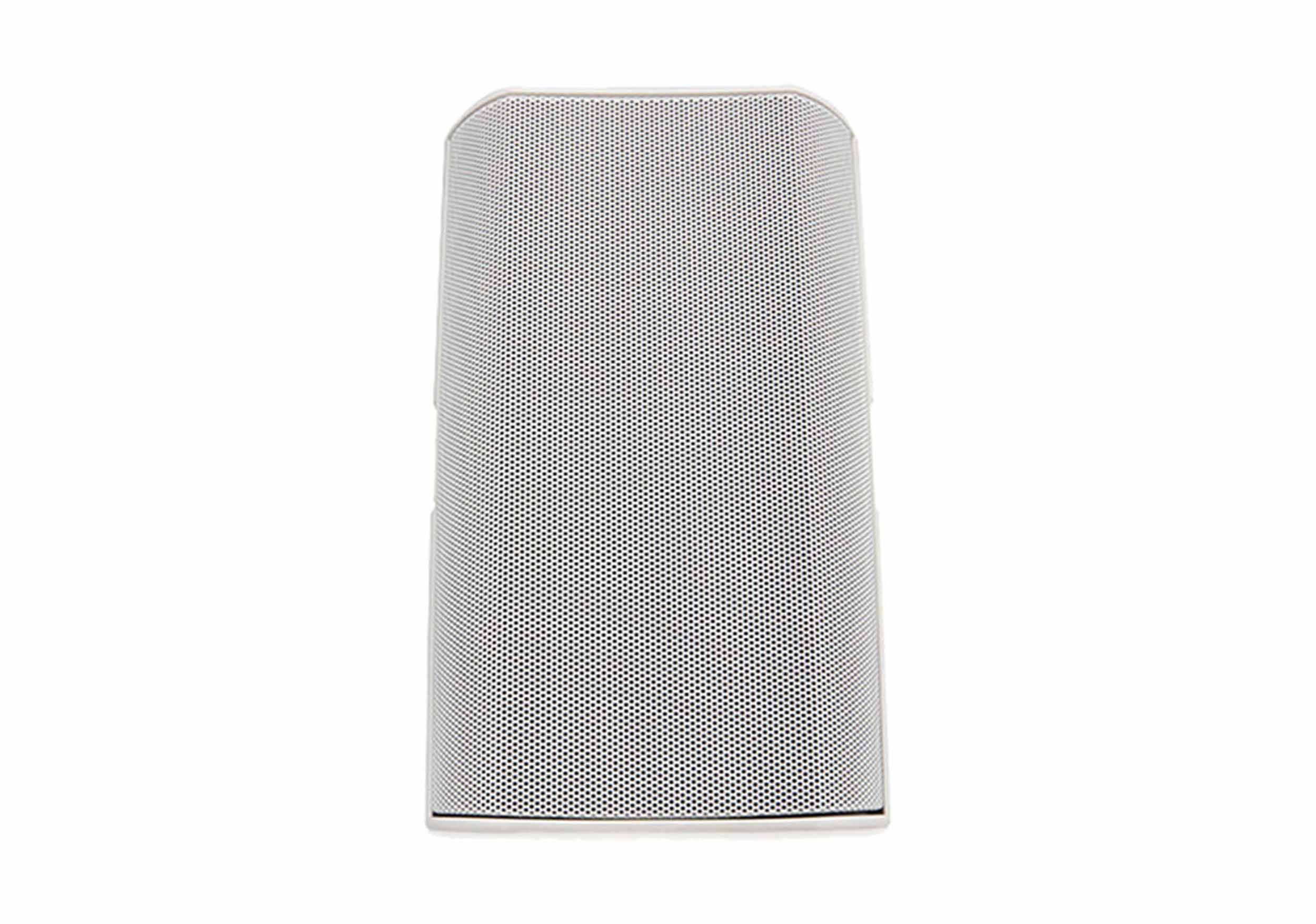

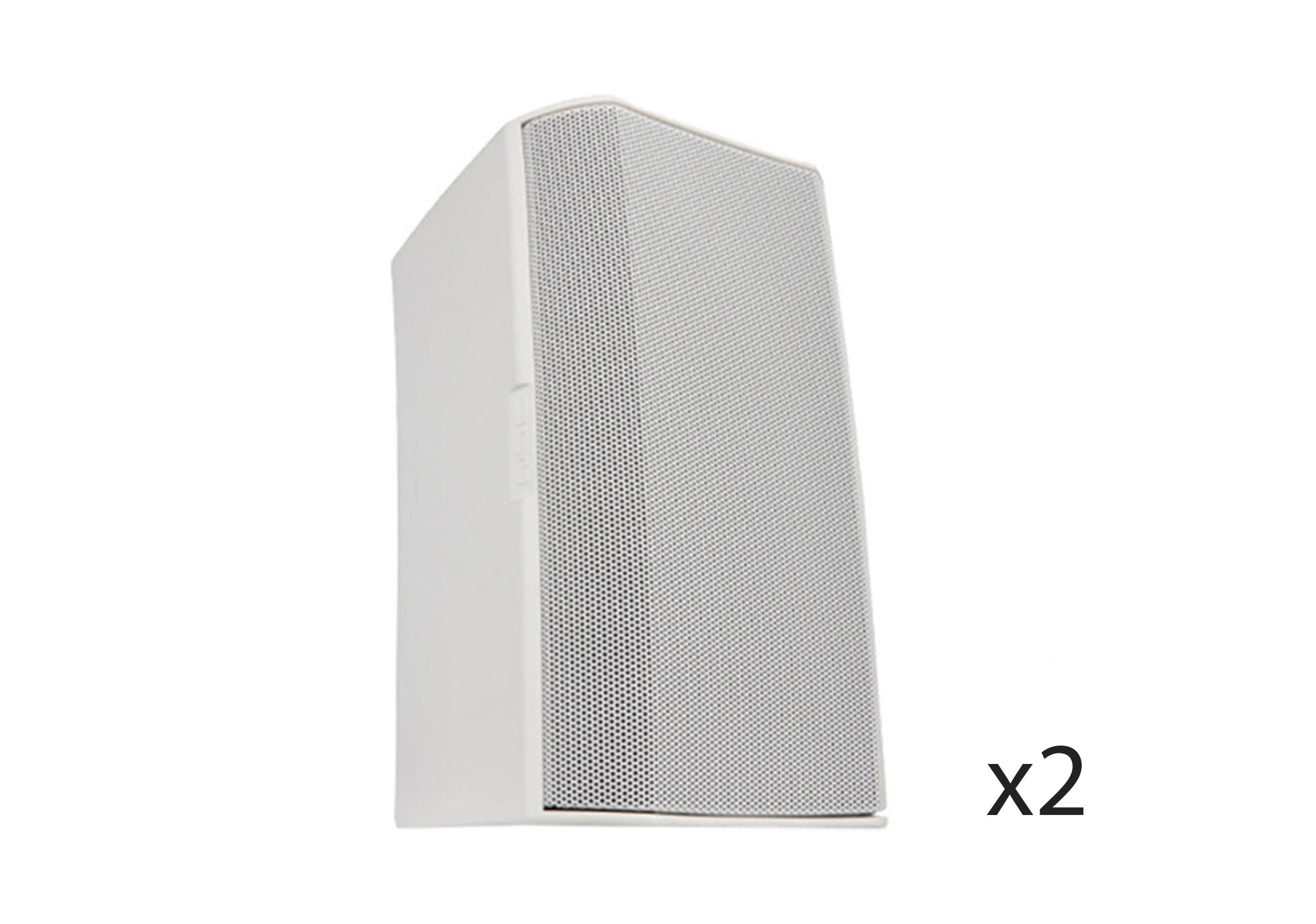

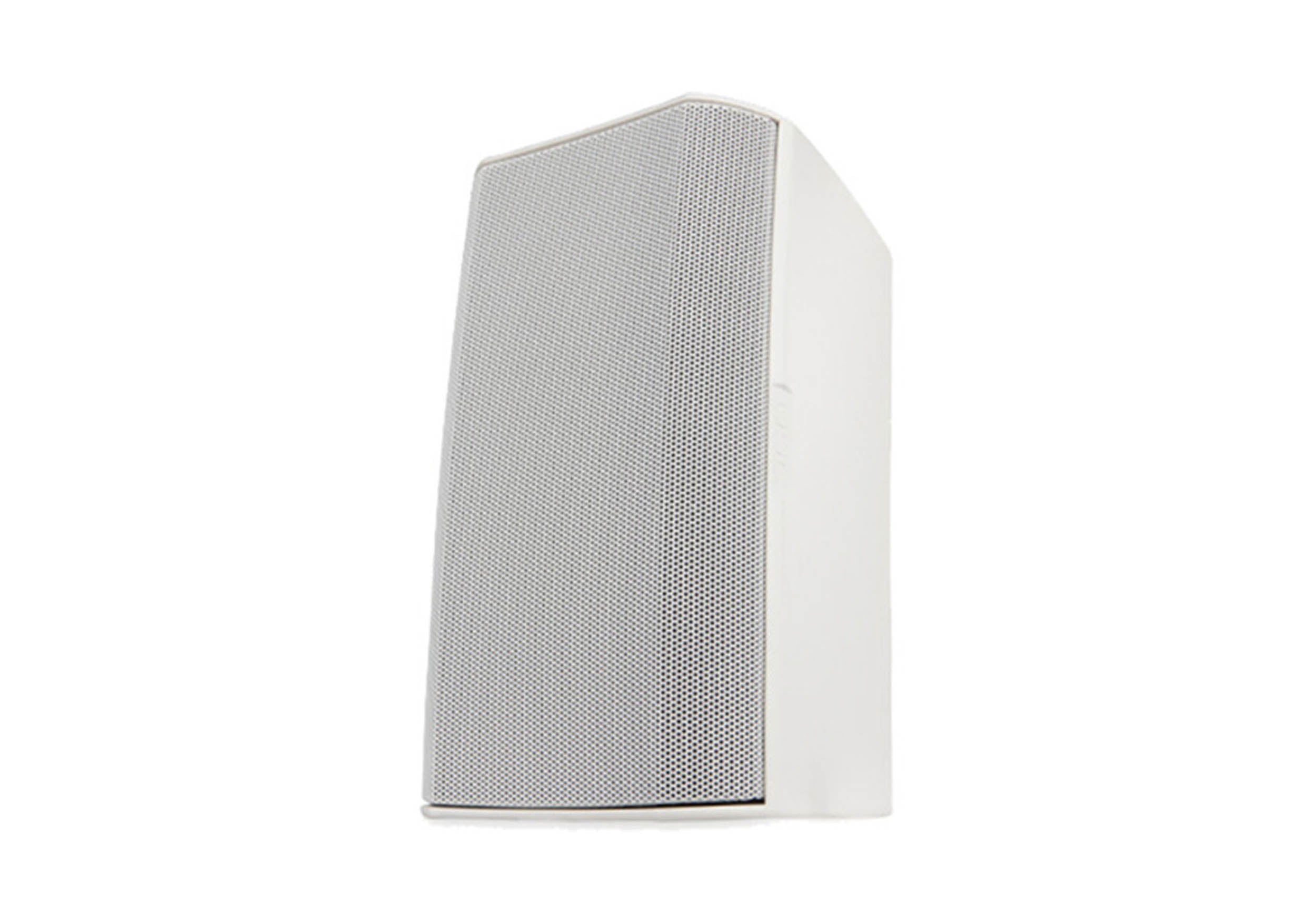

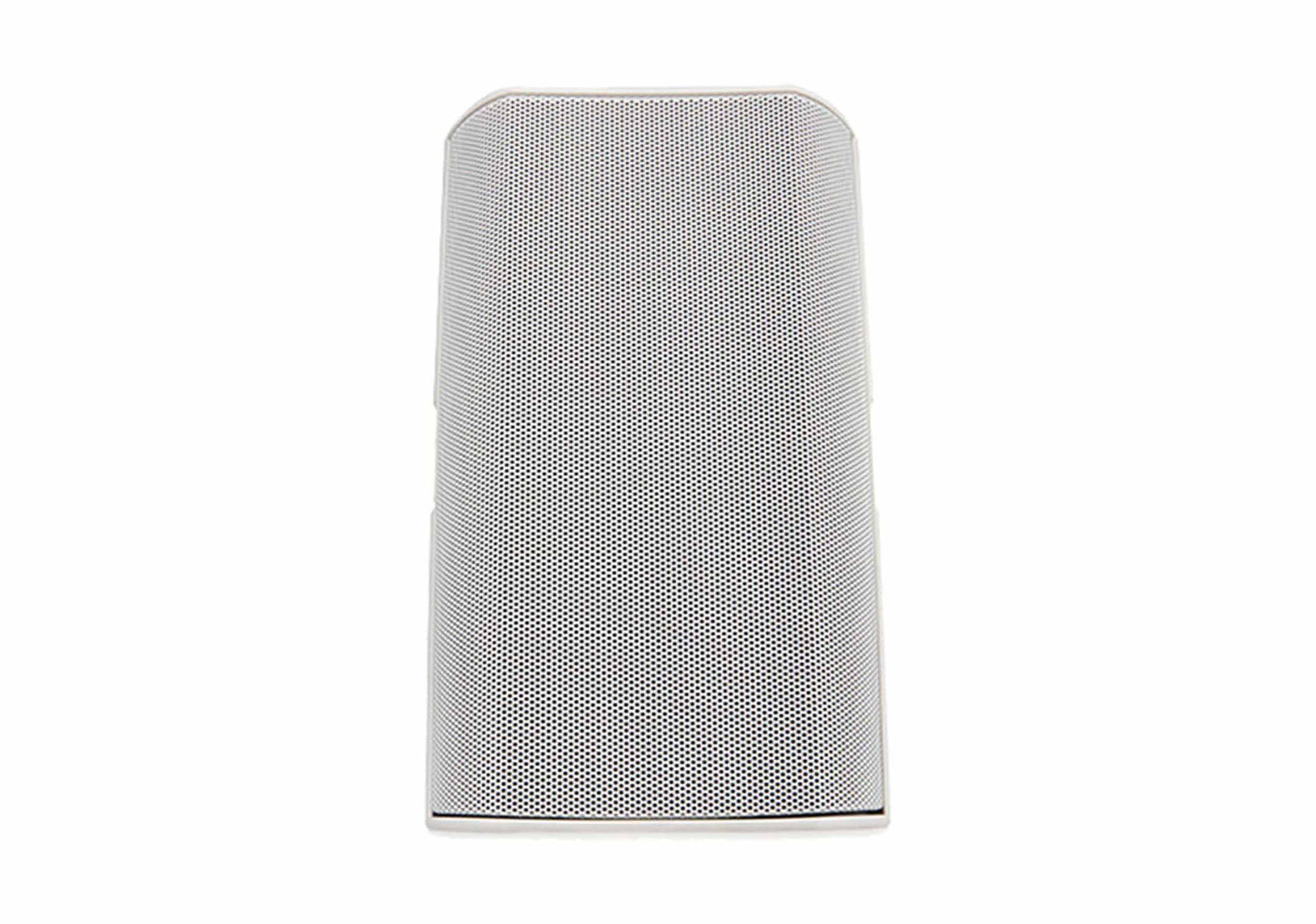

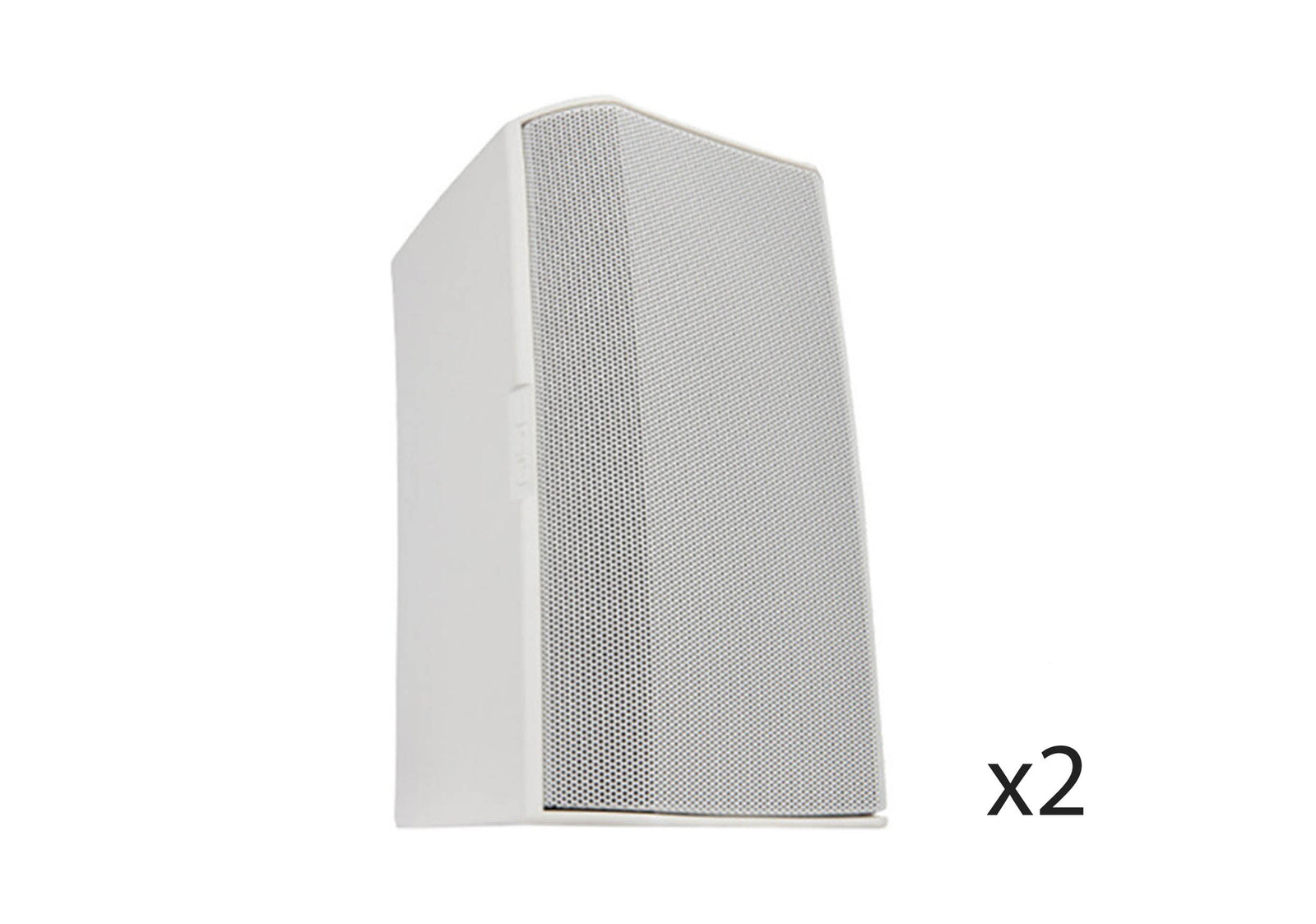

The QSC AD-S5T-WH Acoustic Design Series 5.25" 2-Way 100W Surface-Mount Loudspeaker - White is a pair of transformer-equipped, 5.25" surface-mount loudspeakers supplied with award-winning X-Mount systems, making them suitable for 70/100V or 8-ohm operation in a variety of foreground and background music applications, whether installed in horizontal, vertical, wall, or ceiling deployments.
Outfitted with a 5.25" weather-treated woofer and a 1" silk dome tweeter on a DMT waveguide, the AD-S5T offers even 115° conical coverage and improved off-axis response while providing a frequency range of 65 Hz to 20 kHz (-10 dB). The speaker is capable of handling 100W RMS and producing a peak maximum SPL of 116 db.
The AD-S5T utilizes a 4-pole Euroblock connector under a sealed input cover for easy wiring and protection from moisture. Featuring a rugged ABS enclosure and a powder coated aluminum grille, the AD-S5T boasts dust and splash resistance beyond IP54 ratings for worry-free operation indoors or outside.
Product Specifications:
Active or Passive: Passive
Number of Included Speakers: 2
Speaker Configuration: 2-Way
Impedance: 8 Ohms (Transformer Bypassed)
Enclosure Type: Sealed
Shielded: No
HF Driver: 1 x 1" / 2.5 cm Horn-Loaded Silk Dome Tweeter
HF Voice Coil: 1" / 2.5 cm
LF Driver: 1 x 5.25" / 13.34 cm Paper Woofer
LF Voice Coil: 1" / 2.54 cm
Magnet: Neodymium
Frequency Range: 65 Hz to 20 kHz -10 dB
Maximum SPL:
106 dB (Continuous)
116 dB (Peak)
Sensitivity: 86.3 dB SPL
Coverage Angle: 115° (Conical)
Directivity:
6.9 (Directivity/Q Factor)
8.4 dB (Directivity Index)
I/O: 1 x Block 4-Pole Speaker Input/Thru (Removable)
IP Rating: IP54
Operating Temperature: -4 to 122°F / -20 to 50°C
Color: White
Mounting: 1 x Bracket Point (Rear)
Construction Material: ABS, Aluminum Grille, Polymer
Product Dimensions: 11.26 x 6.88 x 6.85" / 28.6 x 17.48 x 17.4 cm
Product Weight: 9.9 lb / 4.5 kg (Each Speaker)
Shipping Weight: 20.33 lbs.
Shipping Dimensions (LxWxH): 18.5 x 16.1 x 10.7 Inches
