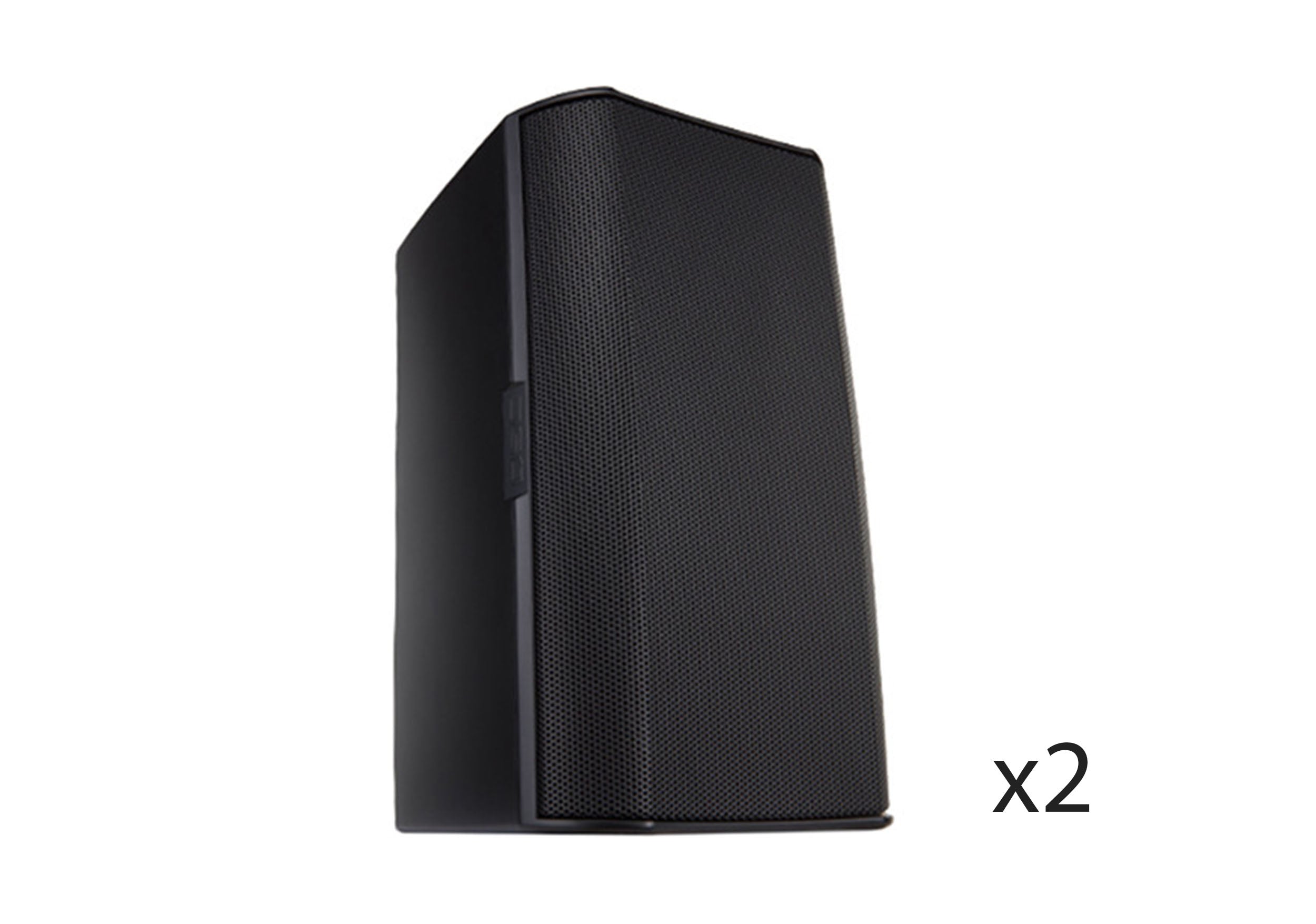

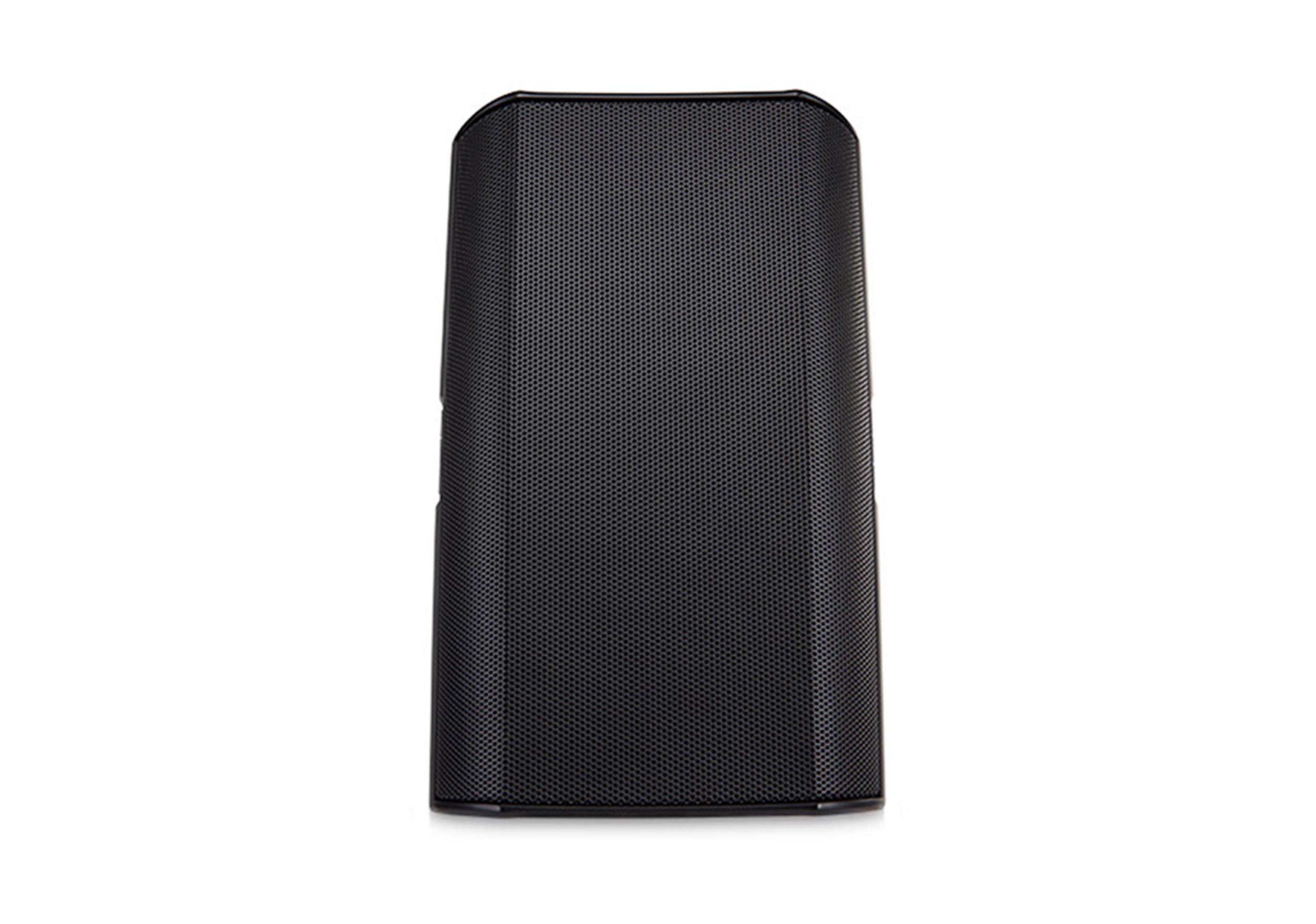

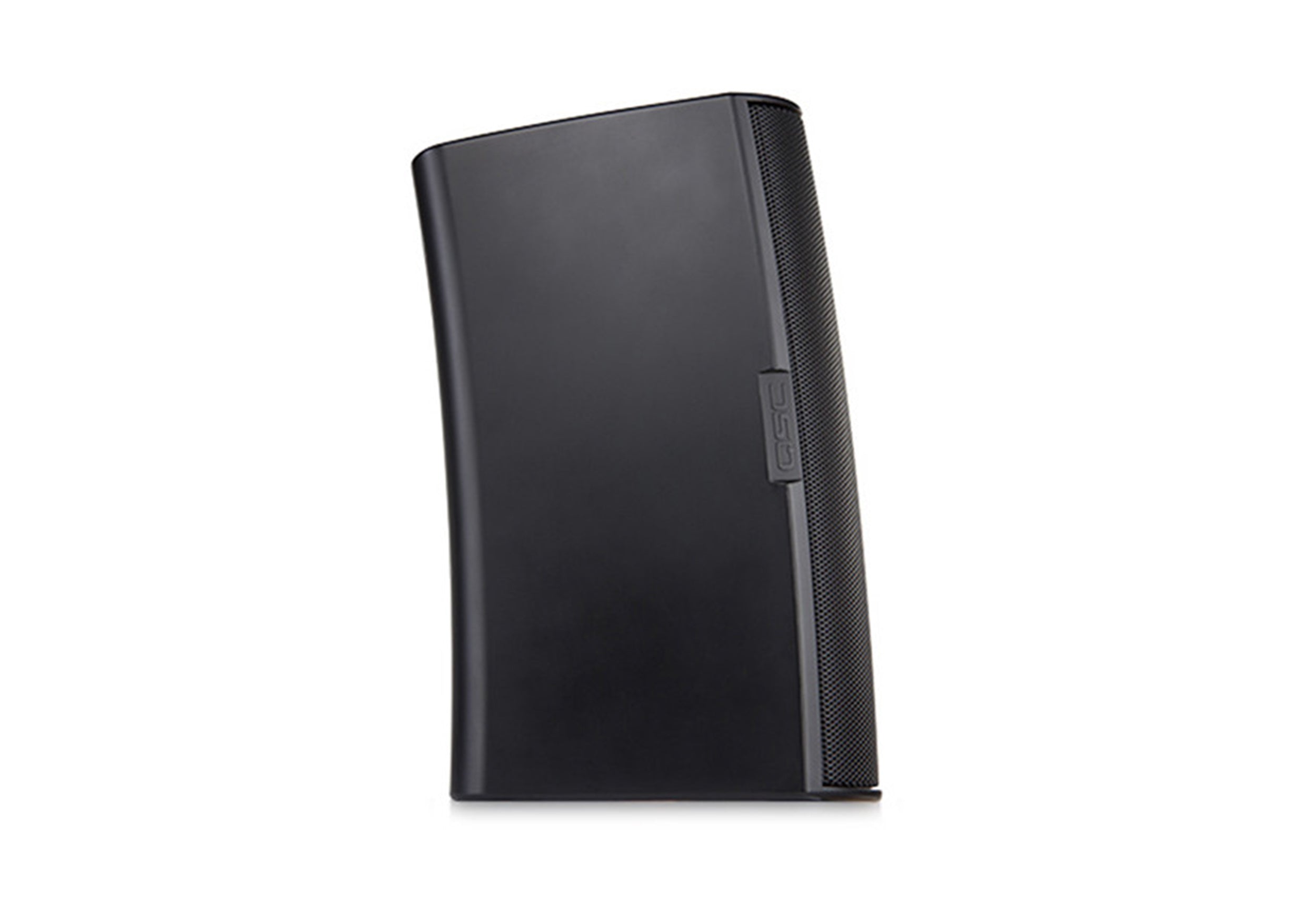

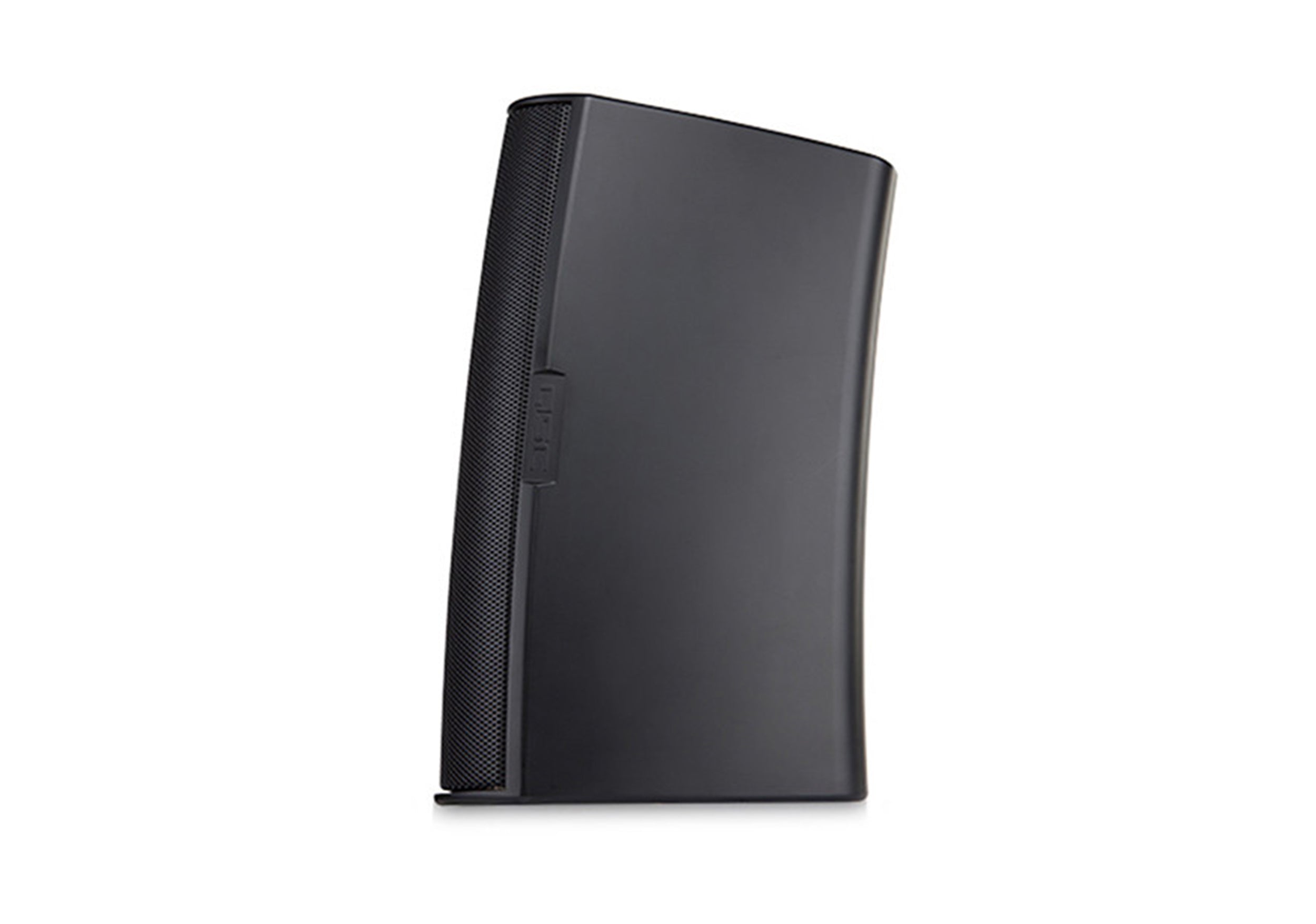

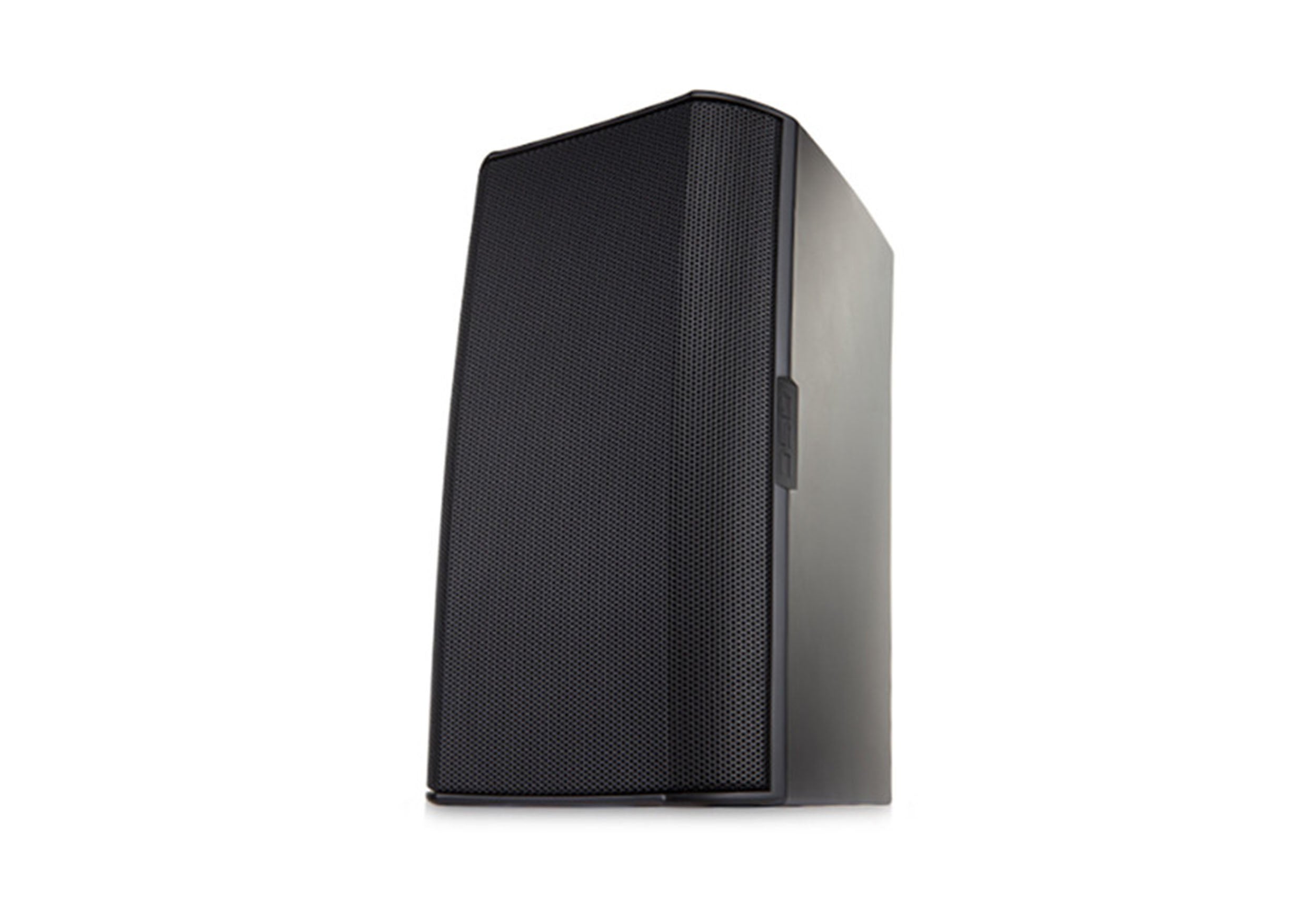

QSC AD-S6-BK 6.5" Two-Way Surface Mount IP54 Passive Speakers - Pair

The QSC AD-S6-BK 6.5 Inch Two-Way Surface Mount IP54 Passive Loudspeakers - Pair Black is a surface mounted, 16-ohm, 6.5" passive two-way loudspeaker system ideally suited for a wide variety of foreground and background sound reinforcement applications, including restaurants, retail, audio/visual, education, concourses, casinos, transportation terminals, houses of worship, and large system ancillary support. Designed for integrators looking for a premium-quality installed sound solution where coverage, performance, and aesthetics are paramount. The speakers are easy to install and offer high weather resistance (IP54) for use outdoors.

Each speaker utilizes a separately available 150W amplifier to power the 6.5" weather treated paper cone woofer and a 1" silk-dome tweeter, which have matching sensitivity and performance for remarkable sound reproduction with a wide frequency range (58 Hz to 20 kHz) and a powerful peak SPL (116 dB). With a 16-ohm rating, each speaker is designed for distributed systems without the need for a transformer, offering optimal sonic performance.

The included X-Mount system achieves an unprecedented ease-of-installation in either horizontal, vertical, wall, or ceiling deployments. The knurled surfaces at the pivot planes ensure the load will not drift or sag over time; the articulation marks allow pre-configuration of the X-Mount, while on the ground with no special tools required. Once secure, the loudspeaker installs in seconds, allowing the installer to work safer, smarter, and faster with repeatable results.

The AD-S6 speakers feature QSC's Directivity Matched Transition (DMT) to matches the coverage angle of the woofer at the crossover frequency with the horn pattern to ensure a uniform response across the coverage area. Additionally, the speakers are compatible with QSC's Q-Sys platform, which is included in CXD Series amplifiers. The advanced voicing filter sets from Q-Sys's Intrinsic Correction techniques ensures a smooth power response, resulting in accurate performance in a wide range of acoustic spaces with little or no EQ.

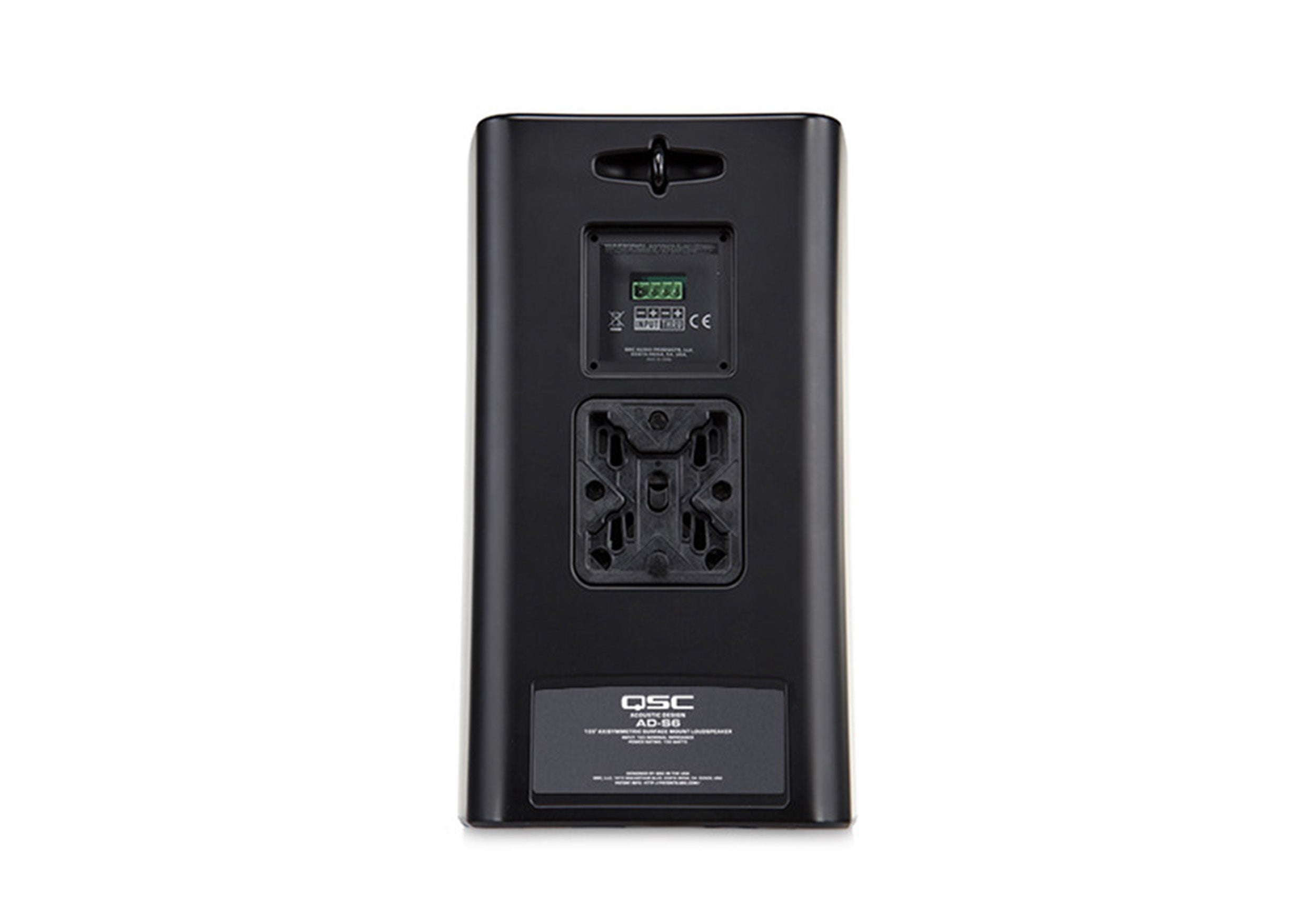

The rear panel utilizes a four-pin Euro block connector for input and thru-output for connecting additional speakers. A rugged ABS enclosure provides long-term durability. What's more, each speaker includes a sealed input panel cover to protect the speaker's input section from the elements. A powder coated aluminum grille adds additional weather protection from dust and splashes.

Product Specification:

Active or Passive: Passive

Number of Included Speakers: 2

Speaker Configuration: 2-Way

Power Handling:

150 W RMS: 300 W Program

Recommended Amplifier Power: 300 W

Impedance: 16 Ohms

Enclosure Type: Sealed

HF Driver: 1x 1" / 25.4 mm Waveguide-Coupled Silk Dome Tweeter

HF Voice Coil: 1" / 25.4 mm

LF Driver: 1x 6.5" / 165.1 mm Paper Woofer

LF Voice Coil: 1.5" / 38.1 mm

Frequency Range: 58 Hz to 20 kHz

Maximum SPL:

116 dB SPL (Peak)

110 dB SPL (Continuous)

Sensitivity: 89 dB SPL (Average)

Coverage Angle: 105° (Conical)

Directivity:

7 dB (Directivity Index)

5 dB (Directivity/Q Factor)

Maximum Input Voltage: 49 V RMS

Inputs/Outputs: 1x Block 4-Pin Speaker Input/Thru

IP Rating: IP54

Environmental Resistance: Dust/Water-Resistant (IP54)

Operating Temperature: -4 to 122°F / -20 to 50°C

Mounting: Ball Mount (Rear)

Construction Material:  ABS, Aluminum

Color: Black

Product Dimensions: 14.4 x 8.5 x 8.5" / 36.58 x 21.59 x 21.59 cm

Product Weight: 11.6 lb / 5.3 kg

Shipping Dimensions (LxWxH): 22.8 x 20.1 x 12 Inches

Shipping Weight: 29.475 lbs.
